1 PLATFORM MECHANICS PLATFORM MECHANICS PLATFORM �� 2 KEY TO PLATFORM 980mm COMPONENTS ��2 REMOVING THE 980 mm PLATFORM �� 4 REMOVING THE CAMS, GUIDE RAILS AND PLATFORM SLIDING CYLINDER �� 6 SERVICE

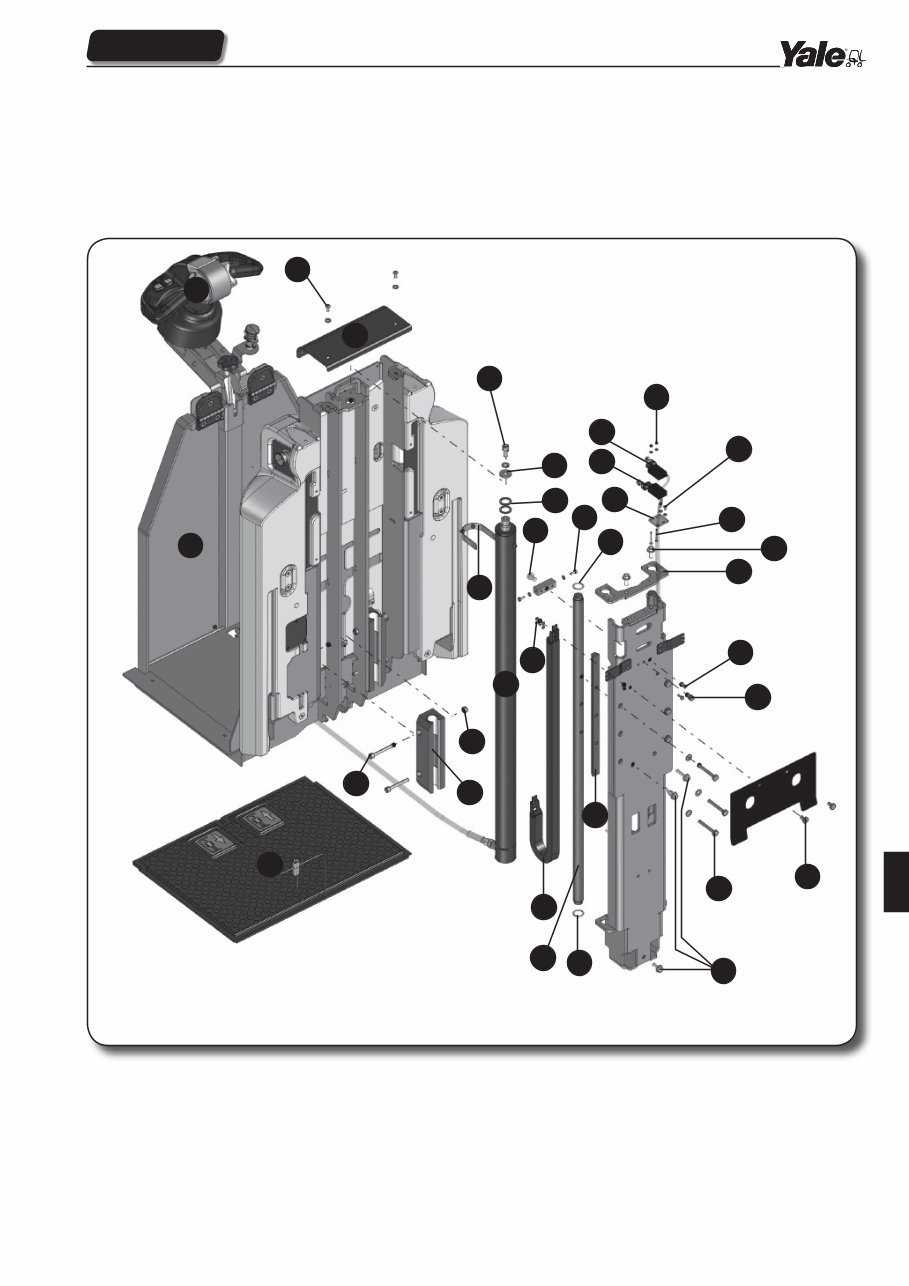

2 PLATFORM MECHANICS PLATFORM KEY TO PLATFORM 980mm COMPONENTS Ref� Description 1 Scooter Control 2 Baseboard of Scooter Control lifting with the platform (optional) 3 Platform with controls and man on board sensor 4 Upper cover fastening screw 5 Upper cover 6 Platform sliding cylinder guide rail fastening screw 7 Platform sliding cylinder guide rail fastening nut 8 Platform sliding cylinder guide rail 9 Hydraulic cylinder locking bracket 10 Hydraulic diagram for platform lifting 11 Hydraulic cylinder rod fastening screw 12 Upper shim 13 Lower shim 14 Hydraulic cylinder block buffer 15 Cable holder chain fastening screw 16 Cable holder chain 17 Platform sliding cylinder 18 O-ring 19 Platform sliding cylinder support cam 20 Hydraulic cylinder lock bracket fastening nut 21 Microswitch fastening nut 22 980 mm lift platform microswitch 23 Raised platform microswitch 24 Microswitch plate 25 O-ring 26 Microswitch plate fastening screw 27 Microswitch fastening screw 28 Upper plate ﬂanged fastening screw 29 Upper plate 30 Hydraulic cylinder lock bracket assy fastening nut 31 Hydraulic cylinder lock buffer adjusting screw 32 Pipe holder chain locking plate 33 Pipe holder chain locking plate fastening screw 34 Screw fastening the chain sliding cylinder and cam to the chassis 35 Screw fastening the platform assy to the chassis SERVICE

3 PLATFORM MECHANICS 5 32 10 4 2 3 35 1 11 12 13 14 20 25 24 23 22 21 26 27 28 29 30 31 33 34 18 17 16 19 15 7 8 6 9 SERVICE

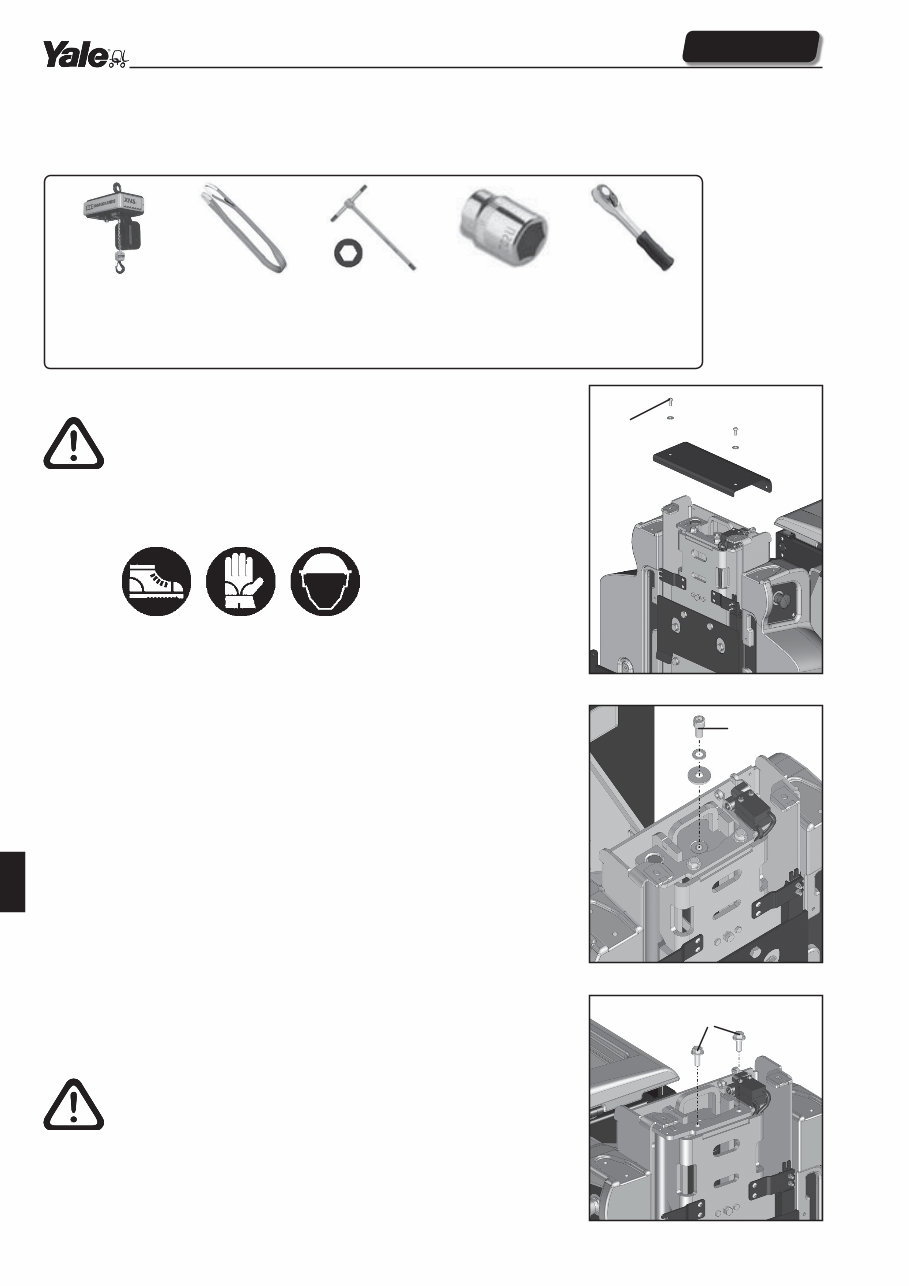

4 PLATFORM MECHANICS REMOVING THE 980 mm PLATFORM Equipment and tools hexagonal "T" section spanner 3-5-10 mm hex bit socket 15 mm ratchet tackle load capacity 1000 kg lift belt load capacity 1000 kg Procedure Before starting work, ensure that you are wearing suitable protective clothing� Move the truck to a safe place, away from areas of transit of other vehicles and pedestrians� Lower the clamps and platform to the ground� Turn the keyswitch to OFF and disconnect the battery� Phase 1 5mm T HANDLE HEX KEY Using the hexagonal T spanner, unscrew and remove the screws securing the upper cover of the cylinder (ref.A fig.1)� Remove the cover� Phase 2 HEXAGONAL 10 MM "T" SECTION SPANNER - 15 mm SOCKET WRENCH - RATCHET Using the hexagonal "T" section spanner remove the 4 screws securing the module to the truck chassis (ref.A fig.2) and recover the washers� Using the socket wrench and the ratchet, unscrew the screws securing the reduction unit to the chassis (ref.D fig.4)� Place the plate and switches to one side and remove the o-rings from the two platform sliding rods (ref.D fig.4)� Take care of any cables and if needed disconnect the connectors and slide the cables out with the platform� Fig� 1 A Fig� 2 B C Fig� 3 SERVICE

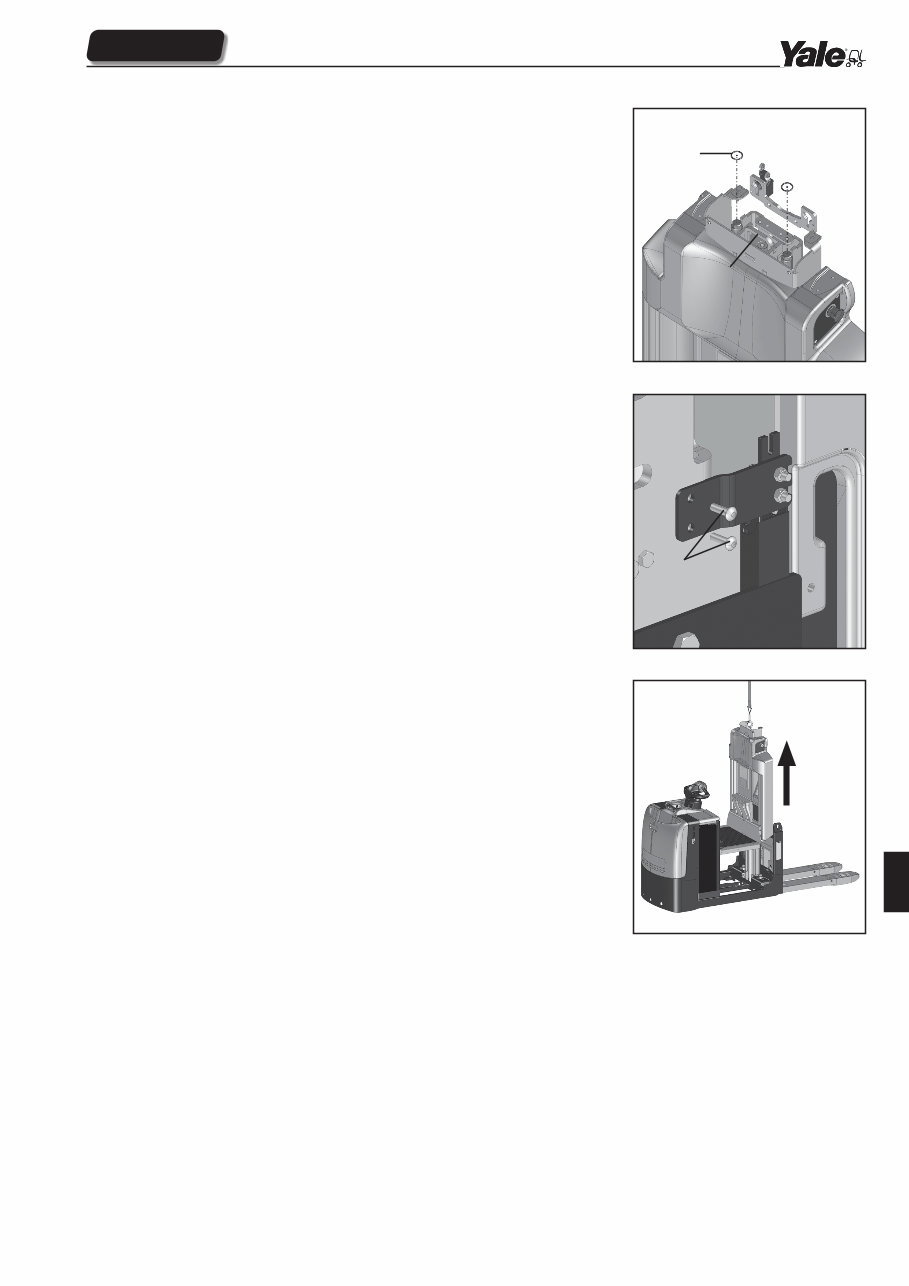

5 PLATFORM MECHANICS Phase 3 SLING - LIFT BELTS - HEXAGONAL 3 mm "T" SECTION SPANNER With the T handle hex key, unscrew and remove the screws securing the cable holder chain (ref.E fig.5)� Harness the platform with the lifting belt using the handle (ref.F fig.4)� Place the perpendicular sling on the handle, hook the belt to the sling and lift until the sliding cylinders come out of the guide rails (fig.6)� Phase 4 TACKLE - LIFT BELT Place the platform on the ground and proceed with replacement� D E Fig� 4 Fig� 5 Fig� 6 F SERVICE
