Linde Electric Order Picker Type 145: N20N Operating Instructions (User Manual)

1 Betriebsanleitung Operating instructions Notice d'instructions Type 145 N 20 N 145 804 25 10 10/95 ð 07/97

3 Acceptance of the lift-truck Before leaving our factory, the truck is subjected to detailed checks in order to ensure that the equipment reaches you in perfect operational condition and fully equipped as ordered. Your local representative will then conduct a final inspection and, on delivery of the equipment, will provide you with all necessary infor- mation for its operation and servicing. In order to avoid any subsequent claims, please make a careful and personal inspection in order to ensure that the truck is in perfect order, complete with all fittings, at the time of delivery. The truck is supplied with the following documents: 1 - Operating manual. 1 - Spare parts catalogue. 1 - Battery servicing manual (electric trucks delivered with battery). 1 - Charger instruction manual (for trucks delivered with separate chargers). 1 - Certificate of conformity (manufacturer’s certifi cation that the machine complies with European standards). 1 - VDMA booklet regarding directives on the use of Handling Trucks in accordance with specified applications and regulations. We wish you good use and complete satisfaction. Technical notes It is expressly prohibited to photocopy, translate or convey this manual or any part thereof to a third party without written permission from LINDE. LINDE is constantly striving to improve its products. For this reason, we reserve the right to modify designs, equipment and technical specifications without notice. Consequently, no claims can be entertained in relation to the specifications, illustrations or descriptions appearing in this manual. If you have any queries about your truck, or any orders for spare parts, please submit these to your local representative along with your address. For repairs, be sure to use only original LINDE parts. Only by doing so will you be able to maintain your truck to its technical standard when first delivered. When ordering spare parts, give the following infor- mation in addition to the part numbers: - Truck type: - Manufacturer’s number / year of manufacture: - Mast serial number: (for fork-lift trucks). Upon delivery of your truck, we suggest that you make a note of its numbers on this page. LINDE truck offers you the best in performance, safety and driving comfort. It is up to you to ensure a long life for these qualities, and to learn how to make the most of their benefits. Accessories must be used in conformity with the directions for use supplied with the equipment. Follow the instructions applicable to the truck delivered to you, and carry out regular inspections and services in accordance with the maintenance schedule, using the specified materials. This manual contains everything you need to know about running in, driving, servicing and maintaining your truck. Where they appear in the text, the terms ‘front’, ‘rear’, ‘right’ and ‘left’ refer to the fitted position of components in relation to the forward motion of the truck. Special uses The LINDE lift-truck is designed for stacking and transporting the loads indicated in the “load capacity” table. Please pay attention to the VDMA booklet “Safety rules governing the use of handling trucks”. The safety rules governing the use of handling trucks must be observed by service personnel and by the user. The user must take responsibility for any failure to observe these rules; in this event, the manufacturer disclaims all responsibility. Should you wish to use the truck for operations other than those indicated in the directions for use, please contact your local representative. No modification may be made on your truck, in particular the fitting of accessories, or any structural changes, without the manufacturer’s approval. Servicing operations must be carried out by qualified personnel authorised by LINDE. These operations must be recorded in a service booklet, as both the validity of the guarantee and the perfect operation of the equipment depend on their being properly carried out. YOUR

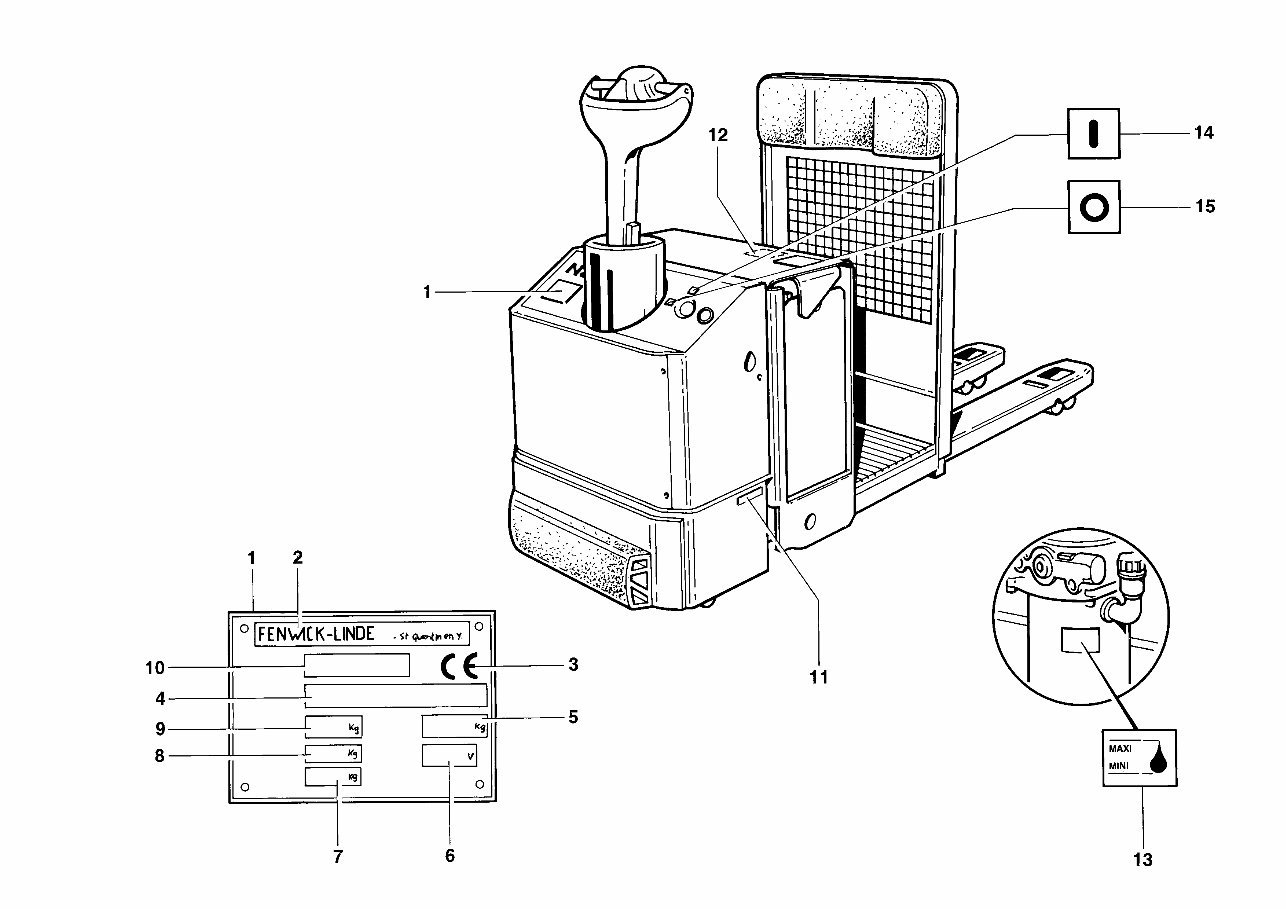

6 PLAQUES ET ETIQUETTES Plaques d'identification 1. Plaque d'identification 2. Constructeur 3. Sigle CE ( ce sigle certifie que la machine est conforme à la réglementation eu- ropéenne concernant les chariots de manutention ) 4. N° de série / année 5. Masse à vide 6. Tension de la batterie 7. Masse de la batterie mini. 8. Masse de la batterie maxi. 9. Capacité nominale du chariot 10. Modèle 11. N° de fabrication (gravé) Etiquettes 12. Etiquette d'élingage 13. Etiquette niveau d'huile 14. Etiquette contact à clé ouvert 15. Etiquette contact à clé fermé Nota : vérifier régulièrement que l'appareil en service est bien muni de ces différentes plaques et étiquettes. SCHILDER UND ETIKETTE Typenschilder 1. Fabrikschild 2. Hersteller 3. EG-Kennzeichnung (Dieses Schild bescheinigt, daß das Gerät den europäischen Vorschriften über Flurförderzeuge entspricht) 4. Serien-Nr./Baujahr 5. Leergewicht 6. Batterie-Spannung 7. Mindestgewicht der Batterie 8. Höchstgewicht der Batterie 9. Nennwert der Tragfähigkeit 10. Modell 11. Fahrgestellnummer (eingraviert) Etikette 12. Etikett für Kranverladung 13. Etikett für Ölstand 14. Etikett für Schlüsselschalter offen 15. Etikett für Schlüsselschalter geschlossen Hinweis: An einem im Einsatz befindlichen Fahrzeug ist regelmäßig sicherzustellen, daß die verschiedenen Schilder und Etikette vorhanden sind. PLATES AND LABELS Identification plates 1. Identification plate 2. Manufacturer 3. EC mark (this plate certifies that the machine conforms to European regulations applicable to fork lift trucks) 4. Serial number / year 5. Unladen weight 6. Battery voltage 7. Minimum battery weight 8. Maximum battery weight 9. Nominal load capacity of truck 10. Model 11. Manufacturer’s number (stamped) Labels 12. Slinging label 13. Oil level label 14. Spare key open label 15. Spare key closed label Note: regularly check that the equipment in service is fitted with these various plates and labels.

7 SCHILDER UND ETIKETTE PLATES AND LABELS PLAQUES ET ETIQUETTES

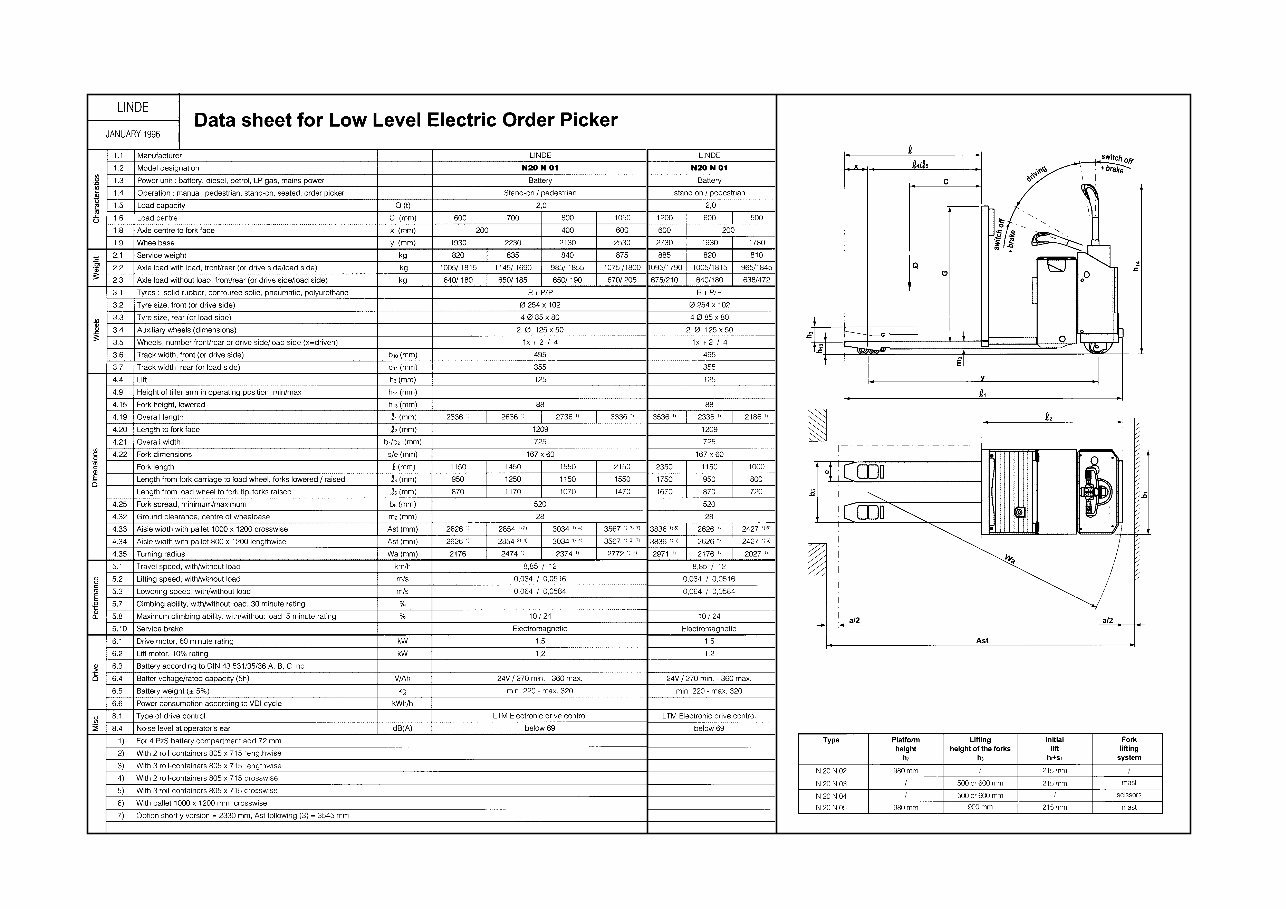

13 DESCRIPTION TECHNICAL DATA

16 The N 20 N low level order picker is designed to handle and transport loads up to a maximum of 2000 kg inside warehouses, depots and factories. Its extremely compact dimensions and small turning radius make this a very useful truck, particularly suitable for use in narrow passages. The standard order picker is supplied with a fixed driving platform, version N 20 N 01. Three other optional versions are available: - N 20 N 02, with hydraulically controlled, folding driving platform* - N 20 N 03, with hydraulic load lifting device* - N 20 N 04, with hydraulically controlled shears*. A step* for access to the upper platform on the battery box and a safety guard* are also available as options. Drive: The 1.5 kW drive motor is mounted vertically on the reduction gear unit. The driving wheel is driven via a 2- stage gear unit. Power is supplied by a 24-volt lead-acid battery with a capacity of 200 - 360 Ah. This battery is housed on the driving platform. The supply to the motor is controlled by the electronic LTM control with MOSFET transistors, which provides lively starting, progressive speed control, and proportional countercurrent braking. Steering: A robust and ergonomical twin-grip tiller steers the driving wheel directly. Lifting: The lever and push-bar lifting system is actuated by 2 hydraulic cylinders. The lifting cylinders are fed by a 1.0 kW pump motor unit. The hydraulic system is an integrated unit comprising motor, reservoir, pump, valves and filter. Braking: The N 20 N is fitted with 3 braking systems: - Safety/parking braking, provided by an electromagnetic brake which is actuated when the electrical power is interrupted. This brake is automatically engaged when the tiller is released . - Electronic countercurrent braking, triggered by a change in the direction of travel and controlled by the LBC brake unit and the LTM control unit. - Automatic braking activated when the accelerator switch is released, controlled by the LTM control unit. Driving: The truck may either be driven on the platform or steered with the operator alongside. The various controls - forward, reverse, fork lift and lower, and horn - are all mounted on the end of the tiller. When the operator is present on the platform, the driving speed is automaticly reduced of 6 Km/h after release of the pedal. An emergency-stop button completely cuts off the electrical circuit and actuates the brake when depressed. The truck is fitted with a combination hour meter / battery discharge limiter/indicator. TECHNICAL DESCRIPTION DESCRIPTION

18 GESAMTANSICHT N 20 N GENERAL VIEW N 20 N VUE GENERALE N 20 N

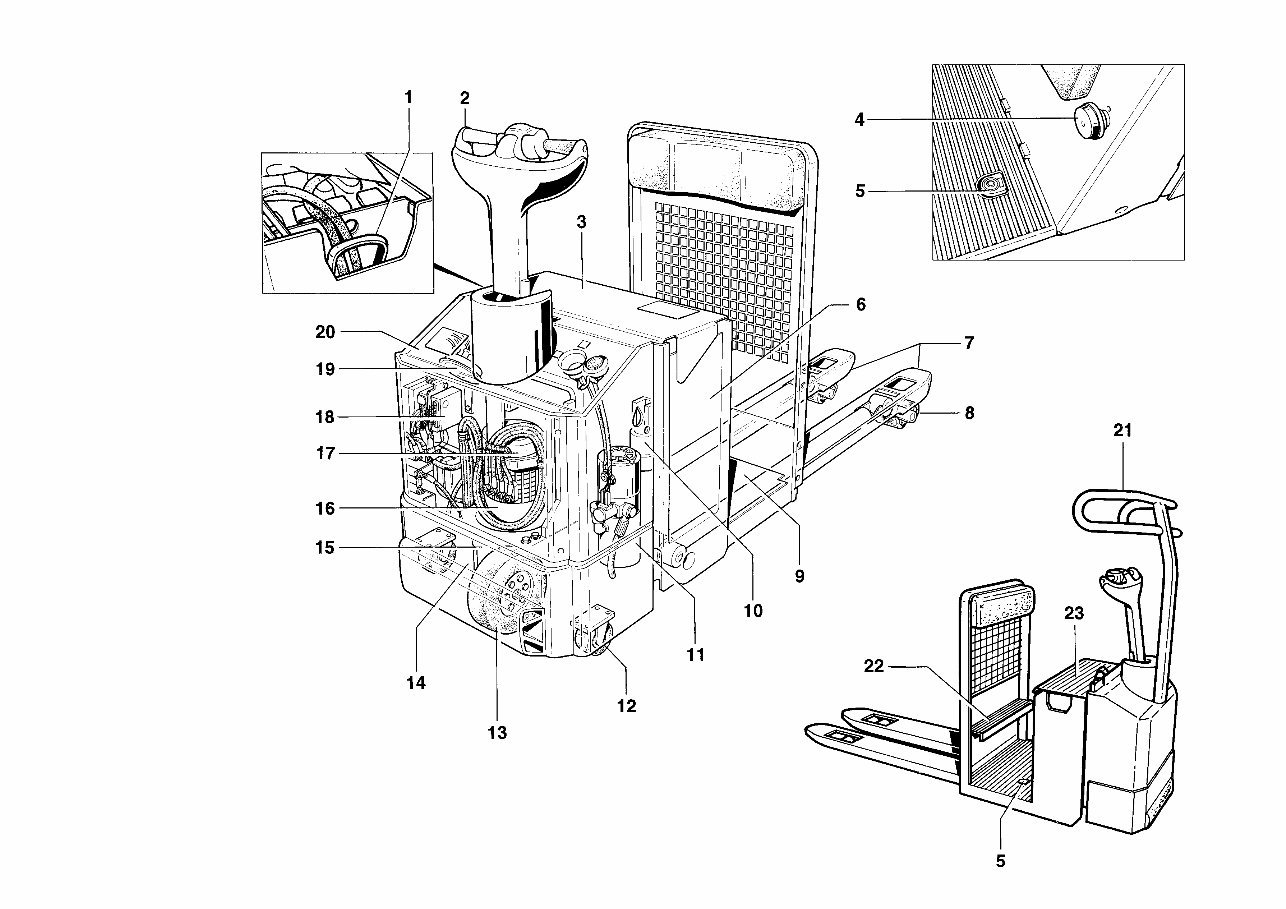

19 GESAMTANSICHT N 20 N 1. Batteriestecker 2. Deichsel 3. Batteriedeckel 4. Notabschaltungsknopf 5. Pedal für schnelle Geschwindigkeit 6. Batterie 7. Gabelzinken 8. Lasträder 9. Fahrerstand 10. Hubzylinder 11. Motorpumpenaggregat 12. Stützräder 13. Antriebsrad 14. Untersetzungsgetriebe 15. Vordere Haube 16. Fahrmotor 17. Elektromagnetische Bremse 18. Impulssteuerung 19. Hupe 20. Obere Abdeckung 21. Überrollschutz* 22. Trittbrett für Zugang zur oberen Plattform* 23. Obere Plattform* *ZUSATZAUSSTATTUNG GENERAL VIEW N 20 N 1. Battery connector 2. Tiller 3. Battery cover 4. Emergency stop button 5. Fast speed pedal 6. Battery 7. Fork arms 8. Load wheels 9. Driving platform 10. Lifting cylinders 11. Motor pump unit 12. Stabilisers 13. Driving wheel 14. Reduction gear 15. Front hood 16. Drive motor 17. Electromagnetic brake 18. Variator plate 19. Horn 20. Upper hood 21. Safety bow 22. Step for access to the upper platform* 23. Upper platform* *OPTIONS VUE GENERALE N 20 N 1. Prise batterie 2. Timon 3. Capot batterie 4. Bouton d'arrêt d'urgence 5. Pédale de vitesse rapide 6. Batterie 7. Bras de fourches 8. Roues porteuses 9. Plateforme de conduite 10. Vérins d'élévation 11. Groupe motopompe 12. Stabilisateurs 13. Roue motrice 14. Réducteur 15. Capot avant 16. Moteur de traction 17. Frein électromagnétique 18. Platine variateur 19. Avertisseur sonore 20. Capot supérieur 21. Arceau de sécurité* 22. Marche d'accés à la plateforme supérieure* 23. Plate-forme supérieure* *OPTIONS

20 BEDIENUNG / CONTROLS / COMMANDES

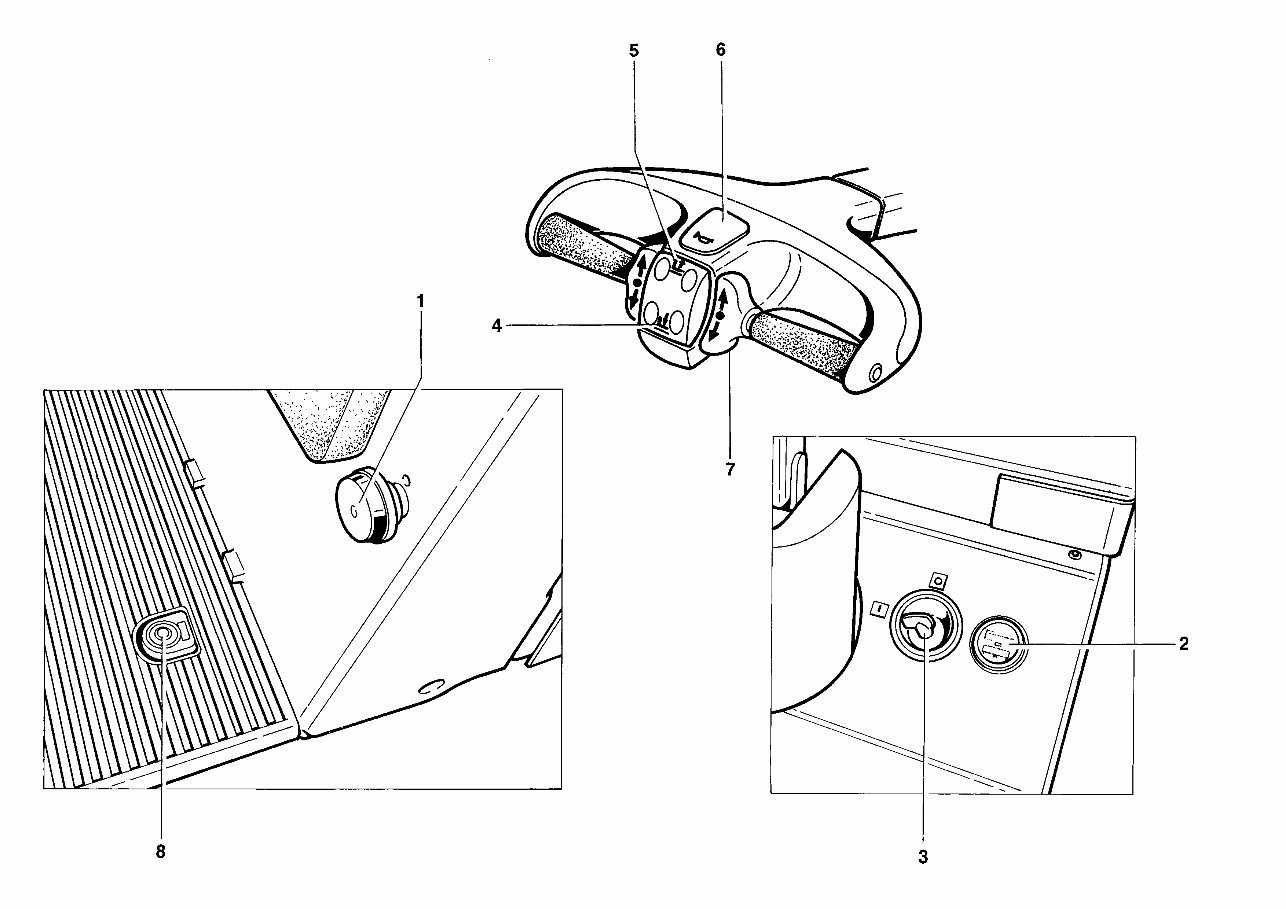

21 COMMANDES 1. Bouton d'arrêt d'urgence 2. Horamètre / indicateur de décharge 3. Clé de contact 4. Commande descente 5. Commande élévation 6. Commande d'avertisseur 7. Inverseur de marche / accélérateur 8. Pédale de vitesse rapide BEDIENUNGEN 1. Notabschaltungsknopf 2. Stundenzähler/ Batterieentladungsanzeiger 3. Schlüsselschalter 4. Betätigungsschalter Senken 5. Betätigungsschalter Heben 6. Hupenknopf 7. Fahrtrichtungsschalter/ Fahrgeber 8. Pedal für schnelle Geschwindigkeit CONTROLS 1. Emergency stop button 2. Hour meter / discharge indicator 3. Key switch 4. Lower control 5. Lift control 6. Horn control 7. Direction reversal / accelerator control 8. Fast speed switch control
