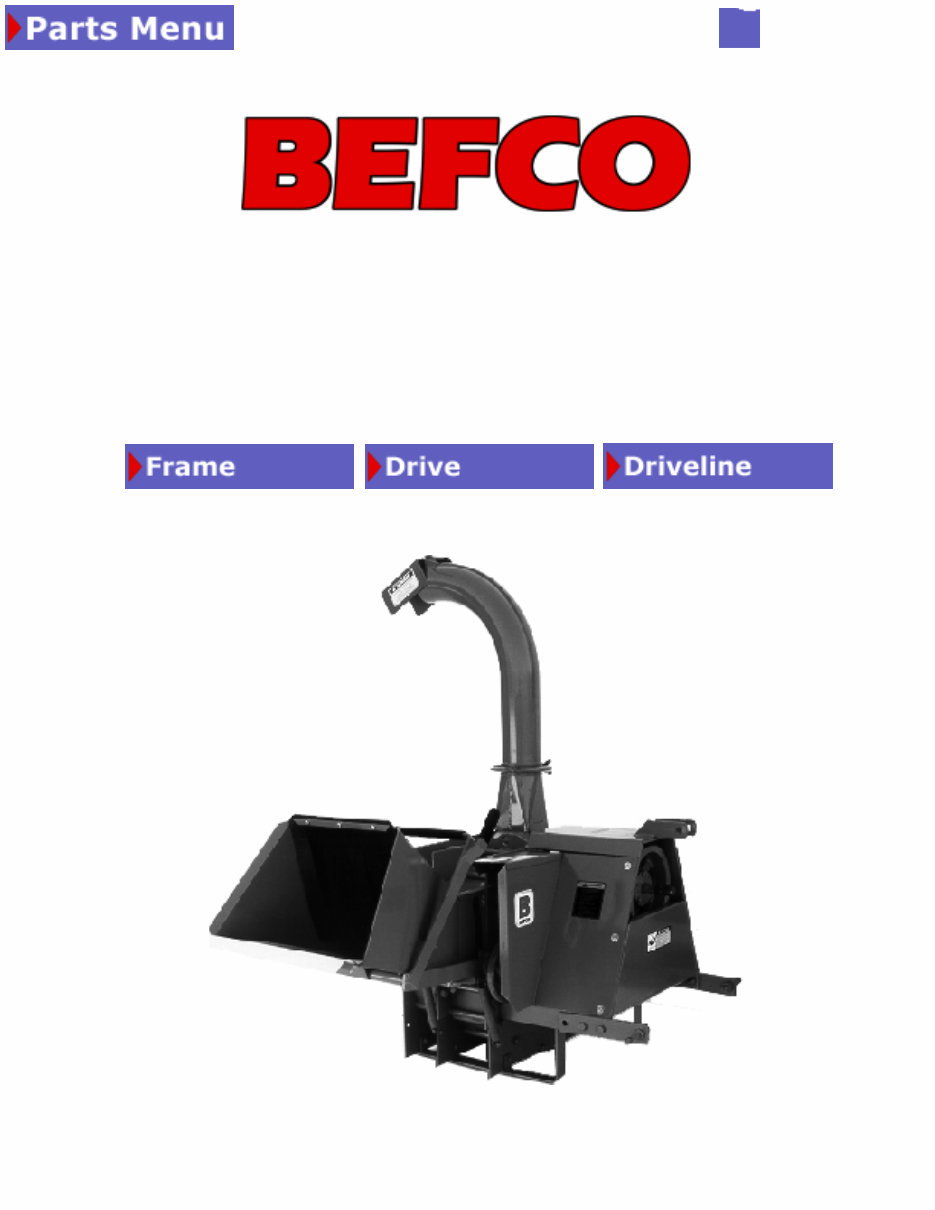

Parts Manual
BM6-800
Bushmaster Chipper
Edition: May 2002
2
Bushmaster
19-BM6-800

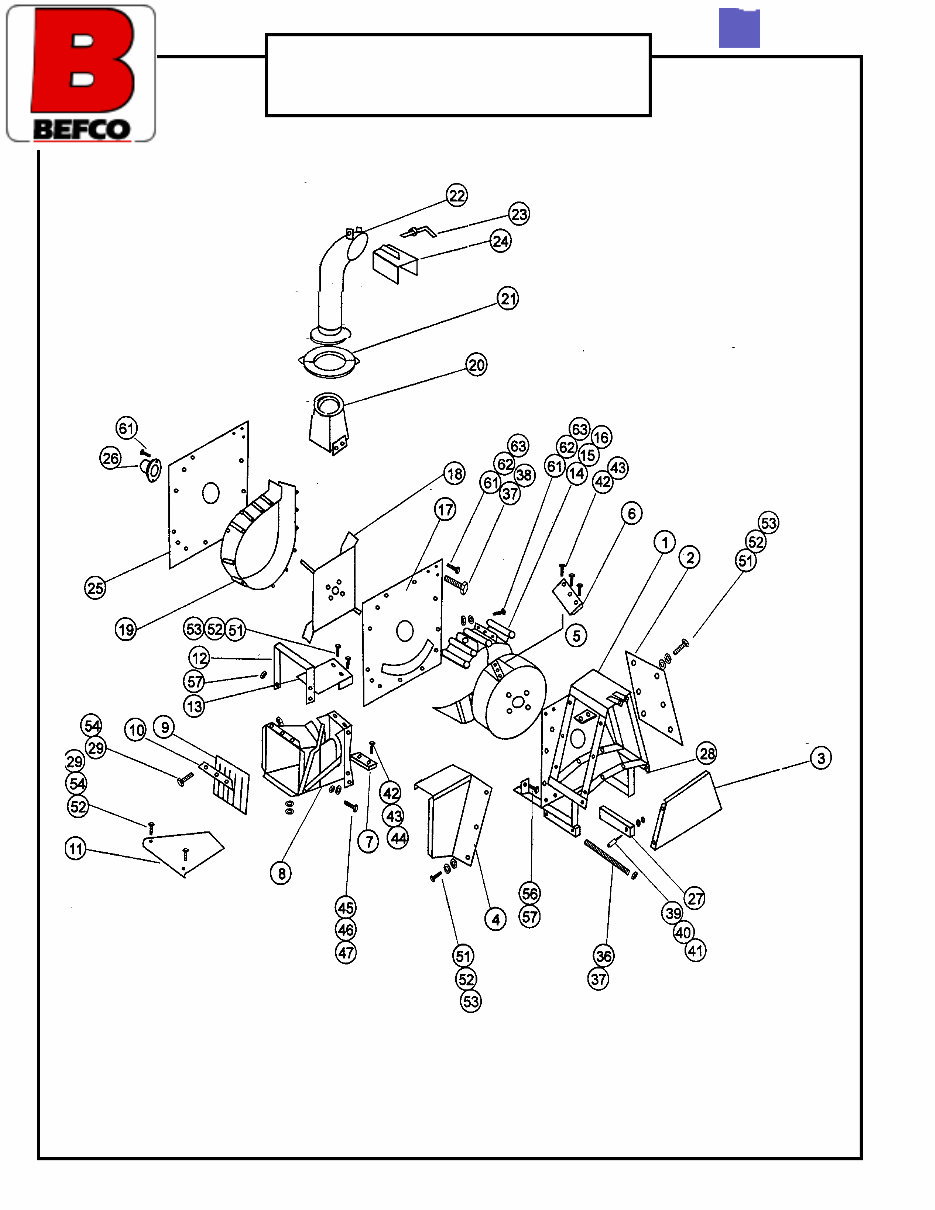

Main Frame
3
ITEM# PART # DESCRIPTION QTY
1 502-822B MAIN FRAME 1
2 502-823B LEFT SIDE GUARD 1
3 502-824B FRONT GUARD 1
4 502-825B RIGHT SIDE GUARD 1
5 502-826B CHIPPER DRUM 1
6 502-768B CHIPPER BLADE 2
7 502-769B CHIPPER ANVIL 1
8 190-2041 CHIPPER CHUTE 1
9 190-2042 CHIPPER SKIRT 1
10 190-2043 SKIRT MOUNT BOX 1
11 190-2044 CHUTE WEAR PAD 1
12 502-831B FEED ROLLER ENGAGE HANDLE 1
13 502-832B CHIPPER CHUTE TOP COVER 1
14 502-833B DRUM SHROUD TOP SECTION 1
15 502-834B DRUM SHROUD MID SECTION 1
16 502-835B DRUM SHROUD BOTTOM SECTION 1
17 502-836B DIVIDER PLATE 1
18 502-837B FAN 1
19 502-838B FAN SHROUD 1
20 502-839B DISCHARGE TRANSITION 1
21 502-840B MOUNT CLAMP 1
22 502-841B DISCHARGE PIPE 1
23 502-842B DEFLECTOR SCREW HANDLE 1
24 502-843B DEFLECTOR 1
25 190-1127 REAR PANEL 1
26 190-1126 REAR PANEL CAP 1
27 502-223B HITCH BLOCKS 2
28 190-1140 SKID 2
29 009-2208 BOLT 8M X 20 7
Bushmaster
19-BM6-800

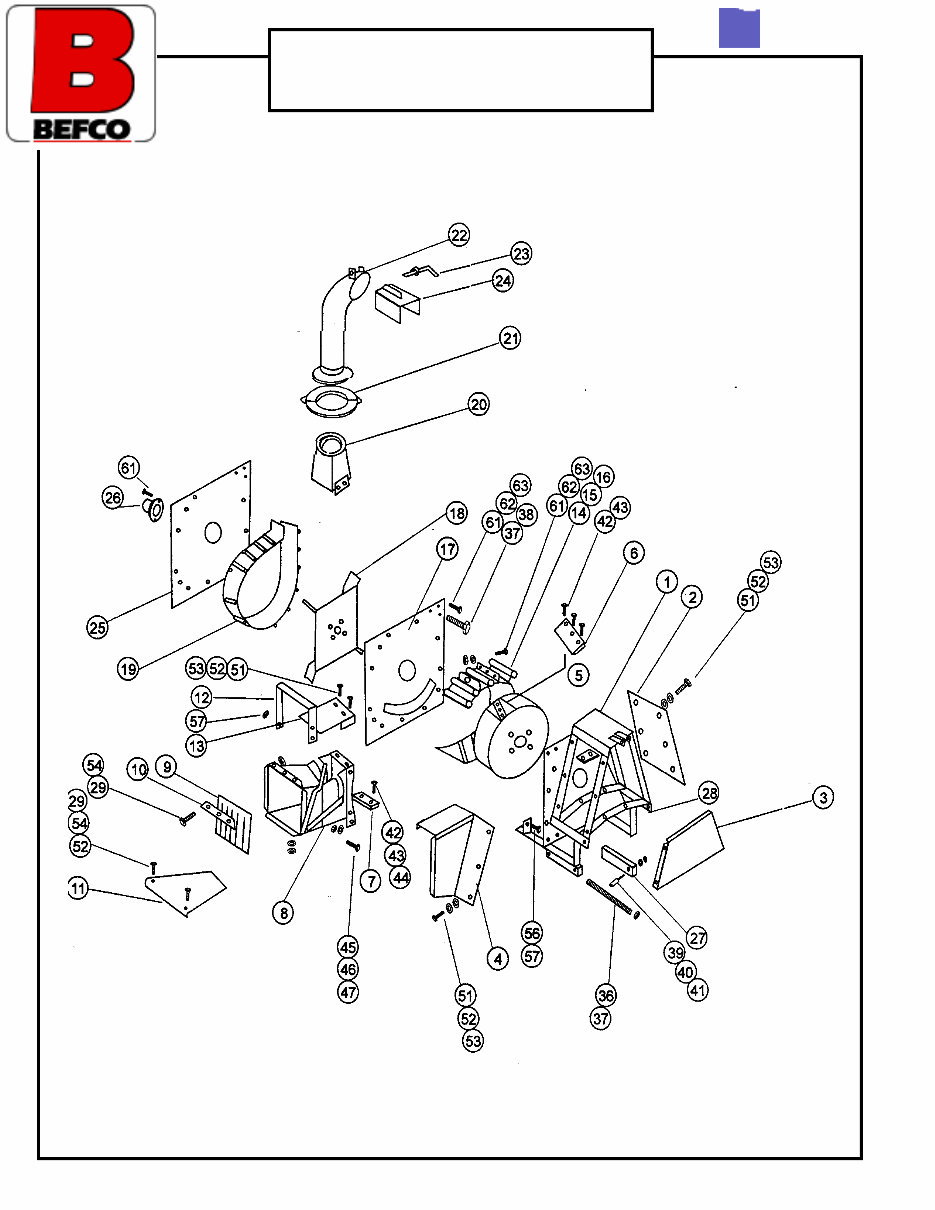

Main Frame
4
Bushmaster
19-BM6-800
Main Frame
5
Bushmaster
19-BM6-800
Main Frame
ITEM# PART # DESCRIPTION QTY
36 502-855B STUD 5/8-11 X 16-1/2 11
37 502-856B NUT 5/8-11 12
38 502-857B BOLT 5/8-11 X 6-1/2 1
39 502-858B HITCH PIN 2
40 502-859B WASHER 2
41 502-860B NUT 2
42 502-861B BOLT 1/2-13 X 1-1/2 GR. 8 6
43 502-862B STOVER NUT 1/2-13 6
44 502-863B FLAT WASHER 1/2 3
45 502-864B BOLT 5/8-11 X 1-1/2 2
46 502-865B 5/8-11 HEX 2
47 502-866B LOCK WASHER 5/8 2
51 009-1446 BOLT M8 X 25 28
52 001-5230 FLAT WASHER M8 28
53 000-3144 LOCK WASHER M8 26
54 009-1384 NUT M8 NYLOCK 5
56 000-1278 BOLT M10 X 30 6
57 001-4106 NUT M10 NYLOCK 8
61 502-870B BOLT 1/4-20 X 3/4 9
62 502-871B LOCK WASHER 1/4 6
63 502-872B FLAT WASHER 1/4 6
6
Bushmaster
19-BM6-800

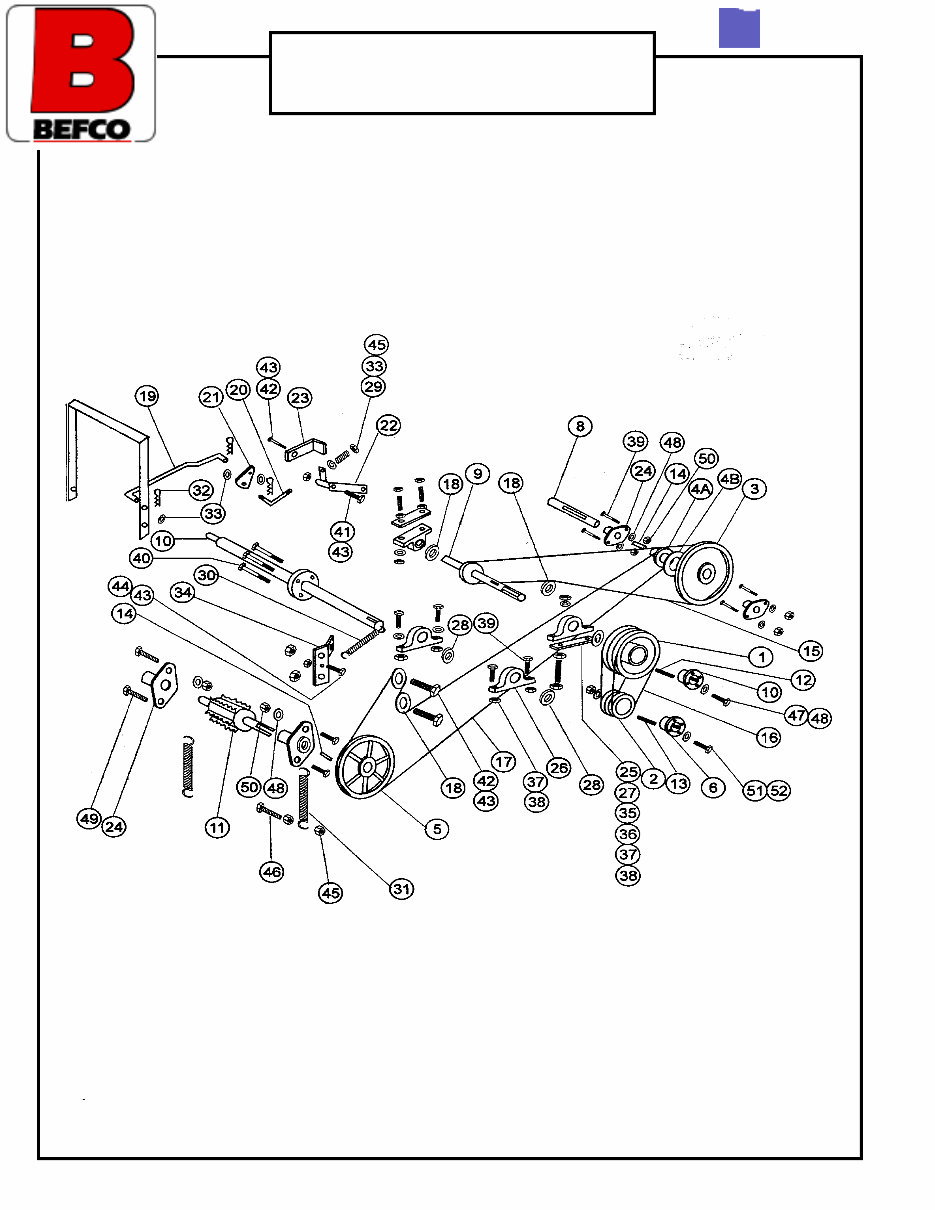

Drive Components
7
Bushmaster
19-BM6-800
Drive Components
I TEM# PART # DESCRIPTION QTY
1 502-770B PULLEY B110 SF 1
2 502-771B PULLEY B X 4-1/2 OD 1
3 502-772B PULLEY B X 12 OD 1
4A 502-773B PULLEY 2 1/2 OD 1
4B 502-774B PULLEY 4 OD 1
5 502-775B PULLEY B X 8 1/4 OD 1
6 502-776B BUSHING 1-3/8 1
7 502-777B BUSHING 1-15/16 1
8 502-778B SHAFT 1 X 9 1
9 502-779B SHAFT 1-3/8 X 19 1
10 502-780B SHAFT 1-15/16 X 46 1
11 502-781B FEED ROLLER X 1 C.R.R.B. SHAFT 1
12 502-782B KEY 5/16 X 3 1
13 502-783B KEY 1/2 X 3 1
14 502-784B KEY 1/4 X 3 2
15 190-209B BELT A-57 1
16 502-786B BELT BX-42 6
17 502-787B BELT BX-67 1
18 502-788B PULLEY TAKE UP 3
19 502-789B LINKAGE, LONG 1
20 502-790B LINKAGE, SHORT 1
21 502-791B PIVOT BRACKET 1
22 502-792B TAKE UP BRACKET 1
23 502-793B BELT BRACKET 1
24 502-794B BEARING ASSEMBLY 4
25 502-795B BEARING ASSEMBLY 2
26 502-796B BEARING ASSEMBLY 2
27 502-797B LOCK COLLAR 2
28 502-798B LOCK COLLAR 2
29 502-799B SPRING/SMALL TAKE UP 1
30 502-800B SPRING/LARGE TAKE UP 1
31 502-801B SPRING - FEED ROLLER 2
32 502-802B COTTER PIN - 5/32 3
33 502-803B FLAT WASHER 4
34 502-804B DUAL IDLER BRACKET 1
35 502-805B MOUNT PLATE 2
36 502-806B STUD 5/8-11 X 6 4
37 502-807B STOVERNUT 5/8-18 16
38 502-808B FLAT WASHER 5/8 8
39 502-809B BOLT 5/8-18 X 2 1/2 GR. 8 4
40 502-810B BOLT 1/2-20 X 9 GR. 8 4
41 502-811B BOLT 1/2-13 X 3 1
42 502-812B BOLT 1/2-13 X 2 3
43 502-813B LOCK NUT 1/2-13 5
44 502-814B CARRIAGE BOLT 1/2-13 X 3 1
45 502-815B LOCK NUT 3/8 5
46 003-0155 BOLT M10 X 60 2
47 502-816B BOLT 3/8-16 X 2 3
48 502-817B FLAT WASHER 3/5 3
49 502-818B CARRIAGE BOLT M8 8
50 502-819B NUT M8 HEX 8
51 502-820B BOLT 1/4-20 X 1 1/2 3
52 502-821B LOCK WASHER 1/4 3
8
Bushmaster
19-BM6-800

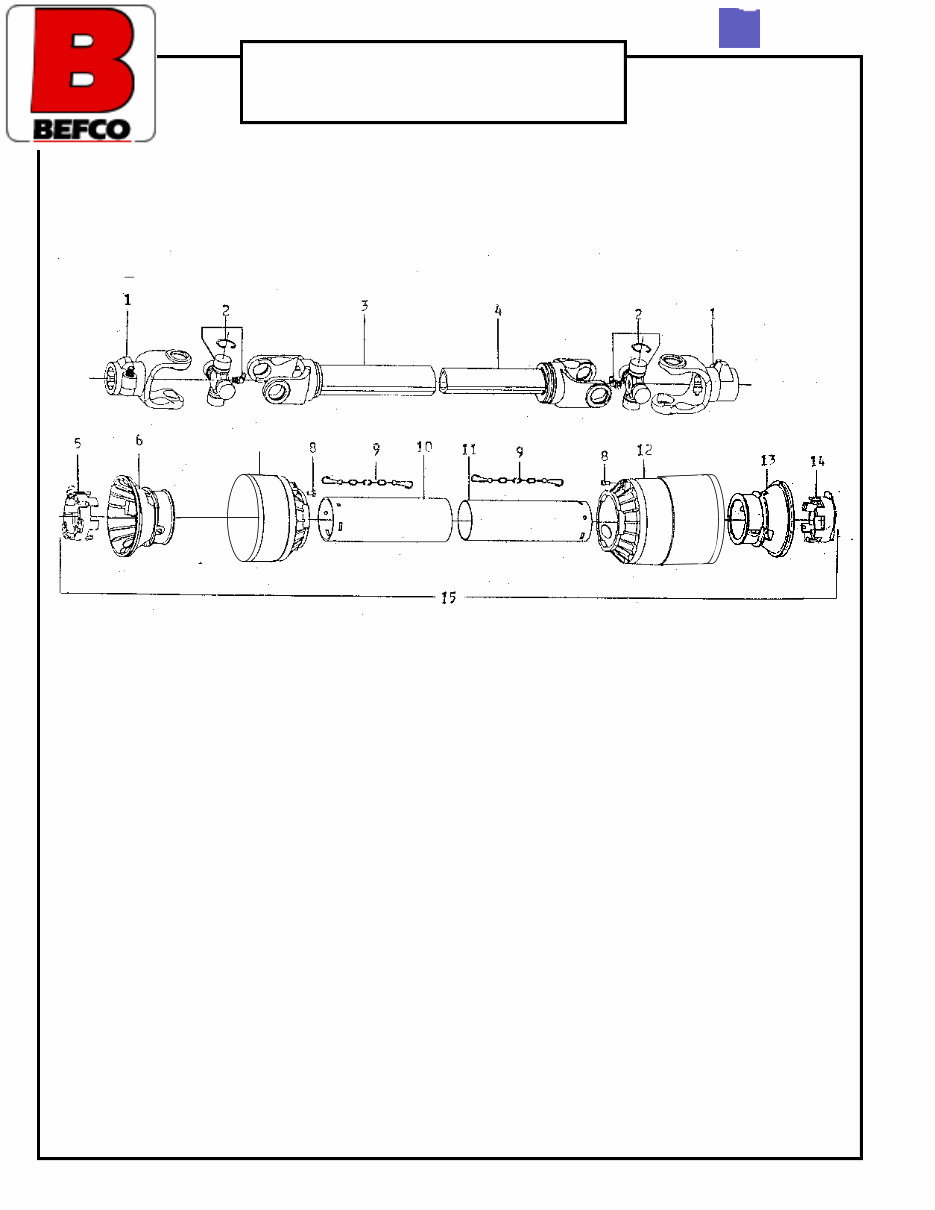

PTO
7
9
Bushmaster
19-BM6-800
PTO
ITEM# PART # DESCRIPTION QTY
1 024 -001E PTO Yoke 2
2 014-130E Cross & Bearing 2
3 194 4040C Outer Tube 1
4 195 4042C Inner Tube 1
5 178 4210C Outer Tube Bearing 1
6 178 4201C Outer Tube Rigid Cone 1
7 178 4203C Outer Cone 2
8 178 4212C Pin 2
9 016-025E Chain 2
10 177 3038C Female Tube Shield 1
11 187 2038C Male Tube Shield 1
12 1784205C Soft Cone 1
13 178 4202C Inner Tube Rigid Cone 1
14 178 4211C Inner Tube Bearing 1
15 940 4438C Complete Shielding 1
050- 0453 PTO Shaft Complete
