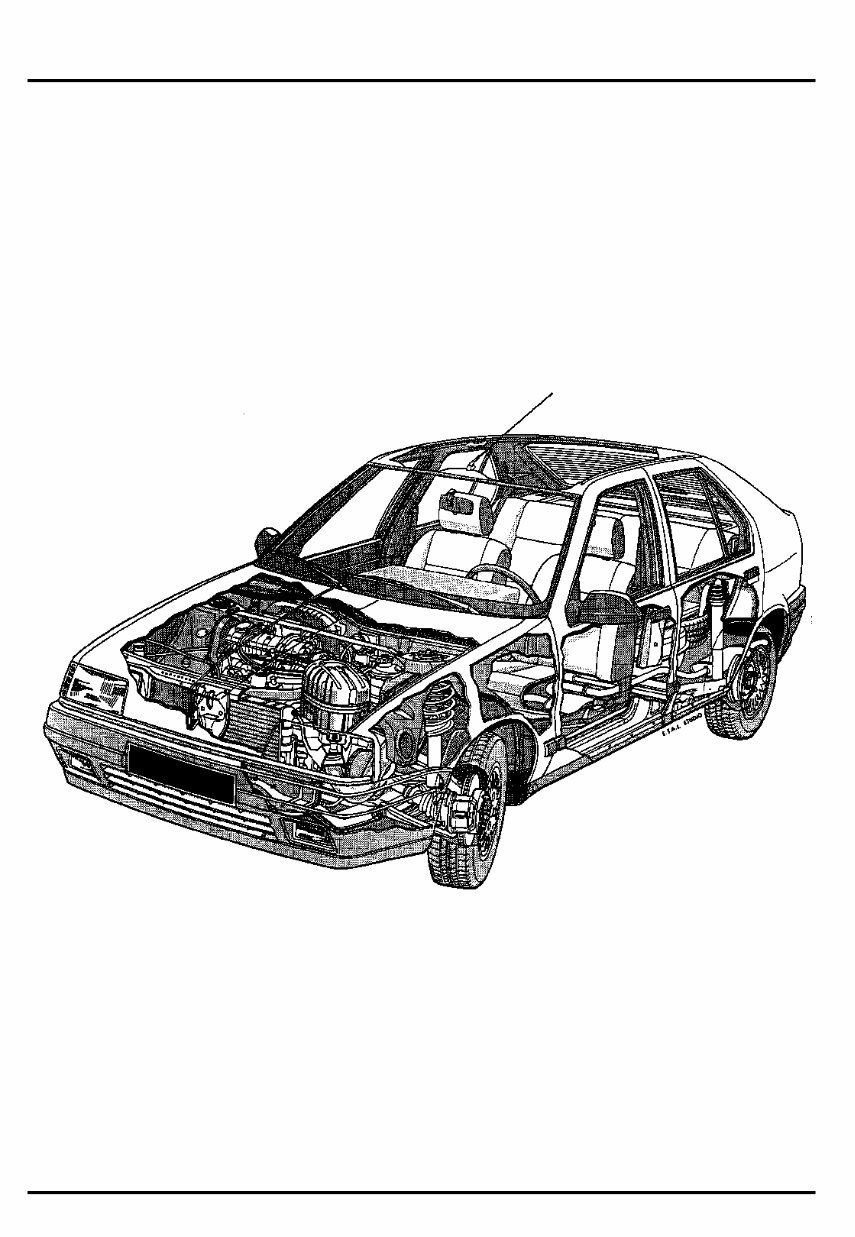

EXPLODED VIEW PRC0001

TOWING All types Contents SPECIFICATIONS Engine - Clutch - Gearbox Vehicle identification 01-1 01-2 LIFTING EQUIPMENT Trolley jack - Axle stands Pages 01 02 03 General 02-1 03-1 LUBRICANTS - CONSUMABLES Packaging 04-1 DRAINING - REFILLING Engine Gearbox Power assisted steering 04 05 05-1 05-3 05-4 07-1 07-4 07-7 07-9 07-15 07-17 07-21 07-22 07-24 07-25 07-27 07-28 VALUES AND SETTINGS Dimensions Capacities - Grades Belt tension Accessories belt tension Timing belt tension Cylinder head tightening Main brake components and dimensions Front axle setting values Front axle checking values Rear axle checking values Underbody heights Brake compensator Pages 07

SPECIFICATIONS Engine - Clutch - Gearbox 01 Vehicle type Engine Type Cubic capacity (cm 3 ) Clutch type Type of manual and automatic gearbox B530 - C530 - L530 S530 C1G 1237 180 CP 3300 JB0 - JB1 - JB4 - JB5 B531 - C531 - L531 C1J 1397 180 CP 3300 JB0 - JB1 - JB4 - JB5 B53H - B53P - C53P L53H - L53P C2J 1397 180 CP 3300 JB0 - JB1 - JB4 - JB5 B532 - C532 - L532 C3J 1390 180 CP 3300 JB0 - JB1 B53G - B537 - C537 L53G - L537 - S537 E6J 1390 180 CP 3300 JB0 - JB1 - MB1 B53A - C53A - L53A E7J 1390 180 CP 3300 JB1 - MB1 B535 - C535 - L535 E7J 1390 180 CP 3300 JB1 - MB1 B53W - C53W - L53W E7F 1171 180 CP 3300 JB0 - JB1 - JB3 B53E - B53M - B533 B536 - C53E - C53M C533 - L533 - L536 F2N 1721 200 CP 4000 JB0 - JB1 - JB3 - AD4 B53B - B53C - B53F C53B - C53C - C53F D53C - L53B - L53C - L53F F3N 1721 200 CP 4000 AD4 - JB3 - MB3 B53V - B53Y - B538 C53V - C53Y - C538 D53V - D53Y - L53V L53Y - L538 - 353A 353C - 353D - 353F 453A - 453C - 453D 453F - 453H - 553A 553C - 553D - 553F 553H - 853A - 853C 853F F3P 1794 200 CP 4000 AD4 - JB3 - JC5 B53D - B539 - C53D C539 - D53D - L53D L539 F7P 1764 200 CP 4400 JB3 - JC5 B53I - B53J - B53K B53T - B53Z - B534 C53I - C53J - C53K C53T - C53Z - C534 L53I - L53J - L53K L53T - L53Z - L534 S53I - S53J - S53K - S534 F8Q 1870 200 CPV 4600 200 CPV 3500 JB1 - JB3 - JC5 01-1

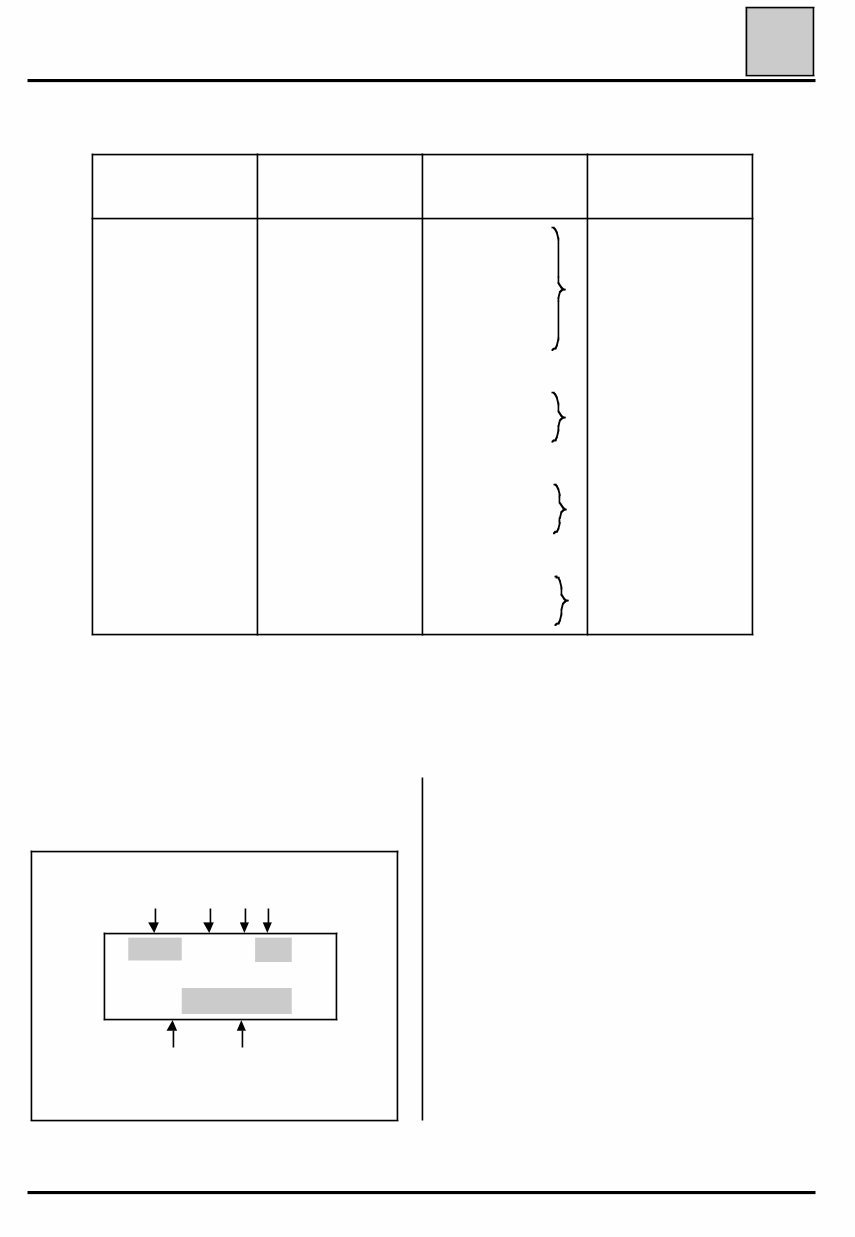

SPECIFICATIONS Vehicle identification 01 ENGINE APPROVAL LETTER NUMBER VEHICLE TYPE F3P E H E H H H J A 704 706 708 760 706 760 765 682 X53 Y 053 A 053 B - F - H X53 V 053 C - D - H X53 8 IDENTIFICATION OF F3P ENGINES WITH REDUCED CUBIC CAPACITY Definition of identification X and 0 X53 Y = B53 Y, C53 Y, L53 Y Vehicle type code starting with a letter. 053A = 353 A, 453 A Vehicle type code starting with a number. The reduced cubic capacity can be identified using the type approval letter (B) on the engine plate. 000 0 000 / 0000000 F E A B C D 90775 A: the engine type B: the vehicle type approval letter C: the identity of RENAULT SA D: the engine number E: the engine manufacturing number F: letter indicating the factory at which the engine was manufactured (e.g.: C for Cléon) 01-2

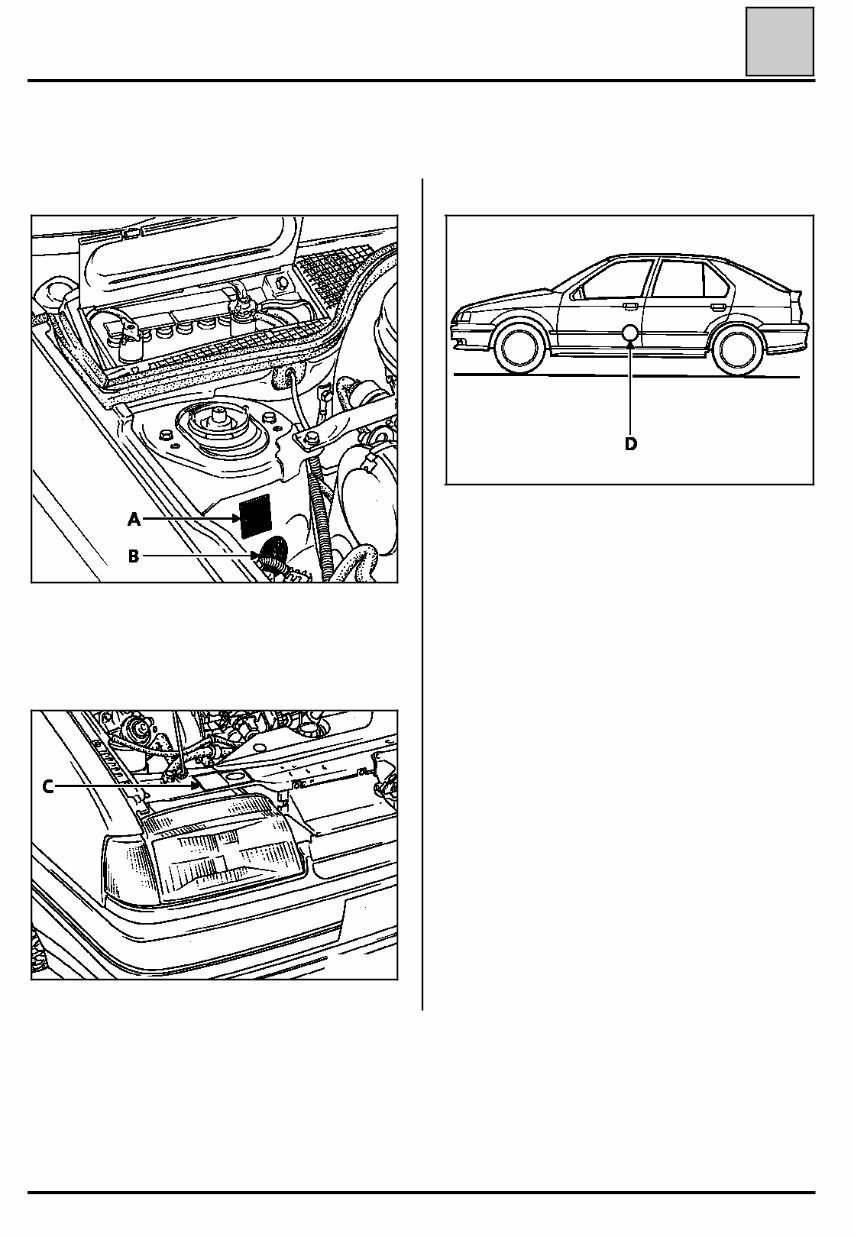

SPECIFICATIONS Vehicle identification 01 LOCATION OF THE VEHICLE IDENTIFICATION PLATE Plates (A) and (B) may be separate or on a single plate (according to specification). Position n° 2 Position n° 1 Position n° 3 95890-1R 94946R Plate (C) is located on the front panel. Adhesive plate (D) is attached to the chassis on the side of the right front door. 92025R 01-3

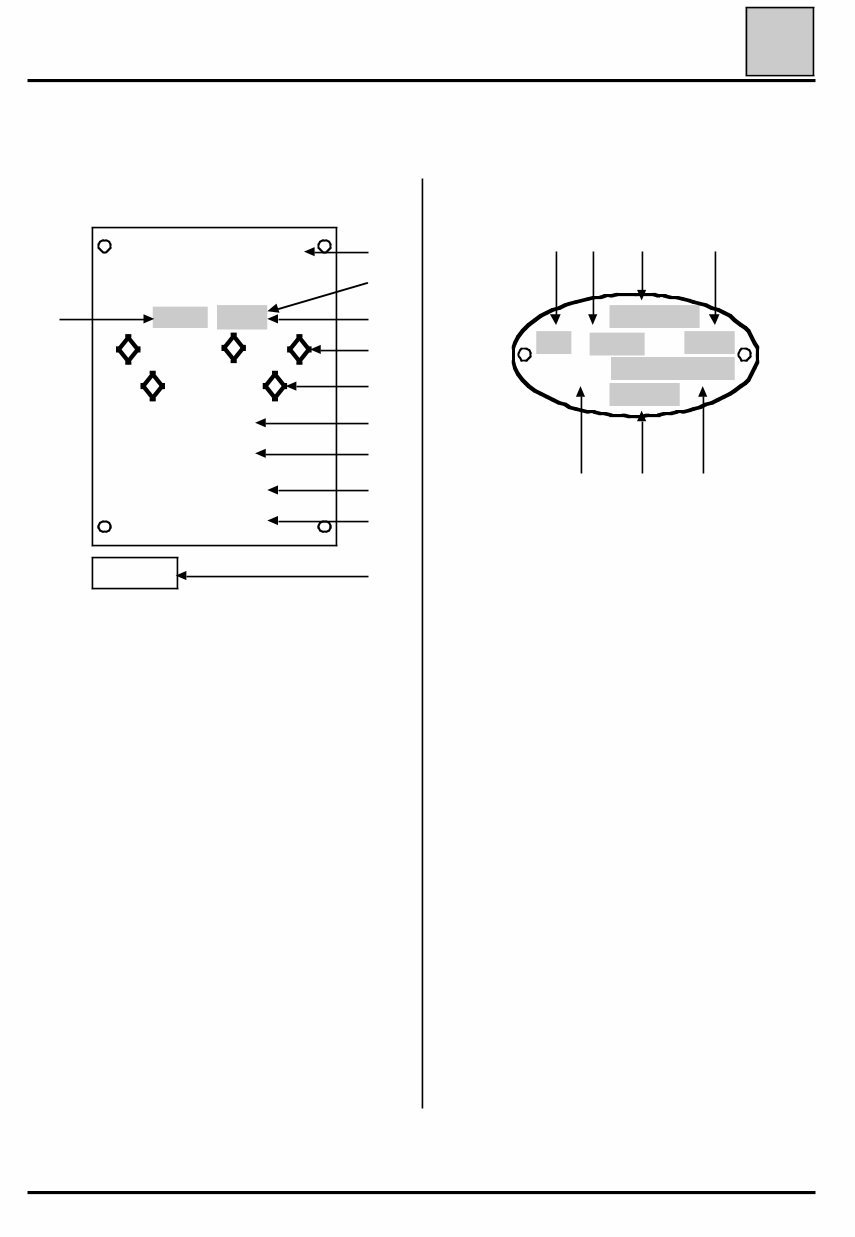

SPECIFICATIONS Vehicle identification 01 METAL PLATE (Position n° 1) Rectangular plate Oval plate This consists of; At A : the manufacturer’s name, At B : the EU official approval number, inclu- ding: At B1 : the number of the country gran- ting the EU approval At B2 : the approval number for the vehicle type. At C : the official type number preceded by the manufacturer’s worldwide identification code (for example VF1 is the code for RENAULT France), At D : the chassis number At E : the gross vehicle weight, At F : the gross train weight, At G : the maximum permissible front axle weight, At H : the maximum permissible rear axle weight, At J* : the vehicle model year or paint identification code. * NOTE: some of these items of information are not required for certain export markets. The plates described above are shown in their most complete form. REGIE NATIONALE DES USINES RENAULT X*0* 0000 XX0000 000 00000000 0000 kg 0000 kg 1 - 0000 kg 2 - 0000 kg 0000 00000 00 000 000 X 0000000 0000 5 6 7 1 4 3 2 A B C D E F G H J B1 B2 This consists of: At 1 : the vehicle type At 2 : special features of the vehicle* At 3 : the basic equipment * (see table), At 4 : options, At 5 : the manufacturing number, At 6 : the vehicle model year* or paint identification code*, At 7 : the factory at which the vehicle was as- sembled: A : Portugal B : Batilly C : Creil D : Douai E : Spain F : Flins G : Grand Couronne H : Haren J : Billancourt K : Dieppe N : Mexico P : Mexico Q : A.M.C. S : Sandouville T : Matra Romorantin U : Maubeuge W : Spain Valladolid X : Heuliez Y : Yugoslavia Z : U.S.A. * DEPENDING ON COUNTRY OR SPECIFICATION 01-4

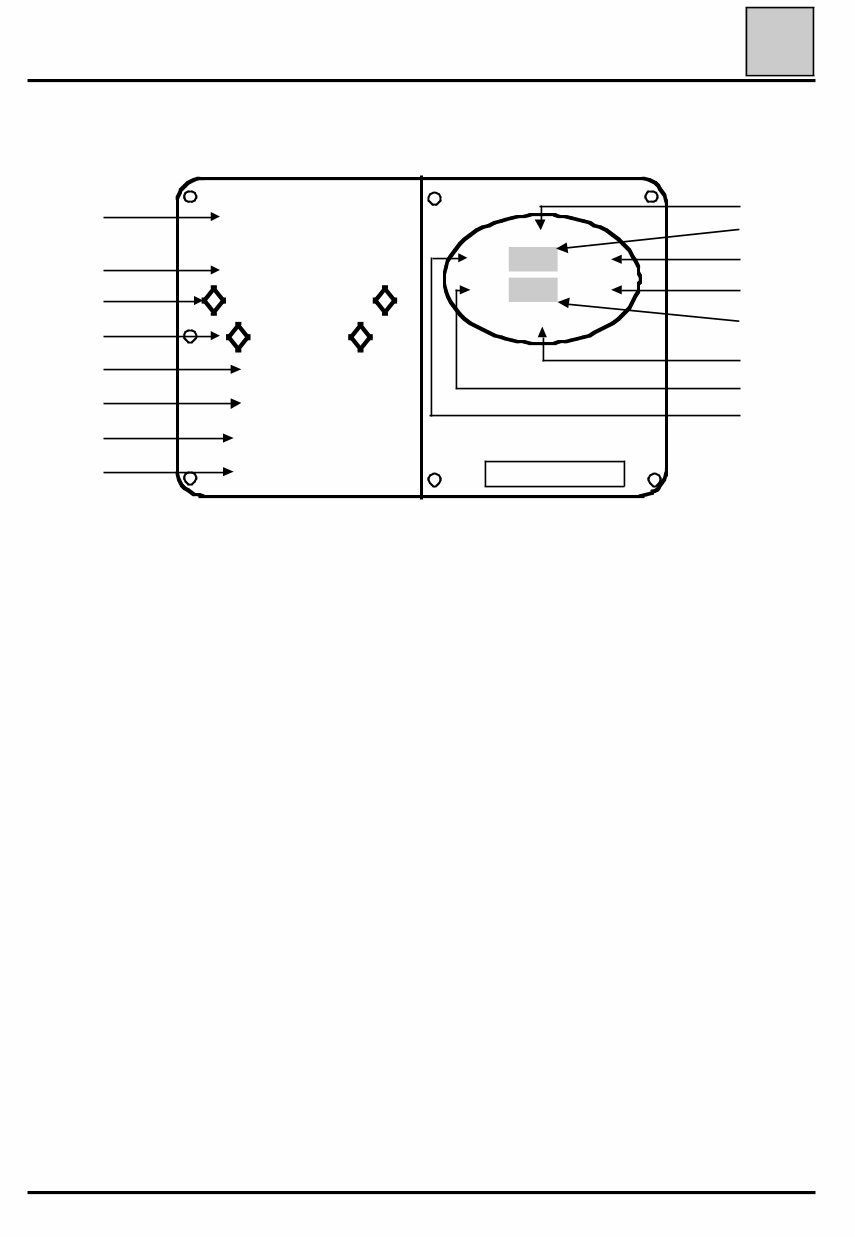

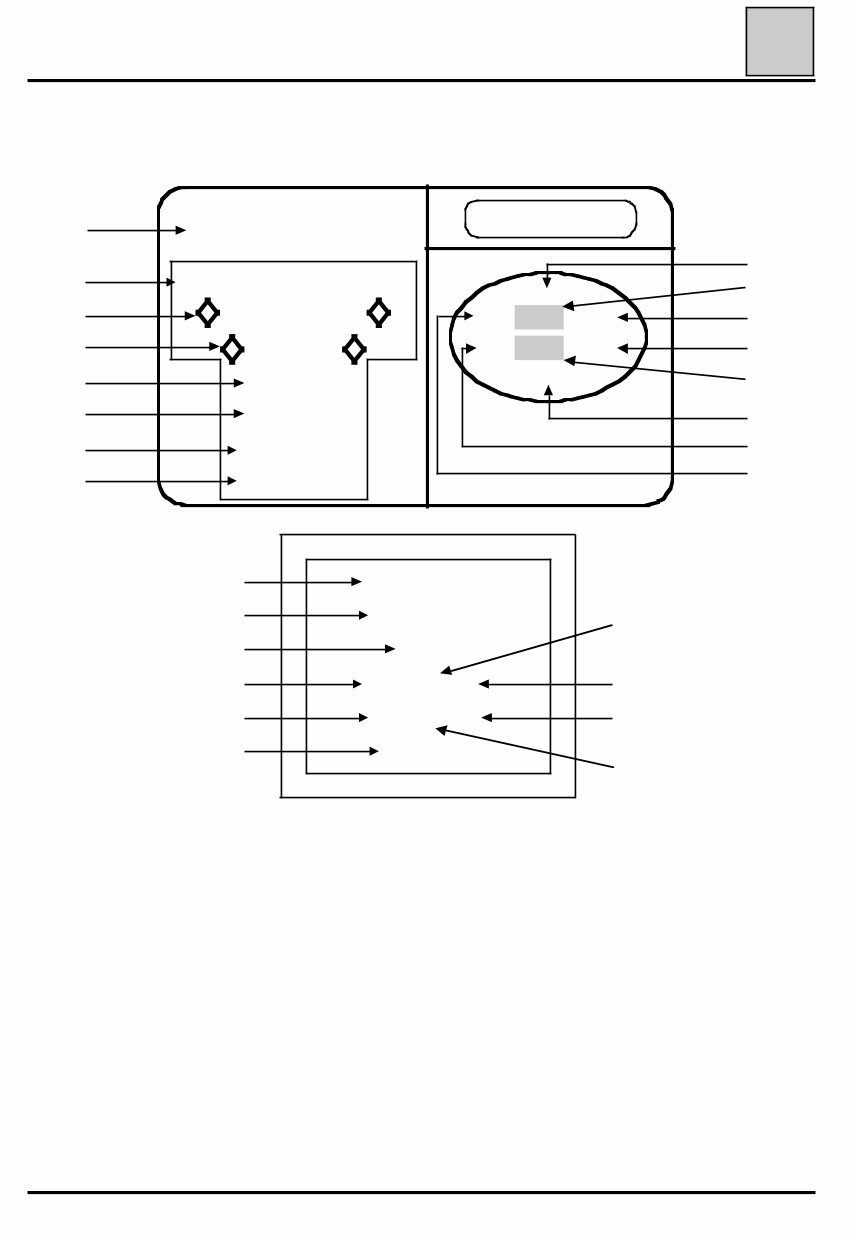

SPECIFICATIONS VEHICLE IDENTIFICATION 01 METAL PLATE (Position n° 2) This consists of: At A : the manufacturer’s name, At B : the EU official approval number At C : the official type number preceded by the manufacturer’s worldwide identification code (for example : VF1 for RENAULT France), At D : the chassis number, At E : the gross vehicle weight, At F : the gross train weight, At G : the maximum permissible front axle weight, At H : the maximum permissible rear axle weight, At 1 : the vehicle type, At 2 : the first number indicates the gearbox or the factory options the second number indicates the level of equipment, At 3 : the technical equipment number, At 4 : the factory option additional equipment, At 5 : the trim identification code, At 6 : the paint identification code, At 7 : the level of equipment, At 8 : a letter indicating the factory of manufacture, followed by the manufacturing number. WARNING: The 7 characters of the manufacturing number must not be separated. For vehicles manufactured before that date, the manufacturing number is 7 numbers. NOTE: some of these items of information are not required for certain export markets. The plates described above are shown in their most complete form. 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 7 0 0 0 0 0 0 0 0 2 8 1 5 3 6 B REGIE NATIONALE DES USINES RENAULT AU 0000-00-00 VF1000000 00000000 0000 kg 0000 kg 1 - 0000 kg 2 - 0000 kg C D E F G H A 01-5

SPECIFICATIONS Vehicle identification 01 REGIE NATIONALE DES USINES RENAULT S.A. e000-00/00000-0000-00 VF0000000 00000000 0000 kg 0000 kg 1 - 0000 kg 2 - 0000 kg 10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 11 0 0 0 0 0 0 0 0 7 13 8 14 9 12 Renault 1 2 3 4 5 6 VF0000000 00000000 0000 00 000 000 00 000 000 0000000 9 10 12 11 1 2 8 7 14 13 B A METAL PLATE (Position n° 3) 01-6

SPECIFICATIONS Vehicle identification 01 This consists of: At A : the manufacturer’s name, At B : the EU official approval number At 1 : the official type number preceded by the manufacturer’s worldwide identification code (for example : VF1 for RENAULT France), At 2 : the chassis number, At 3 : the gross vehicle weight, At 4 : the gross train weight, At 5 : the maximum permissible front axle weight, At 6 : the maximum permissible rear axle weight, At 7 : the first number indicates the gearbox or the factory options the second number indicates the level of equipment, At 8 : the vehicle type At 9 : the technical equipment number, At 10 : the factory option additional equipment, At 11 : the level of equipment, At 12 : the paint identification code, At 13 : a letter indicating the factory of manufacture, followed by the manufacturing number, At 14 : the trim identification code. NOTE: some of these items of information are not required for certain export markets. The plates described above are shown in their most complete form. ALLOCATION OF THE TECHNICAL EQUIPMENT CODES The equipment code, three letters at (9), must be documented when vehicle identification is required (orde- ring of replacement parts, warranty form, etc). 01-7
