232
© 2008 Transtar Industries, Inc. No part of this work, including but not limited to the Part Numbers, may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy-
ing and recording, or by any information storage or retrieval system without the prior written approval of Transtar Industries. Transtar Industries acknowledges that many of the illustrations in this catalog were
inspired by photographs originally published by Slauson Transmission Parts and that Slauson is the owner of the copyright in those photographs. This catalog is the proprietary property of Transtar Industries, Inc.

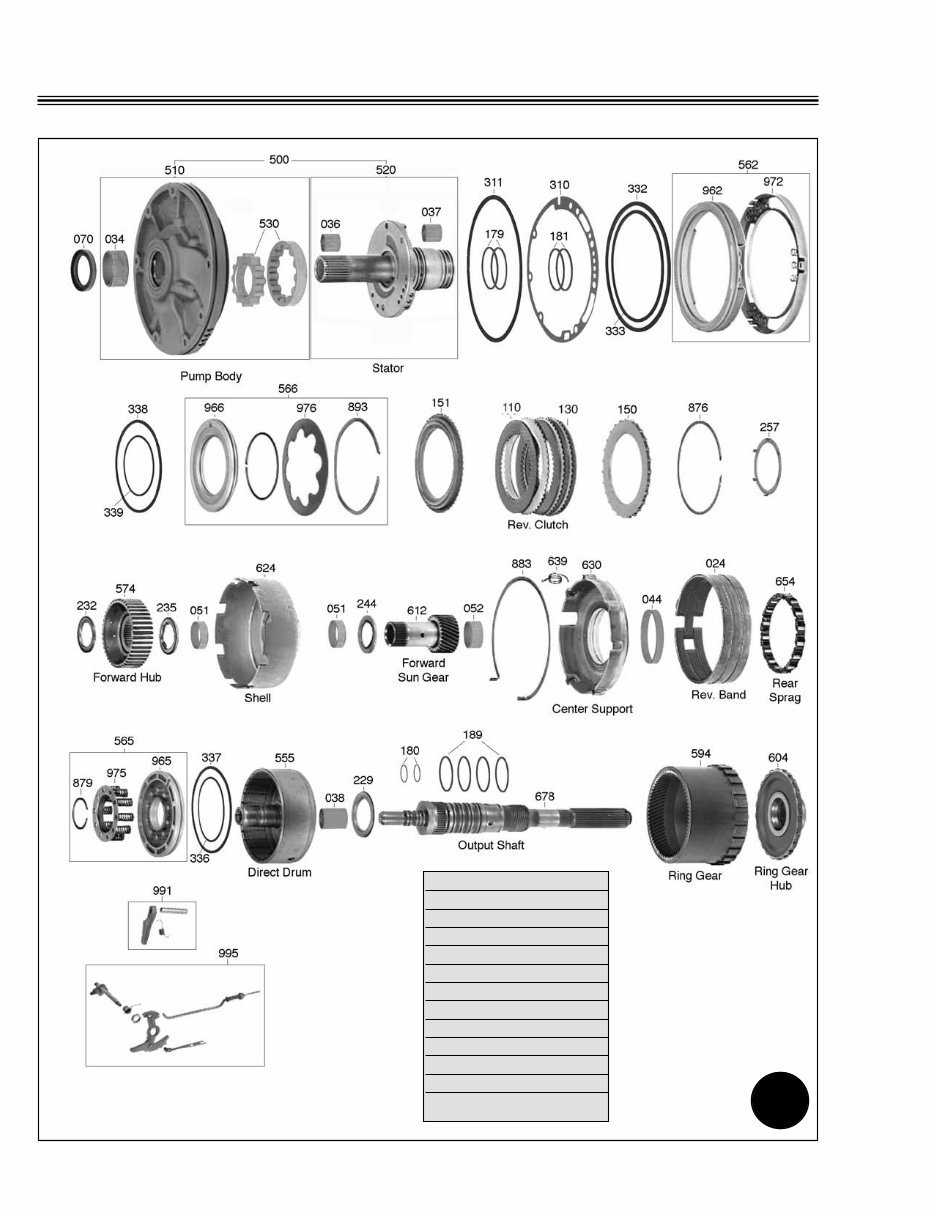

A
B
C
D
4R70W/4R75W
4R70E/4R75E
FORD AOD (FIOD)
AOD-E (ELECTRONIC)
Deluxe Kit ---------------------------------- 008
Compliance Kit ------------------------ 007
Master Kit -------------------------------- 006
Less Steel Kit -------------------------- 004
Overhaul Kit ---------------------------- 002
Bushing Kit ------------------------------ 030
Washer Kit ------------------------------- 200
Bearing Kit ------------------------------- 201
Technical Manual ----------------- 400
Pump Part --------------------------------- 507
Valve Body Parts ------------------- 741
Case Parts ------------------------------- 761
Note: Not all items are available for
all transmissions
76
233

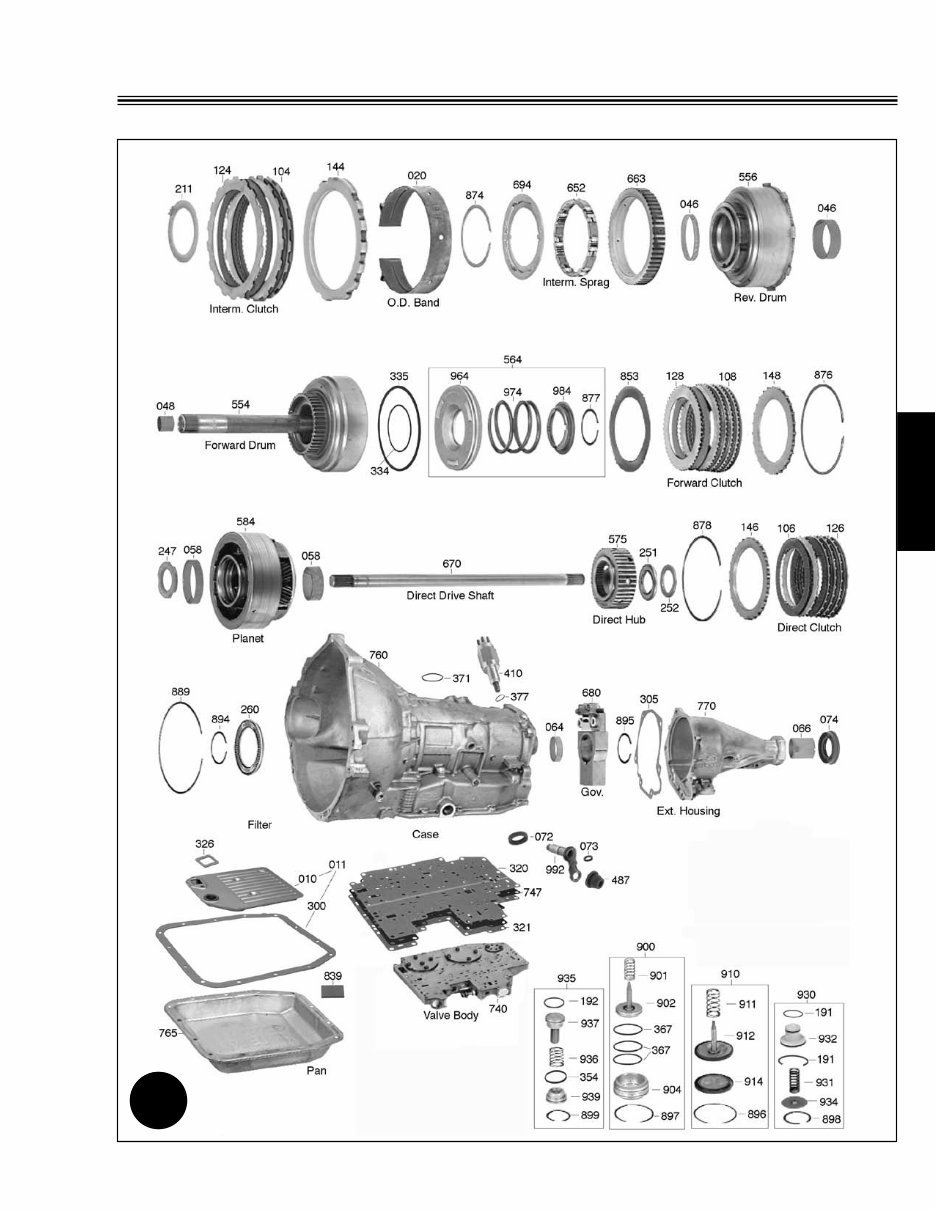

E
F
G
H
FORD AOD (FIOD)
AOD-E (ELECTRONIC)
4R70W/4R75W
4R70E/4R75E
76
AOD/AOD-E
234
ILL. DESCRIPTION QTY. YEAR PART NO. REFERENCE NO.
76300
76010A
76010E
76300E
FORD AOD (FIOD)
AOD-E (ELECTRONIC)
4R70W/4R75W
4R70E/4R75E
REAR WHEEL DRIVE
76300EW
76010
76010EA
DELUXE KITS (SUPER KITS) (1)
008D AOD (FIOD) ............................................................................................................... 1 80-E83 76008 K5300-R
008D AOD (FIOD) (Forward & Direct Frictions are the same) ............................................... 1 L83-E89 76008A K5300A-R
008D AOD (FIOD) (Forward & Direct Frictions are different) ................................................. 1 L89-93 76008B K5300B-R
008D AODE (Uses 3 Intermediate .080" Frictions) (76104) ................................................. 1 92-95 76008EW K5300E-R
008D AODE (Uses 4 Intermediate .066" Frictions) (76104A) ............................................... 1 93-95 76008EAW K5300F-R
008D 4R70W (Uses 4 Intermediate .066" Frictions) (76104A)............................................. 1 93-95 76008EAW K5300F-R
008D 4R70W ..................................................................................................................... 1 96-97 76008GW N/A
008D 4R70W ..................................................................................................................... 1 98-03 76008HW K5300G-R
008D 4R70W, 4R75W (w/ Intermediate Piston) .................................................................. 1 04-Up 76008JW N/A
COMPLIANCE KITS (CALIFORNIA KITS) (1)
007D AOD (FIOD) ............................................................................................................... 1 80-E83 76007 CK5300-R
007D AOD (FIOD) (Forward & Direct Frictions are the same) ............................................... 1 L83-E89 76007A CK5300A-R
007D AOD (FIOD) (Forward & Direct Frictions are different) ................................................. 1 L89-93 76007B CK5300B-R
007D AODE (Uses 3 Intermediate .080" Frictions) (76104) ................................................. 1 92-95 76007EW CK5300E-R
007D AODE (Uses 4 Intermediate .066" Frictions) (76104A) ............................................... 1 93-95 76007EAW CK5300F-R
007D 4R70W (Uses 4 Intermediate .066" Frictions) (76104A)............................................. 1 93-95 76007EAW CK5300F-R
007D 4R70W ..................................................................................................................... 1 96-97 76007GW N/A
007D 4R70W ..................................................................................................................... 1 98-03 76007HW CK5300G-R
007D 4R70W, 4R75W (w/ Intermediate Piston) .................................................................. 1 04-Up 76007JW N/A
MASTER OVERHAUL KITS (WITH STEELS) (1)
006D AOD (FIOD) ............................................................................................................... 1 80-E83 76006 K5300
006D AOD (FIOD) (Forward & Direct Frictions are the same) ............................................... 1 L83-E89 76006A K5300A
006D AOD (FIOD) (Forward & Direct Frictions are different) ................................................. 1 L89-93 76006B K5300B
006D AODE (Uses 3 Intermediate .080" Frictions) (76104) ................................................. 1 92-95 76006EW K5300E
006D AODE (Uses 4 Intermediate .066" Frictions) (76104A) ............................................... 1 93-95 76006EAW K5300F
006D 4R70W (Uses 4 Intermediate .066" Frictions) (76104A)............................................. 1 93-95 76006EAW K5300F
006D 4R70W (Might Need Selective Interm Steels) ............................................................. 1 96-97 76006GW K5300G
006D 4R70W (Might Need Selective Interm Steels) ............................................................. 1 98-03 76006HW K5300G
006D 4R70W, 4R75W (Might Need Selective Interm Steels) (w/ Intermediate Piston) .......... 1 04-Up 76006JW K5300H
LESS STEEL KITS (1)
004D AOD (FIOD) ............................................................................................................... 1 80-E83 76004 K5300-LS
004D AOD (FIOD) (Forward & Direct Frictions are the same) ............................................... 1 L83-93 76004A K5300A-LS
004D AOD (FIOD) (Forward & Direct Frictions are different) ................................................. 1 L89-93 76004B K5300B-LS
004D AODE (Uses 3 Intermediate .080" Frictions) (76104) ................................................. 1 92-95 76004EW K5300E-LS
004D AODE (Uses 4 Intermediate .066" Frictions) (76104A) ............................................... 1 93-95 76004EAW K5300F-LS
004D 4R70W (Uses 4 Intermediate .066" Frictions) (76104A)............................................. 1 93-95 76004EAW K5300F-LS
235
ILL. DESCRIPTION QTY. YEAR PART NO. REFERENCE NO.
AOD/AOD-E
FORD AOD (FIOD)
AOD-E (ELECTRONIC)
4R70W/4R75W
4R70E/4R75E
LESS STEEL KITS (1) (Cont.)
004D 4R70W ..................................................................................................................... 1 96-97 76004GW K5300G-LS
004D 4R70W ..................................................................................................................... 1 98-03 76004HW K5300G-LS
004D 4R70W, 4R75W (w/ Intermediate Piston) .................................................................. 1 04-Up 76004JW K5300H-LS
OVERHAUL KITS (W/ RINGS & SEALS) (1)
002D AOD (FIOD) ............................................................................................................... 1 80-93 76002 K53900
002D AODE, 4R70W .......................................................................................................... 1 92-95 76002EW K53900E
002D 4R70W ..................................................................................................................... 1 96-03 76002GW K53900G
002D 4R70W, 4R75W ........................................................................................................ 1 04-Up 76002JW K53900H

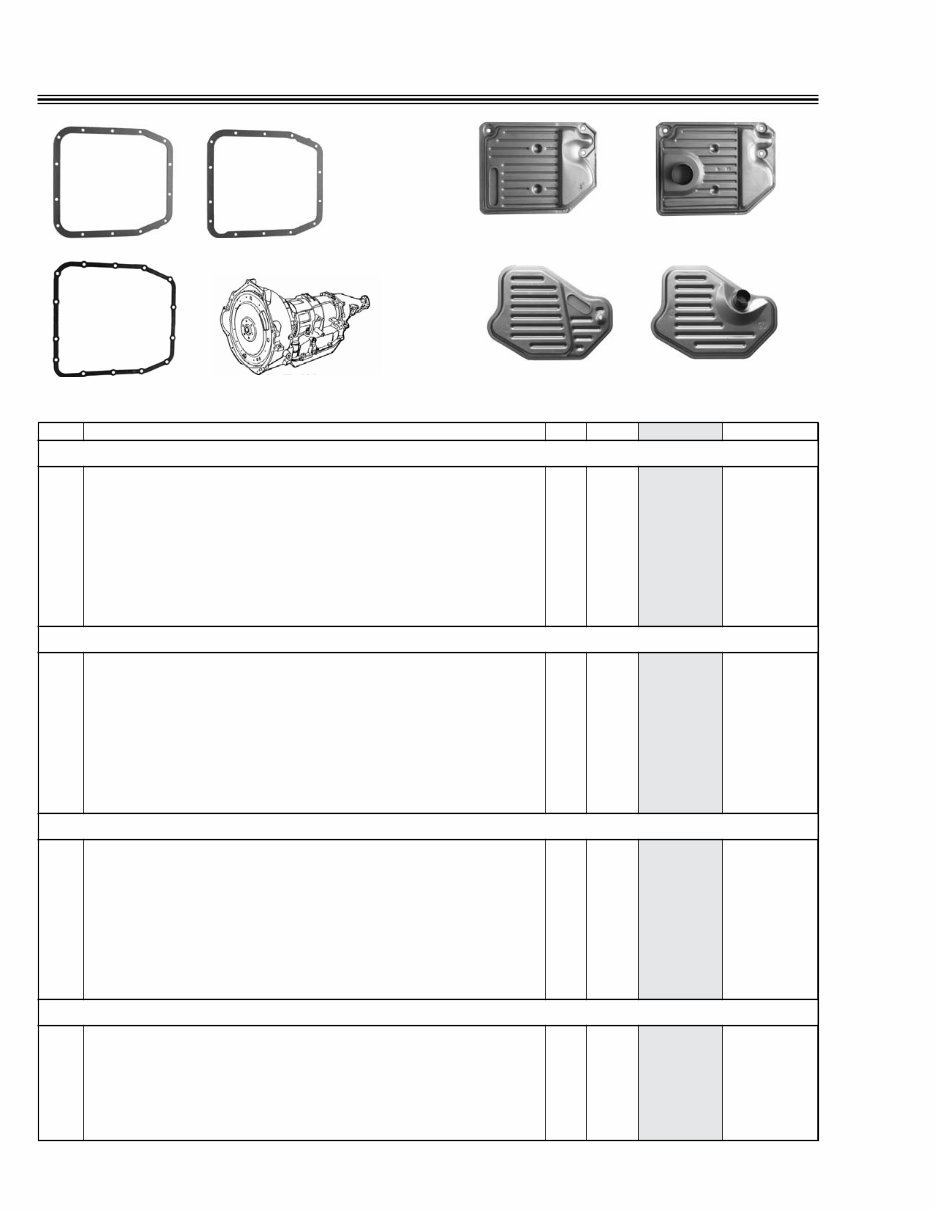

GASKET & SEAL KITS (W/O RINGS & SEALS) (1)
000D AOD (FIOD) ............................................................................................................... 1 80-93 76000 K53900-1
000D AODE, 4R70W .......................................................................................................... 1 92-95 76000EW K53900E-1
000D 4R70W ..................................................................................................................... 1 96-03 76000GW K53900G-1
FILTER KITS (1)
011H Filter Kit, AOD (2wd) ................................................................................................. 1 80-93 76011 FK53423
011H Filter Kit, AOD (4wd) ................................................................................................. 1 84-93 76011A FK53423A
011H Filter Kit, AODE, 4R70W (2wd) .................................................................................. 1 92-95 76011EW FK53423D
011H Filter Kit, AODE, 4R70W (2wd) .................................................................................. 1 96-Up 76011EAW FK53423C
011H Filter Kit, AODE, 4R70W (4wd) .................................................................................. 1 94-Up 76011EAW FK53423C
(1) - To order AOD (FIOD) Kits with Fiber pan gaskets, add an "F" suffix.
If the part number ends in “W”, change the “W” to an “F”.
FILTERS
010H AOD (2wd)................................................................................................................ 1 80-93 76010 53423
010H AOD (4wd)................................................................................................................ 1 84-93 76010A 53423A
010H AODE, 4R70W (2wd) ................................................................................................ 1 92-95 76010E 53423D
010H AODE, 4R70W (2wd) ................................................................................................ 1 96-Up 76010EA 53423C
010H AODE, 4R70W (4wd) ................................................................................................ 1 94-Up 76010EA 53423C
014 Governor Screen (AOD)............................................................................................. 1 80-93 76014 53712A
016 Solenoid Screen (AODE, 4R70W) (Small Square Filter In Valve Body)......................... 1 92-Up 76016 53712B
BANDS
Prefix Key: B = Borg Warner, A = OEM (Exc. BW), N = All Other New, R = Relined
020E Overdrive (AOD) ........................................................................................................ 1 80-93 76020 53320
020E Overdrive (AOD) (Kevlar) ........................................................................................... 1 80-93 76020K 53320X
020E Overdrive (AODE, 4R70W) ........................................................................................ 1 92-Up 76020E 53320A
020E Overdrive (AODE, 4R70W) (Heavy Duty).................................................................... 1 92-Up 76020G 53320AX
024C Reverse .................................................................................................................... 1 80-Up 76024 53520
BUSHINGS
030D Bushing Kit (w/ Cast Iron Drums) .............................................................................. 1 80-91 76030 K53905
030D Bushing Kit (w/ Stamped Steel Drums) ...................................................................... 1 92-93 76030A K53905A
030D Bushing Kit (w/ Stamped Steel Drums) ...................................................................... 1 94-Up 76030B K53905B
034A Pump (.758” Wide) ................................................................................................... 1 80-Up 36034 36002A
034A Pump (.697” Wide) ................................................................................................... 1 80-Up 76034 73002
036A Stator (Front) ............................................................................................................ 1 92-93 36036 36000A
036A Stator (Front) (2 Groove) ........................................................................................... 1 94-Up 76036 36000B
037A Stator (Rear) ............................................................................................................. 1 80-91 76037 53000
037A Stator (Rear) w/o Notch ............................................................................................ 1 92-Up 36036 36000A
037A Stator (Rear) w/ Notch .............................................................................................. 1 92-Up 76037B 36001B
038D Direct Drum (Cast Iron Drum) (can use 76038A) ....................................................... 1 80-89 76038 53012A
038D Direct Drum (Stamped Steel Drum) (Replaces 76038) ............................................... 1 80-Up 76038A 53012A
236
ILL. DESCRIPTION QTY. YEAR PART NO. REFERENCE NO.
FORD AOD (FIOD)
AOD-E (ELECTRONIC)
4R70W/4R75W
4R70E/4R75E
BUSHINGS (Cont.)
044C Center Support.......................................................................................................... 1 80-Up 76044 53009
046E Reverse Clutch Drum (Rear) ...................................................................................... 1 80-Up 76046 53003
046E Reverse Clutch Drum (Front) ..................................................................................... 1 80-Up 76046B 53002
048F Forward Drum Shaft .................................................................................................. 1 80-93 76048 53005
051C Reverse Sun Gear (Shell) .......................................................................................... 2 80-Up 76051 53008
052C Forward Sun Gear ..................................................................................................... 1 80-Up 76052 53006
058G Planet (Rear) (1.380” OD) ......................................................................................... 1 80-Up 76058 53011
058G Planet (Front) (2.770” OD) ........................................................................................ 1 80-Up 76058B 53010
064H Case ......................................................................................................................... 1 80-Up 76064 53007
064H Case (Top Hat, Replaces Case Bushing) .................................................................... 1 80-Up 76064B 53007X
066H Extension Housing 1.506” ID (Babbitt)....................................................................... 1 80-92 26066 6014
066H Extension Housing 1.506” ID (Bronze) ....................................................................... 1 80-92 76066A 6014
066H Extension Housing 1.606” ID (Bronze) (4R70W) ........................................................ 1 93-Up 76066B 53014
Tool Bore Repair Sleeve, Case (2.00" Long) (AOD) (requires T-1695) ................................ 1 80-Up T-1695-SL T-1695-SL
Tool Bore Repair Sleeve, Case (1.50" Long) (AODE, 4R70W) (requires T-1695) ................ 1 80-Up T-1695-SLE T-1690-SL-E
METAL CLAD SEALS
070A Front (w/o Flange) ..................................................................................................... 1 80-Up 36070 16601B
070A Front (Black w/ Flange) (Designed for Aluminum Pump w/ Locking Ribs) ................... 1 92-Up 76070A 53601
072H Linkage Shaft to Case ............................................................................................... 1 80-Up 36072 6507A
073H Throttle Lever (AOD) ................................................................................................. 1 80-93 76073 53697
074H Rear (w/o Boot) (AOD, AODE) ................................................................................... 1 80-92 44074 8850B
074H Rear (w/ Long Boot) (AOD, AODE) ............................................................................ 1 80-Up 26074 16695E
074H Rear (w/ Short Boot) (AOD, AODE)............................................................................ 1 80-Up 26074A 16695ES
074H Rear (w/ Short Boot) (2.487” OD) (4R70W) .............................................................. 1 93-Up 76074A 53695E
FRICTION PLATES
104E Intermediate (.080") (AOD, AODE) ............................................................................. 3 80-95 76104 53204
104E Intermediate (.080") (AOD, AODE) (Hi-Performance) (Blue) ....................................... AR 80-95 R76104HP 53204X
104E Intermediate (.080") (AOD, AODE) (Hi-Performance) (Red) ........................................ AR 80-95 A76104HP 53204R
104E Intermediate (.066") (4R70W) (Smooth).................................................................... 3 93-97 76104A 53204A
104E Intermediate (.066") (4R70W, 4R75W) (Grooved)...................................................... 4 98-Up 76104B 53204B
104E Intermediate (.066") (4R70W) (Hi-Performance) (Blue) ............................................. AR 93-Up R76104AHP 53204AX
104E Intermediate (.066") (4R70W) (Hi-Performance) (Red) .............................................. AR 93-Up A76104AHP 53204AR
106G Direct (.075") ............................................................................................................ 5 80-97 76106 53304
106G Direct (.075") (Hi-Performance) (Blue) ...................................................................... AR 80-97 R76106HP 53304X
106G Direct (.075") (Hi-Performance) (Red) ....................................................................... AR 80-97 A76106HP 53304R
106G Direct (.068") ............................................................................................................ 6 97-Up 76106E 53304A
106G Direct (.072") (Hi Energy) .......................................................................................... 4 80-Up 76106A 53304H
106G Direct (.068") (Hi-Performance) (Red) ....................................................................... AR 97-Up A76106EHP 53304AR
106G Direct (.059")(Commercial) ....................................................................................... AR 80-93 76106C N/A
108F Forward (5.25” OD) .................................................................................................. 5 80-89 76108A 53404
108F Forward (5.25” OD) (Hi-Performance) (Blue)............................................................. AR 80-89 R76108AHP 53404X
108F Forward (5.25” OD) (Hi-Performance) (Red) ............................................................. AR 80-89 A76108AHP 53404R
108F Forward (5.36” OD) (For Stamped Steel Drums) ........................................................ 5 90-Up 76108B 53404A
108F Forward (5.36” OD) (For Stamped Steel Drums) (Hi-Performance) (Red) ................... AR 80-89 A76108BHP 53404AR
110B Reverse (.080")......................................................................................................... 4 80-L83 76108 53504
110B Reverse (.061")......................................................................................................... 5 L83-Up 76108A 53404
110B Reverse (.061") (Hi-Performance) (Blue) ................................................................... AR L83-Up R76108AHP 53404X
104E Intermediate Friction Kit, (.080") High Performance.................................................... 1 80-97 A76104HPK N/A
106G Direct Friction Kit, (.075") High Performance ............................................................. 1 80-97 A76106HPK N/A
106G Friction & Steel Kit (AOD) Direct (.075") (Kolene Steels, w/ Pressure Plate) ................ 1 80-93 A76106PK N/A
106G Friction & Steel Kit (AOD) Direct (.059") Commercial (w/ Pressure Plate) ................... 1 80-93 A76106CPK K53-53
106G Friction & Steel Kit (AODE) Direct (.059") Commercial (w/ Pressure Plate) ................. 1 92-Up A76106EPK K53-53B
108F Forward Friction Kit (.061") (High Performance) ........................................................ 1 80-Up A76108HPK N/A
110B Reverse Friction Kit (.061") (High Performance)......................................................... 1 84-Up A76108HPK N/A
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
Ford 4R70W Automatic Transmission Service & Repair Manual
Viewed 22 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Ford 4R70W Automatic Transmission Service & Repair Manual is a comprehensive guide tailored to equip you with the necessary knowledge and skills for servicing and repairing the renowned 4R70W automatic transmission in Ford vehicles.
Whether you're a professional mechanic or a DIY enthusiast, this manual serves as a trusted resource, offering step-by-step instructions, detailed diagrams, and expert tips.
Inside this manual, you'll find a wealth of information, including comprehensive transmission specifications, disassembly and reassembly procedures, and troubleshooting guides, all presented with clear, easy-to-follow instructions.
Explore the inner workings of the 4R70W transmission, including its components, fluid capacities, recommended service intervals, and essential safety precautions to ensure a secure working environment throughout your maintenance and repair procedures.
Unlock the full potential of your Ford vehicle with this invaluable resource, whether you're a professional mechanic looking to enhance your expertise or a Ford owner passionate about maintaining your vehicle's performance.
Order your copy of the Ford 4R70W Automatic Transmission Service & Repair Manual today and take control of your Ford's transmission health like never before.
