T12000/T18000
Clark
Transmissions
parts service manual
Form No.
907368
SERVICE PARTS
T12000/T18000
Clark
Transmissions
Model T12000 Model T18000
SERVICE PARTS
T12000
Clark
Transmission
Model No.
1102-T12363-2
T12000 Series Section 1 Contents
Section Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
_______ - Special Parts Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
267072 - Converter Housing Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
267338 - Case and Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
267164 - Torque Converter Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
267396 - Pump Drive Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
267078 - Charge Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
267079 - Reverse Idler Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12
267169 - Forward/Reverse Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14
267185 - 3rd and Output Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16
267082 - 1st and 2nd Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18
267083 - Output Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-20
267270 - Disc Brake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22
246401 - Brake Caliper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-23
267172 - Electric Control With Modulation Group . . . . . . . . . . . . . . . . . . . . . . . . .1-24
267086 - Drive Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-26
Numerical Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-27
Printed In USA 2-1 Form No. 907368/Issued 496
Form No. 907368/Issued 496 2-2 Printed In USA
This Page Intentionally Blank
T12000 Series Model #1102T12363-2
Special Parts Group
Printed In USA 1-3 Form No. 907368/Issued 496
Ref. Part Description Qty. Ref. Part Description Qty.
No. No. Req. No. No. Req.
PAGE 12/13
09 L99256 REV. IDLER GEAR (26T) . . . . . . . . 1
PAGE 14/15
41 L98253 REV. CLUTCH GEAR BRG . . . . . . . 1
42 L98254 REV. CLUTCH GEAR SPACER . . . 1
43 L98253 REV. CLUTCH GEAR BRG . . . . . . . 1
44 L99255 REV. CLUTCH GEAR. . . . . . . . . . . 1
& BRG. ASY. (Incl. Items 41-43)
45 L99257 FWD. CLUTCH GEAR . . . . . . . . . . 1
& BRG. ASY. (Incl. Items 46-48)
46 L98253 FWD. CLUTCH GEAR BRG . . . . . . 1
47 L98254 FWD. CLUTCH GEAR SPACER. . . 1
48 L98253 FWD. CLUTCH GEAR BRG . . . . . . 1
PAGE 16/17
31 L99258 1ST DRIVE GEAR (29T) . . . . . . . . 1
32 L98270 3RD GEAR & OUTPUT
SHAFT (46T). . . . . . . . . . . . . . . . . 1
PAGE 18/19
43 L99259 1ST CLUTCH GEAR & BRG.
ASY (Incl. Items 44,45) . . . . . . . . . 1
44 L98253 BEARING. . . . . . . . . . . . . . . . . . . . 1
45 L98253 BEARING. . . . . . . . . . . . . . . . . . . . 1
46 L98276 2ND CLUTCH GEAR & BRG.
ASY (Incl. Items 47,48)
47 L98253 BEARING. . . . . . . . . . . . . . . . . . . . 1
48 L98253 BEARING. . . . . . . . . . . . . . . . . . . . 1
49 L98277 3RD DRIVEN GEAR (18T) . . . . . . . 1
PAGE 20/21
18 L98284 OUTPUT SHAFT GEAR (40T) . . . . 1
Model #1102T12363-2 T12000 Series
Converter Housing Group
Form No. 907368/Issued 496 1-4 Printed In USA
T12000 Series Model #1102T12363-2
Converter Housing Group
Printed In USA 1-5 Form No. 907368/Issued 496

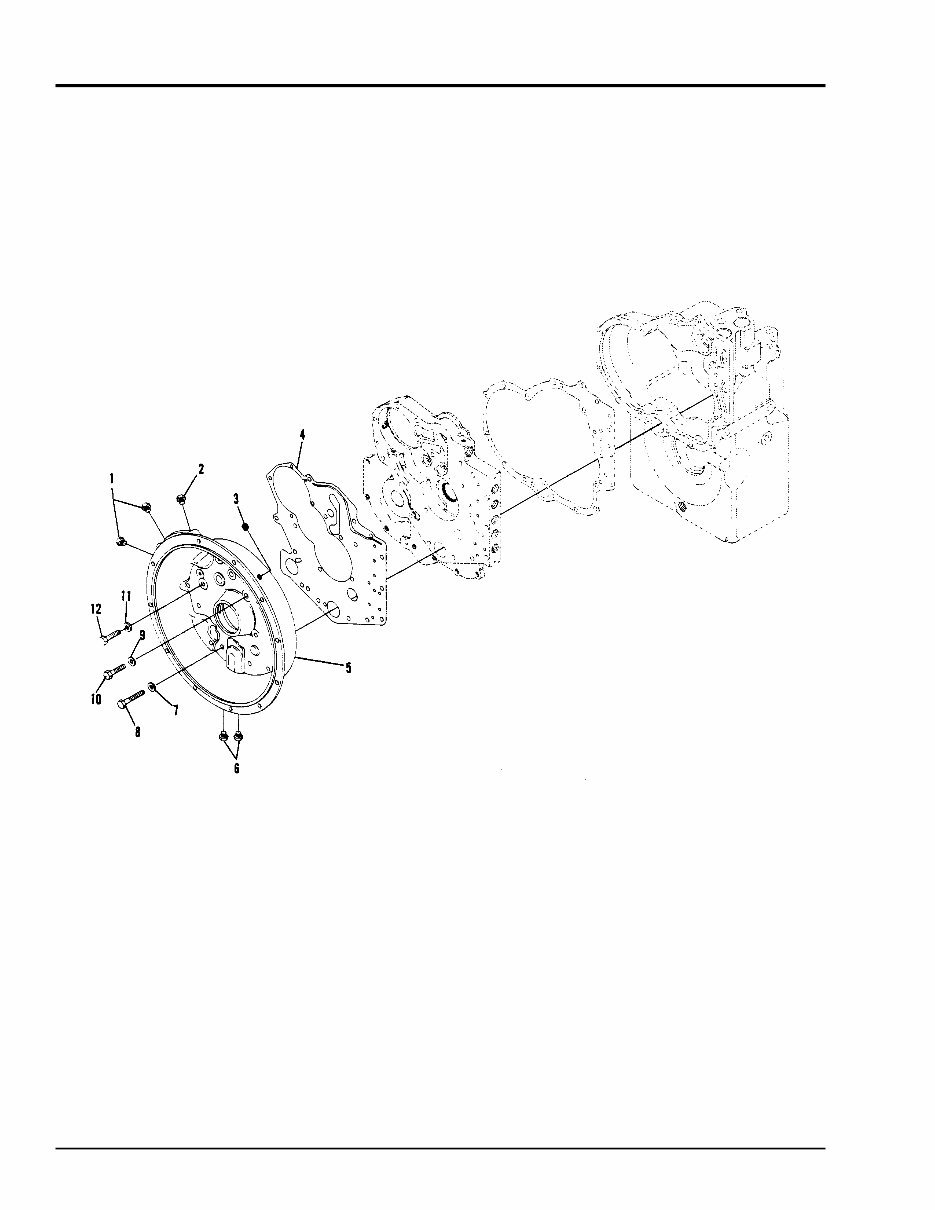

Ref. Part Description Qty. Ref. Part Description Qty.
No. No. Req. No. No. Req.
01 L99246 Plug (Hi & 3rd Port) . . . . . . . . . . . . 2
02 L99246 Reg. Pressure Port Plug . . . . . . . . . 1
03 L97508 Plug . . . . . . . . . . . . . . . . . . . . . . . . 1
04 L98186 Housing to Plate Gasket . . . . . . . . . 1
05 L98187 Converter Housing . . . . . . . . . . . . . 1
06 L99246 Plug (1st & 2nd Port) . . . . . . . . . . . 2
07 L99029 Conv. Hsg. to Trans. Case
Screw Lockwasher . . . . . . . . . . . 13
08 L99247 Conv. Housing. to Trans.
Case Screw . . . . . . . . . . . . . . . . 13
09 L99029 Conv. Housing. to Plate
Screw Lockwasher . . . . . . . . . . . . 1
10 L99247 Conv. Hsg. to Plate Screw . . . . . . . 1
11 L99029 Conv. Hsg. to Plate . . . . . . . . . . . . 6
Screw Lockwasher
12 L99044 Conv. Hsg. to Plate Screw . . . . . . . 6
