DIESELSTAPLER
version 01.01.1990 page 1 sheet 1
DIESELSTAPLER
version 01.01.1990 page 1 sheet 2
Part-No. Description Version
-- NOTES
-- CHASSIS
-- STEERING AXLE
-- GEAR DRIVE
-- TYRES
-- DRIVING CONTROLS
-- STEERING SYSTEM
-- BRAKING SYSTEM
-- ELECTR.INSTALLATION
-- ADD.ELECTRICAL INSTALLATION
-- HYDRAULIC SYSTEM
-- ELECTRIC MOTOR SYSTEM
-- ADD. HYDRAULICS high-visibility fork carriage from week 51, 2001
-- ENGINE SYSTEM
-- MAST
-- FORK CARRIAGE
-- FORK
-- MAST BEARING
-- TILT CYLINDER
-- ATTACHMENT high-visibility fork carriage from week 51, 2001
-- ACCESSORY
CHASSIS
version 01.01.1990 page 3 sheet 1
Part-No. Description Assembly Version
-- CHASSIS 610205 series
-- CHASSIS 639546 tank breather
-- RETROFIT 613183 raised 300 mm
-- COUNTERWEIGHT 603733 2.0 t
-- COUNTERWEIGHT 603734 2.5 t
-- COUNTERWEIGHT 629934 2.5 t; from week 51, 2001
-- COUNTERWEIGHT 613196 2.5 t; chain
-- COUNTERWEIGHT 657250 2.5 t; plate
-- COUNTERWEIGHT 657205 3.0 t; plate
-- COUNTERWEIGHT 603735 3.0 t
-- COUNTERWEIGHT 629935 3.0 t; from week 51, 2001
-- COUNTERWEIGHT 657202 2.5 t; eyebolts
-- COUNTERWEIGHT 625398 3.0 t; eyebolts
-- COUNTERWEIGHT 655283 3.0 t; eyebolts
-- COUNTERWEIGHT 625371 2.0 t; type 244A
-- COUNTERWEIGHT 625373 2.5 t; type 244A
-- COUNTERWEIGHT 618267 3.0 t 244A
-- COUNTERWEIGHT 625372 2.0 t; type 243A
-- COUNTERWEIGHT 618268 2.5 t; type 243A
-- COUNTERWEIGHT 657235 2.5 t; type 243A
-- COUNTERWEIGHT 621264 3.0 t 243A
-- COUNTERWEIGHT 618294 2.0 t; type 245A
-- COUNTERWEIGHT 625377 2.5 t; type 245A
-- COUNTERWEIGHT 618287 3.0 t; 245A
-- COUNTERWEIGHT 655274 2.0 t; 460 A
-- COUNTERWEIGHT 650233 2.5 t; 850B
-- COUNTERWEIGHT 650234 3.0 t; 850B
-- COUNTERWEIGHT 647059 2.5 t; type SK30
-- ADD. WEIGHT 650237 131 kg
-- ADD. WEIGHT 657213 130 kg
-- WEDGE 378824
-- WEDGE 378825
-- WEDGE 629776
-- WEDGE 657148
-- WEDGE 650222
607549 HOOD 607549
626620 HOOD 626620 lockable
-- RESERVOIR 369820
-- RESERVOIR 383427 without heater
-- RETROFIT 376447 front
-- DIRT TRAP 639815 rear
-- COVER 600873
-- COVER 613195 RAL 2000
-- COVER 600878 LIGHTING
-- COVER 613175 in a dusty environment
CHASSIS
version 01.01.1990 page 3 sheet 2
Part-No. Description Assembly Version
-- COVER 613174 in a dusty environment; lighting
-- COVER 610215 Eberspächer
-- COVER 657263 Eberspächer
-- COVER 657262 Eberspächer; lighting
-- COVER 618271 raised 300 mm
-- COVER 618272 raised 300 mm; with lighting
-- RETROFIT 639829
-- RETROFIT 630546
-- FLOOR PLATE 609601 series
-- FLOOR PLATE 610201 without horn
-- FLOOR PLATE 610200 HEATING
-- FLOOR PLATE 613194 heater; BASF
640413 FLOOR PLATE 640413 two-pedal control; without horn
640414 FLOOR PLATE 640414 two-pedal control; heater
-- RETROFIT 625523 accelerator pedal cover; fishing industry model
-- SEAT 621252 ISRI 6000/516KL/4-pole plug
-- SEAT 661863 ISRI 6000 imitation leather; lordotic support; heater; buckle switch
-- SEAT 657280 ISRI 6000 imitation leather
-- SEAT 621253 ISRI 6000/516; fabric; with 4-pin connector
-- SEAT 621254 ISRI-7001 imitation leather with 4-pin connector; container
-- SEAT 621257 ISRI-7001 fabric with 4-pin connector; container
-- SEAT 655252 ISRI 2300 imitation leather
-- SEAT 661876 ISRI 2300 imitation leather; BASF
-- SEAT 713309 MSG 65 imitation leather
-- SEAT 661849 MSG 75 imitation leather
-- SEAT 706913 MSG 75 fabric
-- SEAT 706920 MSG 75 imitation leather
-- SUPPORT 661894
-- RETROFIT KIT 713324 R70 (except 7074-79); for trucks on which headroom is not given "on all
series trucks".
-- RESTRAINT SYSTEM 654197 saf-T R7032-40; R7062-70
-- RESTRAINT SYSTEM 654198 saf-T 7032-40/7062-70 Container
-- ARM REST 623032 ISRI 6000/516; right
-- OVERHEAD GUARD 608884
-- OVERHEAD GUARD 608848 strut overhead guard
-- OVERHEAD GUARD 626588 strut overhead guard; NATO green
-- OVERHEAD GUARD 639121 strut overhead guard: mast height: 2150 mm
-- OVERHEAD GUARD 620075 sheet metal roof; large window
-- OVERHEAD GUARD 608849 sheet metal roof
-- OVERHEAD GUARD 626558 sheet metal roof; RAL3002
-- OVERHEAD GUARD 706927 sheet metal roof; RAL 9010
-- OVERHEAD GUARD 626567 sheet metal roof; mast height: 2050 mm
-- OVERHEAD GUARD 626550 drive-in racking; width: 865 mm
-- OVERHEAD GUARD 608883 container
-- HANDLE 610186 right
CHASSIS
version 01.01.1990 page 3 sheet 3
Part-No. Description Assembly Version
-- GUIDE BRACKET 616072 front; rear
-- TERMINAL BOARD 639816 R70
-- TERMINAL BOARD 639814 R70; with lighting
-- OVERHEAD GUARD 650388
-- SCREEN GRID 633388
-- COVER 380584
-- COVER 637548 safety glass
-- COVER 628702 RADIO
-- COVER 654194 radio
-- INSTALLATION KIT 624894 radio; loudspeaker
-- COVERING 380585 container
-- COVERING 380586 engine bonnet; cabin
-- TANK CAB 383402 sheet metal roof
-- TANK CAB 383403 CAB
-- TANK CAB 383404 container
-- TANK CAB 383405 container; cabin
-- FRONT WINDSCREEN 380228 RAL 7021
-- FRONT WINDSCREEN 626576 RAL 3002
-- FRONT WINDSCREEN 618777 sheet metal roof; bottom wiper
-- FRONT WINDSCREEN 626581 sheet metal roof; bottom wiper
-- FRONT WINDSCREEN 639102 sheet metal roof
-- FRONT WINDSCREEN 358557 container
-- FRONT WINDSCREEN 626590 container
-- RETROFIT 397453 Macrolon
-- RETROFIT 608835 laminated glass
-- SUN VISOR,CPL 633369 R50; R70; R6211-17; R6311-15
-- REAR WINDOW 616096 RAL 7021
-- REAR WINDOW 626577 sheet metal roof; RAL3002
-- REAR FLAP 608887 container
-- TARPAULIN 380230
-- TARPAULIN 381997 heater; sheet metal roof
-- TARPAULIN 639145 sheet metal roof; left
-- TARPAULIN 363182 container
-- TARPAULIN 392710 container; heater
-- DOOR 380231 sheet metal roof; RAL 7021
-- DOOR 639146 RAL 7021; sheet metal roof; right
-- DOOR 626578 sheet metal roof; RAL3002
-- DOOR 358106 container
-- WINDSCREEN WIPER 600496 top
-- HEATING 606025 VW diesel engine
-- INSTRUMENT PANEL 397747
-- DEFROSTER 642803
-- MIRROR 610662 185x130 mm; smooth
-- MIRROR 610665 smooth: 185x130 mm
-- MIRROR 610667 smooth: 185x130 mm; overhead guard; container
CHASSIS
version 01.01.1990 page 3 sheet 4
Part-No. Description Assembly Version
-- MIRROR 610663 smooth: 185x130 mm; cabin weather guard; tarpaulin cabin; cabin
-- MIRROR 606589 260x135 mm; panorama
-- MIRROR 605675 panorama: 260x135 mm; overhead guard - sheet metal
-- MIRROR 382152 panorama: 260x135 mm; overhead guard - container
-- MIRROR 378344 panorama: 260x135 mm; cabin weather guard; tarpaulin cabin; cabin
-- MIRROR 397671 arched: 268x160 mm
-- MIRROR 380459 arched: 268x160 mm; overhead guard container
-- MIRROR 398599 arched: 268x160 mm; cabin weather guard; tarpaulin cabin; cabin
-- MIRROR 398566 DaimlerChrysler
-- REAR VIEW MIRROR 711032 nonbreakable: 220x160 mm; right to cabin door; for standard- and container
version.
-- WINDSCREEN
WASHER
657822 front
-- WINDSCREEN
WASHER
702425 front
-- WINDSCREEN
WASHER
617589
-- MUFFLER,COMPL 613168
-- EASYBELT GUARD 713329 Easy Belt restraint system

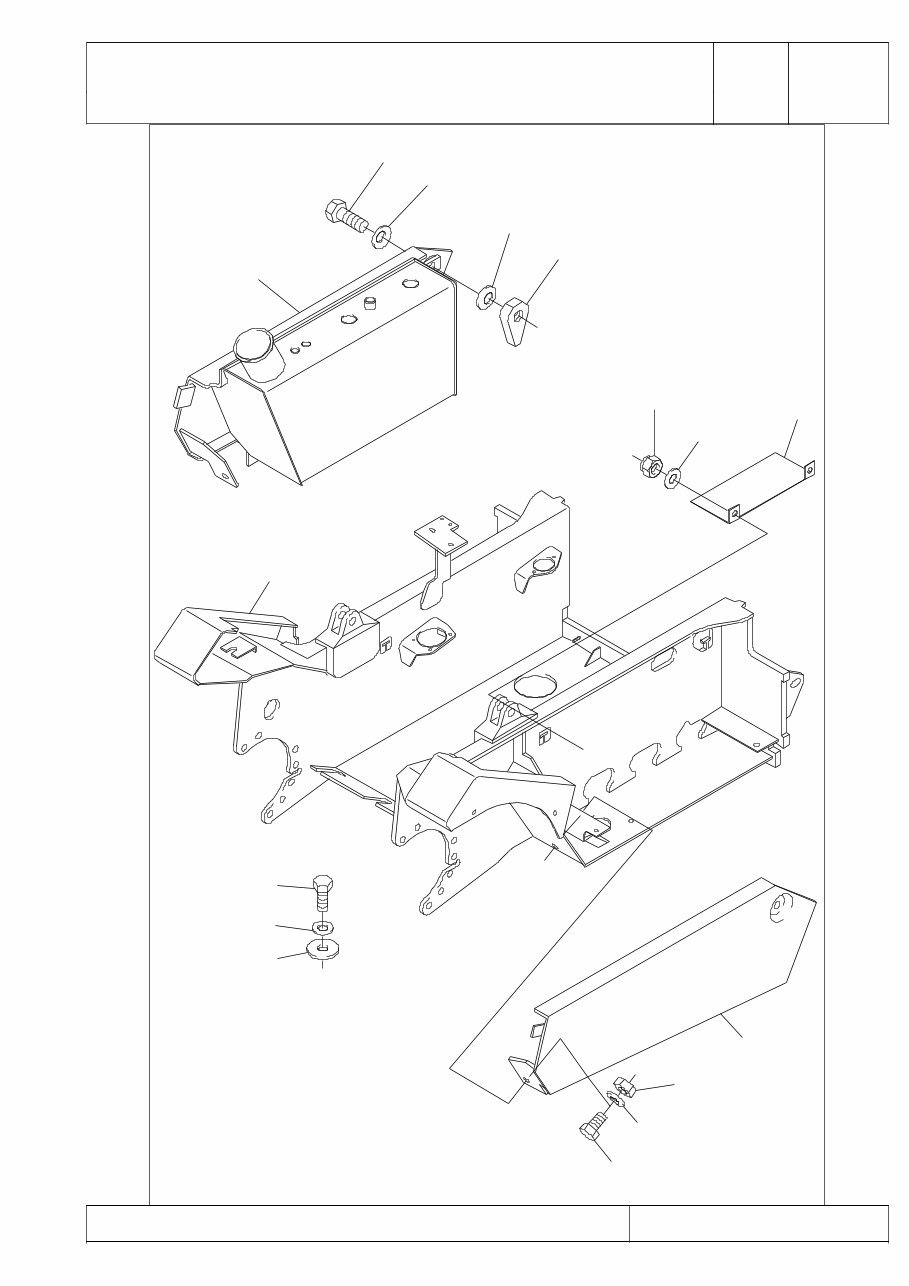

CHASSIS
01000
series
version 01.01.1990 page 4 sheet 1
7260
8
4
9
5
10
15
8
12
11
6
14
1
3
7
2
13
CHASSIS
01000
series
version 01.01.1990 page 4 sheet 2
Fig.-Nr Part-No. Qty. Description Norm Dimension Version Remark
1 629762 1 CHASSIS, WD lead time
2 620538 1 TANK, WELDED,WD right
3 609635 1 SIDE WALL, LEFT, WD
4 505433 2 HEXAGON BOLT
5 522378 2 WASHER
6 505547 2 HEXAGON NUT
7 505433 2 HEXAGON BOLT
8 522378 4 WASHER
9 361608 2 NUT
10 609047 1 GUARD
11 525714 2 HEXAGON NUT
12 500812 2 WASHER without illustration
13 501015 1 HEXAGON BOLT
14 502080 1 WASHER DIN125 A6,4x12x1,6 A2C
15 500812 1 WASHER without illustration
CHASSIS
01000
tank breather
version 01.01.1990 page 5 sheet 1
7260
8
4
9
5
10
15
8
12
11
6
14
1
3
7
2
13
CHASSIS
01000
tank breather
version 01.01.1990 page 5 sheet 2
Fig.-Nr Part-No. Qty. Description Norm Dimension Version Remark
1 629762 1 CHASSIS, WD lead time
2 641797 1 TANK, WELDED,WD right
3 609635 14 SIDE WALL, LEFT, WD
4 505433 2 HEXAGON BOLT
5 522378 2 WASHER
6 505547 2 HEXAGON NUT
7 505433 2 HEXAGON BOLT
8 522378 4 WASHER
9 361608 2 NUT
10 609047 1 GUARD
11 525714 2 HEXAGON NUT
12 500812 2 WASHER without illustration
13 501015 1 HEXAGON BOLT
14 502080 1 WASHER DIN125 A6,4x12x1,6 A2C
15 500812 1 WASHER without illustration
