DIESEL FORK TRUCK R7032/33/34VW
1
DIESEL FORK TRUCK R7032/33/34VW
1
Part No. Qty. Description
R7032/33/34VW-01 0 CHASSIS
R7032/33/34VW-02 0 RUNNING AXLE
R7032/33/34VW-03 0 GEAR DRIVE
R7032/33/34VW-04 0 TYRES
R7032/33/34VW-05 0 DRIVING CONTROLS
R7032/33/34VW-06 0 STEERING
R7032/33/34VW-07 0 BRAKING SYSTEM
R7032/33/34VW-08 0 ELECTR.INSTALLATION
R7032/33/34VW-09 0 LIGHTING
R7032/33/34VW-10 0 HYDRAULIC SYSTEM
R7032/33/34VW-11 0 E-MOTORANLAGE
R7032/33/34VW-13 0 ADD. HYDRAULICS
R7032/33/34VW-15 0 V-MOTORANLAGE
R7032/33/34VW-20 0 UPRIGHT
R7032/33/34VW-22 0 FORK CARRIAGE
R7032/33/34VW-23 0 FORK
R7032/33/34VW-24 0 MAST BEARING
R7032/33/34VW-25 0 TILT CYLINDER
R7032/33/34VW-27 0 ATTACHMENT
R7032/33/34VW-30 0 ACCESSORY
CHASSIS R7032/33/34VW-01
2
Part No. Qty. Description Version
352647 0 CHASSIS SERIE
375455 0 CHASSIS FARERSITZ UM 300 MM ERHOEHT
355709 0 COUNTERWEIGHT SERIE R 70-20
355710 0 COUNTERWEIGHT SERIE R 70-25
355734 0 COUNTERWEIGHT SERIE R 70-30
376532 0 COUNTERWEIGHT SONDERAUSFUEHRUNG R 70-25
380633 0 COUNTERWEIGHT KUPPLUNG TYP 383 U 135
378804 0 COUNTERWEIGHT SONDERAUSFUEHRUNG R 70-20
378877 0 COUNTERWEIGHT SONDERAUSFUEHRUNG R 70-30
378805 0 COUNTERWEIGHT KUPPLUNG TYP 244 DA
383606 0 COUNTERWEIGHT SONDERAUSFUEHRUNG / ANHAENGERSTECKDOSE
378824 0 COUNTERWEIGHT SONDERAUSFUEHRUNG / UNTERLEGKEIL: GEGENGEWICHT
378825 0 COUNTERWEIGHT SONDERAUSFUEHRUNG / UNTERLEGKEIL: HAUBE
355709A 0 COUNTERWEIGHT SONDERAUSFUEHRUNG
397508 0 HOOD SERIE / TEIL 1
397508A 0 HOOD SERIE / TEIL 2
376352 0 HOOD ABSCHLIESSBAR / TEIL 1
376352A 0 HOOD ABSCHLIESSBAR / TEIL 2
383427 0 HOOD SERIE
369820 0 HOOD AUF HAUBE
375494 0 MUDGUARD SP: 945/973
376421 0 MUDGUARD SP: 1045
356842 0 MUDGUARD SP: 1220 (ZWILLING)
394372 0 COVER VORN
394372A 0 COVER BELEUCHTUNG
394372B 0 COVER HINTEN
394372C 0 COVER ERHOEHTER STAUBANFALL
370839 0 FLOOR PLATE 1-PEDAL / SERIE
370840 0 FLOOR PLATE 1-PEDAL / HEIZUNG
384747 0 FLOOR PLATE 2-PEDAL / NORMAL
391465 0 FLOOR PLATE 2-PEDAL / HEIZUNG
368961 0 SEAT ISRI-6000/516 SERIE
368962 0 SEAT ISRI-6000/516 TEXTIL
368963 0 SEAT ISRI-7000
368964 0 SEAT ISRI-7000 TEXTIL
355711 0 SEAT ISRI-7001 CONTAINER
376476 0 SEAT ISRI-7001 HEIZUNG 24 V
370843 0 OVERHEAD GUARD STREBENDACH / SERIE
370844 0 OVERHEAD GUARD BLECHDACH WS/PK/K
370846 0 OVERHEAD GUARD CONTAINER WS/PK/K
380200 0 CAB BLECHDACH
380200A 0 CAB CONTAINER
380200B 0 TARP CAB BLECHDACH
380200C 0 TARP CAB BLECHDACH / PLANE F. HEIZUNG
380200D 0 TARP CAB CONTAINER
380200E 0 CAB BLECHDACH
380200F 0 CAB CONTAINER
CHASSIS R7032/33/34VW-01
2
Part No. Qty. Description Version
526655 0 FRONT WINDSCREEN BLECHDACH
525633 0 FRONT WINDSCREEN CONTAINER / WISCHER
526654 0 REAR WINDOW BLECHDACH
525631 0 REAR WINDOW CONTAINER
526659 0 TARPAULIN BLECHDACH
381996 0 TARPAULIN HEIZUNG
363182 0 TARPAULIN CONTAINER
526658 0 DOOR BLECHDACH
526657 0 DOOR BLECHDACH
525624 0 DOOR
525623 0 DOOR
525626 0 DOOR
525625 0 DOOR
363178 0 HEATING VW 028.B
526175 0 HEATER TEIL 1
526176 0 HEATER TEIL 2
382145 0 MIRROR STREBENDACH
382146 0 MIRROR BLECHDACH
382152 0 MIRROR CONTAINER
378344 0 MIRROR FRONTSCHEIBE
382147 0 MIRROR STREBENDACH / BLECHDACH
380459 0 MIRROR CONTAINER
380466 0 MIRROR FRONTSCHEIBE / NICHT CONTAINER
382179 0 MIRROR INNENSPIEGEL 185X130
375288 0 MIRROR AUSSENSPIEGEL / PLANENKABINE

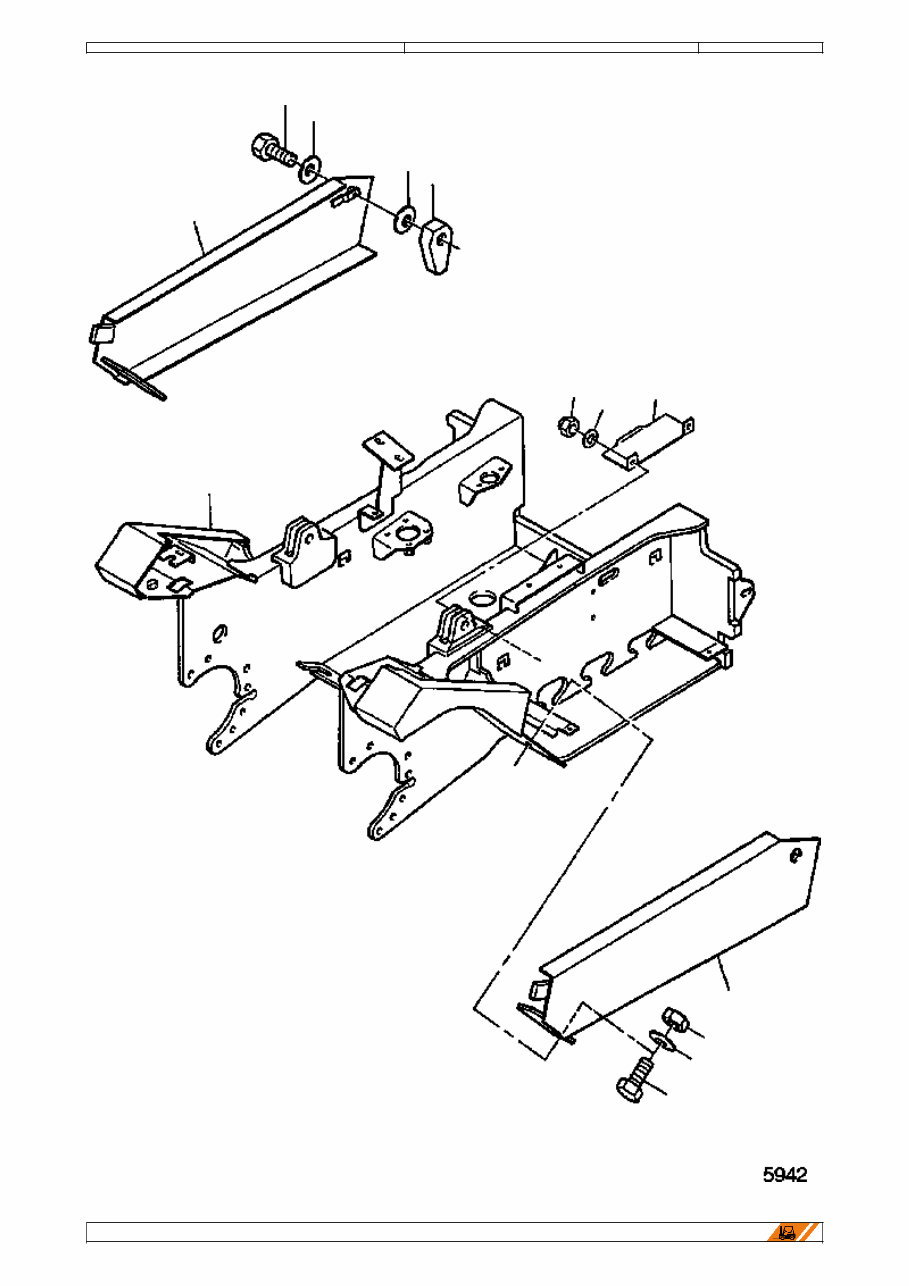

CHASSIS 352647
01000
3
7
8
8
9
2
11 10
12
1
3
6
5
4
CHASSIS 352647
01000
3
Fig.Nr Part No. Qty. Description Version
1 335597 1 CHASSIS
2 335633 1 SIDE WALL r
3 335632 1 SIDE WALL l
4 505433 2 HEXAGON BOLT
5 522378 2 WASHER
6 505547 2 HEXAGON NUT
7 505433 2 HEXAGON BOLT
8 522378 4 WASHER
9 361608 2 NUT
10 391711 1 METAL PLATE
11 525714 2 HEXAGON NUT
12 502082 2 WASHER

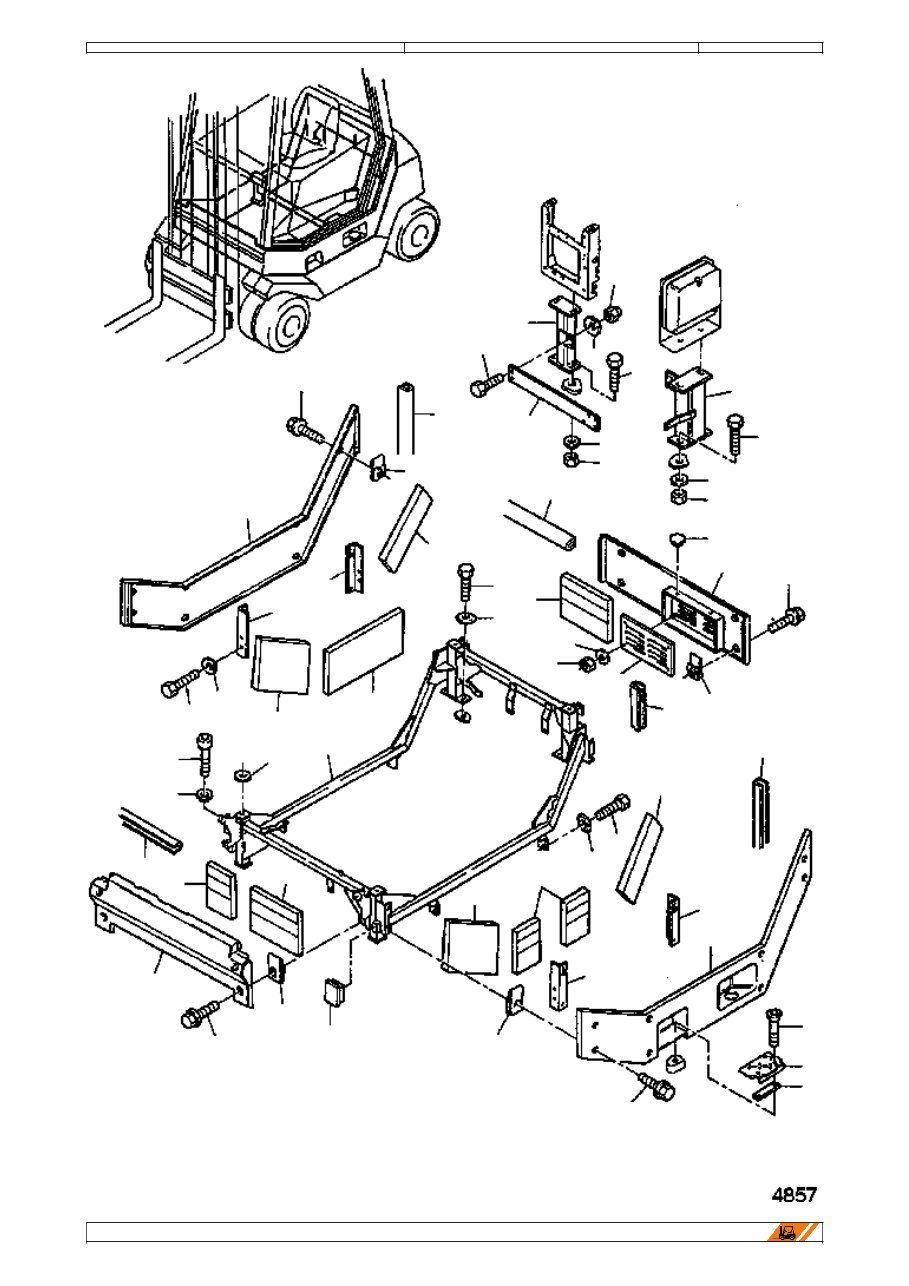

CHASSIS 375455
01000
4
40
44
33
42
43
34
8
37
10
41
38
35
36
9
39
10
16
32
19
27
8
13
4
28
13
5
31
30
29
15 18 9
10
14
17
1
10
6
3
21
5
14
15
10
12
22
11
23
13
20
13
7
9
26
2
9 8
24
25
8
CHASSIS 375455
01000
4
Fig.Nr Part No. Qty. Description
1 373254 1 CHASSIS
2 523907 2 PLUG
3 502145 2 CHEESE-HEAD SCREW
4 501073 4 HEXAGON BOLT
5 519694 6 WASHER
6 360995 4 WASHER
7 373250 1 FRONT SHEET, WD
8 525755 24 HEXAGON BOLT
9 525978 24 NUT RETAINER CLIP
10 523715 1 EDGE PROTECTION SECT.
11 372696 1 DAMPING PLATE
12 374039 1 DAMPING PLATE
13 372675 4 HOLDER
14 501032 8 HEXAGON BOLT
15 520152 8 WASHER
16 373252 1 SIDE WALL, RIGHT
17 374040 1 DAMPING PLATE
18 374037 1 DAMPING PLATE
19 374038 1 DAMPING PLATE
20 373253 1 SIDE WALL, LEFT, WD
21 374038 1 DAMPING PLATE
22 374039 2 DAMPING PLATE
23 374040 1 DAMPING PLATE
24 372678 1 STEP
25 372697 1 SPACER
26 502298 2 COUNTERSUNK SCREW
27 372689 1 PLATE
28 372696 1 DAMPING PLATE
29 372672 1 CROSS-SECT. REDUCER
30 502228 4 HEXAGON NUT
31 500950 4 DETENT RING
32 521932 2 PLUG
33 372516 1 SUPPORT
34 501105 2 HEXAGON BOLT
35 519829 4 WASHER
36 502236 2 HEXAGON NUT
37 372509 1 SUPPORT
38 501073 4 HEXAGON BOLT
39 519694 6 WASHER
40 502234 2 HEXAGON NUT
41 373261 1 STAY STRUT
42 501037 4 HEXAGON BOLT
43 520152 4 WASHER
44 525714 4 HEXAGON NUT

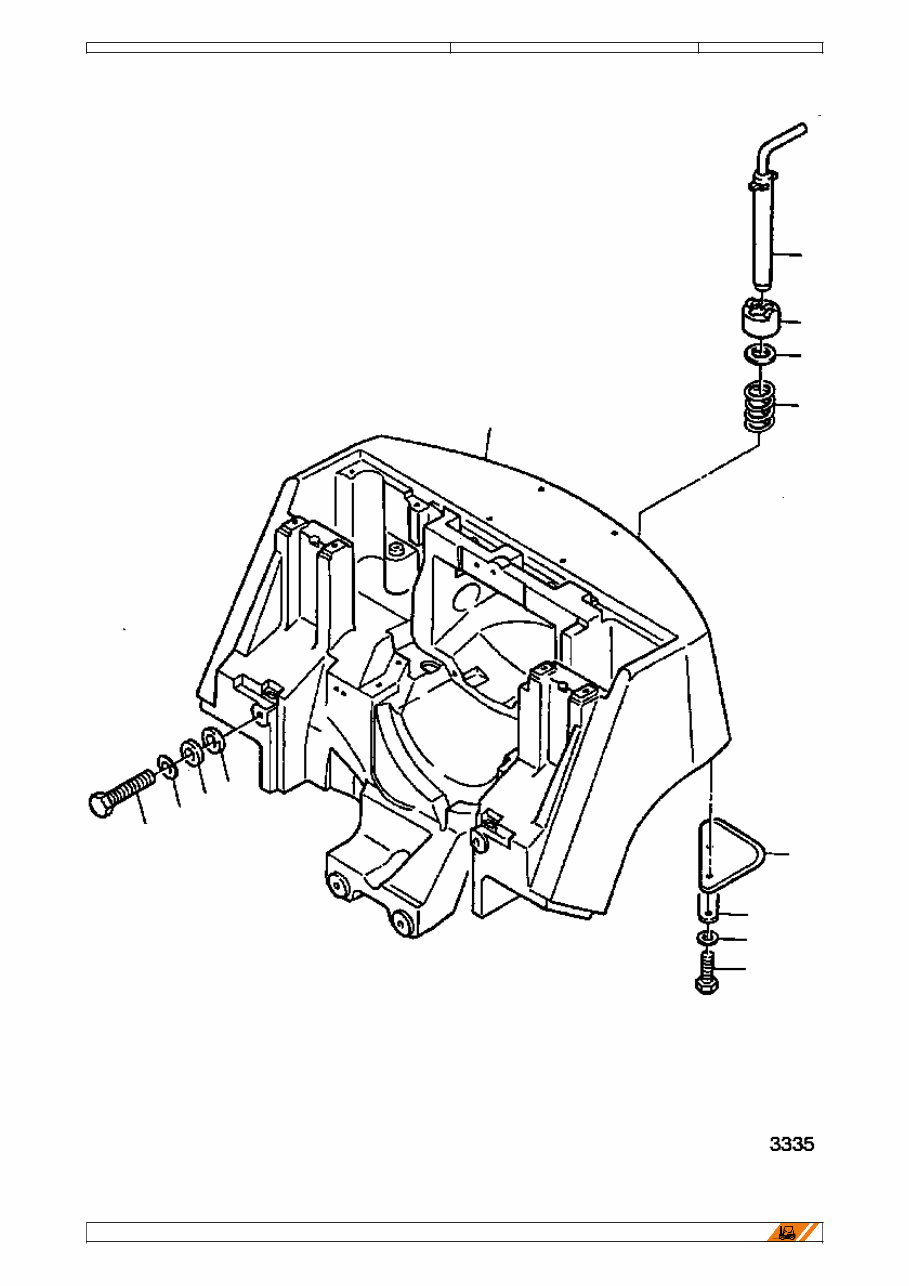

COUNTERWEIGHT 355709
01100
5
5
4
3
2
1
9
8
7
6
10
13
12
11
COUNTERWEIGHT 355709
01100
5
Fig.Nr Part No. Qty. Description
1 376894 1 COUNTERWEIGHT
2 070173 1 SPRING
3 502056 1 WASHER
4 076263 1 SPRING COVER
5 302454 1 CLUTCH PIN
6 525472 4 HEXAGON BOLT
7 500961 4 DETENT RING
8 502464 4 SPHERICAL WASHER
9 502467 4 CONE PAN
10 303557 2 MUDGUARD
11 501072 4 HEXAGON BOLT
12 519694 4 WASHER
13 369814 2 HOLDER
