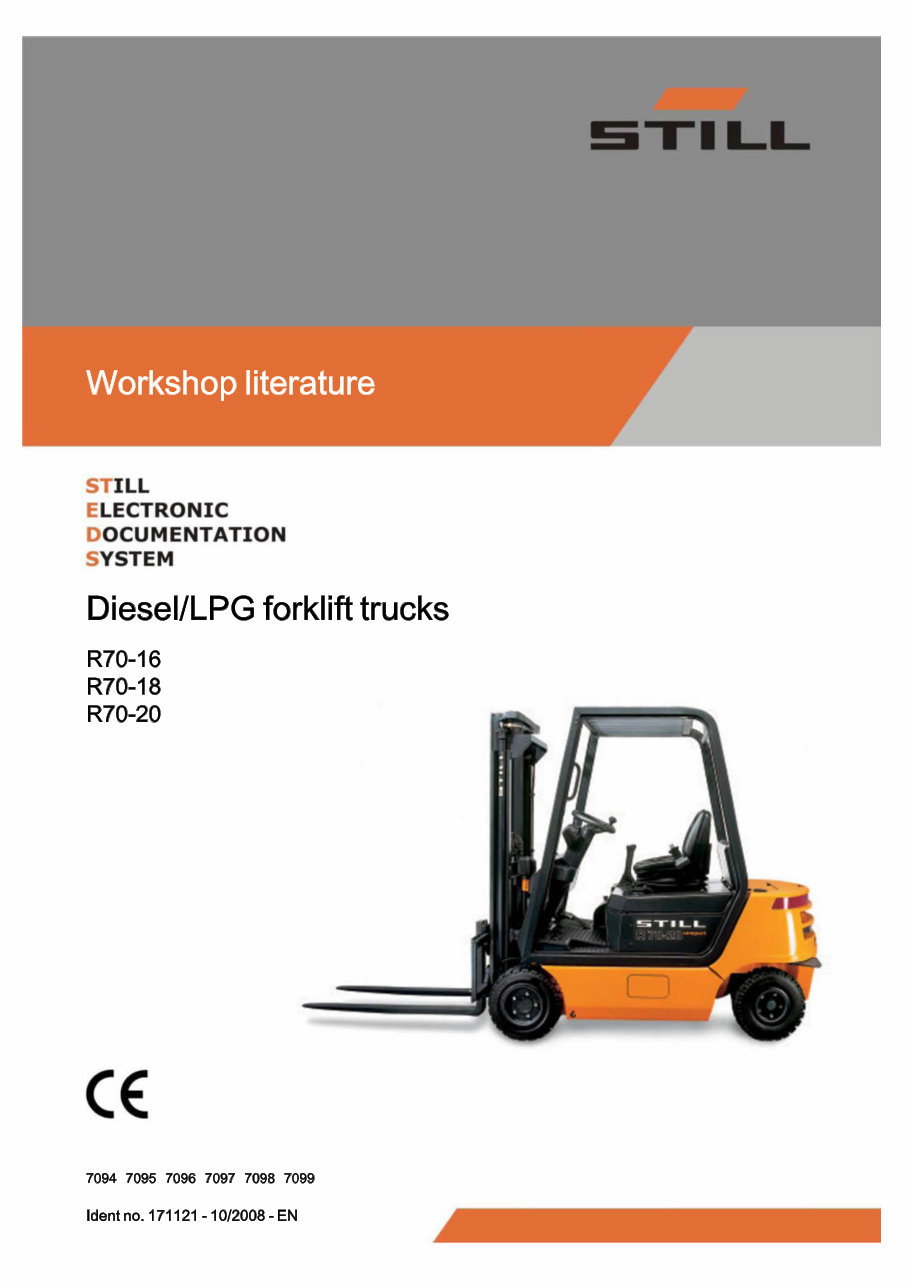

Still IC-Engined Fork Truck R70-16, R70-18, R70-20 Series: R7094, R7095, R7096, R7097, R7098, R7099 Workshop Manual

• Original Illustrated Factory Workshop Manual for Still Forklift Truck with Diesel and LPG Engines R70-16, R70-18, R70-20 Series.
• Original factory manuals for Still Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text
• Covered models:
  • R7094
  • R7095
  • R7096
  • R7097
  • R7098
  • R7099
• Format: 133 Pages
• Language: English

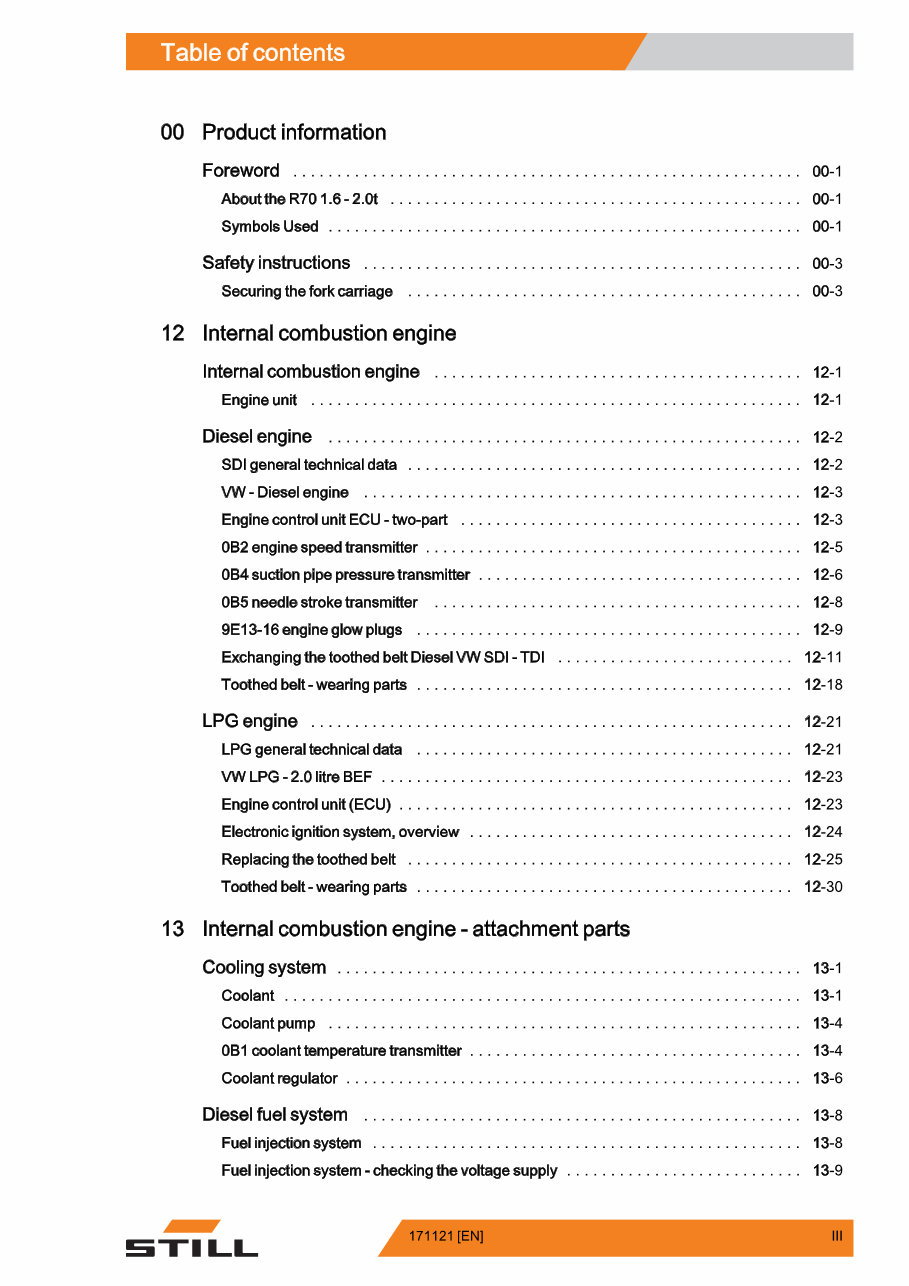

• Contents:
  • 00 Product information

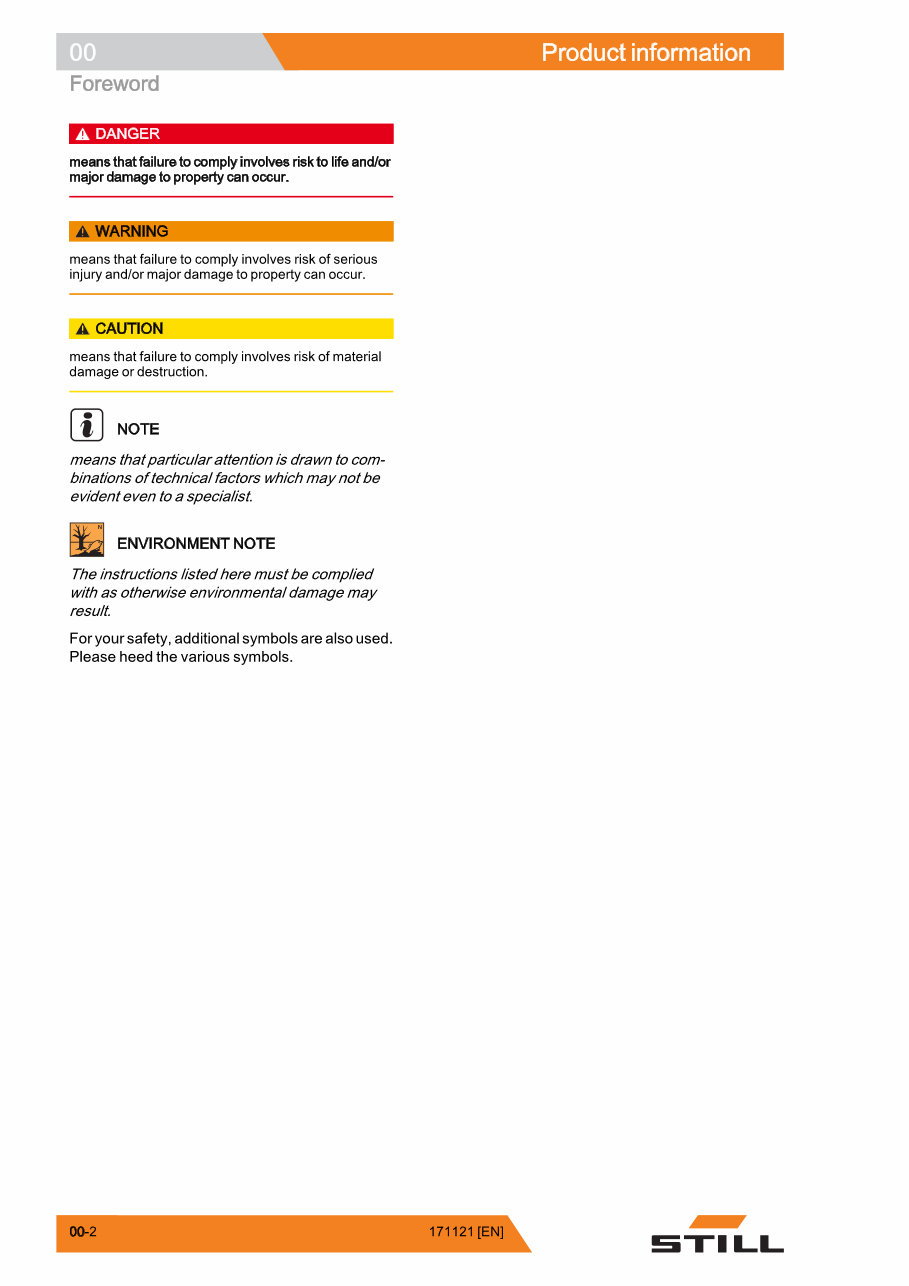

    • Foreword

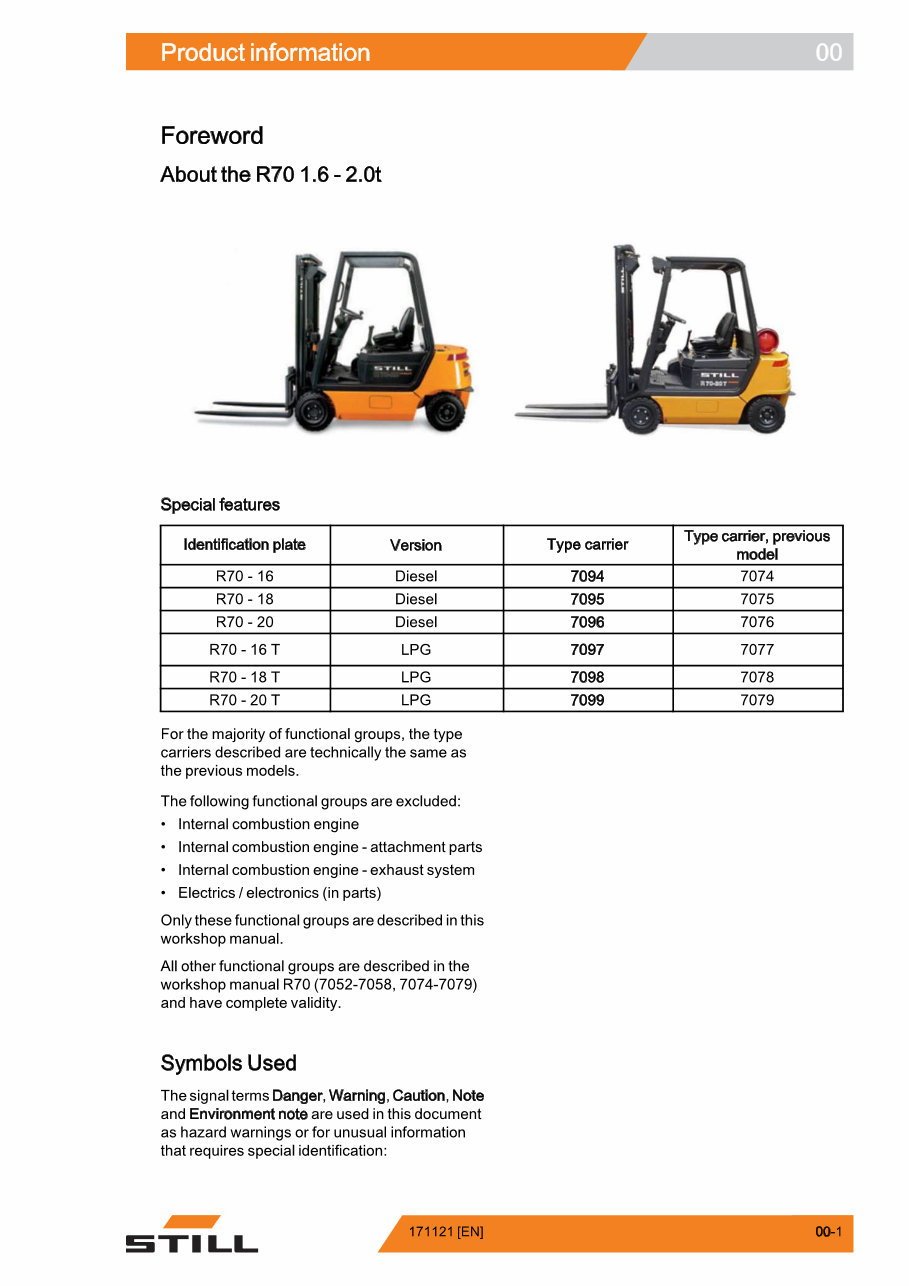

    • About the R70 1.6 - 2.0t
    • Symbols Used
    • Safety instructions
    • Securing the fork carriage
  • 12 Internal combustion engine
    • Internal combustion engine
    • Engine unit
    • Diesel engine
    • SDI general technical data
    • VW - Diesel engine
    • Engine control unit ECU - two-part
    • 0B2 engine speed transmitter
    • 0B4 suction pipe pressure transmitter
    • 0B5 needle stroke transmitter
    • 9E13-16 engine glow plugs
    • Exchanging the toothed belt Diesel VW SDI -TDI
    • Toothed belt - wearing parts
    • LPG engine
    • LPG general technical data
    • VW LPG -2.0 litre BEF
    • Engine control unit (ECU)
    • Electronic ignition system, overview
    • Replacing the toothed belt
    • Toothed belt -wearing parts
  • 13 Internal combustion engine - attachment parts
    • Cooling system
    • Coolant
    • Coolant pump
    • 0B1 coolant temperature transmitter
    • Coolant regulator
    • Diesel fuel system
    • Fuel injection system
    • Fuel injection system -checking the voltage supply

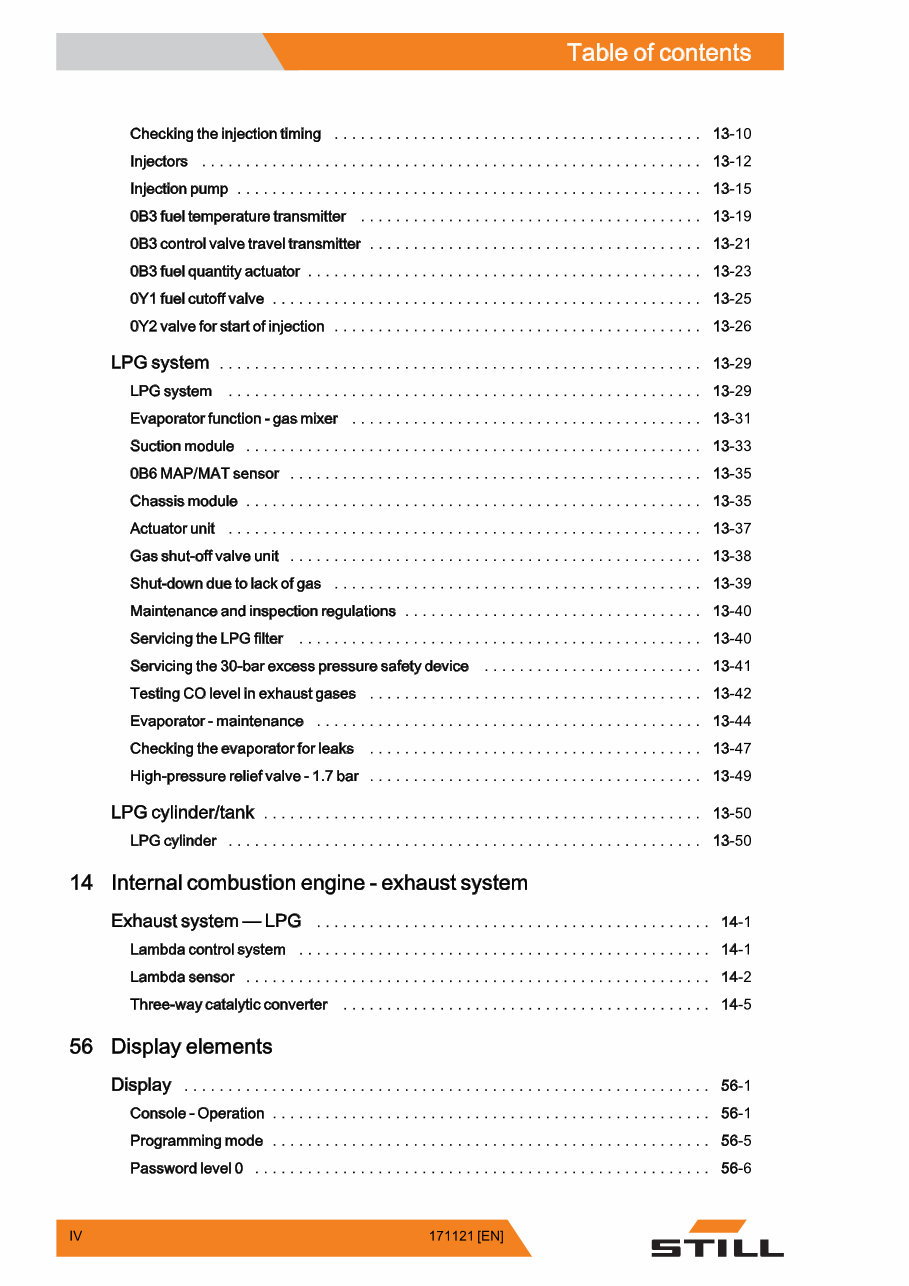

    • Checking the injection timing
    • Injectors
    • Injection pump
    • 0B3 fuel temperature transmitter
    • 0B3 control valve travel transmitter
    • 0B3 fuel quantity actuator
    • 0Y1 fuel cutoff valve
    • 0Y2 valve for start of injection
    • LPG system
    • Evaporator function - gas mixer
    • Suction module
    • 0B6 MAP/MAT sensor
    • Chassis module
    • Actuator unit
    • Gas shut-off valve unit
    • Shut-down due to lack of gas
    • Maintenance and inspection regulations
    • Servicing the LPG filter
    • Servicing the 30-bar excess pressure safety device
    • Testing CO level in exhaust gases
    • Evaporator- maintenance
    • Checking the evaporator for leaks
    • High-pressure reliefvalve- 1.7 bar
    • LPG cylinder/tank
    • LPG cylinder
  • 14 Internal combustion engine - exhaust system
    • Exhaust system LPG
    • Lambda control system
    • Lambda sensor
    • Three-way catalytic converter
  • 56 Display elements
    • Display
    • Console - Operation
    • Programming mode
    • Password level 0
    • Password level 1
    • Password level 2

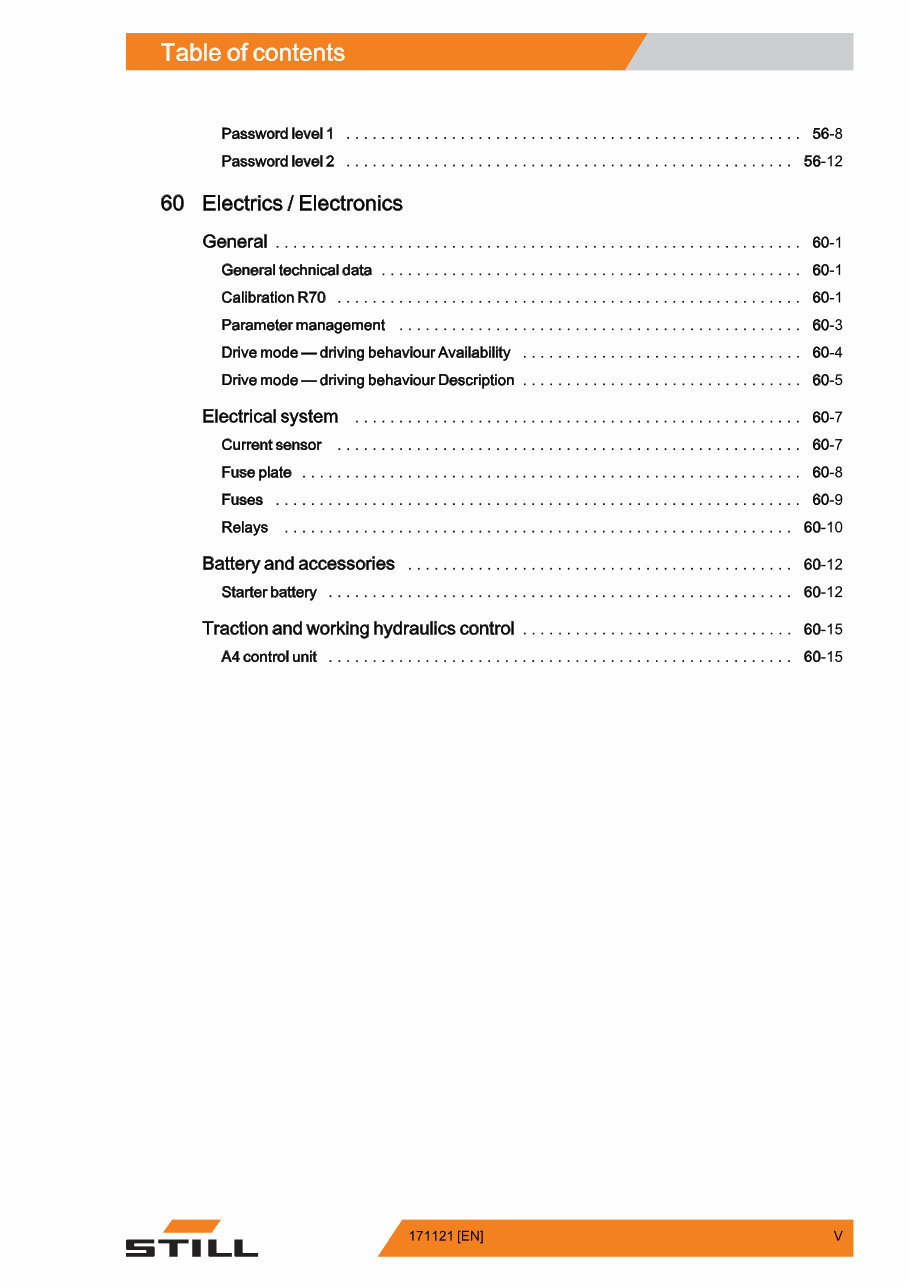

  • 60 Electrics / Electronics
    • General
    • General technical data
    • Calibration R70
    • Parameter management
    • Drive mode driving behaviour Availability
    • Drive mode driving behaviour Description
    • Electrical system
    • Current sensor
    • Fuse plate
    • Fuses
    • Relays
    • Battery and accessories
    • Starter battery
    • Traction and working hydraulics control
    • A4 control unit

These manuals are essential resources for both professional mechanics and DIY enthusiasts, providing detailed technical information for the repair and maintenance of Still Forklift Trucks with Diesel and LPG Engines R70-16, R70-18, R70-20 Series. The manuals contain high-quality images, circuit diagrams, and comprehensive instructions to facilitate efficient operation and repair of the trucks. Whether you are a professional mechanic or a DIY enthusiast, these manuals are indispensable for ensuring the proper functioning and maintenance of Still Forklift Trucks.
