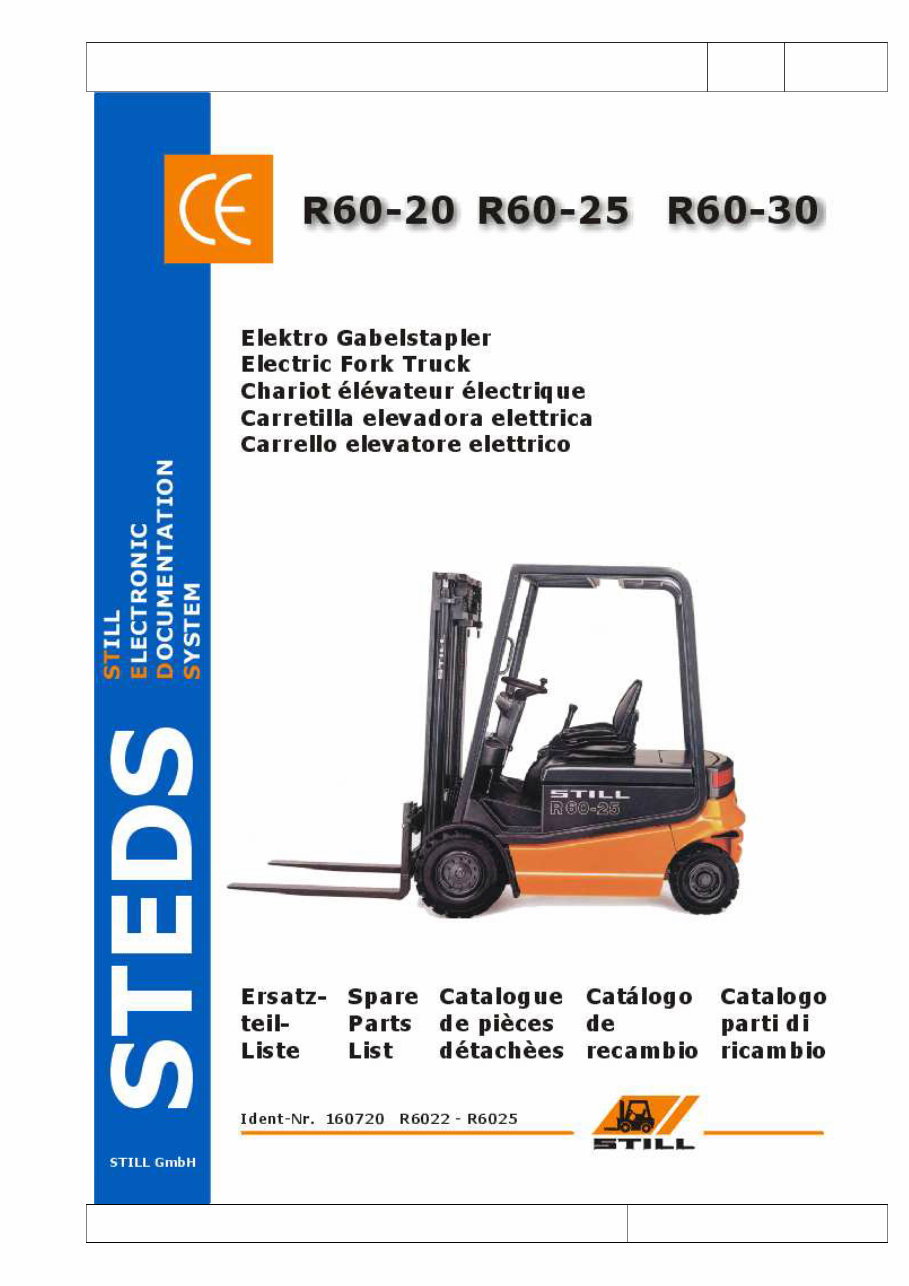

Still Electric Fork Truck Forklift R60-20,R60-25,R60-30 Illustrated Master Parts List Manual (Ident-Nr.160720 R6

ELECTRIC FORK TRUCK version 01.01.1990 page 1 sheet 1

ELECTRIC FORK TRUCK version 01.01.1990 page 1 sheet 2 Part-No. Description -- NOTES -- CHASSIS -- RUNNING AXLE -- GEAR DRIVE -- TYRES -- DRIVING CONTROLS -- STEERING SYSTEM -- BRAKING SYSTEM -- ELECTR.INSTALLATION -- ADD.ELECTRICAL INSTALLATION -- HYDRAULIC SYSTEM -- ELECTRIC MOTOR SYSTEM -- ADD. HYDRAULICS -- MAST -- FORK CARRIAGE -- FORK -- MAST BEARING -- TILT CYLINDER -- ATTACHMENT -- ACCESSORY

CHASSIS version 01.01.1990 page 3 sheet 1 Part-No. Qty. Description Assembly Version 614614 1 CHASSIS 614614 standard; R6022-23 614615 1 CHASSIS 614615 standard; R6024-25 623955 1 CHASSIS 623955 R6022-23; with skirting board; large profile 623956 1 CHASSIS 623956 R6024-25; with skirting board; large profile 606444 1 CHASSIS 606444 R6022-23; with skirting board; small profile 632486 1 CHASSIS 632486 R6024-25; with skirting board; small profile -- 1 CHASSIS 631478 R6022-23; with skirting board -- 1 CHASSIS 633675 R6024-25; with skirting board -- 1 COUNTERWEIGHT 601792 standard; R6022 -- 1 COUNTERWEIGHT 601793 standard; R6023 -- 1 COUNTERWEIGHT 601794 standard; R6024 -- 1 COUNTERWEIGHT 601795 standard; R6025 -- 1 COUNTERWEIGHT 600776 R6022 with coupling pin retainer and bent handle -- 1 COUNTERWEIGHT 600777 R6023; with coupling pin retainer and bent handle -- 1 COUNTERWEIGHT 600778 R6024 with coupling pin retainer and bent handle -- 1 COUNTERWEIGHT 600779 R6025 with coupling pin retainer and bent handle -- 1 COUNTERWEIGHT 600780 R6023; with coupling pin retainer and straight handle -- 1 COUNTERWEIGHT 619925 R6024 with coupling pin retainer and straight handle -- 1 COUNTERWEIGHT 600781 R6025 with coupling pin retainer and straight handle -- 1 COUNTERWEIGHT 600754 R6022; with pin retainer against jumping out -- 1 COUNTERWEIGHT 626124 R6023; with eyebolts -- 1 COUNTERWEIGHT 600769 R6024 with eyebolts -- 1 COUNTERWEIGHT 600770 R6025 with eyebolts -- 1 COUNTERWEIGHT 608629 R6022; with trailer coupling 244D -- 1 COUNTERWEIGHT 608630 R6023; with trailer coupling 244D -- 1 COUNTERWEIGHT 608631 R6024; with trailer coupling 244D -- 1 COUNTERWEIGHT 608632 R6025; with trailer coupling 244D -- 1 COUNTERWEIGHT 608600 R6023; with small skirting board; coupling pin retainer -- 1 COUNTERWEIGHT 632603 R6024; with small skirting board, coupling pin retainer -- 1 COUNTERWEIGHT 623950 R6023; with small skirting board (AUDI) -- 1 COUNTERWEIGHT 632604 R6024; with small skirting board (AUDI) -- 1 COUNTERWEIGHT 636556 R6025; with small skirting board (AUDI) -- 1 COUNTERWEIGHT 637561 R6025 with coupling pin retainer and bent handle -- 1 COUNTERWEIGHT 639672 R6024; with skirting board (Ford) and secured coupling pin -- 1 COUNTERWEIGHT 631465 R6023; with skirting board (Ford) -- 1 COUNTERWEIGHT 631463 R6026; with skirting board (Ford) -- 1 COUNTERWEIGHT 633692 R6023; with skirting board (BMW) -- 1 COUNTERWEIGHT 633677 R6024 with skirting board and fastening points for -- 1 HOOD, COMPL. 633332 R6022-23; R6036-37; R6042-43; standard -- 1 HOOD, COMPL. 633333 R6024-26; R6038-39; R6044-46; R6056; standard -- 1 HOOD, COMPL. 633335 R6022-23; container version -- 1 HOOD, COMPL. 633336 R6024-25; container version -- 1 HOOD, COMPL. 633337 R6022-23; R6036-37; R6042-43; joystick -- 1 HOOD, COMPL. 633338 R6024-26; R6038-39; R6044-46; joystick

CHASSIS version 01.01.1990 page 3 sheet 2 Part-No. Qty. Description Assembly Version -- 1 HOOD, COMPL. 633351 R6024-26; R6044-46; swivel seat -- 1 SPRING 633339 R6027-29; R6036-37; R6042-43; R6047-49; swivel seat -- 1 SPRING 633340 R6038-39; R6044-45; standard; up to week 04, 2007 -- 1 SPRING 633341 reinforced version; up to week 04, 2007 -- 1 SPRING 633342 joystick and R6056 -- 1 SPRING 633343 R6024-26; R6044-46; for swivel seat version -- 1 SIDE WALL, LEFT 633344 R6022-23; R6036-37; R6042-43 -- 1 SIDE WALL, LEFT 633345 R6024-29; R6038-39; R6044-49 -- 1 SIDE WALL, RIGHT 633352 R6022-23; R6036-37; R6042-43 -- 1 SIDE WALL, LEFT 633346 R6024-25; R6044-45; swivel seat version -- 1 SIDE WALL, RIGHT 633353 R6024-29; R6038-39; R6044-49 -- 1 SIDE WALL, RIGHT 633354 R6024-25; R6044-45; swivel seat version -- 1 COVER, COMPL. 633363 R6022-23; battery compartment -- 1 COVER, COMPL. 633364 R6024-25; battery compartment -- 1 COVER, COMPL. 633365 R6024-25; battery compartment; swivel seat version -- 1 COVER, COMPL. 633306 counterweight -- 1 BRACKET 633783 R6024-29; R6044-49; instrument panel; swivel seat -- 1 BRACKET 633782 R6024-29; R6044-49; swivel seat -- 1 HOOD CATCH 633771 swivel seat version; up to week 21, 2006 -- 1 RESERVOIR 605845 R6022-23; R6036-37; R6042-43 -- 1 RESERVOIR 395559 R6024-29; R6038-39; R6044-49; R6056-59 -- 1 RESERVOIR 623967 R6022-23; R6036-37; R6042-43; joystick -- 1 RESERVOIR 623968 R6024-26; R6038-39; R6044-46; joystick -- 1 RESERVOIR 633360 R6024-29; R6044-49; swivel seat version -- 1 HANDLE 399494 on left side of battery cover -- 1 HANDLE 396820 right; on battery cover -- 1 HANDLE 648258 right; on battery cover; BMW -- 1 MUDGUARD 392976 without heater; track: 945 mm, 961 mm and 984 mm -- 1 MUDGUARD 392977 without heater; track: 1048 mm -- 1 MUDGUARD 392978 with heater; track: 945 mm, 961 mm and 984 mm -- 1 MUDGUARD 392979 with heater; track: 1048 mm -- 1 FLOOR PLATE 613123 standard -- 1 FLOOR PLATE 613147 cut-out for heater 613144 1 FLOOR PLATE 613144 with two-pedal control 615950 1 FLOOR PLATE 615950 with two-pedal control with cut-out for heater 615953 1 FLOOR PLATE 615953 with traction interlock pedal -- 1 FLOOR PLATE 619916 with traction interlock pedal and cut-out for heater -- 1 FLOOR PLATE 621970 swivel seat version for overhead guard -- 1 FLOOR PLATE 623835 swivel seat version for cabin -- 1 RETROFIT 623186 splash guard; fishing industry model -- 1 RETROFIT 604076 accelerator pedal cover; fishing industry model -- 1 COVERING 615116 standard -- 1 COVERING 615118 standard; with pressure relief valve -- 1 COVERING 615120 standard; with heater

CHASSIS version 01.01.1990 page 3 sheet 3 Part-No. Qty. Description Assembly Version -- 1 COVERING 615122 with pressure relief valve and heater -- 1 COVERING 615117 standard; with lighting -- 1 COVERING 615119 standard; with pressure relief valve and lighting -- 1 COVERING 615121 standard; with heater and lighting -- 1 COVERING 615123 with pressure relief valve, heater and lighting -- 1 COVERING 621982 for swivel seat -- 1 COVERING 621983 for swivel seat and lighting -- 1 COVERING, COMPL. 661786 conversion trim; fishing industry model -- 1 ASH-TRAY 605829 -- 1 ASH-TRAY 617531 -- 1 TRAILER COUPLING 606428 244D; for hooking in -- 1 DRIVERS SEAT, COMPL. 608568 ISRI 2300 LR imitation leather with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 608581 ISRI 2300 LR fabric with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 608582 ISRI 6000/516KL/4-pole plug -- 1 DRIVERS SEAT, COMPL. 619944 ISRI 6000/516; fabric; with 4-pin connector -- 1 DRIVERS SEAT, COMPL. 619946 ISRI-7001 imitation leather with 4-pin connector; container -- 1 DRIVERS SEAT, COMPL. 619949 ISRI-7001 fabric with 4-pin connector; container -- 1 DRIVERS SEAT, COMPL. 622000 MSG 20 imitation leather; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 622001 MSG 20 fabric; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 622002 MSG 20 imitation leather; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 622003 MSG 20 fabric; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 630385 MSG 20 imitation leather; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 630384 MSG 20 fabric; joystick with 6-pin connector -- 1 DRIVERS SEAT, COMPL. 632609 ISRI 6000/516; fabric; with 4-pin connector; belt retractor right -- 1 RESTRAINT SYSTEM 654169 saf-T 6022-23/6042-43 -- 1 RESTRAINT SYSTEM 654170 saf-T 6024-26/6044-45 -- 1 OVERHEAD GUARD OVERVIEW 383411 R6024-25; R6038-39; R6044-45 -- 1 OVERHEAD GUARD OVERVIEW 383410 R6022-23; R6036-37; R6042-43 -- 1 OVERHEAD GUARD 632201 R6022-23; R6036-37; R6042-43; standard -- 1 OVERHEAD GUARD 632206 R6024-25, R6038-39, R6044-45; standard -- 1 OVERHEAD GUARD 632202 R6022-23; R6036-37; R6042-43; retrofitable (version) -- 1 OVERHEAD GUARD 632207 R6024-25, R6038-39, R6044-45; retrofitable -- 1 OVERHEAD GUARD 632203 R6022-23; R6036-37; R6042-43; retrofitable DaimlerChrysler version -- 1 OVERHEAD GUARD 632208 R6024-25, R6038-39, R6044-45; retrofitable DaimlerChrysler -- 1 OVERHEAD GUARD 632204 R6022-23; R6036-37; R6042-43; container retrofitable -- 1 OVERHEAD GUARD 632209 R6024-25, R6038-39, R6044-45; container retrofitable -- 1 OVERHEAD GUARD 632205 R6022-23; R6036-37; R6042-43; container retrofitable DaimlerChrysler -- 1 OVERHEAD GUARD 632210 R6024-25; R6038-39; R6044-45; container retrofitable DaimlerChrysler -- 1 OVERHEAD GUARD 632217 R6024-25; R6038-39; R6044-45; swivel seat

CHASSIS version 01.01.1990 page 3 sheet 4 Part-No. Qty. Description Assembly Version -- 1 OVERHEAD GUARD 632218 R6024-25; R6038-39; R6044-45; swivel seat; DaimlerChrysler -- 1 SPLASH SHIELD 600764 front axle; fishing industry version -- 1 RETROFIT 709052 cover for lighting openings; fishing industry model -- 1 SHIM 634416 R6022-29; without rear windscreen (custom-built) -- 1 SHIM 634417 R6022-35; with rear windscreen (custom-built) -- 1 OVERHEAD GUARD 634400 R6022-23, R6036-37, R6042-43; DaimlerChrysler; Macrolon cover with flap -- 1 OVERHEAD GUARD 634403 R6024-26; R6044-46; DaimlerChrysler; Macrolon cover with flap -- 1 OVERHEAD GUARD 634401 R6022-23; R6036-37; R6042-43; for cabin weather guard -- 1 OVERHEAD GUARD 634404 R6024-26; R6044-46; R6056; Macrolon with flap -- 1 OVERHEAD GUARD 634402 R6022-23; R6036-37; R6042-43; front and rear Macrolon cover -- 1 OVERHEAD GUARD 657878 R6044-46; Macrolon cover with flap -- 1 OVERHEAD GUARD 634405 R6024-26; R6044-46; Macrolon cover -- 1 RETROFIT 634434 battery slot sealing -- 1 GUIDE BRACKET 616075 R60; front -- 1 GUIDE BRACKET 616074 front and rear; DaimlerChrysler version up to week 26 -- 1 WINDSCREEN,COMPL. 608901 -- 1 WINDSCREEN,COMPL. 397460 R 6022-29; R6036-39; R6042-49 -- 1 WINDSCREEN,COMPL. 608875 R6027 BMW; R6036-37; R6039; R6042-49 -- 1 WINDSCREEN,COMPL. 608902 R6022-25; R6036-39; R6042-45; container with wiper; sun visor -- 1 WINDSCREEN,COMPL. 621999 R6036-37; R6042-43; container version -- 1 WINDSCREEN,COMPL. 621952 swivel seat; R6024 BMW edge-protected; R6044-46; R6038-39 -- 1 DOOR, COMPL. 633300 R6022-23; R6036-37; R6042-43; standard mast height -- 1 DOOR, COMPL. 633301 R6024-25; R6038-39; R6044-45; standard mast height -- 1 DOOR, COMPL. 634393 R6022-23; R6036-37; R6042-43; container version -- 1 DOOR, COMPL. 634394 R6024-25; R6038-39; R6044-45; container version -- 1 DOOR HOLDER 639711 R6022-29; R6036-37; R6039; R6042-49; rear door retainer -- 1 LOCKING CATCH 639701 R6044-46; R6038-39; adaptation to standard lock -- 1 CANVAS, COMPL. 386881 R6022-23; R6036-37; R6042-43; side parts removable with zipper -- 1 CANVAS, COMPL. 386883 R6024-25; R6038-39; R6044-45; side parts removable with zipper -- 1 CANVAS, COMPL. 393472 R6022-23; R6036-37; R6042-43; container -- 1 CANVAS, COMPL. 393476 R6024-25; R6044-45; container -- 1 REAR WINDOW, COMPL. 634419 -- 1 REAR WINDOW, COMPL. 634420 R6022-25; R6036-37; R6042-45; heatable 24 V; container with wiper -- 1 REAR WINDOW, COMPL. 639140 R6027 BMW; R6036-37; R6039; R6042-49 -- 1 OVERHEAD GUARD 634424 R6022-23; R6036-37; R6042-43; window off safety glass -- 1 OVERHEAD GUARD 634425 R6024-26; R6038-39; R6044-46; R6056; safety glass -- 1 OVERHEAD GUARD 634426 -- 1 OVERHEAD GUARD 393474 R6022-25, R6036-37, R6042-45; container

CHASSIS version 01.01.1990 page 3 sheet 5 Part-No. Qty. Description Assembly Version -- 1 CANOPY 634422 -- 1 CANOPY 634423 R6022-25, R6036-37; R6039; R6042-45; container version with halogen -- 1 HEATER, COMPL. 630401 R6022-25, R6036-37, R6042-45; diesel tank: RAL 7021 -- 1 HEATER, COMPL. 630402 R6022-25, R6036-37; R6039; R6042-45 diesel tank: RAL 2000 -- 1 HEATER, COMPL. 624899 custom-built; with BMW; swivel seat; cabin -- 1 HEATING 626682 electric; Devappa; total power 1200W -- 1 HEATING 645549 electric; total power 1500 W -- 1 MIRROR 610662 185x130 mm; smooth -- 1 MIRROR 380021 185x130 mm; smooth -- 1 MIRROR 606588 smooth: 185x130 mm -- 1 MIRROR 397671 arched: 268x160 mm -- 1 INTERIOR MIRROR 634412 smooth: 185x130 mm; for swivel seat -- 1 MIRROR 606591 arched: 268x160 mm -- 1 MIRROR 606589 260x135 mm; panorama -- 1 MIRROR 603999 260x135 mm; panorama -- 1 MIRROR 606590 panorama: 260X135 mm -- 1 INTERIOR MIRROR 634413 panorama: 260x135 mm; for swivel seat -- 1 MIRROR 398716 220x160 mm; nonbreakable -- 1 MIRROR 619754 nonbreakable: 220x160 mm -- 1 INTERIOR MIRROR 634414 nonbreakable; 220x160 mm; VM2; for swivel seat -- 1 REAR VIEW MIRROR 634409 205x150 mm; left -- 1 REAR VIEW MIRROR 634410 right; nonbreakable -- 1 WINDSCREEN WASHER 610107 R6022-29; R6036-37; R6039; R6042-49; R6056; version without Eberspächer heater -- 1 WINDSCREEN WASHER 617577 R6022-29; R6036-37; R6039; R6042-49; version with Eberspächer heater

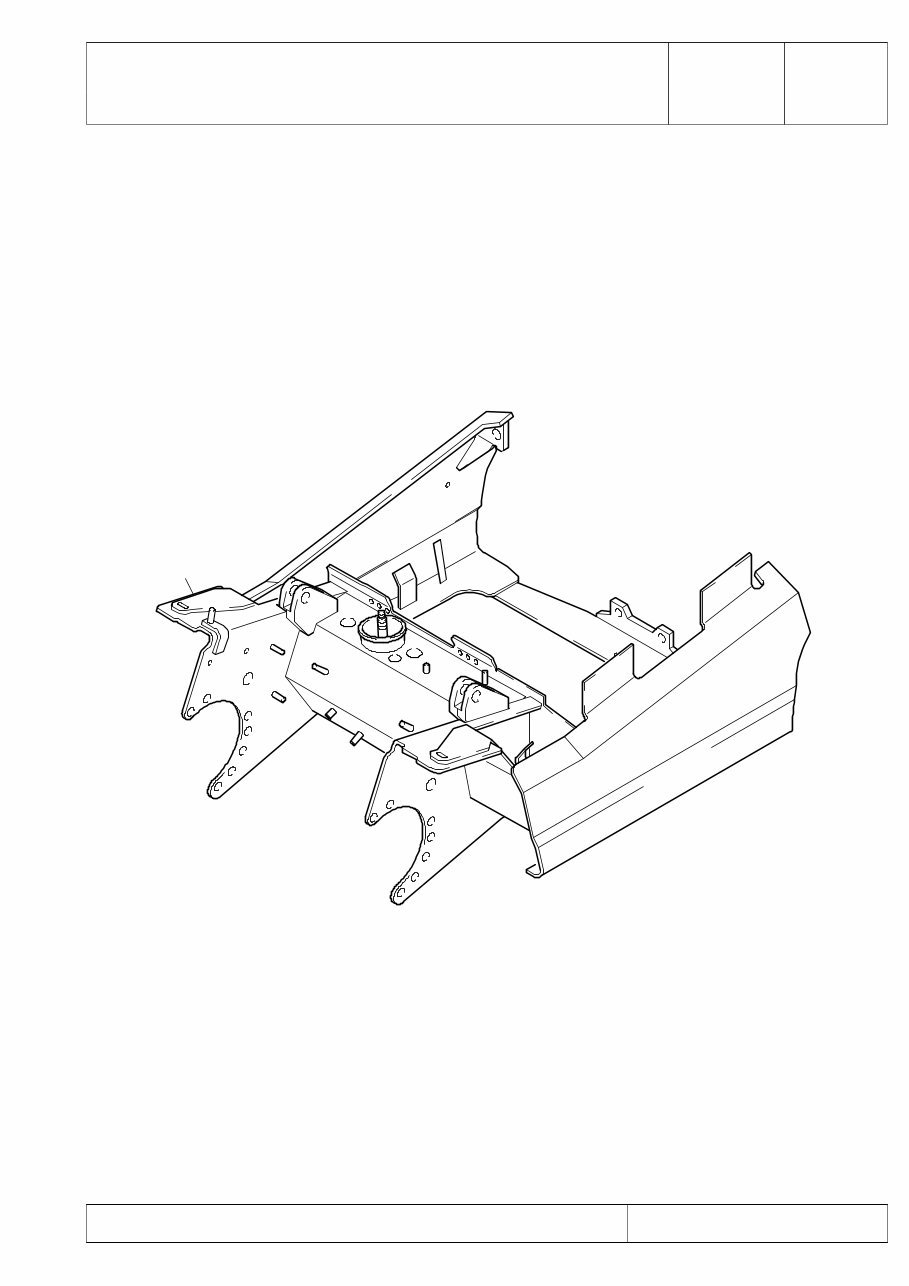

CHASSIS 614614 01000 standard; R6022-23 version 01.01.1990 page 4 sheet 1 10251 1

CHASSIS 614614 01000 standard; R6022-23 version 01.01.1990 page 4 sheet 2 Fig.-Nr Part-No. Qty. Description Remark 1 614614 1 CHASSIS, WD lead time

CHASSIS 614615 01000 standard; R6024-25 version 01.01.1990 page 5 sheet 1 10251 1
