ELECTRIC FORK TRUCK
version 01.01.1990 page 1 sheet 1
ELECTRIC FORK TRUCK
version 01.01.1990 page 1 sheet 2
Part-No. Description
-- NOTES
-- CHASSIS
-- STEERING AXLE
-- GEAR DRIVE
-- TYRES
-- DRIVING CONTROLS
-- STEERING
-- BRAKING SYSTEM
-- ELECTR.INSTALLATION
-- LIGHTING
-- HYDRAULIC SYSTEM
-- ELECTRIC MOTOR SYSTEM
-- ADD. HYDRAULICS
-- MAST
-- FORK CARRIAGE
-- FORK
-- MAST BEARING
-- TILT CYLINDER
-- ATTACHMENT
-- ACCESSORY

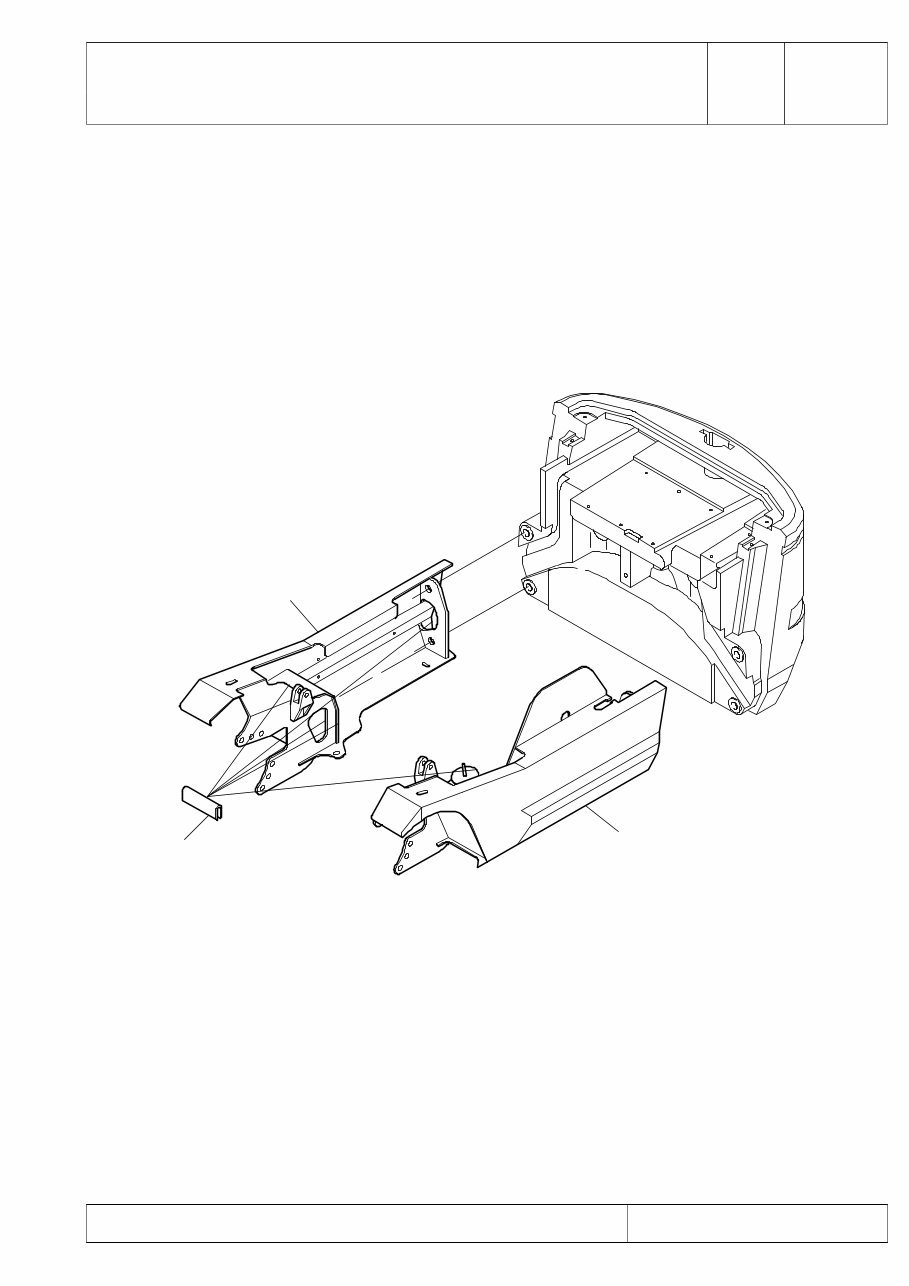

CHASSIS
01000
version 01.01.1990 page 3 sheet 1
Part-No. Description Assembly Version
-- CHASSIS 631585 R2008; R2009; R201819
-- CHASSIS 631584 R2010; R2013; R2020; R2023
-- CHASSIS 631586 R2011-12; R2014; R2021; R2022; R2024
-- COVER 395254 R2010-14; R2020-24; R2040-44; right; left; counterweight
-- COVER 395257 R2008-09; R2018-19; R2038-39; left; right; counterweight
-- COVER 395255 R2010-14; R2020-24; R2040-44; right; counterweight
-- COVER 395258 R2008-09; R2018-19; R2038-39; left; right; counterweight
-- COVER 395256 R2010-14; R2020-24; R2040-44; left; counterweight
-- COVER 395259 R2008; R2009; R2018; R2019; R2038-39; left; counterweight
-- COVERING 606565 standard
-- COVERING 606566 with pressure regulator
-- COVERING 606567 with distributor board and front relay board
-- COVERING 606568 with distributor plate; front relay board and pressure regulator
-- COVERING 608802 with distributor board, front relay board and heater
-- COVERING 608803 with distributor board, front relay board, heater
-- COVERING 620012 with joystick
-- COVERING 620013 with joystick and pressure regulator
-- COVERING 620014 with joystick, distributor board and front relay board
-- COVERING 620015 with joystick, distributor board, front and rear relay board
-- COVERING 620016 with joystick, distributor board, front and rear relay board
-- COVERING 620017 with joystick, distributor board, front relay board
-- COVERING 624762 ashtray
-- COVERING 628827 ashtray
-- COUNTERWEIGHT 605632 R2008-09; with turntable
-- COUNTERWEIGHT 605631 R2009; R2012; R2013; with swing axle
-- COUNTERWEIGHT 605633 R2010; with turntable
-- COUNTERWEIGHT 620034 R2014; turntable
-- HOOD 607141 R2008-09; R2015; series
-- HOOD 607139 R2010-14; series
-- HOOD 619773 R2008-09; for drive-in racking
-- HOOD 619774 R2008-09; with cubby hole
-- HOOD 607140 R2010-14; with cubby hole
-- HOOD 619776 R2010-14; for drive-in racking
-- HOOD 619775 R2008-09 for drive-in racking with cubby hole, also
-- HOOD 619777 R2010-2014 for drive-in racking with cubby hole, also
-- WEDGE 382996
-- WEDGE 624772 R2020-24; R2040-44; R2046; R2048-49; on hood
-- FLOOR PLATE 619715 series
-- FLOOR PLATE 619716 without horn push
-- FLOOR PLATE 635037 for two-pedal control
-- FLOOR PLATE 623738 controller in footwell and horn
-- FLOOR PLATE 624752 controller in footwell; without horn
-- FLOOR PLATE 635038 controller in footwell for two-pedal control
CHASSIS
01000
version 01.01.1990 page 3 sheet 2
Part-No. Description Assembly Version
-- DRIVERS SEAT, COMPL. 608568 ISRI 2300 LR imitation leather with 6-pin connector
-- DRIVERS SEAT, COMPL. 608581 ISRI 2300 LR fabric with 6-pin connector
-- DRIVERS SEAT, COMPL. 622002 MSG 20 imitation leather; joystick with 6-pin connector
-- DRIVERS SEAT, COMPL. 622003 MSG 20 fabric; joystick with 6-pin connector
-- SEAT 620002 GS 12 imitation leather
-- SEAT 620003 GS 12 fabric
-- SEAT 620000 ISRI 2300 imitation leather with cabin
-- SEAT 620001 ISRI 2300 fabric with cabin
-- SEAT 631566 MSG 20 imitation leather
-- SEAT 631576 MSG 20 fabric
-- SEAT 633202 MSG 20 imitation leather; 4-pin connector
-- SEAT 631565 MSG 20 fabric
-- DRIVERS SEAT, COMPL. 633219 KAB-Seating Textil / MB
-- DRIVERS SEAT, COMPL. 633247 KAB-Seating Textil / MB
-- RESTRAINT SYSTEM 654150 R2008-09; R2015; R2018-19; R2038-39; R2045-47
-- RESTRAINT SYSTEM 654151 R2010-14; R2020-24; R2040-44; R2048; R2049
-- OVERHEAD GUARD
OVERVIEW
605870 R2008-09; R2015; R2018; R2019
-- OVERHEAD GUARD
OVERVIEW
605869 R2010-2014; R2020-24
-- OVERHEAD GUARD, CPL. 637529 R2008-09; R2015; R2018-19; R2038-39; R2045; standard
-- OVERHEAD GUARD, CPL. 637531 R'2008-09; R2015; version from week 20, 2001; R2018-19
-- OVERHEAD GUARD, CPL. 637533 R2010-14; R2018-24; R2038-39; R2040-46; R2048-49; for
installation of tarpaulin parts
-- OVERHEAD GUARD, CPL. 637535 R201014; version from week 20, 2001; R2020-24
-- WINDSCREEN,COMPL. 622386 R2008-15; R2018-24; for cabin weather guard
-- WINDSCREEN,COMPL. 618788 R2008-15, R2018-24, for tarpaulin cabin; R2040-46; R2038-39,
2048-49, laminated glass; edge-protected
-- CAB 608823 R2008-09; R2015; R2018-19
-- CAB 608824 R2010-14; R2020-24
-- CANVAS, COMPL. 621406 R2008-09; R2015; R2018-19; R2038-39; R2045; up to week 46,
2004
-- CANVAS, COMPL. 618046 R2010-14; R2020-24; R2040-44; R2046; R2048-49; tarpaulin
parts up to wek 46, 2004
-- SUN VISOR 633367 R2008-15, R2018-24, R2037-46; R2048-49
-- OVERHEAD GUARD 622605 R2008-09; R2015; R2018-19; for cabin weather guard with flap
-- OVERHEAD GUARD 622609 R2008-09; 2015; 2018-19 with flap
-- OVERHEAD GUARD 392681 R2008-09; R2015; R2018-19; R2038-39; R2045; with flap for
tarpaulin cabin
-- OVERHEAD GUARD 392739 R2008-09; R2015; R2018-19; for overhead guard with Macrolon
cover
-- OVERHEAD GUARD 621405 R2010-14; R2020-24; for cabin weather guard
-- OVERHEAD GUARD 622381 R2010-14; R2020-24; for overhead guard
-- OVERHEAD GUARD 380458 R2010-14; R2020-24; R2040-44; R2046; R2048-49; with flap
(prepared for tarpaulin parts)
-- OVERHEAD GUARD 395550 R2010-14; R2020-24; for overhead guard; without flap
CHASSIS
01000
version 01.01.1990 page 3 sheet 3
Part-No. Description Assembly Version
-- SUPPORT 605891 R2008-15; R2018-24; R2038-39; R2040-46; R2048-49; not with
normal lighting; road version
-- HEATING 610367 R2008-2014, 2018-24, 2038-44, 48V ; 1000W
-- MIRROR 397484 R2037-46; R2048-49; smooth: 185x130 mm
-- MIRROR 396047 R2037-46; R2048-49; panorama: 260x135 mm
-- MIRROR 376079 R2037-46; R2048; R2049; arched: 268x160 mm
-- MIRROR 397683 R2008-15; R2018-24; smooth: 185x130 mm
-- MIRROR 398716 220x160 mm; nonbreakable
-- WINDSCREEN WASHER 615754 R2008-15; R2018-24
-- WINDSCREEN WASHER 616016 R2008-15; R2018-24; with lighting
CHASSIS
01000
R2008; R2009; R201819
version 01.01.1990 page 4 sheet 1
9266
1
3
2
CHASSIS
01000
R2008; R2009; R201819
version 01.01.1990 page 4 sheet 2
Fig.-Nr Part-No. Qty. Description Version
1 631590 1 CHASSIS, WD right
2 631589 1 CHASSIS, WD left
3 520804 EDGE PROTECTION
CHASSIS
01000
R2010; R2013; R2020; R2023
version 01.01.1990 page 5 sheet 1
9266
1
3
2
CHASSIS
01000
R2010; R2013; R2020; R2023
version 01.01.1990 page 5 sheet 2
Fig.-Nr Part-No. Qty. Description Version
1 631579 1 CHASSIS, WD right
2 631578 1 CHASSIS, WD left
3 520804 EDGE PROTECTION
CHASSIS
01000
R2011-12; R2014; R2021; R2022; R2024
version 01.01.1990 page 6 sheet 1
9266
1
3
2
