Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 930-2 00660300-
00664999,00822000-00823755 RTFL 9802/7630 \ A ATTACHMENTS \ A01 SHOVELS

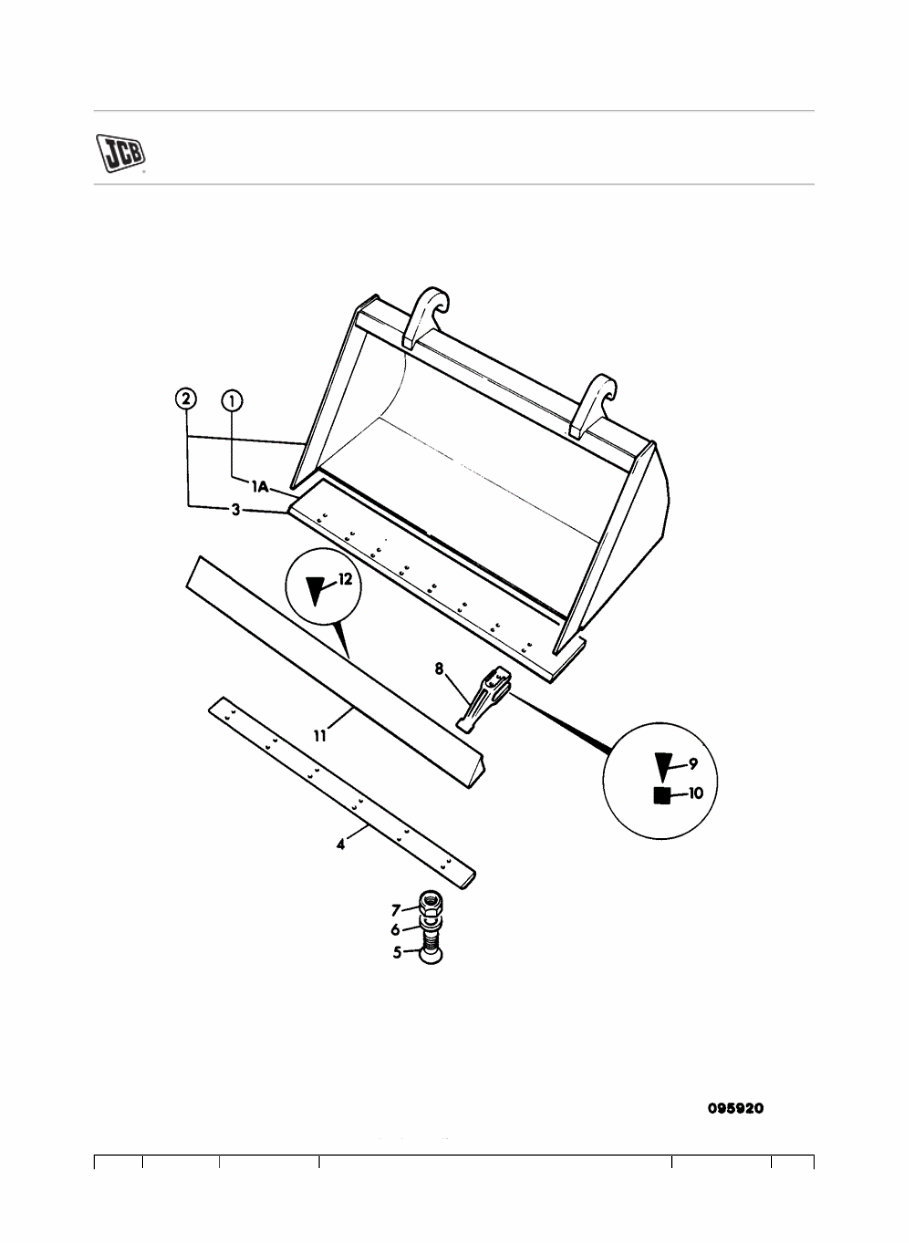

9802/7630 A1-1-1 SHOVELS
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=3b62ffa...
Item Part # Change No Description Usage Code QTY
1 547/37900 Shovel 1.0cu.m 1
1 547/42900 Shovel 0.9cu.m without teeth 1
1A :547/42601 Toeplate 2286mm wide 2 holes (Weld-In) 1
2 547/37900 Shovel 1.0cu.m 1
2 547/38200 Shovel 0.9cu.m 1
3 :547/37701 Toeplate 2286mm wide 18 HOLES (Weld-In) 1
4 547/37801 Toeplate 2286mm wide 8 holes (Bolt-On) Reversible 1
5 826/00217 Ploughbolt 3/4UNF x 2-1/4" 12
6 1416/0011 Washer 12
7 1340/0702Z Nut thin (3/4" UNF) 1
8 531/03205 Tooth 0
9 826/00303 Bolt Plough 0
10 1340/0701Z Nut 3/4 0
11 120/37800 Guard 1
12 1305/0414Z Setscrew (1/2" UNF x 2") 2
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=3b62ffa...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 930-2 00660300-
00664999,00822000-00823755 RTFL 9802/7630 \ A ATTACHMENTS \ A01 SHOVELS

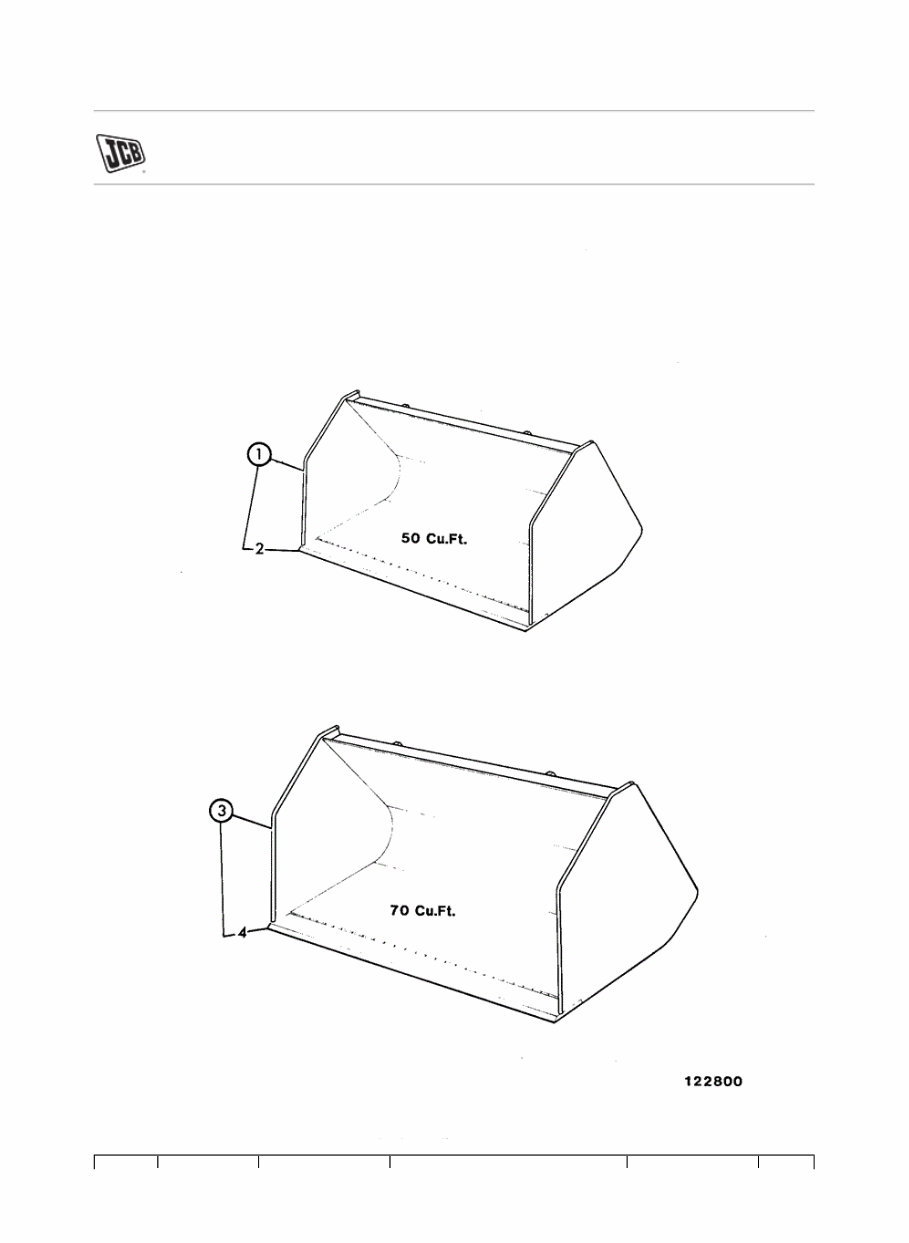

9802/7630 A1-2-1 BUCKET GRAIN
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=70bb8d7...
Item Part # Change No Description Usage Code QTY
1 547/44200 Bucket grain 50cu ft 1
2 ****
'See Remark'
Toeplate
1
3 547/44300 Bucket grain 70cu ft 1
4 ****
'See Remark'
Toeplate
1
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=70bb8d7...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 930-2 00660300-
00664999,00822000-00823755 RTFL 9802/7630 \ A ATTACHMENTS \ A01 SHOVELS

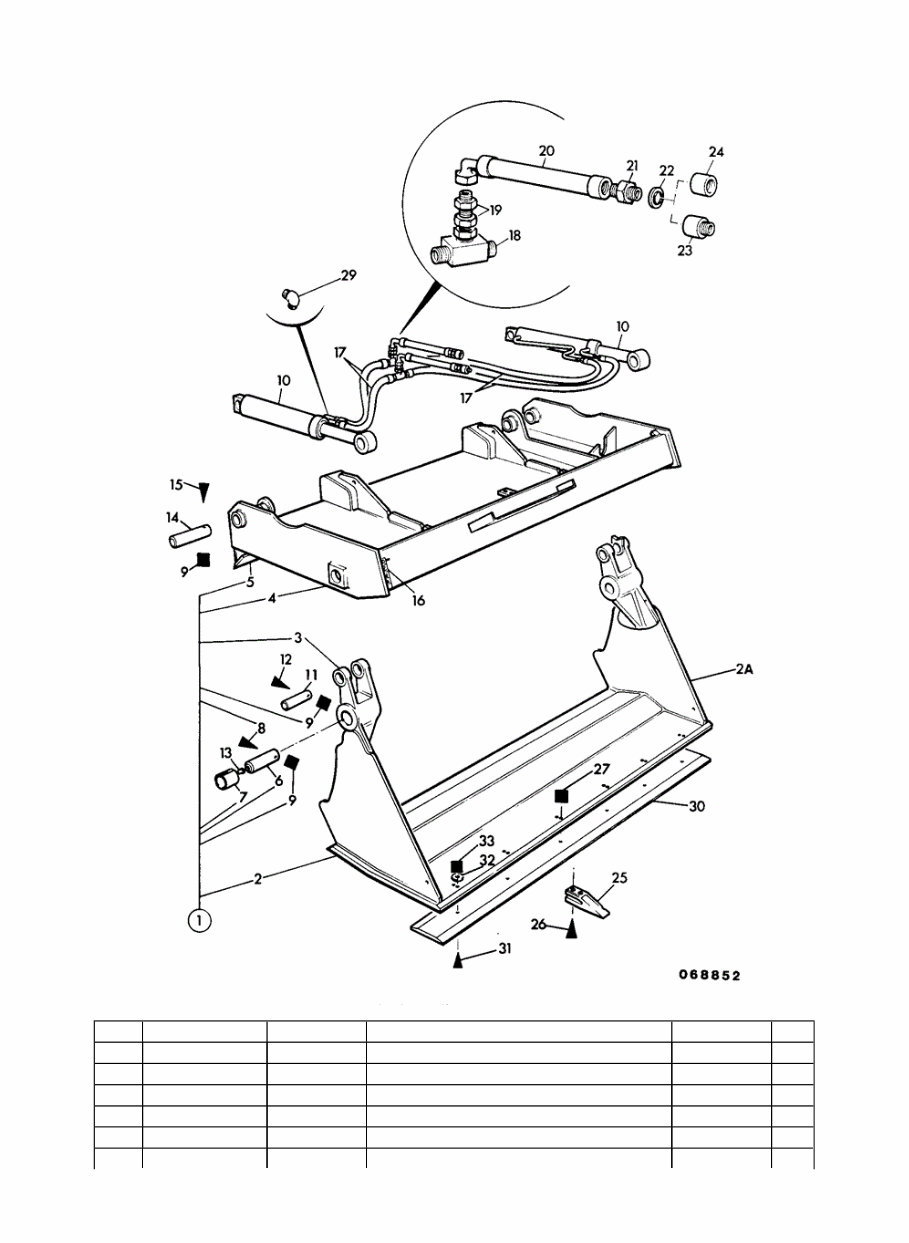

9802/7630 A1-3-1 SHOVEL, CLAM, 6 IN 1 2260MM (7'5")
WIDE
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=0e5c004...
Item Part # Change No Description Usage Code QTY
A 547/36600 Shovel clam 6 in 1 1
1 :545/47000 Clam jaw & backblade assembly 1
2 ::531/72800 Clam 2253mm (7'4") wide 1
2A :::531/53701 Toeplate 2260mm wide 18 holes 1
3 :531/37902 Pivot casting 2
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=0e5c004...
4 ::547/36800 Blade dozer back 1
5 ::531/38111 Toeplate 2253mm wide No holes 1
6 :1019/2028 Pin pivot 44.4mm dia 213mm long 2
7 :1208/0025 Bush 2
8 :1305/3236Z Bolt 2
9 :1340/0203Z Nut Lock 3/8" UNF 8
10 ****
'See Remark'
Clam ram see index E4
2
11 1017/2004 Pin pivot 2
12 1305/3226Z Bolt 2
13 1450/0001 Nipple Grease, Straight 1/8 BSP 2
14 1017/2018 Pin pivot 2
15 1305/3222Z Bolt 3/8 2
16 817/00839 Label indicator 1
17 612/00400 Hose 3/8 BSP 1000 mm 4
18 816/00330 Connector Tee 2
19 816/10023 Adapter bulkhead 2
20 612/21200 Hose 3/8" BSP 520mm long 2
21 1604/0003 Adapter Male/Male 2
22 1406/0015 Washer Bonded 3/8" 2
23 45/903200 Coupling Male 1
24 45/903100 Coupling Female 1
25 531/03205 Tooth 8
26 826/00303 Bolt Plough 16
27 1340/0701 Nut 16
28 612/00200 Hose 4
29 816/40006 Adapter 90 Deg 2
30 :::990/69801 Toeplate 2235mm (7'4") wide 1
31 :826/00217 Ploughbolt 3/4UNF x 2-1/4" 8
32 :1416/0011D Washer Spring 3/4 inch 8
33 :1340/0701D Nut 3/4inUNF 8
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=0e5c004...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 930-2 00660300-
00664999,00822000-00823755 RTFL 9802/7630 \ A ATTACHMENTS \ A03 ATTACHMENTS

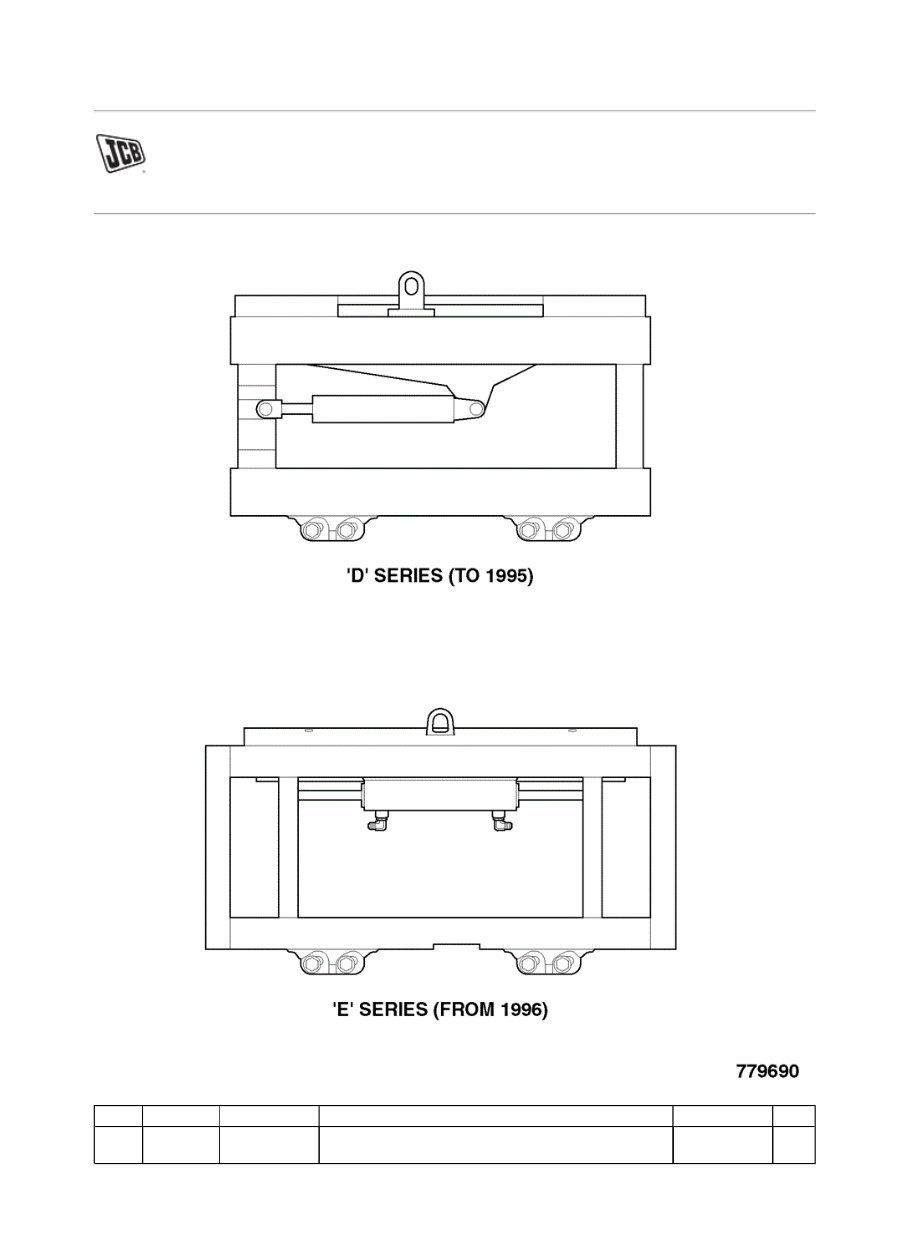

9802/7630 A3-0-1 CARRIAGE SIDESHIFTING
IDENTIFICATION
Item Part # Change No Description Usage Code QTY
1 ****
'See Remark'
See illustration to identify carriage
1
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=30932bb...
Product Catalog \ AGRICULTURAL \ AGRICULTURE \ ROUGH TERRAIN FORK LIFT \ 930-2 00660300-
00664999,00822000-00823755 RTFL 9802/7630 \ A ATTACHMENTS \ A03 ATTACHMENTS

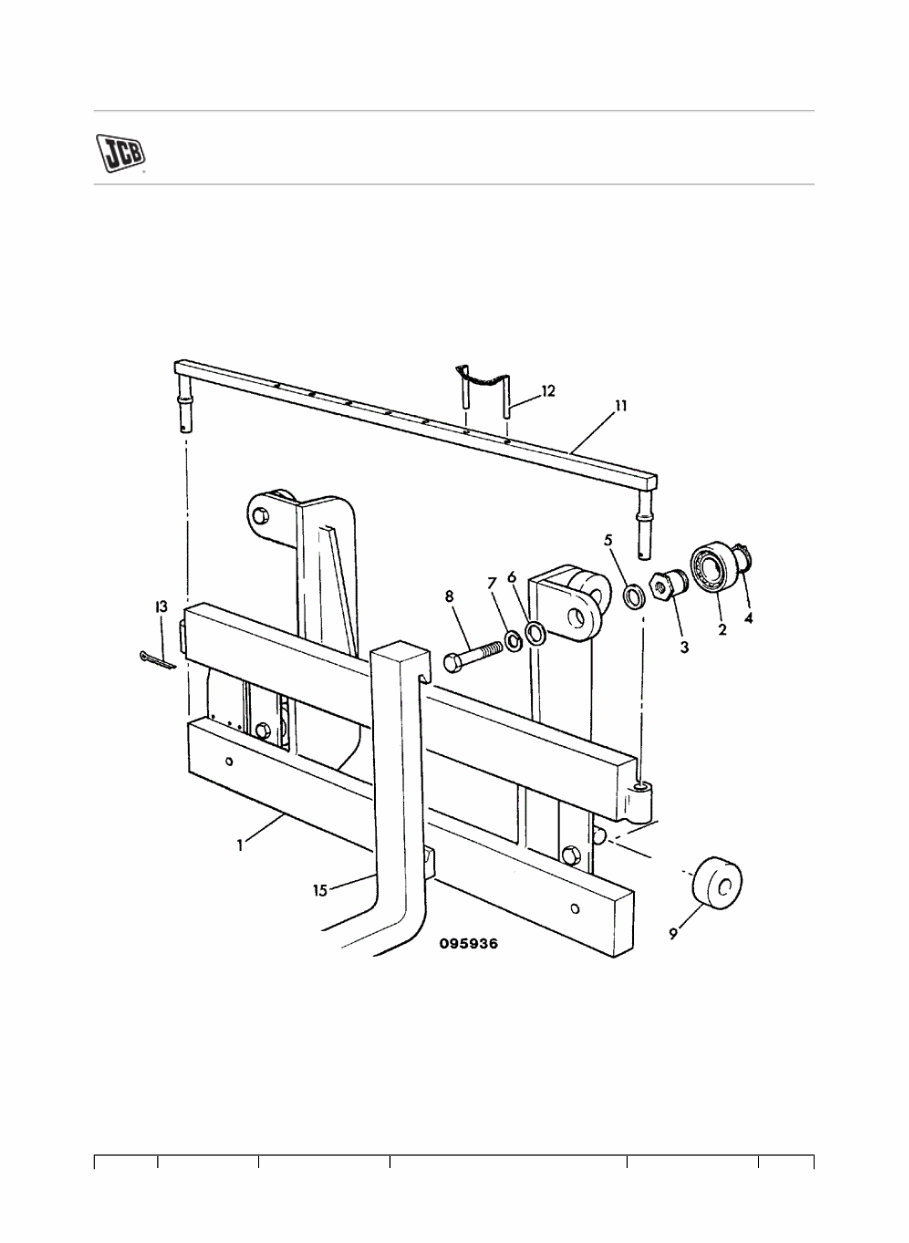

9802/7630 A3-1-1 CARRIAGE, BAR TYPE DUPLEX
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=39f6473...
Item Part # Change No Description Usage Code QTY
A 548/18800
Carriage Duplex, assembly
Does not include the forks
1
1 548/18900 Carriage Duplex 1
2 907/10300 Bearing Roller 4
3 548/14301 Pin pivot 4
4 2203/0048 Circlip 4
5 1410/0008 Washer 0
6 1411/0008Z Washer 4
7 1416/0011 Washer 4
8 1305/3718Z Bolt 4
9 907/10200 Bearing 4
10 819/00051 Shim 0
11 548/11500 Bar locating 1
12 548/11600 Pin locating 2
13 2103/1111 Pin Split 2
15 548/40900
Fork arm 1067mm
1067 mm
1
15 548/40800
Fork arm 1200mm
1200 mm
1
2016/5/16 http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=39f6473...
