Clark Parts Manual Model C20-33(35)L

PARTS MANUAL TRUCK MODEL : C20-33(35)L SERIAL NUMBER : P232L-224 & above 9644 KF C20-33(35)L Part No. 8039001 Manual No. I-536-4 Feb, 2006 #40–1, Ungnam-Dong, Changwon-City, Kyungnam, Korea

Mar, 2006 CONTENTS 00 ENGINE 00-309 ENGINE OVERHAUL GASKET KIT 00-374 ENGINE MOUNTING 00-376 CRANKSHAFT 00-388 CRANKCASE 00-390 OIL PUMP 00-393 ENGINE SUB-ASSEMBLY MOUNTING 00-394 ENGINE SUB-ASSEMBLY MOUNTING 00-395 GOVERNOR 00-396 ENGINE IGNITION SYSTEM 00-511 ENGINE BALANCER ASSEMBLY 00-742 ROCKER COVER 00-743 OIL PAN 00-776 CYLINDER HEAD 00-861 CAMSHAFT 01 COOLING, OILING, LUBRICATION 01-082 RADIATOR SCREEN (OPTION) 01-198 OIL COOLING LINES 01-244 COOLING SYSTEM 01-364 FAN DRIVE 02 FUEL, CARBURATION, EXHAUST 02-194 ACCELERATOR LINKAGE 02-228 PRE-CLEANER (OPTION) 03 FUEL, CARBURATION, EXHAUST 03-157 MANIFOLD 03-158 EXHAUST MANIFOLD 03-166 LPG TANK MOUNTING (OPTION) 03-167 LPG TANK MOUNTING (OPTION) 03-170 INTAKE SYSTEM (OPTION) 03-355 INTAKE SYSTEM 03-360 FUEL SYSTEM 03-362 EXHAUST SYSTEM 03-363 EXHAUST SYSTEM-VERTICAL 03-376 LPG TANK MOUNTING 05 TORQUE CONVERTER, FLUID COUPLING 05-035 TRANSMISSION PUMP & HYDRAULICS 05-036 CONVERTOR HOUSING AND PUMP DRIVE 05-165 CONVERTOR HOUSING AND CLUTCH ASSEMBLY 06 TRANSMISSION (HYDRATORK) 06-109 TRANSAXLE ASSEMBLY 06-110 TRANSAXLE ASSEMBLY - OPTION 06-619 TRANSMISSION CASE & DIFFERENTIAL ASSEMBLY 06-750E TRANSMISSION CLUTCH PACK 06-801 CONTROL COVER 07 TRANSMISSION (MOUNTING) 07-047 TRANSAXLE MOUNTING 11 ELECTRICAL (STARTER-IGNITION) 11-040 DISTRIBUTOR 11-041 CRANKING MOTOR ASSEMBLY 12 ELECTRICAL (GEN, VOLT, REG, BATTERY) 12-030 ALTERNATOR ASSEMBLY 12-136 BATTERY 13 ELECTRICAL (LIGHTS, HORN, SIGNAL) 13-032 SWITCHES 13-034 HEAD LAMP INSTALLATION (OPTION) 13-037 STROBE LIGHT (OPTION) 13-128 LAMP INSTALLATION 14 ELECTRICAL (WIRING, ACCESSORIES, OPT) 14-290 ELECTRICAL WIRING 14-294 INSTRUMENT PANEL 14-339 LPS CONSTRUCTION (OPTION) 14-878 SEAT OPERATED BRAKE (OPTION) 20 DRIVE AXLE, DIFFERENTIA 20-086 DRIVE AXLE 22 BRAKE SYSTEM, WHEEL & TIRES 22-011 BRAKE ASSEMBLY 23 BRAKE SYSTEM, WHEEL & TIRES 23-239 DRIVE WHEEL & TIRE 23-240 STEER WHEEL & TIRE 23-241 DUAL DRIVE WHEEL & TIRE (OPTION) 23-248 DRIVER WHEEL & TIRE (WIDE)-OPTION 23-265 BRAKE LINES 23-405 DRIVE WHEEL & TIRE ASSY 23-406 STEER WHEEL & TIRE ASSY 23-407 DRIVE WHEEL & TIRE ASSY 23-408 STEER WHEEL & TIRE ASSY 23-410 PARKING BRAKE LINKAGE 23-411 BRAKE & INCHING LINES 23-414 BRAKE MASTER CYLINDER 25 STEERING GEAR, LINKAGE 25-141 STEERING GEAR MOUNTING 25-143 STEERING UNIT 25-144 STEERING COLUMN 25-250 STEERING HANDWHEEL 1 P232L-224 & Above-9644KF I-536-4

Mar, 2006 CONTENTS 26 STEER AXLE, POWER STEERING PUMP, CYL, LINES 26-202 STEER AXLE MOUNTING 26-211 STEERING AXLE 26-224 STEERING LINES 26-225 HYDRAULIC LINES (RETURN) 26-243 STEERING CYLINDER 29 HYDRAULIC SYSTEM (SUMP PUMP) 29-144 HYDRAULIC SUMP (OPTION) 29-192 HYDRAULIC PUMP 29-237 HYDRAULIC SUMP 30 HYDRAULIC SYSTEM (CONTROL VALVE, LINKAGE) 30-128 MAIN CONTROL VALVE - 2SPOOL (OPTION) 30-129 MAIN CONTROL VALVE - 3SPOOL (OPTION) 30-130 MAIN CONTROL VALVE - 4SPOOL (OPTION) 30-209 MAIN CONTROL VALVE MTG - 2SPOOL 30-210 MAIN CONTROL VALVE MTG - 3SPOOL 30-211 MAIN CONTROL VALVE MTG - 4SPOOL 31 HYDRAULIC SYSTEM (PIPING & FITTINGS) 31-066 AUX.VALVE PLUMBING (SINGLE) - OPTION 31-068 AUX.VALVE PLUMBING (DOUBLE) - OPTION 31-082 HYD CONTROL VALVE (SINGLE) - OPTION 31-084 HYD CONTROL VALVE (DOUBLE) - OPTION 31-086 SINGLE AUX. PLUMBING (QUAD MAST) - OPT 31-100 DOUBLE AUX. PLUMBING (QUAD MAST) - OPT 31-113 HYDRAULIC LINES C33(C35) - OPTION 31-123 TILT LIMIT WITH OVERRIDE (OPTION) 31-139 TILT/LIFT PLUMBING 31-140 HYDRAULIC SUPPLY LINES 32 HYDRAULIC SYSTEM (HYD CYL, HYD MOTORS) 32-129 TILT CYLINDER 32-132 TILT CYLINDER MOUNTING 32-845 ACCUMULATOR (OPTION) 33 HYD VALVE (FLOW, DIVERTER, RELIEF, SOL, CTRL) 33-069 RELIEF VALVE ASSEMBLY (OPTION) 34 UPRIGHT, RAILS, CARRIAGE, FORKS 34-734 UPRIGHT MOUNTING 34-998 LIFT CARRIAGE ASSEMBLY (OPTION) 38 BODY, FRAME & BRACKETS, COUNTERWEIGHT 38-225 FRAME & COUNTERWEIGHT 39 BODY, DASH, HOOD, SEAT, CAB, TRIM 39-509 SEAT MOUNTING (OPTION) 39-510 OVERHEAD GUARD 39-511 COWL MOUNTING 39-513 BELLY PAN MOUNTING 39-514 SEAT MOUNTING (WOOCHANG) 39-518 SEAT ASSEMBLY (WOOCHANG) - OPTION 39-519 TALL LOAD BACK REST (OPTION) 39-547 LOAD BACK REST 39-559 NOISE REDUCTION INSTALLATION (OPTION) 39-565 SEAT ASSEMBLY (MICHIGAN) - OPTION 39-584 SEAT MOUNTING (OPTION) 39-597 CAB MOUNTING (OPTION) 39-612 ENCLOSED CAB (OPTION) 39-614 ENCLOSED CAB (OPTION) 39-626 ENCLOSED CAB (OPTION) 39-627 ENCLOSED CAB (OPTION) 39-628 ENCLOSED CAB (OPTION) 39-629 ENCLOSED CAB (OPTION) 39-632 ENCLOSED CAB (OPTION) 39-672 SPONGE MOUNTING 39-673 HOOD MOUNTING 39-674 SHEET METAL 39-675 SHEET METAL & TRIM 40 OPERATOR ENVIRONMENT 40-010 DATA PLATES AND DECALS 41 OPERATOR ENVIRONMENT 41-008 STORAGE CONSOLE (OPTION) 41-009 HEATER INSTALLATION (OPTION) 41-010 HEATER INSTALLATION (OPTION) 50 PIPING(ADAPT DIVICE TO VEHICLE HYDRAULIC) 50-145 HOSE ADAPTATION (OPTION) 50-149 HOSE ADAPTATION (OPTION) 50-150 HOSE ADAPTATION (OPTION) 50-170 HIGH TERMINATION PLUMBING (OPTION) 50-240 QUICK DISCONNECT FOR DEVICE (OPTION) 50-749 HOSE ADAPTATION (OPTION) 50-765 HIGH TERMINATION PLUMBING (OPTION) 50-776 HOSE ADAPTATION (OPTION) 50-816 HOSE AND CABLE ADAPTATION (OPTION) 50-926 HOSE ADAPTATION (OPTION) 53 DEVICE-HYDRAULIC 53-008 SIDE SHIFTER CYLINDER (OPTION) 53-026 SIDE SHIFTER (OPTION) 66 UPRIGHT, RAILS, CARRIAGE, FORKS 66-049 LIFT CYLINDER PIPING (OPTION) 66-067 UPRIGHT-STANDARD (OPTION) 66-068 LIFT CYLINDER PIPING (OPTION) 66-104E HI-LO UPRIGHT (OPTION) 66-227 TRIPLE STAGE UPRIGHT (OPTION) 66-328 LIFT CHAIN (OPTION) 66-330E LIFT CHAIN (OPTION) 66-333 LIFT CHAIN (OPTION) 2

Mar, 2006 CONTENTS 66-435E LIFT CYLINDER PIPING (OPTION) 66-515 LIFT CYLINDER ASSEMBLY (OPTION) 66-516 LIFT CYLINDER ASSEMBLY 66-606 LIFT CYLINDER ASSEMBLY (OPTION) 66-607 LIFT CYLINDER ASSEMBLY (OPTION) 75 CONVERSION KITS 75-004 SEAT OPERATED BRAKE (WOOCHANG SEAT) - OPT 75-005 SEAT OPERATED BRAKE (GRAMMER SEAT) - OPT 75-006 SEAT OPERATED BRAKE SWITCH (OPTION) 75-(33)014 VARIABLE RELIEF VALVE INST (OPTION) 75-(33)045 DEVICE HYDRAULIC PRESSUR (OPTION) 75-(33)130 SOLENOID VALVE (OPTION) 75-(39)650 STATIC STRAP (OPTION) 3

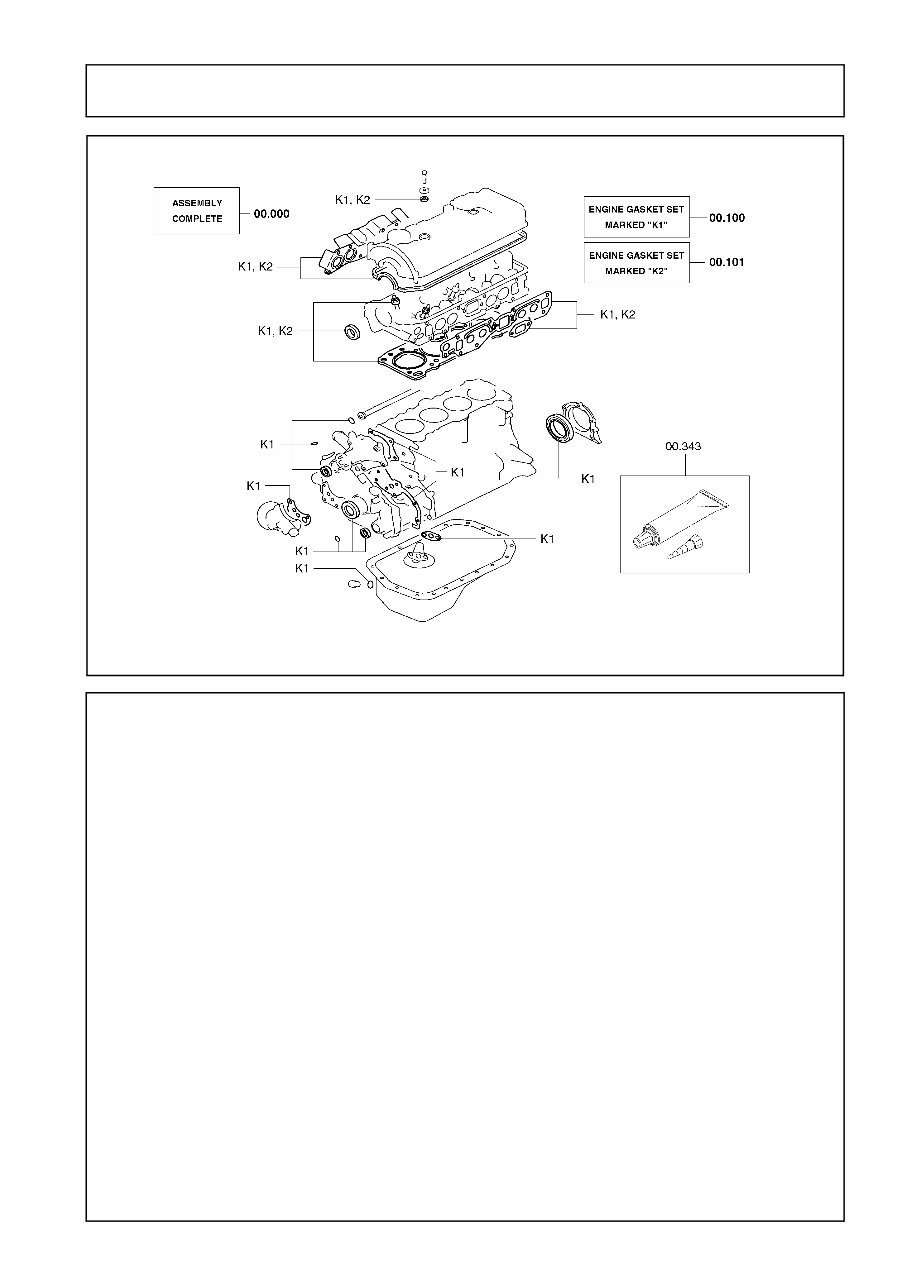

키이번호 부품명 key No. Description ASSEMBLYENGINE OVERHAUL GASKET KIT 00.000 엔진 조립체 Engine Assembly 00.100 가스킷 킷트 Gasket Kit, Engine Overhaul 00.101 밸브 가스킷 킷트 Valve Grind Gasket Kit (Top Set) 00-309 00-309 Jun, 2001

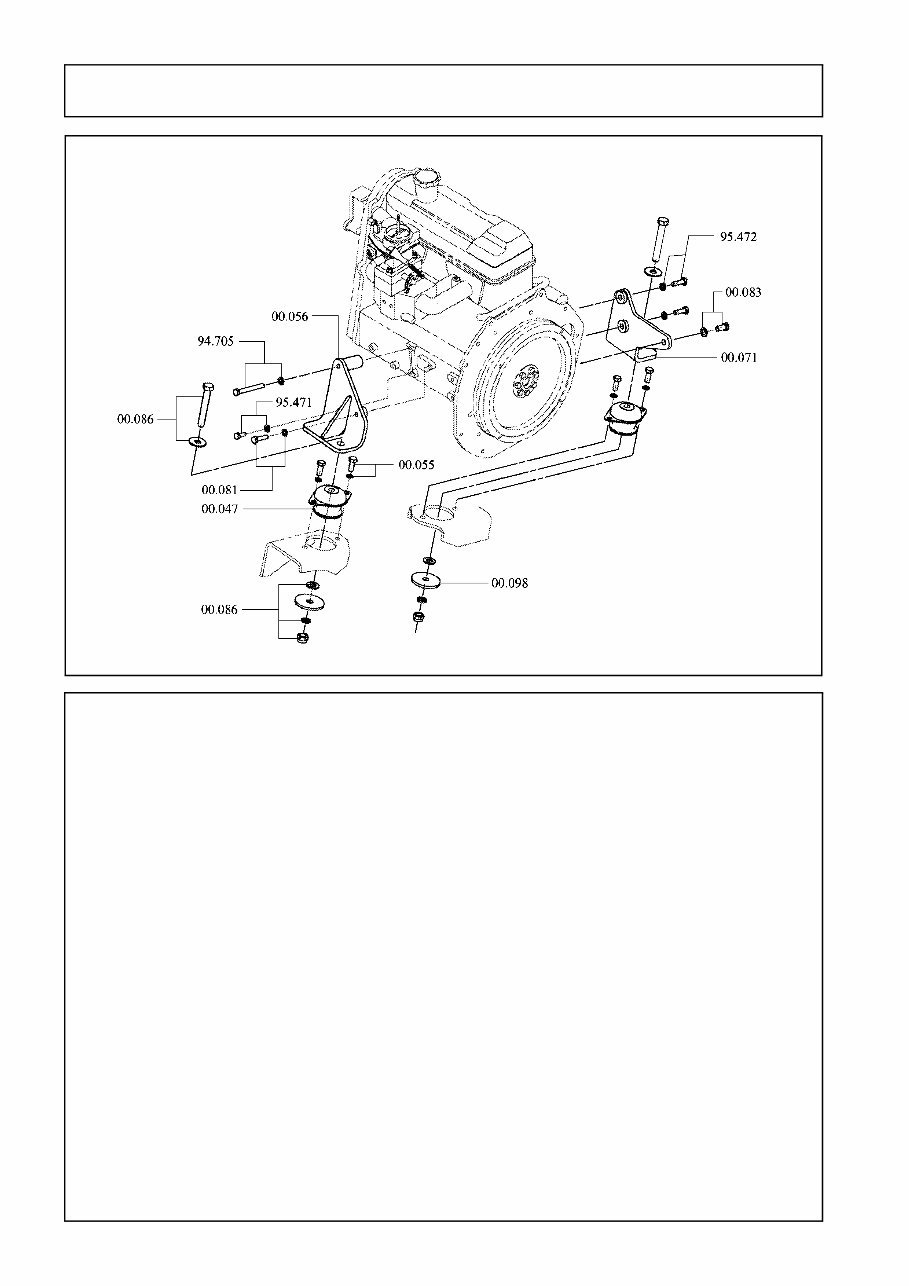

키이번호 부품명 key No. Description ENGINE MOUNTING 00.047 댐퍼너 Dampener, Engine Front Vibration 00.055 패스너 Fastener, Engine Front Vibration Dampener 00.056 우측 마운트 Mount, Engine, RH 00.071 좌측 마운트 Mount, Engine Lh 00.081 패스너 Fastener, Engine Mount (Rh) 00.083 패스너 Fastener, Engine Mount (Lh) 00.086 패스너 Fastener, Rh Engine Mount 00.098 와셔 Washer, Engine Mounting To Frame Rh 94.705 패스너 Fastener, Engine Mounting Bracket 95.471 패스너 Fastener, Engine Mount 95.472 패스너 Fastener, Engine Mount Jun, 2001 00-374 00-374

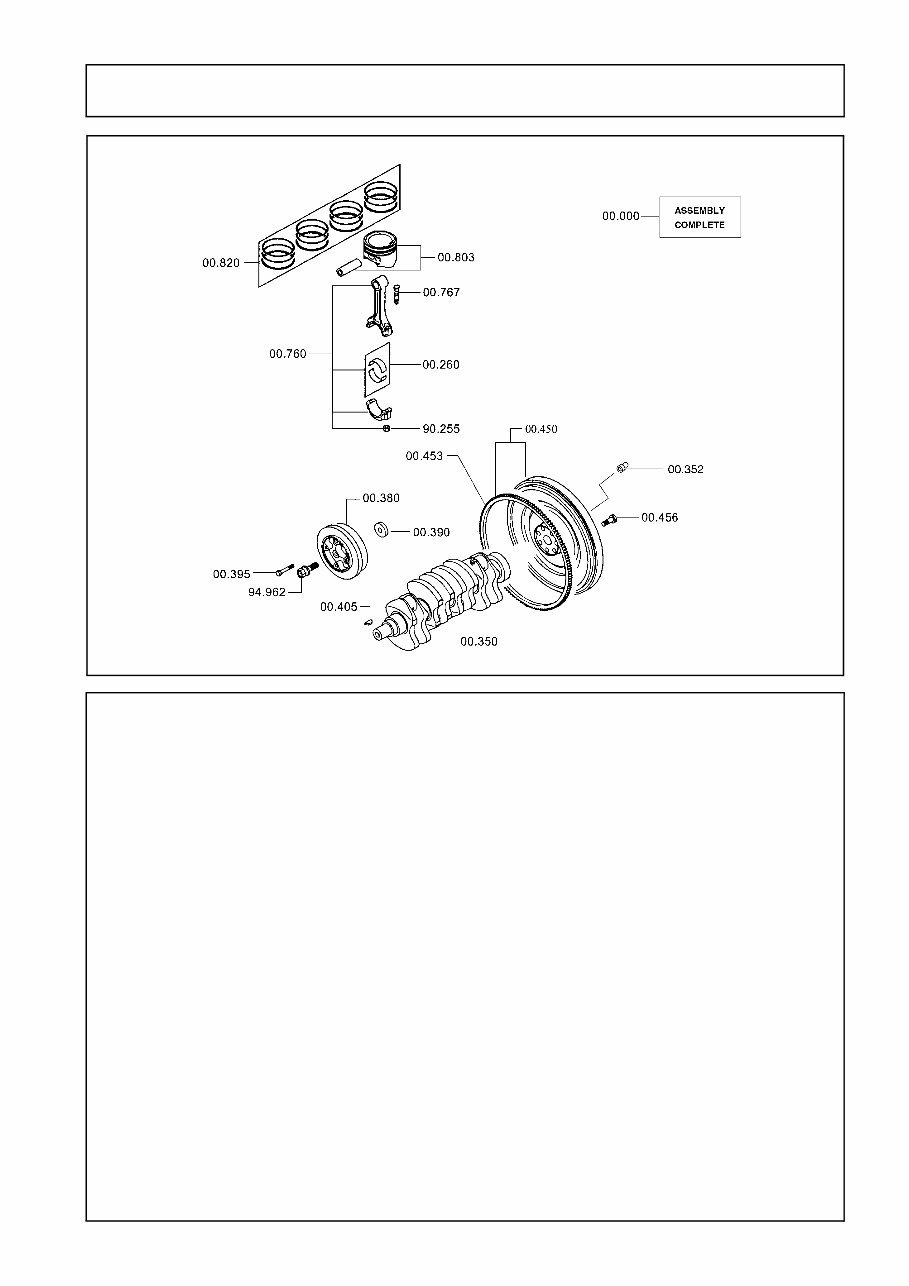

키이번호 부품명 key No. Description CRANKSHAFT 00.000 엔진 조립체 Engine Assembly 00.260 베어링 Bearing, Connecting Rod (Cyl. #1) 00.350 크랭크축 Crankshaft 00.380 풀리 Pulley, Crankshaft 00.390 와셔 Washer, Crankshaft Pulley 00.395 패스너 Fastener, Crankshaft Pulley 00.405 키 Key, Crankshaft Timing Gear 00.450 플라이휠 & 링기어 Flywheel & Ring Gear 00.453 기어 Gear, Flywheel Ring 00.456 패스너 Fastener, Crankshaft To Flywheel 00.760 로드 조립체 Rod Assembly, Connecting (Even Cylinders) 00.767 패스너 Fastener, Connecting Rod Bearing Cap 00.803 피스톤 & 핀 Piston & Pin (One Cylinder) 00.820 피스톤 링 Piston Ring (Engine Set) 90.255 너트 Nut, Connecting Rod Bearing Cap Fastener 94.962 패스너 Fastener, Crankshaft Pulley Spacer Jun, 2001 00-376 00-376

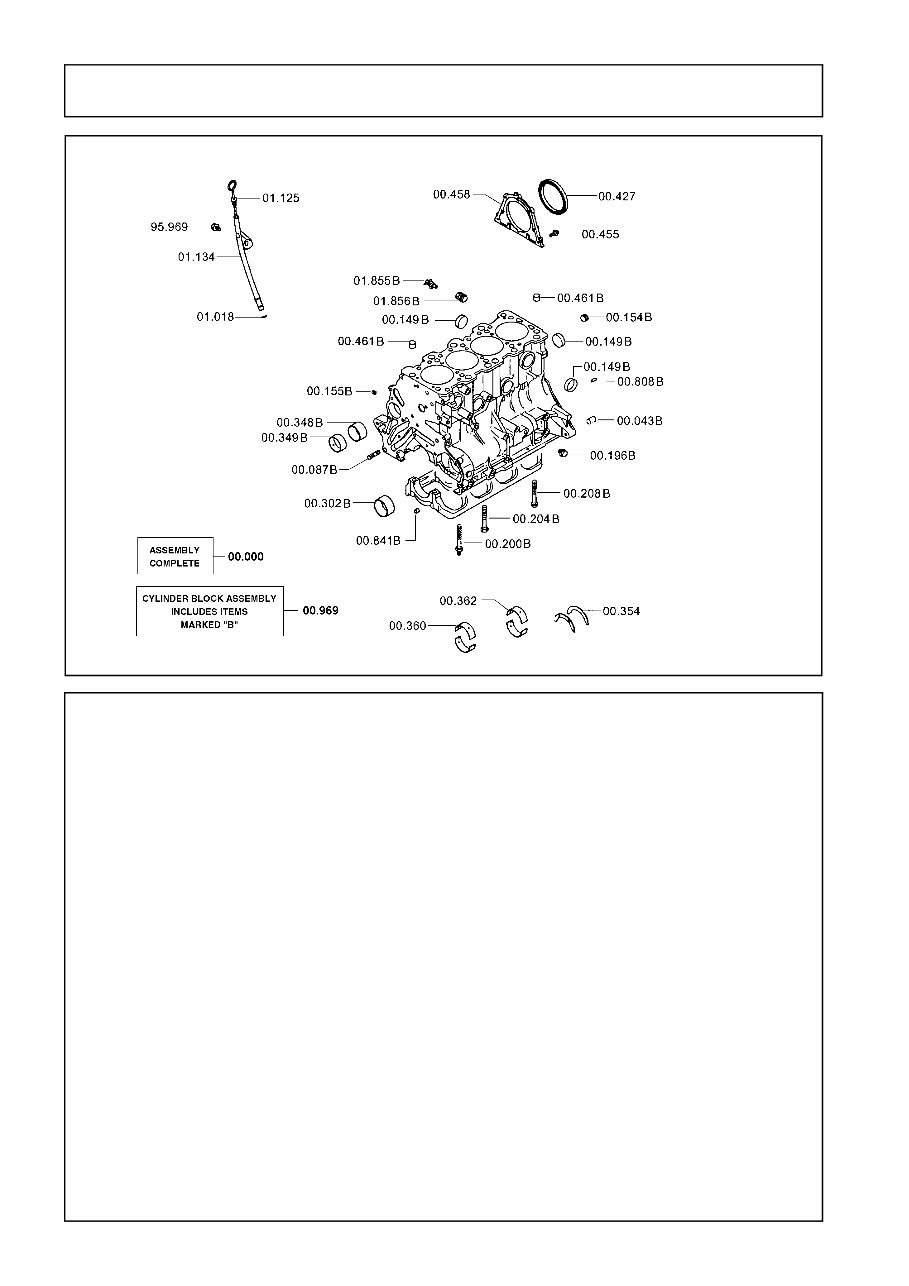

키이번호 부품명 key No. Description 키이번호 부품명 key No. Description CRANKCASE 00.000 엔진 조립체 Production Engine Assymbly 00.043 부싱 Bushing, Engine Rear Support Bracket 00.087 스터드 Stud, Engine Front Support 00.149 확장 플러그 Plug - Expansion, Crankcase Side 00.154 확장 플러그 Plug - Expansion, Crankcase End 00.155 확장 플러그 Plug - Expansion, Crankcase End 00.196 확장 플러그 Plug-Expansion, Crankcase Side 00.200 패스너 Fastener, Crankshaft Bearing No. 1 Cap 00.204 패스너 Fastener, Crankshaft Bearing No. 2 Cap 00.208 패스너 Fastener, Crankshaft Bearing No. 3 Cap 00.302 베어링 Bearing, Balancer Weight Rear 00.348 베어링 Bearing, Engine Balancer Shaft Rear 00.349 베어링 Bearing, Engine Balancer Shaft Front 00.354 와셔 Washer, Crankshaft Thrust 00.360 베어링 #1 Bearing, No. 1 Main Journal 00.362 베어링 #3 Bearing, No. 3 Main Journal 00.427 시일 Seal, Crankcase Rear Oil 00.455 패스너 Fastener, Rear Oil Seal Housing 00.458 하우징 Housing, Rear Oil Seal 00.461 다월 Dowel, Crankcase Head 00.808 다월 링 Dowel Ring, Crankcase Rear Adaptor Plate 00.841 다월 링 Dowel Ring, Engine Front Gear Cover 00.969 블록 조립체 Block Assy, Cylinder 01.018 시일 Seal, Oil Level Dipstick Adaptor 01.125 딥스틱 Dipstick, Crankcase Oil Level 01.134 어댑터 Adaptor, Crankcase Oil Level Dipstick 01.855 센서 Sensor, Oil Pressure 01.856 피팅 Fitting, Oil Pressure 95.969 패스너 Fastener, Engine Oil Level Control Jan, 2002 00-388 00-388
