FORKLIFTS C 250 H X4 PARTS MANUAL Page 1 / 304

FORKLIFTS C 250 H X4 MAINTENANCE FILTERS KIT FIGURE REFERENCE DENOMINATION AMOUNT 001 KF.20600RE00 C 250 H x2/x4 FILTERS KIT 1 Page 2 / 304

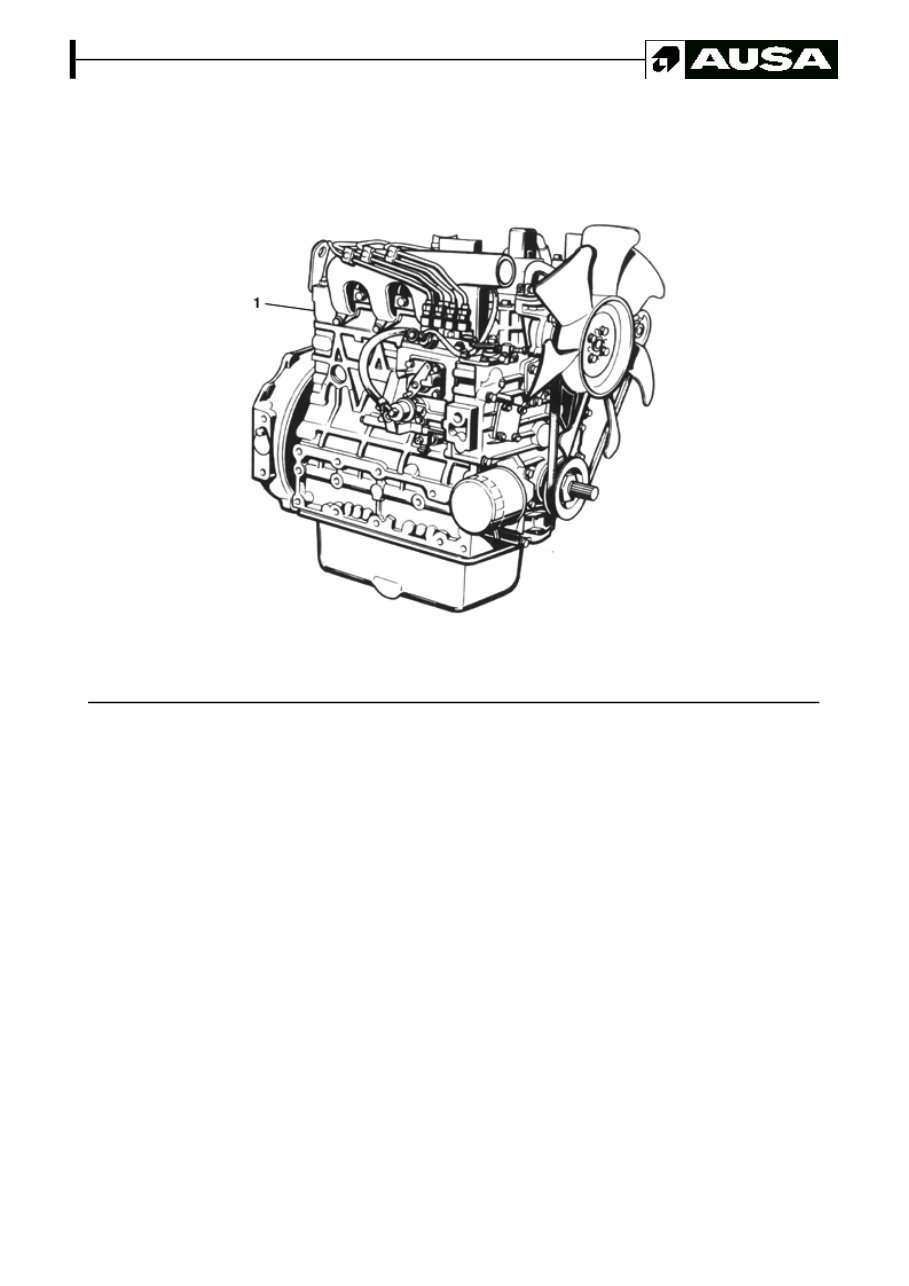

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) ENGINE FIGURE REFERENCE DENOMINATION AMOUNT 001 20.02003.00 COMPLETE DIESEL ENGINE KUBOTA V2003-TE 1 Page 3 / 304

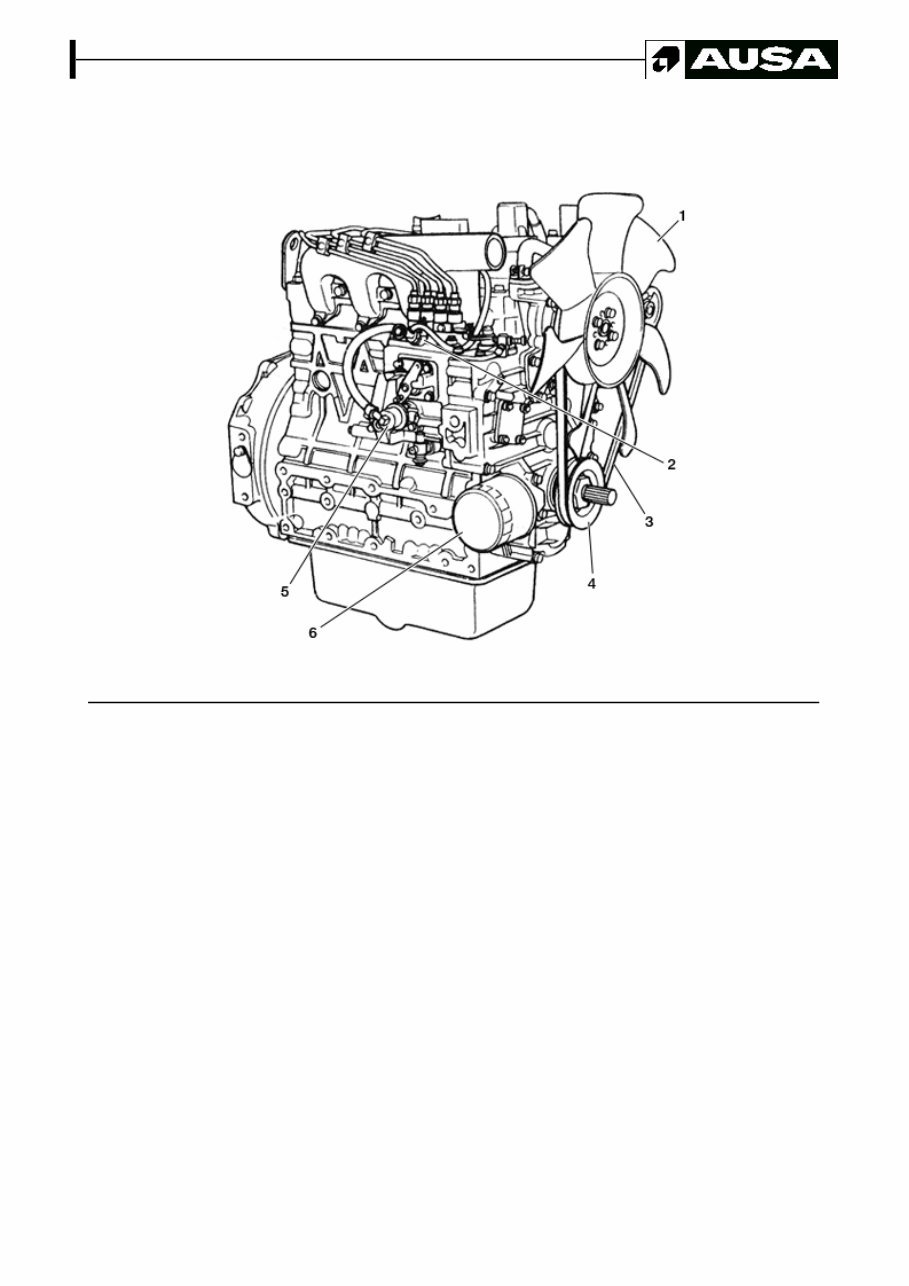

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) ENGINE (PART 1) FIGURE REFERENCE DENOMINATION AMOUNT 001 KU.10007.00 FAN 1 002 KU.10013.00 INJECTION PUMP 1 003 KU.10010.00 V BELT 1 004 KU1542474280 FAN DRIVE PULLEY 1 005 KU.10033.00 ELECTRICAL FUEL PUMP 1 006 KU.10004.00 OIL FILTER 1 Page 4 / 304

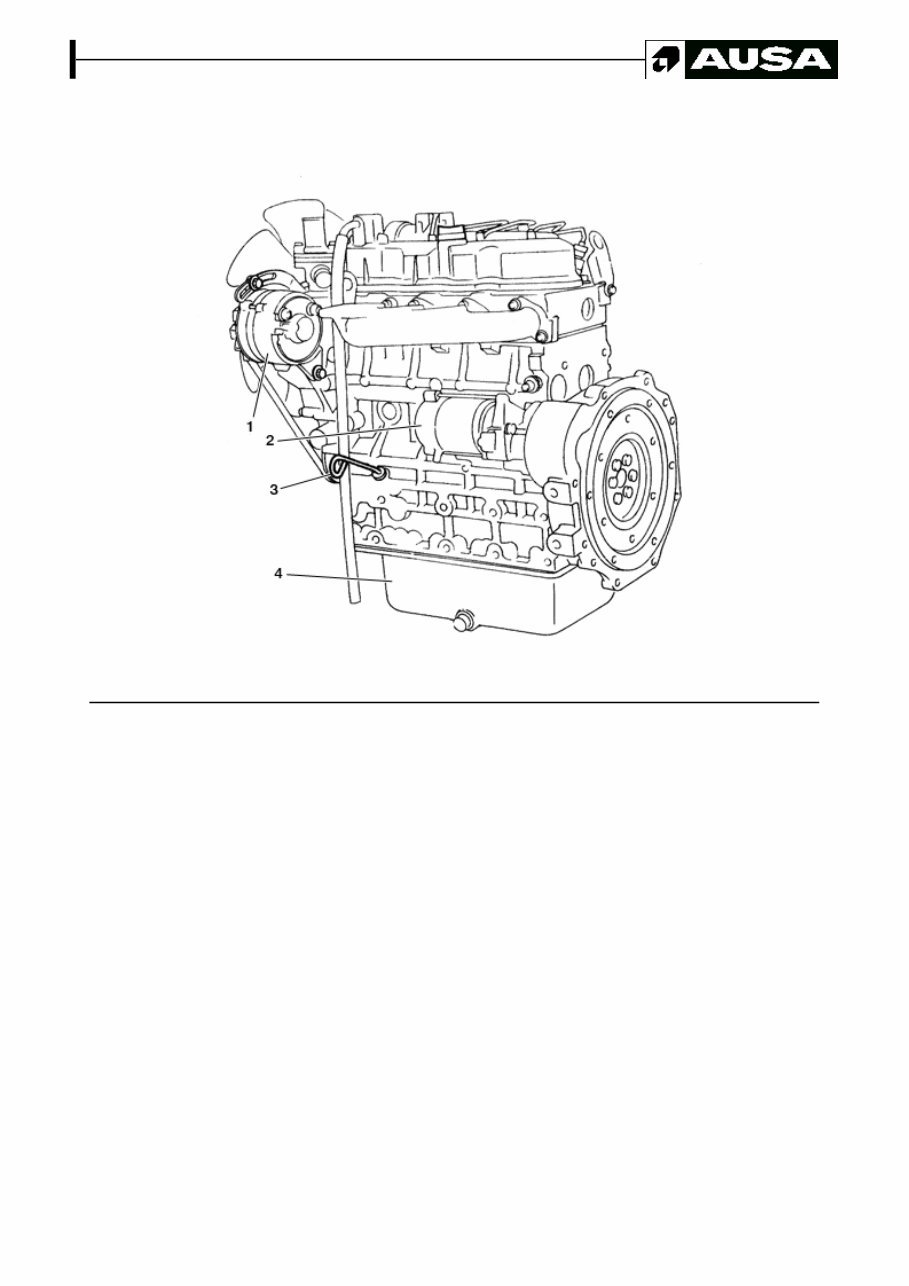

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) ENGINE (PART 2) FIGURE REFERENCE DENOMINATION AMOUNT 001 KU.10001.00 ALTERNATOR 1 002 KU.10002.00 STARTING ENGINE 1 003 KU1711136410 OIL GAUGE 1 004 86.00100.16 OIL PAN 1 Page 5 / 304

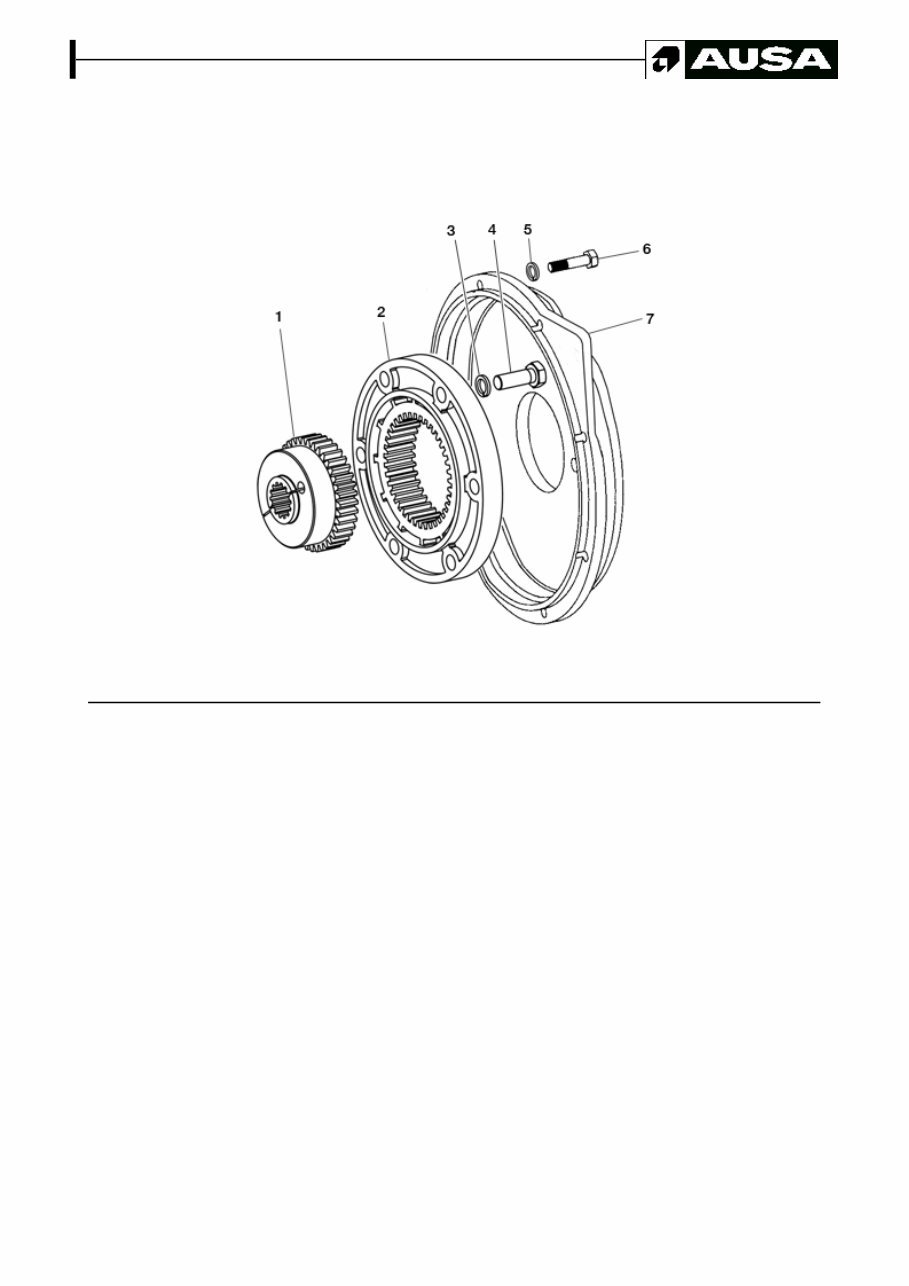

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) PUMP COUPLING (PART 1) FIGURE REFERENCE DENOMINATION AMOUNT 001 20.02170.00 COUPLING Z38XZ14X45 1 002 20.02172.00 COUPLING 190XZ38X32 1 003 104.12000.00 WASHER DIN7980 D12 6 004 604.12035.86 SCREW DIN931 M12x35 6 005 104.10000.00 WASHER DIN7980 D10 8 006 633.10025.86 SCREW 8 007 20.02171.00 COUPLING CYL/CYL 127X290X55 1 Page 6 / 304

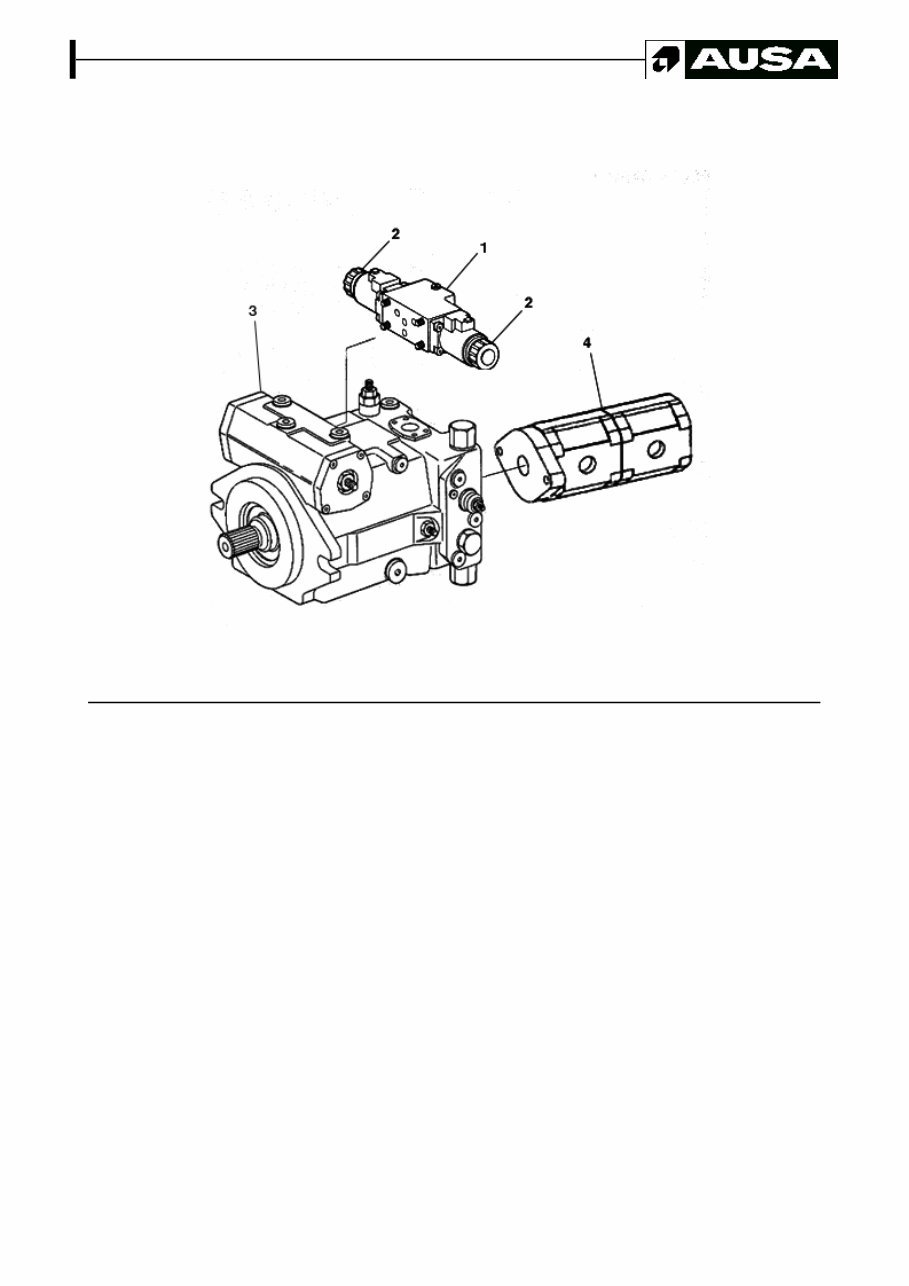

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) PUMP COUPLING (PART 2) FIGURE REFERENCE DENOMINATION AMOUNT 001 RX.30006.00 ELECTROVALVE 1 002 RX.30005.00 SPOOL 2 003 20.03250.01 HYDR. PUMP 40 CC HYDROMATIC 1 004 43.61522.00 HYDR. PUMP 1 Page 7 / 304

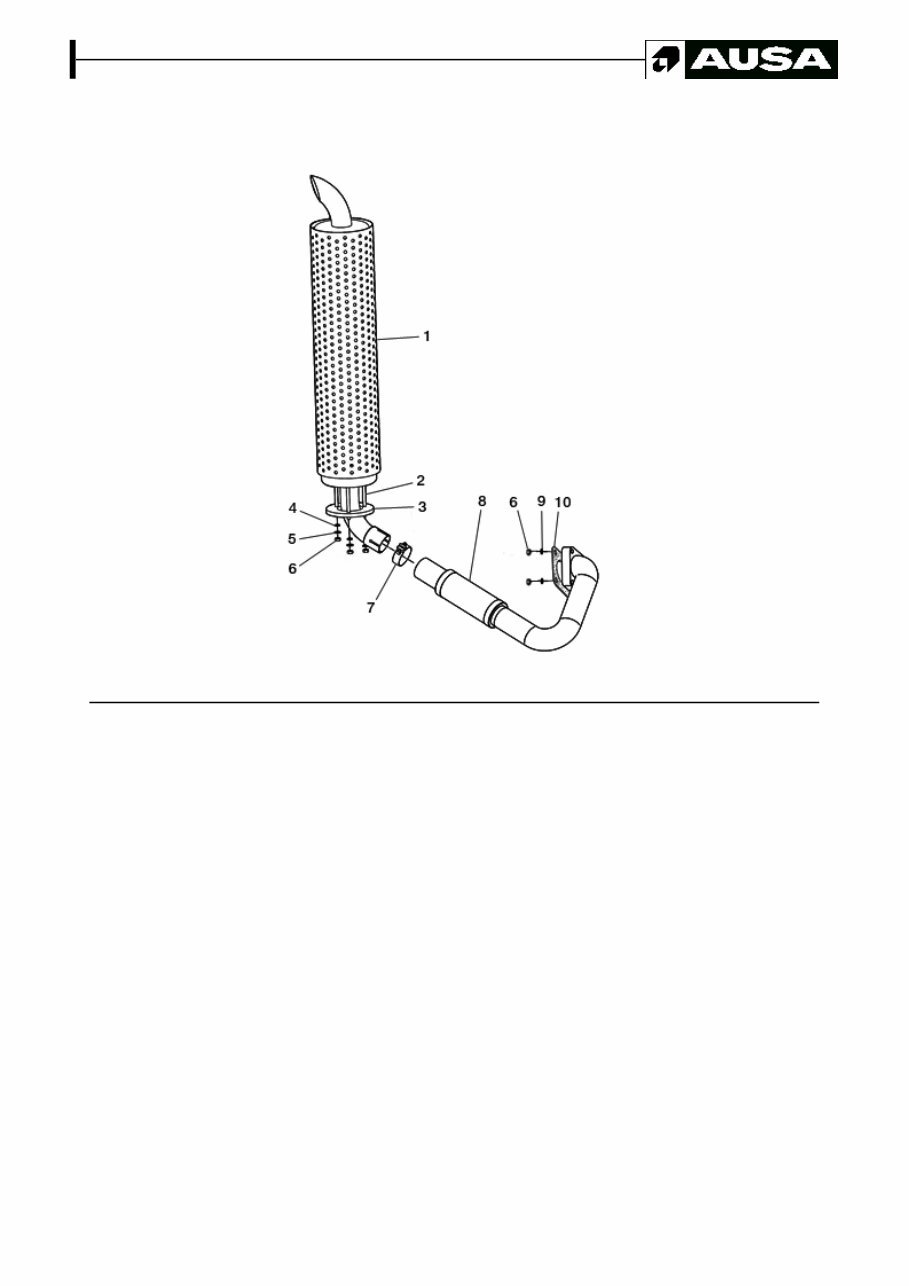

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) EXHAUST FIGURE REFERENCE DENOMINATION AMOUNT 001 20.02026.01 MUFFLER 1090 1 002 20.02037.00 3 003 20.02020.00 FLANGE 1 004 104.08000.00 WASHER DIN7980 D8 3 005 101.08000.66 WASHER DIN125 D8 3 006 701.08000.66 NUT DIN934 M8x1,25 6 007 936.53000.66 CLAMP DIN 71555 D53 1 008 20.02022.01 EXHAUST MANIFOLD D50X400 1 009 112.08000.66 WASHER DIN9021 D8 3 010 KU1648317110 GASKET 1 Page 8 / 304

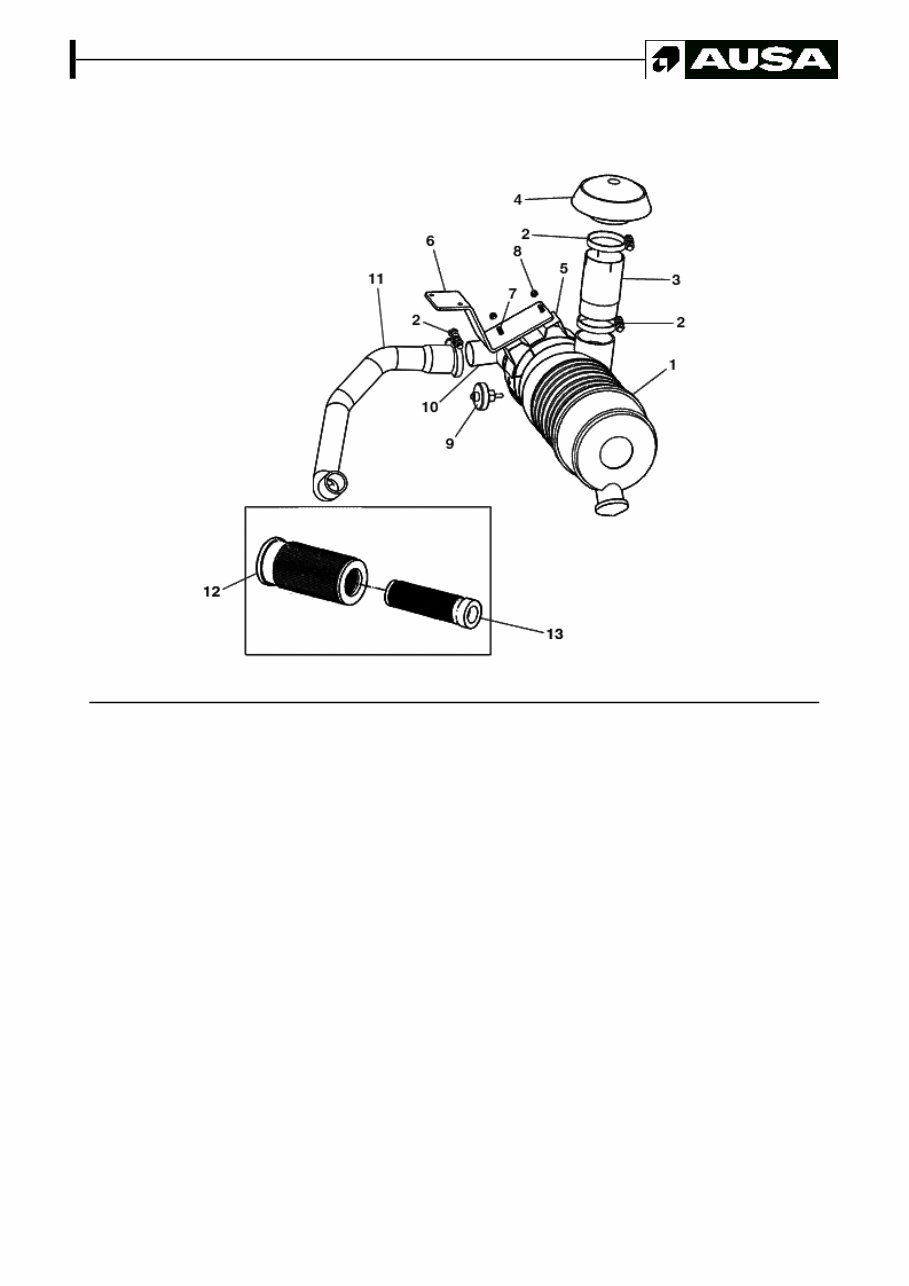

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) AIR FILTER FIGURE REFERENCE DENOMINATION AMOUNT 001 43.01210.00 AIR FILTER 1 002 912.60080.66 CLAMP 3 003 20.02025.00 TUBE 1 004 43.01212.00 GUARD MUFFLER 1 005 43.01211.00 CLAMP 1 006 20.02045.00 AIR FILTER SUPPORT 1 007 603.08025.86 SCREW DIN933 M8x25 2 008 711.08000.66 NUT DIN982 M8 2 009 43.50119.00 INDICATOR 1 010 20.02024.00 TUBE 1 011 20.02049.00 ADMISSION TUBE D40-50X490 1 012 43.01213.00 FILTER ELEMENT 8X140X320 A 1 013 43.01214.00 FILTER ELEMENT 60X80X318 A 1 Page 9 / 304

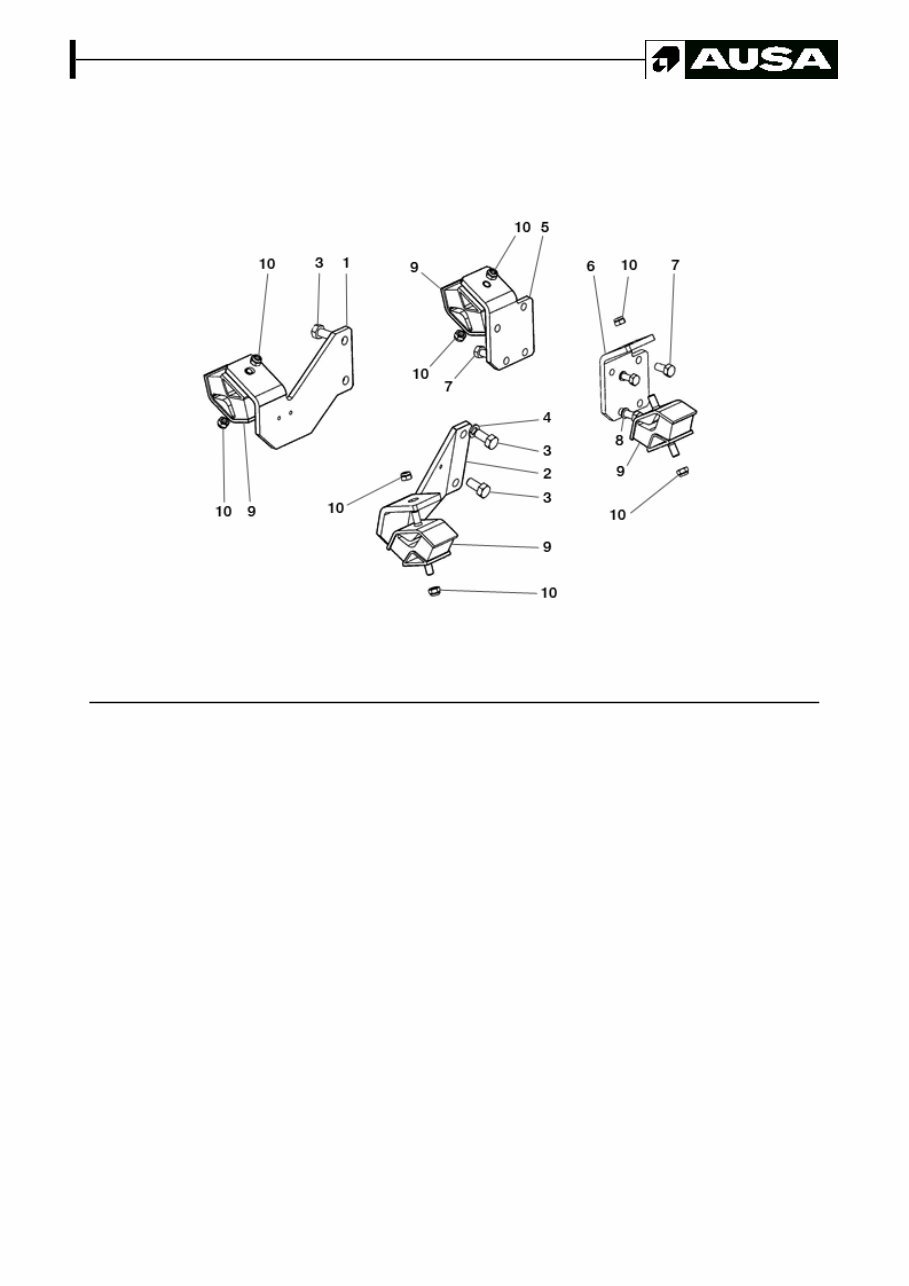

FORKLIFTS C 250 H X4 ENGINE (KUBOTA V2003-TE) ENGINE SUPPORTS FIGURE REFERENCE DENOMINATION AMOUNT 001 20.02013.00 ENGINE SUPPORT 1 002 20.02014.00 ENGINE SUPPORT 1 003 617.14025.86 SCREW DIN931 M14X25 4 004 104.14000.00 WASHER DIN7980 D14 4 005 20.02015.00 ENGINE SUPPORT 1 006 20.02016.00 ENGINE SUPPORT 1 007 617.12025.86 SCREW DIN933 M12X25x1,25 8 008 104.12000.00 WASHER DIN7980 D12 8 009 15.97770.01 SHOCK ABSORBER 60X120X64 50 A 4 010 720.12000.66 NUT DIN985 8 Page 10 / 304
