FORKLIFTS
C 150 H - C 150 H X4
PARTS
MANUAL
Page 1 / 171
FORKLIFTS
C 150 H - C 150 H X4
MAINTENANCE
FILTERS KIT
FIGURE REFERENCE DENOMINATION AMOUNT
001 KF.12000RE00 C 150 H x2/x4 FILTERS KIT 1
Page 2 / 171
FORKLIFTS
C 150 H - C 150 H X4

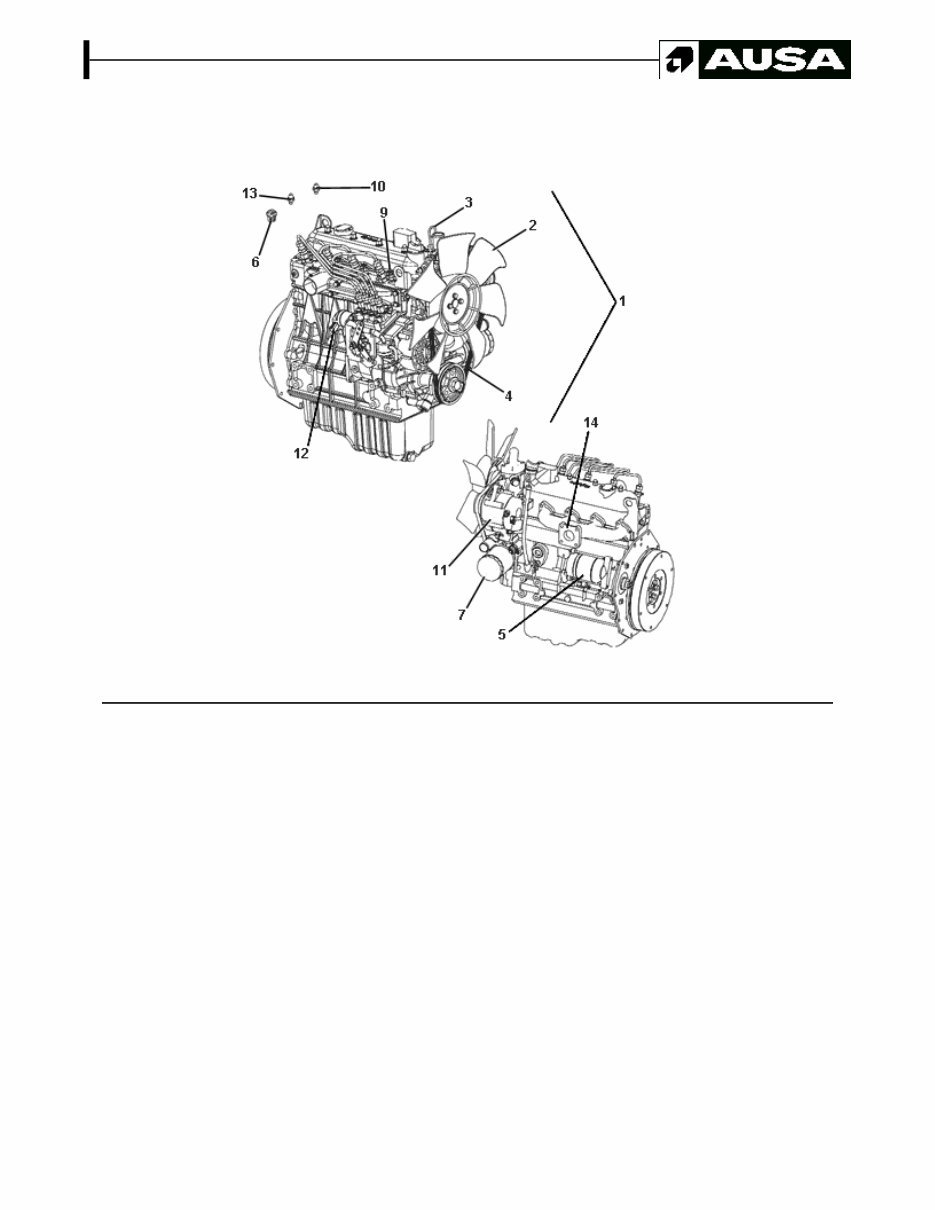

ENGINE
ENGINE KUBOTA
FIGURE REFERENCE DENOMINATION AMOUNT
001 12.02100.00 KUBOTA V1505 ENGINE 1
002 KU1629974112 FAN 1
003 KU1661136412 OIL LEVEL BAR 1
004 KU1628297011 FAN BELT 1
005 KU1661163013 ASSY STARTER 1
006 KU1943473014 ASSY THERMOSTAT 1
007 KU1627132092 CARTRIDGE OIL FILTER 1
008 KU1522143170 ELEMENT, FILTER 1
009 KU1685165512 GLOW PLUG 1
010 KU1584139011 SWITCH, OIL PRESSURE 1
011 KU1667864012 ASSY ALTERNATOR 1
012 KU1720860010 ASSY SOLENOID, STOP 1
013 KU1949883041 SWITCH, TEMPERATURE 1
014 KU1721512311 EXHAUST PIPE 1
015 86.05002.01 KUBOTA TIMER RELAY 1
Page 3 / 171
FORKLIFTS
C 150 H - C 150 H X4

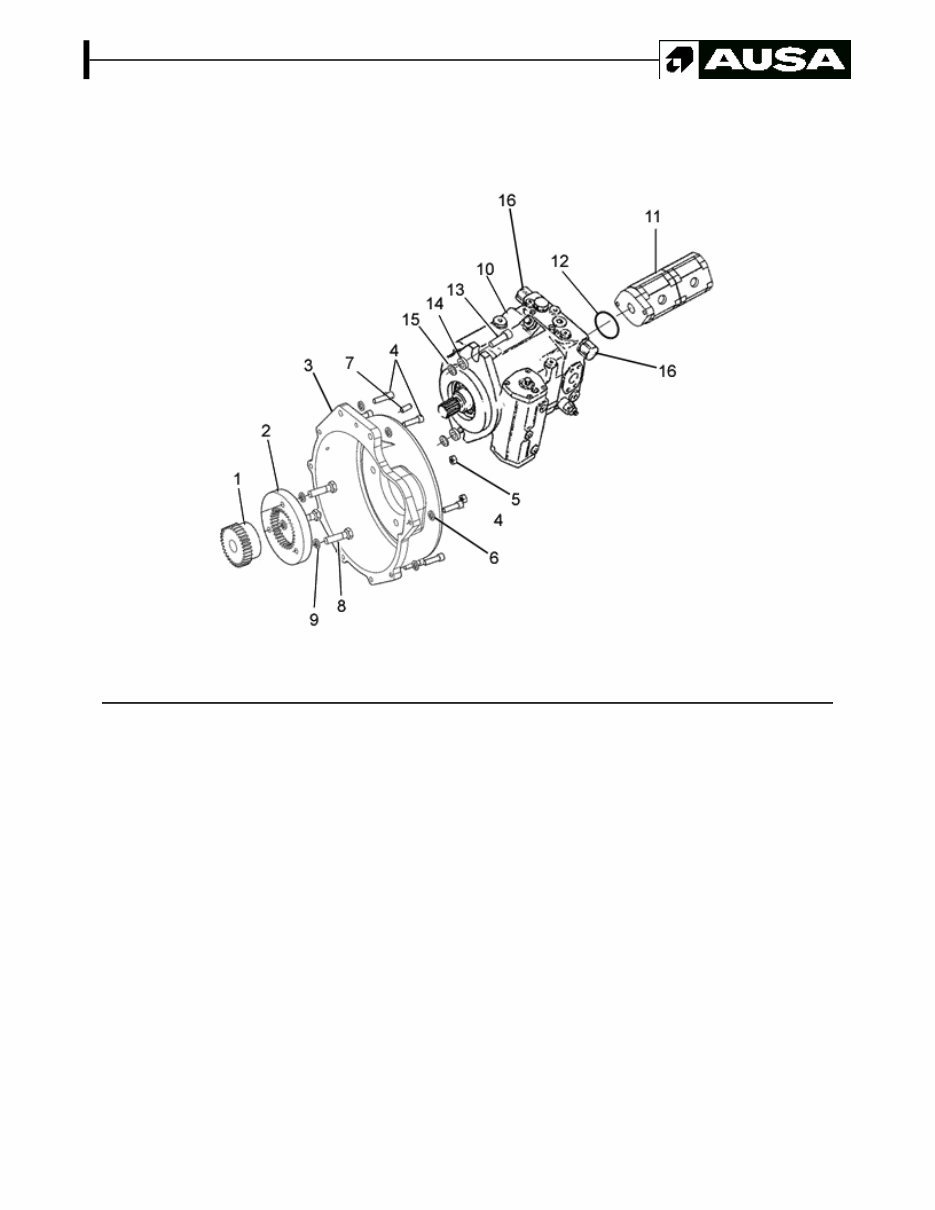

ENGINE
ACOUPLEMENT POMPE
FIGURE REFERENCE DENOMINATION AMOUNT
001 70.02091.00 COUPLING DEN/DEN 1
002 70.02090RE00 COUPLING CYL/CYL 1
003 12.02093.00 COUPLING CYL/CYL D102XD276X100 1
004 601.08030.86 HEXAGON SOCKET HEAD SCREW DIN912 M8x30 9
005 701.08000.66 NUT DIN934 M8x1,25 9
006 104.08000.00 WASHER DIN7980 Ø8 9
007 402.08020.00 ROLLPINDIN1481 1
008 617.10035.86 BOLT DIN931 M10x1,25x35 3
009 104.10000.00 WASHER DIN7980 Ø10 3
010 12.03600.00 HYDROSTATIC PUMP 28CC HYDROMATIC - A10VG28DA1D8 1
011 10.13007.00 OIL PUMP 1
012 201.08218.50 O-RING DIN3770 82,27x85,83x1,78 1
013 601.14040.86 HEXAGON SOCKET HEAD SCREW DIN912 M14x40 2
014 15.30110.00 WASHER 14x7x26 2
015 104.14000.00 WASHER DIN7980 Ø14 2
016 RX.30005.00 SPOOL (FRONT/REAR SPEED) 2
Page 4 / 171
FORKLIFTS
C 150 H - C 150 H X4

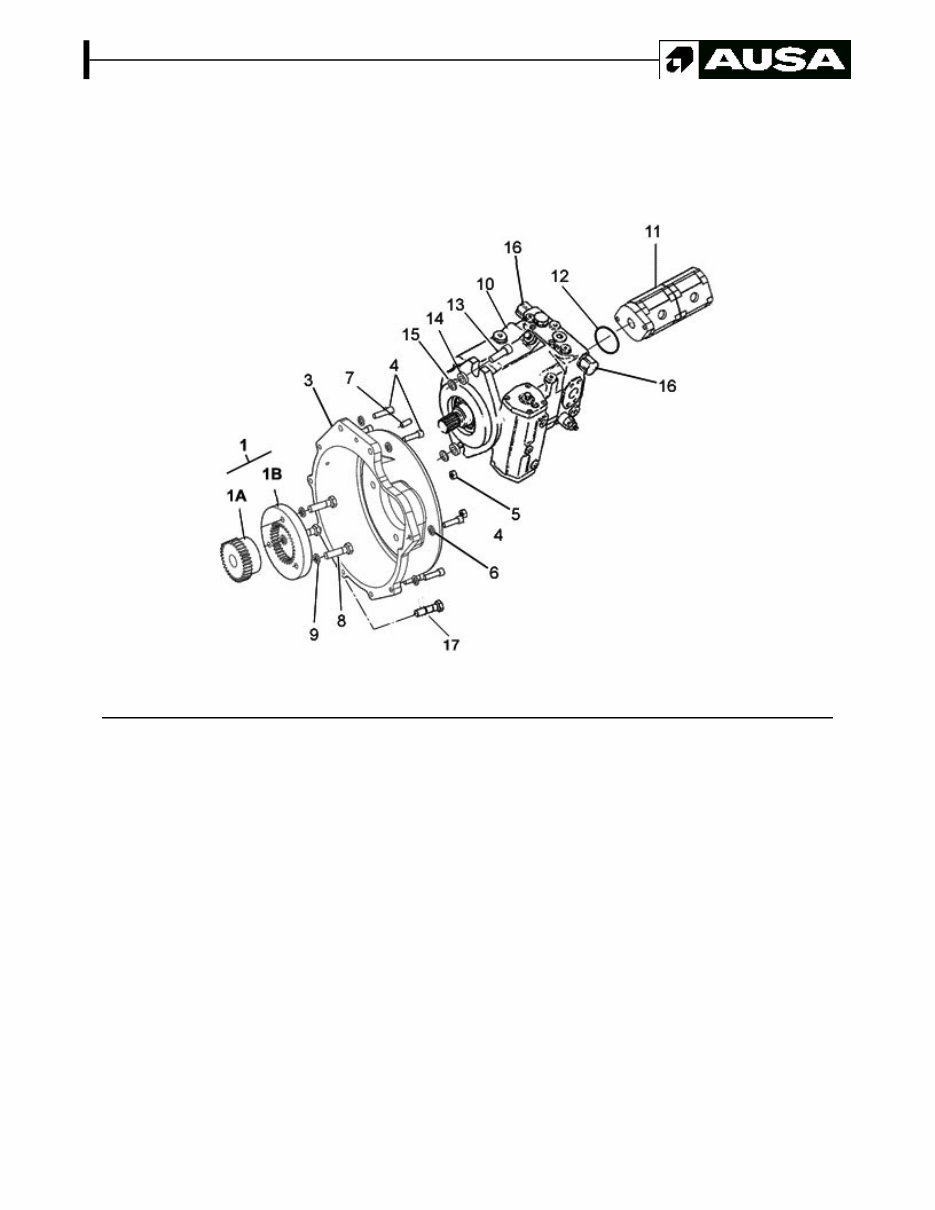

ENGINE
ACOUPLEMENT POMPE
CHASSIS: 61317
FIGURE REFERENCE DENOMINATION AMOUNT
001 70.02090RE00 COUPLING CYL/CYL 1
001A 70.02091.00 COUPLING DEN/DEN 1
001B 70.02090.00 COUPLING CIL/DEN D135 1
003 12.02093.00 COUPLING CYL/CYL D102XD276X100 1
004 601.08030.86 HEXAGON SOCKET HEAD SCREW DIN912 M8x30 8
005 701.08000.66 NUT DIN934 M8x1,25 9
006 104.08000.00 WASHER DIN7980 Ø8 9
007 402.08020.00 ROLLPINDIN1481 1
008 617.10035.86 BOLT DIN931 M10x1,25x35 3
009 104.10000.00 WASHER DIN7980 Ø10 3
010 12.03600.00 HYDROSTATIC PUMP 28CC HYDROMATIC - A10VG28DA1D8 1
011 10.13007.00 OIL PUMP 1
012 201.08218.50 O-RING DIN3770 82,27x85,83x1,78 1
013 601.14040.86 HEXAGON SOCKET HEAD SCREW DIN912 M14x40 2
014 15.30110.00 WASHER 14x7x26 2
015 104.14000.00 WASHER DIN7980 Ø14 2
Page 5 / 171
FORKLIFTS
C 150 H - C 150 H X4
016 RX.30005.00 SPOOL (FRONT/REAR SPEED) 2
017 12.02093.99 BOLT M8 L:30 1
Page 6 / 171
FORKLIFTS
C 150 H - C 150 H X4

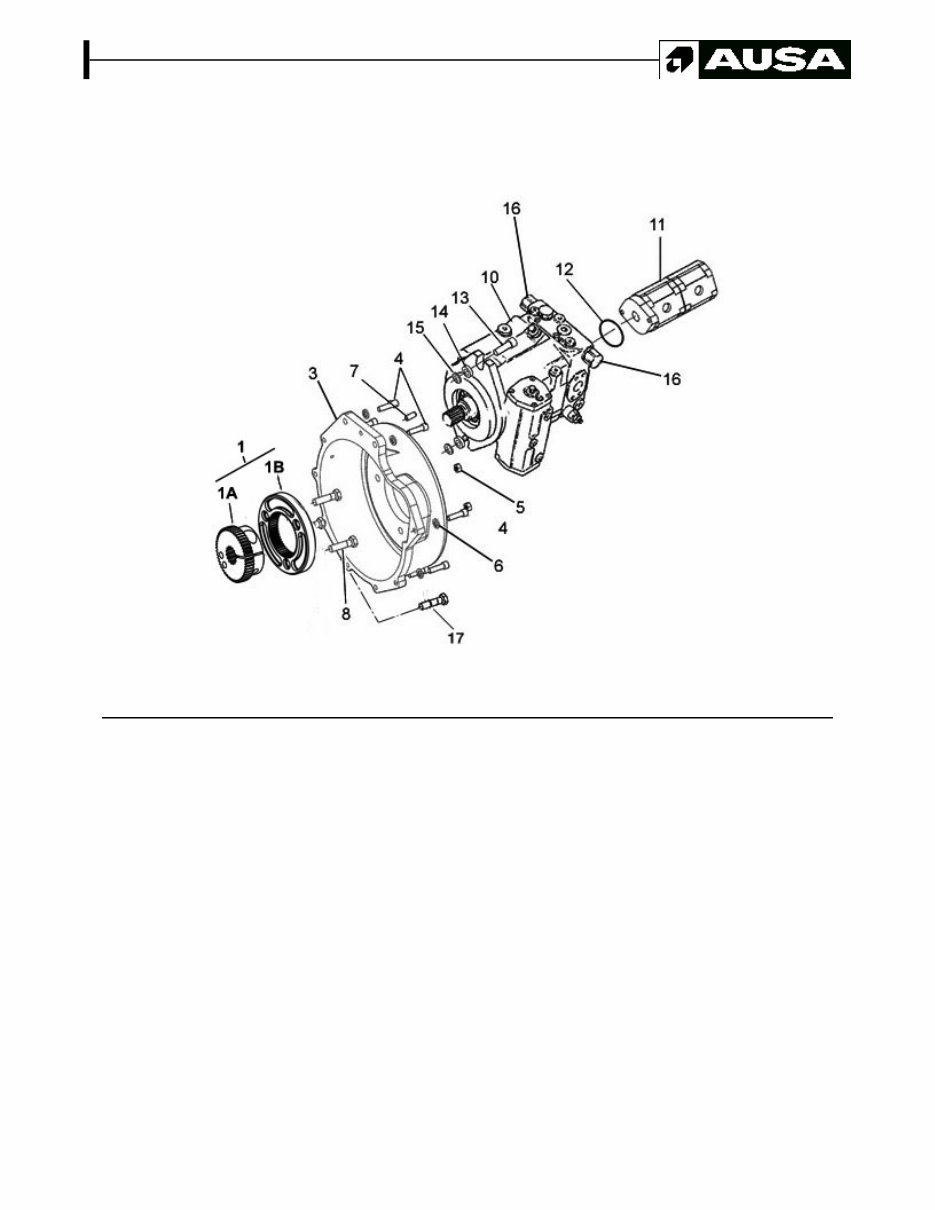

ENGINE
ACOUPLEMENT POMPE
CHASSIS: 61561
FIGURE REFERENCE DENOMINATION AMOUNT
001 70.02091.01 COUPLING DEN/DEN Z50XZ15X37 1
001A 70.02090RE00 COUPLING CYL/CYL 1
001B 70.02090.01 COUPLING CIL/DEN D135 Z50 1
003 12.02093.00 COUPLING CYL/CYL D102XD276X100 1
004 601.08030.86 HEXAGON SOCKET HEAD SCREW DIN912 M8x30 8
005 701.08000.66 NUT DIN934 M8x1,25 9
006 104.08000.00 WASHER DIN7980 Ø8 9
007 402.08020.00 ROLLPINDIN1481 1
008 633.10030.86 BOLT DIN912 M10x1.25x30 3
010 12.03600.00 HYDROSTATIC PUMP 28CC HYDROMATIC - A10VG28DA1D8 1
011 10.13007.00 OIL PUMP 1
012 201.08218.50 O-RING DIN3770 82,27x85,83x1,78 1
013 601.14040.86 HEXAGON SOCKET HEAD SCREW DIN912 M14x40 2
014 15.30110.00 WASHER 14x7x26 2
015 104.14000.00 WASHER DIN7980 Ø14 2
016 RX.30005.00 SPOOL (FRONT/REAR SPEED) 2
Page 7 / 171
FORKLIFTS
C 150 H - C 150 H X4
017 12.02093.99 BOLT M8 L:30 1
Page 8 / 171
FORKLIFTS
C 150 H - C 150 H X4

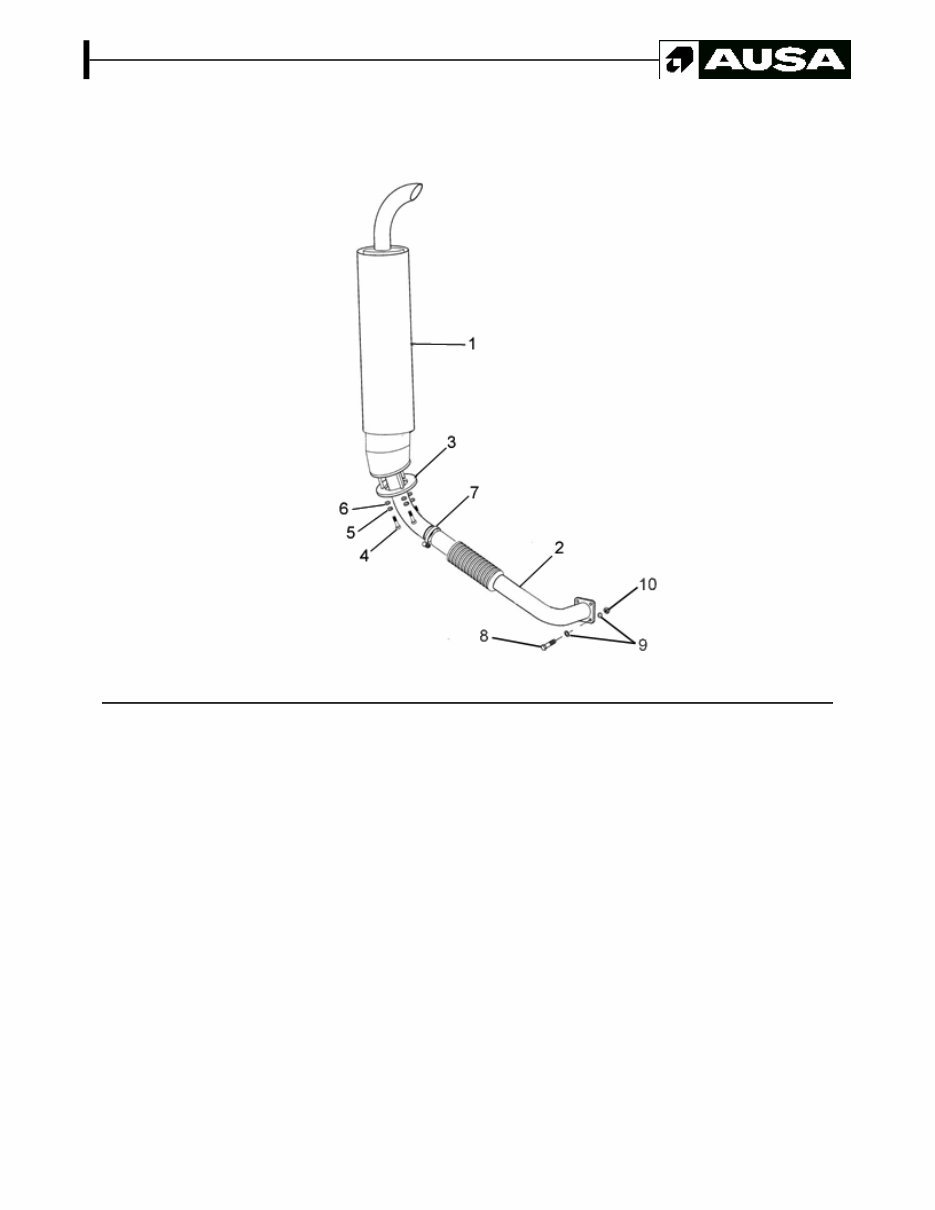

ENGINE
ECHAPPEMENT
FIGURE REFERENCE DENOMINATION AMOUNT
001 12.02070.00 MUFFLER 1
002 10.02275.01 EXHAUST MANIFOLD 1
003 20.02020.00 FLANGE 1
004 604.08070.86 BOLT DIN931 M8x70 3
005 104.08000.00 WASHER DIN7980 Ø8 3
006 101.08000.66 WASHER DIN125 Ø8 3
007 935.47051.66 HOSE CLAMP SUPER Ø47-51 1
008 604.09035.86 BOLT DIN931 M9x35 4
009 104.09000.00 WASHER DIN7980 Ø9 8
010 701.09000.66 NUT DIN934 M9x1,25 4
Page 9 / 171
FORKLIFTS
C 150 H - C 150 H X4
ENGINE
ECHAPPEMENT
CHASSIS: 47744
FIGURE REFERENCE DENOMINATION AMOUNT
001 12.02070.01 MUFFLER 1
002 10.02275.01 EXHAUST MANIFOLD 1
003 20.02020.00 FLANGE 1
004 604.08070.86 BOLT DIN931 M8x70 3
005 104.08000.00 WASHER DIN7980 Ø8 3
006 101.08000.66 WASHER DIN125 Ø8 3
007 935.47051.66 HOSE CLAMP SUPER Ø47-51 1
008 604.09035.86 BOLT DIN931 M9x35 4
009 104.09000.00 WASHER DIN7980 Ø9 8
010 701.09000.66 NUT DIN934 M9x1,25 4
Page 10 / 171
