Illustrated Parts Manual
Models
E300AJ
E300AJP
S/N 0300138358
TO PRESENT
3121254
November 4, 2013
3121254 E300AJ E300AJP A
REVISION LOG
October 15, 2009 - Original Issue Of Manual (Edited to B/M 0010720 Revision 4)
October 25, 2010 - Revised Manual (Edited to B/M 0010720 Revision 9)
March 16, 2011 - Revised Manual (Edited to B/M 0010720 Revision 12)
June 10, 2011 - Revised Manual (Edited to B/M 0010720 Revision 12)
September 16, 2011 - Revised Manual (Edited to B/M 0010720 Revision 13)
November 29, 2011 - Revised Manual (Edited to B/M 0010720 Revision 13)
March 20, 2012 - Revised Manual (Edited to B/M 0010720 Revision B)
July 10, 2012 - Revised Manual (Edited to B/M 0010720 Revision C)
October 10, 2012 - Revised Manual (Edited to B/M 0010720 Revision D)
February 12, 2013 - Revised Manual (Edited to B/M 0010720 Revision E)
May 2, 2013 - Revised Manual (Edited to B/M 0010720 Revision H)
August 6, 2013 - Revised Manual (Edited to B/M 0010720 Revision H)
November 4, 2013 - Revised Manual (Edited to B/M 0010720 Revision H)
B E300AJ E300AJP 3121254
REVISION LOG
3121254 E300AJ E300AJP i
TABLE OF CONTENTS
FIGURE NO. TITLE PAGE NO.
SECTION 1 - FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1-1 STEER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-2 TIRE & WHEEL DRIVE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-3 DRIVE HUB ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1-4 DRIVE MOTOR ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1-5 ELECTRICAL COMPONENTS INSTALLATION (FRAME MOUNTED) . . . . . . . . . . . . . 1-12
1-6 BATTERY BOX INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1-7 FRAME COVERS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1-8 INVERTER INSTALLATION (OPTIONAL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
SECTION 2 - TURNTABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2-1 CONTROL VALVES & TANK/MOTOR INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-2 MAIN CONTROL VALVE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-3 BOOM FUNCTION VALVE ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-4 TURNTABLE AND SWING DRIVE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2-5 TURNTABLE BEARING ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
2-6 SWING MOTOR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
2-7 GROUND CONTROL BOX ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
2-8 ELECTRICAL COMPONENTS INSTALLATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
2-9 HOODS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
SECTION 3 - BOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3-1 BOOM AND CYLINDERS INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3-2 TOWER BOOM ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
3-3 MAIN BOOM ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3-4 JIB ASSEMBLY & PLATFORM SUPPORT INSTALLATION. . . . . . . . . . . . . . . . . . . . . . 3-12
3-5 PLATFORM ROTATOR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
3-6 JIB SWING ROTATOR ASSEMBLY (E300AJP ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
3-7 CABLE, CLAMPS & LIMIT SWITCHES INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . 3-20
SECTION 4 - PLATFORM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-1 PLATFORM ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-2 PLATFORM CONSOLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4-3 CONTROLLER ASSEMBLY (DRIVE AND STEER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
4-4 CONTROLLER ASSEMBLY (SWING & LIFT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
SECTION 5 - CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5-1 LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5-2 LIFT (JIB) CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5-3 LIFT (MAIN BOOM) CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
5-4 LIFT (TOWER BOOM) CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
5-5 MASTER CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
5-6 STEER CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
5-7 TELESCOPE CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
SECTION 6 - HYDRAULIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6-1 HYDRAULIC DIAGRAM - E300AJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6-2 DRIVE HYDRAULIC DIAGRAM - E300AJP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
6-3 HYDRAULIC DIAGRAM LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
ii E300AJ E300AJP 3121254
FIGURE NO. TITLE PAGE NO.
TABLE OF CONTENTS
SECTION 7 - ELECTRICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7-1 ELECTRICAL DIAGRAM LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7-2 HARNESS COMPONENTS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
SECTION 8 - DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
8-1 DECAL INSTALLATION (ANSI SPEC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8-2 DECAL INSTALLATION (COUNTRY SPECS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
8-3 DECAL INSTALLATION (AUSTRALIAN/CE SPECS) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
SECTION 9 - RECOMMENDED SERVICE PARTS STOCK . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
SECTION 10 - SPECIAL OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
SECTION 11 - PARTS NUMBER INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
3121254 E300AJ E300AJP 1-1
SECTION 1
FRAME
1-2 E300AJ E300AJP 3121254
SECTION 1 FRAME

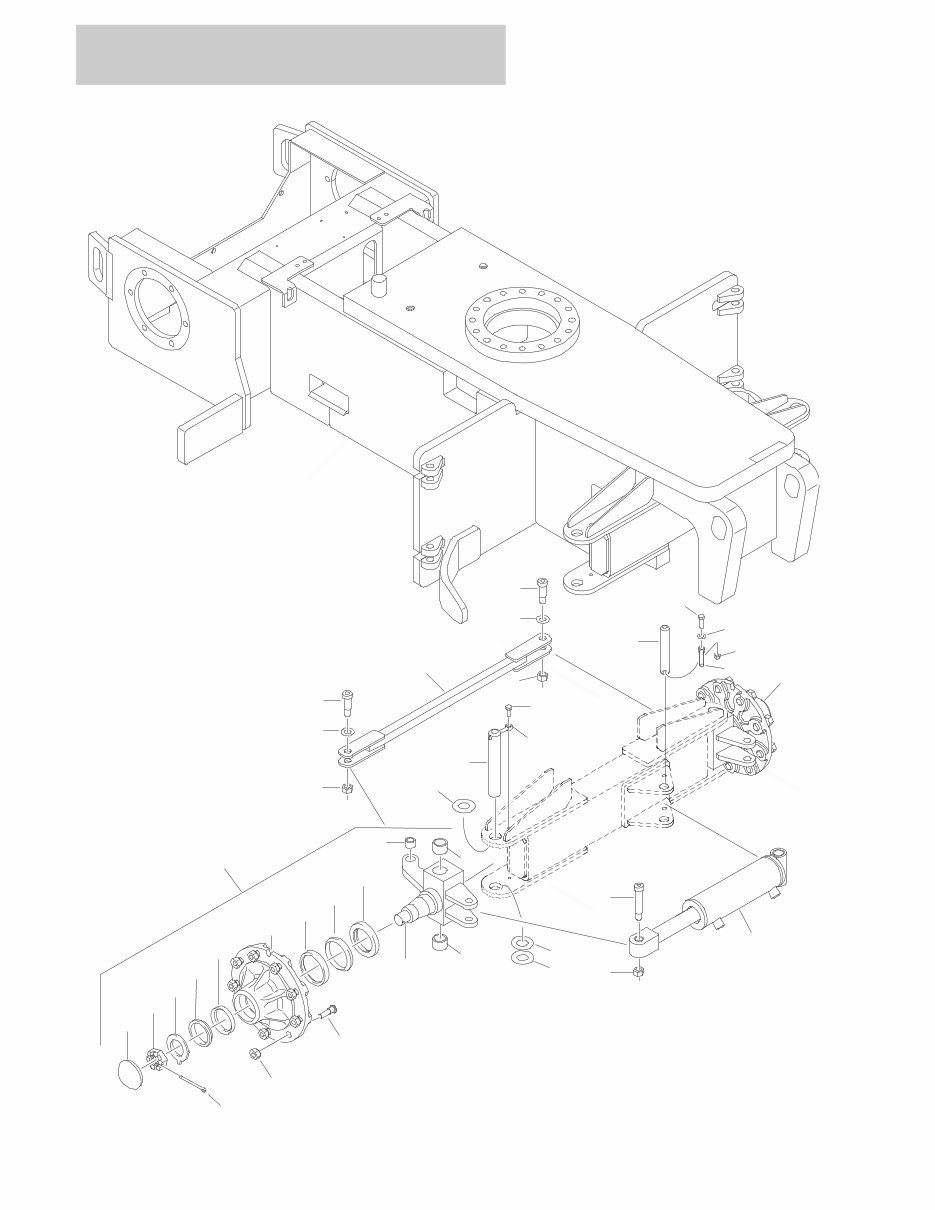

FIGURE 1-1. STEER INSTALLATION
7
12
3
7
12
3
10
4
1
14
16
15
6
9
1
2
6
5
13
101
112
115
108
107
104
105
106
111
110
114
113
109
102
103
102
9
8
3
11
13
17
3121254 E300AJ E300AJP 1-3
SECTION 1 FRAME
FIGURE 1-1. STEER INSTALLATION
ITEM # PART NUMBER QTY. DESCRIPTION REV.
1001108599 Ref STEER INSTALLATION C
1 0100011 AR Compound, Locking
2 0641607 2 Bolt 3/8in-16NC x 7/8in
3 3312005 3 Locknut 5/8in-11NC
4 3422181 1 Pin
5 3422562 2 Pin
6 3841143 3 Keeper, Pin
7 3900118 2 Screw, Shoulder
8 3900255 1 Capscrew, Shoulder 3/4in x 3in
9 1001107712 2 Hub/Spindle Assembly (See Items 101-115 for Breakdown)
10 1001107727 1 Tie-Rod
11 1001108310 1 Steer Cylinder Assembly (See Section 5 for Breakdown)
12 4740086 2 Thrustwasher
13 0440162 4 Thrustwasher
14 0641610 1 Bolt 3/8in-16NC x 1-1/4in
15 3311605 1 Locknut 3/8in-16NC
16 4711600 1 Flatwasher 3/8in Thin
17 1001151428 AR Plate, Shim (SN 0300176716 to Present)
1001107712 Ref HUB/SPINDLE ASSEMBLY A
Ref Note: Qty shown is for 1 Hub Assembly. Machine requires 2
assemblies.
101 7020137 1 Cap, Dust
102 0961951 2 Bushing, Garmax
103 0962140 1 Bearing, Garmax
104 70002434 1 Hub
105 7020036 1 Cup, Bearing (Inner) (Part of Item 104)
106 7020037 1 Cone, Bearing (Inner)
107 7020038 1 Cup, Bearing (Outer) (Part of Item 104)
108 7020039 1 Cone, Bearing (Outer)
109 70002435 1 Spindle
110 7020140 1 Pin, Cotter
111 7020040 1 Seal
112 7020054 1 Nut, Castle 1-1/4in-12
113 7020041 9 Stud 5/8in-18NF
114 7020042 9 Lugnut 5/8in-18NF
115 7020055 1 Washer, Tanged 1-1/4in
1-4 E300AJ E300AJP 3121254
SECTION 1 FRAME

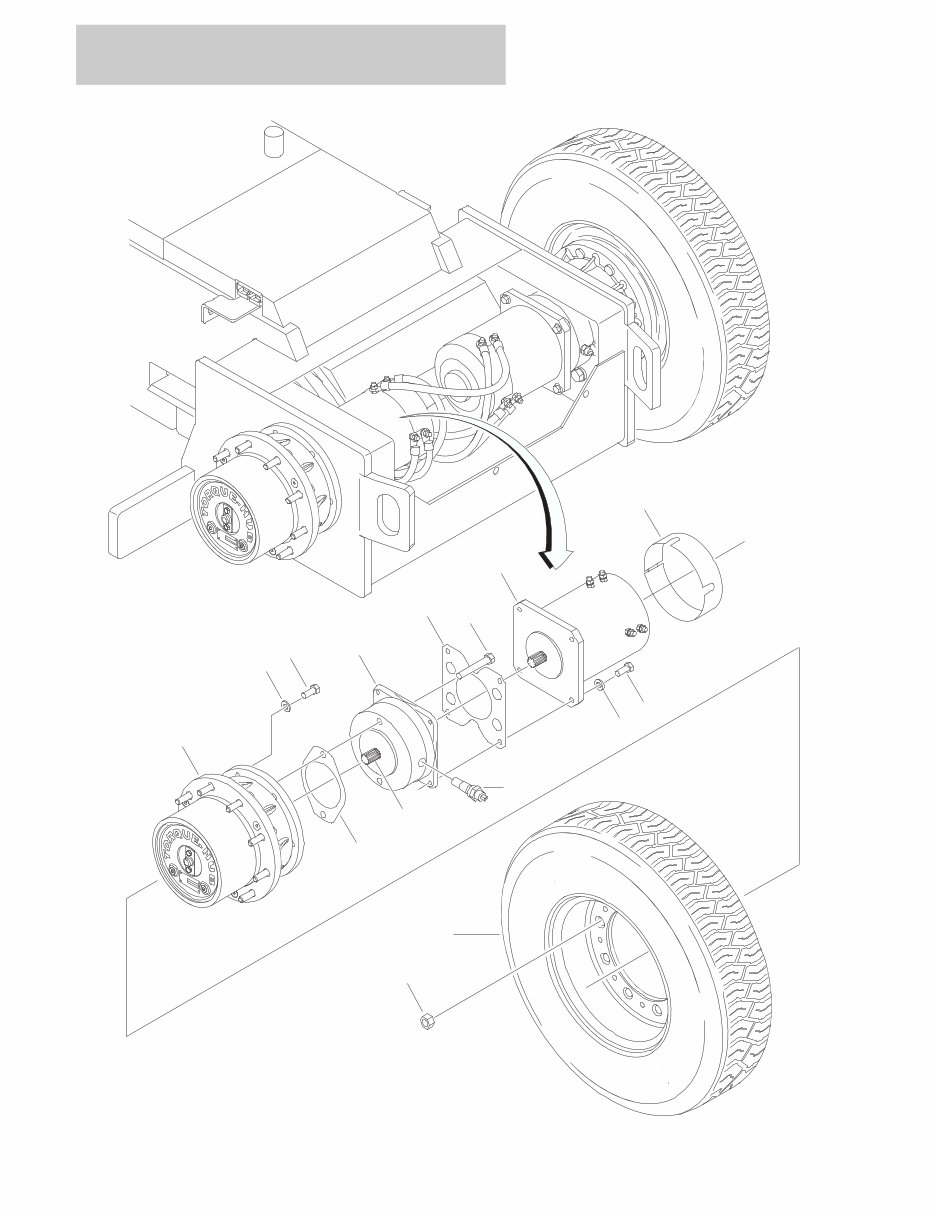

FIGURE 1-2. TIRE & WHEEL DRIVE INSTALLATION
101
102
14
15
29
1
8
9A
9
9B
1
7
17
2
23
1
5
16
20
