Illustrated Parts Manual
Models
450A
450AJ
P/N
3120870
January 28, 2011
REVISION LOG
3120870 A
May 1998 - Original Issue Of Manual
November 18, 1998 - Revised (Edited to Top B/M Revision 7)
February 5, 1999 - Revised (Edited to Top B/M Revision 9)
August 15, 1999 - Revised (Edited to Top B/M Revision 14)
February 16, 2000 - Revised (Edited to Top B/M Revision 18)
February 7, 2001 - Revised (Edited to Top B/M Revision 23)
February 14, 2003 - Revised (Edited to Top B/M Revision 25)
December 16, 2004 - Revised (Edited to Top B/M Revision 25)
June 20, 2007 - Revised (Edited to Top B/M Revision 26)
January 28, 2011 - Revised Manual
REVISION LOG
B 3120870
This page left blank intentionally.
3120870 i
FIGURE NO. TITLE PAGE NO.
TABLE OF CONTENTS
SECTION 1 - FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1-1 AXLE AND STEERING INSTALLATION - 2WD WITHOUT TOW BAR . . . . . . . . . . . . . . . 1-2
1-2 AXLE AND STEERING INSTALLATION - 2WD WITH TOW BAR
(S/N 49971 TO PRESENT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1-3 AXLE AND STEERING INSTALLATION - 4WD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1-4 TIRE AND WHEEL DRIVE INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
1-5 DRIVE BRAKE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1-6 DRIVE HUB ASSEMBLY (PRIOR TO S/N 39594). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
1-7 DRIVE HUB ASSEMBLY (S/N 39594 TO PRESENT). . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
1-8 DRIVE MOTOR ASSEMBLY - REAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
1-9 DRIVE MOTOR ASSEMBLY - FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
1-10 DRIVE VALVES INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
1-11 TOW BAR INSTALLATION - 2WD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40
1-12 SEMI-TRACK INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-42
SECTION 2 - TURNTABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2-1 CONTROL VALVES INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-2 MAIN CONTROL VALVE ASSEMBLY - PROPORTIONAL . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-3 TURNTABLE AND SWING DRIVE INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-4 SWING MOTOR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2-5 SWING BEARING ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
2-6 DEUTZ ENGINE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
2-7 GENERATOR INSTALLATION - DEUTZ MACHINES (OPTIONAL) . . . . . . . . . . . . . . . . . 2-22
2-8 PISTON PUMP ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
2-9 TANK INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
2-10 GROUND CONTROL BOX ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-32
2-11 ELECTRICAL OPTIONS INSTALLATION (TURNTABLE MOUNTED) . . . . . . . . . . . . . . . 2-36
2-12 HOODS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-40
SECTION 3 - BOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
3-1 TOWER/MID BOOMS AND CYLINDERS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3-2 MAIN BOOM AND CYLINDERS INSTALLATION - 450A . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
3-3 MAIN BOOM AND CYLINDERS INSTALLATION - 450AJ . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3-4 MAIN BOOM ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
3-5 BOOM COVERS, CABLES AND CLAMPS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 3-18
SECTION 4 - PLATFORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4-1 PLATFORM INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-2 PLATFORM CONSOLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4-3 CONTROLLER ASSEMBLY (LIFT & SWING) (PRIOR TO S/N39857) . . . . . . . . . . . . . . 4-12
4-4 CONTROLLER ASSEMBLY (LIFT & SWING) (S/N39857 TO PRESENT) . . . . . . . . . . . . 4-14
4-5 CONTROLLER ASSEMBLY (DRIVE & STEER) (PRIOR TO S/N39857) . . . . . . . . . . . . . 4-18
4-6 CONTROLLER ASSEMBLY (DRIVE & STEER) (S/N39857 TO PRESENT) . . . . . . . . . . . 4-22
4-7 CONTROLLER ASSEMBLY (SPEED) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26
4-8 SOFT TOUCH SYSTEM INSTALLATION (S/N 49601 TO PRESENT) . . . . . . . . . . . . . . . 4-28
SECTION 5 - CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5-1 AXLE LOCKOUT CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5-2 PLATFORM LEVEL CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
5-3 LIFT CYLINDER ASSEMBLY - JIB (450AJ ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
ii 3120870
TABLE OF CONTENTS
FIGURE NO. TITLE PAGE NO.
5-4 LIFT CYLINDER ASSEMBLY - MAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
5-5 LIFT CYLINDER ASSEMBLY - MID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
5-6 LIFT CYLINDER ASSEMBLY - TOWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
5-7 ROTATOR CYLINDER ASSEMBLY - PLATFORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18
5-8 STEER CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20
5-9 TELESCOPE CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22
SECTION 6 - HYDRAULIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6-1 AXLE LOCKOUT HYDRAULIC DIAGRAM - 2WD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6-2 TOW BAR HYDRAULIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
6-3 AXLE LOCKOUT HYDRAULIC DIAGRAM - 4WD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6-4 DRIVE HYDRAULIC DIAGRAM - 2WD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
6-5 DRIVE HYDRAULIC DIAGRAM - 4WD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
6-6 STANDARD HYDRAULIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
6-7 HYDRAULIC DIAGRAM LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
SECTION 7 - ELECTRICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7-1 ELECTRICAL DIAGRAM LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7-2 ELECTRICAL SCHEMATIC - DEUTZ ENGINE MACHINES . . . . . . . . . . . . . . . . . . . . . . 7-4
7-3 HARNESS COMPONENTS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
SECTION 8 - DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
8-1 DECALS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
SECTION 9 - RECOMMENDED SERVICE PARTS STOCK . . . . . . . . . . . . . . . . . . . . . . . . 9-1
SECTION 10 - SPECIAL OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
3120870 1-1
S
E
C
T
I
O
N
1
F
R
A
M
E
SECTION 1 FRAME
TABLE OF CONTENTS
FIGURE DESCRIPTION PAGE
1-1 AXLE AND STEERING INSTALLATION - 2WD WITH OUT TOW BAR . . . . . . . . . . . . . . . . . . . 1-2
1-2 AXLE AND STEERING INSTALLATION - 2WD WITH TOW BAR (S/N 49971 TO PRESENT) . 1-6
1-3 AXLE AND STEERING INSTALLATION - 4WD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1-4 TIRE AND WHEEL DRIVE INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
1-5 DRIVE BRAKE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1-6 DRIVE HUB ASSEMBLY (PRIOR TO S/N 39594) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
1-7 DRIVE HUB ASSEMBLY (S/N 39594 to PRESENT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
1-8 DRIVE MOTOR ASSEMBLY - REAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
1-9 DRIVE MOTOR ASSEMBLY - FRONT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
1-10 DRIVE VALVES INSTALLATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
1-11 TOW BAR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-40
1-12 SEMI-TRACK INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-42
1-2 3120870
SECTION 1 FRAME
S
E
C
T
I
O
N
1
F
R
A
M
E

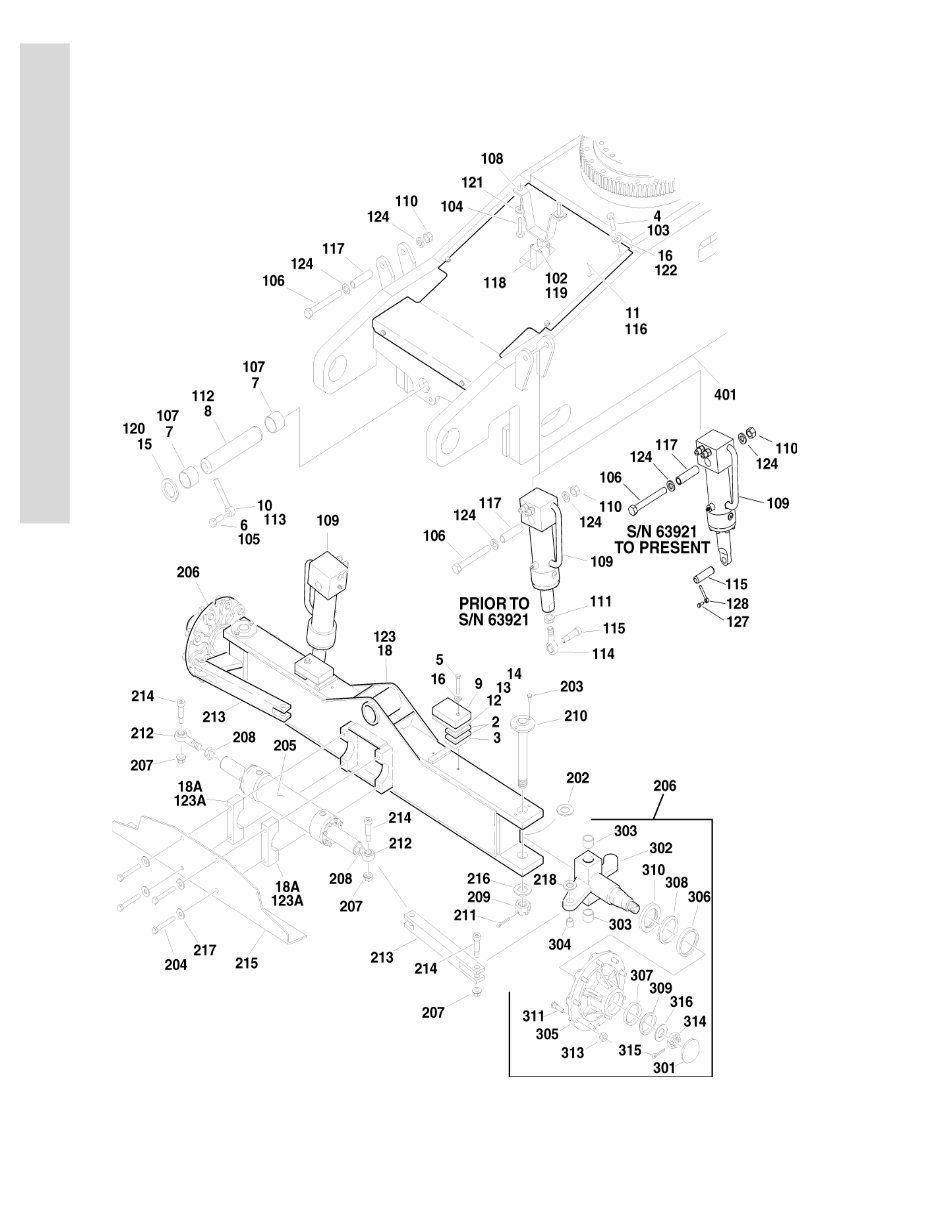

FIGURE 1-1. AXLE AND STEERING INSTALLATION - 2WD WITHOUT TOW BAR
3120870 1-3
S
E
C
T
I
O
N
1
F
R
A
M
E
SECTION 1 FRAME
.
FIGURE 1-1. AXLE AND STEERING INSTALLATION - 2WD WITHOUT TOW BAR
FIG & ITEM # PART NUMBER DESCRIPTION QTY. REV.
0258026 FIXED AXLE INSTALLATION Ref. C
1 0100011 Loctite #242 (Not Shown) A/R
2 0362763 Bar, Stop 4
3 0362764 Bar, Stop 2
4 0641606 Bolt 3/8”-16NC x 3/4” 6
5 0641626 Bolt 3/8”-16NC x 3 1/4” 2
6 0642012 Bolt 5/8”-11NC x 1 1/2” 1
7 0961950 Bushing, Garmax 2
8 Pin, Axle Pivot Options: 1
Use 3422592 Prior to S/N 56275 (Was p/n 3422431)
3422592 S/N 56275 to Present
9 3570901 Plate, Stop 2
10 3841258 Keeper, Pin 1
11 4060951 Shield, Frame 1
12 4070972 Shim 3/16” A/R
13 4070973 Shim 1/8” A/R
14 4070974 Shim 1/16” A/R
15 4740158 Thrustwasher 1
16 4751600 Flatwasher 3/8” 8
17 Not Used
18 4845643 Axle Weldment 1
18A 0561300 Steer Cylinder Mounting Block Assembly 2
0258024 OSCILLATING AXLE INSTALLATION Ref. G
101 0100011 Loctite #242 (Not Shown) A/R
102 0641414 Bolt 1/4”-20NC x 1 3/4” 4
103 0641606 Bolt 3/8”-16NC x 3/4” 6
104 0641812 Bolt 1/2”-13NC x 1 1/2” 2
105 0642012 Bolt 5/8”-11NC x 1 1/2” 1
106 0682248 Bolt 3/4”-10NC x 6” 2
107 0961950 Bushing, Garmax 2
108 1100107 Cam, Lockout 1
109 Lockout Cylinder Assembly Options (See Section 5 for Break-
down):
2
1683575 Prior to S/N 63921
1684139 S/N 63921 to Present
110 3272201 Nut 3/4”-10NC 2
111 3322201 Nut 3/4”-16NF 2
112 Pin, Axle Pivot Options: 1
Use 3422592 Prior to S/N 56275 (Was p/n 3422431)
3422592 S/N 56275 to Present
113 3841258 Keeper, Pin 1
114 3841367 Rod-End with Grease Fitting 2
7020180 Grease Fitting 1
1-4 3120870
SECTION 1 FRAME
S
E
C
T
I
O
N
1
F
R
A
M
E
115 Hardware Options: 2
3900109 Screw, Shoulder (Prior to S/N 63921)
3422936 Pin (S/N 63921 to Present)
116 4060951 Shield, Frame 1
117 4567462 Tube, Mounting 2
118 4640871 Lockout Valve Assembly 1
7012693 Seal Kit - 4640871 Valve 1
7002840 Anit-Rotation Pin Removal Tool 1
119 4711400 Flatwasher 1/4” Narrow 4
120 4740158 Thrustwasher 1
121 4751800 Flatwasher 1/2” 4
122 4751600 Flatwasher 3/8” 6
123 4845643 Axle Weldment 1
123A 0561300 Steer Cylinder Mounting Block Assembly 2
124 4892200 Flatwasher 3/4” 4
125 Not Used
126 0100019 Loctite #271 (Not Shown) A/R
127 0641607 Bolt 3/8”-16NC x 7/8” (S/N 63921 to Present) 2
128 3841520 Keeper 3/8” (S/N 63921 to Present) 2
0258022 STEERING INSTALLATION Ref. B
201 0100011 Loctite #242 (Not Shown) A/R
202 0440162 Thrustwasher 2
203 0641606 Bolt 3/8”-16NC x 3/4” 4
204 0681828 Bolt 1/2”-13NC x 3 1/2” 4
205 1683614 Steer Cylinder Assembly (See Section 5 for Breakdown) 1
206 2780230 Hub/Spindle Assembly (See 301 to 313 for Breakdown) 2
207 3312008 Nut 5/8”-11NC 4
208 3322201 Nut 3/4”-16NF 2
209 3323003 Nut 1 1/4”-12NF 2
210 3422692 Kingpin 2
211 3450812 Pin, Cotter 1/4” x 3” 2
212 3841367 Rod-End with Grease Fitting 2
7020180 Grease Fitting 1
213 3841377 Tie-Rod 2
214 3900109 Screw, Shoulder 4
215 4060950 Shield, Frame 1
216 4713000 Flatwasher 1 1/4” 2
217 4751800 Flatwasher 1/2” 4
218 4740086 Washer, Thrust 2
FIGURE 1-1. AXLE AND STEERING INSTALLATION - 2WD WITHOUT TOW BAR (CONTINUED)
FIG & ITEM # PART NUMBER DESCRIPTION QTY. REV.
