Third Edition
Sixth Printing
Part No. 43630
Operator’s Manual
with Maintenance Information
Genie Z-60/34 Part No. 43630
Operator's Manual Third Edition · Sixth Printing
Copyright © 1993 by Genie Industries
First Edition: First Printing, February, 1993
Second Edition: Third Printing, September 1996
Third Edition: Sixth Printing, November 2001
"Genie" and "Z" are registered trademarks of
Genie Industries in the U.S.A. and many other
countries.
These machines comply with
ANSI/SIA 92.5-1992.
Printed on recycled paper
Printed in U.S.A.
Important
Read, understand and obey these safety rules and
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual is
considered a permanent part of your machine and
should remain with the machine at all times. If you have
any questions, call Genie Industries.
Contents
Page
Safety Rules .............................................................. 1
Controls ..................................................................... 7
Pre-operation Inspection ........................................... 10
Maintenance ............................................................. 12
Function Tests .......................................................... 16
Workplace Inspection ................................................ 23
Operating Instructions ............................................... 24
Decals ...................................................................... 28
Transport Instructions ............................................... 30
Specifications ........................................................... 31
Contact us:
Internet: http://www.genielift.com
E-mail: techpub@genieind.com
Part No. 43630 Genie Z-60/34 1
Operator's Manual Third Edition · Sixth Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
Know and understand the safety rules before
going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey:
Manufacturer's instructions and safety
rules—safety and operator's manuals
and machine decals
employer's safety rules and worksite
regulations
applicable governmental regulations
You are properly trained to safely operate the
machine.
2 Genie Z-60/34 Part No. 43630
Operator's Manual Third Edition · Sixth Printing
SAFETY RULES

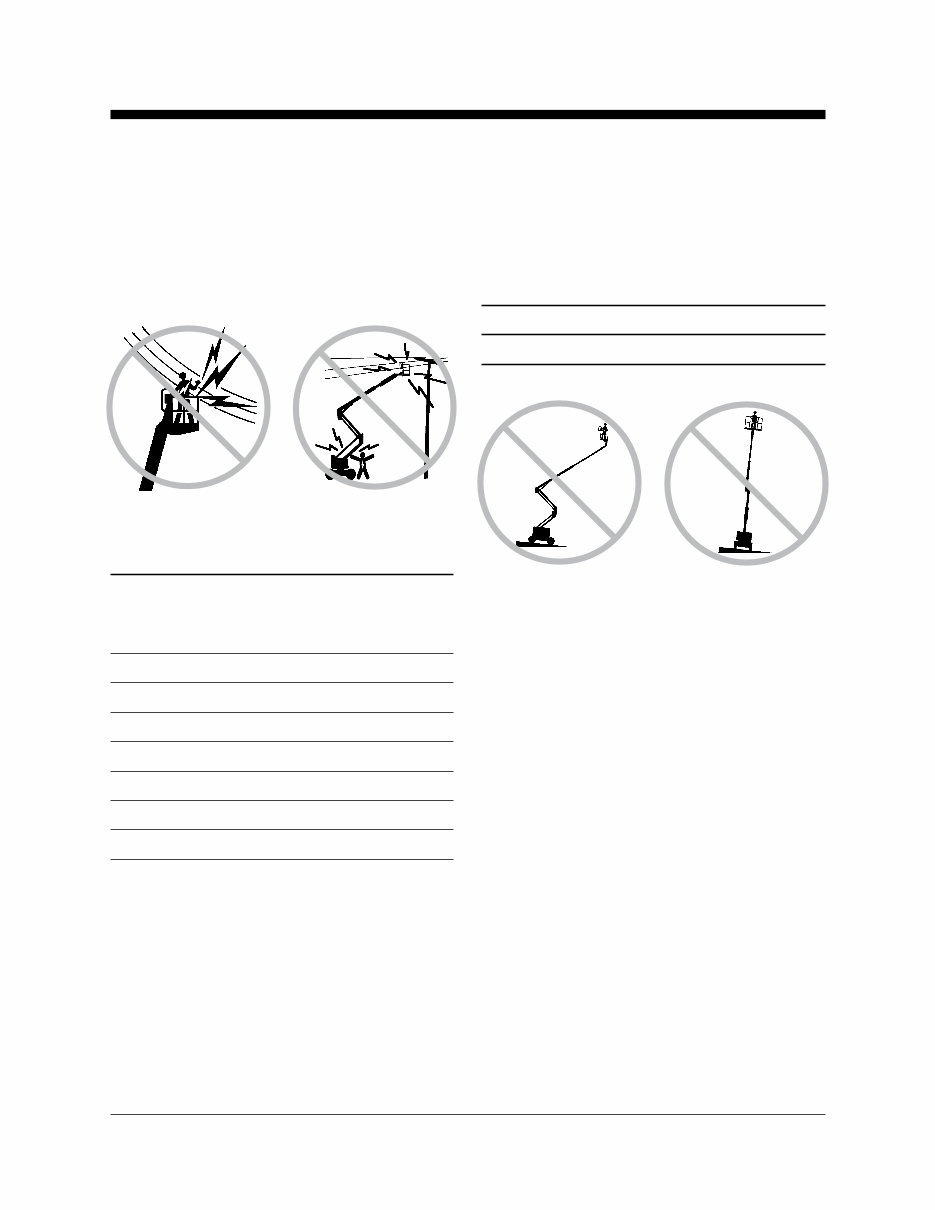

Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase Approach
Distance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.1
50KV to 200KV 15 4.6
200KV to 350KV 20 6.1
350KV to 500KV 25 7.6
500KV to 750KV 35 10.7
750KV to 1000KV 45 13.7
Allow for platform movement, electrical line sway
or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground
or in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants and equipment shall not exceed the
maximum platform capacity.
Maximum platform capacity 500 lbs 227 kg
Maximum occupants 2
Do not raise or extend the
boom unless the machine is on a firm, level
surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds:
Do not extend, rotate or raise the boom above
horizontal. Move the machine to a firm, level
surface before raising the platform. If the tilt alarm
sounds when the platform is raised, use extreme
caution to retract the boom and lower the platform.
Do not rotate the boom while lowering. Move the
machine to a firm, level surface before raising the
platform.
Part No. 43630 Genie Z-60/34 3
Operator's Manual Third Edition · Sixth Printing
SAFETY RULES
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform.
Mounting attachments for holding tools or other
materials onto the platform, toeboards or guard rail
system can increase the weight in the platform and
the surface area of the platform or the load.
Do not place or attach overhanging loads to any
part of the machine.
Do not place ladders or scaffolds in the platform or
against any part of the machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, air-filled tires
are properly inflated and lug nuts are properly
tightened.
Do not use the machine as a crane.
Do not push the machine or other objects with the
boom.
Do not contact adjacent structures with the boom.
Do not tie the boom or platform to adjacent
structures.
Do not place loads outside the platform perimeter.
Do not use the platform controls to free a platform
that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not alter or disable the limit switches.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces and
near holes and drop-offs.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the boom raised or extended.
Do not push off or pull toward any object outside
of the platform.
Maximum allowable
side force-ANSI & CSA
150 lbs / 667 N
Maximum allowable
side force -
CE & Australia
90 lbs / 400 N
