C40TLRZ_50TLRZ
A1

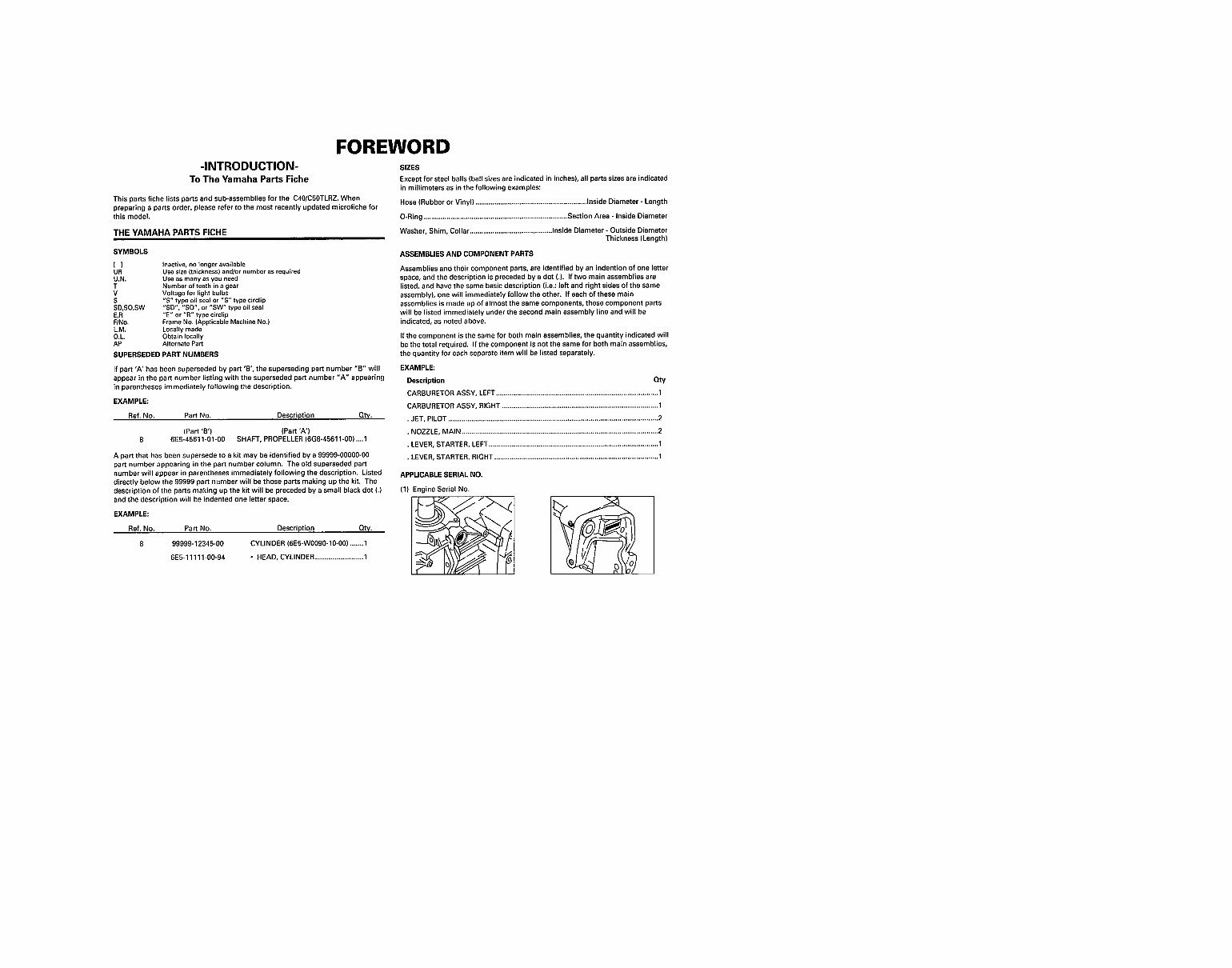

C40TLRZ_50TLRZ
A2

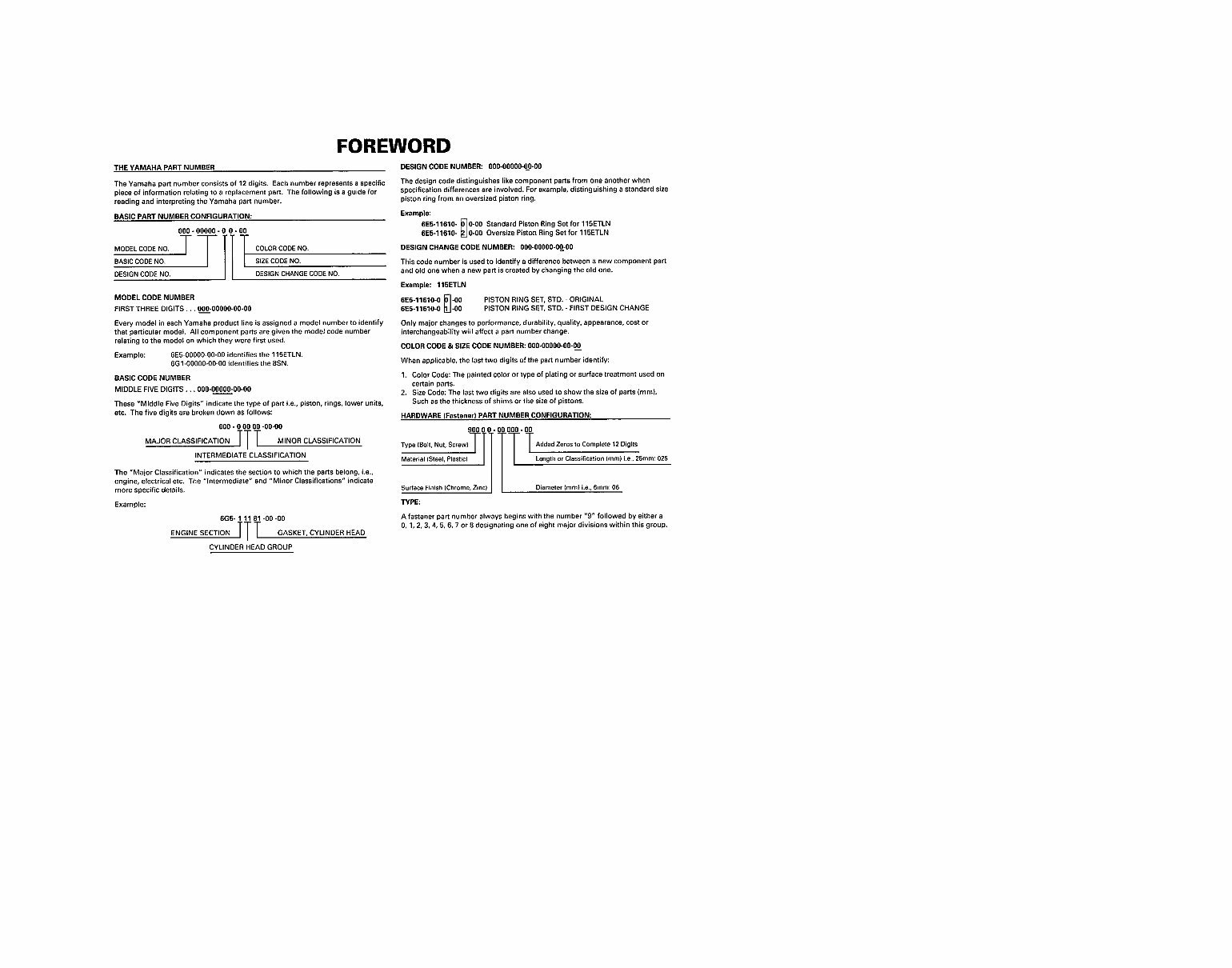

C40TLRZ_50TLRZ
A3
C40TLRZ_50TLRZ
A4
1 62X-42610-G0-4D TOP COWLING ASSY . . . . . . . 1 UR C50TR (TR)
63C-42610-30-4D TOP COWLING ASSY . . . . . . . 1 UR C40TR (TR)
2 6H4-42615-00-00 . SEAL . . . . . . . . . . . . . . . . . . . 1 (TR)
3 6H4-42651-00-00 . HOOK . . . . . . . . . . . . . . . . . . 1 (TR)
4 6H4-42652-00-00 . HOOK . . . . . . . . . . . . . . . . . . 1 (TR)
5 90266-04M01-00 . RIVET . . . . . . . . . . . . . . . . . . 4 (TR)
6 6H4-42613-11-4D . MOLDING, AIR DUCT . . . . . . . 1 (TR)
7 90119-06M99-00 . BOLT, WITH WASHER . . . . . . 4 (TR)
8 62X-42677-11-00 . GRAPHIC, FRONT . . . . . . . . . 1 UR C50TR (TR)
63D-42677-11-00 . GRAPHIC, FRONT . . . . . . . . . 1 UR C40TR (TR)
9 62X-42678-11-00 . GRAPHIC, REAR . . . . . . . . . . 1 UR C50TR (TR)
63D-42678-11-00 . GRAPHIC, REAR . . . . . . . . . . 1 UR C40TR (TR)
10 63D-W0070-10-00 . GRAPHIC SET . . . . . . . . . . . . 1 (TR)
11 63D-42681-10-00 . MARK, COWLING . . . . . . . . . 1 (TR)
12 63D-42682-10-00 . MARK, COWLING . . . . . . . . . 1 (TR)

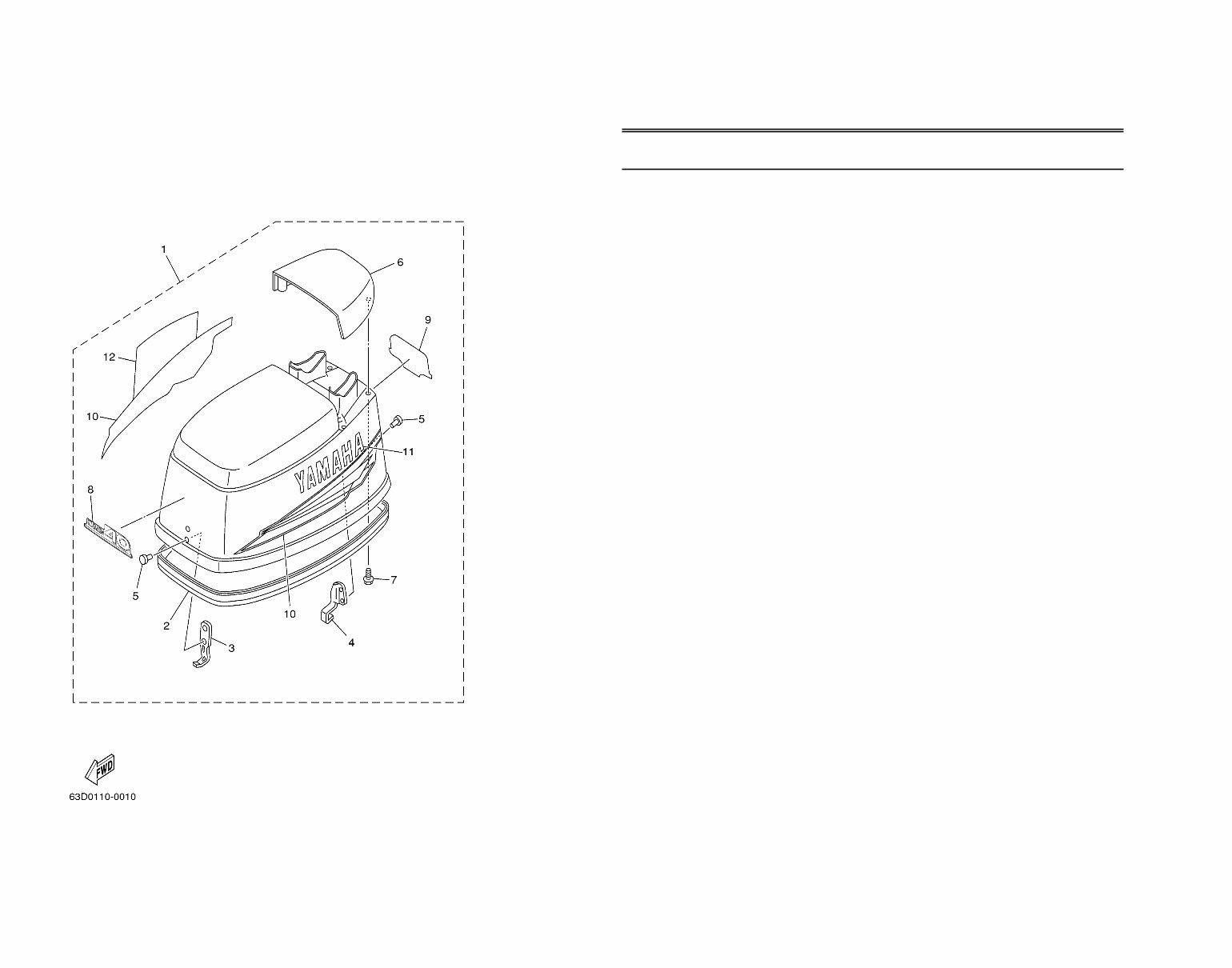

TOP COWLING
Ref. Part
No. Number Description Qty Remarks
A5
C40TLRZ_50TLRZ
1 63D-W0090-20-4D CRANK CYLINDER ASSY . . . . 1 E, NON OIL
INJECTION SPEC (TR)
2 6H4-15100-20-94 CRANKCASE ASSY . . . . . . . . . 1 E, NON OIL
INJECTION SPEC (TR)
3 650-11370-00-00 . CHECK VALVE ASSY . . . . . . 2 (TR)
4 624-14485-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 2 (TR)
5 6H4-11372-00-00 . NIPPLE, HOSE . . . . . . . . . . . . 1 (TR)
6 624-14485-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1 (TR)
7 688-11370-00-00 . CHECK VALVE ASSY . . . . . . 2 (TR)
8 650-24378-00-00 . PIPE, JOINT 4 . . . . . . . . . . . . 1 (TR)
9 90119-08M19-00 BOLT, WITH WASHER . . . . . . . 8 (TR)
10 90119-06M13-00 BOLT, WITH WASHER . . . . . . . 6 (TR)
11 93606-12019-00 PIN, DOWEL . . . . . . . . . . . . . . 2 (TR)
12 90445-07M46-00 HOSE (L360) . . . . . . . . . . . . . . 1 (TR)
13 90445-07M27-00 HOSE (L310) . . . . . . . . . . . . . . 1 (TR)
14 90445-07M24-00 HOSE (L240) . . . . . . . . . . . . . . 1 (TR)
15 90467-06016-00 CLIP . . . . . . . . . . . . . . . . . . . . 6 (TR)
16 90445-07MA3-00 HOSE (L200) . . . . . . . . . . . . . . 1 (TR)
17 90467-06016-00 CLIP . . . . . . . . . . . . . . . . . . . . 2 (TR)
18 6H4-11119-00-00 HANGER, ENGINE . . . . . . . . . . 1 (TR)
19 97013-06014-00 BOLT . . . . . . . . . . . . . . . . . . . . 2 (TR)
20 688-11325-00-00 ANODE . . . . . . . . . . . . . . . . . . 2 (TR)
21 98780-04016-00 SCREW, FLAT HEAD . . . . . . . . 2 (TR)
22 63D-11111-00-94 HEAD, CYLINDER 1 . . . . . . . . . 1 (TR)
23 63D-11181-A1-00 GASKET, CYLINDER HEAD 1 . 1 (TR)
24 90340-14M00-00 PLUG, STRAIGHT SCREW . . . . 1 (TR)
25 90430-14115-00 GASKET . . . . . . . . . . . . . . . . . 1 (TR)
26 63D-11191-00-9M COVER, CYLINDER HEAD 1 . . 1 (TR)
27 63D-11193-A0-00 GASKET, HEAD COVER 1 . . . . 1 (TR)
CONTINUED ON NEXT FRAME ➤

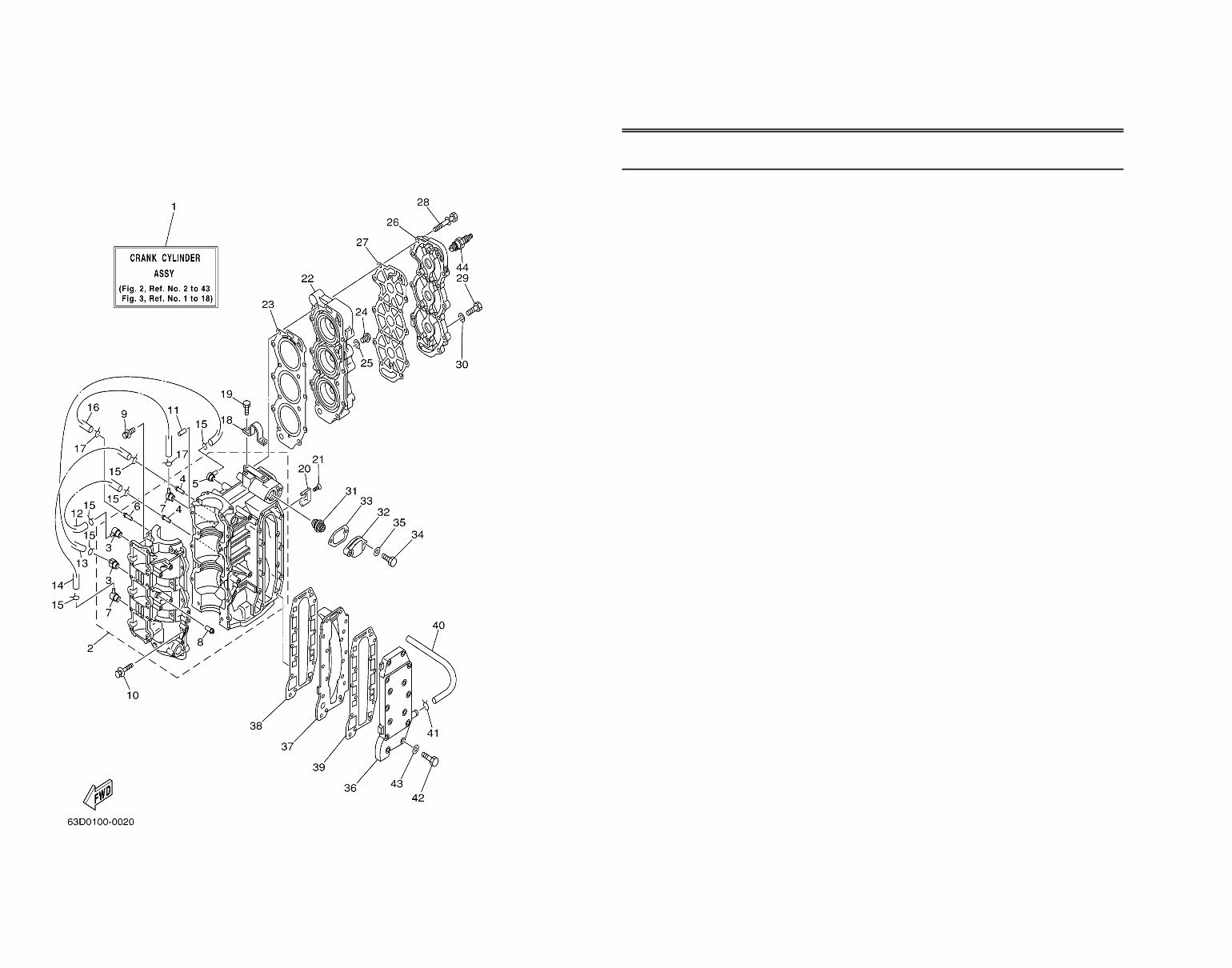

CYLINDER. CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A6
C40TLRZ_50TLRZ
28 90119-08M29-00 BOLT, WITH WASHER . . . . . . . 14 (TR)
29 97013-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 4 (TR)
30 92903-06600-00 WASHER, PLATE . . . . . . . . . . . 4 (TR)
31 6E5-12411-20-00 THERMOSTAT . . . . . . . . . . . . . 1 (TR)
32 6H4-12413-00-9M COVER, THERMOSTAT . . . . . . 1 (TR)
33 6J8-12414-A0-00 GASKET, COVER . . . . . . . . . . . 1 (TR)
34 97013-06025-00 BOLT . . . . . . . . . . . . . . . . . . . . 2 (TR)
35 92903-06600-00 WASHER, PLATE . . . . . . . . . . . 2 (TR)
36 6H4-41113-00-9M OUTER COVER, EXHAUST . . . 1 (TR)
37 6H4-41111-00-9M INNER COVER, EXHAUST . . . . 1 (TR)
38 6H4-41112-A0-00 GASKET, EXHAUST INNER
COVER . . . . . . . . . . . . . . . . . . 1 (TR)
39 6H4-41114-A0-00 GASKET, EXHAUST OUTER
COVER . . . . . . . . . . . . . . . . . . 1 (TR)
40 90445-09M37-00 HOSE (L240) . . . . . . . . . . . . . . 1 (TR)
41 90467-08004-00 CLIP . . . . . . . . . . . . . . . . . . . . 1 (TR)
42 97013-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 14 (TR)
43 92903-06600-00 WASHER, PLATE . . . . . . . . . . . 14 (TR)
44 NGK-B7HS1-00-00 PLUG, SPARK (NGK B7HS 10) 3 UR C50TR (TR)
NGK-B8HS1-00-00 PLUG, SPARK . . . . . . . . . . . . . 3 UR C40TR (TR)
CYLINDER. CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A7
C40TLRZ_50TLRZ
1 6H4-15369-A1-00 GASKET, OIL SEAL HOUSING 1 (TR)
2 6H4-15396-03-5B HOUSING, OIL SEAL . . . . . . . . 1 (TR)
3 93102-25M28-00 OIL SEAL . . . . . . . . . . . . . . . . . 1 (TR)
4 93104-16M01-00 OIL SEAL . . . . . . . . . . . . . . . . . 2 (TR)
5 93210-58M21-00 O-RING . . . . . . . . . . . . . . . . . . 1 (TR)
6 97095-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 1 (TR)
7 92995-06600-00 WASHER . . . . . . . . . . . . . . . . . 1 (TR)
8 6H4-11400-04-00 CRANKSHAFT ASSY . . . . . . . . 1 (TR)
9 6H4-11445-00-00 . SPACER . . . . . . . . . . . . . . . . 1 (TR)
10 93306-305U8-00 . BEARING . . . . . . . . . . . . . . . . 1 (TR)
11 93440-62057-00 . CIRCLIP . . . . . . . . . . . . . . . . . 2 (TR)
12 90201-50306-00 WASHER, PLATE . . . . . . . . . . . 1 (TR)
13 6H4-11631-01-95 PISTON (STD) . . . . . . . . . . . . . 3 (TR)
6H4-11635-01-00 PISTON (0.25MM O/S) . . . . . . . 3 AP (TR)
6H4-11636-01-00 PISTON (0.50MM O/S) . . . . . . . 3 AP (TR)
14 63D-11603-00-00 PISTON RING SET (STD) . . . . . 3 (TR)
63D-11604-00-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 3 AP (TR)
63D-11605-00-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 3 AP (TR)
15 648-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 3 (TR)
16 93602-20M02-00 PIN, DOWEL . . . . . . . . . . . . . . 93 (TR)
17 6H4-11641-00-00 WASHER, PISTON PIN . . . . . . . 6 (TR)
18 6H4-11634-01-00 CLIP, PISTON PIN . . . . . . . . . . 6 (TR)

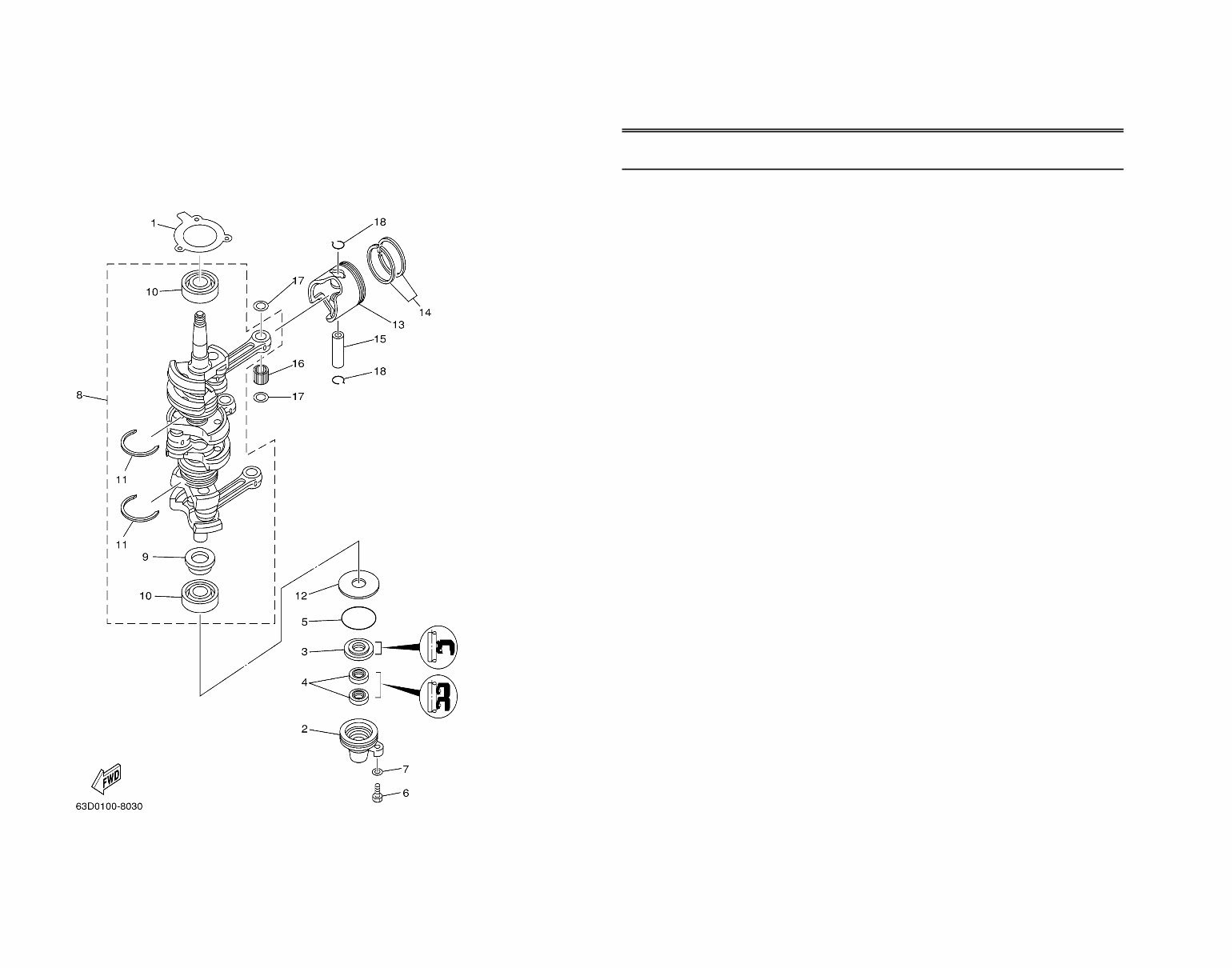

CRANKSHAFT. PISTON
Ref. Part
No. Number Description Qty Remarks
A8
C40TLRZ_50TLRZ
1 6H5-13610-00-00 REED VALVE ASSY . . . . . . . . . 3 (TR)
2 6H4-W0004-00-00 . REED SET . . . . . . . . . . . . . . . 1 (TR)
3 97880-05014-00 SCREW, PAN HEAD . . . . . . . . 6 (TR)
4 92990-05600-00 WASHER, PLATE . . . . . . . . . . . 6 (TR)
5 6H4-13641-02-94 MANIFOLD 1 . . . . . . . . . . . . . . 1 (TR)
6 6H1-14485-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1 (TR)
7 6H4-13624-01-94 PLATE, REED VALVE . . . . . . . 1 (TR)
8 6H4-13621-A1-00 GASKET, VALVE SEAT . . . . . . 2 (TR)
9 97013-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 12 (TR)
10 92903-06600-00 WASHER, PLATE . . . . . . . . . . . 12 (TR)
11 6H4-14198-01-00 GASKET . . . . . . . . . . . . . . . . . 3 (TR)
12 6H4-14406-00-00 HINGE . . . . . . . . . . . . . . . . . . . 1 (TR)
13 97095-06095-00 BOLT . . . . . . . . . . . . . . . . . . . . 6 (TR)
14 6H4-14431-02-00 SILENCER, INTAKE 1 . . . . . . . 1 (TR)
15 6H3-14457-01-00 SEAL . . . . . . . . . . . . . . . . . . . . 3 (TR)
16 97885-06040-00 SCREW, PAN HEAD . . . . . . . . 2 (TR)
17 97885-06055-00 SCREW, PAN HEAD . . . . . . . . 2 (TR)
18 90209-06M05-00 WASHER . . . . . . . . . . . . . . . . . 4 (TR)
19 6H4-41217-01-00 ROD, ACCEL. LEVER . . . . . . . 1 (TR)
20 6G1-42748-00-00 GROMMET . . . . . . . . . . . . . . . . 1 (TR)
21 90445-07MA5-00 HOSE (L150) . . . . . . . . . . . . . . 1 (TR)
22 90467-06016-00 CLIP . . . . . . . . . . . . . . . . . . . . 2 (TR)
23 6H3-14349-00-00 PIPE . . . . . . . . . . . . . . . . . . . . 1 (TR)
24 90467-08004-00 CLIP . . . . . . . . . . . . . . . . . . . . 2 (TR)

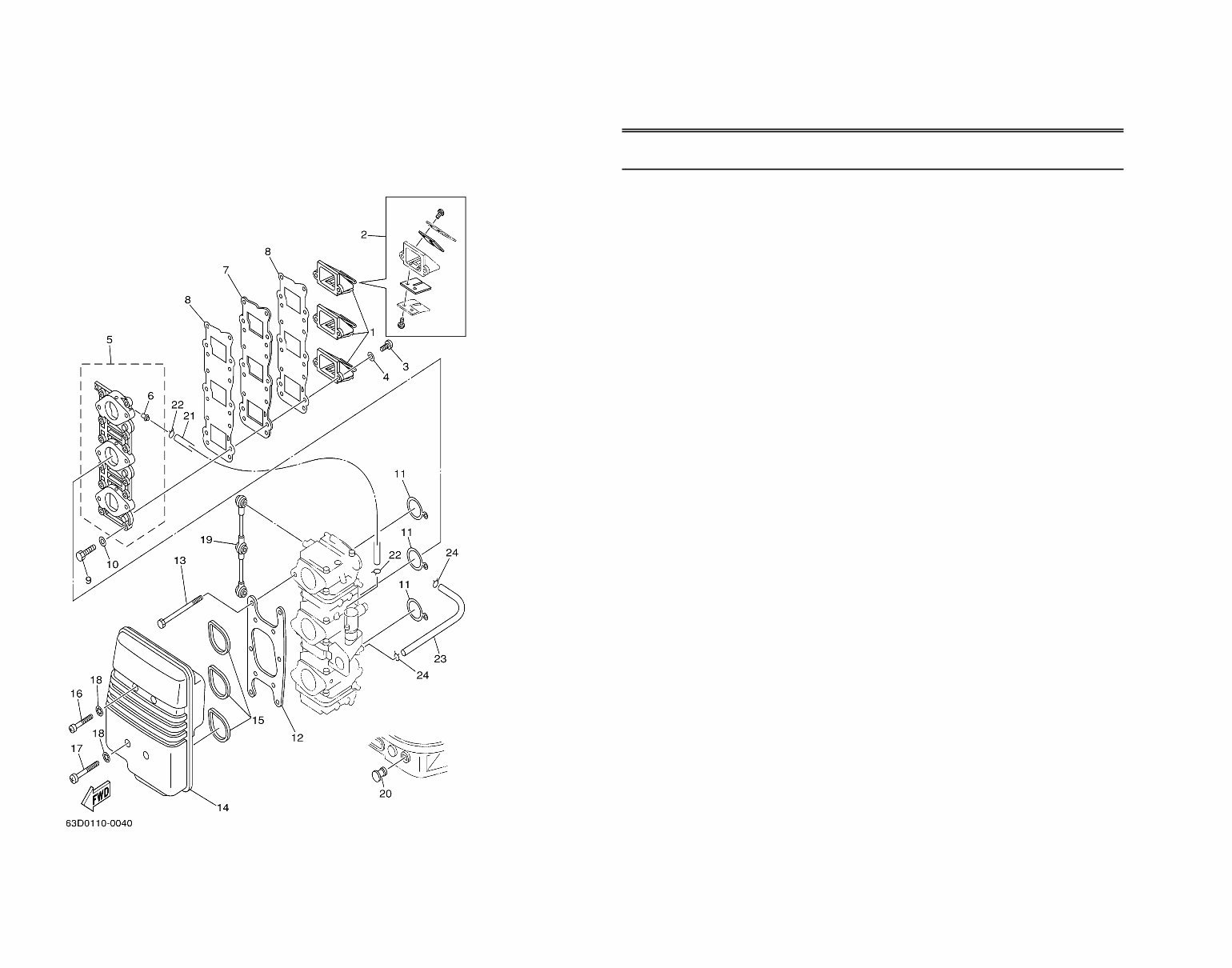

INTAKE
Ref. Part
No. Number Description Qty Remarks
A9
C40TLRZ_50TLRZ
1 62X-14301-00-00 CARBURETOR ASSY 1 . . . . . . 1 UR C50TR (TR)
63D-14301-00-00 CARBURETOR ASSY 1 . . . . . . 1 UR C40TR (TR)
2 62X-14302-00-00 CARBURETOR ASSY 2 . . . . . . 1 UR C50TR (TR)
63D-14302-00-00 CARBURETOR ASSY 2 . . . . . . 1 UR C40TR (TR)
3 62X-14303-00-00 CARBURETOR ASSY 3 . . . . . . 1 UR C50TR (TR)
63D-14303-00-00 CARBURETOR ASSY 3 . . . . . . 1 UR C40TR (TR)
4 97980-04114-00 . SCREW, WITH WASHER . . . . 21 (TR)
5 6K5-14592-00-00 . SCREW . . . . . . . . . . . . . . . . . 3 (TR)
6 90201-05652-00 . WASHER, PLATE . . . . . . . . . . 3 (TR)
7 63V-14523-00-00 . SCREW, STOP . . . . . . . . . . . . 1 2 (TR)
8 90501-10326-00 . SPRING, COMPRESSION . . . . 1 2 (TR)
9 6H2-14578-00-00 . COLLAR . . . . . . . . . . . . . . . . 1 3 (TR)
10 6H4-14548-00-00 . PIN, FLOAT ARM . . . . . . . . . . 3 (TR)
11 98580-04008-00 . SCREW, PAN HEAD . . . . . . . 3 (TR)
12 663-14159-00-00 . CLIP . . . . . . . . . . . . . . . . . . . 3 (TR)
13 676-14186-00-00 . PIN, FLOAT . . . . . . . . . . . . . . 3 (TR)
14 6H4-14985-01-00 . FLOAT . . . . . . . . . . . . . . . . . . 3 (TR)
15 6H4-14146-10-00 . PLATE . . . . . . . . . . . . . . . . . . 2 1,3 (TR)
16 6H3-14146-10-00 . PLATE . . . . . . . . . . . . . . . . . . 1 2 (TR)
17 6H4-14984-00-00 . GASKET, FLOAT CHAMBER . 3 (TR)
18 6H3-14980-10-00 . BODY, FLOAT CHAMBER . . . 1 2 (TR)
6H4-14980-00-00 . BODY, FLOAT CHAMBER . . . 2 1,3 (TR)
19 6H3-14992-00-00 . SCREW, DRAIN . . . . . . . . . . . 3 (TR)
20 93210-04230-00 . O-RING . . . . . . . . . . . . . . . . . 3 (TR)
21 62X-14947-00-00 . JET, NEEDLE . . . . . . . . . . . . . 3 UR C50TR (TR)
63D-14947-00-00 . JET, NEEDLE . . . . . . . . . . . . . 3 UR C40TR (TR)
22 63D-14943-81-00 . JET, MAIN (118) . . . . . . . . . . . 1 UR C40TR 2 (TR)
676-14943-30-00 . JET, MAIN (115) . . . . . . . . . . . 2 UR C40TR 1,3 (TR)
676-14943-33-00 . JET, MAIN (130) . . . . . . . . . . . 3 UR C50TR (TR)
CONTINUED ON NEXT FRAME ➤

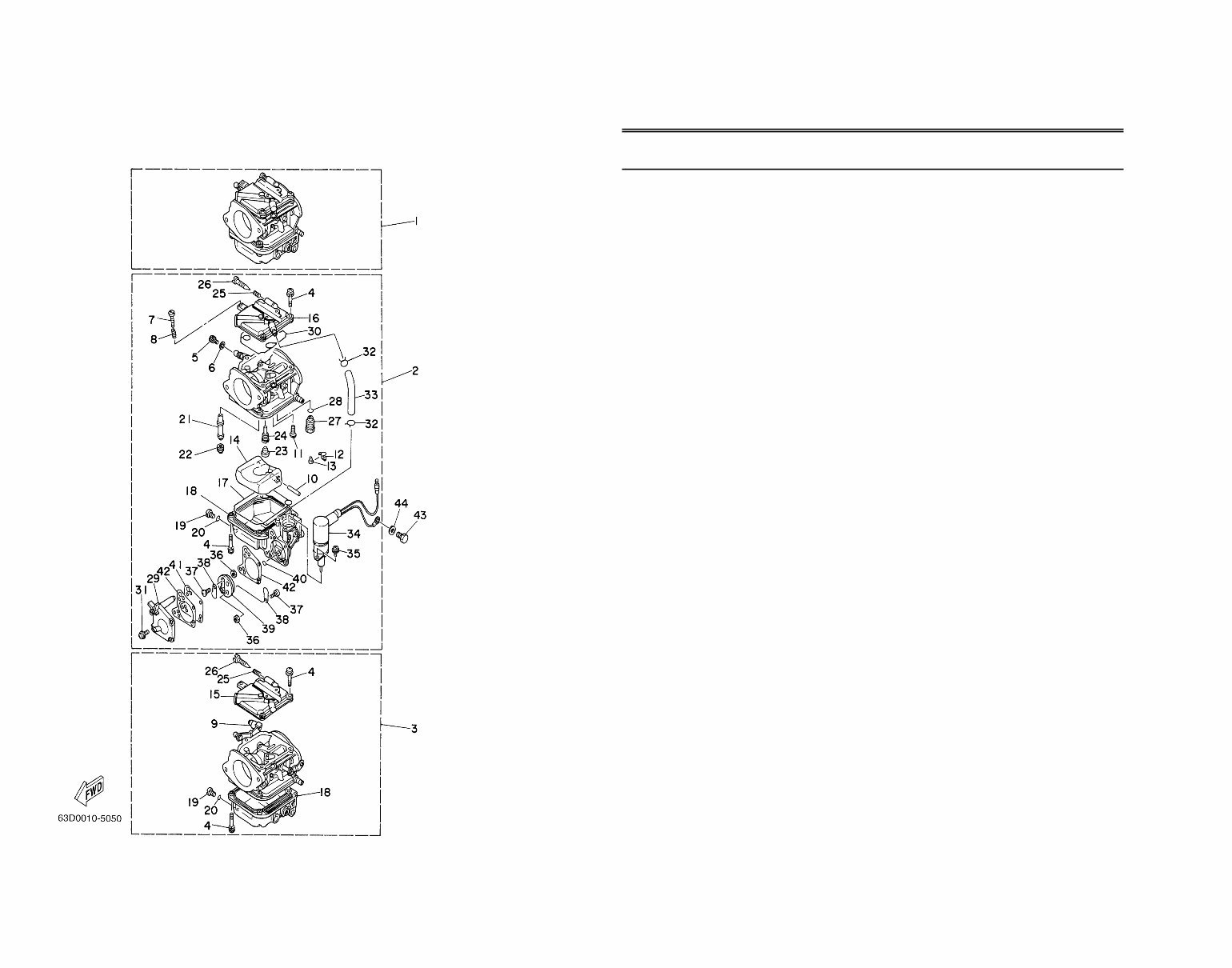

CARBURETOR
Ref. Part
No. Number Description Qty Remarks
B1
C40TLRZ_50TLRZ
