2007 - 2009 OUTBOARD SERVICE MANUAL Model : F20ELHF, F20ELHG, F20ELHH, F20ESHF, F20ESHG, F20ESHH, F20MLHF, F20MLHG, F20MLHH, F20MSHF, F20MSHG, F20MSHH, F20PLHF, F20PLHG, F20PLHH, F20PLRF, F20PLRG, F20PLRH 6AG281972100 *6AG281972100*

NOTICE This manual has been prepared by Yamaha primarily for use by Yamaha dealers and their trained mechanics when performing maintenance procedures and repairs to Yamaha equipment. It has been written to suit the needs of persons who have a basic understanding of the mechanical and electrical concepts and procedures inherent in the work, for without such knowledge attempted repairs or service to the equipment could render it unsafe or unfit for use. Because Yamaha has a policy of continuously improving its products, models may differ in detail from the descriptions and illustrations given in this publication. Use only the latest edition of this manual. Authorized Yamaha dealers are notified periodically of modifications and significant changes in specifications and procedures, and these are incorporated in successive editions of this manual. Important information 1 Particularly important information is distinguished in this manual by the following notations: The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! WARNING Failure to follow WARNING instructions could result in severe injury or death to the machine operator, a bystander, or a person inspecting or repairing the outboard motor. CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to the outboard motor. NOTE: A NOTE provides key information to make procedures easier or clearer. F15F, F20F SERVICE MANUAL ©2008 by Yamaha Motor Co., Ltd. 3 rd Edition, December 2008 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in China

6AG2J11 GEN INFO 3 4 5 6 7 8 9 General information How to use this manual ................................................................................. 1-1 Manual format............................................................................................ 1-1 Symbol ....................................................................................................... 1-2 Abbreviation............................................................................................... 1-3 Sealant and locking agent table ................................................................ 1-3 Safety while working...................................................................................... 1-4 Fire prevention........................................................................................... 1-4 Ventilation .................................................................................................. 1-4 Self-protection ........................................................................................... 1-4 Part, lubricant, and sealant ........................................................................ 1-4 Good working practice ............................................................................... 1-5 Disassembly and assembly ....................................................................... 1-5 Identification ................................................................................................... 1-6 Model ......................................................................................................... 1-6 Serial number ............................................................................................ 1-6 Special service tool ....................................................................................... 1-7 Propeller selection ....................................................................................... 1-12 Propeller size ........................................................................................... 1-12 Selection .................................................................................................. 1-12 Predelivery check ........................................................................................ 1-12 Checking the outboard motor mounting height ........................................ 1-13 Removing the intake silencer protective covering ................................... 1-13 Checking the fuel system ........................................................................ 1-13 Checking the engine oil level ................................................................... 1-13 Checking the gear oil level ...................................................................... 1-14 Checking the battery (electric starter model) ........................................... 1-14 Setting the remote control cable (remote control model) ......................... 1-14 Checking the gear shift and throttle operation ......................................... 1-15 Checking the steering system ................................................................. 1-16 Checking the tilt system (manual tilt model) ............................................ 1-17 Checking the power tilt system (power tilt model) ................................... 1-17 Checking the engine start switch and engine stop lanyard switch .......... 1-18 Checking the cooling water pilot hole ...................................................... 1-18 Test run ................................................................................................... 1-19 Break-in ................................................................................................... 1-19 After test run ............................................................................................ 1-19 Precaution when transporting or storing the outboard motor .................. 1-19

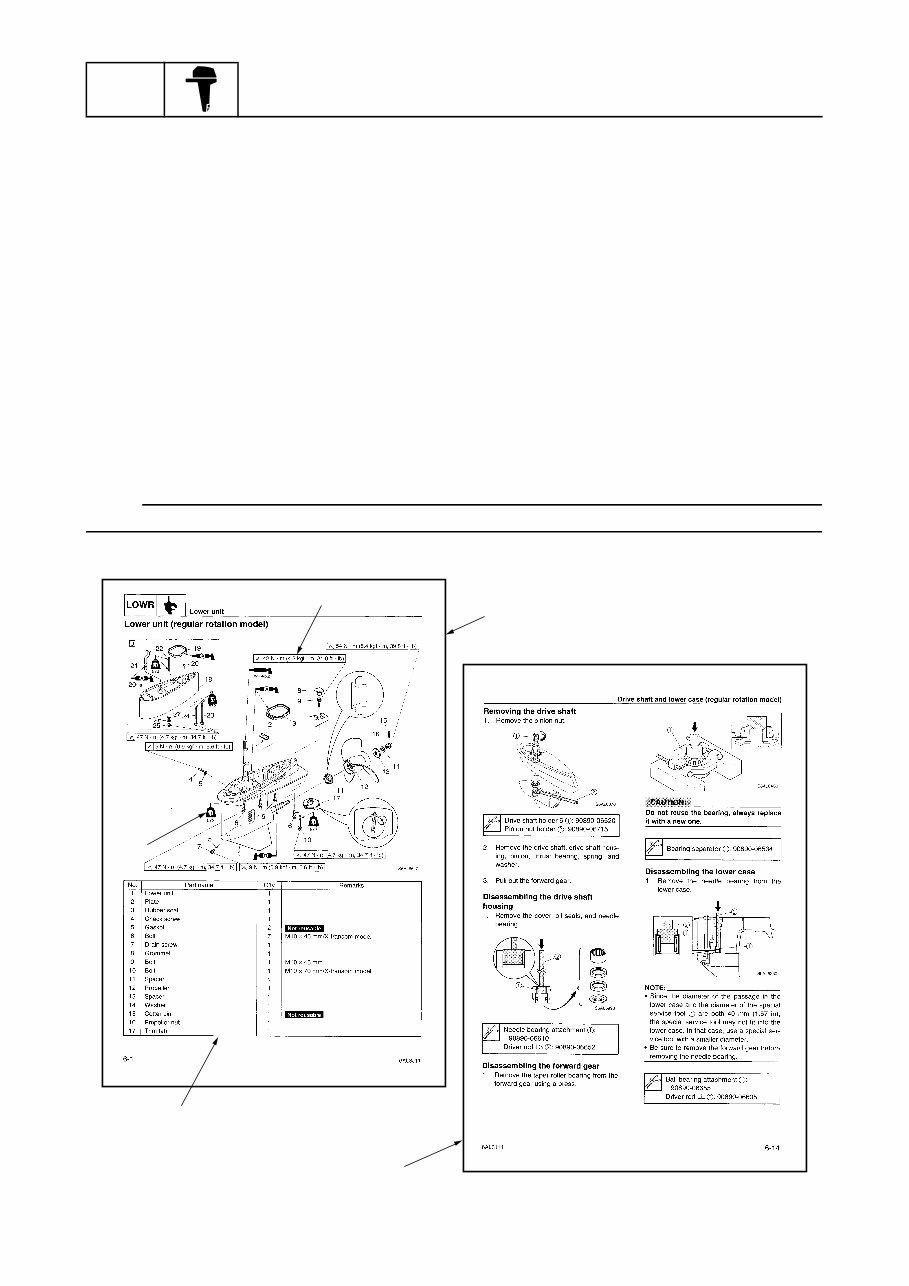

GEN INFO General information 1-1 6AG2J11 How to use this manual 1 Manual format 1 The format of this manual has been designed to make service procedures clear and easy to under- stand. Use the information below as a guide for effective and quality service. • Parts are shown and detailed in an exploded diagram and are listed in the component list (see 1 in the figure below for an example page). • The component list consists of part names and quantities, as well as bolt and screw dimensions (see 2 in the figure below). • Symbols are used to indicate important aspects of a procedure, such as the grade of lubricant and lubrication point (see 3 in the figure below). • Tightening torque specifications are provided in the exploded diagrams (see 4 in the figure below for an example), and in the related detailed instructions. Some torque specifications are listed in stages as torque figures or angles in degrees. • Separate procedures and illustrations are used to explain the details of removal, checking, and installation where necessary (see 5 in the figure below for an example page). NOTE: For troubleshooting procedures, see Chapter 9, “Troubleshooting.” 5 2 3 4 1

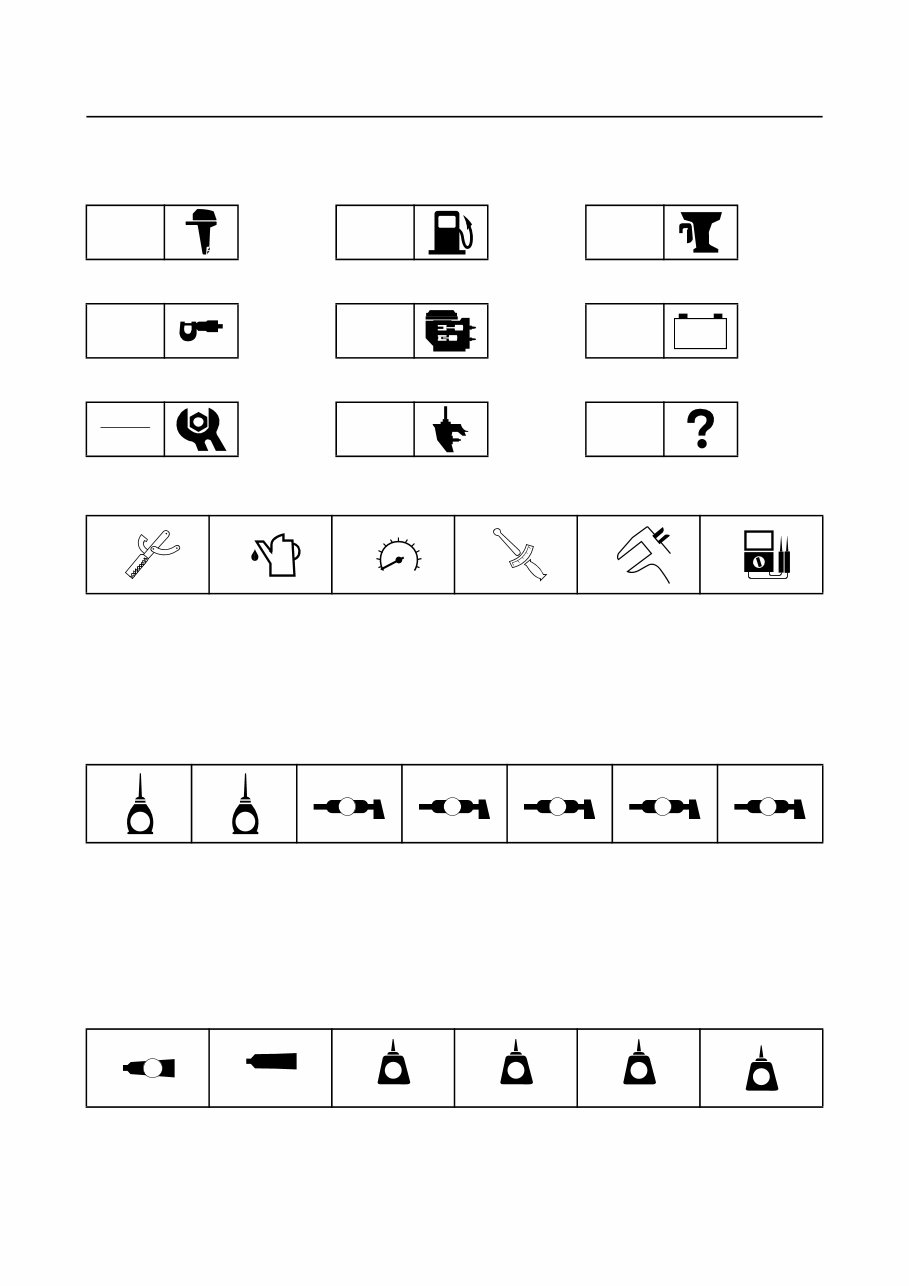

6AG2J11 1-2 3 4 5 6 7 8 9 Symbol 1 The symbols below are designed to indicate the content of a chapter. General information Specification Periodic check and adjustment Fuel system Power unit Lower unit Bracket unit Electrical system Troubleshooting GEN INFO SPEC CHK ADJ FUEL POWR LOWR BRKT ELEC TRBL SHTG – + Symbols 1 to 6 indicate specific data. 1 Special service tool 2 Specified oil or fluid 3 Specified engine speed 4 Specified tightening torque 5 Specified measurement 6 Specified electrical value (resistance, voltage, electric current) Symbols 7 to C in an exploded diagram or illustration indicate the grade of lubricant and the lubrication point. 7 Apply 4-stroke motor oil 8 Apply gear oil 9 Apply water resistant grease (Yamaha grease A) 0 Apply molybdenum disulfide grease A Apply corrosion resistant grease (Yamaha grease D) B Apply low temperature resistant grease (Yamaha grease C) C Apply injector grease Symbols D to I in an exploded diagram or illustration indicate the type of sealant or locking agent and the application point. D Apply Gasket Maker E Apply ThreeBond 1104J F Apply LOCTITE 271 (red) G Apply LOCTITE 242 (blue) H Apply LOCTITE 572 I Apply silicone sealant 1 2 3 4 5 6 T R . . 7 8 9 0 A B C E G A M D C I D E F G H I GM 1104J 271 LT 242 LT 572 LT SS How to use this manual

GEN INFO General information 1-3 6AG2J11 Abbreviation 1 The following abbreviations are used in this service manual. Sealant and locking agent table 1 The following table contains sealants, locking agents, and greases used in this service manual that are not listed on page 1-2. Abbreviation Description ABYC American Boat and Yacht Council API American Petroleum Institute BOW Bow end CCA Cold Cranking Ampere CDI Capacitor Discharge Ignition EX Exhaust IN Intake MCA Marine Cranking Ampere PORT Port side RC Reserve Capacity SAE Society of Automotive Engineers STBD Starboard side TDC Top Dead Center WD Wiring Diagram Symbol Name Application Manufacturer LOCTITE 518 Sealant Henkel S518

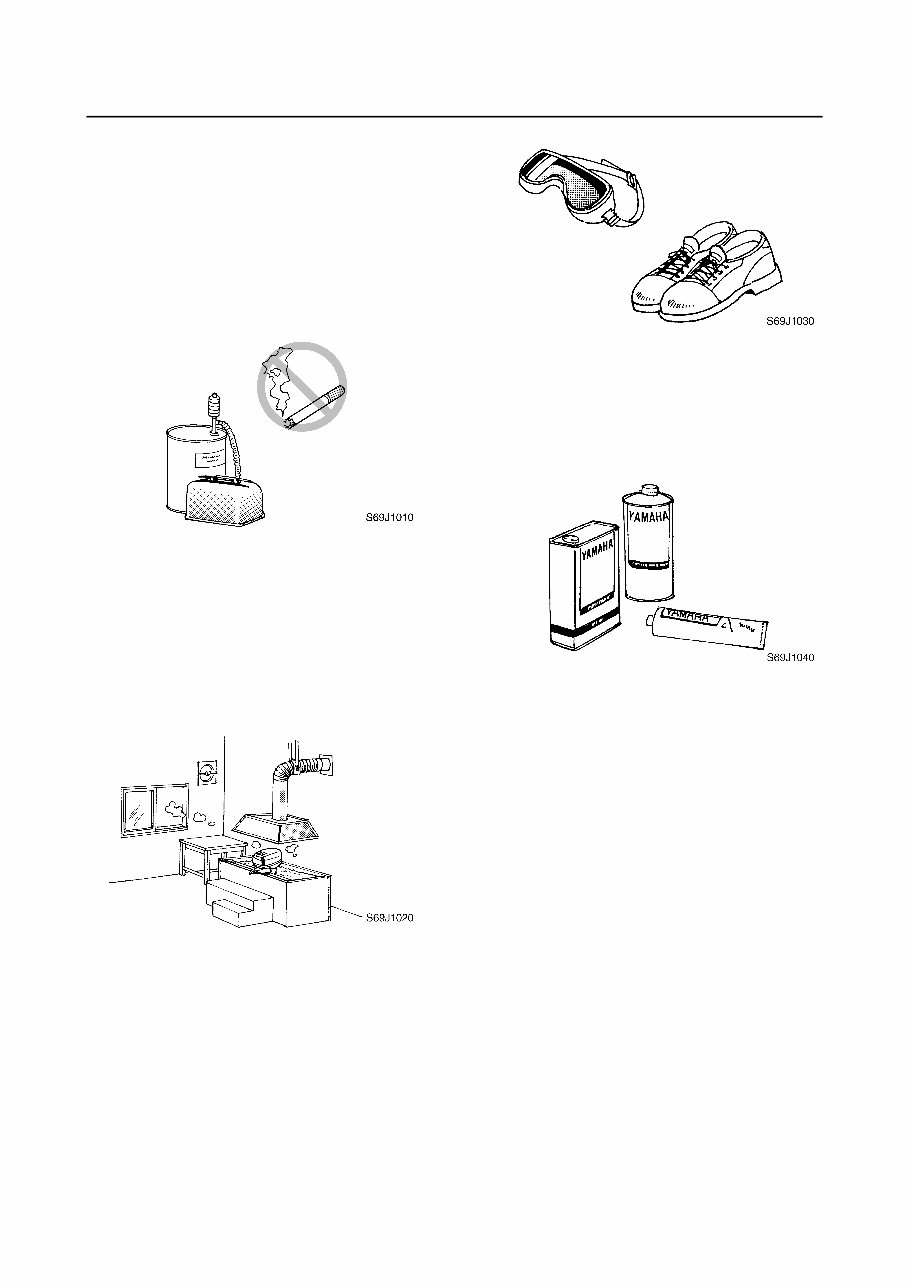

6AG2J11 1-4 3 4 5 6 7 8 9 Safety while working 1 To prevent an accident or injury and to ensure quality service, follow the safety procedures provided below. Fire prevention 1 Gasoline is highly flammable. Keep gasoline and all flammable products away from heat, sparks, and open flames. Ventilation 1 Gasoline vapor and exhaust gas are heavier than air and extremely poisonous. If inhaled in large quantities, they may cause loss of consciousness and death within a short time. When test running an engine indoors (e.g., in a water tank) be sure to do so where ade- quate ventilation can be maintained. Self-protection 1 Protect your eyes by wearing safety glasses or safety goggles during all operations involv- ing drilling and grinding, or when using an air compressor. Protect your hands and feet by wearing protective gloves and safety shoes when necessary. Part, lubricant, and sealant 1 Use only genuine Yamaha parts, lubricants, and sealants or those recommended by Yamaha, when servicing or repairing the outboard motor. Under normal conditions, the lubricants men- tioned in this manual should not harm or be hazardous to your skin. However, you should follow these precautions to minimize any risk when working with lubricants. 1. Maintain good standards of personal and industrial hygiene. 2. Change and wash clothing as soon as possible if soiled with lubricants. 3. Avoid contact with skin. Do not, for example, place a soiled rag in your pocket. 4. Wash hands and any other part of the body thoroughly with soap and hot water after contact with a lubricant or lubricant soiled clothing has been made. 5. To protect your skin, apply a protective cream to your hands before working on the outboard motor. How to use this manual / Safety while working

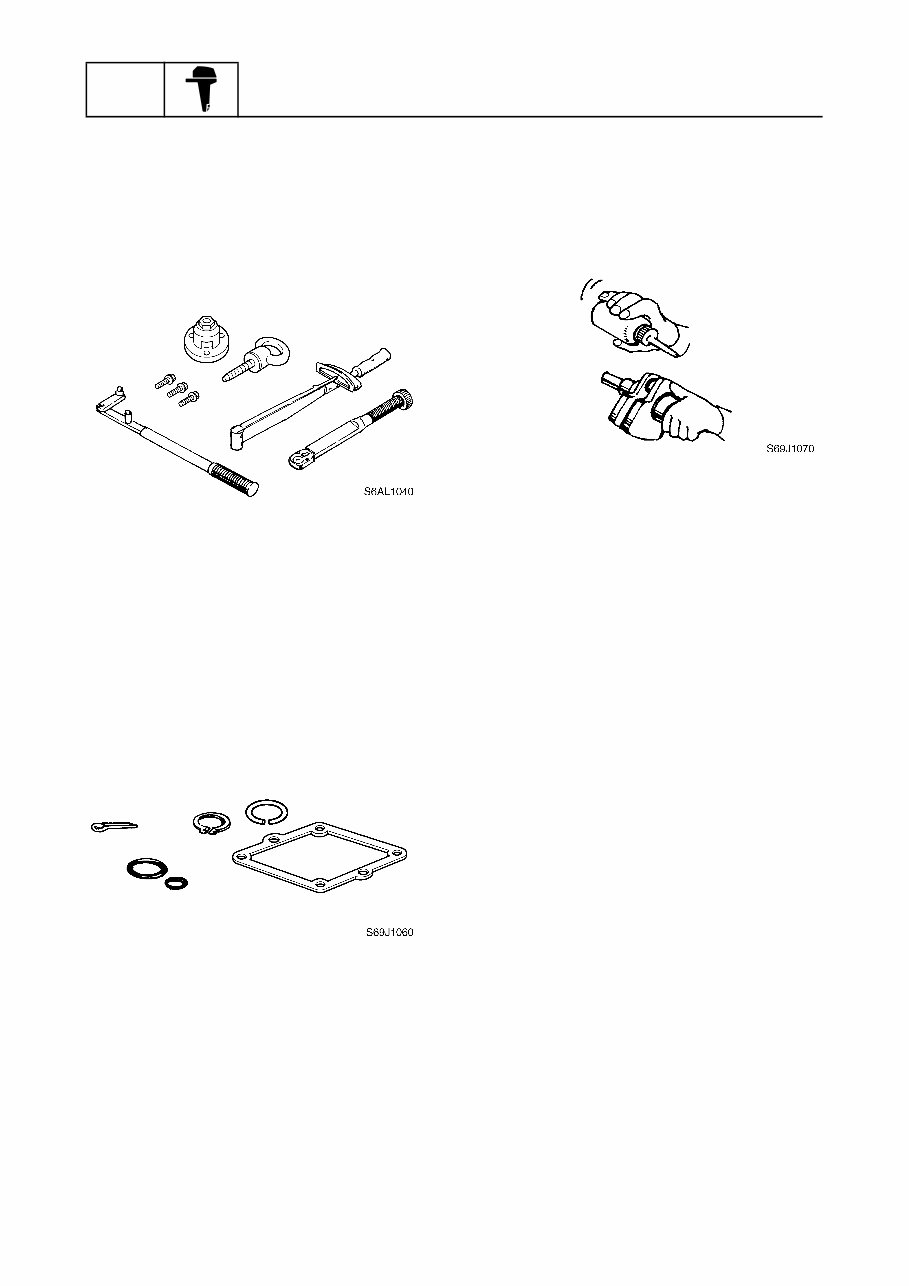

GEN INFO General information 1-5 6AG2J11 6. Keep a supply of clean, lint-free cloths for wiping up spills, etc. Good working practice 1 Special service tool Use the recommended special service tools to protect parts from damage. Use the right tool in the right manner—do not improvise. Tightening torque Follow the tightening torque specifications provided throughout the manual. When tightening nuts, bolts, and screws, tighten the large sizes first, and tighten fasteners starting in the center and moving outward. Non-reusable part Always use new gaskets, seals, O-rings, cot- ter pins, circlips, etc., when installing or assembling parts. Disassembly and assembly 1 1. Use compressed air to remove dust and dirt during disassembly. 2. Apply engine oil to the contact surfaces of moving parts before assembly. 3. Install bearings with the manufacture identification mark in the direction indi- cated in the installation procedure. In addition, be sure to lubricate the bearings liberally. 4. Apply a thin coat of water resistant grease to the lip and periphery of an oil seal before installation. 5. Check that moving parts operate nor- mally after assembly.

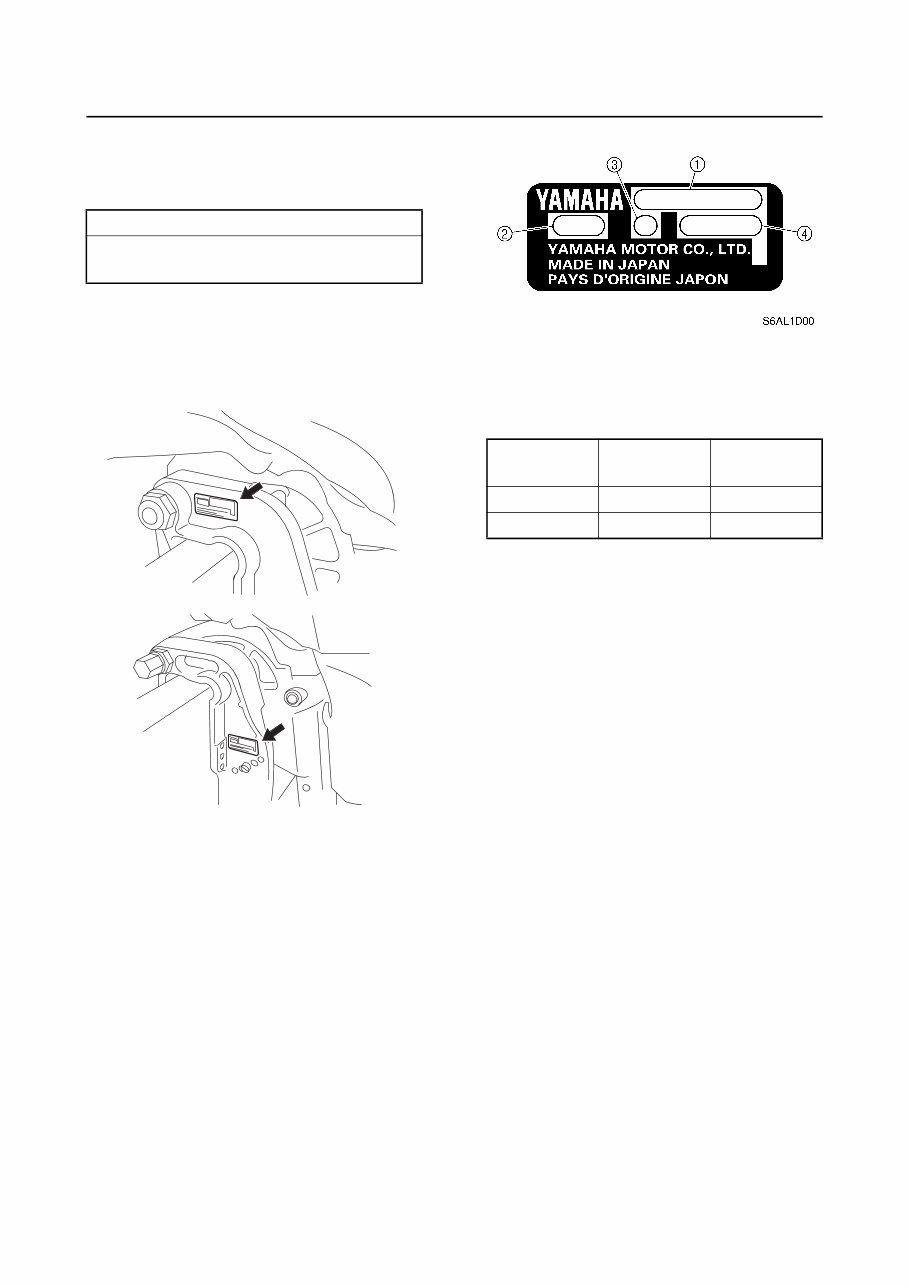

6AG2J11 1-6 3 4 5 6 7 8 9 Identification 1 Model 1 This manual covers the following models. Serial number 1 The outboard motor serial number is stamped on a label attached to the port clamp bracket. È Manual tilt model É Power tilt model 1 Model name 2 Approved model code 3 Transom height 4 Serial number Applicable model F15MHF, F15EHF, F20MHF, F20EHF, F20PHF, F20PRF S6AG1010 È S6AG1020 É Model name Approved model code Starting serial No. F15F 6AG 1000001– F20F 6AH 1000001– Safety while working / Identification

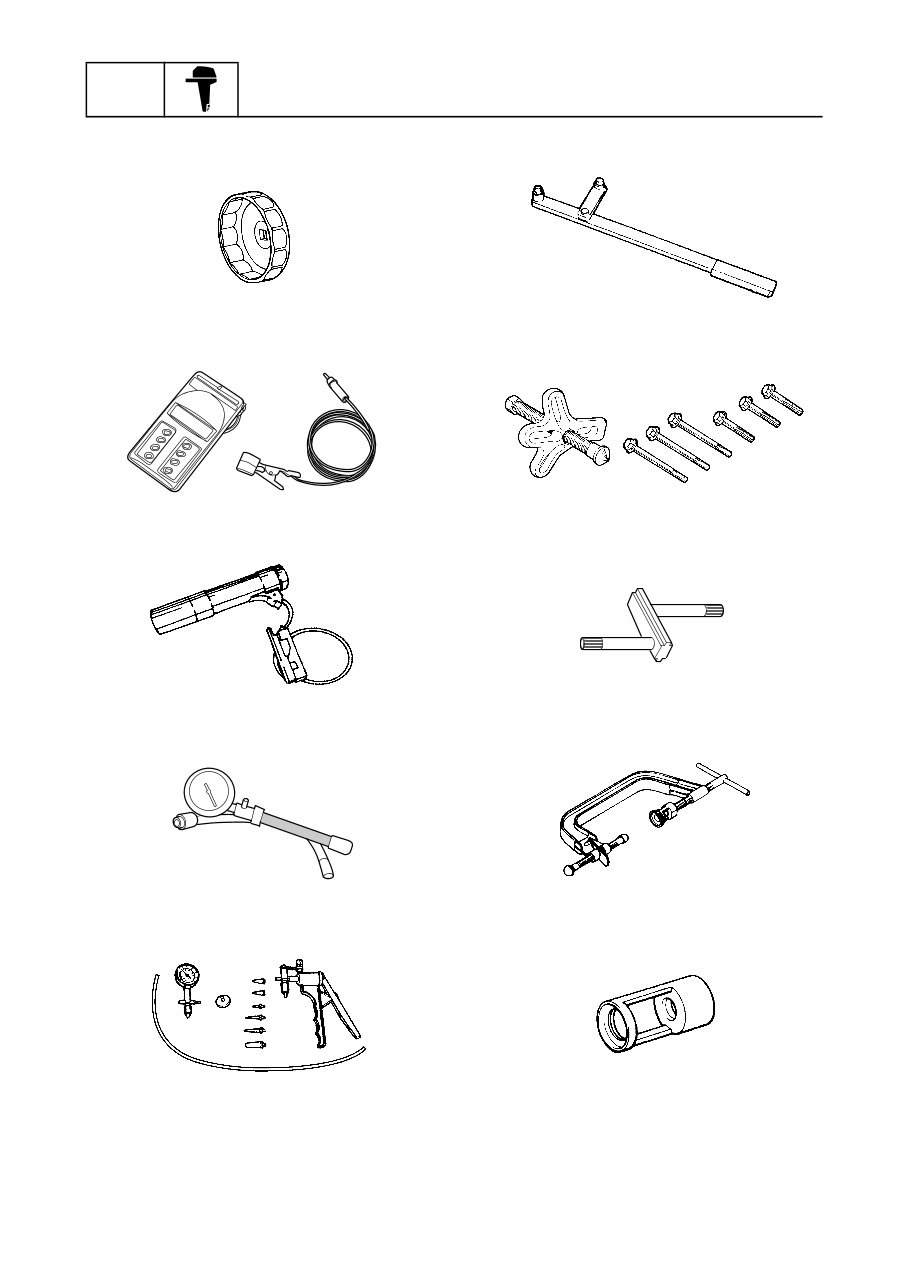

GEN INFO General information 1-7 6AG2J11 Special service tool 1 Oil filter wrench YU-38411 Digital tachometer YU-39951-B Timing light YU-33277-B Compression gauge YU-33223 Pressure/vacuum tester YB-35956-A Flywheel holder YB-06139 Universal puller YB-06117 Shaft holder 90890-06069 Valve spring compressor YM-04019 Valve attachment YB-06320
