MANUAL 30B2 40B2 50B2 115A2 MD OWNER’S OB No.003-11075-9 Downloaded from www.Manualslib.com manuals search engine

Copyright © 2009 Tohatsu Corporation. All rights reserved. No part of this manual may be reproduced or transmitted in any from or by any means without the express written permission of Tohatsu Corporation. READ THIS MANUAL BEFORE USING THE OUTBOARD MOTOR. FAILURE TO FOLLOW THE INSTRUCTIONS AND SAFETY PRECAUTIONS IN THIS MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH. KEEP THIS MANUAL IN A SAFE LOCATION FOR FUTURE REFERENCE. ! Downloaded from www.Manualslib.com manuals search engine

YOUR TOHATSU OUTBOARD MOTOR OWNER REGISTRATION AND IDENTIFICATION Upon purchasing this product, be sure that the WARRANTY CARD is correctly and completely filled out and mailed to the addressee noted there on. This WARRANTY CARD identifies you as the legal owner of the product and serves as your warranty registration. IF THIS PROCEDURE IS NOT FOLLOWED, YOUR OUTBOARD MOTOR WILL NOT BE COVERED BY THE APPLICABLE LIMITED WARRANTY. PRE-DELIVERY CHECK Be sure that the product has been checked by an authorized TOHATSU dealer before you take delivery. Limited Warranty Please refer to the TOHATSU outboard motor Limited warranty provided to you with this product, the terms and conditions of which, as amended from time to time, are incorporated by reference into the manual. Downloaded from www.Manualslib.com manuals search engine

Serial Number In the space below, please record the outboard motor's serial number (indicated both on the lower motor cover and on the cylinder block). The serial number will be needed in the event of theft or to quickly identifying the outboard motor type. Serial Number : To You, Our Customer Thank you for selecting a TOHATSU outboard motor. You are now the proud owner of an excellent outboard motor that will service you for many years to come. This manual should be read in its entirety and the inspection and maintenance procedures described later in this manual should be followed carefully. Should a problem arise with the outboard motor, please follow the troubleshooting procedures listed at the end of this manual. If the problem persists, contact an authorized TOHATSU service shop or dealer. We hope you will enjoy your outboard motor and wish you good luck in your boating adventures. TOHATSU CORPORATION Downloaded from www.Manualslib.com manuals search engine

・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 1 2 3 4 5 6 7 8 9 10 11 12 13 GENERAL SAFETY INFORMATION SPECIFICATIONS NAMES OF PARTS INSTALLATION 1. Mounting the outboard motor on boat 2. Propeller Selection 3. Installing the remote control devices 4. Installing the meters 5. Installing the drag link assembly 6. Installing the battery PRE-OPERATING PREPARATIONS 1.Gasoline and engine oil 2.Break-in 3.Warning system ENGINE OPERATION 1.Starting 2.Warming up the engine 3.Forward and reverse 4.Shallow water running 5.Stopping the engine 6.Trim angle 7.Mooring with the engine tilted up REMOVING AND CARRYING THE OUTBOARD MOTOR 1.Removing the outboard motor 2.Carrying the outboard motor 3.Storing the outboard motor TRAILERING ADJUSTMENT 1.Remoto control lever load 2.Trim tab adjustment 3.Steering load adjustment 4.Throttle grip turning load adjustment INSPECTION AND MAINTENANCE 1.Daily inspection 2.Periodic inspection 3.Off-season storage 4.Pre-season check 5.Checking after striking underwater object 6.If the engine becomes submerged in water 7.Precautions in cold weather TROUBLESHOOTING TOOL KIT AND SPARE PARTS OPTIONAL ACCESSORIES PROPELLER TABLE 8 10 14 18 18 21 22 27 29 30 32 32 35 36 39 39 45 46 48 50 52 55 58 58 58 59 60 61 61 61 62 62 63 64 68 74 76 77 77 77 78 80 82 84 CONTENTS Downloaded from www.Manualslib.com manuals search engine

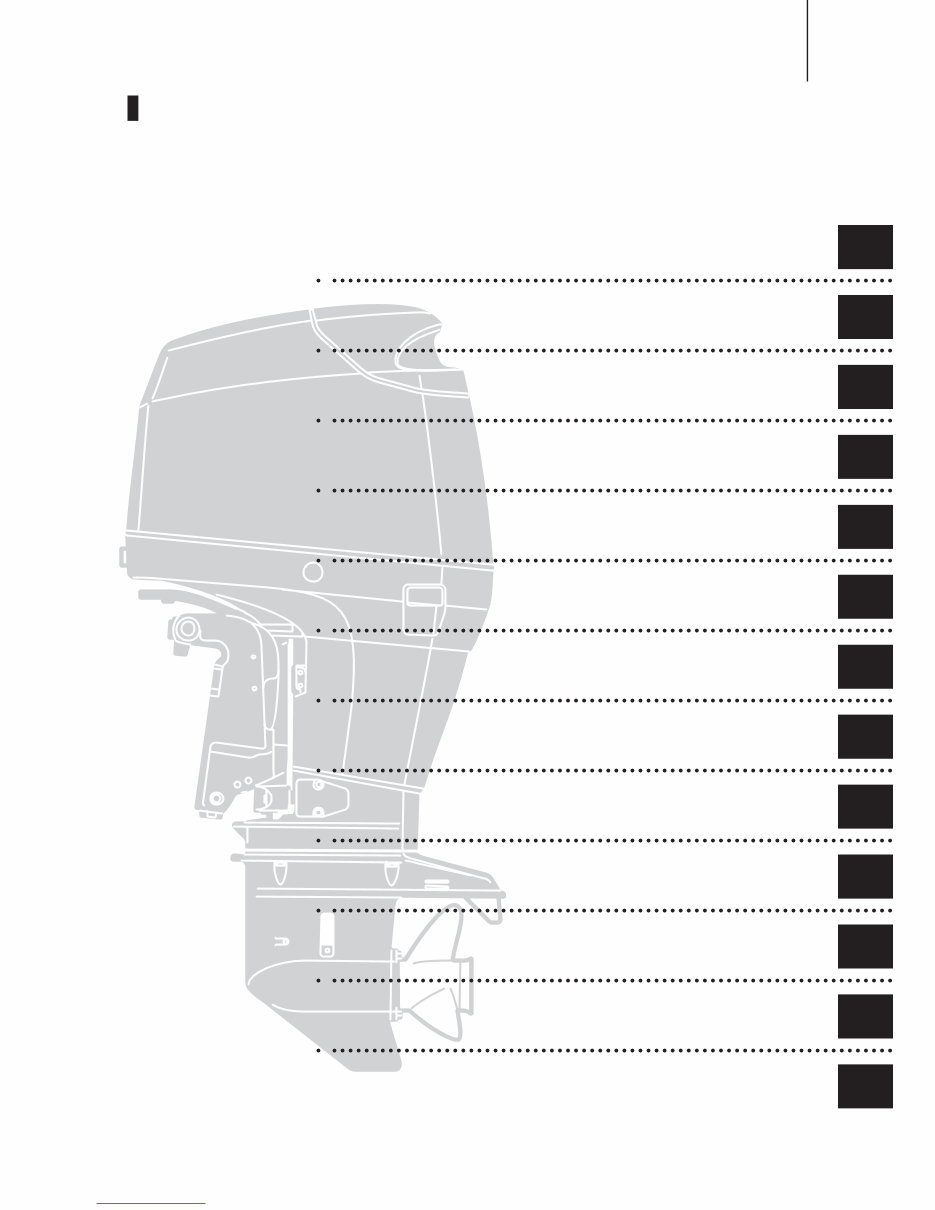

7 1. SPECIFICATIONS 2. NAMES OF PARTS 3. INSTALLATION 4.PRE-OPERATING PREPARATIONS 5.ENGINE OPERATION 6.REMOVING AND CARRYING THE MOTOR 7.TRAILERING 8.ADJUSTMENT 9.INSPECTION AND MAINTENANCE 10.TROUBLESHOOTING 11.TOOL KIT AND SPARE PARTS 12.OPTIONAL ACCESSORIES 13.PROPELLER TABLE 1 2 3 4 5 6 7 8 9 10 11 12 13 GENERAL SAFETY INFORMATION INDEX Downloaded from www.Manualslib.com manuals search engine

NOTICE : DANGER/WARNING/CAUTION/Note Before installing, operating or otherwise handling your outboard motor, be sure to thoroughly read and understand this Owner's Manual and carefully follow all of the instructions. Of particular importance is information preceded by the words "DANGER," "WARNING," "CAUTION," and "Note." Always pay special attention to such information to ensure safe operation of the outboard motor at all times. EMERGENCY STOP SWITCH The Emergency Stop Switch will stall the outboard motor when the stop switch tether is pulled off. This stop switch tether can be attached to the operator of the outboard motor to minimize or prevent injuries from the propeller in case the operator falls overboard. We highly recommend use of the Emergency Stop Switch tether. Failure to observe will result in severe personal injury or death, and possibly property damage. ! ������ Note This instruction provides special information to facilitate the use or maintenance of the outboard motor or to clarify important points. Failure to observe could result in personal injury or property damage. ! ������� ! ������� Failure to observe could result in severe personal injury or death, or property damage. GENERAL SAFETY INFORMATION ! ������� Accidental activation of the Emergency Stop Switch (such as the tether being pulled out in heavy seas) could cause passengers to lose their balance and even fall overboard, or it could result in loss of power in heavy seas, strong currents, or high winds. Loss of control while mooring is another potential hazard. To minimize accidental activation of the Emergency Stop Switch, the 500 mm (20 inch.) stop switch tether is coiled and can extended to a full 1,300 mm (51 inch.). Downloaded from www.Manualslib.com manuals search engine

SAFE OPERATION OF BOAT As the operator/driver of the boat, you are responsible for the safety of those aboard and those in other boat around yours, and for following local boating regulations. You should be thoroughly knowledgeable on how to correctly operate the boat, outboard motor, and accessories. To learn about the correct operation and maintenance of the outboard motor, please read through this manual carefully. It is very difficult for a person standing or floating in the water to take evasive action should he or she see a power boat heading in his /her direction, even at a slow speed. Therefore, when your boat is in the immediate vicinity of people in the water, the outboard motor should be shifted to neutral and shut off. SERVICING, REPLACEMENT PARTS & LUBRICANTS We recommend that only an authorized service shop perform service or maintenance on this outboard motor. Be sure to use genuine parts, genuine lubricants, or recommended lubricants. MAINTENANCE As the owner of this outboard motor, you should be acquainted with correct maintenance procedures. It is the operator's responsibility to perform all safety checks and to ensure that all lubrication and maintenance instructions are complied with for safe operation. Please comply with all instructions concerning lubrication and maintenance. You should take the engine to an authorized dealer or service shop for periodic inspection at the prescribed intervals. Correct periodic maintenance and proper care of this outboard motor will reduce the chance of problems and limit overall operating expenses. MOUNTING Outboard motor mounting must be performed by trained service person(s) using lift or hoist with sufficient capacity. ! ������� SERIOUS INJURY IS LIKELY IF A PERSON IN THE WATER MAKES CONTACT WITH A MOVING BOAT, GEAR HOUSING, PROPELLER, OR ANY SOLID DEVICE RIGIDLY ATTACHED TO A BOAT OR GEAR HOUSING. Downloaded from www.Manualslib.com manuals search engine

10 14 13 12 11 10 9 8 7 6 5 4 3 2 1 MODEL 30B2 40B2 Item EPTO EFTO EFO Overall Length mm (in) 630 (24.8) 1,120 (44.1) Overall Width mm (in) 345 (13.6) 384 (15.1) Overall Height S·L·UL mm (in) 1,227 (48.3) · 1,354 (53.3) · 1,481 (58.3) Transom Height S·L·UL mm (in) 403 (15.9) · 530 (20.9) · 657 (25.9) Weight S kg (lb) - - - L kg (lb) 94.5 (208) 97.5 (215) 89.5 (197) UL kg (lb) - - - Output kW (Hp) 22.1 (30) 29.4 (40) Max. Operating Range rpm 4,750 - 5,750 Engine Type Direct fuel injection Number of Cylinder 3 Bore × Stroke mm (in) 68 × 64 (2.68 × 2.52) Piston Displacement mL (Cu in) 697 (42.5) Exhaust System Through hub exhaust Cooling System Water cooling Engine Lubrication Oil injection Starting System Electric starter motor Ignition System Inductive Ignition Spark Plug NGK IZFR6J Alternator 12V,280W (Max.) Trim Position 4 6 Engine Oil Genuine Motor Oil or recommended one Gear Oil Genuine Gear Oil or API GL5, SAE #80 to #90, approx. 500mL Fuel Tank Capacity L (US gal) 25 (6.6) Engine Oil Capacity L (US gal) Approx. 2.0 (0.53) Gear Reduction Ratio 1.85 (13 : 24) Fuel Unleaded regular gasoline : Pump posted 87 Octane (research octane rating of 91) 30B2 , 40B2 SPECIFICATIONS ※ This specifications might change without a previous notice. Downloaded from www.Manualslib.com manuals search engine
