OUTBOARD MOTOR OWNER’S MANUAL F6ABM F5ABM SUZHOU PARSUN POWER MACHINE CO., LTD.

Thank you for owning a PARSUN outboard motor. Thank you for your trust in our company and products.  “PARSUN” outboard motors are powerful, economic and safe, manufactured with advanced technology.  Please read this manual carefully before operating your outboard motor. A thorough understanding of the manual will help you to know this product for proper operation, maintenance and care. This will ensure that your outboard motor operates well under all conditions.  “PARSUN” seeks continuous improvement in product quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual. If there is any question concerning the manual, please consult your local PARSUN dealer.  Data, illustrations or explanations in this Owner’s Manual do not constitute base for any legal claim against our company. SUZHOU PARSUN POWER MACHINE CO., LTD.

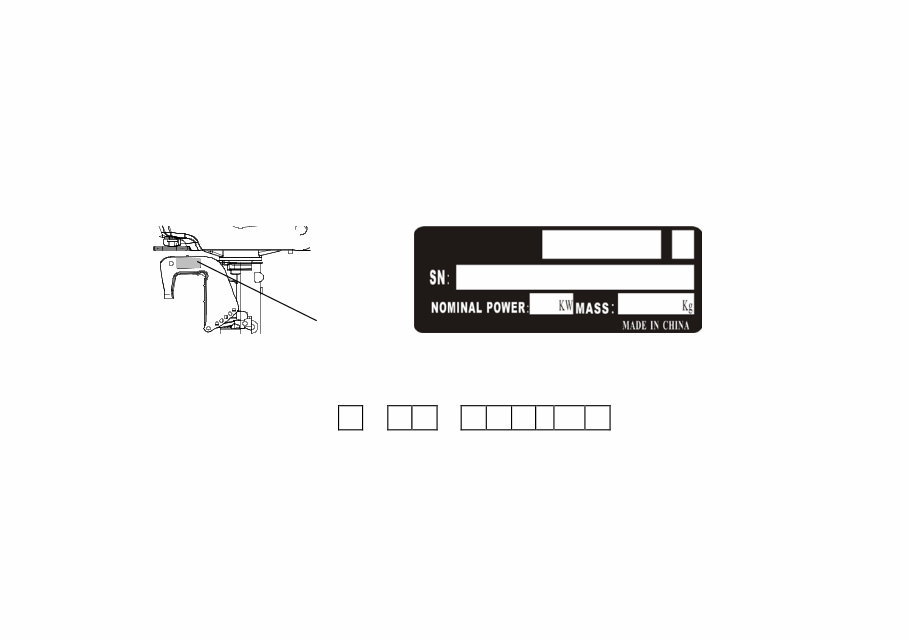

Engine Identification Numbers Outboard motor serial number The outboard motor serial number is marked on the label. The label can be found on the bracket left assembly or on the upper part of the bracket swivel. Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts from your PARSUN dealer or for reference in case your outboard motor is stolen. 1. Outboard motor serial number location Serial number as follows: SN 1

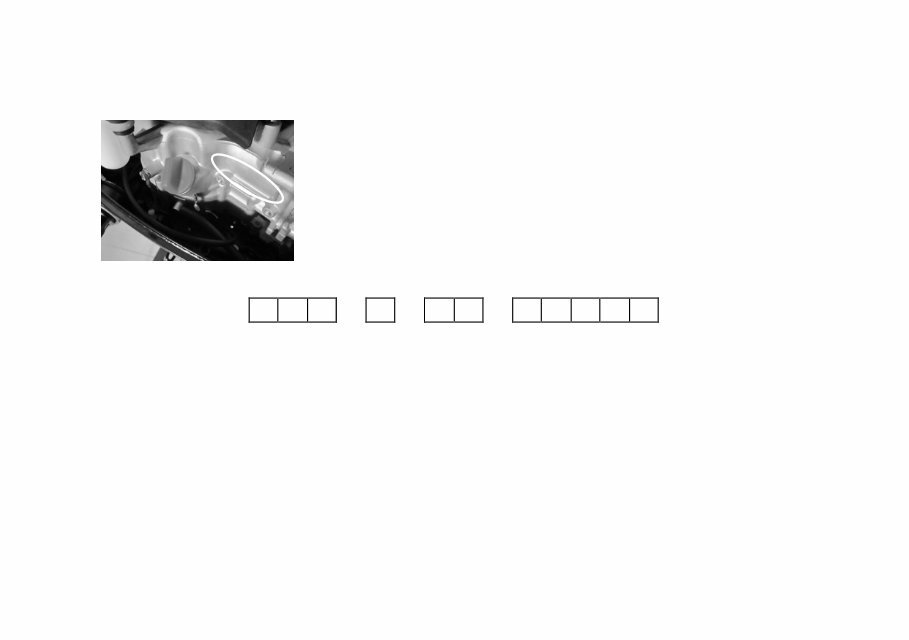

Engine serial number The engine serial number is carved on the aluminum casting of engine. Engine serial number as follows: Manufacturer’s Declaration This outboard motor complies with the requirements of Directive 2003/44/EC in relation to the exhaust and noise emissions. The following installation and maintenance instructions, if applied, guarantee that the outboard motor will remain in compliance with: 1. Exhaust emissions limits throughout the normal life or the engine (350 hours or 10 years, whichever occurs first) and under normal conditions of use. 2. Noise emissions limits under normal conditions of use.

Table of contents 1. Main components and General information ........................................................................................... 1 1.1 Main components.................................................................................................................................. 1 1.2 General information .............................................................................................................................. 3 1.2.1 Specifications ..................................................................................................................................... 3 1.2.2 Fueling instructions ............................................................................................................................ 4 1.2.3 Propeller selection ............................................................................................................................. 5 2. Operation ................................................................................................................................................ 6 2.1 Installation ............................................................................................................................................. 6 2.1.1 Mounting height ................................................................................................................................. 7 2.1.2 Clamping the outboard motor ............................................................................................................ 8 2.2 Breaking in engine ................................................................................................................................ 9 2.3 Pre-operation checks .......................................................................................................................... 10 2.4 Filling fuel .............................................................................................................................................11 2.5 Starting engine .................................................................................................................................... 13 2.6 Warming up engine ............................................................................................................................. 17 2.7 Shifting ................................................................................................................................................ 18 2.7.1 Forward ............................................................................................................................................ 18 2.7.2 Reverse ............................................................................................................................................ 19 2.8 Tiller ..................................................................................................................................................... 20 2.9 Stopping engine .................................................................................................................................. 22 2.10 Trimming outboard motor ................................................................................................................. 24 2.11.1 Tilting up ......................................................................................................................................... 25 2.11.2 Tilting down .................................................................................................................................... 28

2.12 Cruising in other conditions .............................................................................................................. 29 2.12.1 Cruising in shallow water ............................................................................................................... 29 2.12.2 Cruising in salt water ..................................................................................................................... 29 3. Maintenance.......................................................................................................................................... 30 3.1 Greasing.............................................................................................................................................. 30 3.2 Cleaning and adjusting spark plug ..................................................................................................... 31 3.3 Checking the fuel system.................................................................................................................... 31 3.4 Inspecting idling speed ....................................................................................................................... 32 3.5 Changing engine oil ............................................................................................................................ 33 3.6 Checking wiring and connectors......................................................................................................... 34 3.7 Checking for leakage .......................................................................................................................... 34 3.8 Checking propeller .............................................................................................................................. 35 3.8.1 Removing the propeller.................................................................................................................... 36 3.8.2 Installing the propeller ...................................................................................................................... 36 3.9 Changing gear oil ................................................................................................................................ 37 3.10 Cleaning fuel tank ............................................................................................................................. 38 3.11 Checking and replacing anode(s) ..................................................................................................... 39 3.12 Checking top cowling ........................................................................................................................ 40 3.13 Maintenance table............................................................................................................................. 40 4 Transporting and storing ........................................................................................................................ 43 4.1 Transporting ........................................................................................................................................ 43 4.2 Storing ................................................................................................................................................. 44 5 Actions in emergency............................................................................................................................. 46 5.1 Impact damage ................................................................................................................................... 46

5.2 Starter will not operate ........................................................................................................................ 46 5.3 Treatment of submerged motor .......................................................................................................... 49 6. Troubleshooting .................................................................................................................................... 51 7. Circuit diagram ...................................................................................................................................... 55

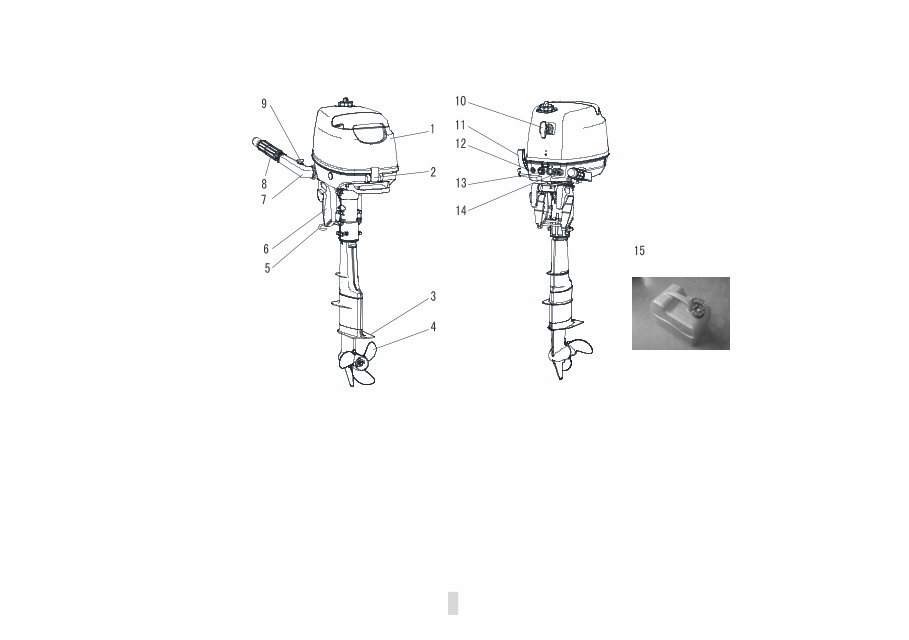

1 1. Main components and General information 1.1 Main components 1. Top cowling 6. Clamp bracket 11. Gear shift lever 2. Top cowling lock 7. Tiller handle 12. Choke knob 3. Anti-cavitation plate 8. Throttle grip 13. Engine stop button 4. Propeller 9. Throttle friction adjuster 14. Fuel joint 5. Trim rod 10. Starter handle 15. Fuel tank* Note: * The fuel tank is equipped for the proper model.

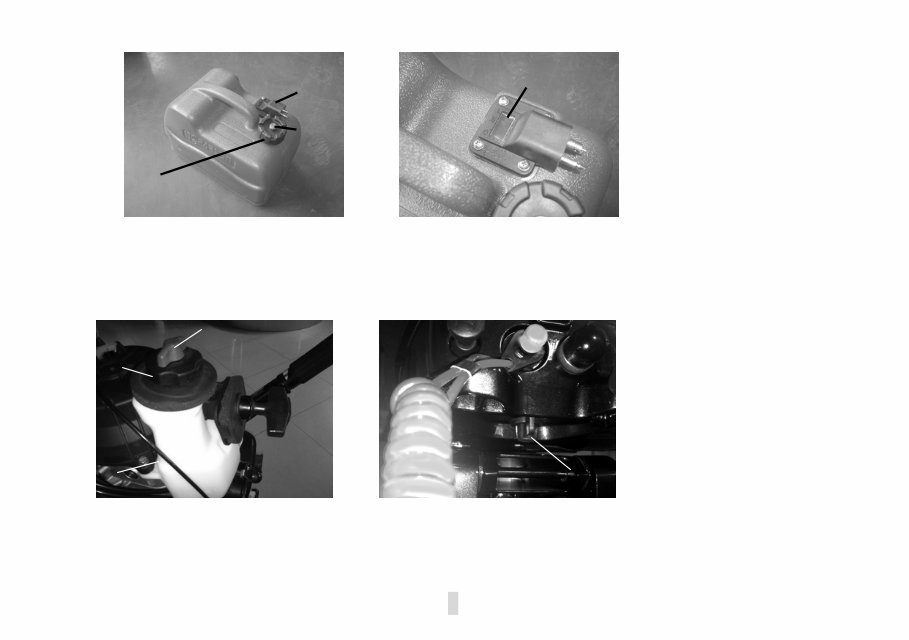

2 If your model includes a portable fuel tank, its parts are as follows: 1. Fuel tank cap 3. Air vent screw 2. Fuel joint 4. Fuel gauge If your model includes a built-in fuel tank, its parts are as follows: 1. Air vent screw 3. Built-in fuel tank 2. Fuel tank cap 4. Fuel cock 1 2 3 4 3 1 2 4

3 WARNING  The fuel tank supplied with this engine could only be used as supply of fuel for its running and must not be as a fuel storage container.  The fuel cock must be at close position while using portable fuel tank.  Disconnect the fuel joint while using the built-in fuel tank. 1.2 General information 1.2.1 Specifications Parameter Items Data Items Data Type of engine 4-stroke S Weight (L) 28Kg Displacement 148cm 3 Recommended fuel Unleaded regular gasoline Bore X stroke 64mm×46mm Built-in fuel tank capacity 1.3L Gear ratio 2.08（27/13） Recommended engine oil SAE10W30 orSAE10W40 Overall length 718mm Engine oil quantity 0.6L Overall width 390mm Recommended gear oil Hypoid gear oil SAE﹟90 Overall height (S) 1050mm Gear oil quantity 100cm 3 Overall height (L) 1177mm Spark plug CR6HSA Weight (S/L) 27Kg/28Kg Spark plug gap 0.6～0.7mm
