ELECTRIC OUTBOARD MOTOR OPERATOR’S MANUAL Model Numbers F4ETS, F4ETL, F4ERS, F4ERL SUZHOU PARSUN POWER MACHINE CO., LTD. Downloaded from www.Manualslib.com manuals search engine

Thank you for purchasing a PARSUN outboard motor. Your trust in our company and products is greatly appreciated z “PARSUN” outboard motors are powerful, economic, safe, and manufactured with advanced technology. Please read this manual carefully before operating your outboard motor. A through understanding of the manual will help you to safely operate the product, and perform the required maintenance and care. By following the information contained within this manual, you will ensure that your outboard motor operates for many years z “PARSUN” seeks continuous improvement in product quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual. If there is any question concerning the manual, please consult your local PARSUN dealer. z Data, illustrations, or explanations in this Operators Manual do not constitute base for any legal claim against our company. SUZHOU PARSUN POWER MACHINE CO., LTD Downloaded from www.Manualslib.com manuals search engine

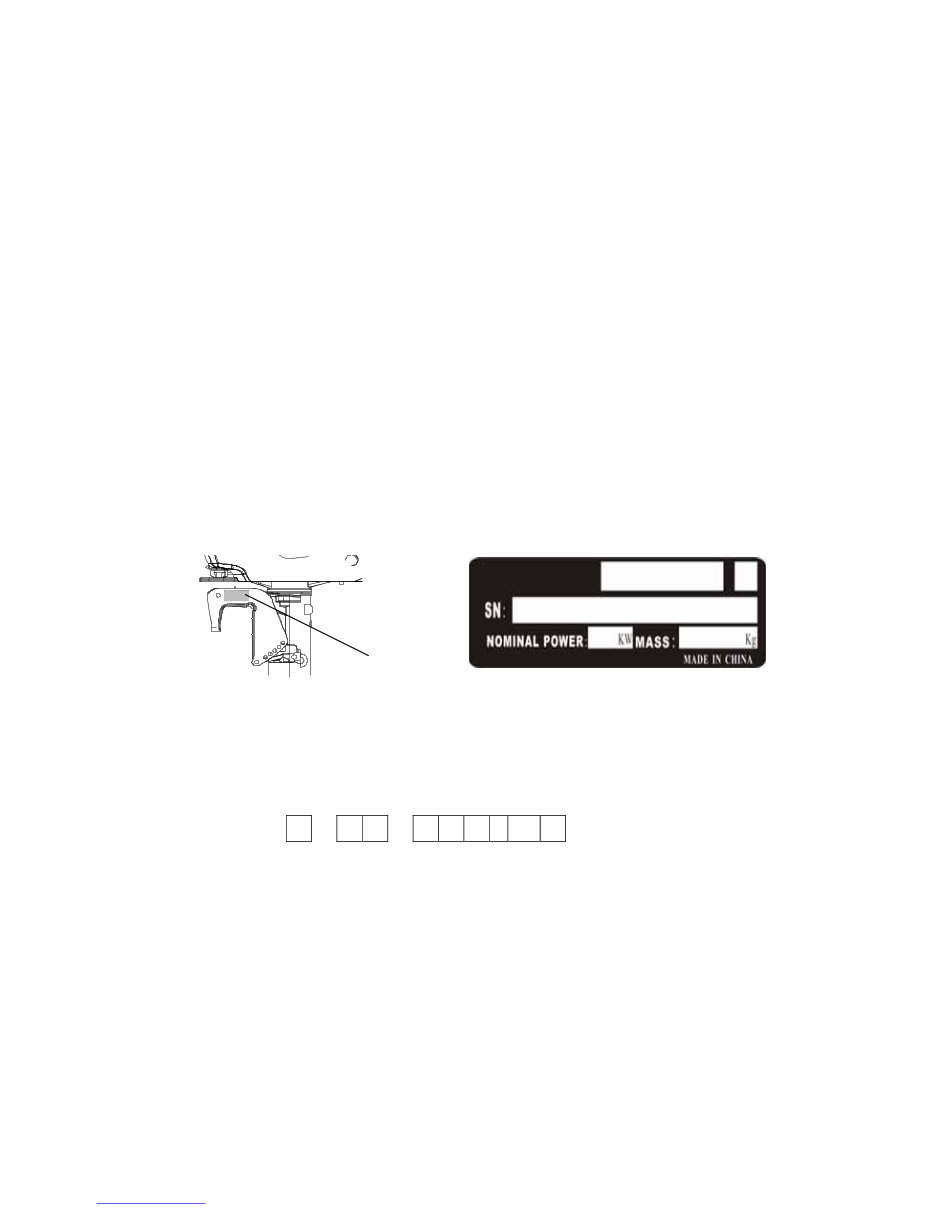

Outboard Identification Numbers Outboard motor serial number The outboard motor serial number is marked on the label. The label can be found on the left bracket assembly or on the upper part of the bracket swivel. Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts from your Parsun dealer or for reference in case your outboard motor is stolen. 1 1. Outboard motor serial number location. Serial number as follows: N S Downloaded from www.Manualslib.com manuals search engine

Manufacturer’s Declaration This outboard motor complies with the requirements of Directive 2003/44/EC in relation to the noise emissions. The following installation and maintenance instructions, if applied, guarantee that the outboard motor will remain in compliance with the noise emissions limits under normal conditions of use. Table of contents Page Main Components and General Information……………………..……..……………….…1 General Information and Specifications…………………………………………………….2 Propeller Selection….…………………………………………………….…………………..3 Installation and Operation..…….………………………………….…………..……………..3 Mounting Height Recommendations…….………………………………………………….5 Clamping the Outboard Motor……………….………………………………………………6 Pre-Operation Checks………………………………………………………………….…….8 Starting the Outboard (Tiller Model)………………………….………………….………… 9 Changing Direction for Tiller Model………………………..…………….….……………..11 Stopping the Outboard (Tiller Model…………………………………………….…….......12 Throttle Friction Adjuster………………………………………………….………..............13 Starting the Outboard (Remote Control Model)……………………………....................14 Changing Direction for the Remote Control Model……..…………..……….………......15 Downloaded from www.Manualslib.com manuals search engine

Stopping the Remote Controlled Outboard..……………………………….……….…...16 Trimming the Outboard Motor…………………………………………………………......17 Tilting Up and Down (Warnings)……………………………………………………..…....18 Tilting Up………………………………………………………………….………………….19 Tilting Down………………..………………………………………………….…….……….20 Cruising in Shallow Water/Salt Water………………..……………………………………21 Maintenance Procedures………………..………...………..……………………………...22 Greasing ………………..…………………….…………………………………….............23 Checking the Propeller………………..…………………………………………….…......24 Removing/Installing the Propeller………………..………………………………….........25 Changing the Gear Oil………….………………..……………………………………….. 26 Checking and Replacing the Anode…………………………………………......…..…...28 Checking the Top Cover……………………………………….…….…………..….......... 29 Maintenance Table……………………………………..……………………….….…….....29 Transporting and Storing……………………………………..……………………….……32 Emergency Situations………..……………………….….……........................................34 Treatment of Submerged Outboard………………………..……………………….….….34 Low Battery Warning Buzzer……………………………………………………………….34 Downloaded from www.Manualslib.com manuals search engine

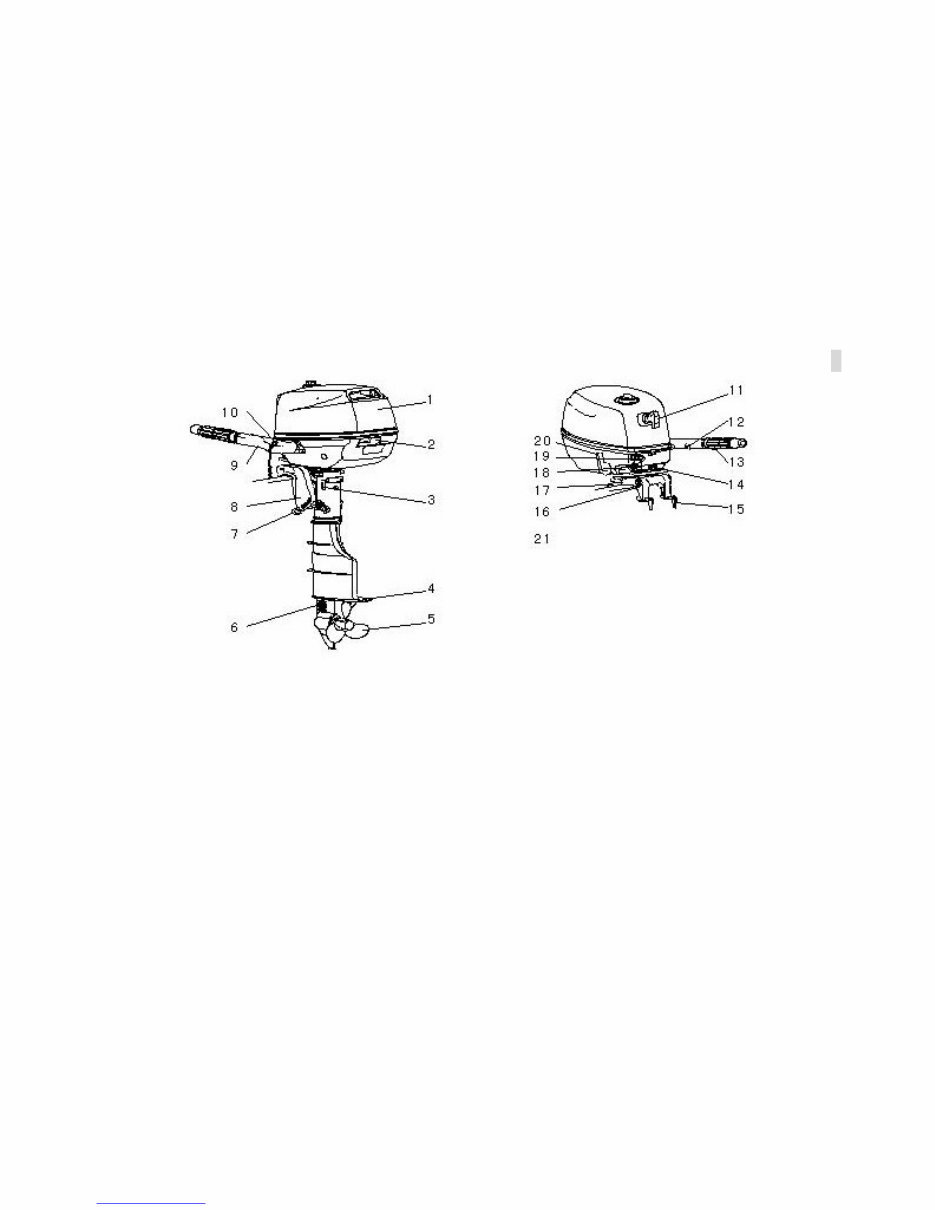

Main Components and General Information 1 1. Top cover 2. Top cover lock handle 3. Steering friction screw 4. Anti-cavitation plate 5. Propeller 6. Cooling water inlet 7. Trim Rod 8. Clamp Bracket 9. Tiller handle 10. Stop button, Lanyard switch 11. Control switches 12. Throttle friction adjuster 13. Throttle grip 14. Carry handle 15. Clamp screw 16. Rope attachment 17. Tilt support bar 18. Remote control cable 19. Power Cable connector Downloaded from www.Manualslib.com manuals search engine

General Information and 2 Specifications Parameter Items Data Items Data Type of outboard Electric Input Power 4.8 KW Maximum Rated voltage 48 VDC Maximum Continuous output 3.0 Kw/4500Rpm (4HP) Rated Current 100 Amps Full throttle motor speed 4000～5000Rpm Operating Voltage 30-60 VDC Gear ratio 2.08（27/13） Overall length 717mm Recommended gear oil Hypoid gear oil SAE﹟90 Overall width 361mm Gear oil quantity 100 mm 3 Overall height (S) 1029mm ETL:30.4kg,ETS:29.4kg Overall height (L) 1156mm Net Weight ERL:29.4kg,ERS:28.4kg Downloaded from www.Manualslib.com manuals search engine

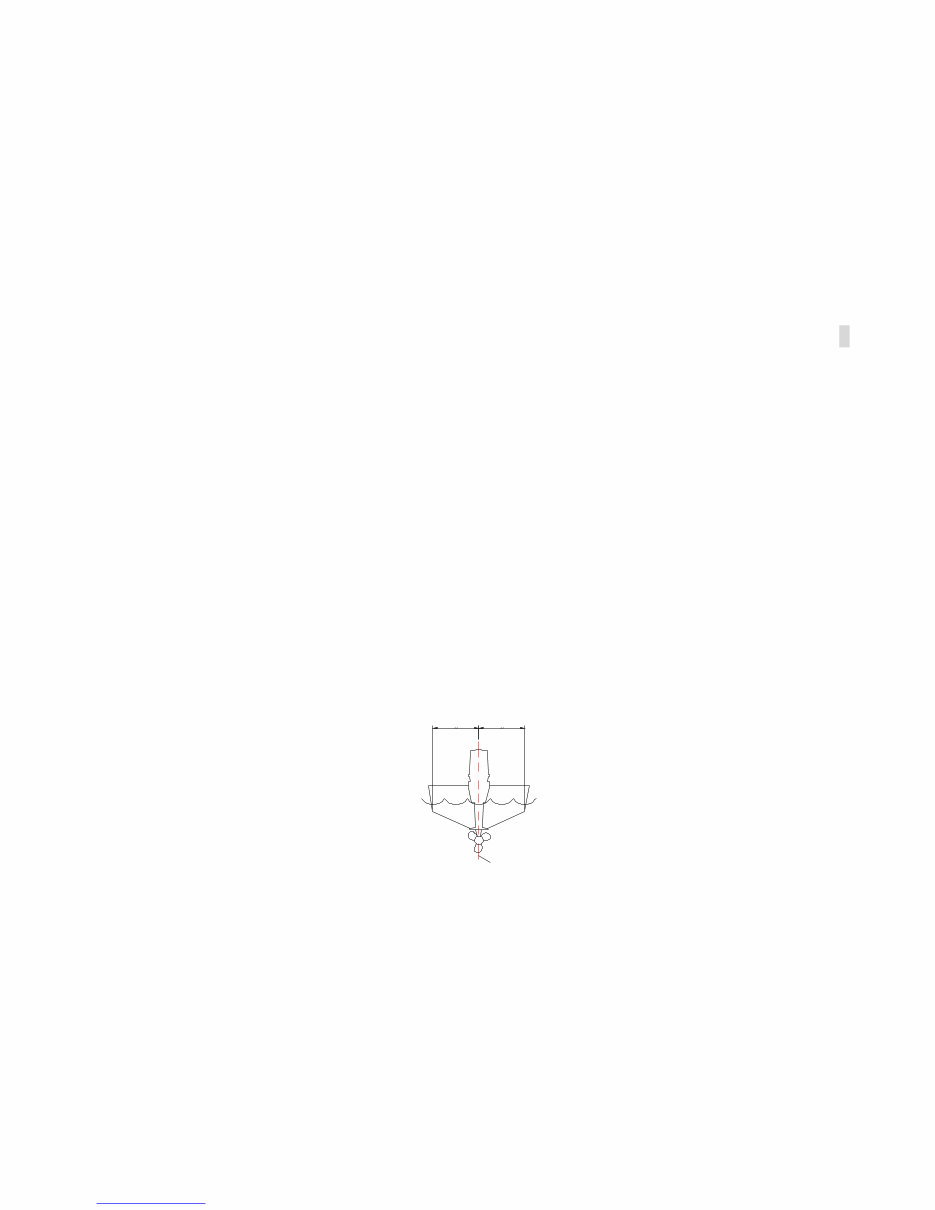

3 Propeller Selection The performance of your outboard motor will be critically affected by your choice of propeller, as an incorrect choice could adversely affect performance. The outboard motor is fitted with propeller chosen to perform well over a range of applications, but there may be uses where a propeller with a different pitch would be more appropriate. “PARSUN” dealers stock a range of propellers and can advise you and install a propeller on your outboard that is best suited to your application. For a greater boat load and a low engine speed, a smaller-pitch propeller is more suitable. Conversely, a large-pitch propeller is more suitable for a smaller operating load as it enables the correct engine speed to be maintained. Operation and Installation Mount the outboard motor on the center line (keel line) of the boat. For boats without a keel or which are asymmetrical, consult your dealer. 1 1. Center line (keel line) Downloaded from www.Manualslib.com manuals search engine

4 NOTE: During water testing, check the buoyancy of the boat when at rest with its maximum load. Check that the static water level on the exhaust housing is low enough to prevent water entry into the power head, or when water rises due to waves, or when the outboard is not running. WARNING: z Overpowering a boat could cause severe instability. Do not install an outboard motor with more horsepower than the maximum rating on the capacity plate of the boat. If the boat does not have a capacity plate, consult the boat manufacturer. z Improper mounting of the outboard motor could result in dangerous conditions and injury. For permanently mounted models, your dealer or other person experienced in proper rigging should mount the motor. If you are mounting the motor yourself, you should be trained by an experienced person. For portable models, your dealer or other person experienced in proper outboard motor mounting should show you how to mount your motor. z The information presented in this section is intended as reference only. Proper mounting depends in part on experience and the specific boat and motor combination. Downloaded from www.Manualslib.com manuals search engine

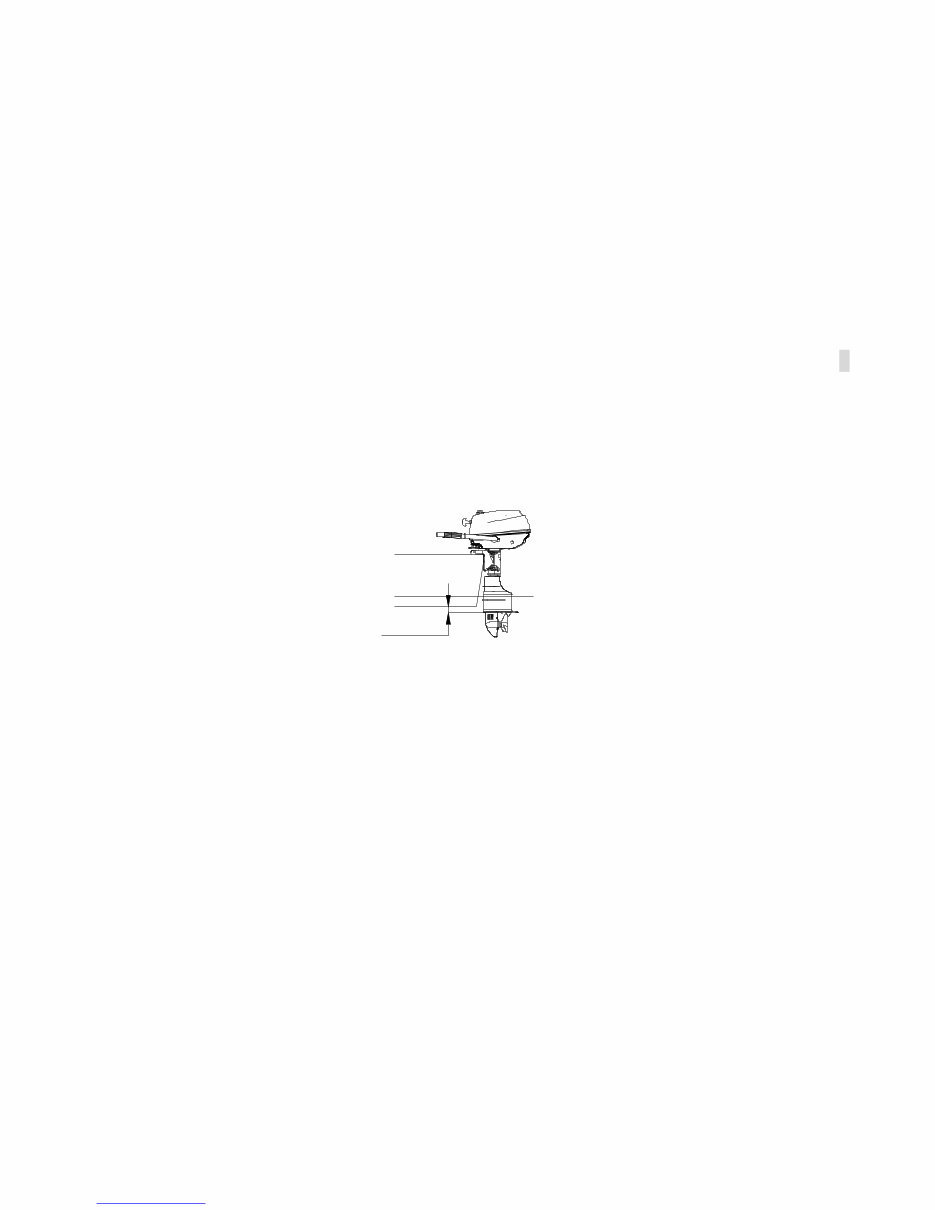

5 Mounting Height 0～25mm (0-1in) The mounting height of the outboard motor greatly affects your boat running efficiency. If the mounting height is too high, cavitation tends to occur, thus reducing the propulsion. If the mounting height is too low, the water resistance will increase and thereby reduce engine efficiency. Mount the outboard motor so that the anti-cavitation plate is between the bottom of the boat and a level 25mm below it. NOTE: The optimum mounting height of the outboard motor is affected by the boat and motor combination and the desired use. Test runs at a different height can help determine the optimum mounting height. For further information, consult your “PARSUN” dealer or boat manufacturer. Downloaded from www.Manualslib.com manuals search engine
