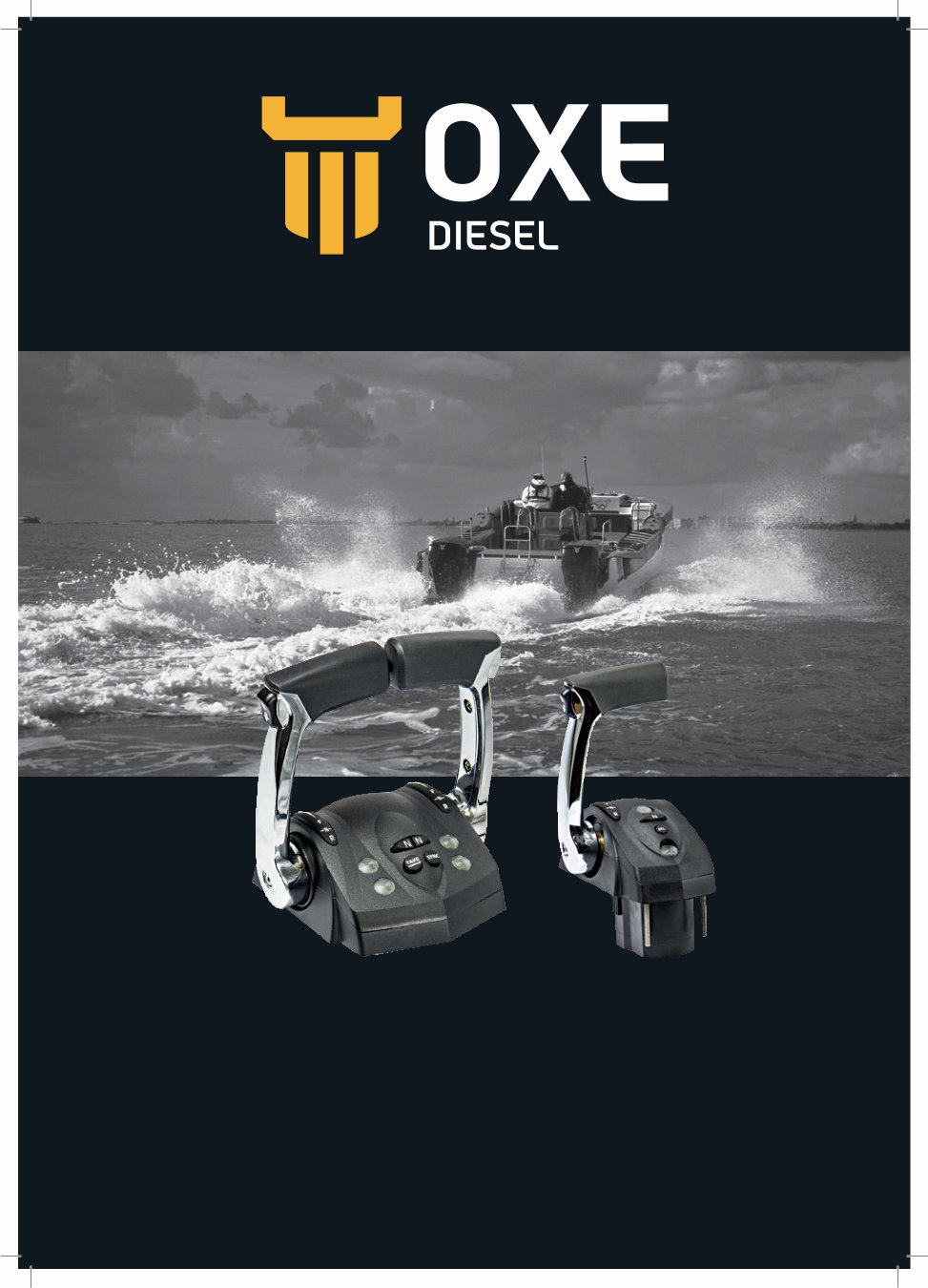

OXE ELECTRONIC CONTROL SYSTEM
www.oxe-diesel.com
CIMCO MARINE AB
Metallgatan 17B, SE-262 72 Ängelholm. SWEDEN
info@oxe-diesel.com, www.oxe-diesel.com
OXE ELECTRONIC CONTROL SYSTEM
FUNCTIONS & TECHNICAL SPECIFICATION
The OXE Electronic Control system delivers precise control
of a boat’s shiſt and throttle functions. The actuators link
to the control head through a single CANbus harness - for
easy routing and fast installation. Adding multiple control
stations is easy by adding a single harness. All The OXE
Electronic Control system kits come with all components
needed for an installation, including power harness, and
30 feet of network harness. The OXE Electronic Control
system delivers an improved level of throttle control that
makes it easier to handle your boat.
FEATURES
• Mechanical override “get home” feature
• Trolling mode
• Add a station kits available -total of 3 stations
• Meets: ABYC P-24, CE, EN 60945
• Neutral warm-up
• Dual engine RPM synchronization for single handle
operation
• Incorporates neutral start protection
• Adjustable control lever drag and detent settings
• Works on 12v systems
• Programmable shiſt delay
• Comes with 30’ of harness to connect actuators
to control head
• Compatible with joystick controls
APPLICATIONS
• Suitable for all engines with mechanical shiſt and
mechanical throttle
• Single or twin engine applications
• Inboards, IO’s and Outboards
• Supports up to three stations
CONTROL UNITS
DUAL ENGINE SYSTEM SHEMATIC
DUAL ENGINE CONTROL HEAD
Control
Head
Trim Switch
(Optional)
CANbus
Control
Cables
Control
Cables
Actuator
Shiſt/Throttle
Universal trim
Trim feature
integrated in the
handle
Handle position
Indicator lights
Modes of operation
Switch between stations Single handle control for
dual engines
Mode selection
Engine warm-up, Trolling mode
Indicator lights
Modes of operation
Handle position
OXE PSHEET CONTROLS 18.11-1000
