OXE DISPLAY SYSTEM
FUNCTIONS & TECHNICAL SPECIFICATION
OXE Display System has utilized the most well known and
available display hardware on the market and Cimco Marine
technicians have developed our own unique soſtware
system to give maximum performance, information and
setting access possible. Fully compatible with NMEA 2000,
OXE displays offer ease of operation in a design adapted for
any console.
THE 3.5” DISPLAY UNIT
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
THE 7” DISPLAY UNIT
OUTBOARD DISPLAY COMPARISON
The OXE 3.5” display is a highly flexible
and rugged colour CANbus display,
using the powerful Freescale iMX
286 (running at 454 MHZ). The 3.5”
display is the perfect choice for single
installation on smaller, compact craſt or
for when the operator requires separate
display capability for multi installation
configurations.
The OXE 7” display is full- featured display that integrates vital
engine, transmission and diagnostic information into an easy to
read operators interface. The 7” display is capable of displaying
three separate engines and their respective functions, offers
increased diagnostic access and data storage capability.
No of engines
Battery voltage
Boost pressure
Data logger
Distance to empty
Distance traveled
ECU Temp
Engine coolant temp
Engine information (sw, s/n, etc)
Engine load
Engine oil pressure
Engine oil temp
Engine speed rpm
Exhaust gas temp
Fault code indication
Fuel level (if tank sender is available)
Fuel rail pressure
Fuel rate average per distance
Fuel rate average per hour
Fuel rate per distance
Fuel rate per hour
Fuel used
Gear indication (FNR)
Gearbox oil pressure
Intake manifold temp
Propeller speed
Rudder position (Seastar EPS)
Service reminder
Speed
Speed average
Speed maximum
Throttle position
Time to empty
Total engine hours
Trim (angle)
Trolling %
Trolling indication
1 3

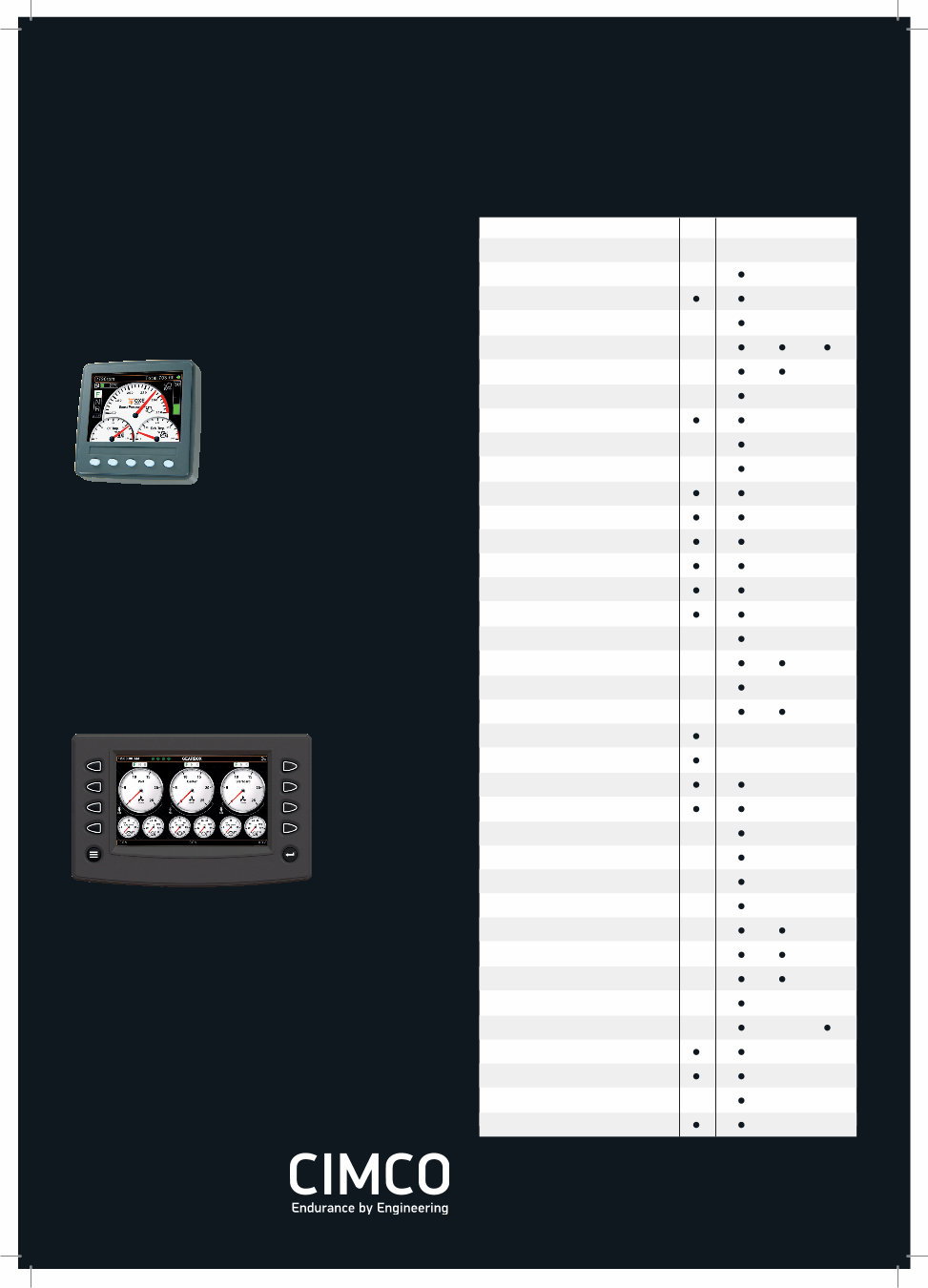

FEATURE 3.5” 7” DISPLAY
AVAILABILITY OF:
GPS TANK SENDER
• -QVVA Graphical high resolution 320*240 color TFT LCD
• -Fully sealed to IP66 (Front) and IP67 (Back)
• -Compact design
• -Supports 1 OXE Diesel engine
• CAN-Based display with rich, full-color graphics
• Bonded, glare-free LCD screen, viewable in direct sunlight
• Rugged design for extreme environments
• Capability to support up to 3 OXE Diesel engines
OXE PSHEET OILS 18.11-1000
