POWERDRIVE BOW-MOUNT TROLLING MOTOR OWNER'S MANUAL

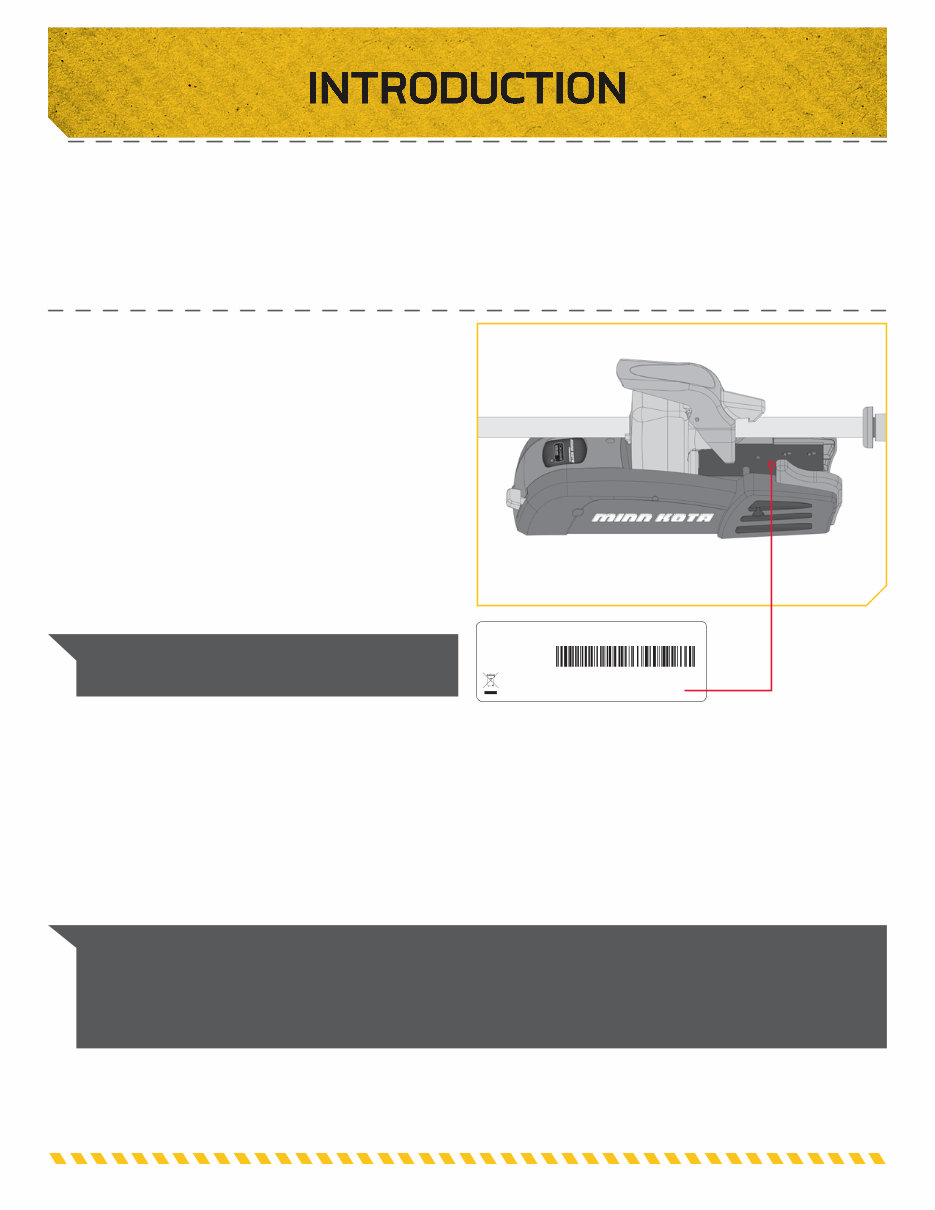

2 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc. Made by Minn Kota Johnson Outdoors Marine Electronics, Inc. 121 Power Drive Mankato, MN 56001 USA Trolling Motors Produced in 2012 POWERDRIVE 55/IP-54"_BT MODEL 1358744 SER NO R365 MK12345 NOTE: The serial number on your PowerDrive is located inside the mount below the motor rests. EXAMPLE THANK YOU Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fish. Model: __________________________________________________________________________________________________________________________ Serial Number: ________________________________________________________________________________________________________________ Purchase Date: ________________________________________________________________________________________________________________ Store Where Purchased: _____________________________________________________________________________________________________ REGISTRATION Remember to keep your receipt and immediately register your trolling motor. A registration card is included with your motor or you can complete registration on our website at minnkotamotors.com. SERIAL NUMBER Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number down so that you have it available for future reference. NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota at (800) 227-6433; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the above options. MOTOR INFORMATION (FOR CONSUMER REFERENCE ONLY)

minnkotamotors.com | 3 ©2016 Johnson Outdoors Marine Electronics, Inc. TABLE OF CONTENTS SAFETY CONSIDERATIONS ..................................................................................................... 4 WARRANTY ....................................................................................................................................... 5 KNOW YOUR BOAT ........................................................................................................................ 6 FEATURES .......................................................................................................................................... 7 INSTALLATION................................................................................................................................. 8 Installing the PowerDrive .............................................................................................................. 9 Routing Universal Sonar .............................................................................................................. 13 Connecting a Universal Sonar Extension Cable ................................................................... 15 BATTERY & WIRING INSTALLATION ................................................................................ 16 Boat Rigging & Product Installation ......................................................................................... 16 Conductor Gauge and Circuit Breaker Sizing Table.............................................................. 16 Selecting the Correct Batteries ..................................................................................................17 Additional Considerations .............................................................................................................17 Connecting the Batteries .............................................................................................................. 18 Connecting the Batteries in Series ............................................................................................ 19 MOTOR WIRING DIAGRAM ................................................................................................... 20 USING & ADJUSTING THE MOTOR .....................................................................................23 Mount Features ..............................................................................................................................23 Stowing and Deploying the Motor ........................................................................................... 24 Push-to-Test Battery Meter....................................................................................................... 24 Adjusting the Depth of the Motor ............................................................................................ 24 Adjusting the Latch Collar ...........................................................................................................25 Installing an External Transducer ............................................................................................. 26 Adjusting the Lower Unit for a Secure Stow...........................................................................27 USING THE FOOT PEDAL ........................................................................................................ 28 Controlling Speed & Steering with the Foot Pedal ............................................................. 28 AUTOPILOT ..................................................................................................................................... 30 SERVICE & MAINTENANCE ....................................................................................................32 Propeller Replacement .................................................................................................................32 General Maintenance .................................................................................................................... 33 Troubleshooting.............................................................................................................................. 33 COMPLIANCE STATEMENTS .................................................................................................35 PARTS DIAGRAM & PARTS LIST......................................................................................... 37

WARNING It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use the product and approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep all factory installed parts in place including motor and accessory covers, enclosures and guards. 4 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc. Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision. WARNING You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn Kota product in an area free from hazards and obstacles. WARNING Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not be covered by warranty. WARNING Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for floating objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2. WARNING When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of unexpected operation, remove power leads from the battery.

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not transferable. Minn Kota Limited Two-Year Warranty on the Entire Product JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota freshwater trolling motor will be materially free from defects in materials and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty. Minn Kota Limited Lifetime Warranty on Composite Shaft JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to install, any new composite shaft provided by JOME. Exclusions & Limitations This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty does not cover normal wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT. Minn Kota Service Information To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email service@ minnkotamotors.com. Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour. NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products. NOTE: THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for loss of use of product, loss of time, inconvenience or other damage. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. minnkotamotors.com | 5 ©2016 Johnson Outdoors Marine Electronics, Inc.

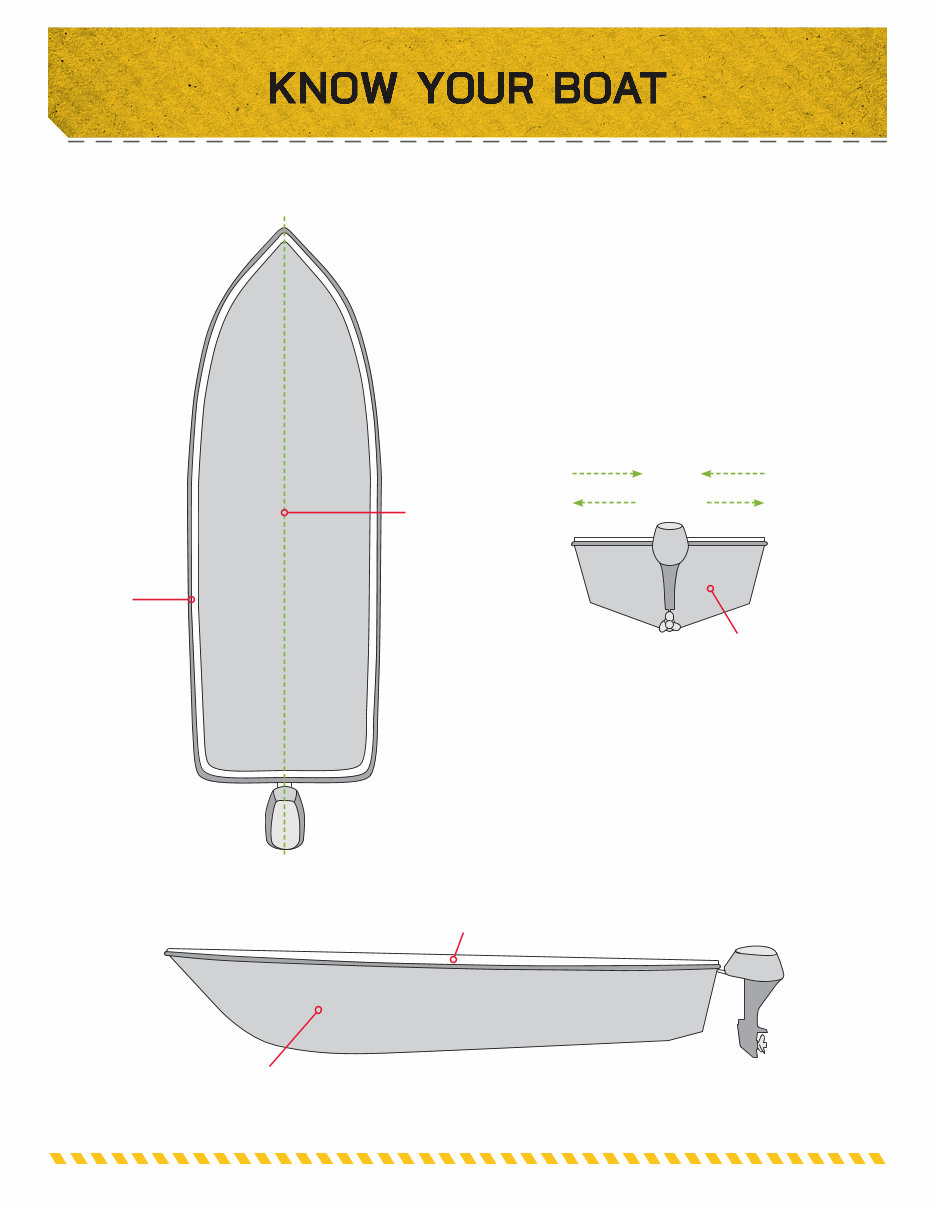

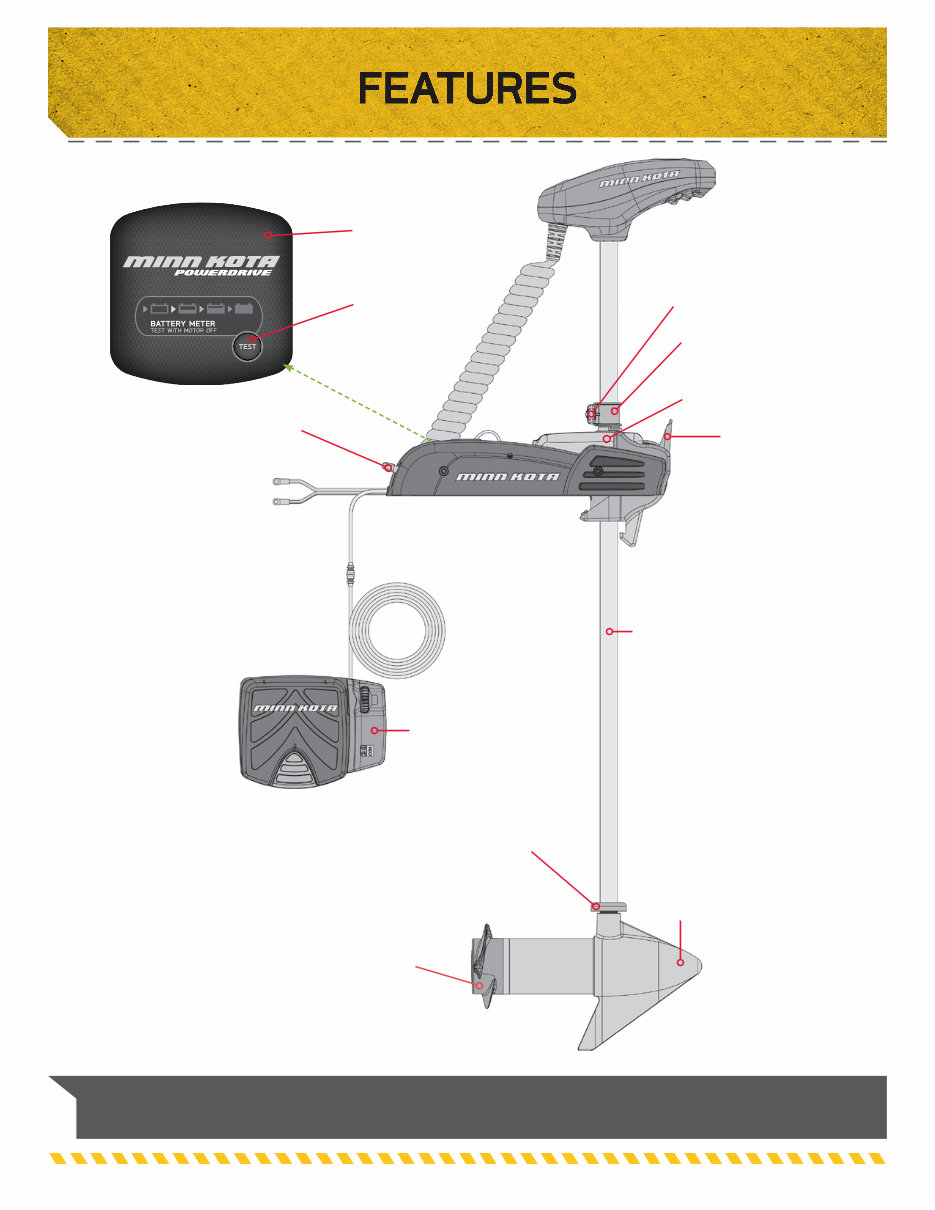

Low Profile Foot Pedal Latch Collar minnkotamotors.com | 7 ©2016 Johnson Outdoors Marine Electronics, Inc. NOTE: Specifications subject to change without notice. This diagram is for reference only and may differ from your actual motor. Adjustable Depth Collar Steering Housing Lifetime Warranty Flexible Composite Shaft Cool Quiet Power Motor Deploy-Assist Lever Indicator Panel Push-to-Test Battery Meter Tilt Lock Lever Depth Collar Knob Propeller

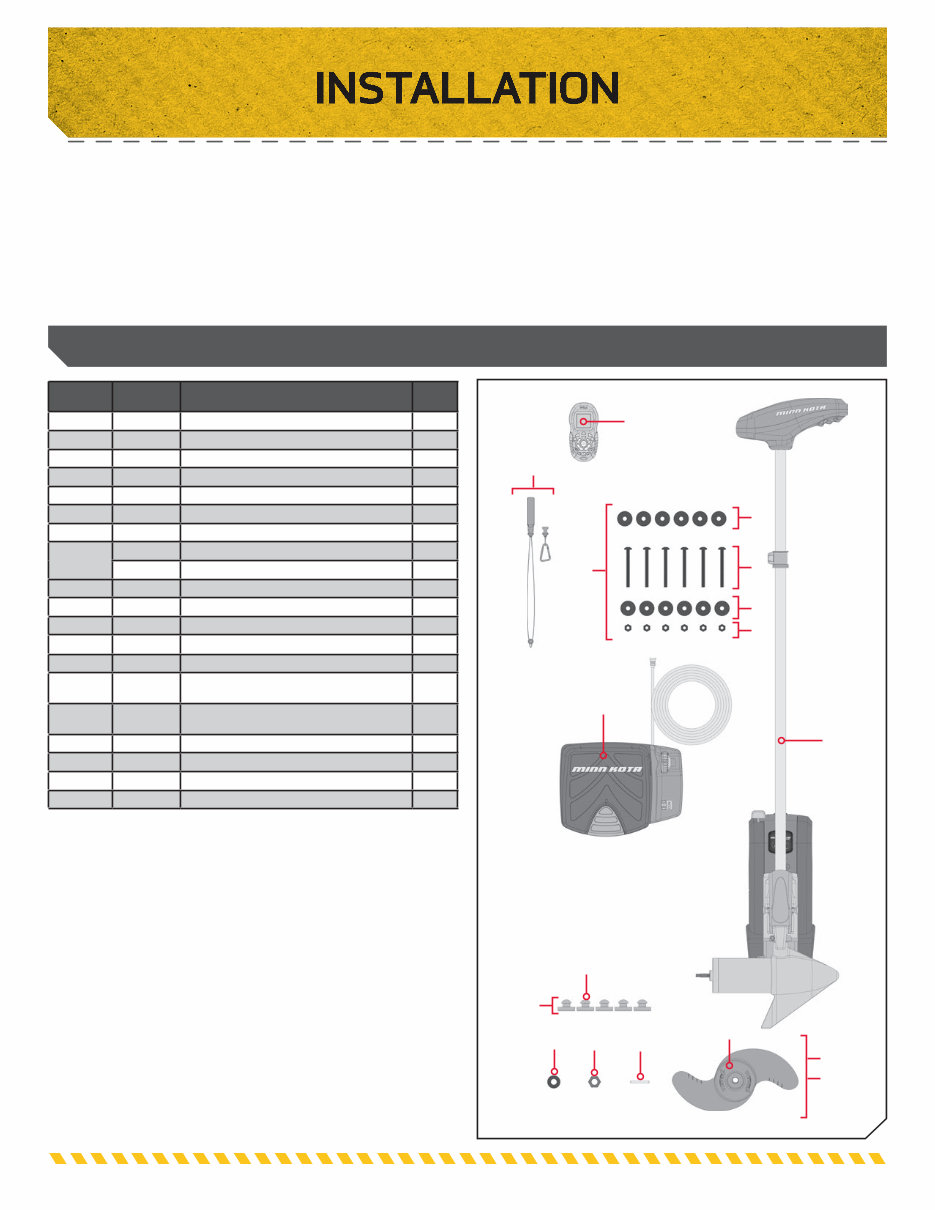

Item / Assembly Part # Description Qty. A 2994864 BAG SEMBLY - (BOLT, NUT, WHERS) 1 1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6 2 2261713 WASHER-1/4 6 3 2263103 NUT NYLOK 1/4-20 MTG 6 4 2301720 WASHER-MOUNTING RUBBER 6 U 1378131 PROP IND 2091160 (WDLS WDGII) 1 V 1378121 PROP IND 2061122 (PWR PROP) 1 5 2091160 PROP-WW2 (3 5/8") REAMED SUB) 1 2061122 PROP-POWER (3.25") 1 6 2151726 WASHER-5/16 SS 1 7 2053101 NUT-PROP NYLOC 1 8 2092600 PIN-DRIVE 1.06" LG SS 1 9 ✖ MOTOR ASSEMBLY 1 10 2994727 FOOT PEDAL ASSEMBLY, PD 1 12 2390800 t LANYARD, REMOTE W/ CARABINER 1 13 2994075 t REMOTE ASSEMBLY, IPILOT 1 15 2397101 MANUAL, QUICK REF., iPILOT 1.6 1 16 2317122 MANUAL-INSTALL GUIDE, POWERDRIVE 1 Z 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS 1 17 2325110 PAD, FOOT PEDAL PD 5 10 2 3 6 7 8 5 9 13 4 1 12 A U V ✖ This part is included in an assembly and cannot be ordered individually. t Only available with models factory installed with i-Pilot. Z 17 8 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc. INSTALLING THE POWERDRIVE Your new PowerDrive comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate your nearest dealer, visit minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional product support, please visit minnkotamotors.com. INSTALLATION PARTS LIST

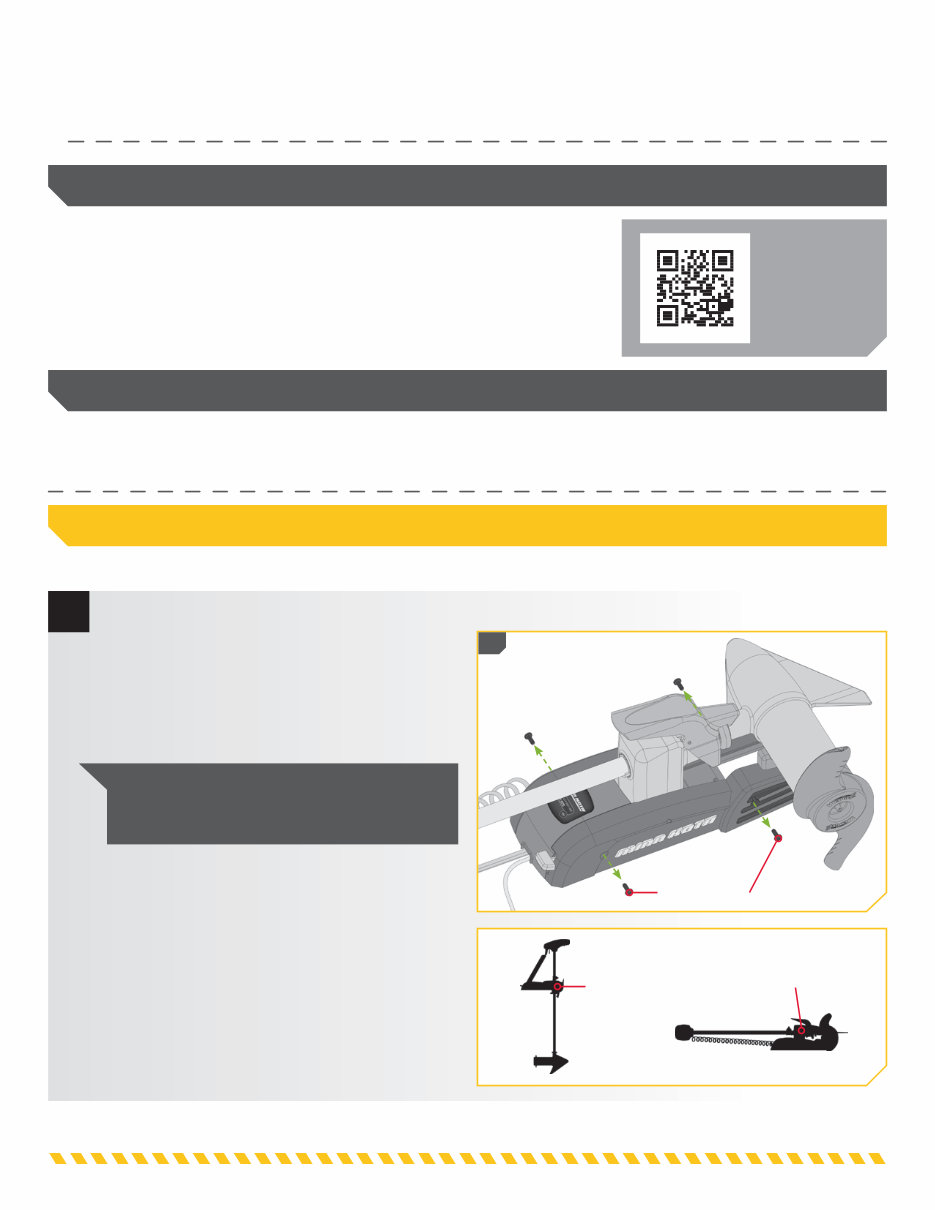

minnkotamotors.com | 9 ©2016 Johnson Outdoors Marine Electronics, Inc. INSTALLING THE POWERDRIVE • #3 and #2 Phillips Screw Driver • Drill • 9/32” Drill Bit • 7/16” Box End Wrench • A second person to help with the installation MOUNTING CONSIDERATIONS TOOLS AND RESOURCES REQUIRED INSTALLATION It is recommended that the motor be mounted as close to the centerline of the boat as possible. Make sure the area under the mounting location is clear to drill holes and install nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of the boat. The motor must not encounter any obstructions as it is lowered into the water or raised into the boat when stowed and deployed. Consider a quick release or adapter bracket with the installation of your motor. To view a list of accessories, please visit minnkotamotors.com. Installing the PowerDrive a. Place the mount on an elevated, level surface such as a workbench or the tailgate of a pickup. The motor, as removed from the box, should be in the stowed position. b. Remove the four sideplate screws using a #3 or #2 Phillips screwdriver. Two of these screws will be located on each side of the mount. 1 NOTE: This motor weighs approximately 30 lbs. We recommend having a second person help with the installation. Deployed Stowed Sideplate Screw 1b View accessories available for your trolling motor at minnkotamotors. com.

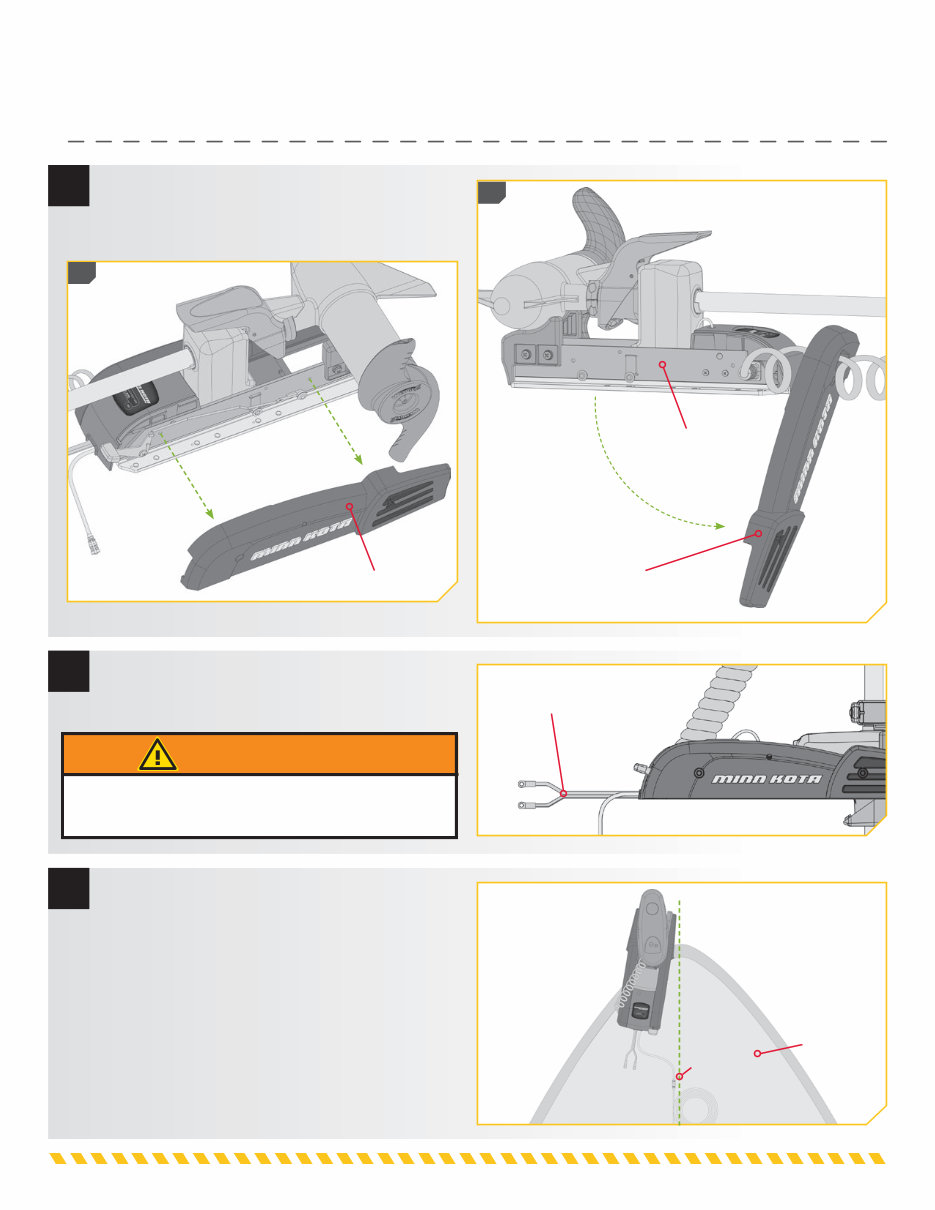

10 | minnkotamotors.com ©2016 Johnson Outdoors Marine Electronics, Inc. INSTALLING THE POWERDRIVE c. Remove the Right Sideplate. d. Swing the Left Sideplate out and away from the Base Extrusion. 2 e. Make sure that the Power Cables from the battery are disconnected, or that the breaker, if equipped, is "oﬀ". f. Place the mount as close to the centerline or keel of the boat as possible. The motor can be installed on either the Port or Starboard side of the boat based on personal preference. Check placement with the motor in the stowed and deployed positions. Review the mounting considerations at the beginning of the installation. 3 4 2c 2d Deck of Boat Keel Right Sideplate Power Cables Left Sideplate Base Extrusion WARNING Make sure the motor is mounted on a level surface and is not connected to a power source.
