Minn Kota i-Pilot Link Quick Reference Guide [, ENG, 11 MB]

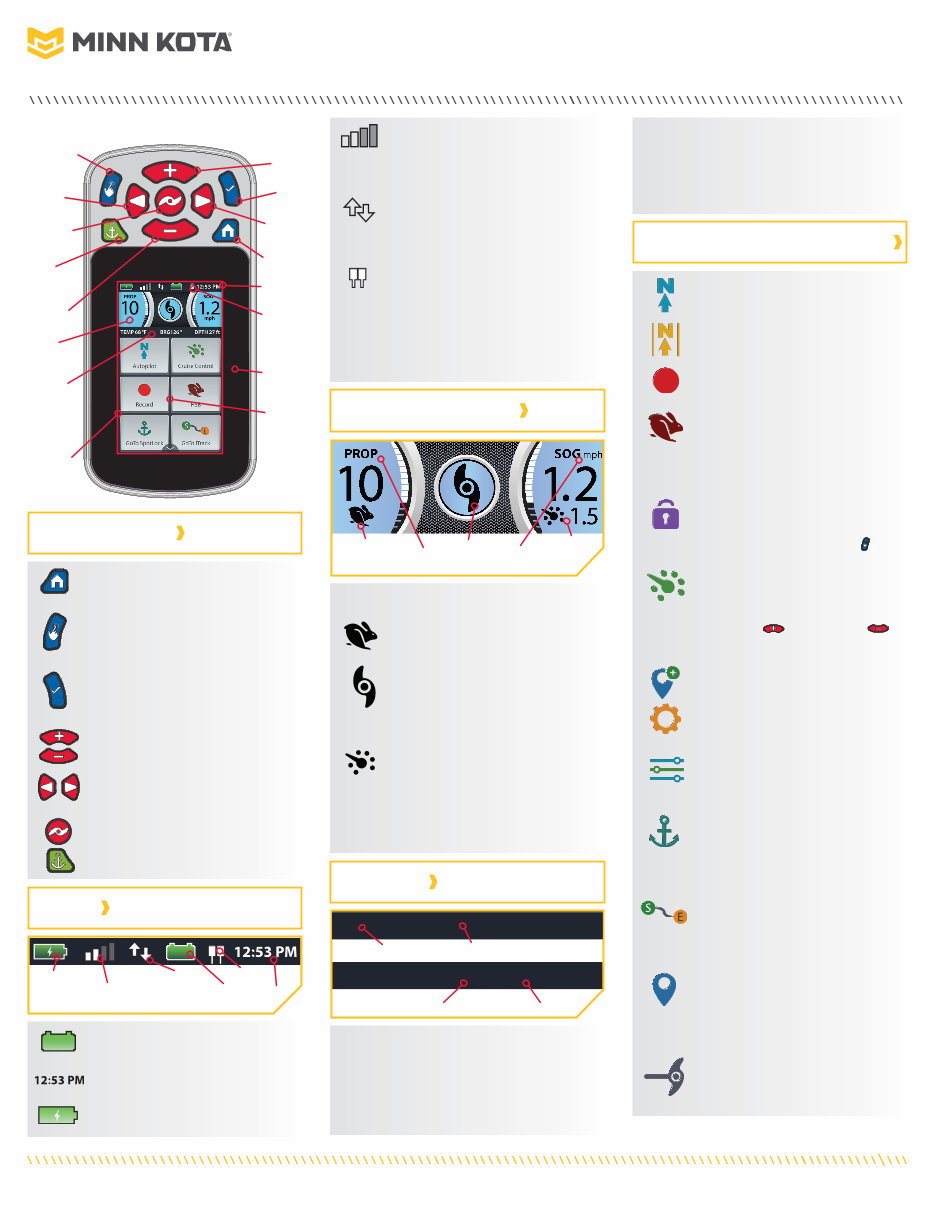

TEMP 65 °F DPTH 5 ft HDG 255° TEMP 72 °F DPTH 1 ft BRG 359° TEMP 72 °F DPTH 1 ft BRG 359° Screen Navigation Ok Speed Up Speed Down Dashboard Info Boxes Prop On/Off Steer Left Steer Right Spot-Lock Home i-PILOT® LINK™ REMOTE Header Display Screen Content Area i-PILOT® LINK™ QUICK REFERENCE GUIDE Compatible with all Bluetooth ® enabled i-Pilot ® Link TM Systems Home Press to bring up the Home Screen Buttons. Screen Navigation Press to navigate the menu without touching the screen. Press and hold to lock and unlock the remote. Ok Press to accept menu selections. Press to power remote on. Press and hold for 3 seconds to power remote off. Speed Up & Speed Down Press to increase or decrease motor speed. Steer Left & Steer Right Press to steer the motor to the left or to the right. Prop On/Off Press to turn the Prop on and off. Spot-Lock Press to enable and disable Spot-Lock. PROP SOG mph 1.5 GPS Signal Strength Motor Battery Time Talon Remote Battery Humminbird Connection Motor Battery t n Displays motor battery level when prop is disengaged. Time Displays the current time. Remote Battery Displays the battery level of the remote. Speed Over Ground Displays the current speed over ground. High Speed Bypass Displays when High Speed Bypass is engaged. Prop On/Off Displays when the Prop is enabled. Rotates when the Prop is on and the Prop Speed is greater than zero. Blinks when a mode of navigation is used that requires the prop to be enabled. Cruise Control Displays when Cruise Control is engaged along with the Target Speed. Prop Speed Displays the current Prop Speed. Can be adjusted in 1/2 speed increments between 0 and 10. PROP SOG Speed Over Ground Prop On/Off Cruise Control Prop Speed High Speed Bypass Legacy AutoPilot The AutoPilot button is used to engage and disengage Legacy AutoPilot. Advanced AutoPilot The AutoPilot button is used to engage and disengage Advanced AutoPilot. Record The Record button is used to start and stop recording an iTrack. HSB Select the HSB (High Speed Bypass) button to engage High Speed Bypass. High Speed Bypass automatically sets the Prop speed to 10. Double press to engage. Single press to disengage. Lock Keys Select the Lock button to lock the buttons and touch screen. Pressing and holding the Screen Navigation button also locks and unlocks the remote. Cruise Control Press the Cruise Control button to enable or disable Cruise Control. Once Cruise Control is enabled, pressing the Speed Up or Speed Down buttons will change the Target Speed rather than the Prop Speed. Mark Waypoint Press to mark a Waypoint. Settings Press the Settings button to open the Settings menu and adjust settings within the i-Pilot Link system. Options Press the Options button to open the Options menu and adjust options within the i-Pilot Link system. Go To Spot-Lock The Go To Spot-Lock button is used to open a menu used to navigate to a Spot-Lock location. The i-Pilot Link system will only bring up Spot-Locks within a quarter mile range. Go To iTrack The Go To iTrack button is used to open a menu used to navigate to an iTrack. The i-Pilot Link system will only bring up iTracks within a quarter mile range. Go To Waypoint The Go To Waypoint button is used to open a menu used to navigate to a Waypoint location. The i-Pilot Link system will only bring up Waypoints within a quarter mile range. Ulterra t The Ulterra button is used to access functions specific to controlling the Ulterra. Bearing Bearing is the direction from the boat's current location to the target destination during navigation. Heading Heading is the direction that the motor is pointing. Depth Bearing Temperature Heading BRG HDG t Only available with Ulterra. n Only available with Ultrex. i-PILOT LINK HOME SCREEN BUTTONS INFO BOXES i-PILOT LINK DASHBOARD CONTROL BUTTONS HEADER TEMP DPTH Temperature The current water temperature based on communication with the Humminbird. Depth The current water depth based on communication with the Humminbird. Touch Screen Active Area Talon GPS Signal Strength Displays the level of GPS signal strength. If no bars appear, or if the bars are flashing, the system has not yet acquired a GPS fix. Humminbird Connection Displays white arrows to show when the i-Pilot Link controller is communicating with the Humminbird. Grey arrows indicate that there is no communication. Talon Displays the connection with one or two Talons and indicates if the Talon(s) are deployed. One Icon will display in the event that one Talon is paired, and two will display if two Talons are paired. The icons will turn grey to indicate that the Talon(s) is not connected. minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.

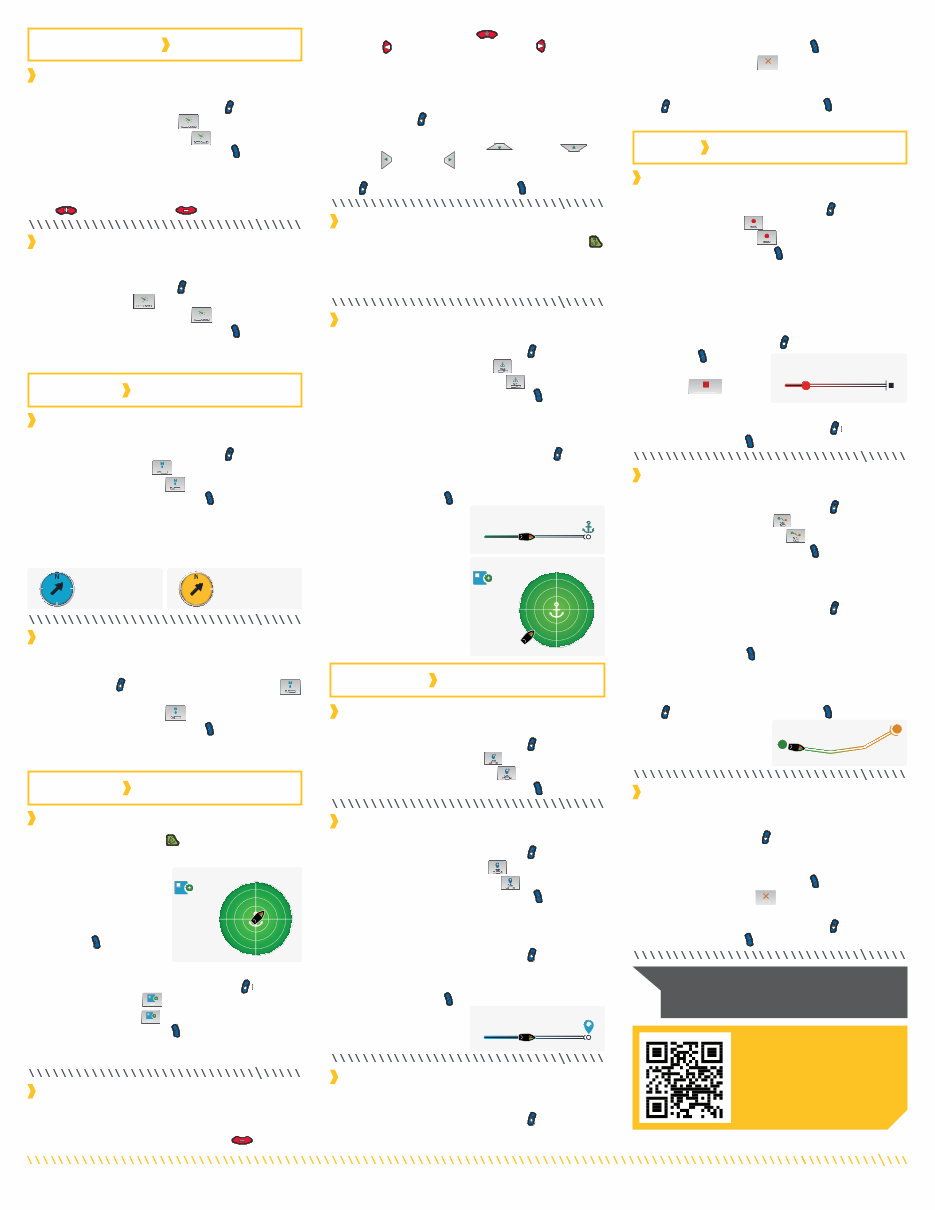

1. When Cruise Control is engaged, scroll through the Content Area using your finger or the Screen Navigation button to find the Cruise Control C ruise C o n t r ol button. 2. Select the Cruise Control C ruise C o n t r ol button using your finger or by pressing the Ok button. 3. The Cruise Control Target Speed will disappear from the Dashboard. 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the AutoPilot A u t opilot button. 2. Select the AutoPilot A u t opilot button using your finger or by pressing the Ok button. 3. The AutoPilot Active Band will appear in the Content Area. Either Legacy AutoPilot or Advanced AutoPilot will be engaged depending on the AutoPilot Mode selected. 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Mark Waypoint a a r r k k W a ypoi n t button. 2. Select the Mark Waypoint a a r r k k W a ypoi n t button using your finger or by pressing the Ok button. 1. Press the Spot-Lock button. 2. The Spot-Lock Active Band will appear in the Content Area. 3. To save the Spot-Lock, select the Spot-Lock Active Band using your finger or by pressing the Ok button. 4. Scroll through the Spot-Lock Control Screen using your finger or by pressing the Screen Navigation button to find the Save Save button. 5. Select the Save Save button using your finger or by pressing the Ok button to save the Spot-Lock. The Save icon will disappear from the Active Band. 1. With Spot-Lock engaged, press the Spot-Lock button on the remote to disengage Spot-Lock. 2. The Spot-Lock Active Band will disappear from the Content Area. (Heading Sensor required.) 1. To engage Spot-Lock Jog, first engage Spot-Lock. Use the Speed Down (jog 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Go To Spot-Lock G G o o T T o o o o T T T T Spot- L ock button. 2. Select the Go To Spot-Lock G G o o T T o o o o T T T T Spot- L ock button using your finger or by pressing the Ok button. A list of Spot-Locks that are within a quarter mile will appear. 3. Scroll through the list of Spot-Locks using your finger or the Screen Navigation button to find a Spot-Lock. 4. Select the Spot-Lock using your finger or pressing the Ok button. 5. The Spot-Lock Active Band will appear in the Content Area. The appearance of the Active Band will vary depending on the distance between the current location and the selected Spot-Lock. Part #2397107 Rev A 08/18 ECN 39363 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Cruise Control C ruise C o n t r ol button. 2. Select the Cruise Control C ruise C o n t r ol button using your finger or by pressing the Ok button. 3. The Cruise Control target speed will appear in the Dashboard. The Target Speed can be increased and decreased using the Speed Up and Speed Down buttons. 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Record R e c o r d button. 2. Select the Record R e c o r d button using your finger or by pressing the Ok button. The iTrack Active Band will appear in the Content Area. 3. Engage the Prop and manually navigate the desired course. 4. To Save the recording, select the iTrack Active Band using your finger or by scrolling to it with the Screen Navigation button and pressing the Ok button. 5. Select the Stop and Save StopandSave iTrack button from the iTrack Control Screen using your finger or by scrolling to it with the Screen Navigation button and pressing the Ok button. 1. When AutoPilot is engaged, scroll through the Content Area using your finger or the Screen Navigation button to find the AutoPilot A u t opilot button. 2. Select the AutoPilot A u t opilot button using your finger or by pressing the Ok button. 3. The AutoPilot Active Band will disappear from the Content Area. 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Go To Waypoint G G o o T T o o o o T T T T W a ypoi n t button. 2. Select the Go To Waypoint G G o o T T o o o o T T T T W a ypoi n t button using your finger or by pressing the Ok button. A list of Waypoints that are within a quarter mile will appear. 3. Scroll through the list of Waypoints using your finger or the Screen Navigation button to find a Waypoint to navigate to. 4. Select the Waypoint using your finger or by pressing the Ok button. 5. The Waypoint Active Band will appear in the Content Area. 1. When Go To Waypoint is engaged, scroll through the Content Area using either your finger or the Screen Navigation button to find the Waypoint Active Band. Autopilot Legacy Autopilot Advanced 146 ft WP1210 Distance 0 ft SL0163 100 ft SL0000000163 Distance 100 ft SL0000000163 1. Scroll through the Content Area using your finger or the Screen Navigation button to find the Go To iTrack G G o o T T o o o o T T T T i T r ack button. 2. Select the Go To iTrack G G o o T T o o o o T T T T i T r ack button using your finger or by pressing the Ok button. A list of iTracks that are within a quarter mile will appear. 3. Scroll through the list of iTracks using your finger or the Screen Navigation button to find an iTrack. 4. Select the iTrack using your finger or by pressing the Ok button. 5. Decide to navigate To Start or To End and select the appropriate button using your finger or by scrolling to it with the Screen Navigation button and pressing the Ok button. 6. The iTrack Active Band will appear in the Content Area. 1. When Go To iTrack is engaged, scroll through the Content Area using your finger or the Screen Navigation button to find the iTrack Active Band. 2. Select the iTrack Active Band using your finger or by pressing the Ok button. 3. Select the Cancel Cancel button from the iTrack Control Screen using your finger or by scrolling to it with the Screen Navigation button and pressing the Ok button to select it. 0 ft IT0000000006 S E backward), Speed Up (jog forward), Steer Left (jog left), and Steer Right (jog right) buttons to jog the Spot-Lock location 5 feet in the selected direction from the current Spot- Lock location. 2. To Jog the Spot-Lock location with the Screen Navigation button, select the Spot-Lock Active Band to open the Spot-Lock Control Screen. Select the Back Back ,Forward Forward , Left Left , or Right Right buttons using your finger or by scrolling to one with the Screen Navigation button and pressing the Ok button. 2. Select the Waypoint Active Band using your finger or by pressing the Ok button. 3. Select the Cancel Cancel button from the Waypoint Control Screen using your finger or by scrolling to it with the Screen Navigation button and pressing the Ok button to select it. 163 ft IT0000200163 NOTICE: For i-Pilot Link features that can be activated from the Humminbird, please refer to your Humminbird manual. Scan to view the complete i-Pilot Link Owner’s Manual online. SPOT-LOCK CRUISE CONTROL AUTOPILOT WAYPOINTS iTRACK Engaging Cruise Control Disengaging Cruise Control Disengaging Spot-Lock Recording an iTrack Go To a Saved Spot-Lock Engaging AutoPilot Disengaging AutoPilot Engaging Spot-Lock Mark a Waypoint Disengage Go To iTrack Go To a Saved Waypoint Spot-Lock Jog Disengage Go To Waypoint Go To a Saved iTrack
