3
C
SERVICE PROCEDURES
90-881980R1 NOVEMBER 2001 Page 3C-1
ELECTRONIC FUEL INJECTION
Section 3C - Service Procedures
Table of Contents
Specifications 3C-2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tools 3C-2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intake Silencer 3C-4 . . . . . . . . . . . . . . . . . . . . . . . . . .
Intake 3C-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Injection Nozzle 3C-8 . . . . . . . . . . . . . . . . . . . .
Fuel Injection Pump 3C-10 . . . . . . . . . . . . . . . . . . . . .
Fuel Pump 3C-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intake Silencer Assembly 3C-14 . . . . . . . . . . . . . . . . .
Removal 3C-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-15 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intake Assembly 3C-16 . . . . . . . . . . . . . . . . . . . . . . . .
Removal 3C-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-19 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Body 3C-22 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 3C-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-24 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle Control Lever and Linkage 3C-25 . . . . . . . .
Removal 3C-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-26 . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Pressure Fuel Line 3C-27 . . . . . . . . . . . . . . . . . .
Releasing Fuel Pressure in the
High-Pressure Fuel Line 3C-27 . . . . . . . . . . . . . . .
Removal 3C-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-29 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Cooler 3C-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal/Installation 3C-30 . . . . . . . . . . . . . . . . . .
Fuel Hoses 3C-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal/Installation 3C-31 . . . . . . . . . . . . . . . . . .
Fuel Injectors 3C-32 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal/Installation 3C-32 . . . . . . . . . . . . . . . . . .
Fuel Rail 3C-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly/Assembly 3C-33 . . . . . . . . . . . . . . . .
Vapor Separator 3C-34 . . . . . . . . . . . . . . . . . . . . . . . .
Removal 3C-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-34 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 3C-35 . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly 3C-37 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Regulator 3C-39 . . . . . . . . . . . . . . . . . . . . . .
Removal/Installation 3C-39 . . . . . . . . . . . . . . . . . .
Idle Speed Control Assembly 3C-40 . . . . . . . . . . . . .
Removal/Installation 3C-40 . . . . . . . . . . . . . . . . . .
Disassembly/Assembly 3C-41 . . . . . . . . . . . . . . . .
Intake Manifold 3C-42 . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly/Assembly 3C-42 . . . . . . . . . . . . . . . .
Throttle Position Sensor 3C-43 . . . . . . . . . . . . . . . . . .
Removal/Installation 3C-43 . . . . . . . . . . . . . . . . . .
Low Pressure Fuel Line/Fuel Pump 3C-44 . . . . . . . .
Removal 3C-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 3C-45 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly/Assembly 3C-46 . . . . . . . . . . . . . . . .
Fuel Filter 3C-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly/Assembly 3C-47 . . . . . . . . . . . . . . . .
Fuel Pump 3C-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 3C-48 . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly 3C-50 . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE PROCEDURES
Page 3C-2 90-881980R1 NOVEMBER 2001
Specifications
FUEL
SYSTEM
Fuel Pump Type
Fuel Pump:
Discharge (@ 3000 rpm)
Pressure (Maximum)
Plunger Stroke
Fuel Tank Capacity
External (Plunger/Diaphragm)
17 gph (65 L/h)
7 psi (49 kPa)
0.23 - 0.36 in. (5.85 - 9.05 mm)
Accessory
FUEL INJECTION
Fuel Injection System
Idle rpm (In Neutral) Warm
Idle rpm (In Forward Gear) Warm
Fuel Pressure @ Rail
Batch (1 & 4) - (2 & 3)
750 ± 50 rpm
700 ± 50 rpm
43.5 psi (300 kPa)

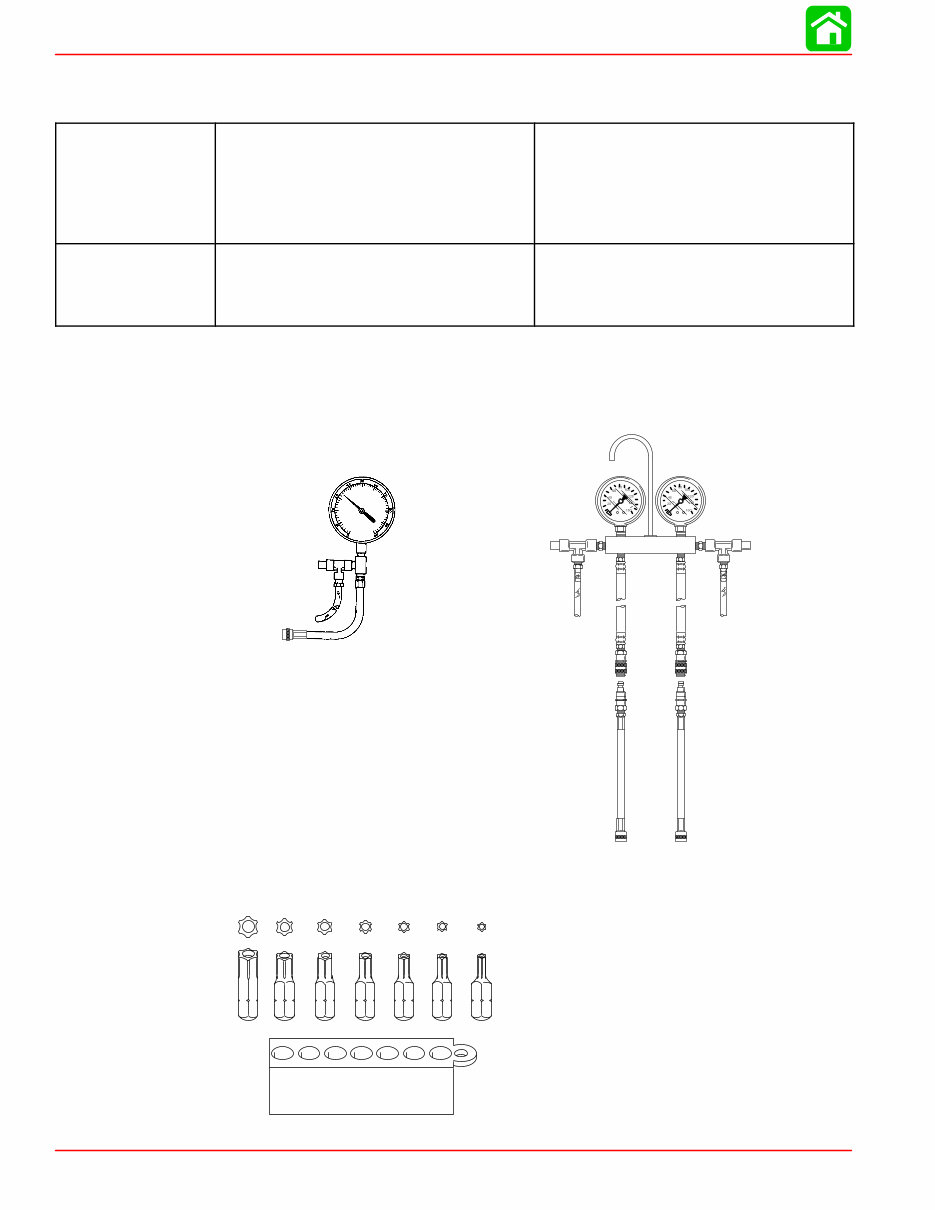

Special Tools
1. Fuel Pressure Gauge 91-16850A7 or Fuel Pressure Gauge 91-852087A3.
51796
91-16850A7
91-852087A3
2. Tamper proof screw torx bit set p/n 91-881828.
SERVICE PROCEDURES
90-881980R1 NOVEMBER 2001 Page 3C-3
Notes:
SERVICE PROCEDURES
Page 3C-4 90-881980R1 NOVEMBER 2001
INTAKE SILENCER
16
17
13
12
20
20
3
3
19
1
2
9
10
11
21
5
6
18
14
15
16
15
8
7
8
8
7
8
4
SERVICE PROCEDURES
90-881980R1 NOVEMBER 2001 Page 3C-5
INTAKE SILENCER
REF
TORQUE
REF .
NO.
QTY. DESCRIPTION lb. in. lb.ft. Nm
1 1 INTAKE SILENCER
2 1 INTAKE AIR TEMPERATURE SENSOR
3 4 O-RING
4 6 BOLT (M6 X 16 MM) 70 7.9
5 2 BOLT (M8 X 20 MM) 13 18
6 1 BRACKET
7 2 BRACKET
8 8 BOLT (M6 X 20 MM) 70 7.9
9 1 INDUCTION SILENCER
10 1 MOUNTING BRACKET
11 1 SCREW (M6 X 20 MM) 70 7.9
12 2 PIN
13 1 GASKET
14 1 BREATHER PIPE
15 2 CLAMP
16 2 BOLT (M6 X 12 MM) 70 7.9
17 1 CLIP
18 1 CLAMP
19 2 BOLT (M6 X 105 MM) 70 7.9
20 5 BOLT (M8 X 40 MM) 13 18
21 1 SCREEN
SERVICE PROCEDURES
Page 3C-6 90-881980R1 NOVEMBER 2001

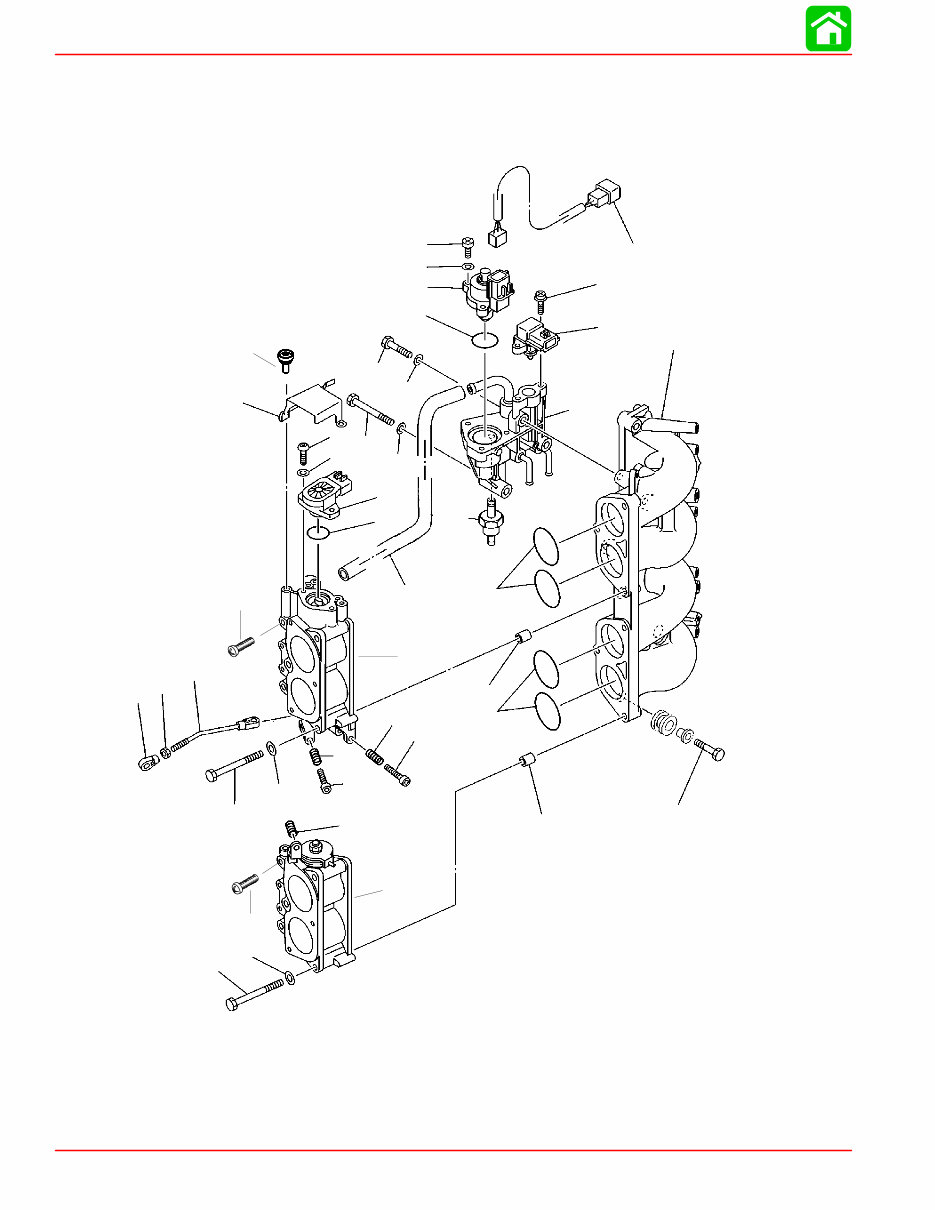

INTAKE
23
22
20
21
34
9
9
33
27
26
29
28
35
32
31
25
1
30
2
3
2
4
3
18
19
24
10
12
11
12
13
6
5
9
8
7
9
8
16
17
15
17
SERVICE PROCEDURES
90-881980R1 NOVEMBER 2001 Page 3C-7
INTAKE
REF
TORQUE
REF .
NO.
QTY. DESCRIPTION lb. in. lb.ft. Nm
1 1 MANIFOLD
2 4 O-RING
3 4 DOWEL PIN
4 3 BOLT
5 1 THROTTLE BODY
6 1 SPRING
7 2 SCREW
8 6 BOLT (M8 X 70 MM) 13 18
9 9 WASHER
10 1 THROTTLE BODY
11 1 SCREW
12 2 SPRING
13 1 SCREW
14 2 SCREW
15 1 LINK JOINT
16 1 LINK JOINT
17 1 NUT
18 1 THROTTLE POSITION SENSOR
19 1 O-RING
20 2 SCREW (M5 X 15 MM) 43 5
21 2 WASHER
22 1 BRACKET
23 3 SCREW (TAMPERPROOF) 40 4.5
24 1 HOSE
– 1 CONTROL VALVE ASSEMBLY
25 1 BODY
26 1 CONTROL VALVE
27 1 O-RING
28 3 SCREW (M4 X 12 MM) 18 2
29 3 WASHER
30 1 FILTER
31 1 MAP SENSOR
32 2 SCREW (M5 X 6 MM) 43 5
33 1 BOLT (M6 X 24 MM) 70 7.9
34 2 BOLT (M6 X 60 MM) 70 7.9
35 1 WIRE HARNESS
SERVICE PROCEDURES
Page 3C-8 90-881980R1 NOVEMBER 2001

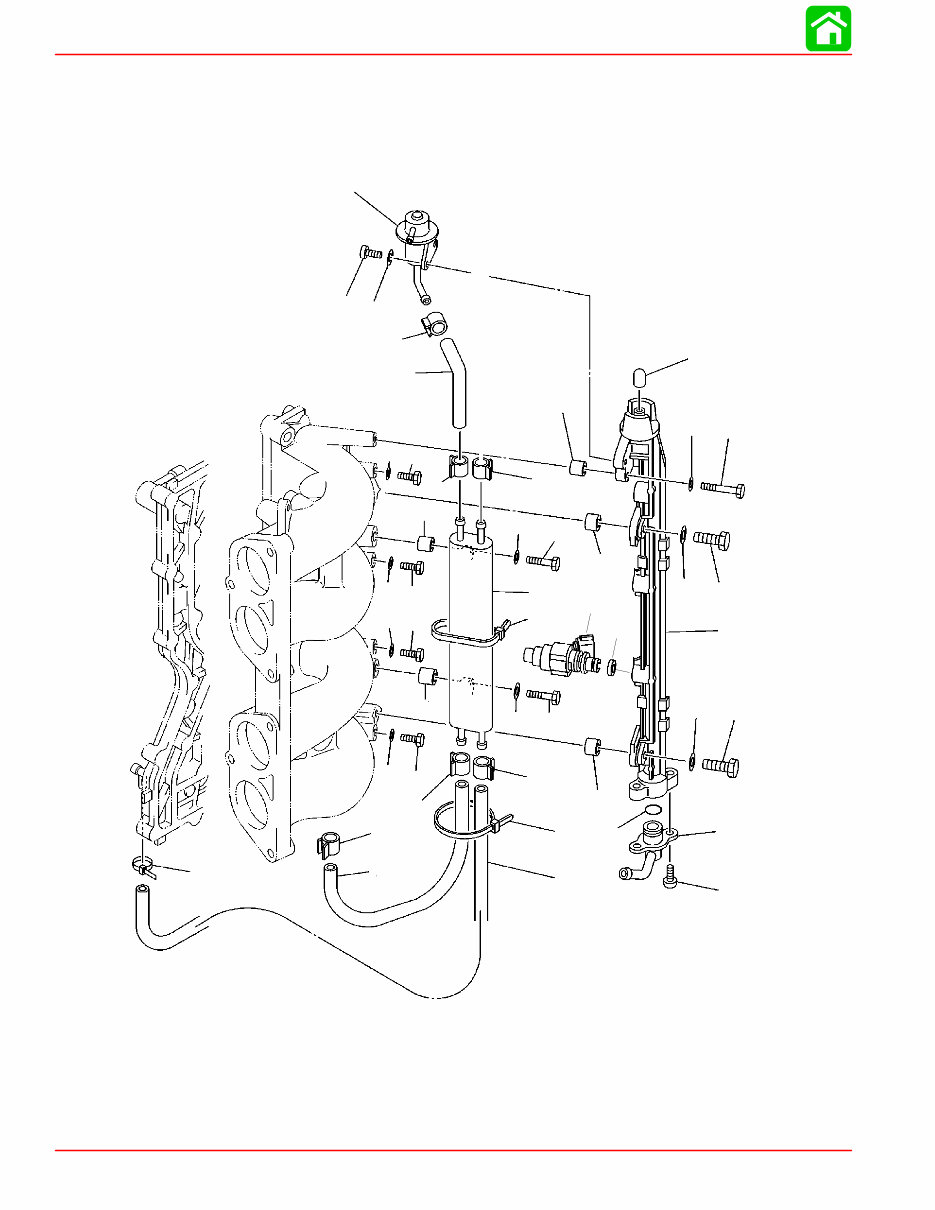

FUEL INJECTION NOZZLE
1
2
3
4
5
9
8
4
7
21
10
13
22
23
24
18
24 23
26
6
27
25
15
14
7
12
13
20
19
14
11
25
12
13
10
9
8
9
8
10
9
8
4
4
16 17
SERVICE PROCEDURES
90-881980R1 NOVEMBER 2001 Page 3C-9
FUEL INJECTION NOZZLE
REF
TORQUE
REF .
NO.
QTY. DESCRIPTION lb. in. lb.ft. Nm
1 1 PRESSURE REGULATOR
2 2 SCREW (M6 X 12 MM) 70 7.9
3 2 LOCKWASHER
4 4 CLIP
5 1 HOSE
6 2 SCREW (M5 X 16 MM) 43 5
7 2 CLIP
8 4 BOLT
9 4 GASKET
10 3 COLLAR
11 1 COOLER
12 2 BOLT (M6 X 30 MM) 70 7.9
13 3 WASHER
14 2 CLAMP
15 1 HOSE
16 1 HOSE
17 1 CLAMP
18 1 FUEL RAIL
19 4 INJECTOR UNIT
20 1 O-RING
21 1 CAP
22 1 BOLT (M6 X 25 MM) 70 7.9
23 2 BOLT (M8 X 45 MM) 13 18
24 2 WASHER
25 2 COLLAR
26 1 NIPPLE
27 1 O-RING
SERVICE PROCEDURES
Page 3C-10 90-881980R1 NOVEMBER 2001

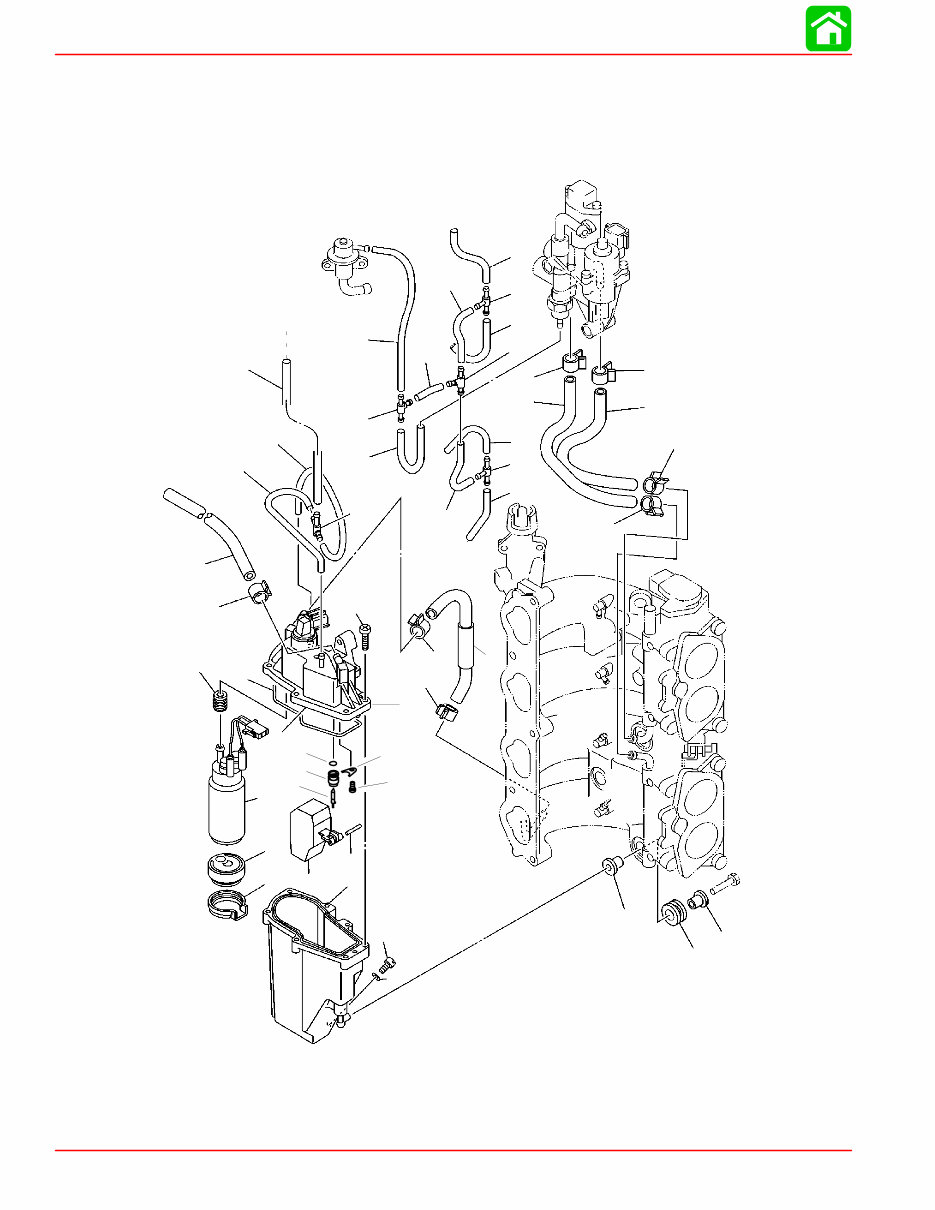

FUEL INJECTION PUMP
A = To fitting in exhaust plate
30
22
22
23
21
20
11
12
13
14
15
5
6
4
16
17
10
1
19
19
18
31
32
31
20
20
28
29
20
20
27
27
23
27
23
27
23
27
27
26
24
23
25
A
3
2
7
8
9
