WRA700T
A1

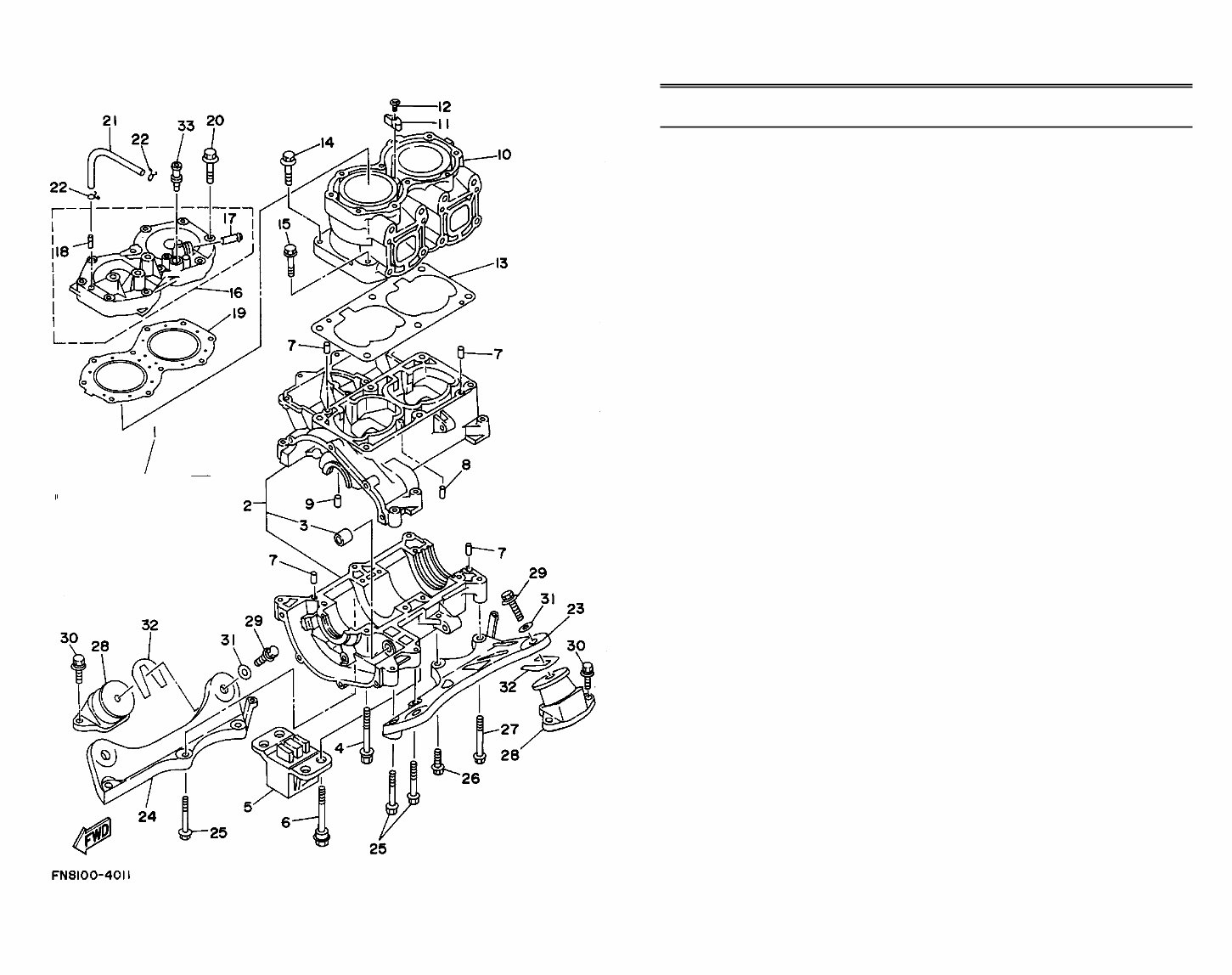

1 62G-W0090-01-4D CRANK CYLINDER ASSEMBLY 1 UR OIL INJECTION
2 61X-15100-00-94 CRANKCASE ASSEMBLY . . . . 1
3 90380-12M29-00 . BUSH, SOLID . . . . . . . . . . . . . 1
4 90119-08M55-00 BOLT, WITH WASHER . . . . . . . 4
5 6R8-44532-00-00 STOPPER, UPPER MOUNT . . . 1
6 90109-08M56-00 BOLT . . . . . . . . . . . . . . . . . . . . 4
7 93606-12019-00 PIN, DOWEL . . . . . . . . . . . . . . 4
8 93603-10049-00 PIN, DOWEL . . . . . . . . . . . . . . 4
9 93604-07141-00 PIN, DOWEL . . . . . . . . . . . . . . 1
10 61X-11311-00-94 CYLINDER 1 . . . . . . . . . . . . . . 1
11 6E5-11325-00-00 ANODE . . . . . . . . . . . . . . . . . . 1
12 98780-04015-00 SCREW, FLAT HEAD . . . . . . . . 1
13 6M6-11351-A1-00 GASKET, CYLINDER . . . . . . . . 1
14 90119-10M56-00 BOLT, WITH WASHER . . . . . . . 4
15 90119-10M07-00 BOLT, WITH WASHER . . . . . . . 2
16 61X-11111-00-94 HEAD, CYLINDER 1 . . . . . . . . . 1
17 6K8-51129-00-00 . NIPPLE . . . . . . . . . . . . . . . . . 1
18 6R7-14485-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1
19 61X-11181-A0-00 GASKET, CYLINDER HEAD 1 . 1
20 90119-08M19-00 BOLT, WITH WASHER . . . . . . . 10
21 90445-07M19-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
22 90467-06016-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
23 6R7-21415-00-94 BRACKET, FRONT UPPER 1 . . 1
24 6R7-21425-00-94 BRACKET, REAR UPPER 1 . . . 1
25 97513-10570-00 BOLT, WITH WASHER . . . . . . . 5
26 97513-10535-00 BOLT, WITH WASHER . . . . . . . 1
27 97513-10580-00 BOLT, WITH WASHER . . . . . . . 1
28 6M6-44517-00-5B MOUNT RUBBER . . . . . . . . . . . 4
29 90119-08904-00 BOLT, WITH WASHER . . . . . . . 4
CONTINUED ON NEXT FRAME ➤
CYLINDER - CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A2
WRA700T
30 90119-08038-00 BOLT, WITH WASHER . . . . . . . 8
31 EU0-67324-00-00 WASHER, PLATE . . . . . . . . . . . 4
32 EU0-U7354-00-01 SHIM (T=0.1) . . . . . . . . . . . . . . 10 UR
EU0-U7354-00-03 SHIM (T=0.3) . . . . . . . . . . . . . . 10 UR
EU0-U7354-00-05 SHIM (T=0.5) . . . . . . . . . . . . . . 10 UR
EU0-U7354-00-10 SHIM (T=01.0) . . . . . . . . . . . . . 10 UR
EU0-U7354-00-20 SHIM (T=2.0) . . . . . . . . . . . . . . 10 UR
33 ABB-FLUSH-JD-00 PLUG, WATER CHECK
(6E0-28193-00-94) . . . . . . . . . . 1 UR
CYLINDER - CRANKCASE
Ref. Part
No. Number Description Qty Remarks
A3
WRA700T

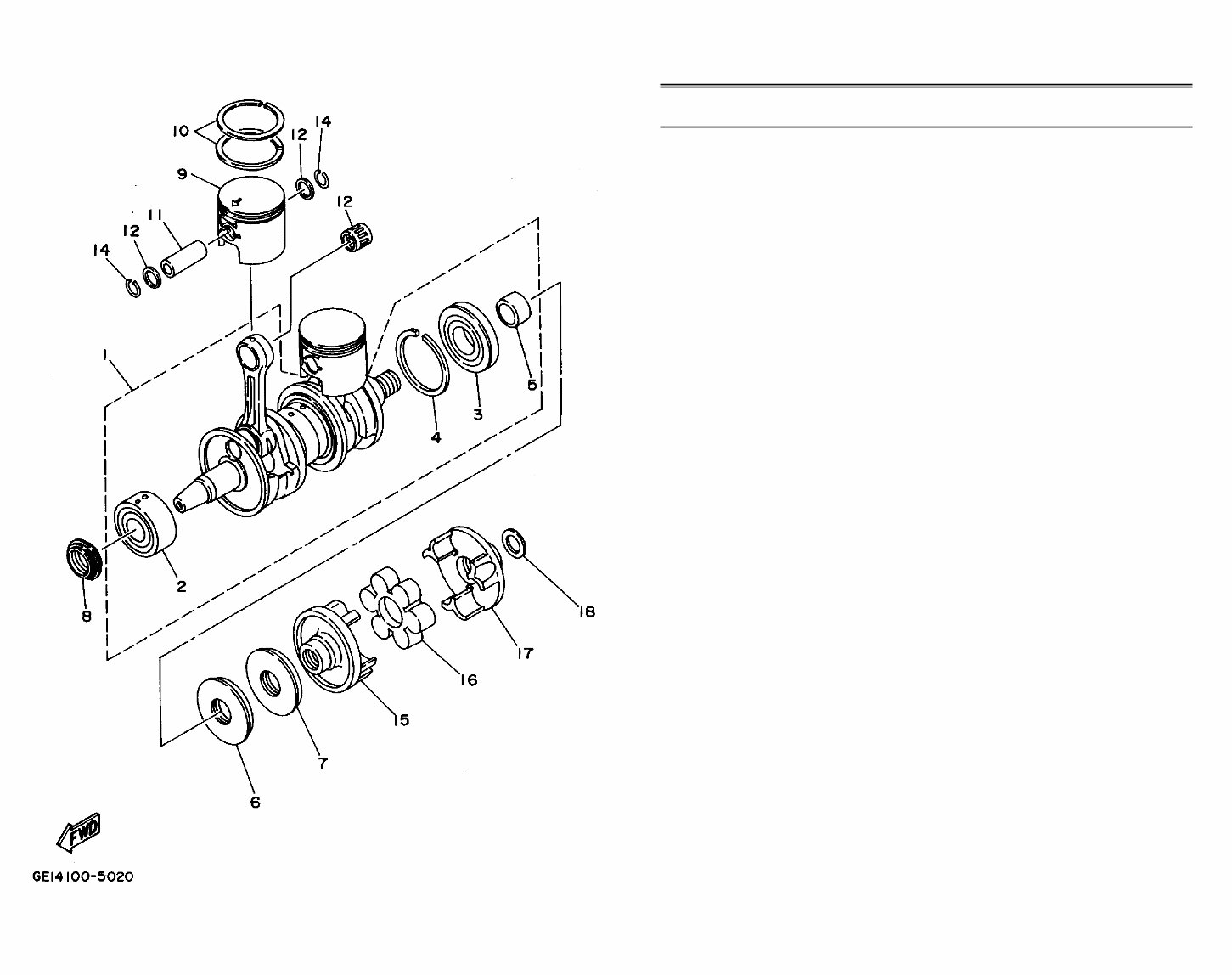

1 6M6-11400-01-00 CRANKSHAFT ASSEMBLY . . . 1
2 93305-30601-00 . BEARING . . . . . . . . . . . . . . . . 1
3 93306-307U1-00 . BEARING . . . . . . . . . . . . . . . . 1
4 93440-80023-00 . CIRCLIP . . . . . . . . . . . . . . . . . 1
5 6M6-45526-00-00 . COLLAR, DRIVE SHAFT . . . . 1
6 93102-36M33-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
7 93101-36M46-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
8 93103-32M01-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
9 61X-11631-00-93 PISTON (STD) . . . . . . . . . . . . . 2
61X-11635-00-00 PISTON (0.25MM O/S) . . . . . . . 2 AP
61X-11636-00-00 PISTON (0.50MM O/S) . . . . . . . 2 AP
10 61X-11603-00-00 PISTON RING SET (STD) . . . . . 2
61X-11604-00-00 PISTON RING SET
(0.25MM O/S) . . . . . . . . . . . . . . 2 AP
61X-11605-00-00 PISTON RING SET
(0.50MM O/S) . . . . . . . . . . . . . . 2 AP
11 61X-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2
12 90201-20M04-00 WASHER, PLATE . . . . . . . . . . . 4
13 93310-320U0-00 BEARING, CYLINDRICAL . . . . 2
14 93450-21053-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
15 6M6-45813-30-9M FLANGE, COUPLING . . . . . . . . 1
16 61X-4581J-00-00 RUBBER SHAFT COUPLING . . 1
17 6M6-45813-20-9M FLANGE, COUPLING . . . . . . . . 1
18 90201-24M02-00 WASHER, PLATE . . . . . . . . . . . 1
CRANKSHAFT - PISTON
Ref. Part
No. Number Description Qty Remarks
A4
WRA700T

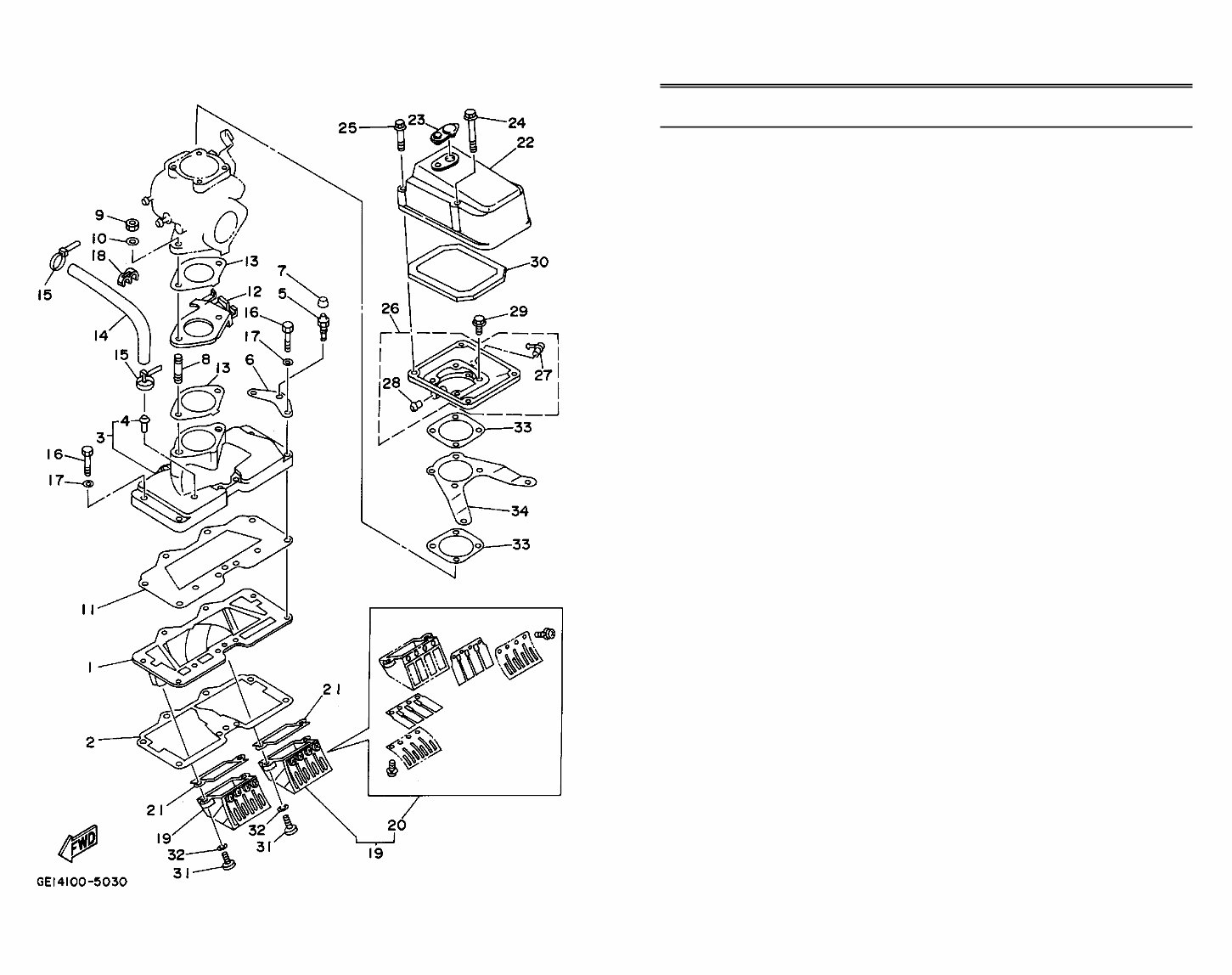

1 61X-13641-00-94 MANIFOLD 1 (61X-13641-01-94) 1
2 61X-13566-A1-00 GASKET . . . . . . . . . . . . . . . . . 1
3 61X-13555-01-94 MANIFOLD, INTAKE . . . . . . . . 1
4 652-24461-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1
5 61L-5169A-00-00 NIPPLE, GREASE . . . . . . . . . . 1
6 61L-14243-00-00 PLATE . . . . . . . . . . . . . . . . . . . 1
7 663-45119-00-00 CAP, GREASE NIPPLE . . . . . . 1
8 90116-08M14-00 BOLT, STUD . . . . . . . . . . . . . . 2
9 95380-08600-00 NUT . . . . . . . . . . . . . . . . . . . . . 2
10 92990-08600-00 WASHER, PLATE . . . . . . . . . . . 2
11 61X-13563-A1-00 GASKET . . . . . . . . . . . . . . . . . 1
12 6M6-14527-02-4D PLATE . . . . . . . . . . . . . . . . . . . 1
13 6M6-13556-A1-00 GASKET, MANIFOLD . . . . . . . . 2
14 90445-10M48-00 HOSE . . . . . . . . . . . . . . . . . . . . 1
15 90465-11M10-00 CLAMP . . . . . . . . . . . . . . . . . . 2
16 97013-06035-00 BOLT . . . . . . . . . . . . . . . . . . . . 8
17 92990-06600-00 WASHER, PLATE . . . . . . . . . . . 8
18 90464-10M38-00 CLAMP . . . . . . . . . . . . . . . . . . 2
19 61X-13610-01-00 REED VALVE ASSEMBLY . . . . 2
20 61X-W0004-00-00 . REED SET . . . . . . . . . . . . . . . 1
21 61X-13621-A0-00 GASKET, VALVE SEAT . . . . . . 2
22 61X-14283-01-00 COVER, CARBURETOR 1 . . . . 1
23 6K8-14435-00-00 GROMMET . . . . . . . . . . . . . . . . 1
24 90105-05M46-00 BOLT, WASHER BASED . . . . . 2
25 90105-05M53-00 BOLT, WASHER BASED . . . . . 2
26 6R8-14284-00-98 COVER, CARBURETOR 2 . . . . 1 UR FOR OIL
INJECTION
27 6E5-11372-00-00 . NIPPLE, HOSE . . . . . . . . . . . . 1 FOR OIL INJECTION
28 6H1-14485-00-00 . PIPE, JOINT . . . . . . . . . . . . . . 1 FOR OIL INJECTION
CONTINUED ON NEXT FRAME ➤
INTAKE
Ref. Part
No. Number Description Qty Remarks
A5
WRA700T
