Volvo Penta V6-200-G, V6-240-G, V6-280-G Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
177
Maintenance Parts
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P
Upd:10/1/2023 43548 M-G4-C-177 -54163328
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
Maintenance Parts
177
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P

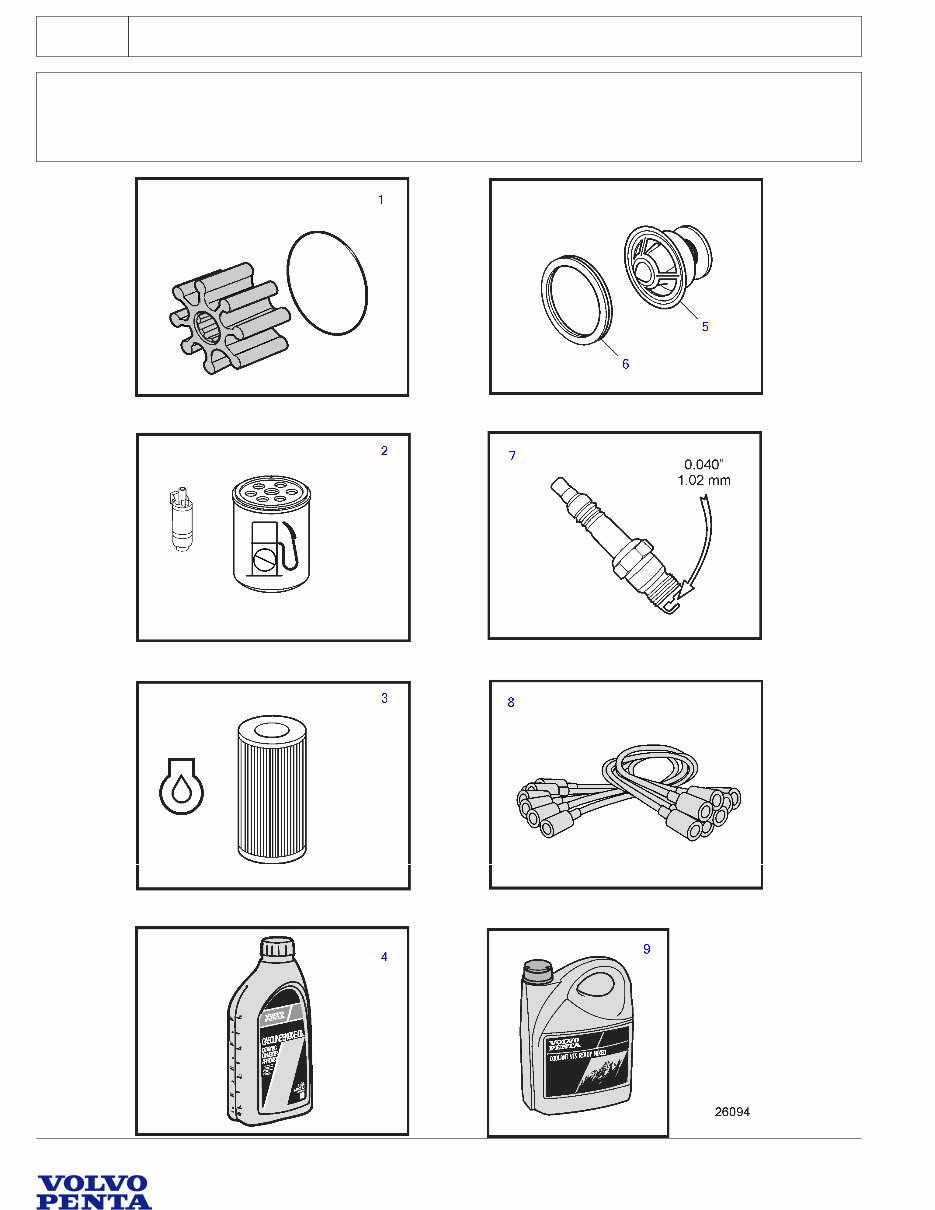

REF PART NO. QTY DESCRIPTION NOTES
1 21700445 1 Impeller kit
2 3847644 1 Fuel filter
3 8692305 1 Oil filter
4 Oil Fill level is determined by dipstick
X USA
21681794 1 Oil Synthetic, quart
21681795 1 Oil Synthetic, gallon
21681796 1 Oil Synthetic, 5 gal
21681797 1 Oil Synthetic, 55 gal
X Oil Europe and other markets
23211287 1 Oil 1L
23211288 1 Oil 5L
23211290 1 Oil 20L
5 22449828 1 Thermostat
6 416033 1 Sealing ring
7 22431179 1 Spark plug kit 6 pack
8 23277049 1 Ignition cable kit
9 22567314 1 Coolant, VCS 5L, mix 40/60
22567340 1 Coolant, VCS 210L, mix 40/60
22567295 1 Coolant, VCS 5L, full strength
22567307 1 Coolant, VCS 210L, full strength
M-G4-C- 177- 54163328 43548 Upd:10/1/2023
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
210

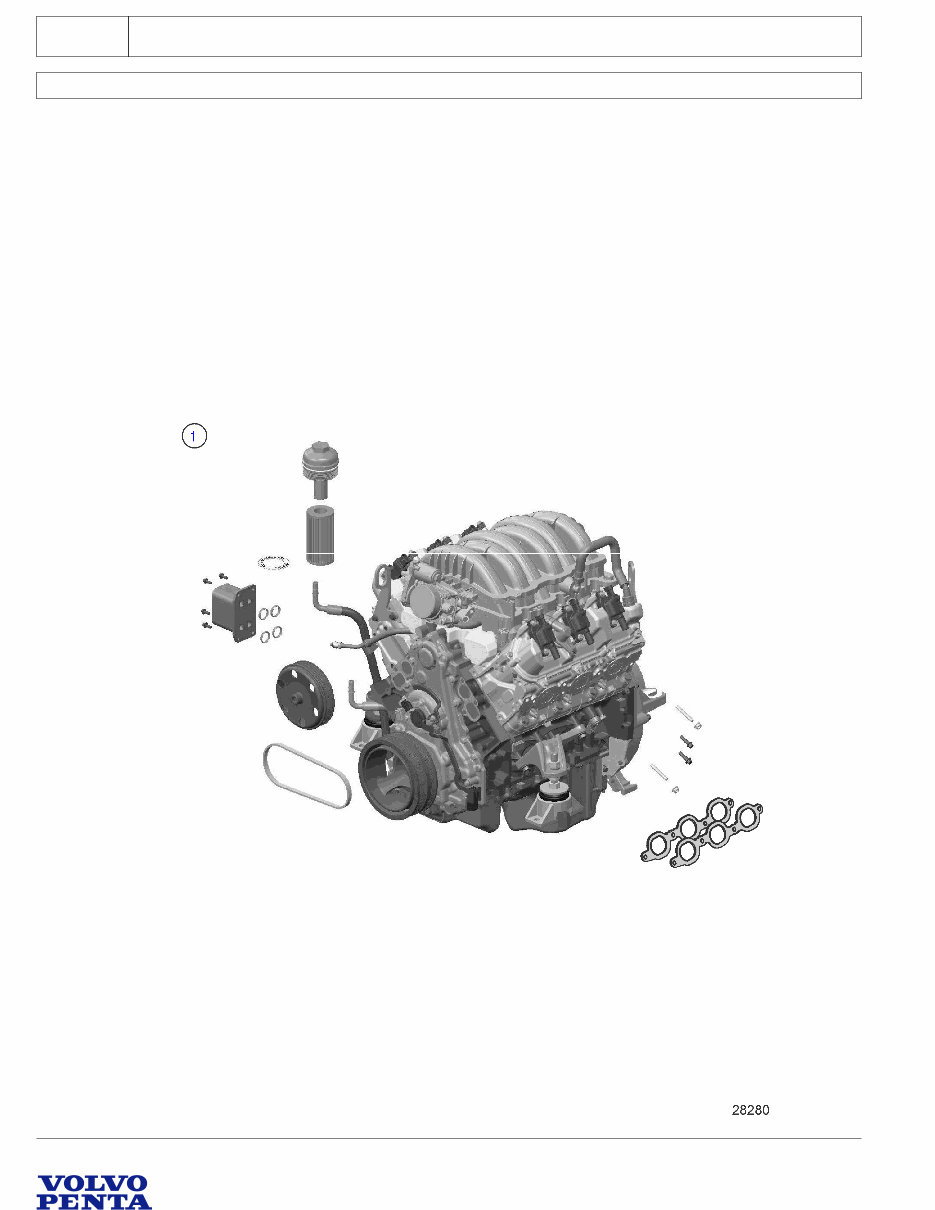

Longblock
V6-200-C-G, V6-200-G, V6-240-CE-G, V6-240-C-G, V6-240-G, V6-280-CE-G, V6-280-C-G, V6-280-G
Upd:10/1/2023 43496 M-G4-C-210 -54163958
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6

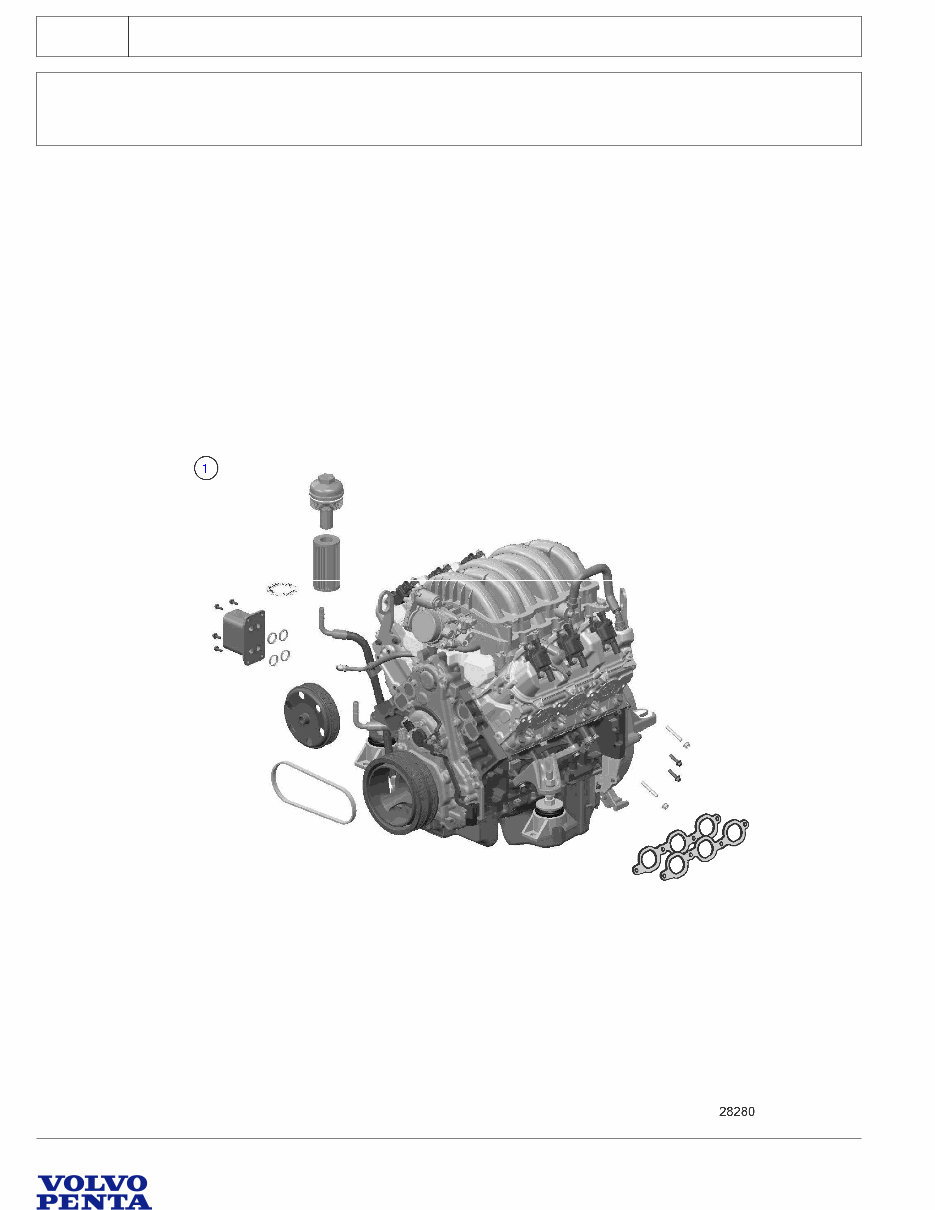

Longblock
210
V6-200-C-G, V6-200-G, V6-240-CE-G, V6-240-C-G, V6-240-G, V6-280-CE-G, V6-280-C-G, V6-280-G
REF PART NO. QTY DESCRIPTION NOTES
1 3801705 1 Longblock See Parts Bulletin before ordering longblock
M-G4-C- 210- 54163958 43496 Upd:10/1/2023
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
210
Longblock
V6-200-CE-N, V6-200-CE-P, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-J, V6-200-M, V6-200-N, V6-200-P,
V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P,
V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O, V6-250-C-O, V6-250-O, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M,
V6-280-CE-N, V6-280-CE-P, V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-J, V6-280-M, V6-280-N, V6-280-P
Upd:10/1/2023 43496 M-G4-C-210 -54164847
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
Longblock
210
V6-200-CE-N, V6-200-CE-P, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-J, V6-200-M, V6-200-N, V6-200-P,
V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P,
V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O, V6-250-C-O, V6-250-O, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M,
V6-280-CE-N, V6-280-CE-P, V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-J, V6-280-M, V6-280-N, V6-280-P
REF PART NO. QTY DESCRIPTION NOTES
1 3801760 1 Longblock See Parts Bulletin before ordering longblock
M-G4-C- 210- 54164847 43496 Upd:10/1/2023
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
211
Cylinder Head
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P
Upd:10/1/2023 43495 M-G4-C-211 -54163986
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
Cylinder Head
211
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P

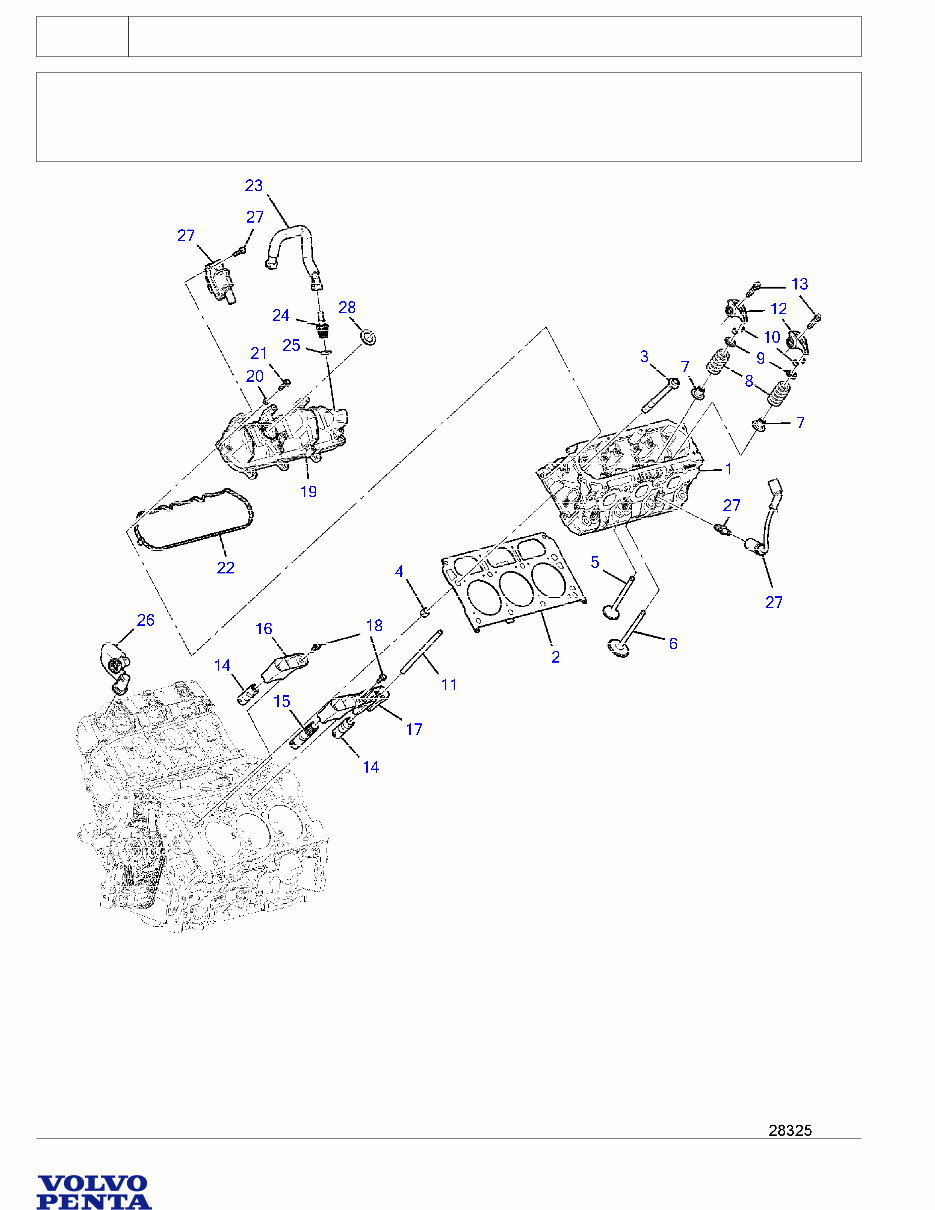

REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 22926898 2 Head
2 22844918 2 Gasket
3 23033318 16 Bolt
4 22844841 4 Pin
5 22844916 6 Valve, intake
6 22844917 6 Valve, exhaust
7 22844914 6 Gasket, intake valve stem seal
22844915 6 Gasket, exhaust valve stem seal
8 22844913 12 Spring
9 22844912 12 Cap
10 22844911 24 Key
11 22844968 12 Rod
12 22844910 12 Arm
13 12 Bolt Not serviced
14 22978958 6 Tappet
15 22978958 6 Tappet
16 23033320 2 Guide, lifter
17 21883699 2 Guide, lifter
18 22844934 4 Bolt
19 22844938 1 Cover, port
22844939 1 Cover, starboard
20 22844866 16 Retainer
21 22844927 16 Bolt
22 22844951 1 Gasket
23 1 Tube, PCV
24 22844990 1 Valve, PCV
25 1 Seal, PCV
26 1 Tube
27 X Ignition coil 54163953
28 X Seal, oil fill
M-G4-C- 211- 54163986 43495 Upd:10/1/2023
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
215
Camshaft
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P
22
16
16
20
21
19
17
23
24
25
18
3
3
8
1
2
5
4
6
7
10
11
12
13
26
9
15 14
Upd:10/1/2023 43488 M-G4-C-215 -54164680
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
Camshaft
215
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G, V6-200-J, V6-200-M,
V6-200-N, V6-200-P, V6-240-CE-G, V6-240-CE-J, V6-240-CE-K, V6-240-CE-M, V6-240-CE-N, V6-240-CE-P, V6-240-C-G,
V6-240-C-J, V6-240-C-M, V6-240-C-N, V6-240-C-P, V6-240-G, V6-240-J, V6-240-M, V6-240-N, V6-240-P, V6-250-CE-O,
V6-250-C-O, V6-250-O, V6-280-CE-G, V6-280-CE-J, V6-280-CE-K, V6-280-CE-M, V6-280-CE-N, V6-280-CE-P, V6-280-C-G,
V6-280-C-J, V6-280-C-M, V6-280-C-N, V6-280-C-P, V6-280-G, V6-280-J, V6-280-M, V6-280-N, V6-280-P

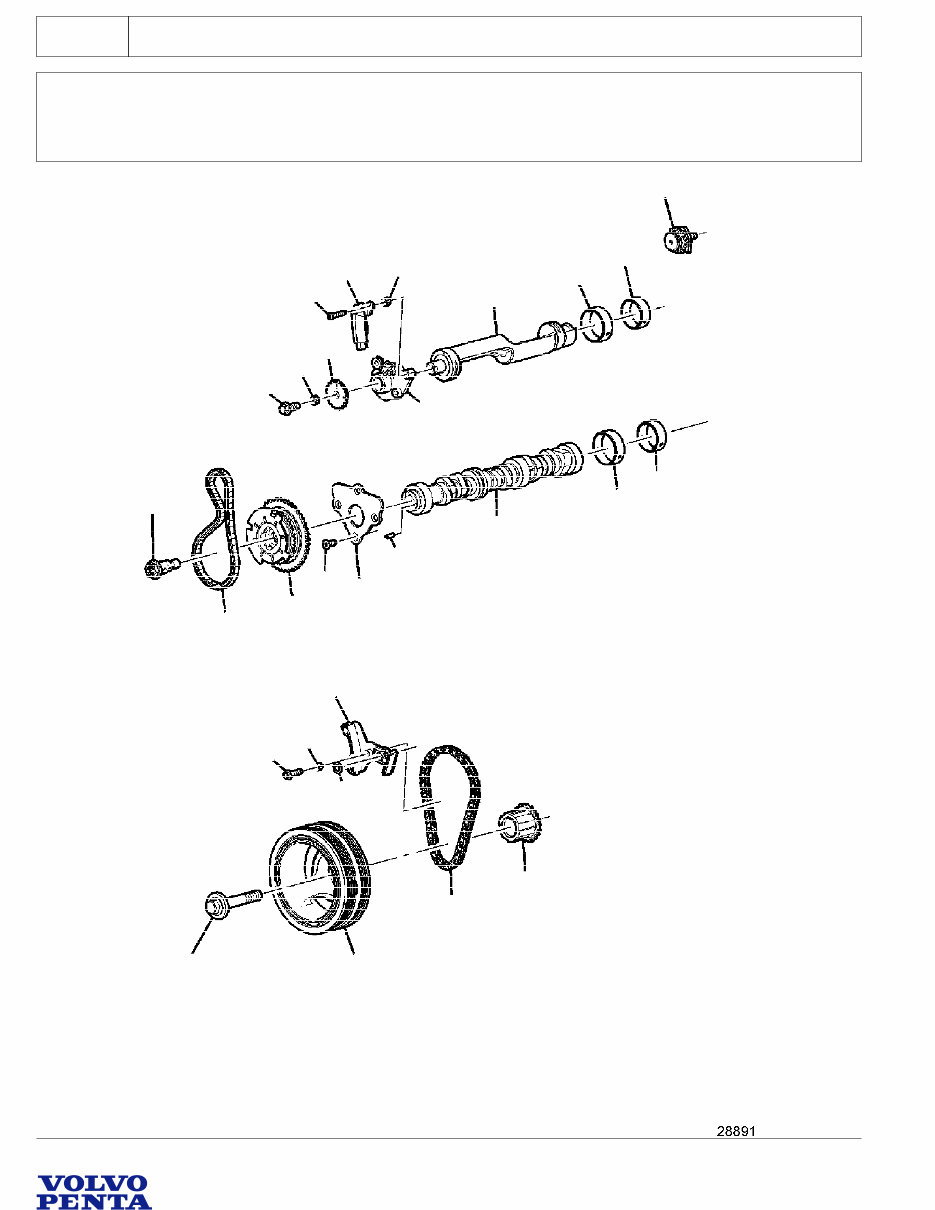

REF PART NO. QTY DESCRIPTION
1 22844857 1 Camshaft
2 1 Pin
3 4 Bearing
4 22844858 1 Retainer
1 Seal
5 22844859 4 Screw
6 22844861 1 Actuator
7 1 Chain
8 22844862 1 Valve
9 22844849 1 Chain
10 22844856 1 Tensioner
11 22844836 1 Retainer
12 22844852 1 Bolt
13 1 Gasket
14 22844850 1 Pulley
15 22844851 1 Bolt
16 2 Bearing
17 1 Balance shaft
18 22844867 1 Plate
19 22844864 3 Bolt
20 22844866 3 Retainer
21 1 Guide
22 22844908 1 Sprocket
23 1 Chain gear
24 1 Retainer
25 22844920 1 Bolt
26 22844848 1 Sprocket
M-G4-C- 215- 54164680 43488 Upd:10/1/2023
V6-200-CE-N, V6-200-CE-P, V6-200-C-G, V6-200-C-J, V6-200-C-M, V6-200-C-N, V6-200-C-P, V6-200-G,
V6-200-J, V6-200-M, V6-200-N, V6
