21

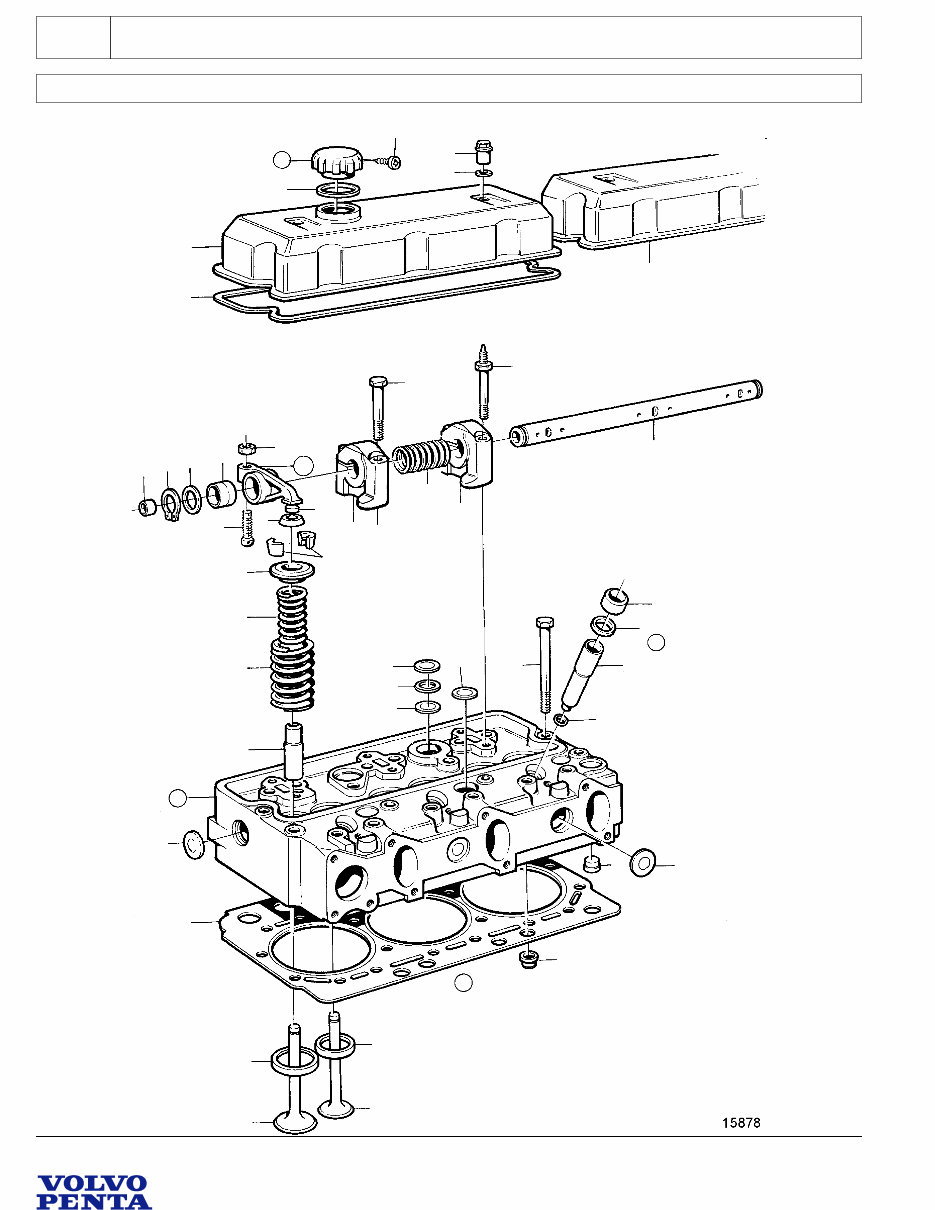

Cylinder Head
TAMD71A
Upd: 2014-02-17 15878 7746660 - 21 - 333
TAMD71A, TAMD72A
42A
40
10A
39
42
43
37
38
41
22
23
29 24
27
32
31 26
25
30
20 21
19
21 28
18
17
8
16
7
5
10
36 6
10
15
10
9
4
1
11
12 11
34
35
33
3
2
14
13
Cylinder Head
21
TAMD71A
7746660 - 21 - 333 15878 Upd: 2014-02-17
TAMD71A, TAMD72A
REF PART NO. QTY DESCRIPTION NOTES
1 3803311 2 Cylinder head E.U=3803100, (471409)
2 421011 6 Valve seat, intake Std D
421316 6 Valve seat, intake O.S=0,20mm
3 466266 6 Valve seat, exhaust Std D
466307 6 Valve seat, exhaust O.S=0,20mm
4 466386 12 Valve guide
5 276130 6 Copper sleeve kit, fuel injector
6 477928 6 Spray sleeve
7 466405 6 Sealing ring
8 466420 6 Ring
9 466922 6 O-ring
10 477026 14 Expansion plug D=26mm
10A 947626 4 Gasket
11 477024 8 Expansion plug Included in overhaul kit., D=35mm
12 465420 10 Jet
13 864917 6 Inlet valve
3825908 6 Inlet valve, quality improvement SN-1101057367
14 842080 6 Exhaust valve
15 466384 12 Valve spring
16 466383 12 Valve spring
17 466382 12 Valve spring washer
18 468305 24 Valve cotter
19 469456 12 Protecting ring
20 478074 12 Valve cap
21 477384 6 Bearing bracket
22 471512 4 Stud
23 471513 8 Flange nut
24 471518 2 Rocker arm shaft
25 946778 4 Cap plug
26 422063 12 Rocker arm
27 422066 12 Bushing
28 422993 12 Ball stud
29 940175 12 Hexagon nut
30 421173 4 Spring
31 914459 4 Snap ring
32 941488 4 Washer
33 276816 2 Cylinder head gasket
34 2 Gasket
35 465784 12 Sealing ring I.D=26mm
466421 16 Sealing ring I.D=16mm
422413 2 Sealing ring I.D=11mm
36 471481 40 Flange screw
37 471813 1 Valve cover
38 471426 1 Valve cover
39 465961 4 Cap nut
40 471856 4 Sealing ring
41 471520 2 Gasket
42 421753 1 Oil filler cap
42A 955126 3 Cross recessed screw
43 940096 1 Gasket
21
Cylinder Head
TAMD72A
Upd: 2014-02-17 15878 7746660 - 21 - 1286
TAMD71A, TAMD72A
42A
40
10A
39
42
43
37
38
41
22
23
29 24
27
32
31 26
25
30
20 21
19
21 28
18
17
8
16
7
5
10
36 6
10
15
10
9
4
1
11
12 11
34
35
33
3
2
14
13
Cylinder Head
21
TAMD72A
7746660 - 21 - 1286 15878 Upd: 2014-02-17
TAMD71A, TAMD72A
REF PART NO. QTY DESCRIPTION NOTES
1 3803310 2 Cylinder head (864814)
2 864993 6 Valve seat, intake Std D
864983 6 Valve seat, intake O.S=0,20mm
3 864994 6 Valve seat, exhaust Std D
864982 6 Valve seat, exhaust O.S=0,20mm
4 466386 12 Valve guide
5 276130 6 Copper sleeve kit
6 477928 6 Spray sleeve
7 466405 6 Sealing ring
8 466420 6 Ring
9 466922 6 O-ring
10 477026 14 Expansion plug D=26mm
10A 947626 4 Gasket
11 477024 8 Expansion plug D=35mm
12 465420 10 Jet
13 3825908 6 Inlet valve Cyl. no 1
14 842080 6 Exhaust valve
15 466384 12 Valve spring
16 466383 12 Valve spring
17 466382 12 Valve spring washer
18 468305 24 Valve cotter
19 469456 12 Protecting ring
20 478074 12 Valve cap
21 477384 6 Bearing bracket
22 471512 4 Stud
23 471513 8 Flange nut
24 471518 2 Rocker arm shaft
25 946778 4 Cap plug
26 422063 12 Rocker arm
27 422066 12 Bushing
28 422993 12 Ball stud
29 940175 12 Hexagon nut
30 421173 4 Spring
31 914459 4 Snap ring
32 941488 4 Washer
33 276816 2 Cylinder head gasket
34 2 Gasket Included in gasket kit.
35 465784 12 Sealing ring I.D=26mm
466421 16 Sealing ring I.D=16mm
422413 2 Sealing ring I.D=11mm
36 471481 40 Flange screw
37 471813 1 Valve cover
38 471426 1 Valve cover
39 465961 4 Cap nut
40 471856 4 Sealing ring
41 471520 2 Gasket
42 421753 1 Oil filler cap
42A 955126 3 Cross recessed screw
43 940096 1 Gasket
21

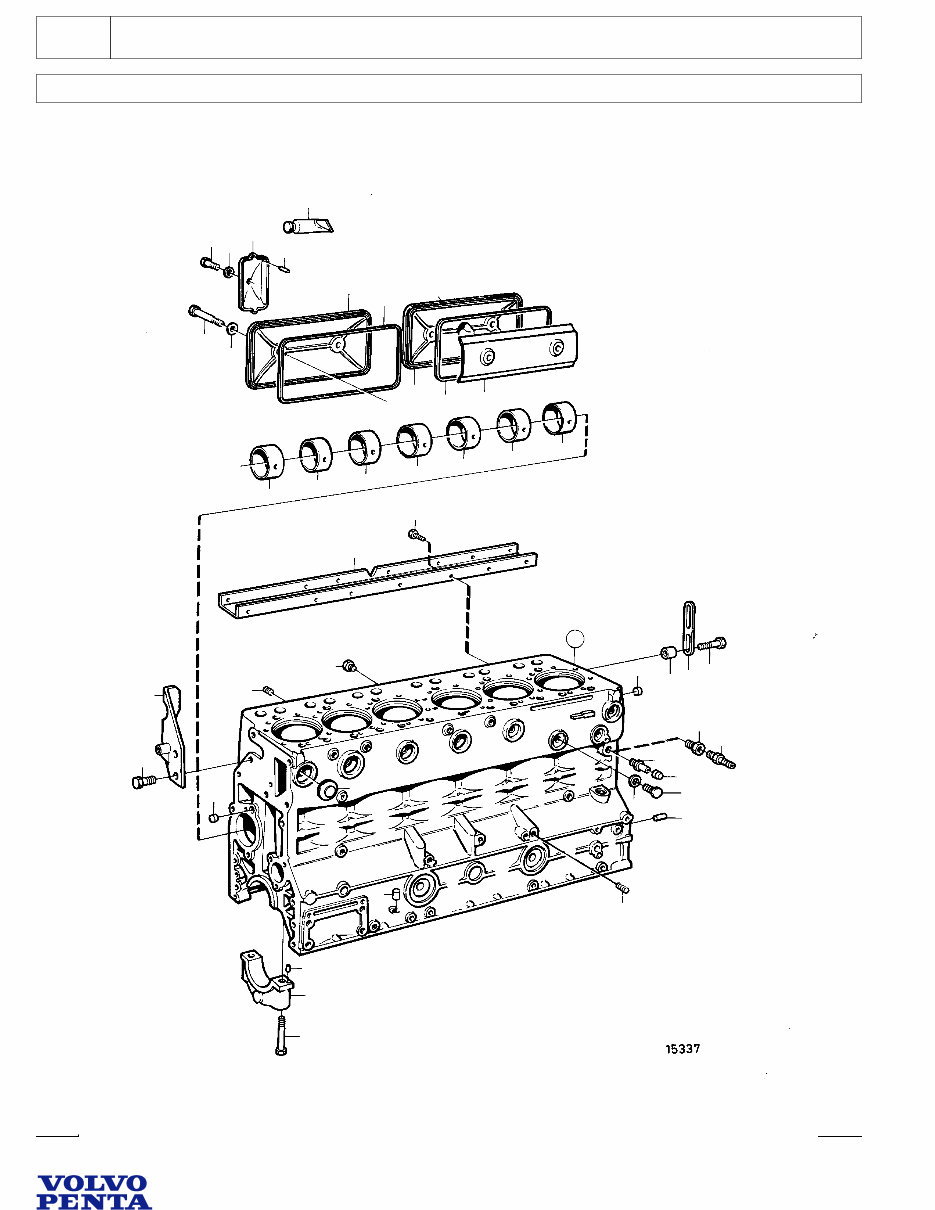

Cylinder Block
TAMD71A, TAMD72A
Upd: 2014-02-17 15337 7746660 - 21 - 338
TAMD71A, TAMD72A
28
11
7
16
24
18
26
17
27
13
25
12
18
20
23
26
27
21
22
23
10
9
8
6
5
34
33
1
19
38
37
39
14
35
30
31
29 36
32
18
3
2
4
15
Cylinder Block
21
TAMD71A, TAMD72A
7746660 - 21 - 338 15337 Upd: 2014-02-17
TAMD71A, TAMD72A
REF PART NO. QTY DESCRIPTION NOTES
1 471400 1 Cylinder block Replaced by 477910
477910 1 Cylinder block Replaced by 477990
477990 1 Cylinder block
3801054 1 Short block, exch
2 7 Main bearing cap
3 422426 1 Pivot pin
4 465899 14 Flange screw
5 422076 1 Bushing
6 422077 1 Bushing
7 422078 1 Bushing
8 422079 1 Bushing
9 422080 1 Bushing
10 422081 1 Bushing
11 422082 1 Bushing
12 467367 1 Plug Early type
13 469328 1 Gasket Early type
14 422369 2 Plug
15 968955 6 Expansion plug
16 968145 1 Plug
17 191171 2 Pin
18 955082 6 Cap plug
955082 2 Cap plug
19 479976 1 Plug
20 420120 1 Inspection cover
21 420121 1 Inspection cover
22 471858 1 Splash plate
23 421121 2 Gasket
24 471854 1 Cover
25 (951974) 1 Spring pin Obsolete part
26 471855 5 Shoulder screw
27 471856 5 Sealing ring
28 1161231 X Sealant
29 946121 1 Hose nipple Replaced by 1 ea nipple 479954 and 1 ea tap 947893., TAMD71A, early type
30 479954 1 Nipple
31 947893 1 Shut-off cock
32 476279 1 Protecting cap TAMD71A, early type
33 (865779) 1 Bracket (848103), Obsolete part
34 959220 7 Hex. socket screw
35 847932 1 Lifting eye
36 965191 2 Flange screw
37 (848533) 1 Lifting eye Obsolete part
38 965225 2 Flange screw
39 847237 1 Spacer sleeve
21

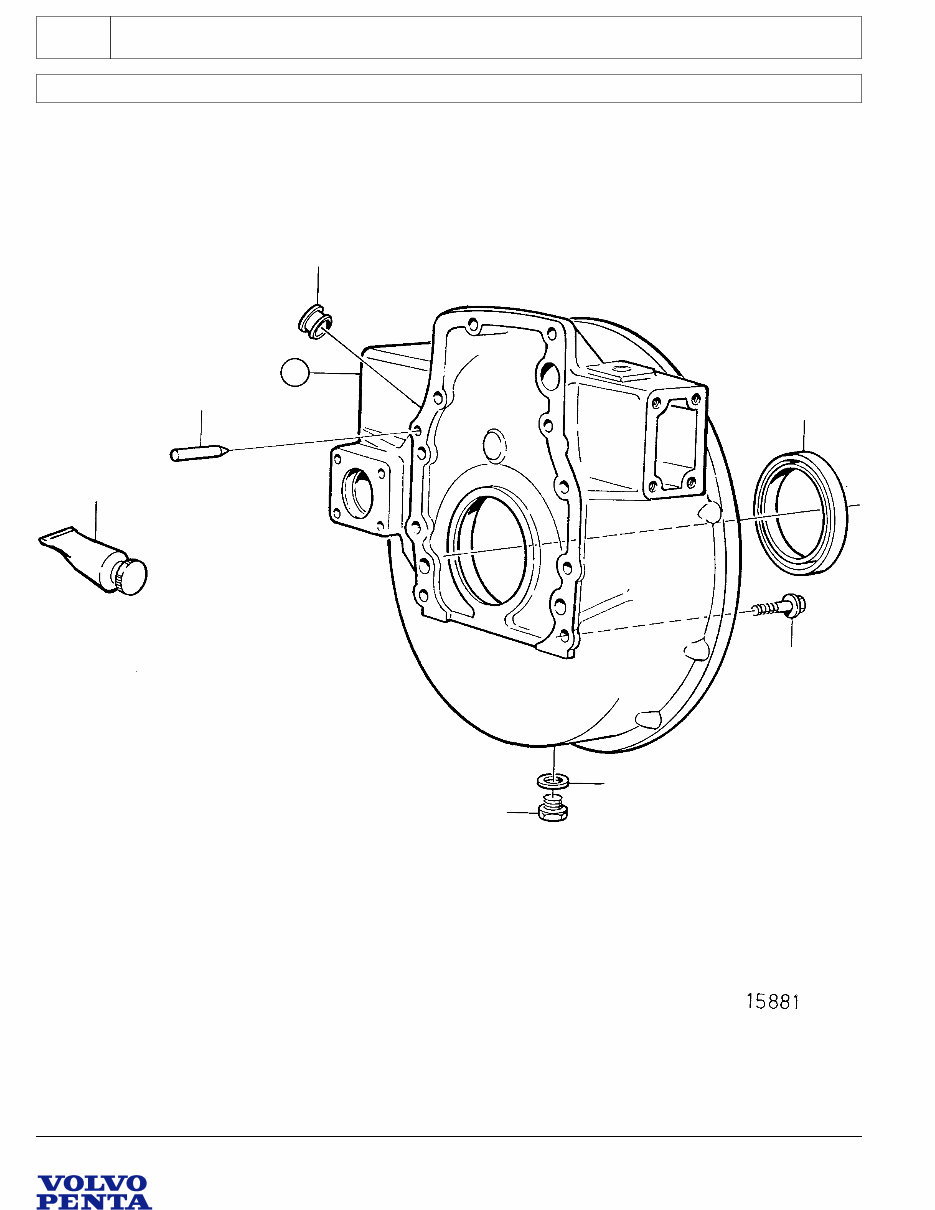

Flywheel Housing
TAMD71A, TAMD72A
Upd: 2014-02-17 15881 7746660 - 21 - 2019
TAMD71A, TAMD72A
3
1
2
5
7
8
6
4
Flywheel Housing
21
TAMD71A, TAMD72A
7746660 - 21 - 2019 15881 Upd: 2014-02-17
TAMD71A, TAMD72A
REF PART NO. QTY DESCRIPTION NOTES
1 848232 1 Flywheel housing
2 404069 1 Pin
3 61822 1 Rubber plug
4 477119 1 Crankshaft seal
5 1161231 X Sealant 304ml
1161277 X Sealant 20g
6 966361 6 Flange screw L=55mm
966363 2 Flange screw L=65mm
968753 2 Flange screw L=75mm
7 960632 1 Plug Alt
8 957171 1 Gasket Alt
21

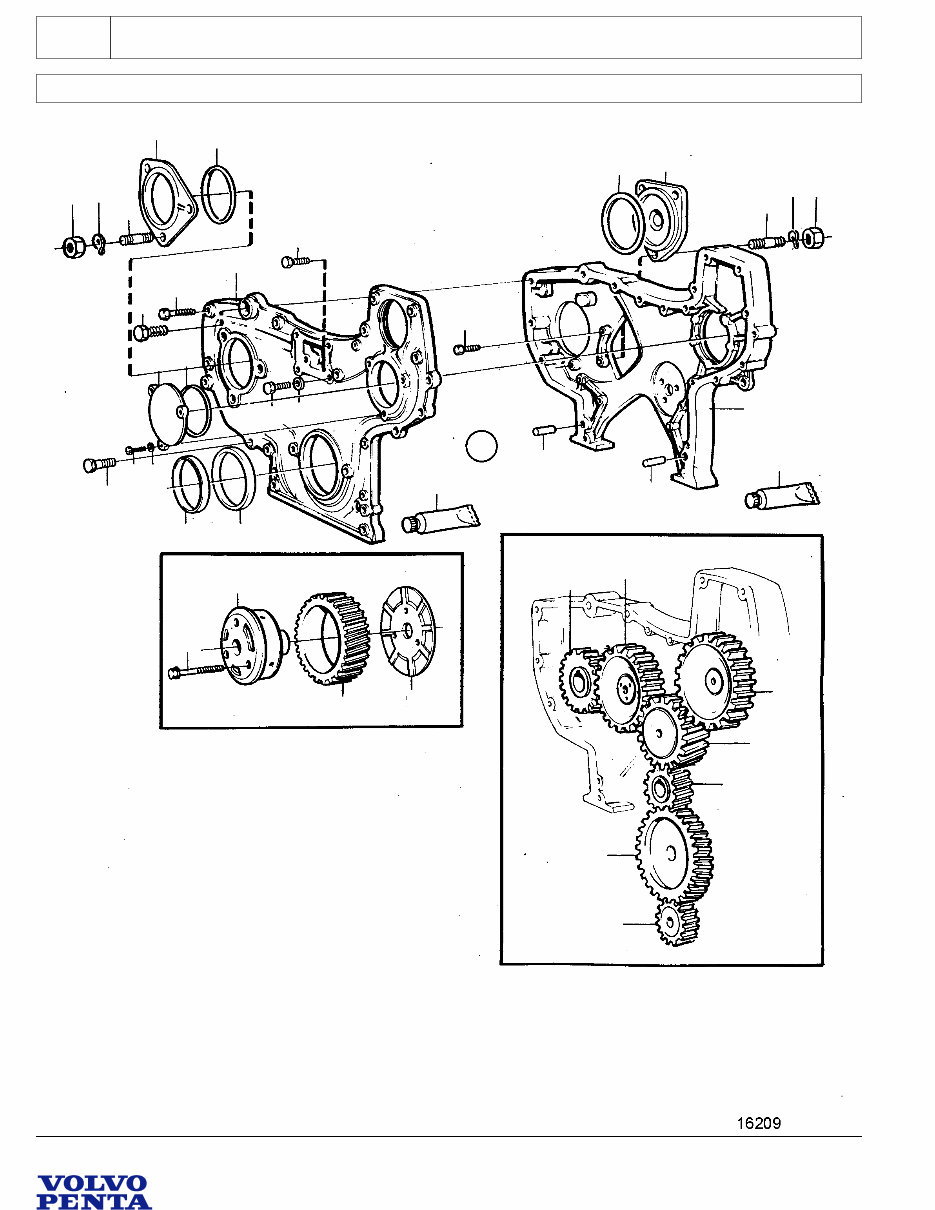

Timing Gear Housing
TAMD71A
Upd: 2014-02-17 16209 7746660 - 21 - 1049
TAMD71A, TAMD72A
26 25
22
23
24
35
17
21
39
28
27
38
37
18 19
30
29
36
20
7
10
8
9
14
15
6
8
13
11
12
3
2
4
1
16
5
31
25 32
33 34
Timing Gear Housing
21
TAMD71A
7746660 - 21 - 1049 16209 Upd: 2014-02-17
TAMD71A, TAMD72A
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 471505 1 Timing gear casing
2 941511 1 Pin
3 941510 1 Pin
4 1161231 X Sealant
5 471534 2 Flange screw L=28mm
471535 2 Flange screw L=58mm
6 471528 1 Gear
Bulletin 45-01 45-01-EN Timing Gears, 71, 100, 121
7 422766 1 Bearing spindle
8 8192518 1 Gear (471552)
9 478951 1 Thrust washer (467529)
10 471554 3 Flange screw
11 1 Gear, camshaft 327
12 820637 1 Gear, sea water pump
13 478297 1 Gear, fuel inj. pump Nitro
Bulletin 45-01 45-01-EN Timing Gears, 71, 100, 121
14 471941 1 Gear
15 471942 1 Idler gear
16 1 Lock
17 848421 1 Cover
18 477118 1 Sealing ring
19 1 Seal Repl by 477118, TAMD71A
20 1161231 X Sealant
21 965182 7 Flange screw L=80mm
965216 1 Flange screw L=55mm
948217 2 Flange screw L=45mm
947760 7 Flange screw L=40mm
22 848543 1 Spacer, sea water pump For sea water pump 846354 and 864163., SN-1101044435/XXXXX
See group 26
23 925257 1 O-ring
24 967951 3 Stud
25 941911 6 Spring washer
26 971073 3 Hexagon nut
27 471559 1 Cover
28 925257 1 O-ring
29 945444 3 Flange screw
30 941907 3 Spring washer
31 967951 3 Stud
32 971073 3 Hexagon nut
33 420178 1 Cover
34 975610 1 O-ring
35 (100338) 2 Hexagon screw L=95mm, Obsolete part
36 965220 1 Flange screw L=45mm
37 946471 2 Flange screw L=16mm
38 947281 2 Gasket
39 965227 1 Flange screw L=55mm, early type
1 Tachometer sensor See group 30
