21

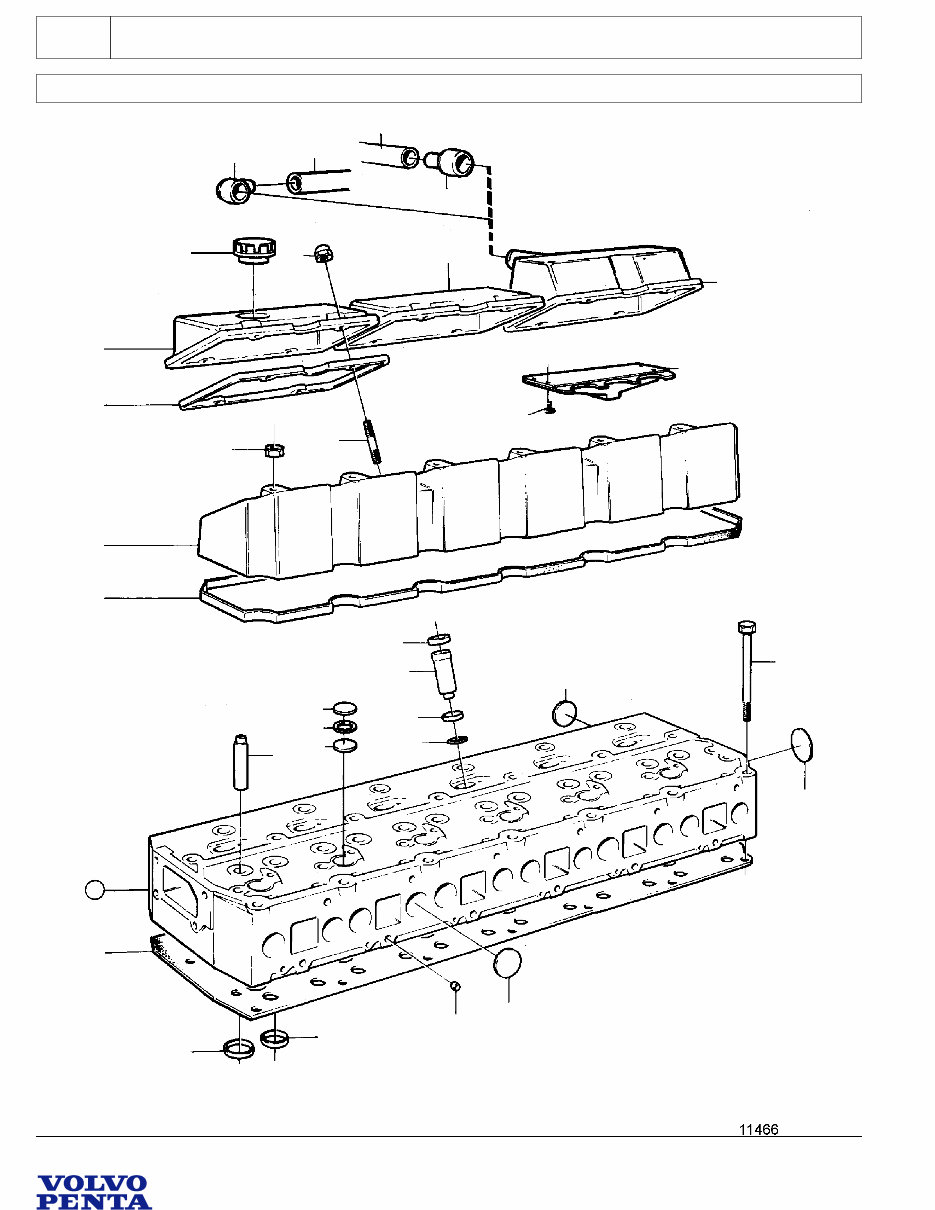

Cylinder Head: A
TAMD42B
Upd: 12/5/2016 11466 7746630 - 21 - 522
KAD42B, KAMD42B, TAMD42B
31
29
27
18
28
5
7
30
26 22
19
23
20
24
21
25
16
17
4
15
6
10
11
12
13
11
2
3
1
14
10
8
9
Cylinder Head: A
21
TAMD42B
7746630 - 21 - 522 11466 Upd: 12/5/2016
KAD42B, KAMD42B, TAMD42B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 3803198 1 Cylinder head (860596)
2 419653 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve
7 967853 12 Cap plug
8 858331 6 Valve seat Std
858332 6 Valve seat Over size 0,20mm
9 860035 6 Valve seat Std
860036 6 Valve seat Over size 0,20mm
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 858992 1 Gasket
Bulletin 44-29A 44-29A-EN Cylinder Head Gasket
15 838775 27 Flange screw
16 838649 1 Valve cover
17 838653 1 Gasket
18 968862 4 Nut
19 860541 1 Valve cover Replaced by 860542, 860601 & 977771
860542 1 Valve cover
20 860601 1 Insert
21 977771 4 Flange screw
22 838650 1 Valve cover
23 (838651) 1 Valve cover Obsolete part
24 838654 3 Gasket
25 953034 12 Stud
26 968458 12 Flange cap nut
27 3547599 1 Oil filler cap
28 3580791 1 Protecting sleeve
29 946234 X Tube L=365mm
21
Cylinder Head: B
KAMD42B
Upd: 12/5/2016 11466 7746630 - 21 - 522B
KAD42B, KAMD42B, TAMD42B
31
29
27
18
28
5
7
30
26 22
19
23
20
24
21
25
16
17
4
15
6
10
11
12
13
11
2
3
1
14
10
8
9
Cylinder Head: B
21
KAMD42B
7746630 - 21 - 522B 11466 Upd: 12/5/2016
KAD42B, KAMD42B, TAMD42B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 3803198 1 Cylinder head (860596)
2 419653 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve
7 967853 12 Cap plug
8 858331 6 Valve seat Std
858332 6 Valve seat Over size 0,20mm
9 860035 6 Valve seat Std
860036 6 Valve seat Over size 0,20mm
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 858992 1 Gasket
Bulletin 44-29A 44-29A-EN Cylinder Head Gasket
15 838775 27 Flange screw
16 838649 1 Valve cover
17 838653 1 Gasket
18 968862 4 Nut
19 860541 1 Valve cover Replaced by 860542, 860601 & 977771
860542 1 Valve cover
20 860601 1 Insert
21 977771 4 Flange screw
22 838650 1 Valve cover
23 (838651) 1 Valve cover Obsolete part
24 838654 3 Gasket
25 953034 12 Stud
26 968458 12 Flange cap nut
27 3547599 1 Oil filler cap
30 861114 X Protecting sleeve
31 946234 X Tube L=280mm
21
Cylinder Head: C
KAD42B
Upd: 12/5/2016 11466 7746630 - 21 - 522C
KAD42B, KAMD42B, TAMD42B
31
29
27
18
28
5
7
30
26 22
19
23
20
24
21
25
16
17
4
15
6
10
11
12
13
11
2
3
1
14
10
8
9
Cylinder Head: C
21
KAD42B
7746630 - 21 - 522C 11466 Upd: 12/5/2016
KAD42B, KAMD42B, TAMD42B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 3803198 1 Cylinder head (860596)
2 419653 12 Valve guide
3 968955 1 Expansion plug
4 838619 6 Retainer
5 838896 6 Sealing ring
6 861255 6 Spray sleeve
7 967853 12 Cap plug
8 858331 6 Valve seat Std
858332 6 Valve seat Over size 0,20mm
9 860035 6 Valve seat Std
860036 6 Valve seat Over size 0,20mm
10 477026 13 Expansion plug
11 967948 12 Expansion plug
12 949329 6 Gasket
13 838821 6 O-ring
14 858992 1 Gasket
Bulletin 44-29A 44-29A-EN Cylinder Head Gasket
15 838775 27 Flange screw
16 838649 1 Valve cover
17 838653 1 Gasket
18 968862 4 Nut
19 860541 1 Valve cover Replaced by 860542, 860601 & 977771
860542 1 Valve cover
20 860601 1 Insert
21 977771 4 Flange screw
22 838650 1 Valve cover
23 (838651) 1 Valve cover Obsolete part
24 838654 3 Gasket
25 953034 12 Stud
26 968458 12 Flange cap nut
27 3547599 1 Oil filler cap
30 861114 X Protecting sleeve
31 946234 X Tube L=280mm
21

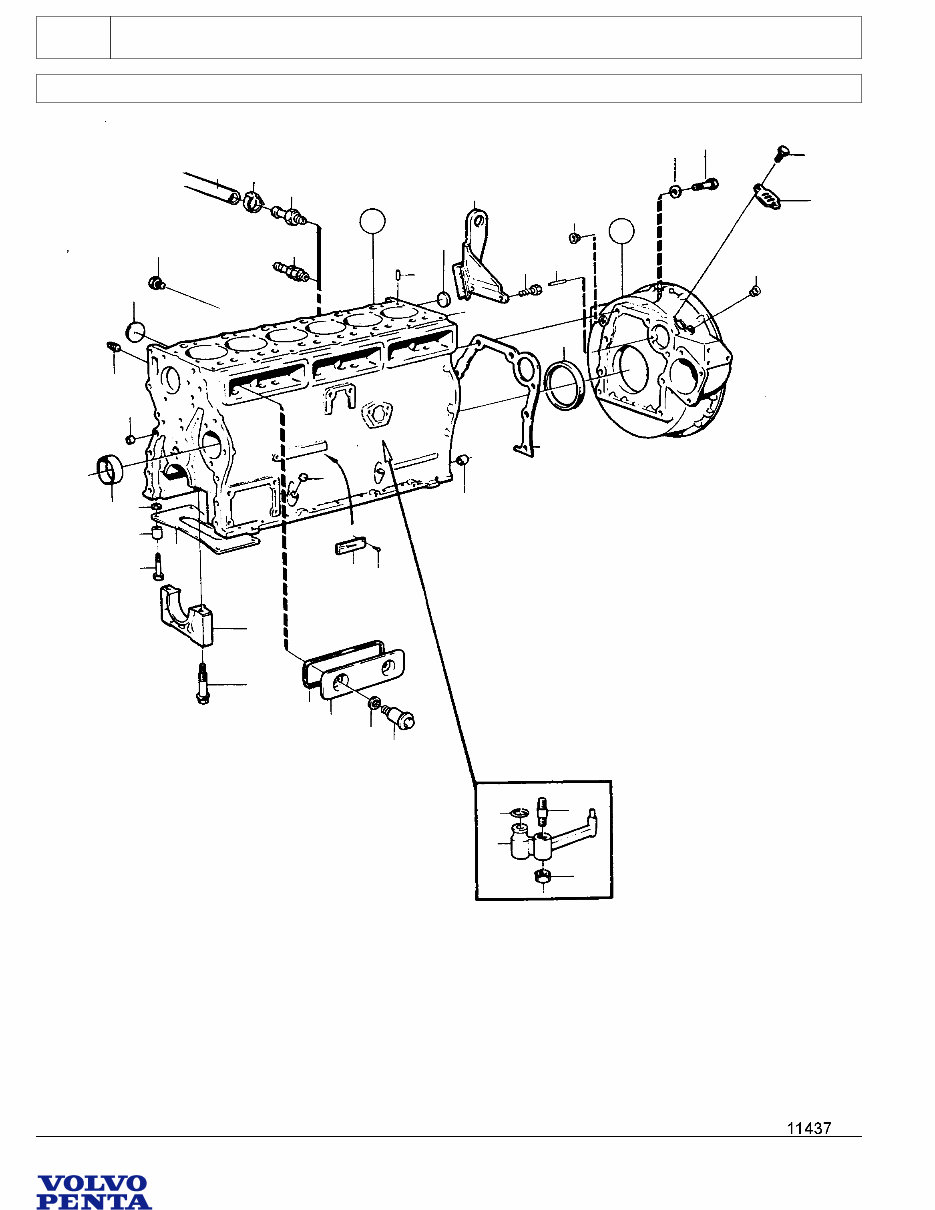

Cylinder Block and Flywheel Housing: A
TAMD42B
Upd: 12/5/2016 11437 7746630 - 21 - 523
KAD42B, KAMD42B, TAMD42B
34
16B
37
16A
16C
30
9
2
24
26
32
31A
31A
29
1
16
35
28
7
11
31
36
8
6
10
4
33
12
17
5
14
13
15
22
23
3
19
20
21
18
25
27
Cylinder Block and Flywheel Housing: A
21
TAMD42B
7746630 - 21 - 523 11437 Upd: 12/5/2016
KAD42B, KAMD42B, TAMD42B
REF PART NO. QTY DESCRIPTION NOTES
1 861016 1 Cylinder block
2 7 Main bearing cap
3 861005 14 Screw
4 955083 4 Cap plug
5 1542067 7 Camshaft bushing
6 463905 5 Expansion plug
7 1542263 1 Expansion plug
8 946402 2 Grooved pin
9 415311 3 Guide sleeve
10 952077 2 Plug
11 191026 5 Plug
12 955082 1 Cap plug
13 1545159 1 Foot plate
14 1545160 4 Spacer sleeve
15 965187 4 Flange screw
16C 947893 1 Shut-off cock
17 1545204 4 Spacer sleeve
18 (859447) 6 Shoulder screw Obsolete part
19 1542052 3 Seal
20 1542050 3 Inspection lid
21 469846 6 Sealing ring
22 1 Sign
23 950885 2 Drive screw
24 1542320 6 Oil jet
25 955981 6 O-ring
26 1542380 6 Stud
27 946035 6 Lock nut
28 860690 1 Flywheel housing
29 407092 1 Cover
30 965175 2 Flange screw
31 404069 1 Pin
31A 860926 2 Plug
32 1 Sealing ring
33 829487 1 Gasket
34 965185 6 Flange screw L=40mm
965220 2 Flange screw L=45mm
37 941908 8 Spring washer
21
Cylinder Block and Flywheel Housing: B
KAMD42B
Upd: 12/5/2016 11437 7746630 - 21 - 523B
KAD42B, KAMD42B, TAMD42B
34
16B
37
16A
16C
30
9
2
24
26
32
31A
31A
29
1
16
35
28
7
11
31
36
8
6
10
4
33
12
17
5
14
13
15
22
23
3
19
20
21
18
25
27
Cylinder Block and Flywheel Housing: B
21
KAMD42B
7746630 - 21 - 523B 11437 Upd: 12/5/2016
KAD42B, KAMD42B, TAMD42B
REF PART NO. QTY DESCRIPTION NOTES
1 861016 1 Cylinder block
2 7 Main bearing cap
3 861005 14 Screw
4 955083 4 Cap plug
5 1542067 7 Camshaft bushing
6 463905 5 Expansion plug
7 1542263 1 Expansion plug
8 946402 2 Grooved pin
9 415311 3 Guide sleeve
10 952077 2 Plug
11 191026 5 Plug
12 955082 1 Cap plug
13 1545159 1 Foot plate
14 1545160 4 Spacer sleeve
15 965187 4 Flange screw
16 860819 1 Hose nipple
16A 943471 1 Hose clamp
16B 952967 1 Hose L=900mm
17 1545204 4 Spacer sleeve
18 (859447) 6 Shoulder screw Obsolete part
19 1542052 3 Seal
20 1542050 3 Inspection lid
21 469846 6 Sealing ring
22 1 Sign
23 950885 2 Drive screw
24 1542320 6 Oil jet
25 955981 6 O-ring
26 1542380 6 Stud
27 946035 6 Lock nut
28 860690 1 Flywheel housing
29 407092 1 Cover
30 965175 2 Flange screw
31 404069 1 Pin
31A 860926 2 Plug
32 1 Sealing ring
33 829487 1 Gasket
34 965185 6 Flange screw L=40mm
965220 2 Flange screw L=45mm
35 860419 1 Lifting bracket
36 973083 2 Flange screw
37 941908 8 Spring washer
