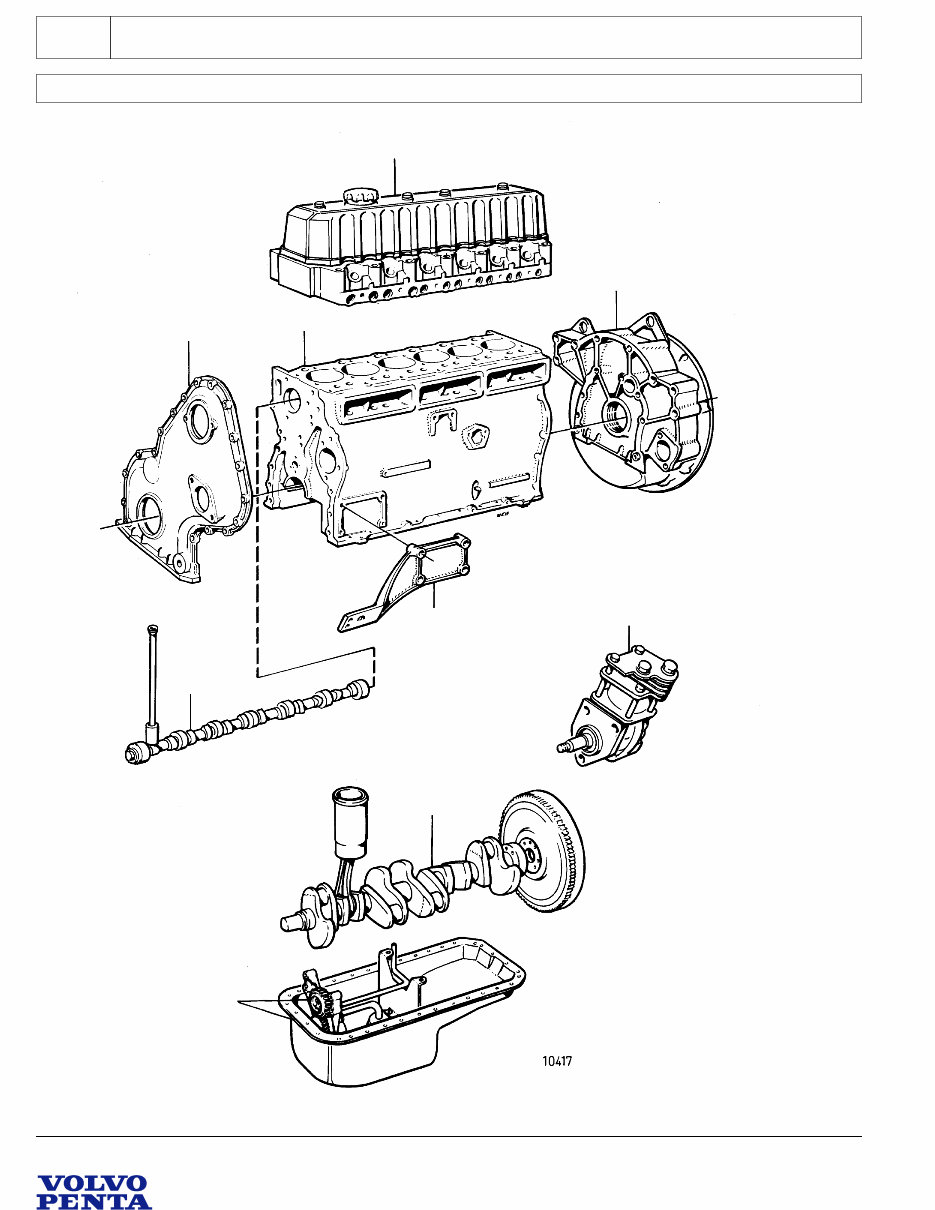

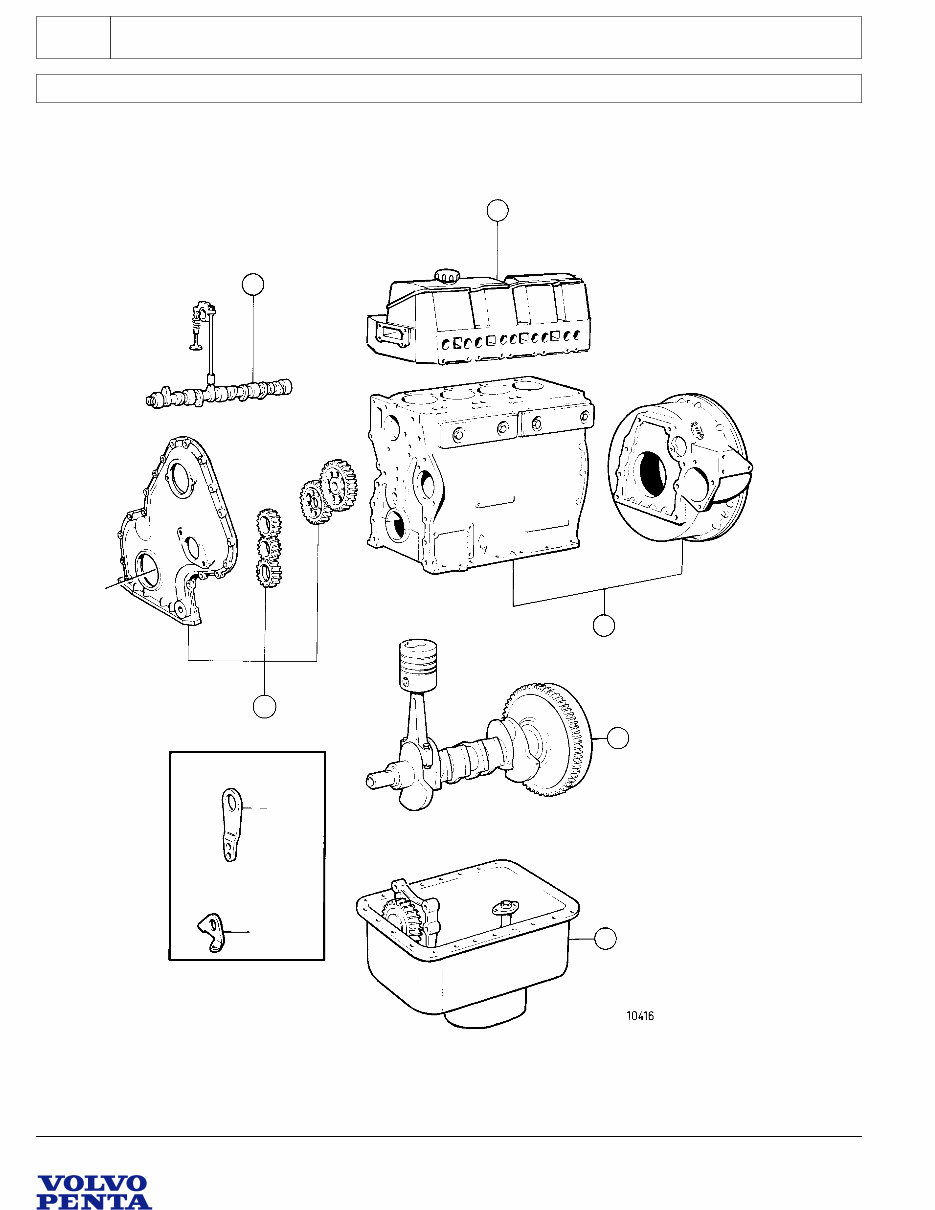

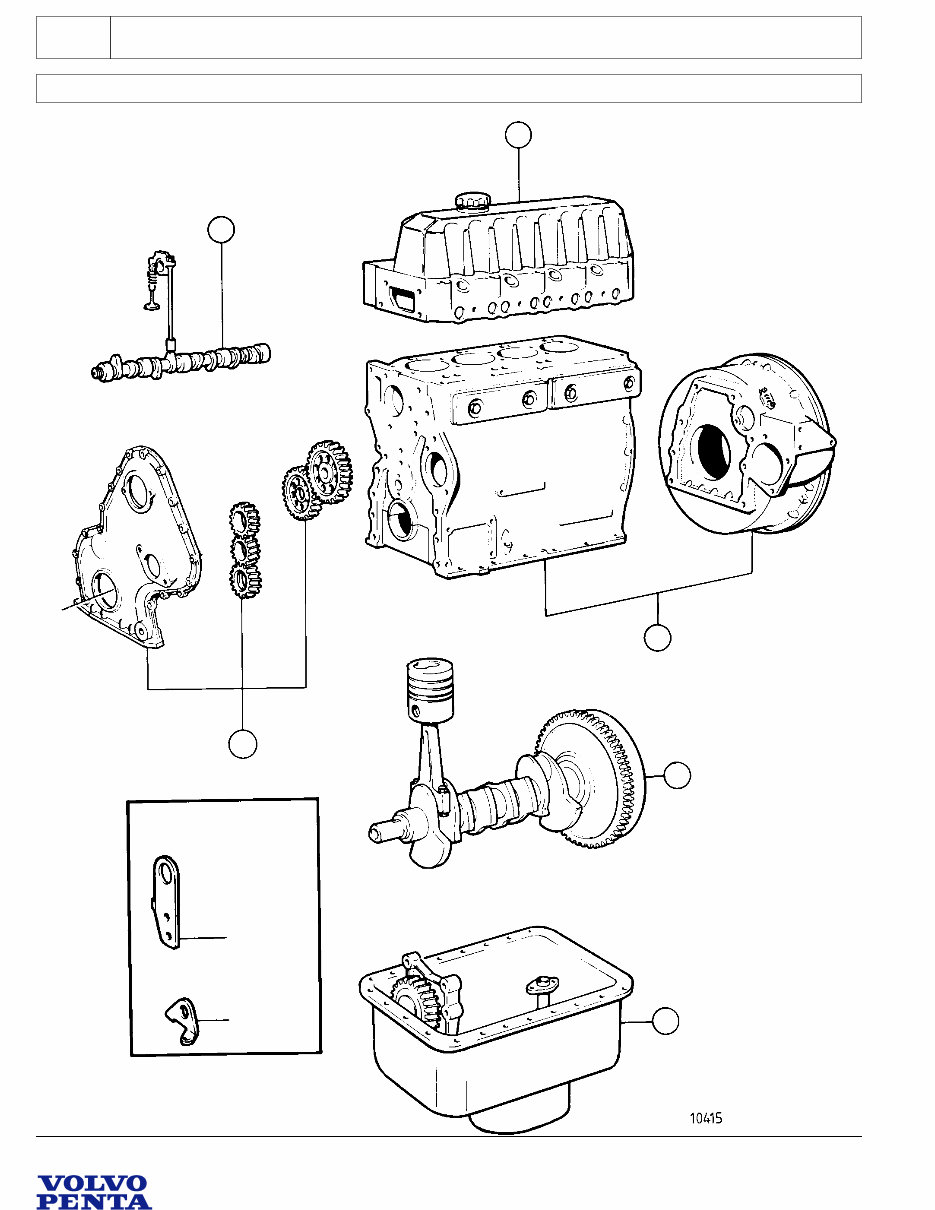

21
Engine with Installation Components
TD30A
Upd: 12/21/2016 10415 7742050 - 21 - 13388
TD30A, TD31ACE, TD40A, TD45B, D45A
4
1
2
6
3
8
7
5
Engine with Installation Components
21
TD30A
7742050 - 21 - 13388 10415 Upd: 12/21/2016
TD30A, TD31ACE, TD40A, TD45B, D45A
REF QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder head 13380
2 1 cylinder block and flywheel cover 13395
3 1 crankshaft and related parts 13363
4 1 camshaft and valve mechanism 13368
5 1 timing gear cover and gears 13373
6 1 lubricating system 13377
7 1 lifting iron 13395
8 1 lifting iron See group 2B
21
Engine with Installation Components
TD31ACE
Upd: 12/21/2016 10416 7742050 - 21 - 13360
TD30A, TD31ACE, TD40A, TD45B, D45A
1
4
2
5
3
7
8
6
Engine with Installation Components
21
TD31ACE
7742050 - 21 - 13360 10416 Upd: 12/21/2016
TD30A, TD31ACE, TD40A, TD45B, D45A
REF QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder head 13382
2 1 cylinder block and flywheel cover 13396
3 1 crankshaft and related parts 13364
4 1 camshaft and valve mechanism 13369
5 1 timing gear cover and gears 13374
6 1 lubricating system 13378
7 1 lifting iron 13396
8 1 lifting iron See group 2B
21
Engine with Installation Components
TD40A
Upd: 12/21/2016 10417 7742050 - 21 - 13366
TD30A, TD31ACE, TD40A, TD45B, D45A
1
3
2
6
8
9
5
4
7
Engine with Installation Components
21
TD40A
7742050 - 21 - 13366 10417 Upd: 12/21/2016
TD30A, TD31ACE, TD40A, TD45B, D45A
REF QTY DESCRIPTION SEE SEC.
1 1 cylinder head 13389
2 1 cylinder block 13397
3 1 flywheel housing 13373
4 1 crankshaft and related parts 13365
5 1 camshaft 13370
6 1 timing gear cover and gears 13375
7 1 lubricating system 13379
8 1 engine mounts 13391
9 1 air compressor 13394
21

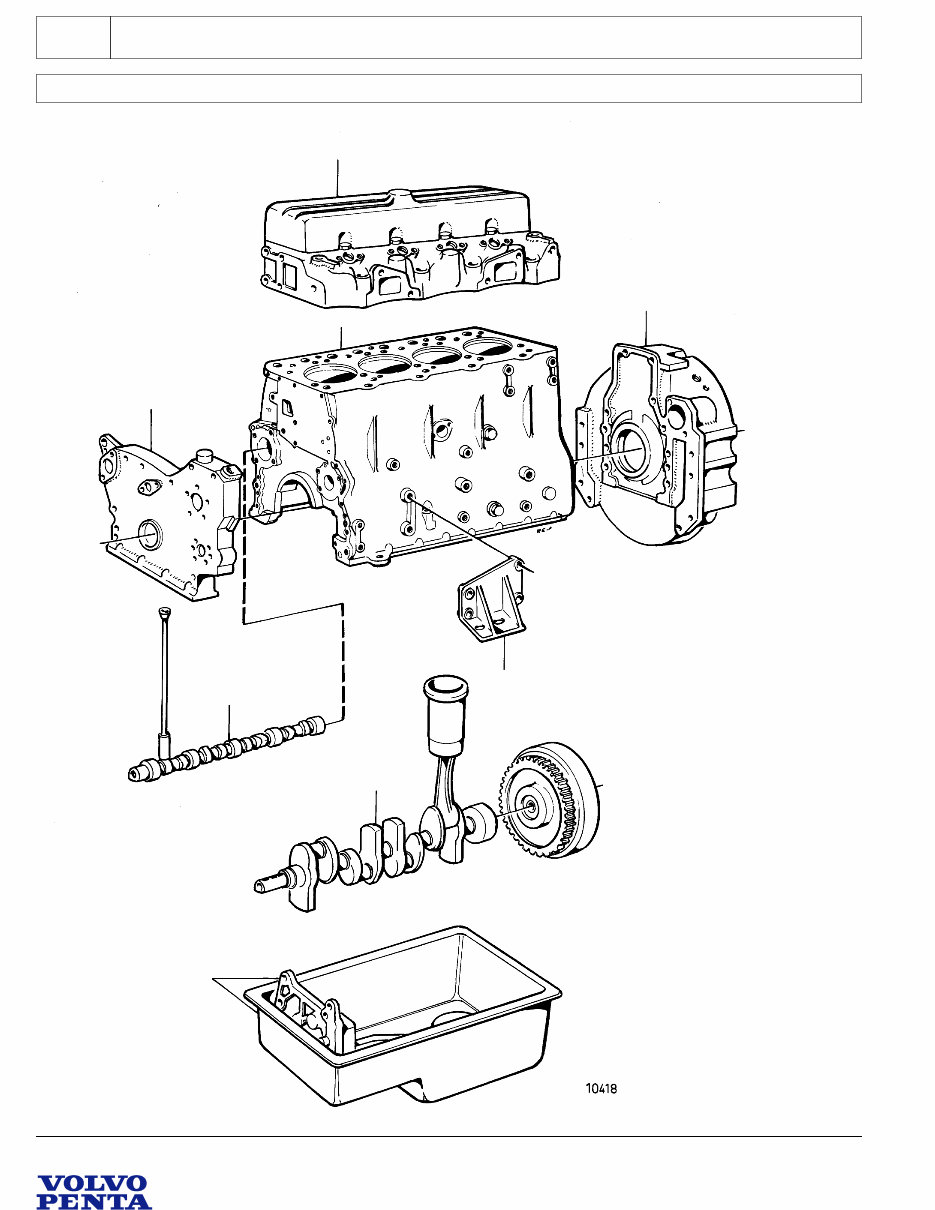

Engine with Installation Components: A
Upd: 12/21/2016 10418 7742050 - 21 - 13372
TD30A, TD31ACE, TD40A, TD45B, D45A
1
3
2
6
8
5
4
7
Engine with Installation Components: A
21
7742050 - 21 - 13372 10418 Upd: 12/21/2016
TD30A, TD31ACE, TD40A, TD45B, D45A
REF QTY DESCRIPTION SEE SEC.
1 1 cylinder head 13393
2 1 cylinder block 13361
3 1 flywheel housing 13362
4 1 crankshaft and related parts 13367
5 1 camshaft 13371
6 1 timing gear cover and gears 13376
7 1 lubricating system 13381
8 1 engine mounts 13392
21
Engine with Installation Components: B
TD45B
Upd: 12/21/2016 10418 7742050 - 21 - 13372B
TD30A, TD31ACE, TD40A, TD45B, D45A
1
3
2
6
8
5
4
7
Engine with Installation Components: B
21
TD45B
7742050 - 21 - 13372B 10418 Upd: 12/21/2016
TD30A, TD31ACE, TD40A, TD45B, D45A
REF QTY DESCRIPTION SEE SEC.
1 1 cylinder head 13393
2 1 cylinder block 13361
3 1 flywheel housing 13362
4 1 crankshaft and related parts 13367
5 1 camshaft 13371
6 1 timing gear cover and gears 13376
7 1 lubricating system 13381
