21

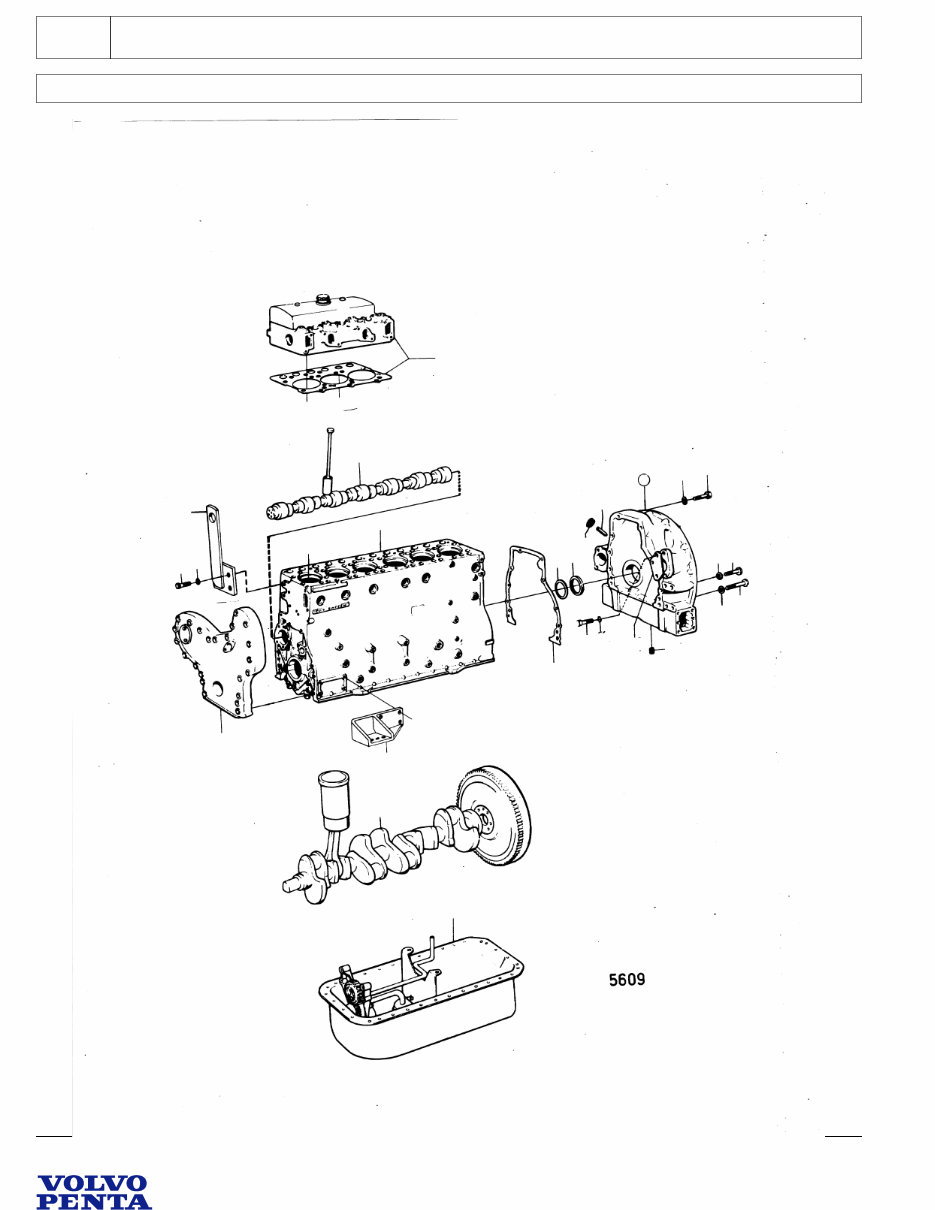

Engine and Installation Components: A
MD70B
Upd: 2014-02-21 5609 7743240 - 21 - 16380
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
23 10
17
18 19
4
3
13
16
8
9
22
1
20
14 16
11
24
15
16
21
12
5
7
2
6
Engine and Installation Components: A
21
MD70B
7743240 - 21 - 16380 5609 Upd: 2014-02-21
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder block 16404
2 1 crankshaft and related parts 16406
3 1 camshaft 16409
4 2 cylinder head 16412
5 1 timing gear cover and gears 16382
*
6 1 lubricating system 16385
16386
7 1 engine mounts 16400
8 821790 1 Flywheel housing
(821200) 1 Flywheel housing Is installed for clutch 813028., Obsolete part
9 404069 1 Pin For 821790
1 For 821200
10 471056 1 Seal
11 (821766) 1 Spacer ring Obsolete part
12 420167 1 Gasket
13 (955581) 2 Hexagon screw Obsolete part
14 955580 6 Hexagon screw
15 (955583) 2 Hexagon screw Obsolete part
16 941911 10 Spring washer
17 423081 1 Cover
18 940098 3 Hexagon screw
19 942336 3 Spring washer
20 61822 1 Rubber plug
21 952357 1 Plug
22 1 lifting arm
23 940280 2 Spring washer
24 955561 2 Hexagon screw
21
Engine and Installation Components: B
TMD70B
Upd: 2014-02-21 5609 7743240 - 21 - 16380B
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
23 10
17
18 19
4
3
13
16
8
9
22
1
20
14 16
11
24
15
16
21
12
5
7
2
6
Engine and Installation Components: B
21
TMD70B
7743240 - 21 - 16380B 5609 Upd: 2014-02-21
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder block 16404
2 1 crankshaft and related parts 16406
3 1 camshaft 16409
4 2 cylinder head 16412
5 1 timing gear cover and gears 16382
6 1 lubricating system 16385
7 1 engine mounts 16400
8 821790 1 Flywheel housing
(821200) 1 Flywheel housing Is installed for clutch 813028., Obsolete part
9 404069 1 Pin For 821790
1 For 821200
10 471056 1 Seal
11 (821766) 1 Spacer ring Obsolete part
12 420167 1 Gasket
13 (955581) 2 Hexagon screw Obsolete part
14 955580 6 Hexagon screw
15 (955583) 2 Hexagon screw Obsolete part
16 941911 10 Spring washer
17 423081 1 Cover
18 940098 3 Hexagon screw
19 942336 3 Spring washer
20 61822 1 Rubber plug
21 952357 1 Plug
22 1 lifting arm
23 940280 2 Spring washer
24 955561 2 Hexagon screw
21

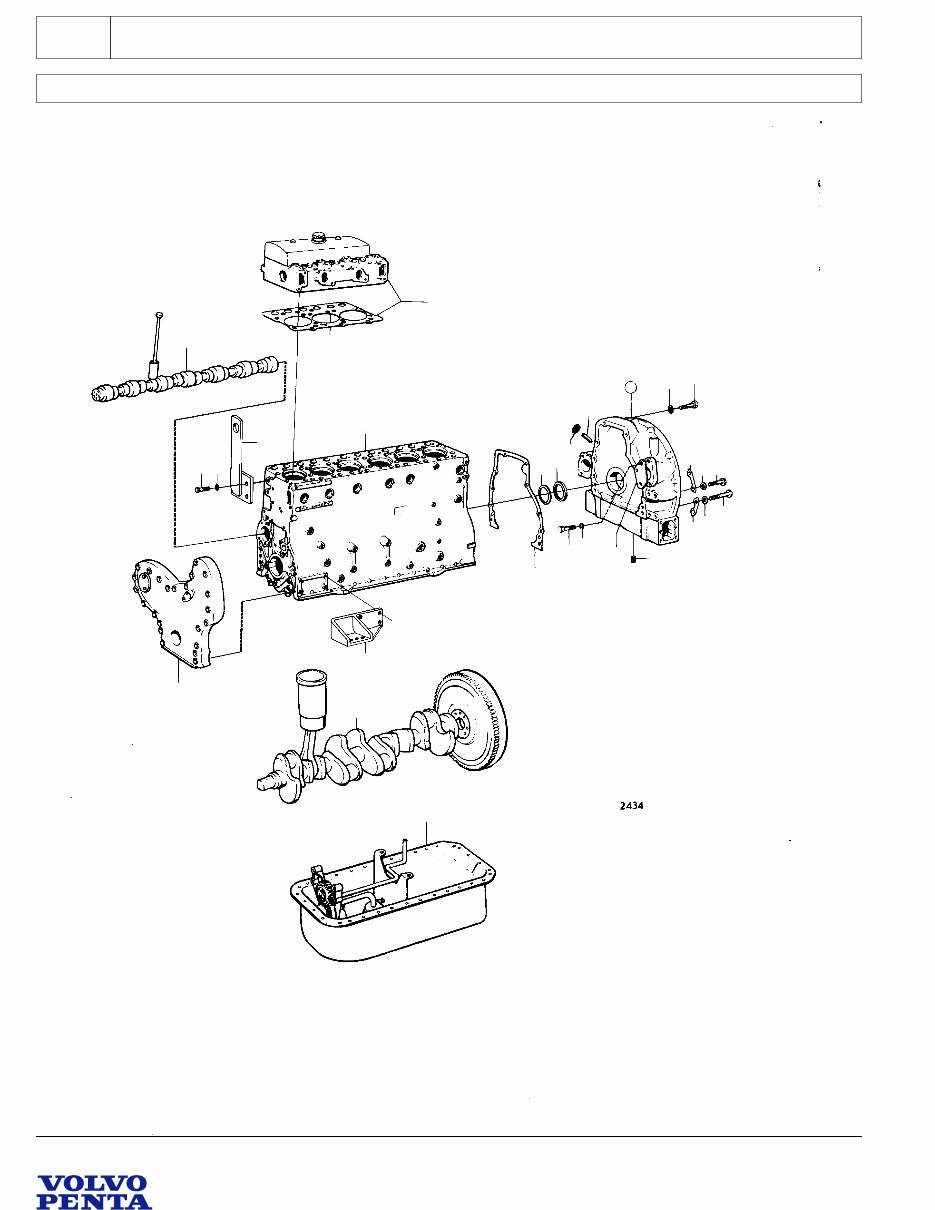

Engine and Installation Components
TAMD70B, AQD70B
Upd: 2014-02-21 2434 7743240 - 21 - 16384
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
14
4
3
13
16
8
9
1
24
22
17
10
11 16 25 26
15
16
18
21
20
19
23
12
7
5
2
6
Engine and Installation Components
21
TAMD70B, AQD70B
7743240 - 21 - 16384 2434 Upd: 2014-02-21
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder block 16404
2 1 crankshaft and related parts 16407
*
3 1 camshaft 16410
4 2 cylinder head 16413
5 1 timing gear cover and gears 16382
*
6 1 lubricating system 16385
16386
7 1 engine mounts 16401
16402
8 821790 1 Flywheel housing
(847320) 1 Flywheel housing Seating for engine bracket placed above the center line of
crankshaft., Obsolete part
9 404069 1 Pin
10 471056 1 Seal
11 (821766) 1 Spacer ring Obsolete part
12 420167 1 Gasket
13 (955581) 2 Hexagon screw Obsolete part
14 955580 6 Hexagon screw
15 (955583) 2 Hexagon screw Obsolete part
16 120196 10 Washer
17 (941466) 2 Tab washer Obsolete part
18 941464 2 Tab washer
19 423081 1 Cover
20 940133 3 Hexagon screw
21 942336 3 Spring washer
22 61822 1 Rubber plug
23 952357 1 Plug
24 1 lifting arm
25 955561 2 Hexagon screw
26 940280 2 Spring washer
21

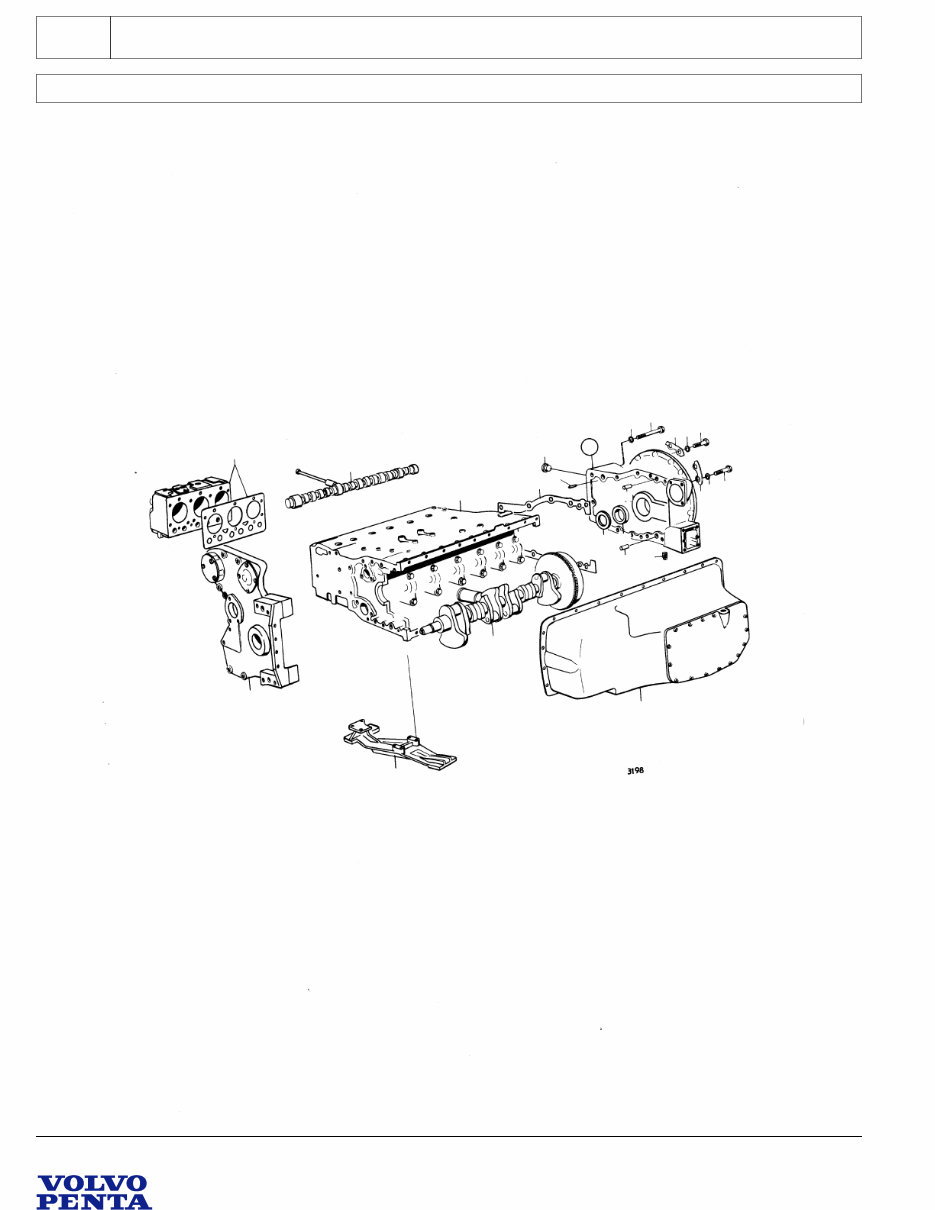

Engine and Installation Components
THAMD70B, AQD70BL
Upd: 2014-02-21 3198 7743240 - 21 - 16390
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
14
17
19
19
15
10
12
21
8
20
4
3
9
11
16
19
1
18
13
10
2
5
6
7
Engine and Installation Components
21
THAMD70B, AQD70BL
7743240 - 21 - 16390 3198 Upd: 2014-02-21
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
REF PART NO. QTY DESCRIPTION SEE SEC. NOTES
1 1 cylinder block 16405
2 1 crankshaft and related parts 16408
3 1 camshaft 16411
4 2 cylinder head 16381
5 1 timing gear cover and gears 16383
6 1 lubricating system 16387
7 1 engine mounts 16403
8 1 Flywheel housing
9 404069 1 Pin
10 191171 2 Pin
11 420167 1 Gasket
12 471056 1 Seal
13 (821766) 1 Spacer ring Obsolete part
14 (955581) 2 Hexagon screw Obsolete part
15 955580 6 Hexagon screw
16 (955583) 2 Hexagon screw Obsolete part
17 (941466) 2 Tab washer Obsolete part
18 941464 2 Tab washer
19 120196 10 Washer
20 61822 1 Rubber plug
21 952357 1 Plug
21

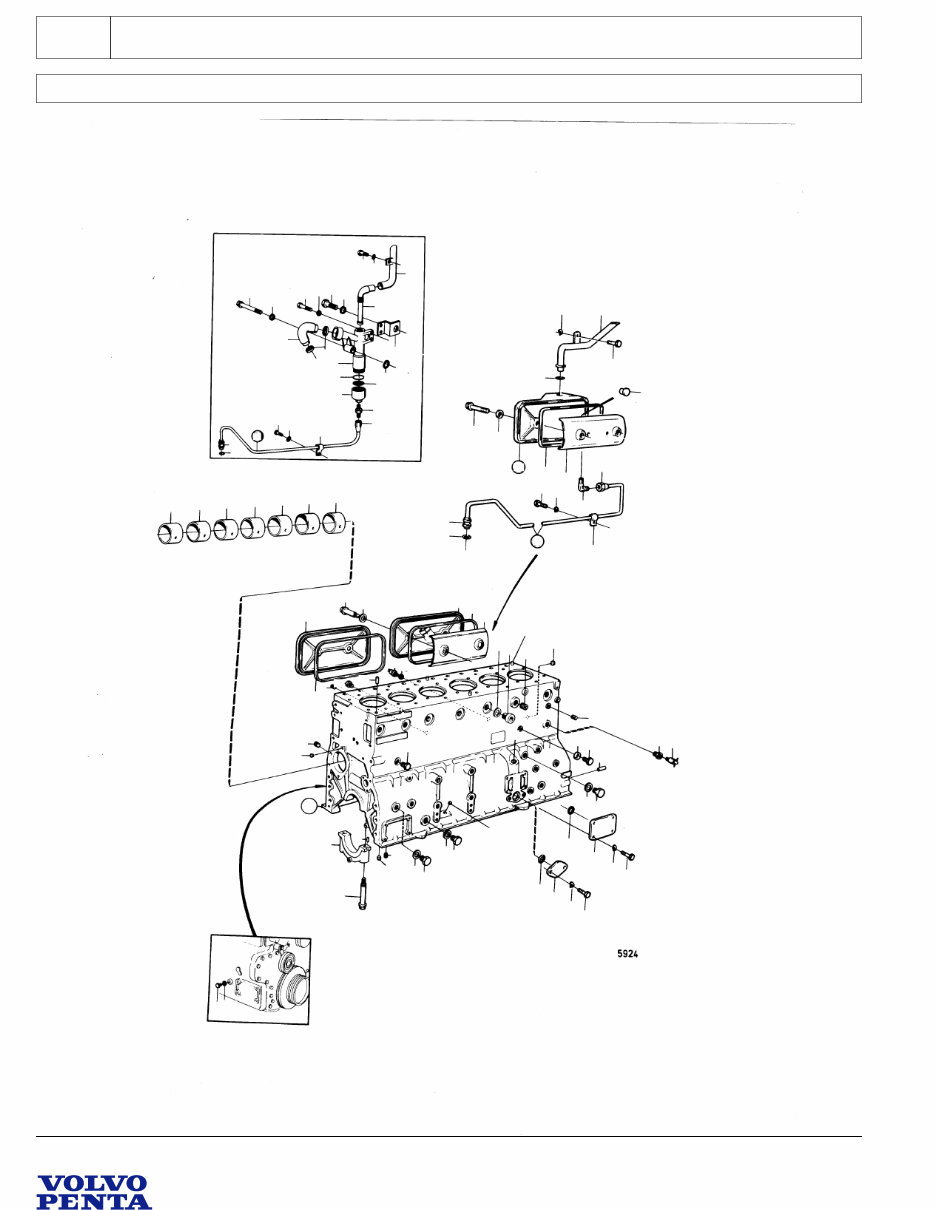

Cylinder Block: A
MD70B
Upd: 2014-02-21 5924 7743240 - 21 - 16404
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
20
19
77
43
26
67
34
66
45
61
34
65
29
68
87
62
9
55
80
94 97
78
79
57
73
64
70
60
96 54
95 59 63
58
81
56
69
75
71
76
74 84
85
72
88
83
82
92
93
11 10
8 6 7
5 86
89
90
91
52
49 53
51
50 48
33 13
12
44
15
51
14
30
41 36
37 28 40
35
33
32
1 42
27
3
17 2
39
30 38 16
31
25
18
24
21
4
23
22
47
46
Cylinder Block: A
21
MD70B
7743240 - 21 - 16404 5924 Upd: 2014-02-21
MD70B, MD70BK, TMD70B, THAMD70B, TAMD70B, AQD70BL, AQD70B
REF PART NO. QTY DESCRIPTION NOTES
1 1 Replaced by, for MD70B with CAV fuel injection pump, 1ea 466830, 1ea 466331,
for MD70B with Bosch fuel injection pump, 1ea 466830, 1ea 836836, 1ea
836837, for TAMD70B, AQD70B, TMD70B, 1ea 466830, 1ea 836836, 1ea 836837,
1 ea, MO-47150/XXXX
(466830) 1 Cylinder block Spare part version., MO47151/XXXX-, Obsolete part
2 7 bearing cap
3 422426 1 Pivot pin
4 (421153) 14 Flange screw Obsolete part
5 422076 1 Bushing
6 422077 1 Bushing
7 422078 1 Bushing
8 422079 1 Bushing
9 422080 1 Bushing
10 422081 1 Bushing
11 422082 1 Bushing
12 467367 6 Plug
13 469328 6 Gasket
14 952075 1 Plug
15 422369 7 Plug
16 (837510) 1 Cardboard tube Obsolete part
17 955994 2 O-ring
18 955534 4 Hexagon screw
19 942336 4 Spring washer
20 1542267 1 Cover
21 949659 1 O-ring
22 955512 2 Hexagon screw
23 941906 2 Spring washer
24 952077 3 Plug
25 18677 3 Gasket
26 952077 1 Plug
27 955082 2 Cap plug
28 (942734) 1 Plug Obsolete part
29 192154 1 Plug
30 952075 2 Plug
31 (955079) 1 Plug Obsolete part
32 191171 2 Pin
33 955082 3 Cap plug
34 (949020) 4 Pin Obsolete part
35 952077 1 Plug
36 190130 1 Reduction nipple
37 (87502) 1 Shut-off cock Obsolete part
38 192114 1 Plug
39 957185 1 Gasket
40 (191025) 1 Plug Excl MD70BK spec 867116., Obsolete part
41 957178 1 Gasket Excl MD70BK spec 867116.
42 192114 1 Plug Excl MD70BK spec 867116.
43 957185 1 Gasket Excl MD70BK spec 867116.
44 16318 2 Plug
45 907132 2 Gasket
46 (941959) 1 Plug Obsolete part
47 18818 1 Gasket
48 420120 1 Inspection cover
49 420121 1 Inspection cover Excl spec 867116
50 (421120) 1 Splash plate Excl spec 867116, Obsolete part
51 421121 2 Gasket Excl spec 867116
421121 1 Gasket MD70BK spec 867116
52 422541 4 Shoulder screw Excl spec 867116
422541 3 Shoulder screw
53 469846 3 Sealing ring
54 (820837) 1 Housing Excl MD70BK spec 867116., Obsolete part
