211

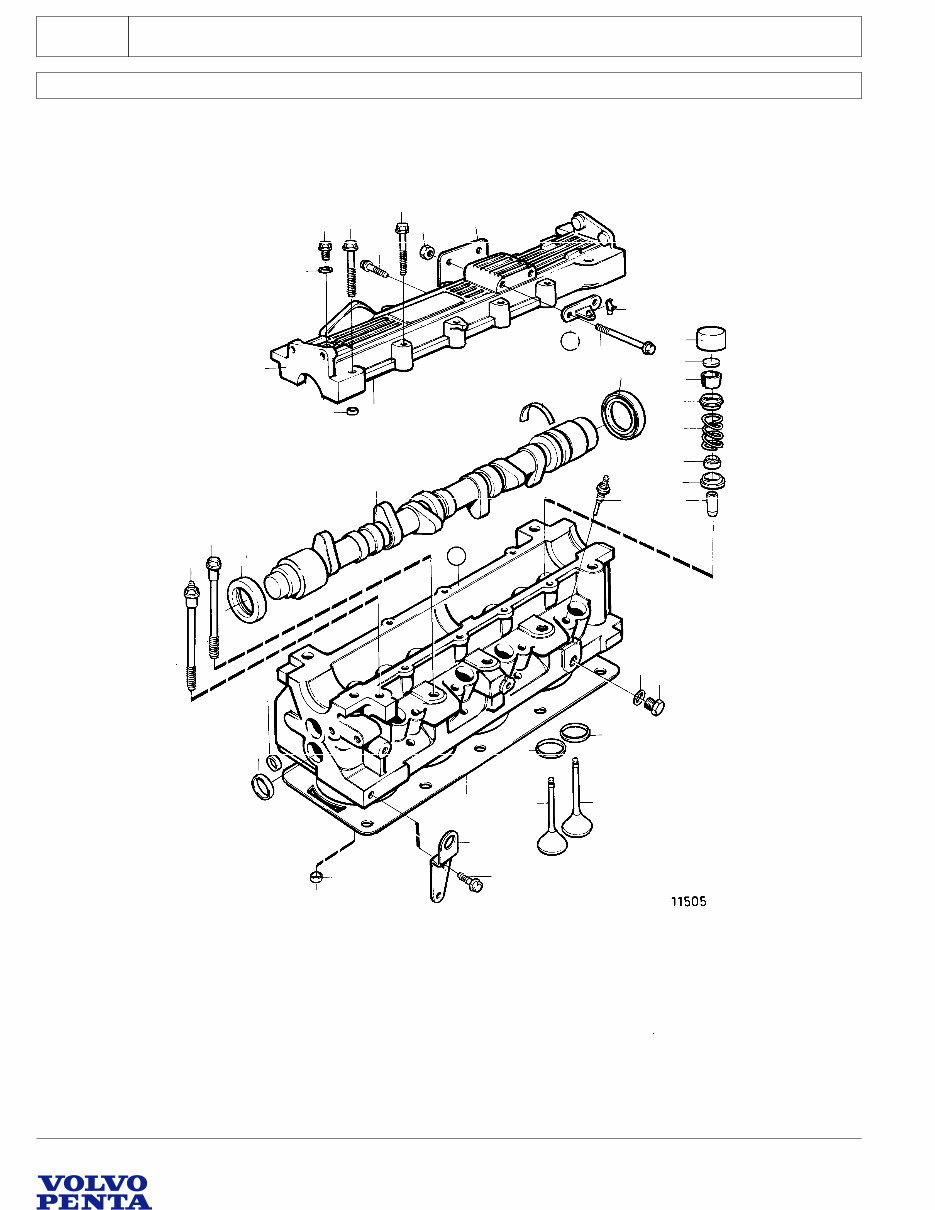

Cylinder Head
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
3
33
35
4 25 32
34
26
30
19
29
31
18
2
23
17
21
16
9
15
14
13
20
5
38
28
1
22 27
40
39
8
7
10 6
12 11 24
36
37
Upd:10/3/2023 47005 M-D2-B-211 -54159398
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Head
211
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
REF PART NO. QTY DESCRIPTION NOTES
1 (3803317) 1 Cylinder head MD22L-B, (3581737)
(3803318) 1 Cylinder head MD22P-B
3803319 1 Cylinder head T (A) MD22P-B, -C (3581132), (3581720)
2 1 Cover
3 948217 7 Flange screw
4 973924 4 Flange screw (965179)
5 859871 8 Valve guide
6 859874 4 Valve seat, intake
7 859875 4 Valve seat, exhaust
8 859877 2 Plug
9 859878 2 Guide pin
10 859876 4 Plug
11 859650 4 Inlet valve
12 859656 4 Exhaust valve
13 3582513 8 Valve seal Included in exchange unit cylinder head 3803319., (859653)
14 3582513 8 Valve seal (859651)
15 860016 8 Valve spring MD22L-B
859652 8 Valve spring MD22P-B, TMD22, TAMD22P, Included in exchange unit cylinder head 3803319.
16 3582282 8 Valve cap
17 3582283 16 Valve cone
18 859935 X Shim TH=2,29mm
859934 X Shim TH=2,31mm
859933 X Shim TH=2,34mm
859932 X Shim TH=2,36mm
859931 X Shim TH=2,39mm
859930 X Shim TH=2,42mm
859929 X Shim TH=2,44mm
859928 X Shim TH=2,46mm
859927 X Shim TH=2,49mm
859926 X Shim TH=2,52mm
859925 X Shim TH=2,54mm
859924 X Shim TH=2,56mm
859923 X Shim TH=2,59mm
859922 X Shim TH=2,62mm
859921 X Shim TH=2,64mm
859920 X Shim TH=2,68mm
859919 X Shim TH=0.106''
859918 X Shim TH=2,72mm
859917 X Shim TH=0.108''
859916 X Shim TH=0.109''
859915 X Shim TH=2,79mm
859914 X Shim TH=2,82mm
859913 X Shim TH=2,84mm
859912 X Shim TH=2,87mm
859911 X Shim TH=2.90mm
859910 X Shim TH=2,92mm
(859909) X Shim TH=2.95mm
859908 X Shim TH=2,97mm
859907 X Shim TH=3.00mm
859906 X Shim TH=3,02mm
859905 X Shim TH=3.05mm
859904 X Shim TH=3,07mm
859903 X Shim TH=3.10mm
859902 X Shim TH=0.123''
859901 X Shim TH=3.15mm
859900 X Shim TH=3,18mm
859899 X Shim TH=3.20mm
859885 X Shim TH=3,23mm
859884 X Shim TH=3.25mm
859883 X Shim TH=3,28mm
859882 X Shim TH=3.30mm
859881 X Shim TH=3,32mm
859880 X Shim TH=3,34mm
M-D2-B-211- 54159398 47005 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Head
211
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
REF PART NO. QTY DESCRIPTION NOTES
859879 X Shim TH=3,38mm
859662 X Shim TH=3.40mm
19 (859661) 8 Tappet
20 860017 1 Camshaft MD22L-B
859657 1 Camshaft MD22P-B, TMD22-B,TMD22P-C
(3581133) 1 Camshaft TAMD22P-B
21 859658 1 Guide Included in exchange unit cylinder head 3803319.
22 859659 1 Sealing ring Included in exchange unit cylinder head 3803319.
23 859660 1 Sealing ring Included in exchange unit cylinder head 3803319.
24 859647 1 Cylinder head gasket
25 946025 1 Flange screw Included in exchange unit cylinder head 3803319.
26 957171 1 Gasket Included in exchange unit cylinder head 3803319.
27 859663 4 Screw
28 859664 6 Screw
29 859848 1 Bracket
30 1 Clip
31 965181 2 Flange screw
32 945408 2 Flange nut
33 1 Plate
34 946440 2 Flange screw
35 859635 2 Guide pin
36 1 Lifting eye, front
1 Lifting eye, Rear
37 859857 5 Screw
38 4 Glow plug
39 859689 1 Plug Included in exchange unit cylinder head 3803319.
40 969011 1 Gasket Included in exchange unit cylinder head 3803319.
M-D2-B-211- 54159398 47005 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
211
Cylinder Head
MD22L
3
33
35
4 25 32
34
26
30
19
29
31
18
2
23
17
21
16
9
15
14
13
20
5
38
28
1
22 27
40
39
8
7
10 6
12 11 24
36
37
Upd:10/3/2023 47005 M-D2-B-211 -54159501
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Head
211
MD22L
REF PART NO. QTY DESCRIPTION NOTES
1 859648 1 Cylinder head
3581737 1 Cylinder head
3803317 1 Cylinder head
(3803317) 1 Cylinder head
21122661 1 Cylinder head
2 1 Cover
3 948217 7 Flange screw
4 973924 4 Flange screw
5 859871 8 Valve guide
6 859874 4 Valve seat, intake
7 859875 4 Valve seat, exhaust
8 859877 2 Plug
9 859878 2 Guide pin
10 859876 4 Plug
11 859650 4 Inlet valve
12 859656 4 Exhaust valve
13 3582513 8 Valve seal
14 3582513 Valve seal
15 860016 8 Valve spring MD22L-A
859652 8 Valve spring MD22A, TMD22A
16 3582282 8 Valve cap
17 3582283 16 Valve cone
18 859935 X Shim TH=2,29mm
859934 X Shim TH=2,31mm
859933 X Shim TH=2,34mm
859932 X Shim TH=2,36mm
859931 X Shim TH=2,39mm
859930 X Shim TH=2,42mm
859929 X Shim TH=2,44mm
859928 X Shim TH=2,46mm
859927 X Shim TH=2,49mm
859926 X Shim TH=2,52mm
859925 X Shim TH=2,54mm
859924 X Shim TH=2,56mm
859923 X Shim TH=2,59mm
859922 X Shim TH=2,62mm
859921 X Shim TH=2,64mm
859920 X Shim TH=2,68mm
859919 X Shim TH=0.106''
859918 X Shim TH=2,72mm
859917 X Shim TH=0.108''
859916 X Shim TH=0.109''
859915 X Shim TH=2,79mm
859914 X Shim TH=2,82mm
859913 X Shim TH=2,84mm
859912 X Shim TH=2,87mm
859911 X Shim TH=2.90mm
859910 X Shim TH=2,92mm
(859909) X Shim TH=2.95mm
859908 X Shim TH=2,97mm
859907 X Shim TH=3.00mm
859906 X Shim TH=3,02mm
859905 X Shim TH=3.05mm
859904 X Shim TH=3,07mm
859903 X Shim TH=3.10mm
859902 X Shim TH=0.123''
859901 X Shim TH=3.15mm
859900 X Shim TH=3,18mm
859899 X Shim TH=3.20mm
859885 X Shim TH=3,23mm
859884 X Shim TH=3.25mm
859883 X Shim TH=3,28mm
859882 X Shim TH=3.30mm
M-D2-B-211- 54159501 47005 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Head
211
MD22L
REF PART NO. QTY DESCRIPTION NOTES
859881 X Shim TH=3,32mm
859880 X Shim TH=3,34mm
859879 X Shim TH=3,38mm
859662 X Shim TH=3.40mm
19 (859661) 8 Tappet MD22L-A (860018)
20 860017 1 Camshaft MD22L-A, Included in exchange unit cylinder head 3803317.
859657 1 Camshaft MD22A, TMD22A
21 859658 1 Guide
22 859659 1 Sealing ring
23 859660 1 Sealing ring
24 859647 1 Cylinder head gasket
25 946025 1 Flange screw
26 957171 1 Gasket
27 859663 4 Screw
28 859664 6 Screw
29 859848 1 Bracket
30 1 Clip
31 965181 2 Flange screw
32 945408 2 Flange nut
33 1 Plate
34 946440 2 Flange screw
35 859635 2 Guide pin
36 1 Lifting eye, front
1 Lifting eye, Rear
37 859857 5 Screw
38 4 Glow plug See group 30
39 859689 1 Plug
40 969011 1 Gasket
M-D2-B-211- 54159501 47005 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
212

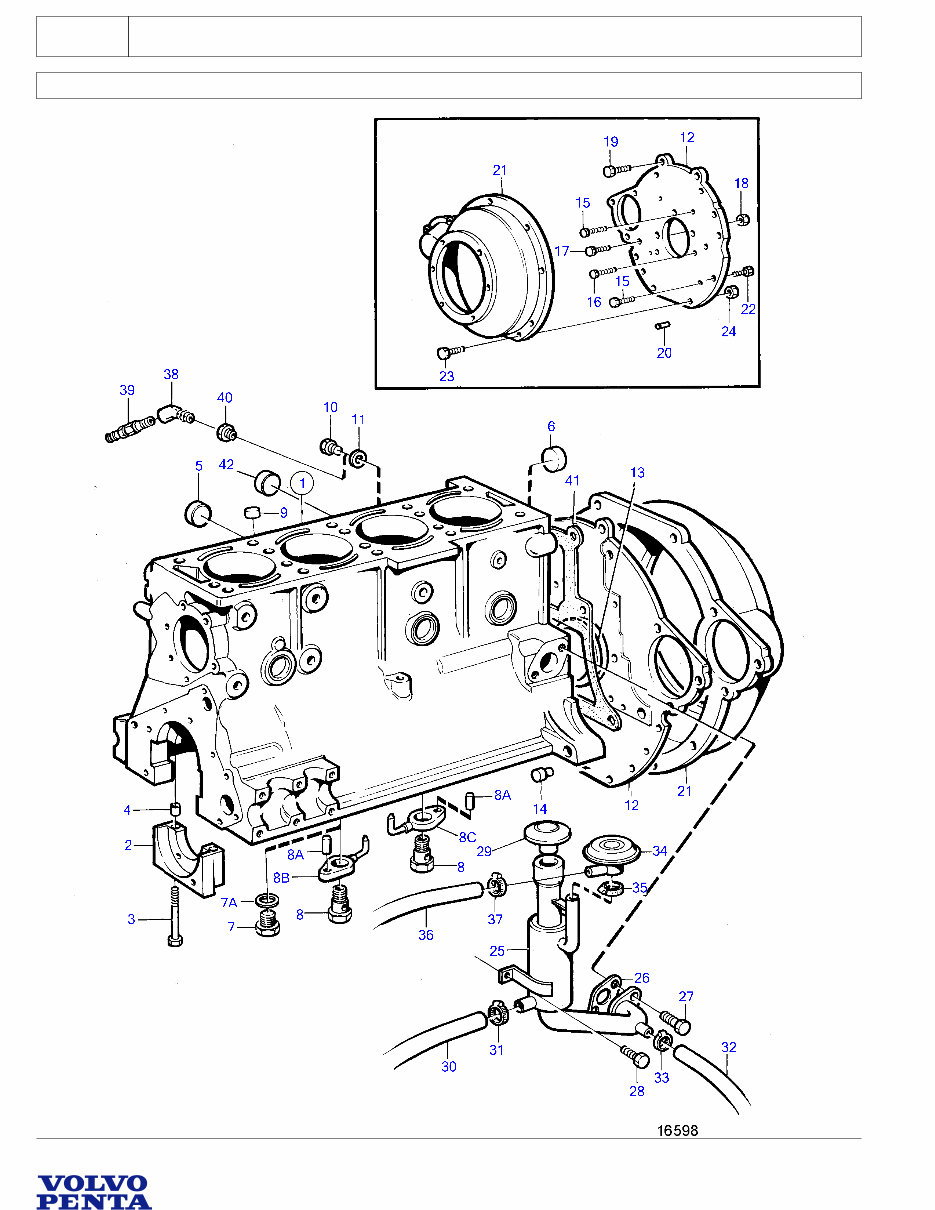

Cylinder Block and Flywheel Housing
MD22L, MD22P, TMD22B, TMD22P-C
Upd:10/3/2023 47006 M-D2-B-212 -54159399
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Block and Flywheel Housing
212
MD22L, MD22P, TMD22B, TMD22P-C
REF PART NO. QTY DESCRIPTION NOTES
1 859625 1 Cylinder block
2 5 Main bearing cap
3 859631 10 Screw
4 859632 10 Guide sleeve
5 859633 8 Plug
6 859634 1 Plug
7 946025 4 Flange screw MD22L-B, MD22P-B (120168)
7A 957171 4 Gasket MD22L-B, MD22P-B
8 861352 4 Hollow screw TMD22-B, TMD22P-C
8A 4 Kit TMD22-B, TMD22P-C
8B 861349 2 Nozzle TMD22-B, TMD22P-C
8C (861350) 2 Nozzle TMD22-B, TMD22P-C
9 859723 1 Plug
10 859725 1 Plug
11 483963 1 Washer
12 859715 1 Plate
13 859718 1 Sealing ring
14 (859716) 2 Guide pin
15 946329 5 Flange screw M10x25mm (973083)
16 946173 3 Flange screw M8x20mm
17 965228 1 Flange screw M12x75mm
18 971096 1 Flange nut
19 (859717) 2 Screw
20 950566 2 Pin
21 (3580664) 1 Flywheel housing
22 946472 6 Flange screw M10x30mm
23 965187 2 Flange screw M10x60mm
24 971095 2 Flange nut
25 859736 1 Crankcase ventilatio
26 859735 1 Gasket
27 859737 2 Screw
28 944926 1 Flange screw
29 859738 1 Filler cap
30 859739 1 Hose Oil filling-oil pan.
31 961665 1 Hose clamp
32 861604 1 Hose Oil filling-oil pan.
33 961665 1 Hose clamp
34 (859743) 1 Valve
35 994555 1 Hose clamp
36 6646938 1 Hose Oil filling-air filter.
37 961665 1 Hose clamp
38 809109 1 Elbow nipple
39 966871 1 Shut-off cock
40 180002 1 Nipple
41 861404 1 Gasket
42 (941399) 1 Expansion plug
M-D2-B-212- 54159399 47006 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
212
Cylinder Block and Flywheel Housing
MD22L
Upd:10/3/2023 47006 M-D2-B-212 -54159514
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
Cylinder Block and Flywheel Housing
212
MD22L
REF PART NO. QTY DESCRIPTION NOTES
1 859625 1 Cylinder block
2 5 Main bearing cap
3 859631 10 Screw
4 859632 10 Guide sleeve
5 859633 8 Plug
6 859634 1 Plug
7 946025 4 Flange screw MD22L-A, MD22A
7A 120168 4 Gasket MD22L-A, MD22A
8 861352 4 Hollow screw TMD22A
8A 4 Plug kit TMD22A
8B 861349 2 Nozzle TMD22A
8C (861350) 2 Nozzle TMD22A
9 859723 1 Plug
10 859725 1 Plug
11 483963 1 Washer
12 859715 1 Plate
13 859718 1 Sealing ring
14 (859716) 2 Guide pin
15 973083 5 Flange screw M10X25mm
16 946173 3 Flange screw M8x20mm
17 965228 1 Flange screw M12x75mm
18 971096 1 Flange nut
19 (859717) 2 Screw
20 950566 2 Pin
21 861583 1 Flywheel housing
22 946472 6 Flange screw M10x30mm
23 965187 2 Flange screw M10x60mm
24 971095 2 Flange nut
25 859736 1 Crankcase ventilatio
26 859735 1 Gasket
27 859737 2 Screw
28 944926 1 Flange screw
29 859738 1 Filler cap
30 859739 1 Hose Oil filling-oil pan.
31 961665 1 Hose clamp
32 861604 1 Hose Oil filling-oil pan., (859742)
33 961665 1 Hose clamp
34 (859743) 1 Valve
35 994555 1 Hose clamp
36 6646938 1 Hose Oil filling-air filter.
37 961665 1 Hose clamp
38 809109 1 Elbow nipple
39 966871 1 Shut-off cock
40 180002 1 Nipple
41 861404 1 Gasket
42 859633 1 Plug
M-D2-B-212- 54159514 47006 Upd:10/3/2023
MD22L, MD22P, TAMD22P-B, TMD22B, TMD22P-C
