Volvo Penta D2-75, D2-75B, D2-75C, D2-60F, D2-75F Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
211

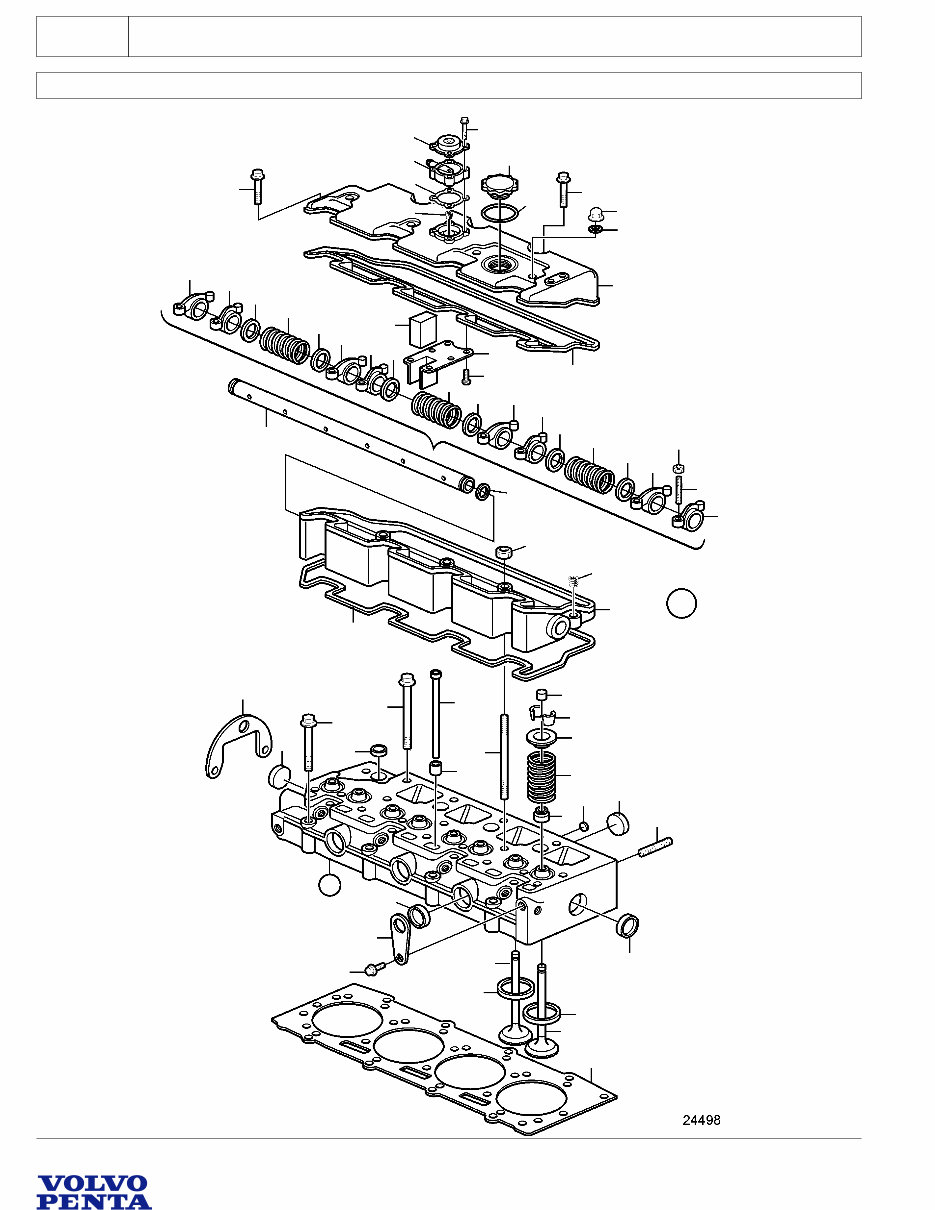

Cylinder Head
D2-50F, D2-55F
44
37
43
47
42 46
51
48
49
24
24
24
24
27
27
27
27
36
30
30
30
30
30
30
29
29
29
40
39
45 41
26
25
28
31
34
52
22
23
32
35
13
20
15
11
16
10
3
3
2 33
21
9
4
4
5
8 19
1
18
7
17
12
6
14
12A
38 50
Upd:11/3/2023 50385 M-D2-C -211 -54160318
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
Cylinder Head
211
D2-50F, D2-55F
REF PART NO. QTY DESCRIPTION NOTES
1 3801333 1 Cylinder head
2 3886428 7 Expansion plug
3 3886441 2 Expansion plug
4 3583696 6 Expansion plug
5 3580477 3 Expansion plug
6 21186281 4 Inlet valve, intake
7 21186282 4 Exhaust valve, exhaust
8 3580306 4 Valve stem seal, intake
3580305 4 Valve stem seal, exhaust
9 3580964 8 Valve spring
10 3580307 8 Valve spring washer
11 3580308 16 Valve cone
12 3842086 4 Valve seat, intake
12A 3809624 4 Valve seat, exhaust
13 21250646 8 Valve cap
14 21832670 1 Gasket TH=1,1mm, Marked xxxxx7751
21832671 1 Gasket TH=1,2mm, Marked xxxxx7761
21832672 1 Gasket TH=1,3mm, Marked xxxxx7771
15 24513666 1 Screw kit
(3580483) 14 Screw
3580484 4 Screw
16 24513666 1 Screw kit
17 861870 1 Screw
18 3583556 1 Lifting eye
19 3580520 4 Stud
20 3583662 8 Push rod
21 3580464 8 Tappet
22 21186316 1 Rocker arm Replaced by 21306331
21306331 1 Rocker arm
23 1 Bracket
24 3580487 4 Rocker arm
25 861877 8 Screw
26 861878 8 Nut
27 3580486 4 Rocker arm
28 3583547 1 Shaft
29 3580490 3 Spring
30 3580491 6 Adjusting washer
31 861997 1 O-ring
32 3583546 1 Gasket
33 3580493 4 Stud
34 3583664 4 Nut
35 3583092 1 Lifting eye
36 889485 1 Valve cover Replaced by 3584114
3584114 1 Valve cover
37 3583660 1 Breather pipe
38 3583659 4 Screw
39 3583661 1 Retainer
40 3580320 1 Filter
41 3583663 6 Screw
42 1 Adapter
43 3583658 1 Gasket
44 3580013 2 Screw
45 889486 1 Gasket
46 965178 3 Flange screw
47 3580258 2 Screw L=35mm
48 3580500 4 Nut
49 3580499 4 Gasket
50 3583541 1 Oil filler cap
51 861897 1 O-ring
52 3809690 1 Plug
M-D2-C- 211- 54160318 50385 Upd:11/3/2023
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
211

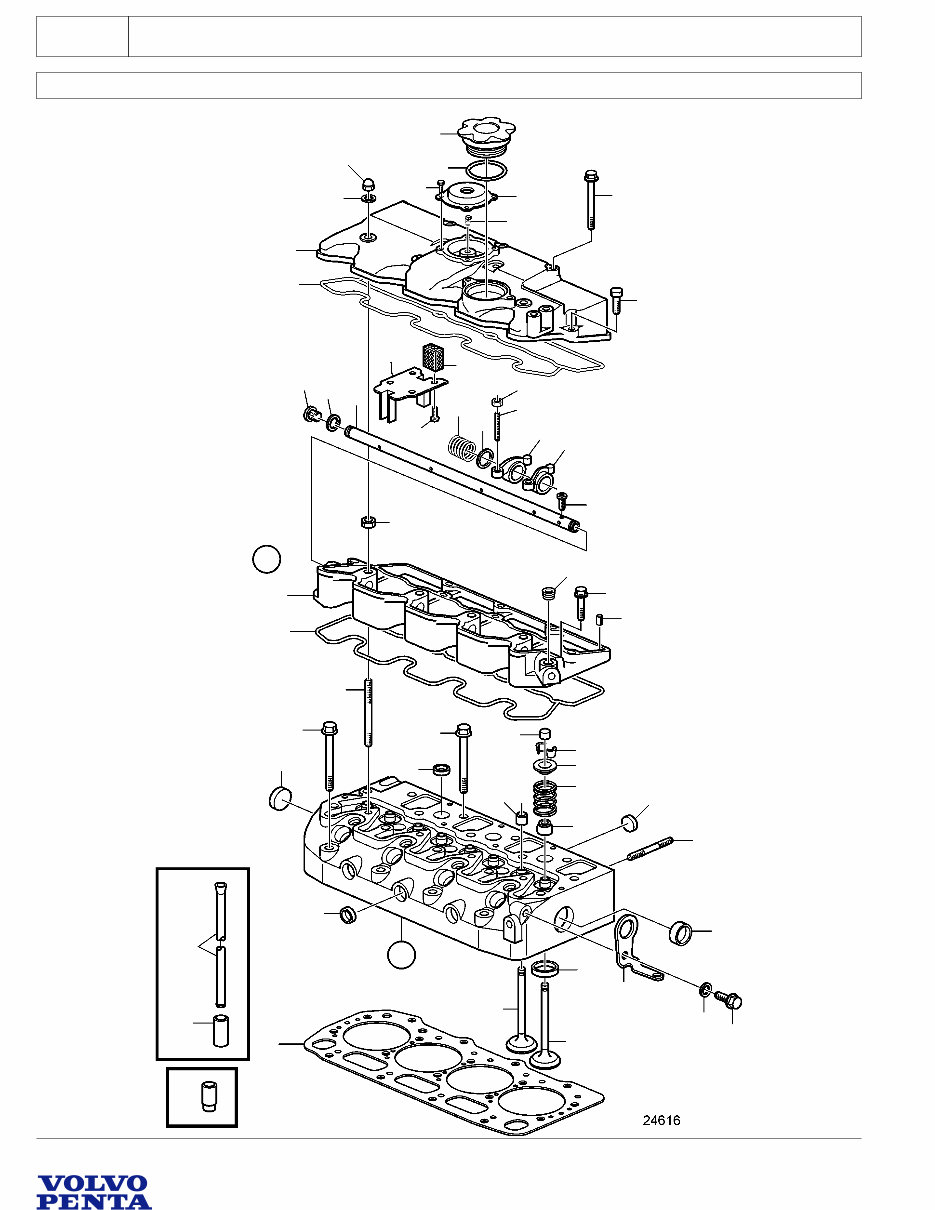

Cylinder Head
D2-60F, D2-75F
41
40
50
39
38
47
46
51
37 48
49
24
24
24
24
27
27
27
27
36
30
30
30
30
30
30
29
29
29
43
42
45
44
28 26
25
31
34
52
22
23
32
35
14
20
15
11
16
10
3
3
2 33
21
9
4
4
5
8 19
1
18
7
17
13
12
6
53
Upd:11/3/2023 50386 M-D2-C -211 -54160321
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
Cylinder Head
211
D2-60F, D2-75F
REF PART NO. QTY DESCRIPTION NOTES
1 3801334 1 Cylinder head
2 3886428 7 Expansion plug
3 3580302 2 Expansion plug
4 3583696 6 Expansion plug
5 3580477 3 Expansion plug
6 21186281 4 Inlet valve, intake
7 21307714 4 Exhaust valve, exhaust
8 3580306 4 Valve stem seal, intake
3580305 4 Valve stem seal, exhaust
9 3580964 8 Valve spring
10 3580307 8 Valve spring washer
11 3580308 16 Valve cone
12 3842086 4 Valve seat, intake
13 3809624 4 Valve seat, exhaust
14 21250646 8 Valve cap
15 24513666 1 Screw kit
(3580483) 14 Screw
3580484 4 Screw
16 24513666 1 Screw kit
17 861870 1 Screw
18 3583556 1 Lifting eye
19 3580520 4 Stud
20 3583662 8 Push rod
21 3580464 8 Tappet
22 21186316 1 Rocker arm Replaced by 21306331
21306331 1 Rocker arm
23 1 Bracket
24 3580487 4 Rocker arm
25 861877 8 Screw
26 861878 8 Nut
27 3580486 4 Rocker arm
28 3583547 1 Shaft
29 3580490 3 Spring
30 3580491 6 Adjusting washer
31 861997 1 O-ring
32 3583546 1 Gasket
33 3580493 4 Stud
34 3583664 4 Nut
35 3583092 1 Lifting eye
36 3584114 1 Valve cover
37 3809690 1 Plug
38 3584112 1 Gasket
39 3584111 1 Adapter
40 3583660 1 Breather pipe
41 3584113 4 Screw
42 3583661 1 Retainer
43 3580320 1 Filter
44 3583663 6 Screw
45 889486 1 Gasket
46 965178 3 Flange screw
47 3580258 2 Screw
48 3580241 4 Nut
49 3580499 4 Gasket
50 21311518 1 Cover
51 861897 1 O-ring
52 3809690 1 Plug
53 21832670 1 Gasket TH=1,1mm, Marked xxxxx7751
21832671 1 Gasket TH=1,2mm, Marked xxxxx7761
21832672 1 Gasket TH=1,3mm, Marked xxxxx7771
M-D2-C- 211- 54160321 50386 Upd:11/3/2023
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
211
Cylinder Head
D2-40, D2-40B, D2-40F
42
46
43
45
44 41
47
54
39
38
40
48
50
25
31
26
24
32
28
33
29
49
30
27
35
22
37
36 23
34
17
5
5
18
15
13
14
3
8
8
4
2
2
2
7
6
12
19
1
9
51
11
20
53
52
10
16
21
Upd:11/3/2023 50384 M-D2-C -211 -54170742
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
Cylinder Head
211
D2-40, D2-40B, D2-40F
REF PART NO. QTY DESCRIPTION NOTES
1 3803894 1 Cylinder head D2-40A, D2-40B
3801332 1 Cylinder head D2-40F
2 3886428 9 Expansion plug
3 3580308 16 Valve cone
4 3580307 8 Valve spring washer
5 3580964 8 Valve spring
6 3580306 4 Valve stem seal
7 3580305 4 Valve stem seal
8 3886441 2 Expansion plug
9 3809624 4 Valve seat
10 3884528 4 Inlet valve
11 3580304 4 Exhaust valve
12 3583709 2 Stud
13 3580310 14 Screw
14 21250646 8 Valve cap
15 3580311 4 Screw
16 3840843 1 Cylinder head gasket TH=1.2mm, D2-40A, D2-40B, Replaced by 21192973
21192973 1 Gasket TH=1.2mm
3889517 1 Cylinder head gasket Replaced by 21192974
21192974 1 Gasket TH=1.3mm
17 3812432 1 Gasket
18 861885 4 Ball screw
19 (3884533) 8 Push rod D2-40A
3812433 8 Push rod D2-40B, D2-40F
20 861827 6 Tappet
21 888184 2 Valve tappet
22 3812427 1 Rocker arm Complete
23 Bracket
24 3886081 1 Rocker arm shaft
25 3884532 1 Plug
26 3884530 1 O-ring
27 3884531 1 Screw
28 3580315 3 Spring
29 3581292 4 Rocker arm
30 3581291 4 Rocker arm
31 861878 8 Nut
32 861877 8 Screw
33 861883 6 Adjusting washer
34 3886069 2 Pin
35 21246409 4 Flange nut
36 3840802 2 Screw
37 3809690 1 Plug
38 3887222 1 Gasket
39 3840858 1 Valve cover D2-40A, D2-40B
21192977 1 Valve cover D2-40F
40 3840802 2 Screw
41 861899 5 Screw
42 21311518 1 Cover
43 861897 1 O-ring
44 3583660 1 Breather pipe
45 3583659 4 Screw
46 3580241 4 Nut
47 11992 4 Gasket
48 3884547 1 Retaining plate
49 3583663 4 Screw
50 3580320 1 Filter
51 1 Lifting eye (861869)
52 946173 1 Flange screw D2-40A, D2-40B
946440 1 Flange screw D2-40F
53 21246676 1 Washer
54 3580364 1 Plug
M-D2-C- 211- 54170742 50384 Upd:11/3/2023
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
211
Cylinder Head
D2-55, D2-55B, D2-55C, D2-55D, D2-55E
44
37
43
47
42 46
51
48
49
24
24
24
24
27
27
27
27
36
30
30
30
30
30
30
29
29
29
40
39
45 41
26
25
28
31
34
52
22
23
32
35
13
20
15
11
16
10
3
3
2 33
21
9
4
4
5
8 19
1
18
7
17
12
6
14
12A
38 50
Upd:11/3/2023 50385 M-D2-C -211 -54168596
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
Cylinder Head
211
D2-55, D2-55B, D2-55C, D2-55D, D2-55E
REF PART NO. QTY DESCRIPTION NOTES
1 3809611 1 Cylinder head
2 3886428 7 Expansion plug
3 3886441 2 Expansion plug
4 3583696 6 Expansion plug
5 3580477 3 Expansion plug
6 3580478 4 Inlet valve
7 21186282 4 Exhaust valve
8 3580306 4 Valve stem seal, intake
3580305 4 Valve stem seal, exhaust
9 3580964 8 Valve spring
10 3580307 8 Valve spring washer
11 3580308 16 Valve cone
12 3842086 4 Valve seat, intake
12A 3809624 4 Valve seat, exhaust
13 21250646 8 Valve cap
14 21228429 1 Cylinder head gasket
15 24513666 1 Screw kit
(3580483) 14 Screw
3580484 4 Screw
16 24513666 1 Screw kit
17 861870 1 Screw
18 3583556 1 Lifting eye
19 3583731 2 Stud
20 3583662 8 Push rod
21 3580464 8 Tappet
22 3583543 1 Rocker arm Complete
23 1 Bracket
24 3580487 4 Rocker arm
25 861877 8 Screw
26 861878 8 Nut
27 3580486 4 Rocker arm
28 3583547 1 Shaft
29 3580490 3 Spring
30 3580491 6 Adjusting washer
31 861997 1 O-ring
32 3583546 1 Gasket
33 3580493 4 Stud
34 3583664 4 Nut
35 3583092 1 Lifting eye
36 889485 1 Valve cover Replaced by 3584114
3584114 1 Valve cover
37 3583660 1 Breather pipe
38 3583659 4 Screw
39 3583661 1 Retainer
40 3580320 1 Filter
41 3583663 6 Screw
42 3583657 1 Adapter
43 3583658 1 Gasket
44 3580013 2 Screw
45 889486 1 Gasket
46 965178 3 Flange screw
47 3580258 2 Screw L=35mm
48 3580241 4 Nut
49 3580499 4 Gasket
50 3583541 1 Oil filler cap
51 861897 1 O-ring
52 3809690 1 Plug (3583698)
M-D2-C- 211- 54168596 50385 Upd:11/3/2023
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
211
Cylinder Head
D2-75, D2-75B, D2-75C
42
41
51
40
39
48
47
52
38 49
50
25
25
25
25
28
28
28
28
37
31
31
31
31
31
31
30
30
30
44
43
46
45
29 27
26
32
35
53
23
24
33
36
14
21
16
11
17
10
3
3
2 34
22
9
9 4
4
5
8 20
1
19
18
13
7
12
6
15
Upd:11/3/2023 50387 M-D2-C -211 -54169825
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
Cylinder Head
211
D2-75, D2-75B, D2-75C
REF PART NO. QTY DESCRIPTION NOTES
1 3584103 1 Cylinder head
2 861802 7 Expansion plug Replaced by 3886428
3886428 7 Expansion plug
3 3886441 2 Expansion plug
4 3583696 6 Expansion plug
5 3580477 3 Expansion plug
6 3580478 4 Inlet valve
7 21733891 4 Exhaust valve
8 3580306 4 Valve stem seal, intake
3580305 4 Valve stem seal, exhaust
9 3580964 8 Valve spring
10 3580307 8 Valve spring washer
11 3580308 16 Valve cone
12 3842086 4 Valve seat, intake
13 3809624 4 Valve seat, intake
14 21250646 8 Valve cap
15 21228429 1 Cylinder head gasket
16 24513666 1 Screw kit
(3580483) 14 Screw
3580484 4 Screw
17 24513666 1 Screw kit
18 861870 1 Screw
19 3583556 1 Lifting eye
20 3580520 4 Stud
21 3583662 8 Push rod
22 3580464 8 Tappet
23 3583543 1 Rocker arm Complete
24 1 Bracket
25 3580487 4 Rocker arm
26 861877 8 Screw
27 861878 8 Nut
28 3580486 4 Rocker arm
29 3583547 1 Shaft
30 3580490 3 Spring
31 3580491 6 Adjusting washer
32 861997 1 O-ring
33 3583546 1 Gasket
34 3580493 4 Stud
35 3583664 4 Nut
36 3583092 1 Lifting eye
37 3584114 1 Valve cover
38 3809690 1 Plug
39 3584112 1 Gasket
40 3584111 1 Adapter
41 3583660 1 Breather pipe
42 3584113 4 Screw
43 3583661 1 Retainer
44 3580320 1 Filter
45 3583663 6 Screw
46 889486 1 Gasket
47 965178 3 Flange screw (3580054)
48 3580258 2 Screw
49 3580241 4 Nut
50 3580499 4 Gasket
51 21311518 1 Cover
52 861897 1 O-ring
53 3809690 1 Plug
M-D2-C- 211- 54169825 50387 Upd:11/3/2023
D2-40, D2-40B, D2-40F, D2-50F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-60F, D2-75, D2-75B,
D2-75C, D2-75F
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$79.99
Viewed 74 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$79.99
The Volvo Penta Marine Diesel Engines Parts Book is a comprehensive guide specifically tailored for the D2-75, D2-75B, D2-75C, D2-60F, and D2-75F models. It offers detailed parts information accompanied by visually stunning exploded view illustrations, making it an invaluable resource for boat enthusiasts, marine mechanics, and Volvo Penta engine owners alike.
Whether you're a professional mechanic or a DIY enthusiast, this Parts Book enables easy identification and location of specific parts required for engine maintenance or repair, ensuring a smooth and efficient process.
Covering a range of models, including the D2-75, D2-75B, D2-75C, D2-60F, and D2-75F, this Parts Book meticulously documents every aspect of the engines, from engine components to fuel systems, cooling systems to electrical systems, providing the exact information needed for maintenance and repair.
Don't settle for guesswork or generic parts manuals when you can have the precision and reliability of the Volvo Penta Marine Diesel Engines Parts Book. Enhance your engine knowledge and streamline your maintenance efforts with this essential resource.
