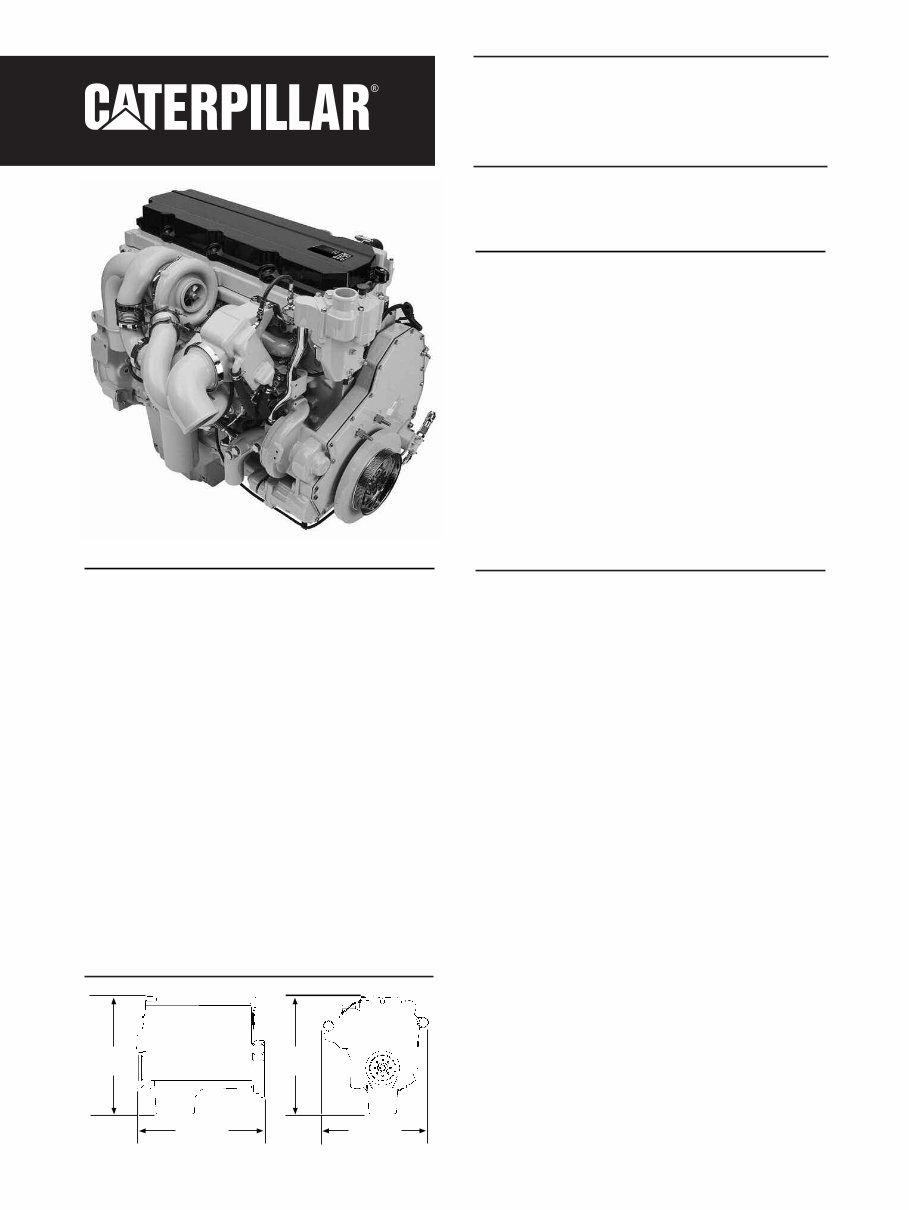

CATERPILLAR ® ENGINE SPECIFICATIONS In-line 6-Cylinder, 4-Stroke-Cycle Diesel Bore — in (mm) .................... 5.12 (130) Stroke — in (mm) .................. 6.18 (157) Displacement — cu in (L) ........... 763 (12.5) Combustion/Aspiration. . . Series Turbocharged Compression Ratio .................... 17.1:1 Rotation (from flywheel end) . . Counterclockwise Cooling System 1 — gal (L) .......... 3.04 (11.5) Lube Oil System (refill) — gal (L). . . 10.57 (40.0) Weight, Net Dry (approx) — lb (kg) with standard equipment ........ 2270 (1030) 1 Engine only. Capacity will vary with radiator size and use of cab heater. STANDARD EQUIPMENT Cooling: gear-driven water pump, oil cooler Crankcase breather Diesel Oxidation Catalyst (required) Electronic Control Module (ECM) Electronic Data Link, SAE/ATA, SAE/J1939 Electronically Controlled Unit Injection Fuel System Fuel: spin-on secondary filter, transfer pump Gear-driven water pump Governor: full-range, electronically controlled Hydraulic steering pump drive, SAE A Lifting eyes Lubrication: gear-driven pump, front or rear sump pan, full flow spin-on filter, oil filler, oil level gauge (dipstick) Pad mount air conditioner compressor Pad mount alternator SAE No. 1 Flywheel Housing Series-turbochargers Vibration damper ACCESSORY EQUIPMENT Air compressor: gear driven, 15.7 or 31.4 cfm Air inlet elbow Air inlet shut off Alternator (12 Volt-115 Amp) Automatic Transmission adapter Cat ® Compression Brake, 12V or 24V Dry charge coolant conditioner Exhaust couplings Fan drive mounting bracket Flywheel Front engine support Front PTO adapter Fuel priming pump Lubricating oil filter, bypass spin on Optional secondary auxiliary oil filter Optional turbocharger mounting locations Rear PTO (RPTO) Starting motor: 12V or 24V Turbocharger compressor outlet elbow LEHT8892-00 Page 1 of 5 Shown with Optional Equipment On-Highway Diesel Engine with ACERT ® Technology C13 335-470 hp @ 2100 rpm 1450-1750 lb-ft @ 1200 rpm Peak Torque DIMENSIONS 50.33 in (1279 mm) 43.3 in (1100 mm) 46.6 in (1185 mm) 46.6 in (1185 mm)

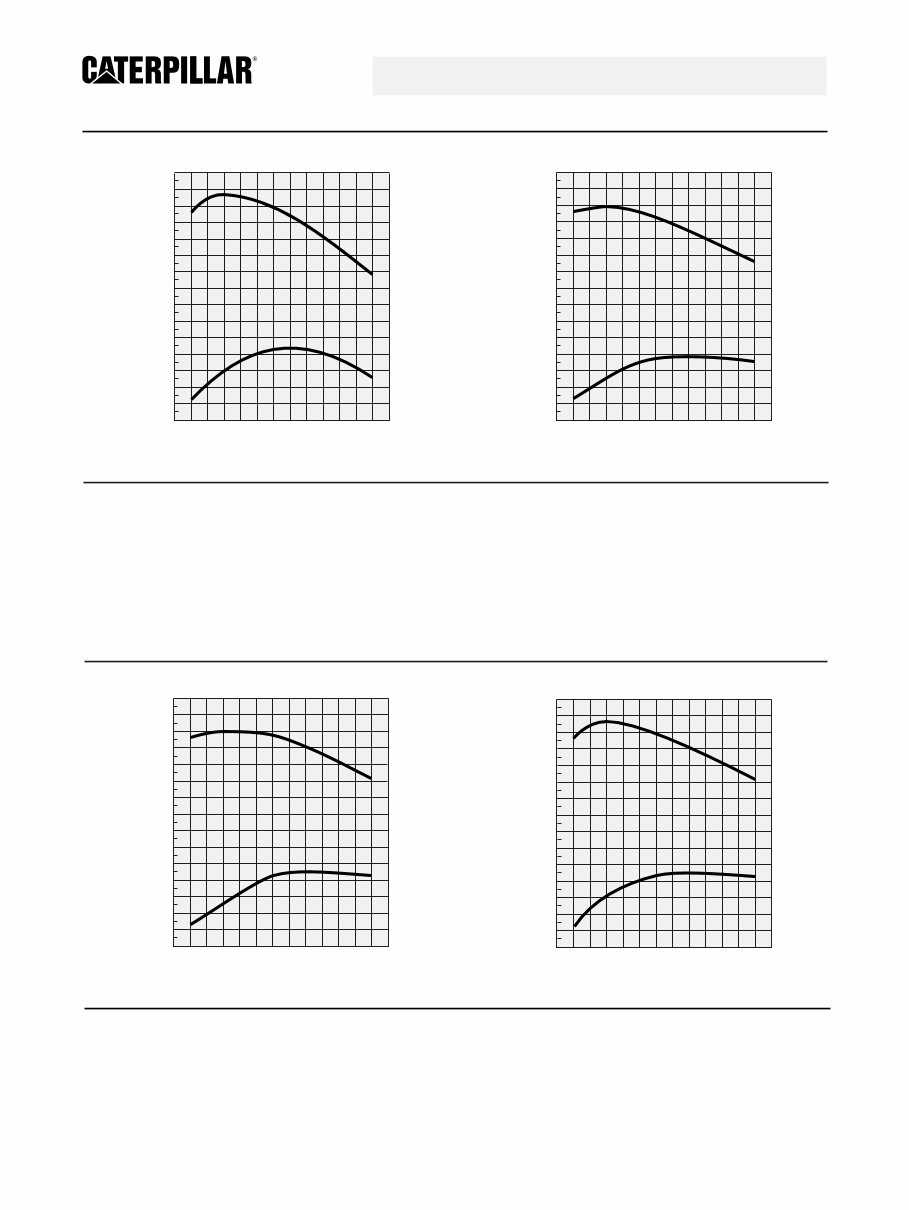

LEHT8892-00 Page 2 of 5 C13 ON-HIGHWAY DIESEL ENGINE — 335 to 410 hp PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm ................. 2100 Advertised hp (kW) .................. 335 (250) Max hp (kW) ........................ 420 (313) Peak Torque — lb-ft (N•m) ......... 1550 (2102) Peak Torque — rpm...................... 1200 Torque rise (%) ............................ 85 Altitude Capability — ft (m) ....... 10,000 (3048) Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 380 (283) Max hp (kW) ........................ 395 (293) Peak Torque — lb-ft (N•m) ......... 1450 (1966) Peak Torque — rpm ..................... 1200 Torque rise (%) ............................ 53 Altitude Capability — ft (m)....... 10,000 (3048) 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 335 hp (250 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 PERFORMANCE CURVES 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 380 hp (283 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 410 (306) Max hp (kW) ........................ 425 (315) Peak Torque — lb-ft (N•m) ......... 1450 (1966) Peak Torque — rpm...................... 1200 Torque rise (%) ............................ 41 Altitude Capability — ft (m) ....... 10,000 (3048) Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 410 (306) Max hp (kW) ........................ 425 (315) Peak Torque — lb-ft (N•m) ......... 1550 (2102) Peak Torque — rpm...................... 1200 Torque rise (%) ............................ 51 Altitude Capability — ft (m) ....... 10,000 (3048) PERFORMANCE CURVES 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 410 hp (306 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 410 hp (306 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400

LEHT8892-00 Page 3 of 5 C13 ON-HIGHWAY DIESEL ENGINE — 410 to 430 hp PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 410 (306) Max hp (kW) ........................ 425 (315) Peak Torque — lb-ft (N•m).. 1450/1550 (1966/2102) Peak Torque — rpm...................... 1200 Torque rise (%) ......................... 41/51 Altitude Capability — ft (m) ....... 10,000 (3048) Operating Range (rpm) ............ 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 410 (306) Max hp (kW) ........................ 425 (315) Peak Torque — lb-ft (N•m).. 1450/1650 (1966/2237) Peak Torque — rpm...................... 1200 Torque rise (%) ......................... 41/61 Altitude Capability — ft (m) ....... 10,000 (3048) 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 410 hp MT (306 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 PERFORMANCE CURVES 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 410 hp MT (306 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 430 (321) Max hp (kW) ........................ 445 (327) Peak Torque — lb-ft (N•m) ......... 1550 (2102) Peak Torque — rpm ..................... 1200 Torque rise (%) ............................ 44 Altitude Capability — ft (m)....... 10,000 (3048) Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 430 (321) Max hp (kW) ........................ 445 (331) Peak Torque — lb-ft (N•m) ......... 1650 (2237) Peak Torque — rpm ..................... 1200 Torque rise (%) ............................ 53 Altitude Capability — ft (m)....... 10,000 (3048) PERFORMANCE CURVES 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 430 hp (321 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 430 hp (321 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1150 1300 350 400

C13 ON-HIGHWAY DIESEL ENGINE — 430 to 470 hp PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 430 (321) Max hp (kW) ........................ 445 (337) Peak Torque — lb-ft (N•m) .. 1550/1750 (2102/2373) Peak Torque — rpm ..................... 1200 Torque rise (%) ......................... 44/63 Altitude Capability — ft (m)....... 10,000 (3048) Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 470 (350) Max hp (kW) ........................ 485 (362) Peak Torque — lb-ft (N•m) ............ 1550 (2102) Peak Torque — rpm ..................... 1200 Torque rise (%) ............................ 32 Altitude Capability — ft (m)....... 10,000 (3048) 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 430 hp MT (321 kW) 250 300 Torque lb-ft Power bhp 850 450 1000 1450 1600 1750 1900 1150 1300 350 400 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 470 hp (350 kW) 200 250 Torque lb-ft Power bhp 1150 400 450 500 1250 1550 1650 1350 1450 300 350 PERFORMANCE CURVES LEHT8892-00 Page 4 of 5 PERFORMANCE DATA Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 470 (350) Max hp (kW) ........................ 485 (362) Peak Torque — lb-ft (N•m) ............ 1650 (2237) Peak Torque — rpm ..................... 1200 Torque rise (%) ............................ 40 Altitude Capability — ft (m)....... 10,000 (3048) Operating Range (rpm) ............. 1200–2100 Governed Speed — rpm .................. 2100 Advertised hp (kW) .................. 470 (350) Max hp (kW) ........................ 485 (362) Peak Torque — lb-ft (N•m). . 1550/1650 (2102/2237) Peak Torque — rpm ..................... 1200 Torque rise (%) ......................... 32/40 Altitude Capability — ft (m)....... 10,000 (3048) PERFORMANCE CURVES 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 470 hp (350 kW) 200 250 Torque lb-ft Power bhp 1150 400 450 500 1250 1550 1650 1350 1450 300 350 1100 900 1300 1500 1700 1900 2100 Engine Speed rpm 470 hp MT (350 kW) 200 250 Torque lb-ft Power bhp 1150 400 450 500 1250 1550 1650 1350 1450 300 350

C13 ON-HIGHWAY DIESEL ENGINE — 335 to 470 hp Materials and specifications are subject to change without notice. The International System of Units (SI) is used in this publication. CAT, CATERPILLAR, their respective logos, ACERT, “Caterpillar Yellow” and the POWER EDGE trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission. TMI Reference No.: DM7264-00, DM7266-00, DM7267-00, DM7268-00, DM7269-00, DM7270-00, DM7271-00, DM7272-00, DM7275-00, DM7276-00, DM7279-00, DM7285-00 LEHT8892-00 (8-08) ©2008 Caterpillar All rights reserved. Performance is based on SAE J1995 standard conditions of 29.61 in. Hg (100 kPa) and 77° F (25° C). The curves shown are for a standard engine without fan, but equipped with air compressor and fuel, lubricating oil, and water pumps. RATING DEFINITIONS AND CONDITIONS GEARING CONSIDERATIONS The C13 On-Highway Diesel Engine offers a wide operating range and high torque rise, which promotes the use of transmissions with fewer gears. Even with this built-in feature, heavy/specialty haulers must remember their trucks should be geared to achieve the appropriate compromise between startability and desired road speed. The general principal drivers should follow is that of the “gear fast, run slow” strategy to achieve optimal performance. For the best balance of performance and fuel economy, spec axle ratios and tire sizes according to the following: • 80,000 lb GCW or less 430-hp, 1650 lb-ft: 1450 rpm @ 65 mph (105 km/h) Multi-Torque: • 80,000 lb GCW or less 430-hp, 1550/1750 lb-ft: 1325 rpm @ 65 mph (105 km/h) • 60,000 lb GCW or less 430-hp, 1450/1650 lb-ft: 1325 rpm @ 65mph (105 km/h) Maximum recommended engine speed at cruise is 1500 rpm. The minimum startability requirements are 10% for pick-up and delivery, 14% for linehaul, 20% for on/off highway, and 25% for off-highway. At peak torque rpm in top gear, the recommended gradeability is 1.8% (1.5% minimum). At cruise speed in top gear, 1.0% is the ideal gradeability. To optimize your truck’s performance characteristics, a computerized spec’ing tool called Design Pro is offered by your Caterpillar dealer. It calculates effects of various driveline variables on engine operation such as transmissions, axles, and tires. This analysis allows you to verify that your truck’s driveline specifications are best suited to your application. ELECTRONIC FEATURES ■ Real time clock with date and time stamping of critical events ■ Electronic self-diagnostics ■ Electronically tabulated total fuel consumption, hours, idle time, and miles ■ Battery backup ■ Quick stop recorder ■ Compatible with Caterpillar Electronic Technician (ET) ■ Cold weather startup strategy and electronic idle control functions ■ ECM storage of operational, maintenance, diagnostic codes and diagnostic data ■ J1939 compatible ■ Customer selectable, re-programmable operational parameters: - Adjustable low idle rpm - Automated Transmission compatibility - Cooling fan control - Cruise control with exclusive Soft Cruise - Customer password protection - Engine Monitoring System — warning, derate, or shutdown - Enhanced theft deterrent and secure idle (Cat Messenger or Pocket Tec required) - Fleet Information Software capability - Idle shutdown timer & override - Maintenance monitor [miles (km) or hours] - OEM parameter lockout - Progressive shifting and gear down protection - Vehicle speed [mph (km/h)] limiting and protection ■ Programmable Power Take-Off (PTO) functions: - Adjustable maximum engine rpm speed - Adjustable minimum engine rpm speed - Adjustable ramp rate up or down between PTO set speed(s) - Adjustable rpm “bump” intervals - Adjustable speed control [mph (km/h)] of vehicle while in PTO mode - Kick-out vehicle speed limit - Limit engine torque to driven equipment - Multi-speed PTO set speed capability - Selectable PTO configuration for “in cab” or station of remote operation
