Workshop Manual BMW D7 BMW Marine This copy of the BMW D7 Workshop Manual has been re-created using images computer scanned from a manual rather than original artwork.

i BMW D7 Marine Engine A four-stroke diesel engine with direct injection and open-circuit cooling system. The Neoprene impeller of the coolant pump is driven directly from the crankshaft. Electric starter and flywheel alternator are standard equipment. The injection system is fitted with automatic bleeding. Notes on Use This workshop manual describes complete procedures for dismantling, overhaul and assembly of the BMW D7 marine engine. If only part of the procedure is to be carried out (e.g. small repairs or replacement of gaskets, oilseals) the remainder can be ignored. The relevant technical data is provided with each section. General specifications are found on page iii. Assembly is generally a reversal of removal procedure. Special attention, however, should be paid to "notes on assembly". Checking and adjustment procedures, where applicable, are to be found at the end of the relevant section.

Contents General ii Page Page Introduction i Fuel System 27 Remove, adjust: Summary 1 - Injection valve 27 - Injection pump 29 Removing cylinder head 3 - Engine speed 31 - Preparations 3 Check: - Valve mechanism 4 - Injection pump 32 - Valves 5 - Injection valve 32 - Cylinder head 7 - Fuel pump 32 - Cylinder 7 Air filter 33 Removing gearbox 8 - Starter 8 Electrical system 34 - Reversing gear 8 - Wiring diagram 34 - Bearing cover 9 - Generator 35 - Hand crank mechanism 10 - Starter motor 39 - Connecting rod 11 - Piston 13 Water Pump 40 - Fuel pump 14 - Timing gear cover 14 - Fuel regulator 15 - Crankshaft 16 - Valve lifters 19 - Camshaft 20 Assemble crankshaft 20 - Camshaft 20 - Crankshaft 20 - Fuel regulator 21 - Timing gear cover 21 - Fuel pump 21 - Piston 21 - Connecting rod 21 - Hand crank mechanism 21 - Bearing cover 22 - Reversing gear 22 - Starter Assemble cylinder head 22 - Cylinder 22 - Cylinder head 23 - Valves 23 - Valve mechanism 23 - Hoses & pipes 23 Adjust: 24 - Valve clearance - valve timing 24 - Decompression lever 25 - Automatic decompression 26

iii Technical data Capacity 280cc / 17.1 cu.in. Bore x stroke 73 mm x 67 mm / 2.87 in x 2.64 in Max. power 4.5 kw / 6 bhp @ 3600 rpm Compression ratio 22 : 1 Dry weight with gearbox 68 kg / 150 lbs Gearbox reduction forward 2.7:1, reverse 1.9:1 Max. installation angle 15 o Specifications Fuel Diesel oil, DIN 51601/USA #2 Lubricating oil, engine HD-API CC/CD gearbox Hurth ATF Dexron - ZF SAE 20 W 20 Oil capacity, engine 2 litres / 3.5 pints UK / 4.4 pints US gearbox 0.4 litres / 0.7 pints UK / 0.85 pints US Fuel filter BMW 13 32 1 328 270 Air filter BMW 13 71 1 329 269 Injector Bosch Injection pressure 135 + 8 bar Injection pump Bosch PFR 1 K 70 A 343/II Starter motor Bosch 0.8 kw Generator 14V 350W 25A Battery 12V 60 Ah Gearbox Hurth HBW5 - ZF Bw 3 Adjustment data Injection ends 11.5 o - 12.5 o BTDC Valve clearances, cold 0.15 mm / .006 in. Torque settings Nm kpm Remarks Cylinder head nuts M 8 40 4.0 Use permanently elastic sealing compound (e.g. Atmosit) on the stud screws in the oil space! Connecting rod screws 40 4.0 Oil threads and screw head insert lightly Counter weight screws 22 2.2 Oil threads and screw head insert lightly M 6 hex nut for the mounting of the injector 10 1.0 Flywheel bolts M 10 70 7.0 Injection pump delivery valve 40 4.0 M 6 hex head screw for fastening bearing cover retaining yoke on the flywheel side 10 1.0 Nozzle nut 85 8 - 9

iv List of Special Tools D7 BMW Part No. Description 74 64 1 333 525 To refit ball hub 74 64 1 333 526 To refit crankshaft gear 74 64 1 333 513 Crankshaft installation tool 74 64 1 333 514 Puller for valve lifter shaft 74 64 1 333 515 Tool for crankshaft removal 74 64 1 333 516 Tool for camshaft needle bearing installation 74 64 1 333 517 Wrench for injection adjuster 74 64 1 333 527 Crankshaft gear puller 74 64 1 333 535 Tool for adjustment of injection pump 74 64 1 333 528 Tool for injection adjuster 74 64 1 333 536 Multi purpose extractor 74 64 1 333 529 Auxiliary wrench for cable connector 74 64 1 333 530 Sleeve 27 - 36 mm internal extractor 74 64 1 333 531 Counter support-internal extractor 74 64 1 333 537 Allen socket with center pin 8 mm 74 64 1 333 538 Allen socket with center pin 10 mm 74 64 1 333 539 Clamping holder to grind valve-valveseat 74 64 1 333 540 Allen wrench 6 mm elongated 74 64 1 333 518 Auxillary bush-oil seal 74 64 1 333 519 Punch - needle bearing camshaft 74 64 1 333 520 Socket 13 mm (long size) 74 64 1 333 541 Allen socket 6 mm 74 64 1 333 521 Retaining bracket for cylinder 74 64 1 333 542 Press-in mandrel-valve guide 7 mm Ø 74 64 1 333 532 Hand reamer 7 mm Ø H 7 for valve guide 74 64 1 333 543 Flare nut wrench 17/19 mm 74 64 1 333 522 Special tool for governor spring 74 64 1 333 523 Box wrench 10mm 74 64 1 333 524 Piston ring clamp 74 64 1 333 544 Measuring device for bumping clearance 74 64 1 333 545 Testing device for injection equipment 74 64 1 333 546 Dial gauge 1/100 mm 74 64 1 333 547 Torque wrench 1 - 140 NM 74 64 1 333 534 Guiding pin 7 mm Ø (valve reseating tool) 74 64 1 333 548 Handle for valve reseating tool 74 64 1 333 549 Piston ring pliers 74 64 1 333 550 Allen socket 8 mm 74 64 1 333 551 Valve reseating tool 42.5 mm Ø 74 64 1 333 552 Gudgeon pin extractor

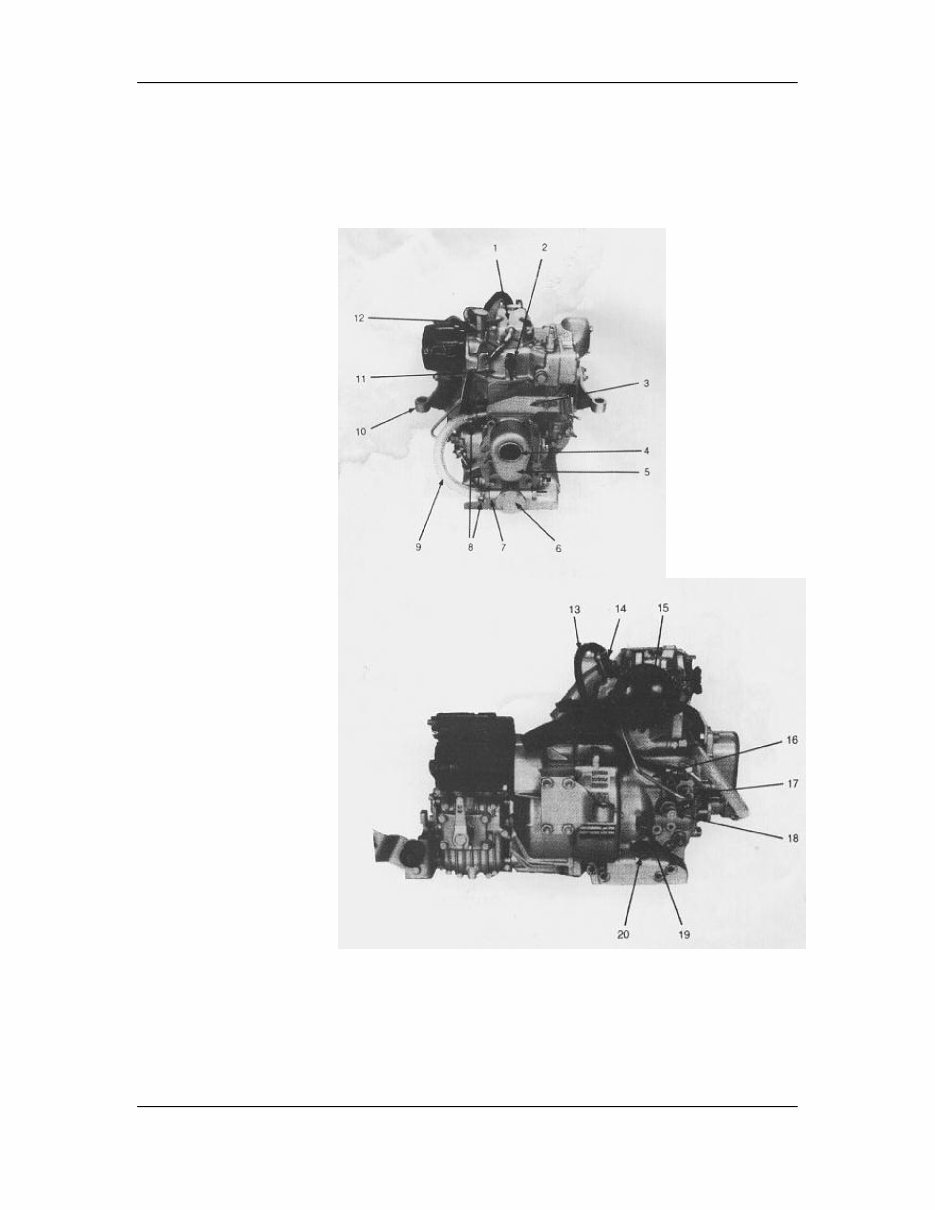

Summary General 1 BMW Marine Diesel Engine D7 Description: Water cooled single cylinder four stroke producing 4.5 kW (DIN) (6 Hp) 1. Cylinder head cover 2. Decompression lever 3. Throttle cable mount 4. Hand crank attachment 5. Cover 6. Sea water pump 7. Fitting 8. Hose clips 9. Sea water hose 10. Engine mounts 11. Cylinder head 12. Metering device 13. Fuel return hose 14. Injector 15. Air filter 16. Fuel injection pipe 17. Injection pump 18. Throttle 19. Dipstick 20. Oil filler screw

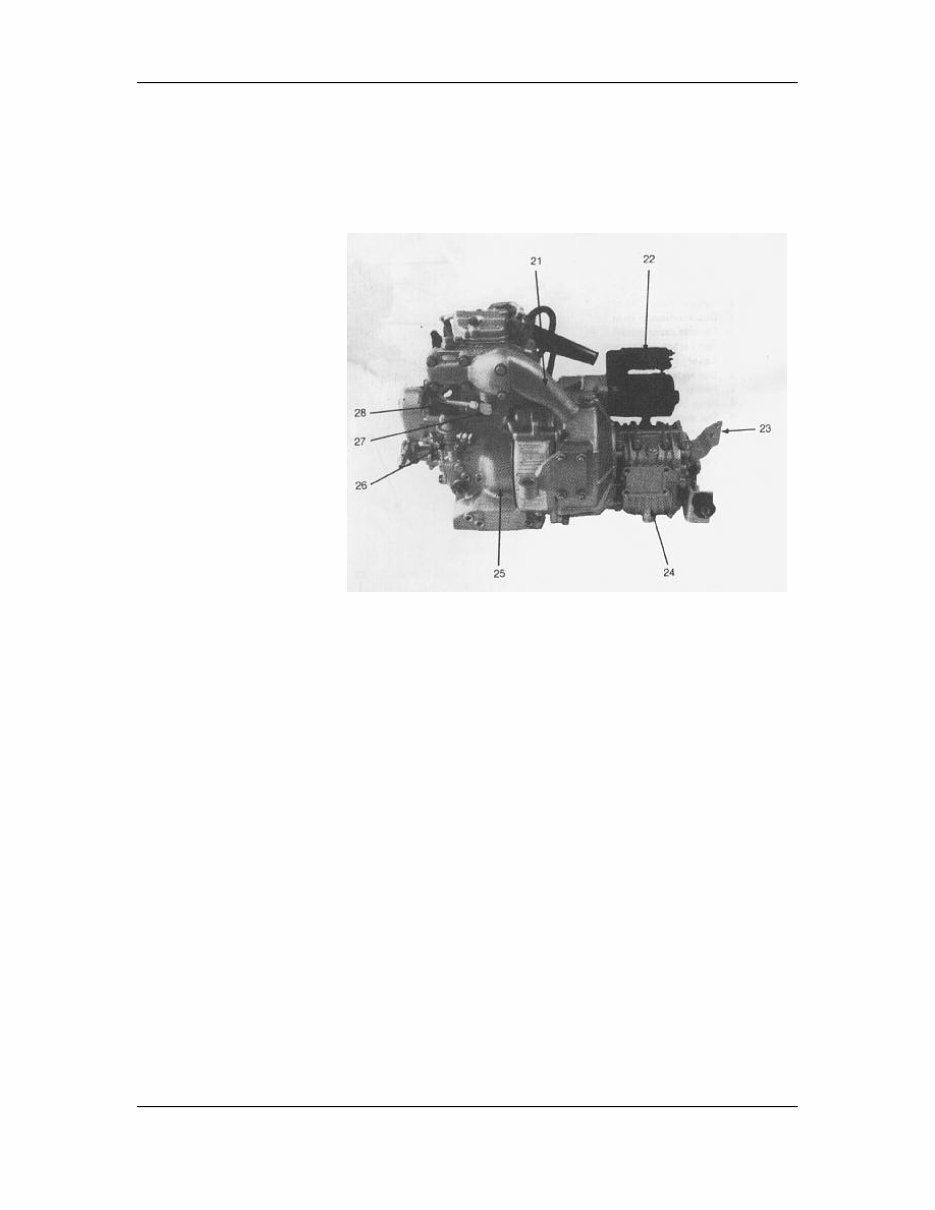

Summary General 2 21. Exhaust 22. Starter 23. Retainer yoke 24. Gear box 25. Crankcase 26. Fuel pump 27. Fitting 28. Sea water pipe CAUTION To avoid damage to engine parts, always use special tools as shown in the illustrations. The tools to be used fit only in the position shown.

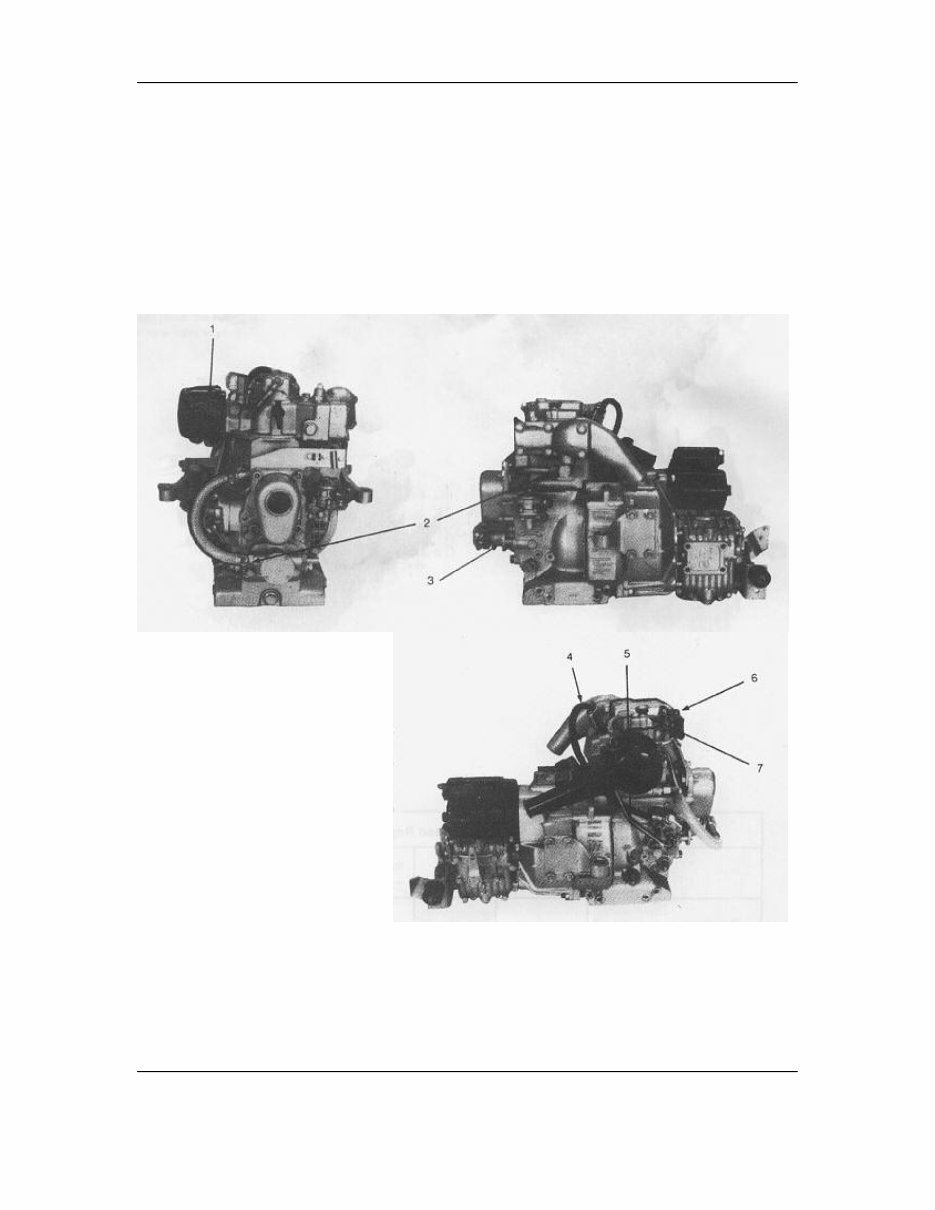

Cylinder Head Detach Air filter, seawater hose, fuel overflow hose, cylinder head vent hose clip, Disassemble cylinder head cover with gasket, rocker shaft with rockers, pushrods Remove 3 Removing cylinder head and cylinder - Remove air filter (1) - Loosen sea water pipe from exhaust manifold and water pump and remove (2) + (3) CAUTION Cover all openings in the fuel system - Disconnect fuel return hose from injector and remove (4) - Disconnect fuel injection pipe from injector and injection pump and remove (5) - Remove clip of crankcase vent hose (6), unscrew both nuts of the rocker cover and remove the rocker cover with gasket (7)

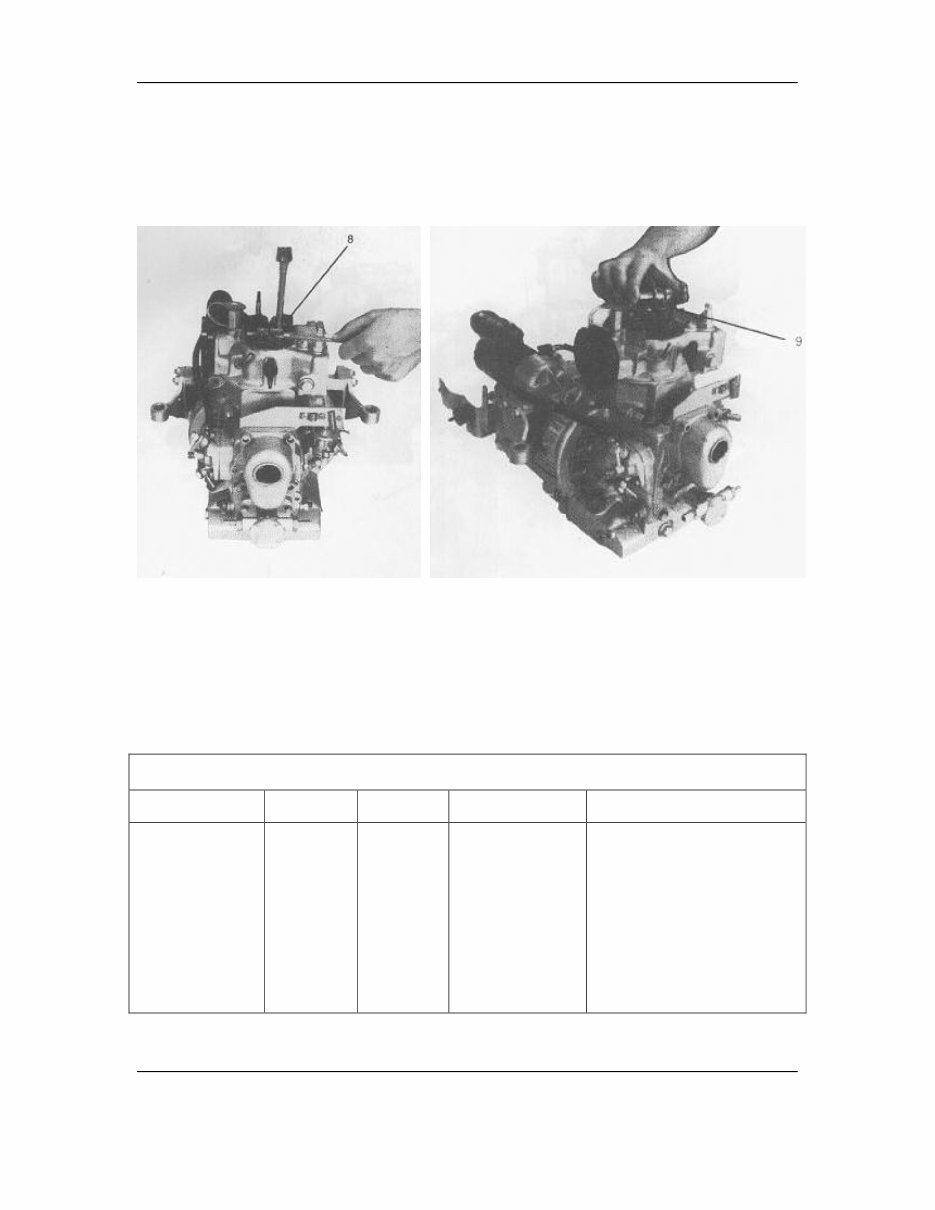

Cylinder Head Detach Rocker shaft with rockers, pushrods Disassemble Remove 4 - Remove rocker shaft with bushing and retainer yoke and remove rockers (8) and (9) - Pull out both pushrods Cylinder Head Repair Data Dimension D7 nominal values Max. allowable wear (mm) Remarks Rocker arms shaft dia. Rocker arm internal dia. Rockaer arm radius Valve seat angle mm mm mm o 18 -0.027 18 8 45 0.05 0.05 No flats After press fitting +0.024 +0.006

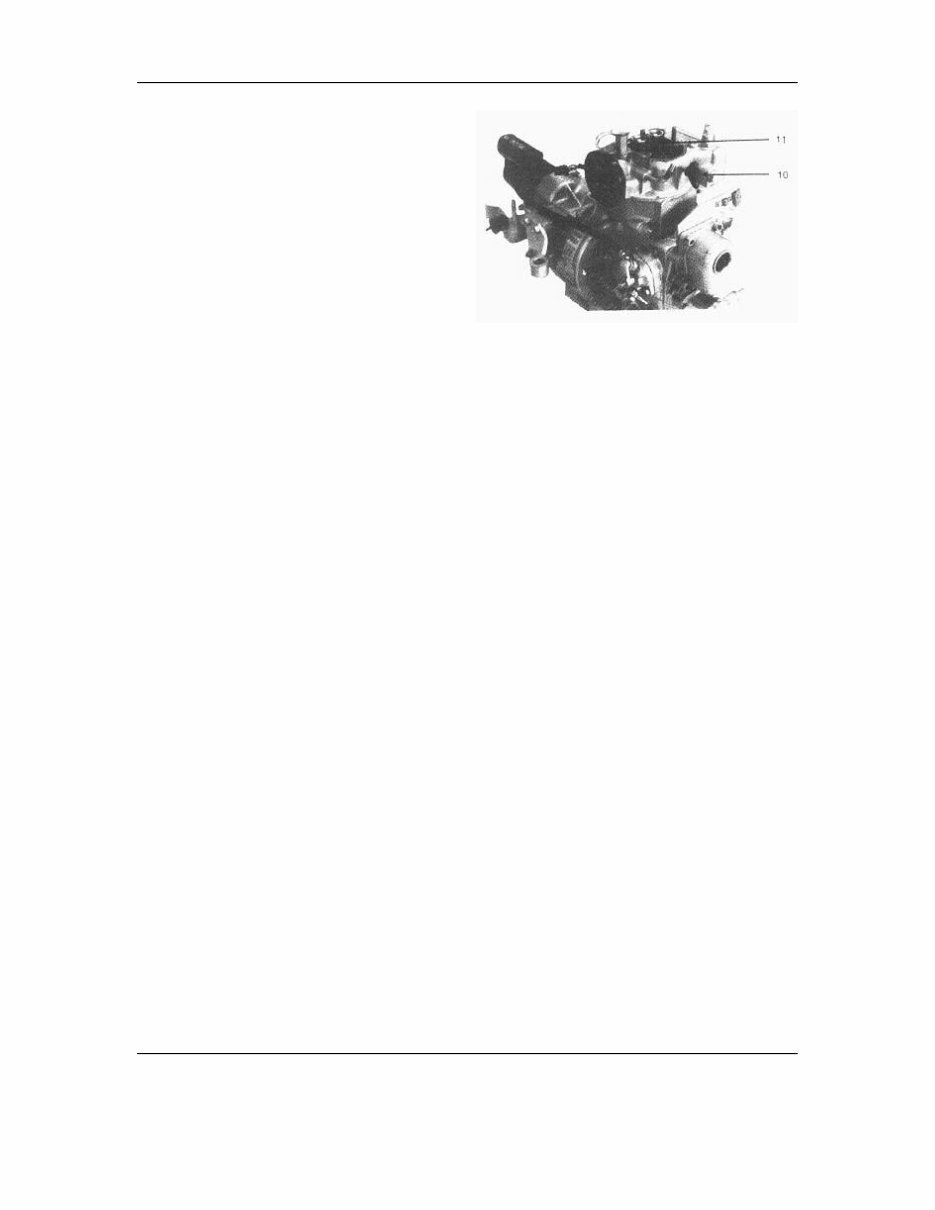

Cylinder Head, Timing Gear Detach Decompression lever handle, clamping sleeve on handle, spring shaft, Remove valve poppets, spring plate with valve spring, cone halves, valve guides Rework 5 - Remove decompression lever from the underside of the cylinder head (10) - Unscrew the M10 nut and unscrew stud bolt. - Remove the spring - Remove retaining pin with pointed pliers - Unscrew inner clamping sleeve on gear segment and remove shaft and gear segment. - Remove valves & valve springs (11) - Press down the spring retainers WARNING Danger of injury due to spring retainers and valve keys popping out. - Loosen both key halves while applying pressure from below and remove with pointed pliers. - Remove cap and washer from under the valve spring - Remove valve - Press out the valve guides from below NOTE When pressing in the new valve guides, when parts are cold note minimum force of 1000 N (approx 100 kp) - Ream the valve guides - Rework leaky valve seats with a 45 o valve seat cutter. Mill only enough to remove spots from valve seats. - Reseat valves using auxiliary tool - No 74 64 1 333 539
