CRF150R / CRF150RB CRF150R 7 CRF150R 8 CRF150RB 7 CRF150RB 8 2 13KSE702 © Honda Motor Co., Ltd. 2007

1 2 3 4 5 PART NUMBER INDEX FOREWORD INDEX ENGINE GROUP FRAME GROUP PART NAME INDEX

1 2007.08.20 E 1 1 2 3 4 5 • This parts catalogue has been created as of August 20, 2007. • Since this date, the sales practice for repair parts may have been changed or the parts may have been eliminated (listed for those not for sale). • The modified information is reflected on the latest Electronic Parts Catalogue (EPC). Also, refer to the parts catalogue news for any change. • See the parts catalogue news for any revision that is made after August 20, 2007. • Always specify the part number when ordering a part. • Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part. • Note that the illustrations (part drawings) can differ from the ac- tual parts in shape. They are given just to help you to refer to the parts. • When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cov- er. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor. Initial version issue date August 01, 2006 Honda Motor Co., Ltd. • Instruction for use of parts catalogue ......................... 1 • How to refer to the part information ............................ 2 • Part catalogue structure ............................................. 3 • When the parts were revised ...................................... 4 • Abbreviations used in the parts catalogue.................. 4 • Part block and serial number check ........................... 5 • Models, parts catalogue codes and applicable serial numbers ........................................................... 6 • Fuel hose, general purpose hoses and vinyl hose ........................................................................... 7 • FLAT RATE SERVICE TIME .................................... 11 • Illustrated index ........................................................ 16 • ENGINE GROUP..................................................... 22 • FRAME GROUP ...................................................... 54 • PART NO. INDEX..................................................... 91 • PART NAME INDEX................................................. 95 B 1 CONTENTS Address No. Page B 1 B 2 B 3 B 4 B 4 B 5 B 6 B 7 B11 B16 D 1 F 1 I 1 J 1 Instruction for use of parts catalogue

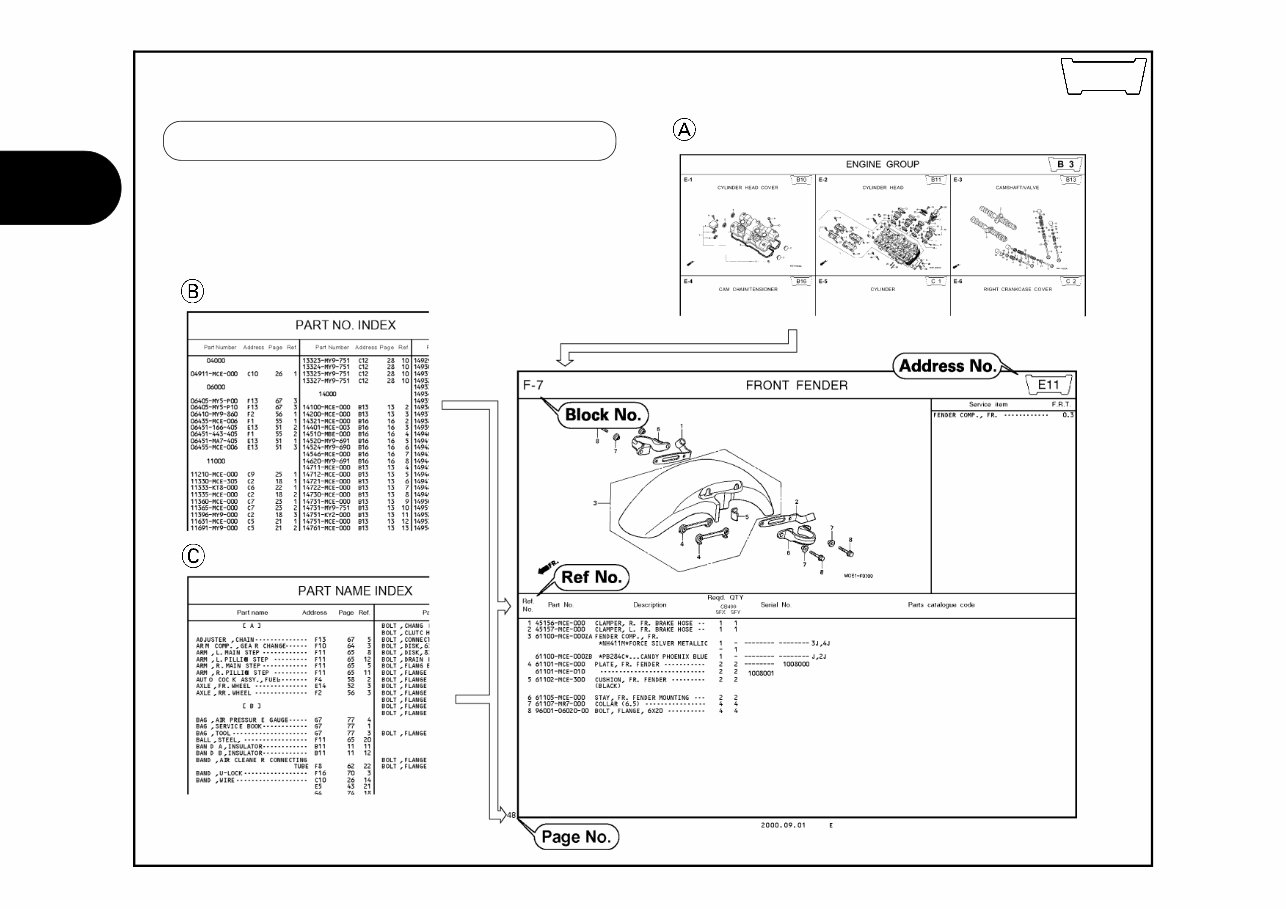

2 1 2007.08.20 E B 2 Reference with “Part number index” Reference with “Part name index” How to refer to the part information Reference with “Illustrated index”

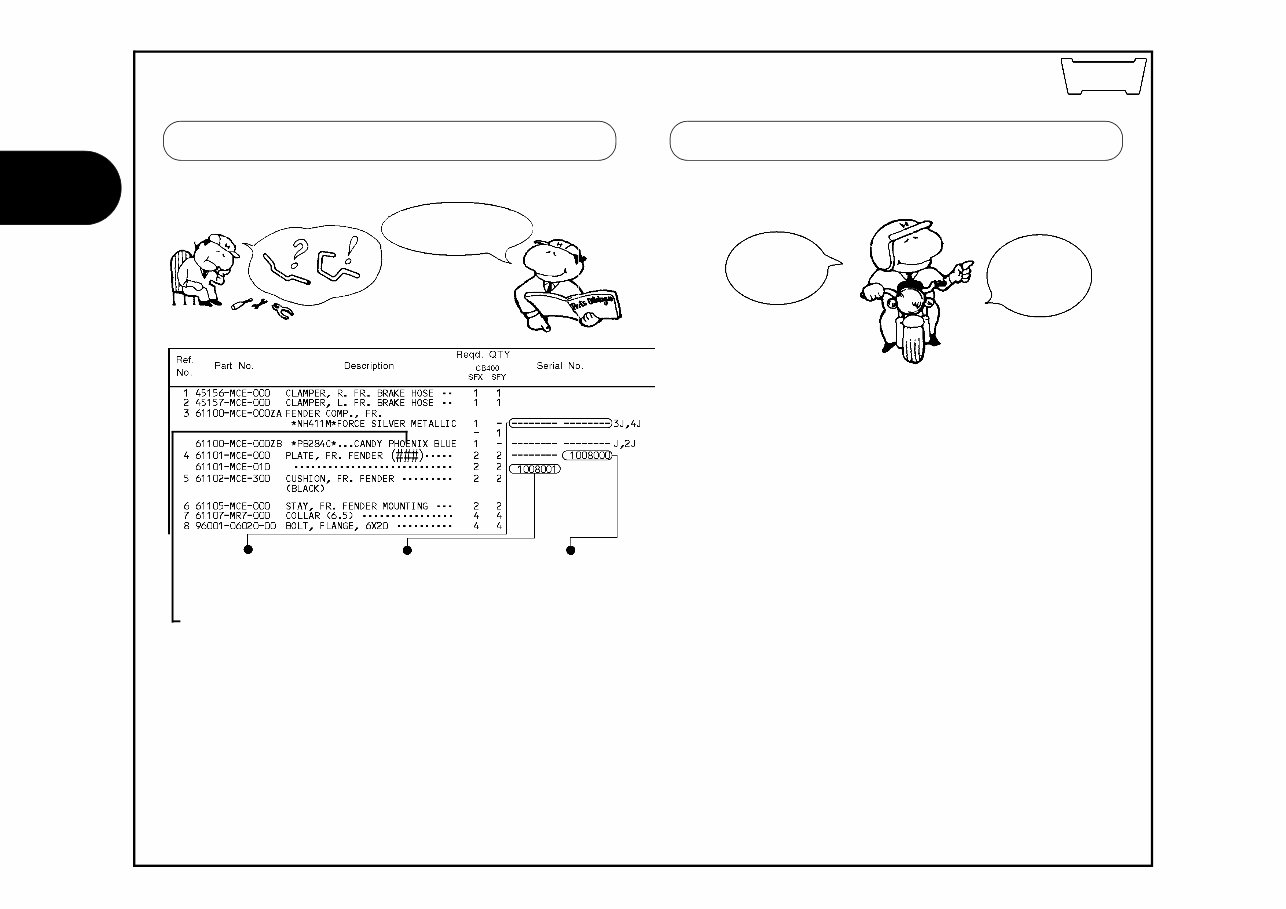

3 1 2007.08.20 E B 3 Part catalogue structure Address number • Address No. is provided (in place of the page No.) to help you refer to the part with the part No. or part name. Block title Block number Service item/Flat rate time Reference number • Title number marked with the parenthesis or parentheses indicates that it continues from the previous page. Part number Honda color code Description Assemblies • Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their in- dividual parts can also be obtained.) Color description Note • Notes are shown with the parentheses in the part name column. Required quantity • Reqd. QTY shown in the parenthesis or parentheses indicates the optional part. • Reqd. QTY marked with “N” indicates the optional part that should be selected as needed. • Reqd. QTY indicates the number of the part used in the block. Serial number Parts catalogue code • When the parts catalogue code column is blank, it indicates that the part is applicable to all codes. • Parts enclosed within a dotted line are covered in a different block. • A hollow arrow indicates the block No. for the parts enclosed within a dotted line . • A solid arrow indicates the block No. the part in question is connected to.

4 1 2007.08.20 E B 4 When the parts were revised Be sure to check the serial number!! The number has been used from the initial model without revision. When shown at the left side, it is applicable to the models of No.1008001 and the subsequent numbers. When shown at the right side, it is applicable to the models up to No.1008000. • The parts listed with "###" at the end of the parts name have limited supply period (parts not for sale). * “L.” or “R.” in the description of a part stands for the LEFT hand side or the RIGHT hand side. Determine the left or right as if you were in the motorcycle seat. • The following abbreviations are used in this parts catalogue. A ........... Ampere ABS ....... Anti-lock brake system A.C. ....... Alternating current A.M. ...... Attaching mark ASSY . .... Assembly C.D.I. ..... Capacitive discharge ignition COMP . ... Complete D.C. ....... Direct current EX. ........ Exhaust FR. ........ Front G ........... Gram HEX. ..... Hexagonal IN. ......... Inlet KPH ...... Kilometers per hour L. ............Left L (100L) .Link (100 Links) L.E.D. .....Light emitted diode MM .........Millimeter MPH .......Miles per hour R. ...........Right RR. .........Rear STD. .......Standard T (22T) ...Tooth (22 Teeth) TCS ........Traction control system T.M. ........Transcript mark V ............Volt W ...........Watt WL .........With labelling WOL .......Without labelling Abbreviations used in the parts catalogue RIGHT is abbreviated as “R.” “L.” stands for LEFT

5 1 2007.08.20 E B 5 Part block and serial number check 1 2 3 Required serial number Engine parts E-1~ Engine serial number Carburetor parts E-18~ Carburetor serial number Frame parts F-1~ Frame serial number Part block Check point 1 2 3

6 1 2007.08.20 E Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows. Parts with parts catalogue codes are exclusive for models destined for countries designated. If no area codes are listed, parts are for common use. * Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration. FCR08A KC Models, parts catalogue codes and applicable serial numbers Area Applicable engine Applicable frame Applicable carburetor code serial No. serial No. identification No. ED European direct sales KE03E-5000001~5099999 JH2KE03A*7K000001~7K099999 U Australia KE03E-5000001~5099999 JH2KE03U*7K000001~7K099999 DE Denmark KE03E-5100001~ JH2KE03A*8K100001~ ED European direct sales KE03E-5100001~ JH2KE03A*8K100001~ U Australia KE03E-5100001~ JH2KE03U*8K100001~ ED European direct sales KE03E-5000001~5099999 JH2KE03B*7K000001~7K099999 U Australia KE03E-5000001~5099999 JH2KE03U*7K000001~7K099999 DE Denmark KE03E-5100001~ JH2KE03B*8K100001~ ED European direct sales KE03E-5100001~ JH2KE03B*8K100001~ U Australia KE03E-5100001~ JH2KE03U*8K100001~ FCR08A A CRF150RB8 CRF150R8 FCR15A A FCR15A A FCR08A A Model Type CRF150RB7 CRF150R7 B 6

7 1 2007.08.20 E • The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part. • When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalogue in brackets ( ) underneath the part name, or use the catalogue below. (The bulk part standard length is 1 m, however, those displayed in the catalogue < > are available in 3 m and 8 m lengths.) • When exchanging the hose, cut and use at the specified length as mentioned in the part name. (For the method of cutting the bulk part, and method of filling out orders etc., please refer to the service manual and the instructions issued with the bulk part.) • The list below is a catalogue of the standard part numbers and bulk part numbers. Note that those numbers are applicable to the listed replacement parts only. Fuel hose, general purpose hoses and vinyl hose Fuel hoses/Tubes Standard part No. Bulk part No. Bulk part Inner diameter (mm) Length (m) 95001-30xxx-2x 95001-30001-20M 3.0 1 95001-30xxx-3x 95001-30001-30M 3.0 1 95001-30xxx-4x 95001-30001-40M 3.0 1 95001-35xxx-2x 95001-35001-50M <95001-35003-50M> 3.5 1 3 95001-35xxx-3x 95001-35001-60M <95001-35003-60M> 3.5 1 3 95001-35xxx-4x 95001-35001-60M <95001-35003-60M> 3.5 1 3 95001-35xxx-5x 95001-35001-50M <95001-35003-50M> 3.5 1 3 95001-35xxx-6x 95001-35001-60M <95001-35003-60M> 3.5 1 3 95001-45xxx-2x 95001-45001-50M <95001-45003-50M> 4.5 1 3 95001-45xxx-3x 95001-45001-60M <95001-45003-60M> <95001-45008-60M> 4.5 1 3 8 95001-45xxx-4x 95001-45001-60M <95001-45003-60M> <95001-45008-60M> 4.5 1 3 8 95001-45xxx-5x 95001-45001-50M <95001-45003-50M> 4.5 1 3 95001-45xxx-6x 95001-45001-60M <95001-45003-60M> <95001-45008-60M> 4.5 1 3 8 95001-55xxx-2x 95001-55001-50M <95001-55003-50M> <95001-55008-50M> 5.5 1 3 8 95001-55xxx-3x 95001-55001-60M <95001-55003-60M> <95001-55008-60M> 5.5 1 3 8 95001-55xxx-4x 95001-55001-60M <95001-55003-60M> <95001-55008-60M> 5.5 1 3 8 95001-55xxx-5x 95001-55001-50M <95001-55003-50M> <95001-55008-50M> 5.5 1 3 8 95001-55xxx-6x 95001-55001-60M <95001-55003-60M> <95001-55008-60M> 5.5 1 3 8 95001-75xxx-2x 95001-75001-50M <95001-75003-50M> 7.5 1 3 95001-75xxx-3x 95001-75001-60M <95001-75003-60M> <95001-75008-60M> 7.5 1 3 8 95001-75xxx-4x 95001-75001-60M <95001-75003-60M> <95001-75008-60M> 7.5 1 3 8 95001-75xxx-5x 95001-75001-50M <95001-75003-50M> 7.5 1 3 95001-75xxx-6x 95001-75001-60M <95001-75003-60M> <95001-75008-60M> 7.5 1 3 8 95001-80xxx-2x 95001-80001-50M 8.0 1 95001-80xxx-3x 95001-80001-60M 8.0 1 95001-80xxx-4x 95001-80001-60M 8.0 1 95001-80xxx-5x 95001-80001-50M 8.0 1 95001-80xxx-6x 95001-80001-60M 8.0 1 Fuel hoses/Tubes Standard part No. Bulk part No. Bulk part Inner diameter (mm) Length (m) B 7
