Regal LS4, LX4, LS6, LX6 Owners Manual

REGAL LS4, LX4, LS6, LX6 OWNER’S MANUAL JANUARY 2020 EDITION

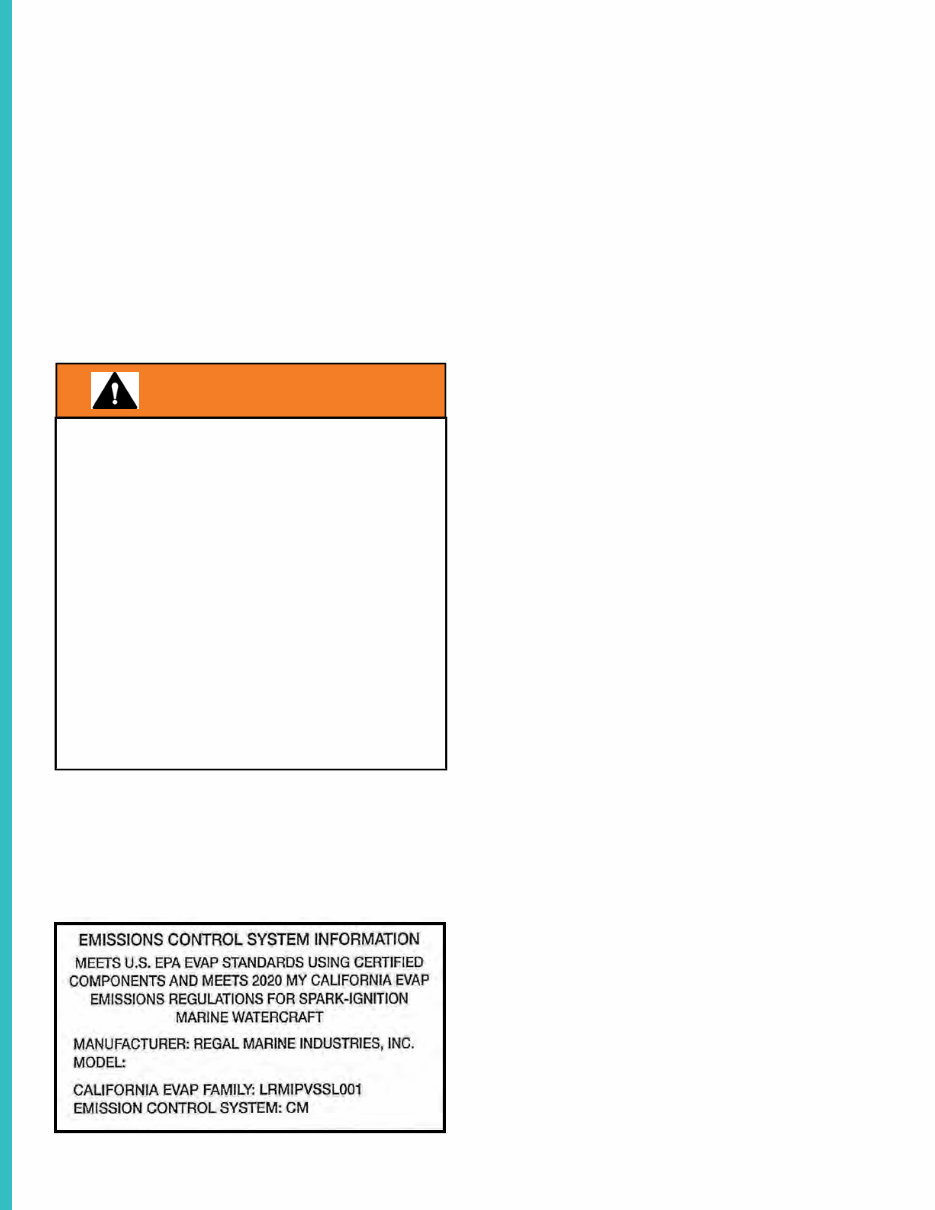

2 Notes MANUFACTURER’S WARRANTY COVERAGE This evaporative emission control system is warranted for two years. If any evaporative emission- related part on your spark-ignition marine watercraft is defective, the part will be repaired by Regal Marine Industries, Inc. OWNER’S MANUAL RESPONSIBILITIES • As the spark-ignition marine watercraft owner, you are responsible for the performance of the required maintenance listed in your owner’s manual. Regal Marine Industries, Inc. recom- mends that you retain all receipts covering maintenance on your spark-ignition marine watercraft, but Regal Marine Industries, Inc. cannot deny warranty solely on the lack of receipts. • As the owner, you should be aware that Regal Marine Industries, Inc. may deny you warranty coverage of your spark-ignition marine watercraft or a part has failed due to abuse, neglect, or improper maintenance or unapproved modi- fications. • You are responsible for presenting your spark- ignition marine watercraft to a Regal Marine Industries, Inc. distribution center or a service center as soon as the problem exists. The warranty repairs should be completed in a reason- able amount of time, not to exceed 30 days. If you have any questions regarding your warranty coverage, you should contact Regal Marine Industries, Inc. at 407-851-4360. FUEL SYSTEMS Boats manufactured for use in California for model year 2018 and after meet the California EVAP Emissions regulation for spark-ignition marine watercraft. Boats meeting this requirement will have a label affixed near the helm. The fuel system in this boat complies with U.S. EPA mandated evaporative emission standards at time of manufacture using certified components. WARNING Operating, servicing and maintaining a recreational marine vessel can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, service your vessel in a well-ventilated area and wear gloves or wash your hands frequently when servicing this vessel. For more information go to: www.P65warnings.ca.gov/ marine. Typical Helm CARB Label-Trailerable Models

3 Introduction Boating is becoming more popular each and every year. There are numerous types of recreational vessels on our waterways today involved in an every growing number of activities. Therefore, as a Regal boat owner it is of the highest priority to learn about general boating practices before operating your vessel. Your Regal dealer will answer many questions and provide valuable “hands on” information during the completion of the new boat delivery process. In addition, your dealer has received special factory training on the product line and his services should be employed to solve any technical problems and periodic maintenance beyond the scope of this manual. Your Regal dealer carries a line of factory approved parts and accessories. Your Regal dealer can provide information regarding national training organizations such as the U.S. Power Squadron and United States Coast Guard Auxiliary. Along with other organizations and literature, they can help build your “boating savvy” by developing the necessary skills and awareness to be a safe and conﬁdent skipper. Also, your local library can assist in providing recommended boating literature such as Chapman Piloting Seamanship & Boat Handling by Elbert S. Maloney. Also, boating information is available on the internet. Remember, waterway conditions can change in a heartbeat. Knowing how to react quickly comes from experience and knowledge which can be gained through boating education. Welcome aboard!

4 Welcome to Regal I know I speak for everyone at Regal when I welcome you to the ever-growing family of Regal boat owners. You’ve chosen a boat that is recognized worldwide for its standard of excellence. Each step in construction has been carefully scrutinized to assure safety, performance, reliability and comfort for both your passengers and yourself. Your yacht is certiﬁed by the National Marine Manufacturers Association. It also complies with the applicable standards set by the United States Coast Guard , American Boat and Yacht Council and the International Marine Certiﬁcation Institute. Your Regal boat was built with the same attention to detail and quality of construction that we would expect in a craft we would purchase ourselves. Whether you’re a veteran boater or a newcomer, we strongly urge you to read this owner’s manual thoroughly. Familiarize yourself with the various components of your vessel, and heed the safety precautions noted herein. If you have questions that are not covered in this manual, please consult your authorized Regal dealer for assistance, phone the Regal factory at 407-851-4360 or E-mail us at www.regalboats.com. Thank you, and welcome to the “World of Regal !” Duane Kuck President & CEO Our Mission With God’s Help and a Steadfast Commitment to Integrity, We will Develop a Team of Exceptional People and Relationships to Provide Exceptional Customer Satisfaction.

5 Table Of Contents 2 3 4 6 18 41 51 79 79 92 96 140 154 191 208 214 218 223 229 232 264 Notes Introduction Welcome to Regal Chapter 1 - General Vessel Information Chapter 2 - Safety On Board Chapter 3 - Rules Of The Road Chapter 4 - Systems Chapter 5 - Engine & Controls LS4/LS6 Stern Drive Engine & Systems LS4/LS6 Surf Engine & Systems LX4/LX6 Outboard Engine & Systems Chapter 6 - Vessel Operation Chapter 7 - Auxiliary Equipment Operation Chapter 8 - Care & Maintenance Chapter 9 - Troubleshooting Chapter 10 - Storage & Winterization Chapter 11- Towing Chapter 12- Glossary & Index Chapter 13 - Technical LS Series Drawings (Stern Drive & Surf) LX Series Drawings (Outboard)

6 Chapter 1 General Vessel Information Regal Owner’s Manual Your Regal owner’s manual has been compiled with information to assist you in operating your craft with safety and pleasure. This manual tar- gets specific details of Regal related systems and components along with their location, operation and maintenance that normally are not found in the vendor information. Note that chapter 5 devotes special sections to stern drive, surf, and outboard propulsion. For more detail refer to the engine manufacturer’s engine manual. The Regal owner’s manual is not to be thought of as a complete shop manual. Besides the system chapters, there is troubleshooting information devoted to select current standard and optional equipment. In addition, refer to the engine opera- tor’s manuals. More detailed information may exist in the owner’s packet associated with that component. Remember that your Regal dealer has received special factory training and his services should be employed to solve more technical problems. Call 407-851-4360 or go to the internet at regalboats.com to find the closest Regal dealership. In keeping with its commitment to improvement Re- gal Marine Industries, Inc. is continually upgrading the product line. Regal notes that all dimensions, specifications, models, standard and optional equipment is subject to change without notice at any time. Regal Owner’s Manual Currently there is a QR label attached to a visible location such as the helm. This label when scanned by an I phone will take you via an app to the Regal web-site where you can download your vessel’s owner’s manual or for that mat- ter any Regal owner’s manual. With the manual downloaded you can duplicate it into a format you are comfortable using. The QR label is used globally for any type product from the food, home and auto business to boats. It affords much more capacity and is much more customer friendly than the traditional bar code used by manufacturer’s on their products. Other Regal owner’s manuals can be found by scan- ning this QR Code or by going to: regalboats.com/owners PREVENT INJURY, DEATH, OR PROPERTY DAMAGE! READ AND UNDERSTAND THE PROPULSION OWNER’S MANUAL BEFORE ATTEMPTING TO OPERATE THE VESSEL. WARNING

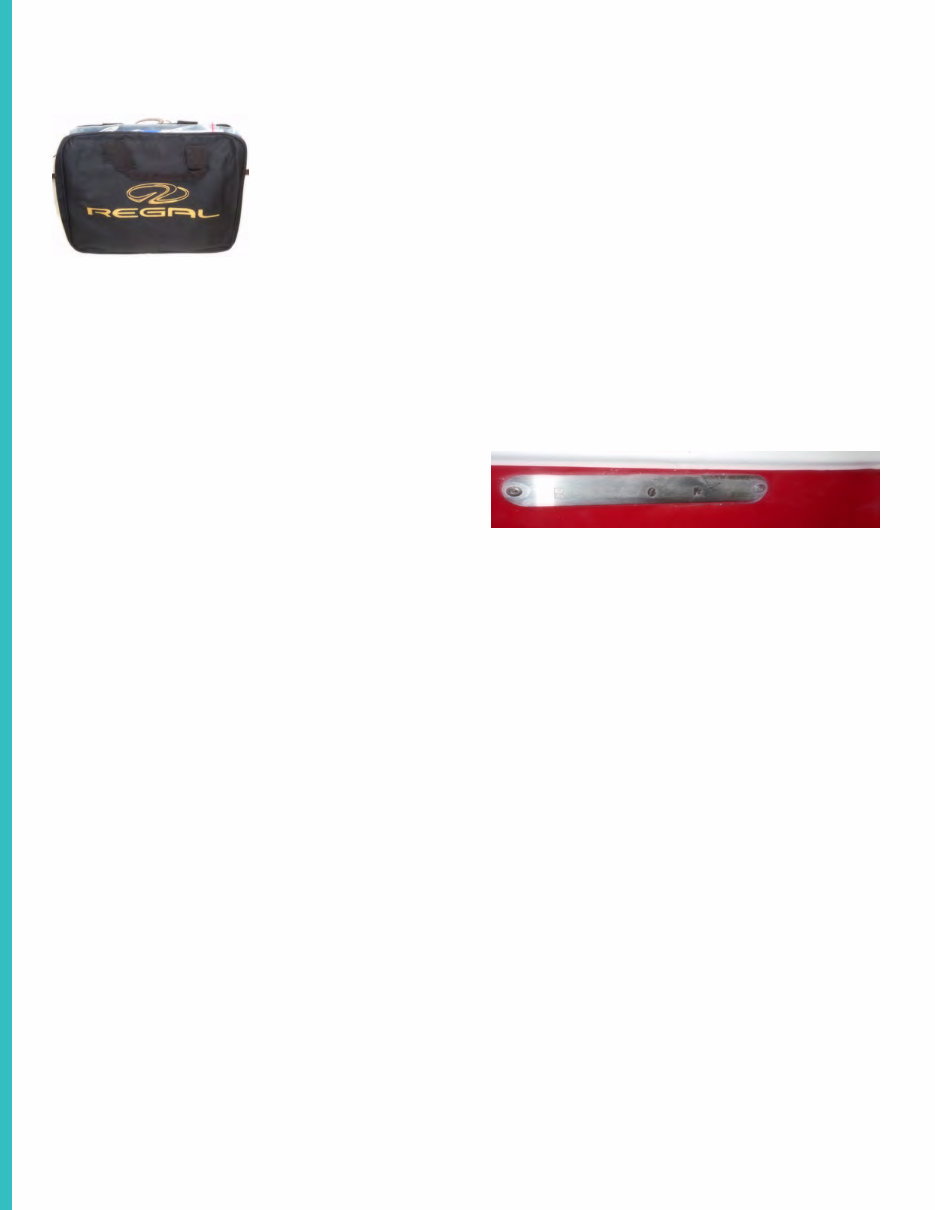

7 Hull Identification Number The United States Coast Guard has established a universal system of numerically recognizing vessels by using a hull identification number or “HIN.” This number identifies your Regal yachts’ model, hull number, month and year of manufacture. The HIN is normally found on your boat’s transom, on the starboard side, just below the rub rail on the transom vertical surface. The HIN is stamped on a plate and reinforced with a special adhesive. The HIN domestically uses 12 alpha or numeric char- acters. Note CE HIN’s display 15 digits. It is recommended that you locate and write down the HIN for future reference. It can be especially useful when ordering parts from your Regal dealer. A second HIN number is found in a hidden location. This second HIN is useful to authorities if the vessel is stolen and/or the original transom HIN is modified or eliminated. Vessel Float Plan Formulate the float plan on the following page before departing. Leave it with a responsible person who will notify the United States Coast Guard or local law enforcement authorities if you do not return as planned. If you change your plans be sure to notify this person. Make copies of the float plan and use one each time you go boating. This will help people know where to find you should you not return on schedule. Do not file the float plan with the United States Coast Guard. Owner’s Information Packet An owner’s information packet (black satchel) is located on the vessel. Read and become familiar with the materials. This packet contains valuable information on your propulsion package, standard and optional equipment, systems, care and maintenance along with component warranty. Vessel Information Sheet It is recommended that you fill out the information on the following page. It will supply vital statistics on your vessel. NMMA Maximum Capacity Plate In proximity to the helm on Regal boats under 26’ display the maximum persons or weight along with a maximum total of vessel pounds, persons and gear. Outboard vessels display the maximum mo- tor horsepower. The plate states compliance with U.S. Coast Guard safety standards in effect on the date of certification along with EPA standards. ABYC Yacht Plate In proximity to the helm on Regal boats 26’ and over in length is a NMMA (National Marine Manufacturer’s Association) yacht plate. This plate recognizes that your vessel was built to ABYC design compliance standards in effect on the date the certification was verified. The plate also states that your vessel complies with U.S.Coast Guard safety system standards in effect on the date of certification.

8 Owner: ______________________________________________________________________ Address: ______________________________________________________________________ City & State:___________________________________________________________________ Home Phone: ____________________ Business Phone: ________________________________ In Case Of Emergency Notify: ____________________________________________________ Address ______________________________________________________________________ _____________________________________________________________________________ City & State ___________________________________________________________________ Phone _______________________________________________________________________ Insurance Agent’s Name: _________________________________________________________ Policy#: ______________________________________________________________________ USCG Phone: ___________________ Local Police:____________________________________ Marina Phone: _________________ Slip (Dock#): ____________________________________ Hull Serial #: RGM __ __ __ __ __ __ __ __ __ Key #:__________ Engine:_____________ Selling Dealer: ________________________________________________________________ Address: _____________________________________________________________________ City & State: __________________________________________________________________ Phone: ______________________ Fax: ____________________________________________ Servicing Dealer: _______________________________________________________________ Address:______________________________________________________________________ City & State:___________________________________________________________________ Phone:______________________ Fax:______________________________________________ Vessel Information Sheet

9 Vessel Float Plan Fill out this form before departure. Leave it with a responsible person who will notify the Coast Guard or police if you don’t return as planned. If you change your plans be sure to notify this person. Make copies of the float plan and use one each time you go on a trip. This will help people know where to find you should you not return on schedule. Do not file this plan with the Coast Guard. Persons Aboard: Name Age Address Phone __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ Owner: ________________________________ Safety Equipment Aboard: _________________ Address: ________________________________ Life Jackets City & State: _____________________________ First Aid Kit Telephone#: _____________________________ Flares _______________________________________ Flash Light _______________________________________ VHF Radio Person Filing Report: ______________________ Cell Phone __#____________________ Name __________________________________ Computer __Desk Top ____Lap Top___ Telephone ______________________________ E-mail address_____________________ _______________________________________ Food_____Water____ _______________________________________ Make Of Craﬅ: ___________________________ State Registration#________________________ Length______Boat Name __________________ Destination: Color_______ Trim____ Hp________________ Leave From __________________________ Inboard ______ Stern Drive_________________ Time Leﬅ ____________________________ Hull I.D.# _______________________________ Going To ____________________________ Documented Vessel # ______________________ Fuel Capacity ____________________________ _______________________________________ Est. Day Of Arrival _______________________ Other Information ________________________ ____________________________________ _______________________________________ Est. Time Of Arrival ______________________ _______________________________________ If Not Back By____o’clock Call Authorities _______________________________________ _______________________________________ ____See Other Side For Additional Persons

10 Vessel Cruise Checklist  Obtain a current weather update.  Hoist the boat & periodically inspect the hull bottom and propellers for damage. Ma- rine growth such as barnacles will affect performance and fuel efficiency. Check sac- rificial anodes located on the propulsion unit, transom and engine. Replace anode if less than 2/3 remaining.  Check the electrical system and all safety related equipment. Carry extra fuses. En- sure they are of the proper capacity and type.  If your boat has been in the water, run the bilge pump until the flow of water stops.  Check to see that all bilge water has drained and the drain plug is installed before launching If your boat if it has been out of the water.  Check that all required safety equipment is on board and in good working condition Examples include personal flotation devices (PFD’s), horn, bell, hand held fire extin- guishers, and visual distress signals.  Check fuel level. Fuel tanks should be filled to slightly less than capacity. Allow for fuel expansion. Remember the “one third rule”.  Open engine compartment. Inspect for fuel odors and visible leaks in the fuel, oil, cool- ant, exhaust and power steering systems.  Check all fuel filters for the presence of water.  Check fluid levels of engines, drives and generator (if applicable).  Inspect engine for cracked hoses, worn or loose belts, and loose hardware.
