Pursuit Dual Console 265 Owners Manual

OWNER’S MANUAL MARCH 2017

U.S. Patents 8,113,137

Your Owner’s Manual was written to include safety instructions to ensure safe operation and maintenance of your boat. Safety alerts symbols are used to alert potential personal injury hazards. All instructions are viewed from the stern looking toward the bow, with starboard (to your right) and port (to your left). A glossary of boating terms is included. Your boat produces carbon monoxide (CO) and uses flammable fuel. CO will cause BRAIN DAMAGE or DEATH. Car- bon monoxide gas (CO) is colorless, odor- less and extremely dangerous. Every precaution has been taken by Pur- suit Fishing Boats to reduce the risks associated with death, possible injury and damage from fire or explosion. Your own precaution and good maintenance proce- dures are necessary in order to enjoy safe operation of your boat. ! DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. ! WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. ! CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Indicates a potentially hazardous situation which, if not avoided, may result in property damage. ! DANGER Exposure to carbon monoxide will cause death or serious injury. Avoid direct and prolonged exposure to CO. Gasoline and other fuels are extremely flammable and highly explosive under certain conditions. • DO NOT smoke or allow open flame or sparks nearby when fueling. • DO NOT block fuel vents. • DO NOT store fuel in any containers or compartments which are not des- ignated for storing fuel. ! WARNING The State of California has identified chemicals that could potentially be linked to cancer or reproductive complications. Operating, servicing and maintaining a recreational marine vessel can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breath- ing exhaust, service your vessel in a well-ventilated area and wear gloves or wash your hands frequently when servicing this vessel. For more information go to: http://www.P65warnings.ca.gov/ marine. Safety Information NOTICE

Table of Contents DC265 Safety Information Specifications ................................. 1 Boat Information ............................. 9 Warranty and Warranty Registration Cards ................... 10 Federal Boat Safety Act ............... 10 Product Changes ......................... 10 Transferring the Warranty .......... 10 Owner/Operator Responsibilities ....................... 10 Propulsion Systems 1.1 General .................................................. 1-1 1.2 Saltwater Application ........................... 1-1 1.3 Engine Lubrication ............................... 1-2 1.4 Engine Cooling System ....................... 1-2 1.5 Propellers .............................................. 1-2 1.6 Engine Instrumentation ....................... 1-2 Helm Systems 2.1 General .................................................. 2-1 2.2 Engine Throttle and Shift Controls ..... 2-1 2.3 Neutral Safety Switch .......................... 2-1 2.4 Engine Power Tilt and Trim ................. 2-2 2.5 Engine Stop Switch .............................. 2-2 2.6 Steering System ................................... 2-3 2.7 Trim Tabs .............................................. 2-3 2.8 Trim Tab Maintenance ......................... 2-4 2.9 Optional Electronics ............................ 2-4 2.10 Compass ............................................. 2-4 2.11 Control Systems Maintenance .......... 2-5 Fuel Systems 3.1 General .................................................. 3-1 3.2 Fuel System ......................................... 3-2 3.3 Fueling Instructions ............................ 3-3 Electrical Systems 4.1 General .................................................. 4-1 4.2 DC System ............................................. 4-1 4.3 Main Breakers/Helm Electronics ........ 4-2 4.4 12-Volt DC Panel ................................... 4-3 4.5 Electrical System Maintenance ........... 4-6 Plumbing System 5.1 Fresh Water System ............................. 5-1 5.2 Raw Water Washdown .......................... 5-1 5.3 Livewell .................................................. 5-2 5.4 Drainage ................................................ 5-2 5.5 Plumbing System Maintenance ........... 5-4 Ventilation System 6.1 Carbon Monoxide and Proper Ventilation ............................................ 6-1 6.2 Bilge Compartment Ventilation ........... 6-1 Exterior Equipment 7.1 Deck ....................................................... 7-1 7.2 Cockpit ................................................... 7-3 Interior Equipment 8.1 Port Console ......................................... 8-1 8.2 Audio and Video Systems ................... 8-1

Table of Contents DC265 Safety Equipment 9.1 General .................................................. 9-1 9.2 Engine Alarms ...................................... 9-1 9.3 Neutral Safety Switch ........................... 9-1 9.4 Engine Stop Switch .............................. 9-1 9.5 Automatic Fire Extinguishing System (with Optional Generator) .................. 9-2 9.6 Carbon Monoxide Hazards .................. 9-2 9.7 First Aid ................................................. 9-5 9.8 Required Safety Equipment ................. 9-5 9.9 Additional Safety Equipment ............... 9-8 Operation 10.1 General .............................................. 10-1 10.2 Homeland Security Restrictions ..... 10-1 10.3 Rules of the Road ............................. 10-2 10.4 Pre-Cruise Check .............................. 10-3 10.5 Operating your Boat ......................... 10-4 10.6 Fishing ............................................... 10-6 10.7 Tower Operation (Dealer Installation) ......................... 10-6 10.8 Docking, Anchoring and Mooring ... 10-7 10.9 Controls, Steering or Propulsion System Failure ................................ 10-8 10.10 Collision ......................................... 10-9 10.11 Grounding, Towing and Rendering Assistance ..................................... 10-9 10.12 Flooding or Capsizing ................... 10-9 10.13 Transporting your Boat ............... 10-10 10.14 Trailering your Boat .................... 10-10 10.15 Water Skiing ................................. 10-11 10.16 Man Overboard ............................ 10-12 10.17 Trash Disposal ............................. 10-12 Routine Maintenance 11.1 General .............................................. 11-1 11.2 Exterior Hull and Deck .................... 11-1 11.3 Seats, Upholstery, Canvas and Enclosures ..................................... 11-5 11.4 Cabin Interior ................................... 11-6 11.5 Bilge .................................................. 11-6 11.6 Generator (Optional) ....................... 11-6 Seasonal Maintenance 12.1 Storage and Lay-up ......................... 12-1 12.2 Winterizing ....................................... 12-2 12.3 Recommissioning ........................... 12-4 APPENDIXES Glossary of Terms ........................ A-1 Maintenance Schedule ................. B-1 Maintenance Log .......................... B-2 Boating Accident Report .............. C-1 Float Plan ....................................... D-1 Troubleshooting Guide ................ E-1 Schematics ..................................... F-1

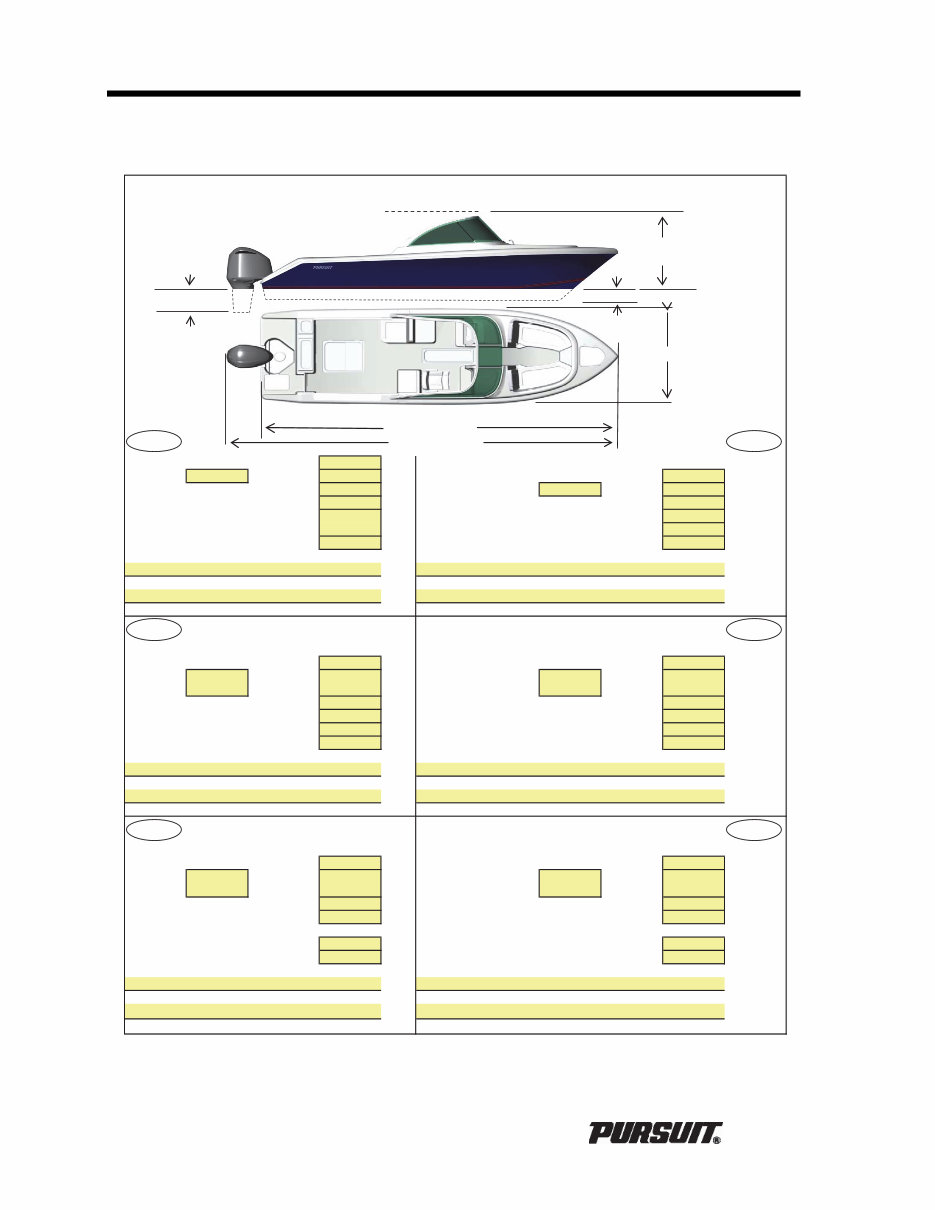

Specifications 1 DC265 C-Inshore Propulsion Type: Tipo di propulsione: C-à proximité de la côte Antriebsart: Tipo de propulsión: C-Costera Type de propulsion: Tipo propulsão: C-Küstennane Gewässer C-Costeira C-Perto da Costa Intended Use: Verwendungszweck: Hull Identification Number: Usage prévu: Rumpfunner: Utilizzo previsto: Nemero d'identification de coque: Uso previsto: Nemero identificazione scafo: Utilização: Numero de Identificacion del Casco: Número de Identificação do Casco: Maximum Recommended Load: Charge maximale recommandée: Carga Máxima recomendada: 1225 kg Empfohiene Beladung Maximum: 2701 lbs Carico massimo ammesso: Carga Máxima Recomendada: Recommended Number of Persons: Maximum Rated Engine Power: Nombre de personnes recommandé: Puissance nominale maximale du moteur: Número recomendado de personas: Potencia máxima del motor: Empfohlene Personenanzahl: Maximale Motorleistung: Omologazione al trasporto di n. persone: Massima potenza nominale motore: Número de Pessoas Recomendado: Máxima potência nominal do motor: 261 kw 350 hp Engine Installed, Manufacturer, Model and Number(s): Moteur installé, Fabricant, modèle et numéros(s): Motor instalado, Fabricante, modelo y numero(s): Motor instaliert, Hersteller, modell, nummer(en): 1. Motore istallato, Costruttore, modello e numero(s): 2. Motor Instalado, Fabricante, Modelo e Número(s): Mass of Craft (Approximate) With Largest Equipped Engine and permanently attached items, Masses de Navire (Approximatives) plus full water and fuel, plus maximum recommended load: Peso de la embarcación (aproximado) Avec le plus grand moteur équipé et systèmes en liaison Gewicht des Bootes (Nährungswert) permanente, plus pleine charge d'eau et de carburant, plus Massa dell'imbarcazione (approssimativa) charge maximale recommandée: Massa da Embarcação (Aproximada) Con el mayor motor equipado y elementos permanentemente With Largest Equipped Engine and instalados, más combustible y aqua, más la carga máxima recomendada: permanently attached items: Mit größter Motorausführung und fest installiertem Inventar sowie Avec le plus grand moteur équipé et vollen Wasser- und Kraftstofftanks und empfohlener Maximalbeladung: systèmes en liaison permanente: Con il motore di maggiore cilindrata, attrezzature permanenti, più Con el mayor motor equipado y elementos rifornimento di axqua e carburante e carco massimo ammesso: permanentemente instalados: Com o maior motor instalado e os equipamentos permanentes, mais a Mit größter Mororausführung und fest capacidade máxima de água e combustível, mais a carga máxima installiert em Inventar: recomendada: Con il motore di maggiore cilindrata e 10,395 lbs 4715 kg attrezzature permanenti: Trailerable Weight (engine, fuel and water, batteries and options): Cim o maior motor instaldo e os Masse pour remorquage (moteur, carburant et eau, batteries et options): epuipamentos permanentes: Peso remolcable (motor, combustible y agua, baterías y opciones): 6,001 lbs 2722 kg Auf Anhänger verladbares Gewicht (Motor, Kraftstoff und Wasser, Batterien und Sonderausstattung): Peso rimorchiabile su strada (motore, combustible e acgua, batterie ed accessori): Peso Rebocável (motor, combustível e água, baterieas e opções): lbs. 4115 kg Costruttore/modello della barca: DC 265 Boothersteller/Model: DC 265 Modelo/Fabricante de la Embarcación: DC 265 Note:Information obtained from 2010 CE stability calc Sheet for "light craft condition" (m LCC ) 9,072.02 Specifications Aug-10 8 Outboard Recreation HIN Label Categoria di progetto: Categoria de Design: Design Category: Categorie de conception: Categoria de Diseño: Konstruktionskategorie: Constructeur/Modèle du bateau: DC 265 Fabricante/Modelo do Barco: DC 265 Boat Manufacturer/Model: DC 265

2 Specifications DC265 Fuel Tank Capacity (0.73kg/Liter): 568L/ 150G Kraftstofftankkapazität Fuel Type:  Gasoline N/A Diesel 568 Liter Oil Tank Capacity: N/A Liters Kraftstoffart:  Benzin N/A Diesel Oil Type: 10-40 Öltankkapazität: N/A Liter Water Tank Capacity (1kg/Liter): Ölsorte: 10-40 Wassertankkapazität (1kg/Liter): 70 Liter Holding Tank Capacity: 49L/13Gal Speichertankkapazität: 49 Liter Number and Type of Fire Extinguishers: Feuerlöscheranzahl und -typ: Number and Type of CO Detectors: Rauchdetektoranzahl und -typ N/A = Not Applicable n.z. = nicht zuttrefend Contenance réservoir carburant Capacità serbatoio carburante (0,73kg/litre): 568 litres (0,73kg/l): 568 litri Type de carburant:  gasoil N/A diesel Tipo carburante:  Benzina N/A Diesel Contenance réservoir d'huile: N/A litres Capacità serbatoio olio: N/A litri Type d'huile: 10-40 Tipo oilio: 10-40 Contenance réservoir de'eau (kg/litre) 70 litres Capacità serbatoio acqua (1kg/l): 70 litri Contenance réservoir de rétention: 49 Capacità cassa di zavorra: 49 litri Nombre et type d'extincteurs: Numbero e tipo di estintori: Nombre et type de détecteurs de fumée: Nummero e tipo di rivelatori di esalazioni: N/A = non applicable N/A = non pertinente Capacidad del Depósito de Combustible Capacidade do Depósito de Combustível: (73Kg/Litro): 568 Litros (0,73kg/Litro): 568 Litros Tipo de Combustible  Gasolina N/A Diesel Tipo de Combustível:  Gasolina N/A Gasóleo Capacidad del Depósito de Aceite: N/A Litros Capacidade do Depósito de Óleo: N/A Litros Tipo de Aceite: 10-40 Tipo de Óleo: 10-40 Capacidad del Depósito de Agua Capacidade do Depósito de Água: (1Kg/Litro): 70 Litros (1kg/Litro): 70 Litros Capacidad del Tanque de Retención: 49 Litros Capacidade do Depósito Provisório: 49 Litros Número y Tipo de Extintores de Incendios: Número e Tipo de Extintores de Incêndio: Número y Tipo de Detedtores de Humos: Número e Tipo de Detectores de Fumo: N/A = no aplicable N/A = Não Aplicàvel Note:Information obtained from 2010 CE Certificate and/or Standards Options List - rev H 07-14-10 Specifications 0 (2) B,C (0,73 kg/Liter): 0 70L/ 18.5Gal (2) B,C (2) B,C 0 (2) B,C 0 0 0 (2) B,C (2) B,C FR IT ES PT EN DE 2.32 m/ 7.6 ft 8.53m/ 28 ft 8.64 m/ 28.4 ft .94 m/ 3.0 ft 7.9m/ 25.85 ft 2.7 m/ 8.75 ft .53 m/1.75 ft

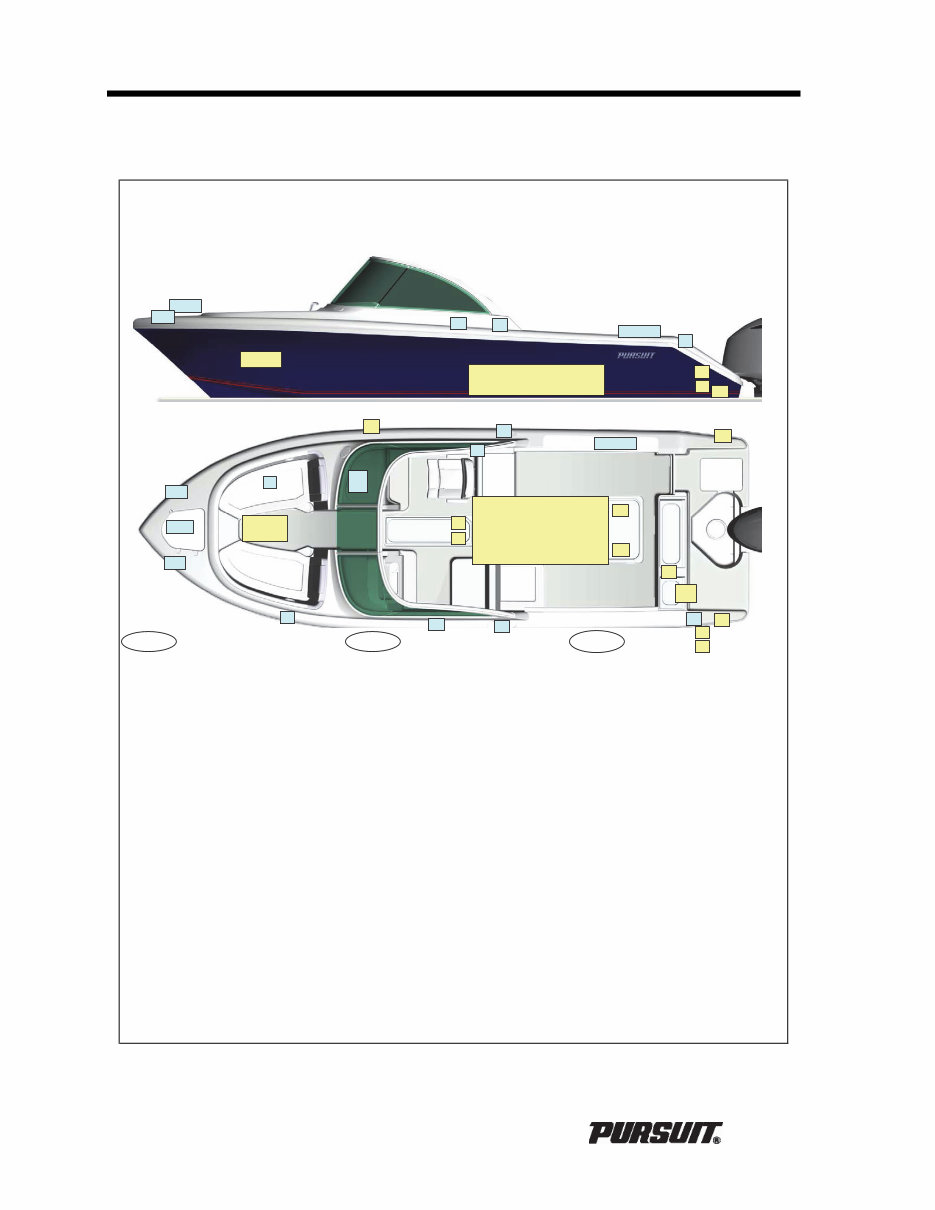

Specifications 3 DC265 Locate and Identify: Localizar e identificar: Localizzazione e identificazione dei A) Fuel Tank A) Depósito de Combustible componenti: B) Fuel Tank Filling Point B) Punto de Carga del Depósito de A) Serbatoio carburante C) Oil Tank (N/A) Combustible B) Bocchettone di riempimento D) Oil Tank Filling Point (N/A) C) Depósito de Aceite (N/A) serbatoio carburante E) Oil Tank Emptying Point(N/A) D) Punto de Carga del Depósito de C) Serbatoio olio (N/A) F) Water Tank Aceite (N/A) D) Bocchettone di riempimento G) Water Tank Filling Point E) Punto de Descarga del Depósito serbatoio olio (N/A) H) Holding Tank de Aceite (N/A) E) Scarico serbatoio olio (N/A) I) Holding Tank Emptying Point F) Depósito de Agua F) Serbatoio acqua J) Seacocks G) Punto de Carga del Depósito de G) Bocchettone di riempimento K) Through-Hull Fittings Agua serbatoio acqua L) Fire Extinguisher H) Tanque de Tetención H) Cassa zavorra M) Carbon Monoxide I) Punto de Descarga del I) Scaric cassa zavorra Detector (N/A) Tanque de Tetención J) Valvole di presa acqua dal mare N) Escape Hatch (N/A) J) Válvula de Toma de Agua de Mar K) Raccorderia passante nello scafo O) Fire Escapes (N/A) K) Accesorios Pasantes del Casco L) Estintore P) Life Raft Stowage L) Extintor de Incendios M) Rivelatore monossido di carbonio Q) Safety Equipment M) Detector de Monóxido de carbonio (N/A) R) Anchor Strong Points Carbono (N/A) N) Boccaporto di sfuggita (N/A) S) Mooring Strong Points N) Escotilla de Seguridad (N/A) O) Uscite di sicurezza (N/A) T) Towing Strong Points (N/A) O) Escalera de Incendios (N/A) P) Stivaggio zattera di salvataggio P) Almacenamiento de balsas Q) Dotazioni di sicurezza salvavidas R) Punti di attaco per l'ancoraggio Q) Equipos de seguridad S) Punti di attacco per l'ormeggio R) Puntos fuertes de anclaje T) Punti di attacco per il traino N/A S) Puntos fuertes de amarre T) Puntos fuertes de remolque N/A Specifications 7/10/2010 Model: DC 265 IT ES EN S J J K R/S I R/S B J S S S J J A J Q H L K A F H J K K P L L S S G B S S S J

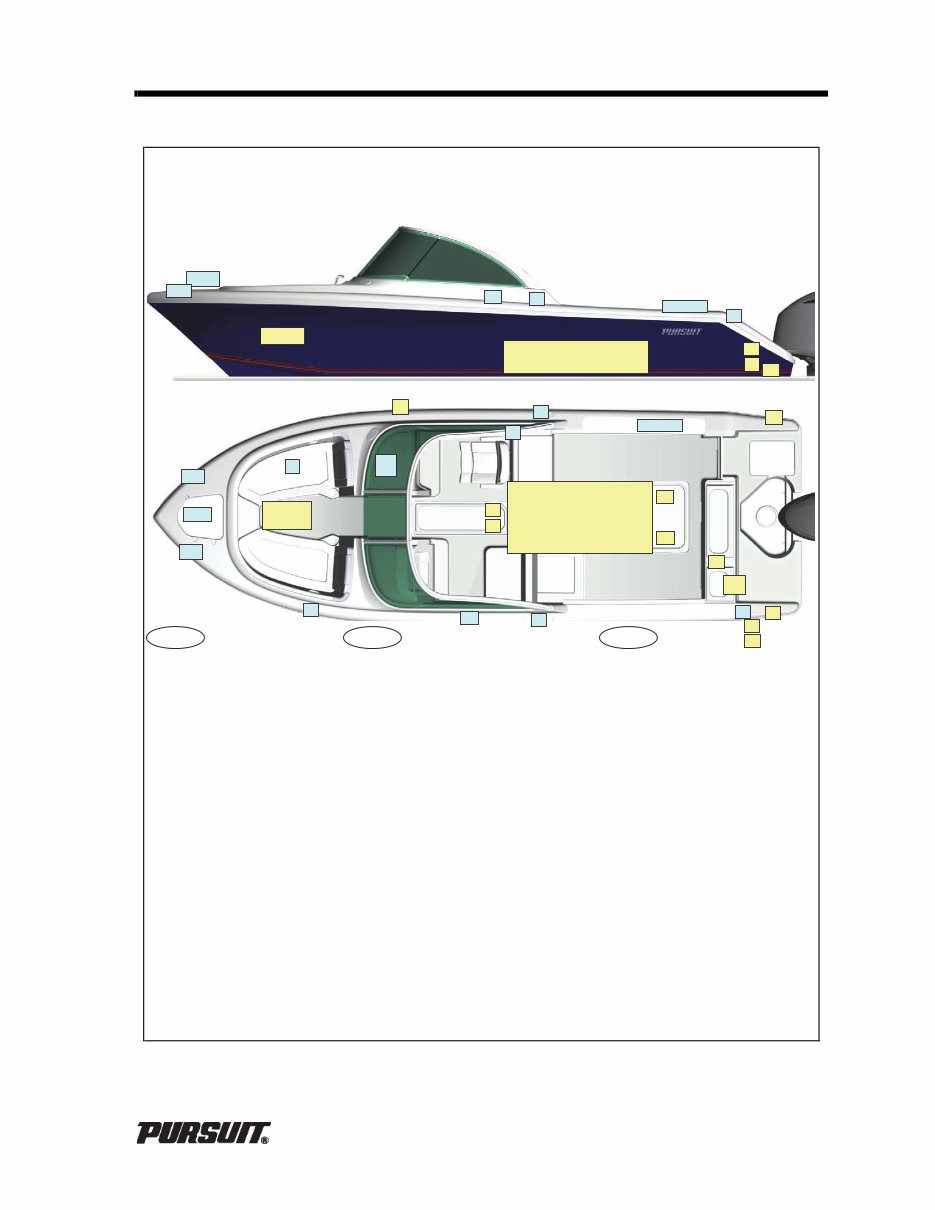

4 Specifications DC265 Repèrez et identifiez: Position and Beschreibung: Localizar e Identificar: A) Réservoir de carburant A) Kraftstofftank A) Depósito de Conbustível B) Point de remplissage réservoir B) Kraftstofftankfüllpunkt B) Ponto de Enchimento do Depósito de de carburant C) Öltank (n.z.) Combustível C) Réservoir d'huile (N/A) D) Öltankfüllpunkt (n.z.) C) Depósito de Óleo (N/A) D) Point de remplissage réservoir E) Öltankablasspunkt (n.z.) D) Ponto de Enchimento do Depósito de d'huile (N/A) F) Wassertank Óleo (N/A) E) Point de vindage réservoir G) Wassertankablasspunkt E) Ponto de Esvaziamento do Depósito d'huile (N/A) H) Speichertank de Óleo (N/A) F) Réservoir d'eau I) Speichertankablaßpunkt F) Depósito de Água G) Point de remplissage réservoir J) Flutventile G) Ponto de Enchimento do Depósito de d'eau K) Rumpfdurchgangsanbauten Água H) Réservoir de rétention L) Feuerlöscher H) Depósito Provisório I) Point de vidange résevoir de M) Kohlenmonoxiddetektor (n.z.) I) Ponto de Esvaziamento do Depósito rétention N) Notausstieg (n.z.) Provisório J) Prises d'eau à la mer O) Reuerrettungswege (n.z.) J) Torneiras de tomada de àgua do mar K) Raccords traversant la coque P) Rettungsfloßunterbringung K) Acessórios de Todo o Casco L) Extincteur Q) Sicherheitsausrüstung L) Extintor de Incêndios M) Détecteur de monoxyde de R) Ankerpunkte M) Detector de Monóxide de carbone S) Vertäuungspunkte Carbono (N/A) N) Ecoutille d'évacuation T) Abschlepppunkte (n.z.) N) Escotilha de Fuga (N/A) O) Echelles de sauvetage O) Saídas de Incêndio (N/A) P) Arrimage du radeau de P) Acondicionamento do Barco sauvetage Salva-vidas Q) Equipement de sécurité Q) Equipamento de Segurança R) Points d'ancrage R) Pontos Fortes da Ancoragem S) Points d'amarrage S) Pontos Fortes da Amaragem T) Points de remorquage (N/A) T) Pontos Fortes da Rebocagem (N/A) Specifications 7/12/2010 Model: DC 265 FR DE PT J J K R/S I R/S B J S S S J J A J Q H L K A F H J K K P L L S S G B S S S J
