PARTS MANUAL 2003 340SDA SUNDANCER Sea Ray® Parts Manual, 2003 340 SUNDANCER MRP # 1689831 Sea Ray Boats, 2600 Sea Ray Blvd., Knoxville, TN 37914. For information call 1-800-SRBOATS or fax 1-314-213-7878 (USA and International). Internet address: http://www.searay.com Note: Not all accessories shown in pictures or described herein are standard equipment or even available as options. Options and features are subject to change without notice. 340 Confirm the availability of all accessories and equipment with an authorized Sea Ray® dealer. ® International - 375 SUNDANCER

2003 340 SUNDANCER T A B L E O F C O N T E N T S STANDARD & OPTIONAL LAYOUTS PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERIOR (DECK) 1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERIOR (WINDSHIELD) 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERIOR (SPOILER) 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERIOR (HULL) 5, 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TRANSOM STORAGE & SWIM PLATFORM 7, 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXTERIOR (GRAPHICS) 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . COCKPIT (PORT VIEW) 10, 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . COCKPIT (STARBOARD VIEW) 12, 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CANVAS AND HARDWARE 14, 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . COCKPIT HELM 16, 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INSTRUMENT PANELS 18, 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SWITCH PANEL 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FORWARD STATEROOM 21, 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PORT HEAD 23, 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SALON 25, 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GALLEY 27, 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AFT STATEROOM 29, 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MID STATEROOM 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MAIN DC BREAKER PANEL 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MAIN DISTRIBUTION PANEL 120VAC 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MAIN DISTRIBUTION PANEL 220VAC 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC DISTRIBUTION 12V 35, 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BILGE 37, 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BILGE (ENGINE SET-UP/WATER INTAKE) 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EXHAUST SYSTEM (STANDARD GAS ENGINE) 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BILGE (GENERATOR SET-UP) 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BILGE (ELECTRICAL) 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A/C SYSTEM 43, 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . STEERING SYSTEM (V-DRIVE WITH HYDRAULIC STEERING) 45, 46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . STEERING SYSTEM (STERN DRIVE) 47, 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FUEL SYSTEM 49, 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WATER SYSTEM 51, 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SEWAGE SYSTEM 53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DRAINAGE SYSTEM (FORWARD) 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DRAINAGE SYSTEM (AFT) 55 OPTIONS - PARTS LIST PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T-MX 6.2L MPI BR 3 (T-320 PHP) MCM STERN DR 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T-496 MAG BR 3 (T-375 PHP) MCM STERN DRIVES 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TVD-MX 6.2L MPI (T-320 PHP) MCM V-DR.I/B 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TVD-8.1 S (T-370 PHP) MCM V-DR. INBOARDS 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TVD-YANMAR 6LPSTP (T-306 PHP) INBOARDS DSL 56, 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T-VOLVO KAD 300 DP (T-268 PHP) STERN DR 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RADAR RL70CRC W/ RAYCHART & GPS-CLOSED DOME 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SMARTCRAFT SYSTEM VIEW- TWINS ONLY 57, 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2ND DIGITAL STEREO REMOTE CONTROL -TRANSOM 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GEN. 5.0 E KOHLER 120V/60HZ - GAS 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GEN. 5.0E-QD ONAN 120V/60HZ - DIESEL 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GEN. 4.0 EF KOHLER 220V/50HZ - GAS 58, 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GEN. 4.0E-QD ONAN 220V/50HZ - DIESEL 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RAYMARINE CHART PLOTTER (520+) 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RADAR SL70CRC W/ RAYCHART & GPS-CLOSED DOME 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . COCKPIT COVER 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MACERATOR W/ SEACOCK INTERLOCK SYSTEM 59, 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RAYMARINE RAYNAV 300 GPS W/WAAS DIFF.SENSOR 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RAYMARINE 530 COLOR CHART PLOTTER 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GRAY WATER SYSTEM 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SYSTEMS MONITOR PANEL 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 VOLT / 50 CYCLE ELECTRICAL SYSTEM 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FRESH WATER COOLING-6.2 L GAS INBOARDS 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GEL-COATED DASH - TAN 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SUN PAD W/ SS DECK RUNNERS - FORWARD DECK 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . REFRIGERATOR DUAL VOLT-120V/240-12V COCKPIT 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WINDLASS-LOFRANS PROGRESS-CHAIN 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C E OPTION GROUP 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 TO 1 BRAVO 3 HIGH ALTITUDE GEAR RATIO 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OWNER ORIENTATION VIDEO - PAL FORMAT 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CANADIAN CONFORMITY STICKER 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WINDLASS CAPSTAN 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VACUUM SYSTEM, CENTRAL - BEAM - 120V/60 60, 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VACUUM SYSTEM, CENTRAL - BEAM - 220V/50 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WINDSHIELD W/ STAINLESS STEEL FRAME 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BLACK CANVAS OPTION 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BOW THRUSTER 61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . "375DA" MODEL DESIGNATORS 61 2/23/2004

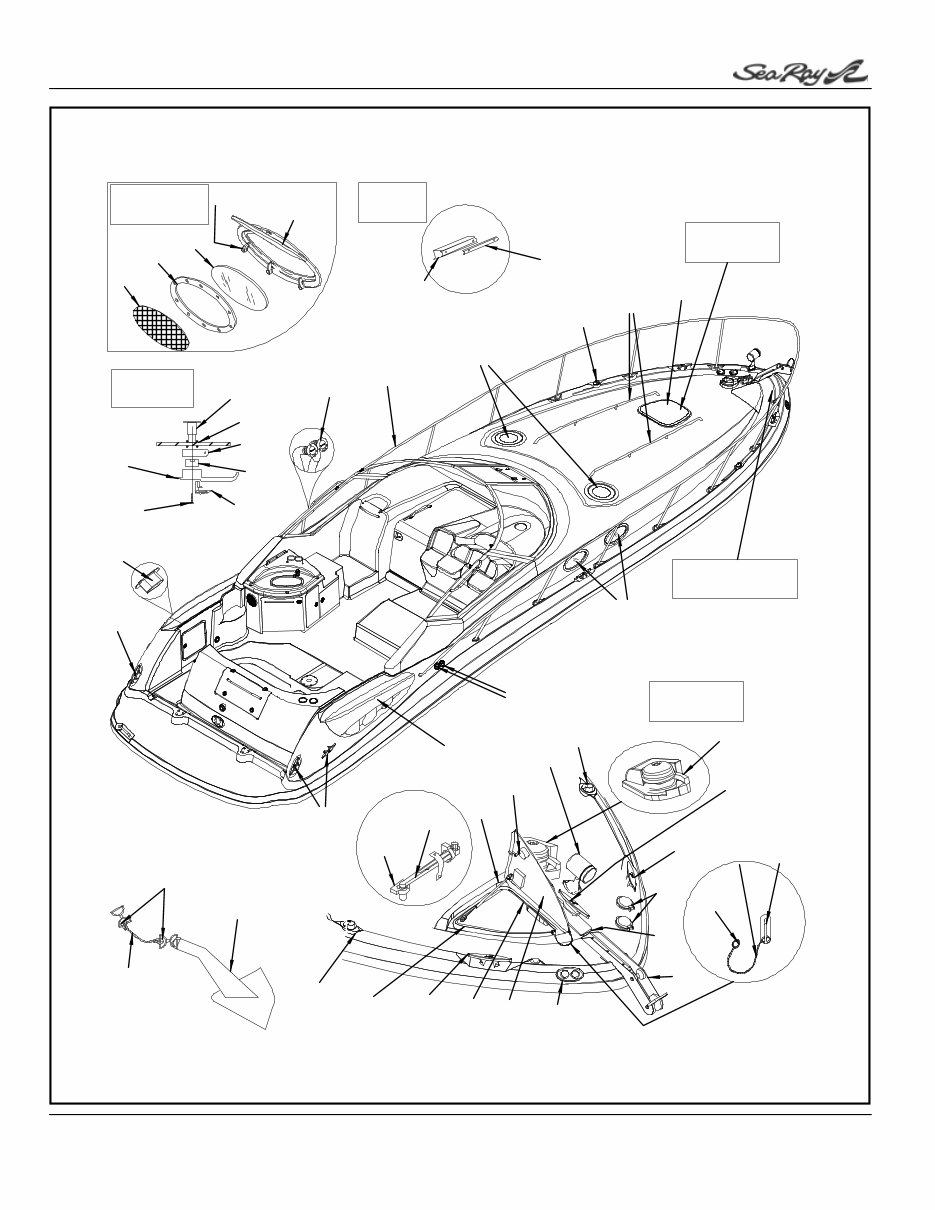

340 SUNDANCER 2003 33 31 39 38 35 40 41 27 28 29 30 42 5 5 2 2 24 26 25 36 37 43 12 13 14 15 16 PORTLIGHT BREAKDOWN 32 34 1 2 3 4 5 6 7 8 SEE HATCH DETAIL "B" SEE BOW AREA DETAIL "A" 9 11 2 10 22 HATCH DETAIL "B" 17 18 19 20 21 23 BOW AREA DETAIL "A" RUBRAIL DETAIL 44 12 2/23/2004 1 EXTERIOR (DECK)

340 SUNDANCER 2003 EXTERIOR (DECK) 958140 1 A/C COMP, HOSE RING 4" OBLONG 1463488 2 CLEAT, 10.5" SEA RAY SS 1473057 PLATE, BACKING CLEAT 1/4"X 2.5"X 5" 1685662 3 RAIL, BOW 340DA-03 CMPLT WELDED 1210046 PLATE, BACKING BOW RAIL ALUM 2.5" ROUND 1606250 4 SKYLIGHT, PLEX DECK 14"GRY W/2.25"BDR 1414895 5 LIGHT, NAV SIDE SS HORZ 12V 1423946 BULB, REPL FOR #1414895 12V 1659960 6 RAIL, DECK RUNNER 320DA-02 P/S 1689596 7 SCREEN, DECK TRAPEZOID SKYSCREEN MK4 1080100 8 INSERT, RUB RAIL SS 3/4"X 12' (.062/304SS) 1673565 9 RUBRAIL, PVC ARCWHT 19' SS INSERT 1.825"WIDE 1109313 10 DECK PLATE, GAS SS 1.5" RED CLR-CODE 1109339 DECK PLATE, DSL SS 1.5" GRN CLR-CODE (OPTIONAL DIESELS) 1689286 11 BOX, DR/ABS 340DA-03 STBD VENT 1689287 BOX, DR/ABS 340DA-03 PORT VENT 1408210 MESH, BLACK VINYL NET 1453992 12 PORTLIGHT, OPENING ALL SS 3/8"-7/8" MOD REV1 1454008 PORTLIGHT, OPENING ALL SS 3/8"-7/8" FROS REV1 (HEAD ONLY) 1107044 13 PORTLIGHT, HANDLES QUICKDOGS (BOMAR) 866434 KNOB, PORTLIGHT KNOB ONLY (BOMAR) 1331750 14 PORTLIGHT, LENS ONLY (BOMAR) 1331735 15 PORTLIGHT, GASKET ONLY (BOMAR) 1331313 16 PORTLIGHT, SCREEN 3/8"X 7/8" 632794 17 HATCH, ALL HATCH SIZES MUSHROOM OR POST 632778 18 HATCH, O-RING 701466 19 HATCH, ARM UNIV PIVOT ALL SIZES 701458 20 HATCH, DECK KNOB ULTRA 92/93 802801 21 HANDLE, DECK HATCH LATCHING 802793 22 HATCH, SCREW 3/8" PLEX 802827 23 HATCH, HATCH HANDLE 1733352 24 ANCHOR, 25LB PLOW 1145275 25 ANCHOR SHACKLE, JAW/JAW SWIVEL HVY DTY 3/8" 896902 26 ROPE/CHAIN KIT, LOFRANS 5/8"X 200'/5/16"X 25' 1043918 27 WINDLASS, CRANK HANDLE LOFRANS PROGRESS 844613 28 HOLDER, P/B WINDLASS CRANK LEWMAR CONCEPT 156893 WEBBING, POLYPROPYLENE 1" BLACK 156893 29 WEBBING, POLYPROPYLENE 1" BLACK 1480813 30 LATCH, FLUSH MOUNT ROUND T-HNDL SS W/PAWL 1448422 PLATE, STRIKER ORCAS "S" SHAPED 316 SS 1418060 SHIM, RUBBER 6MM SS LATCH 129908 31 SPOTLIGHT, 5" 841205 BULB, REPL FOR #0129908 SPOTLIGHT 1690264 32 WINDLASS, RP/CHN PROGI LO-PRO STD RV1 798447 WINDLASS SOLENOID, LOFRANS CONTROL BOX 12V 896902 ROPE/CHAIN KIT, LOFRANS 5/8"X 200'/5/16"X 25' 1689289 BRKR/SWITCH, SURF MNT T-1 100AMP 5000A INTRPT 1463470 33 CLEAT, 8.5" SEA RAY SS 1473040 PLATE, BACKING UNIVERSAL 3/16" 757765 34 WINDLASS FOOTSWITCH, HVY DUTY W/SAFTY CVR WHT 697508 35 EYE, BOW 3/8"X 2.75" 805499 36 LANYARD, CABLE ANCHOR 1/8" SS 819334 37 HOOK, SNAP 5/16"X 3 1/8" SS 1196641 38 PAD, HDPE 340DA-99 CHAIN GUARD ARW 1246396 39 DAVIT, ANCHOR W/4"ROLLER 3/8"BAIL RV1 1401736 40 HORN, GRILL DUAL SS OVERLAY SERIES 84 1413475 HORN, DUAL BLK W/SPADE CONNECTORS SERIES 84 1733595 41 340SDA 03,HATCH,CMPLT FBRGLS 620948 42 HINGE, SS CONT 2"X 14" 749341 43 TRIM-SEAL, 5/16" W/7/16"BULB LOC-C 1109347 44 DECK PLATE, WASTE SS BLK CLR-CODE 522581 DECK PLATE, CAP W/CHAIN 522599 KEY, DECK PLATE CAP 3.0L ALPHA (135PHP) MCM STERN DRIVE 1688217 7 HATCH, DECK TRAPEZOID ARC WHT NOT SHOWN DECALS/ LABELS 614867 DECAL, "SLING" LARGE (VAC PAC) 1518737 DECAL, SEA RAY OWNERS CLUB (NBOA) NOT SHOWN LABELS 129122 LABEL, NMMA CERTIFIED 221861 LABEL, SLING (LEXAN) 852533 LABEL, FUEL RECOMMENDATION 852558 LABEL, SUN PAD WARNING UNDERWAY 852632 LABEL, WARNING LEAKING FUEL NOT SHOWN LABELS (continued) 921759 LABEL, DANGER STAY CLEAR OF MOVING PARTS 996199 LABEL, ABYC MEMBERSHIP 1112879 LABEL, DANGER SHUT OFF ENG WHEN NEAR SWIMMERS 1113562 LABEL, WARNING DO NOT STAND/WALK THIS AREA 1206424 LABEL, WINDLASS BREAKER 1573112 LABEL, LADDER MAINTENANCE 2/23/2004 2

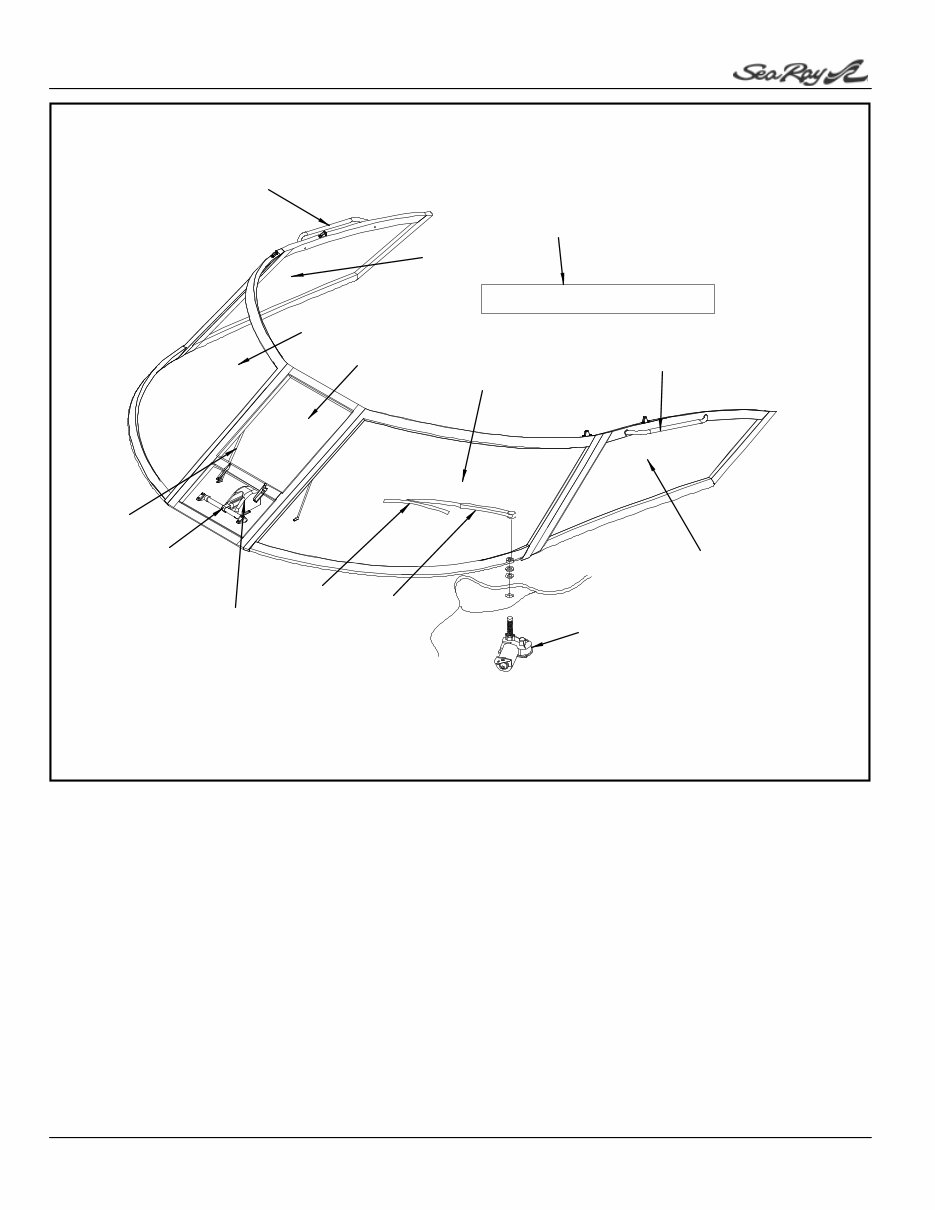

340 SUNDANCER 2003 EXTERIOR (WINDSHIELD) WINDSHIELD COMPLETE 2 3 4 5 6 7 11 12 9 8 10 1 2 13 EXTERIOR (WINDSHIELD) 1689908 1 W/S, 340DA-03 ALUM CMPLT W/VADNEY CLIP SYSTEM 1689912 W/S, 340DA-03 SS CMPLT W/SNPS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1184175 2 RAIL, GRAB 24" STREAMLINE W/STUD FLANGES 1739230 3 W/S, 340SDA-03 STB WING 1739409 W/S, 340SDA-03 STB WING SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1739227 4 W/S, 340SDA-03 STB FRNT 1739406 W/S, 340SDA-03 STB FRNT SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1739228 5 W/S, 340SDA-03 CTR 1739407 W/S, 340SDA-03 CTR SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1739226 6 W/S, 340SDA-03 PRT FRNT 1739404 W/S, 340SDA-03 PRT FRONT SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1739229 7 W/S, 340SDA-03 PRT WING 1739408 W/S, 340SDA-03 PRT WING SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 663930 8 WIPER MOTOR, 100 DEG 1688652 9 WIPER ARM, 20" FLEX BLK 1185560 10 WIPER BLADE, 20" FLEX BLK 1100262 11 ACTUATOR, ELEC W/S VENT 4"8P CE 1739412 12 W/S, 340SDA-03 SUPPORT BARS ALUM 1739414 W/S, 340SDA-03 SUPPORT BARS SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1409929 13 COVER, ABS W/S VENT ACTUATOR ARW 1409911 COVER, ABS W/S VENT ACTUATOR ZPHR (OPTIONAL GEL-COATED DASH - TAN) NOT SHOWN 1739231 W/S, 340SDA-03 HDWR KIT 1739410 W/S, 340SDA-03 HDWR KIT SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 1739411 W/S, 340SDA-03 SCREW CVR 1739413 W/S, 340SDA-03 SCREW CVR SS (OPTIONAL WINDSHIELD W/ STAINLESS STEEL FRAME) 2/23/2004 3

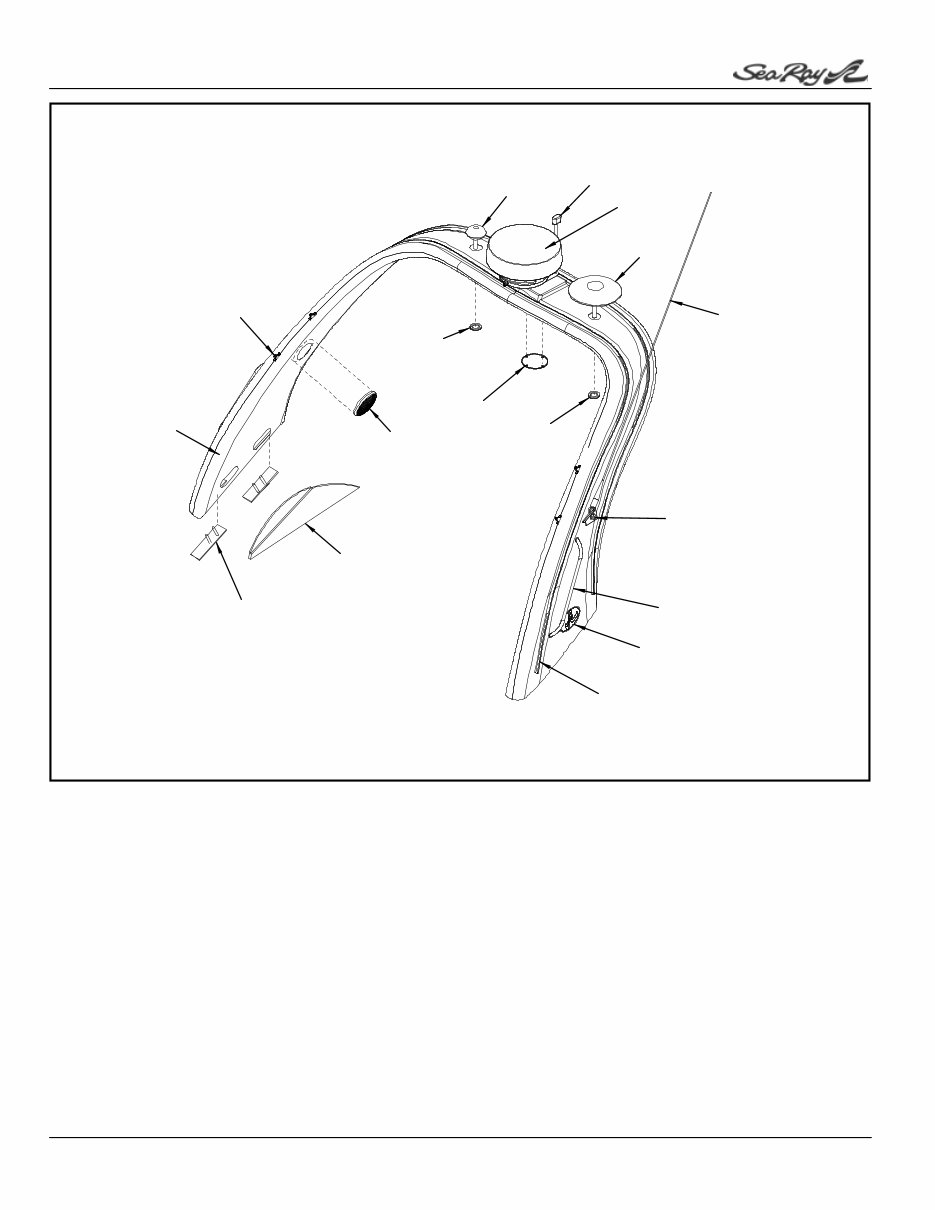

340 SUNDANCER 2003 EXTERIOR (SPOILER) 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 5 11 EXTERIOR (SPOILER) 1691181 1 FBRGLS PART, 340DA-03 SPOILER 174953 2 HINGE, DECK CONCAVE 1" SS CONV TOP 1690555 3 SPEAKER, COAXIAL 6.5" W/WHT CVR 137349 4 ACCESS PLATE, PLAS CVR 5" WHT 1523901 ACCESS PLATE, PLAS SPOILER 8.75" ARW (OPT. RADAR RL70CRC W/ RAYCHART & GPS-CLOSED DOME) 1227412 5 LIGHT, NAV STERN FLUSH MT RND CHR/BRS N/STUDS 901199 BULB, STERN NAV LIGHT REPL #137406-1227412 1478957 6 GPS, RAYNAV 300 GPS W/WAAS SENSOR 881383 GASKET, GLOMAX TV GPS MOUNT BLK 291179 7 LIGHT, NAV MASTHEAD COMBO VAR MT 2"X 1.5"BASE 646356 BULB, DBL END 12V FOR #0256313/794826 751339 LIGHT, NAV MASTHEAD COMBO 20" FOLD-DOWN (OPT. RADAR RL70CRC W/ RAYCHART & GPS-CLOSED DOME) 659466 BULB, DBL END CLEAR 12V 1476159 8 RADAR, RAYTHEON 2KW 18" RADAR DOME W/O CABLE (OPT. RADAR RL70CRC W/ RAYCHART & GPS-CLOSED DOME) 792325 9 ANTENNA, TV GLOMAX ASSY W/CONN 881383 GASKET, GLOMAX TV GPS MOUNT BLK 145011 CONN, COAX TV CABLE MALE 1274570 10 ANTENNA, 8' SHAKESPEARE 5225 GLXY W/CP CONN 1481258 11 MOUNT, RATCHET VHF SS W/GROMET & GASKET 122853 FITTING, WATER TIGHT OUTLET FOR 5/16" CABLE 1189554 12 RAIL, GRAB 24" STREAM 3/4"TUBE W/1/4"STUD/FLG 1443225 13 EMBLEM, S/R WAVE 8" OVAL CHR TRNSM 728014 14 TRACK, VINYL AWNING WHITE "FLEX-A-RAIL" 7.5' 1625078 15 PLATE, SS SPOILER MNT W/2STUD 1/2"X3.5" 1686698 PLATE, ALUM 3"X 10"X 3/8" MNT 1718782 16 PANEL, 340DA-03 PRT SIDE SPOILER 1718783 PANEL, 340DA-03 STB SIDE SPOILER NOT SHOWN 1581560 ANTENNA, AMPLIFIED 13398 NOT SHOWN ELECTRICAL 1581172 HARNESS, 300/320DA-02/340DA-03 SPOILER 2/23/2004 4

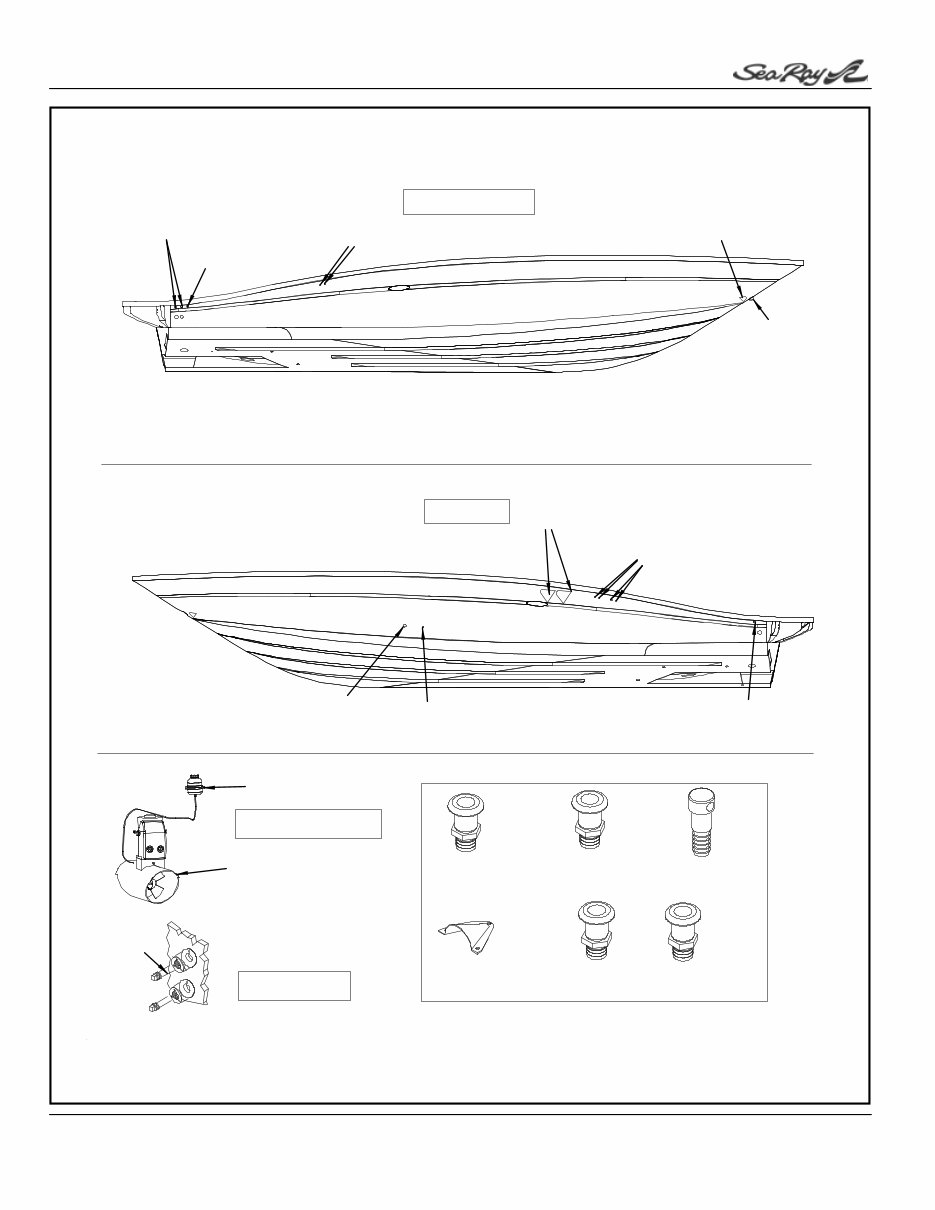

340 SUNDANCER 2003 COMMON DRAIN EMERGENCY BILGE PUMP A/C DRAIN POWER VENT FUEL VENT BILGE VENT BOX/ COOLER DRAIN BILGE VENT BOX/WETBAR DRAIN #7 (1.5") #5 #4 (5/8"X4") #8 (5/8") #2 (1 1/8") DRAIN PLUG 1 2 11 9 10 BOW THRUSTER PORT VIEW STARBOARD VIEW #3 (3/4") WASTE VENT WATER VENT FUEL VENTS ROPE LOCKER DRAIN 2 3 4 5 4 8 7 6 BILGE PUMP 2/23/2004 5 EXTERIOR (HULL)

340 SUNDANCER 2003 EXTERIOR (HULL) 697508 1 EYE, BOW 3/8"X 2.75" 126599 EYE, STERN 1/2"X 3 7/16" W/BACKING PLATE 1473040 PLATE, BACKING UNIVERSAL 3/16" 124578 2 THRU-HULL, PLAS 1 1/8" WHT 1687508 THRU-HULL, SS 1 1/8"X 1 1/8"BARB (HULL GEL-COATED BLUE W/ WHITE BOOT STRIPES OPTION) 182964 3 THRU-HULL, PLAS 3/4" WHT 1521434 THRU-HULL, SS 1 1/8"X 3/4"BARB (HULL GEL-COATED BLUE W/ WHITE BOOT STRIPES OPTION) 584763 4 VENT, FUEL/WATER TANK 5/8"X 4" 126870 5 VENT, CLAMSHELL ROPE LCKR 1 5/8"X 1.5" 688721 6 COVER, CUSTOM CLAMSHELL (ABS/DR) 1691298 COVER, HDPE 340DA-03 SCPR DRAIN 124537 7 THRU-HULL, PLAS 1.5" WHT 124487 8 THRU-HULL, PLAS 5/8" WHT 1688448 THRU-HULL, SS 1 1/8"X 5/8"BARB (HULL GEL-COATED BLUE W/ WHITE BOOT STRIPES OPTION) 1627330 9 BOW THRUSTER, SIDE PWR 121LB THRST W/4HP MTR (OPTIONAL BOW THRUSTER) 1627322 10 BOW THRUSTER, TUNNEL 185X1000X4MM W/S55S ONLY (OPTIONAL BOW THRUSTER) 325191 11 PLUG, RED BRASS DRAIN PLUG 1/2"MPT NOT SHOWN 144329 ZINC, TRANSOM ZINC 144360 BOLT, ZINC #3/8-16 X 4.5" SIL/BRZ 144378 NUT, ZINC 3/8-16 SIL/BRZ 1587237 BOW THRUSTER, JOYSTICK (IMTRA)12/24V W/ON/OFF (OPTIONAL BOW THRUSTER) 1727462 BOW THRUSTER, CABLE SIDE PWR CNTRL 15M (OPTIONAL BOW THRUSTER) 2/23/2004 6

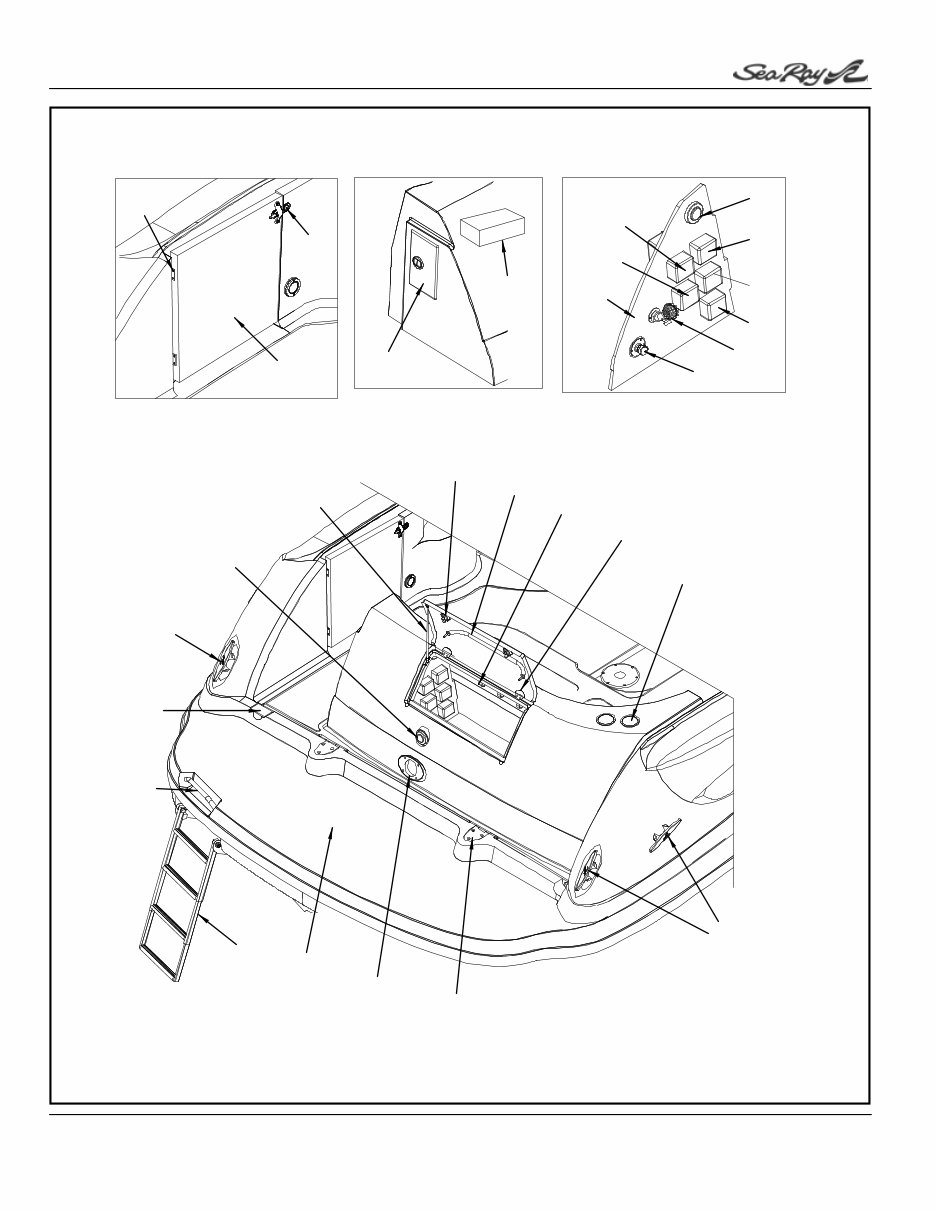

340 SUNDANCER 2003 4 5 6 7 8 9 10 11 12 12 15 17 13 14 21 23 24 19 22 18 20 4 1 2 3 13 16 25 26 2/23/2004 7 TRANSOM STORAGE & SWIM PLATFORM

340 SUNDANCER 2003 TRANSOM STORAGE & SWIM PLATFORM 1691259 1 LADDER, SWIM 4-STEP SS UNDRMNT TELSCPNG 30DEG 1691260 2 RAIL, GRAB 13.75" RND 1"TUBE SS 1691298 3 COVER, HDPE 340DA-03 SCPR DRAIN 1463488 4 CLEAT, 10.5" SEA RAY SS 1473057 PLATE, BACKING CLEAT 1/4"X 2.5"X 5" 1227412 5 LIGHT, NAV STERN FLUSH MT RND CHR/BRS N/STUDS 901199 BULB, STERN NAV LIGHT REPL #137406-1227412 1683870 6 DOOR, PLEX 320DA-02 TRNSM W/HDWR 1687583 SWITCH, MAGNETIC TRANS DOOR GRY 159103 7 BOLT, BARREL CHR 4 7/16"BOLT 5.25"LOA 190579 BUSHING, NYLON 0.76"OD X 3/8"SHAFT 156893 WEBBING, POLYPROPYLENE 1" BLACK 1523604 8 HINGE, SS 3"X 2" 736702 9 FAUCET, WASHDOWN BOX W/MIXER (AQUATIK) VERT 1302579 FAUCET, WASHDOWN SHOWER UNIT ONLY (AQUATIK) 1302587 FAUCET, WASHDOWN DOOR ONLY (AQUATIK) 1302595 FAUCET, WASHDOWN HOSE W/FPT ONLY(AQUATIK) 1302603 FAUCET, WASHDOWN SPRAYER HEAD ONLY(AQUATIK) 1302504 FAUCET, CARTRIDGE CERAMIC 90DEG RH 1298710 FAUCET, CARTRIDGE CERAMIC 90DEG LH 802074 10 GALVANIC ISOLATOR, ZINC SAVER II 30AMP 1691126 11 BLKHD, LDPVC 340DA-03 TRNSM WALL SHRPWR 133678 12 INLET, SHORE POWER WHT 125V 30A 206276 INLET, SHORE POWER WHT 220V/50H 16A (OPTIONAL 220V) 829416 13 INLET, "MAIN BRKR" HOUSING WHT 582445 BRKR/TOGGLE, 2-POLE AC MED DELAY 35A 840868 14 LIGHT, COURTESY ROUND W/FROSTED LENS 12V/5W 1192368 BULB, REPL FOR #0840868 12V/5W 133694 15 INLET, PHONE/TV CABLE COMBO WHT 1096262 16 FAUCET, SILLCOCK WASHDOWN (WHITECAP) 141168 17 INLET, WATER W/PRESS REGULATOR WHT 1425362 18 CYLINDER, GAS SS 40PSI 12"EXT X 8"COMP 634550 BRACKET, SS GAS CYL 90DEG L-BRKT W/BALL LONG 1411453 19 LATCH, FLUSH MOUNT PULL SS 1418060 SHIM, RUBBER 6MM SS LATCH 1448422 PLATE, STRIKER ORCAS "S" SHAPED 316 SS 1189554 20 RAIL, GRAB 24" STREAM 3/4"TUBE W/1/4"STUD/FLG 855809 21 ROPE, DOCKLINE STRAP WHT W/HDWR (SHORT STYLE) 1338821 22 HINGE, SS STRAP 2.56" X 2.56" X 1/4" 1266063 23 DRINKHOLDR, PLAS 4"X 3"MUG SZ WHT 1683753 24 HINGE, SS 320DA-02 CKPT HATCH 1717451 PLATE, BACKING CKPT HATCH HINGE 1 3/16"X 8" 1717452 PLATE, BACKING CKPT HATCH HINGE 4"X 4 13/16" 981092 25 INSERT, HDPE OVAL HAWSE HOLE ARW 1771080 26 340SDA 03,SWMPLTFM,FBRGLS NOT SHOWN 136085 CORD SET, TV CABLE 50FT 136093 CORD SET, PHONE 50FT 1244367 CORD SET, 120V/30A 50FT POWERCORD PLUS 133652 ADAPTER, SHORE CORD 125V/30A(F)-125V/15A(M) 206268 CORD SET, 220V/50H 16A 50FT (OPTIONAL 220V) NOT SHOWN COCKPIT 175257 BUMPER, WHT LARGE ROUND 0.88"WD X 0.40"HG NOT SHOWN LABELS 811000 LABEL, DANGER TRNSM DOOR (LEXAN) 2/23/2004 8
