SUN ODYSSEY 30I ANGLAIS CODE: 085663

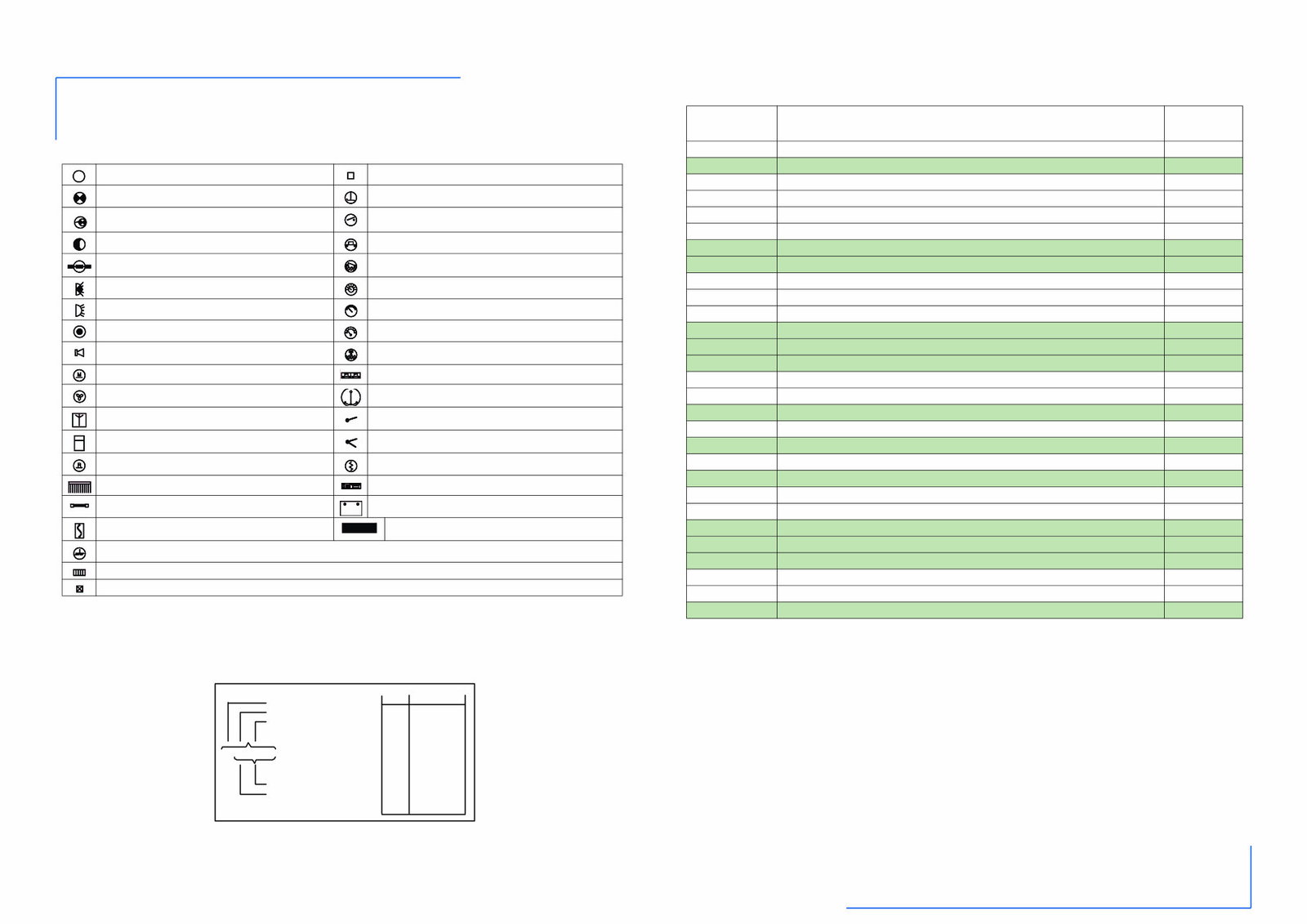

12 V DC CAPTION
INDEX OF THE WIRING DIAGRAMS
Miscellaneous items Fast connection
Overhead light Battery switch
Overhead light with switch Wattage circuit breaker
Spot light Deck switch
Fluorescent lamp and neon light Ball release mechanism of the pump
Red and green fore lights Thermostat
Stern light Dial (various items)
12 V DC socket gauge (receiver)
Loudspeaker Transmitter
Electric engine Remote control
Ventilator Windlass
FM Electronic antenna Switch
Flowmeter transmitter two-way switch or push button
Relay box overheat contactor
Power distributor Radio cassette player and/or CD player
Shunt Battery
Fuse Electrical panel
Earth connector
Connecting strip
Branch
A m 2,5²
Mark of the wire
Colour of the wire
Section of the wire in mm²
OR
Codes Colors
blue
dark blue
ivory
grey
yellow/green
brown
black
orange
red
violet
b
bf
iv
gr
j/v
m
n
or
r
vi
References of the wires
Section of the wire in mm²
Colour of the wire
PAGE
NUMBER
INDEX SIZE
F01 Index of the wiring diagrams
F02
F03 Electrical panel
F04 Electrical panel wiring
F05 Electrical panel wiring
F06 Panel circuit-breakers
F07
F08
F09 Electric junction panel
F10 12V DC electrical passage (Power, Engine, Windlass))
F11 12V DC electrical schematic (power, engine, windlass)
F12
F13
F14
F15 12V DC electrical diagram and passage (Forward cabin)
F16 12V DC electrical diagram and passage (saloon, galley) A3
F17
F18 12V DC electrical diagram and passage (Aft cabin) A3
F19
F20 Optional Wire run
F29
F30 230V AC electrical schematic diagram
F31 230V AC electrical passage Version 3 Cabins
F32
F33
F34
F35 115V AC electrical schematic diagram
F36 115V AC electrical passage
F37
BL/05/15/2008
SO30i-F-01-
Fichier : F01-SO30i_Index plans elec.dft F01
ELECTRICITY
SUN ODYSSEY 30I ANGLAIS CODE: 085663

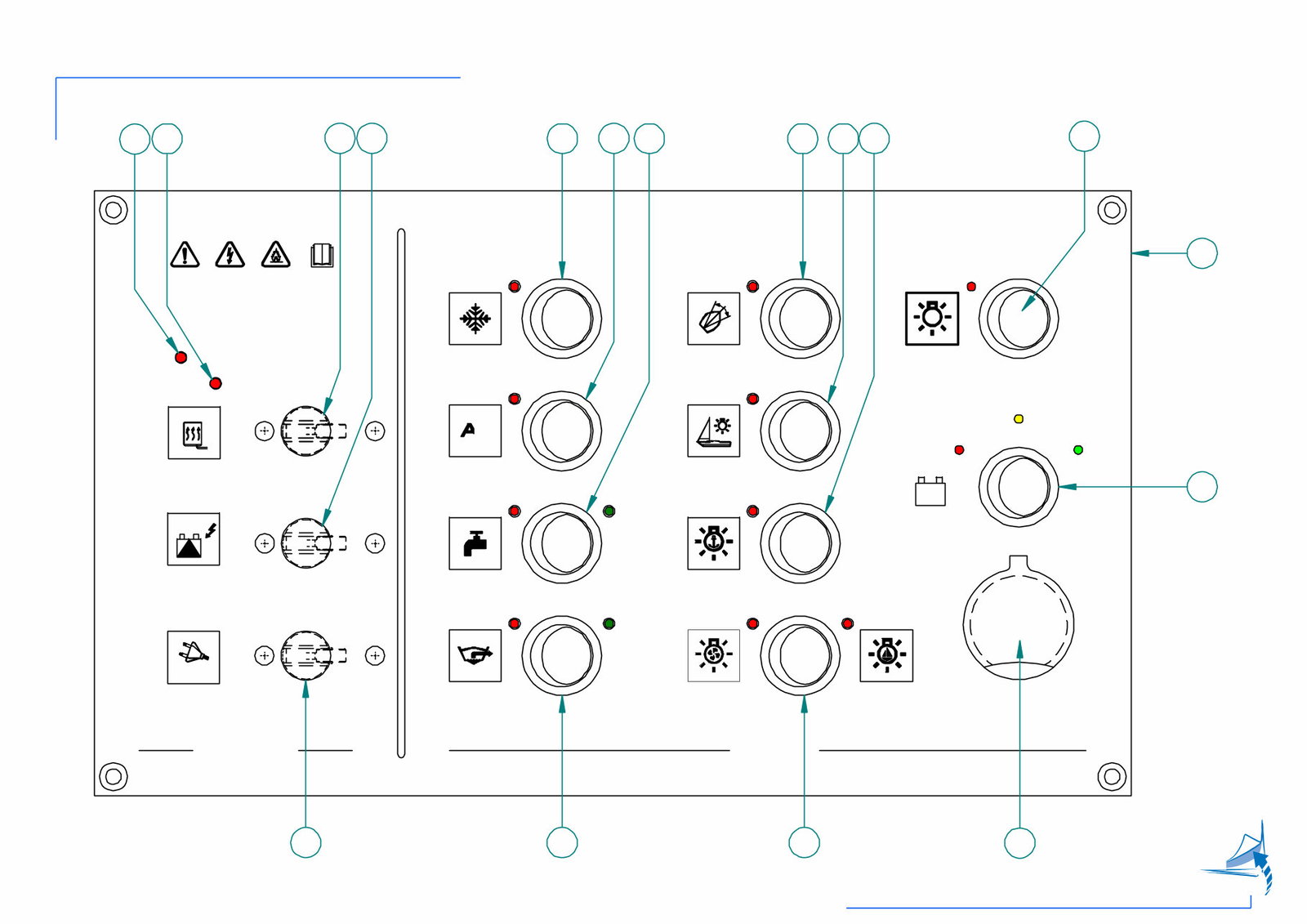

ELECTRICAL PANEL
230 V AC
CHARGEUR BATTERIE
BATTERY CHARGER
12V DC
10A MAX
12 V DC
ECLAIRAGE INT.
CABIN LIGHTS
PRISES AC
AC PLUGS
FEU DE MOUILLAGE
ANCHOR LIGHT
ECLAIRAGE PONT
DECK FLOODLIGHT
GROUPE FROID
FRIDGE UNIT
ELECT. NAVIGATION
NAV. INSTRUMENTS
POMPE DE CALE
BILGE PUMP
GROUPE D'EAU
WATER PUMP
AUXILIAIRE
AUXILARY
FEUX MOTEUR
STEAMING LIGHTS
FEUX DE NAV.
NAV. LIGHTS
AUTO ON
ON
1
O
O
Scheiber
11V
12V
13V
MOTEUR
ENGINE
BORD
DOMESTIC
CHAUFFE-EAU
WATER HEATER
O
UX.
A
C
ON OFF
ON OFF
ON OFF
Shore power
Reverse polarity
BL/05/15/2008
SO30i-F-03-
Fichier : F03-SO30i_Tableau électrique.dft F03-1/
ELECTRICITY
SUN ODYSSEY 30I ANGLAIS CODE: 085663
ELECTRICAL PANEL
REFERENCE ON
DIAGRAM
WIRE
REFERENCES
AMPERAGE
OR WATTAGE
FUNCTIONS
1 "DC AMPS / 12V DC electrical panel"
3 Change over switch - voltmeter inlet
8 12V DC socket electrical panel
19 Switch - navigation lights / Engine navigation light
20 Switch Interior lighting
21 Switch Mooring light
22 Switch Deck light
23 Switch Auxiliary (optional)
24 Switch Navigation electronics
25 Switch Bilge pump
26 Switch Water unit
27 Switch Refrigeration unit
REFERENCE ON
DIAGRAM
WIRE
REFERENCES
AMPERAGE
OR WATTAGE
FUNCTIONS
A6 A6 15A Bipolar circuit breaker Water heater
A7 A7 15A Bipolar circuit breaker Battery charger
A8 A8 15A Bipolar circuit breaker AC sockets
A10 A10 Live shore power line warning light - "Shore Power"
A11 A11 115V AC Warning light - reversal of polarity
F03-2/
BL/05/15/2008
SO30i-F-03-
Fichier : F03-SO30i_Tableau électrique.dft
SUN ODYSSEY 30I ANGLAIS CODE: 085663

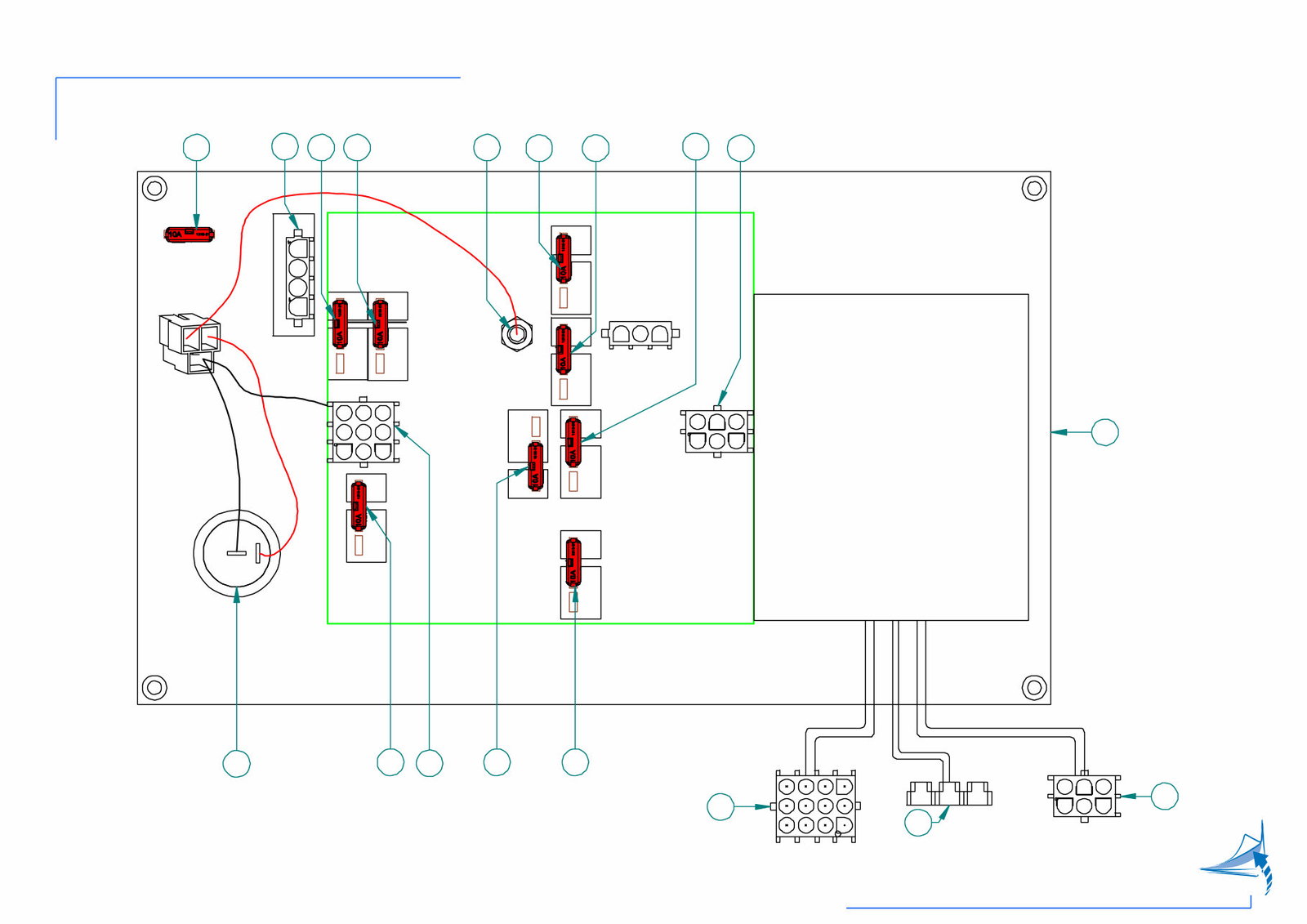

ELECTRICAL PANEL WIRING
BL/05/15/2008
SO30i-F-04-
Fichier : F04-SO30i_Cablage tableau électrique.dft F04-1/
ELECTRICITY
SUN ODYSSEY 30I ANGLAIS CODE: 085663
ELECTRICAL PANEL WIRING
REFERENCE ON
DIAGRAM
WIRE
REFERENCES
AMPERAGE OR
WATTAGE
FUNCTIONS
1 DC AMPS / 12V DC electrical panel
8 12 DC socket electrical panel
9 1S1A 10A Breaker of navigation lights / Engine navigation light
11 3S1A 10A Breaker Mooring light
12 4S1A 10A Breaker Deck light
13 AUX 10A Breaker aux. (Optional equipment)
14 1E1A-1E2A 10A Breaker of navigation electronics
15 1P1A-1P2A 10A Breaker of bilge pump
16 2P1A 10A Breaker of water unit
17 1C1A 10A Breaker of refrigeration unit
28 A2 Power supply - electrical panel
29 1L1A-2L1A-3L1A 10A Breaker Interior lighting
49 4 way connector: Electrical panel - Hull system
50 09 way connector: Electrical panel - Hull system
51 06 way connector: Electrical panel - Hull system
REFERENCE ON
DIAGRAM
WIRE
REFERENCES
AMPERAGE OR
WATTAGE
FUNCTIONS
A31 Connector panel supply
A32 Connector Water heater Charger
A33 Connector Sockets
F04-2/
BL/05/15/2008
SO30i-F-04-
Fichier : F04-SO30i_Cablage tableau électrique.dft
SUN ODYSSEY 30I ANGLAIS CODE: 085663

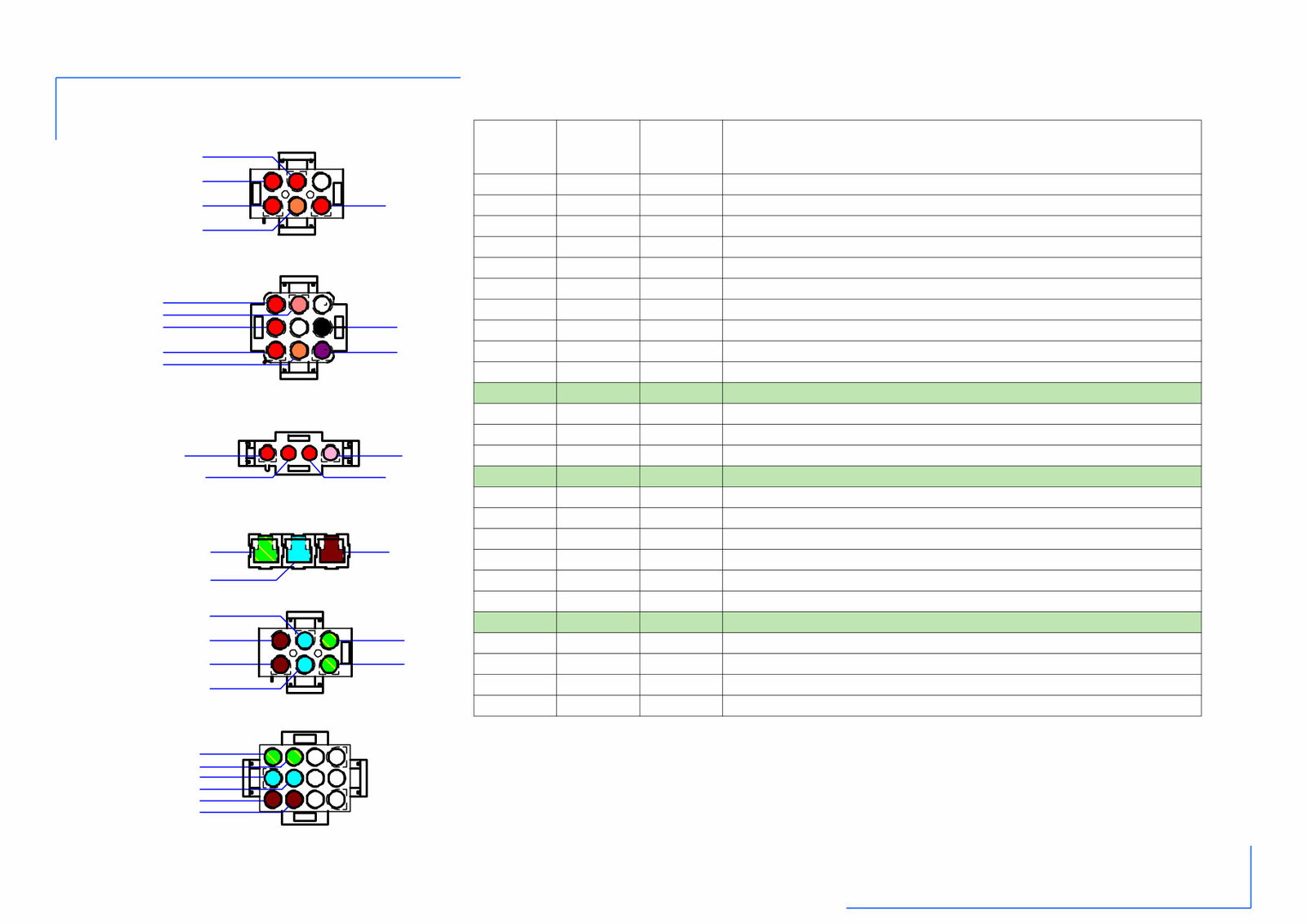

ELECTRICAL PANEL WIRING CONNECTORS
REFERENC
E ON
DIAGRAM
WIRE
REFERENC
ES
AMPERAGE
OR
WATTAGE
FUNCTIONS
49 04 way connector: Electrical panel - Hull system
49-1 VM1A Engine battery
49-2 1L1A Lighting 1
49-3 2L1A Lighting 2
49-4 3L1A Lighting 3
50 09 way connector: Electrical panel - Hull system
50-1 1S1A Navigation lights
50-2 2S1A Engine navigation light
50-3 3S1A Mooring light
50-4 1E1A Navigation electronics
50-5
50-6 A2 Earth
50-7 1E2A Navigation electronics
50-8 4S1A Deck light
50-9
51 06 way connector: Electrical panel - Hull system
51-1 2P1A Fresh water unit
51-2 1P2A Automatic bilge pump
51-3 1P1A Bilge pump Strength
51-4 AUX Auxiliary
51-5 1C1A Refrigeration unit
51-6
A31 Connector Supply Panel
A32 Connector Water heater Charger
A33 Connector Sockets
A2 j/v 6²
A2 b 6²
A2 m 6²
A16 j/v 2.5²
A15 j/v 2.5²
A16 b 2.5²
A15 b 2.5²
A16 m 2.5²
A15 m 2.5²
A21 m 2.5²
A28 m 2.5²
A28 b 2.5²
A21 b 2.5²
A21 j/v 2.5²
A28 j/v 2.5²
1C1A r 4²
AUX r 2.5²
2P1A r 2.5²
1P2A or 4²
1P1A r 4²
3S1A vi 2.5²
A2 n 6²
1E2A r 2.5²
4S1A iv 2.5²
1E1A r 1.5²
1S1A r 4²
2S1A or 2.5²
2 1
4
3
6 5
1
4
7
2 3
5
8
6
9
2 1
4
3
6 5
1 4 7 10
2
3
5
6
8
9
11
12
1 2 3 4
VM1A r 1.5²
1L1A r 4² 2L1A r 4²
3L1A iv 1.5²
BL/05/15/2008
SO30i-F-05-
Fichier : F05-SO30i_Cablage tableau électrique connecterus.dft F05
ELECTRICITY
SUN ODYSSEY 30I ANGLAIS CODE: 085663

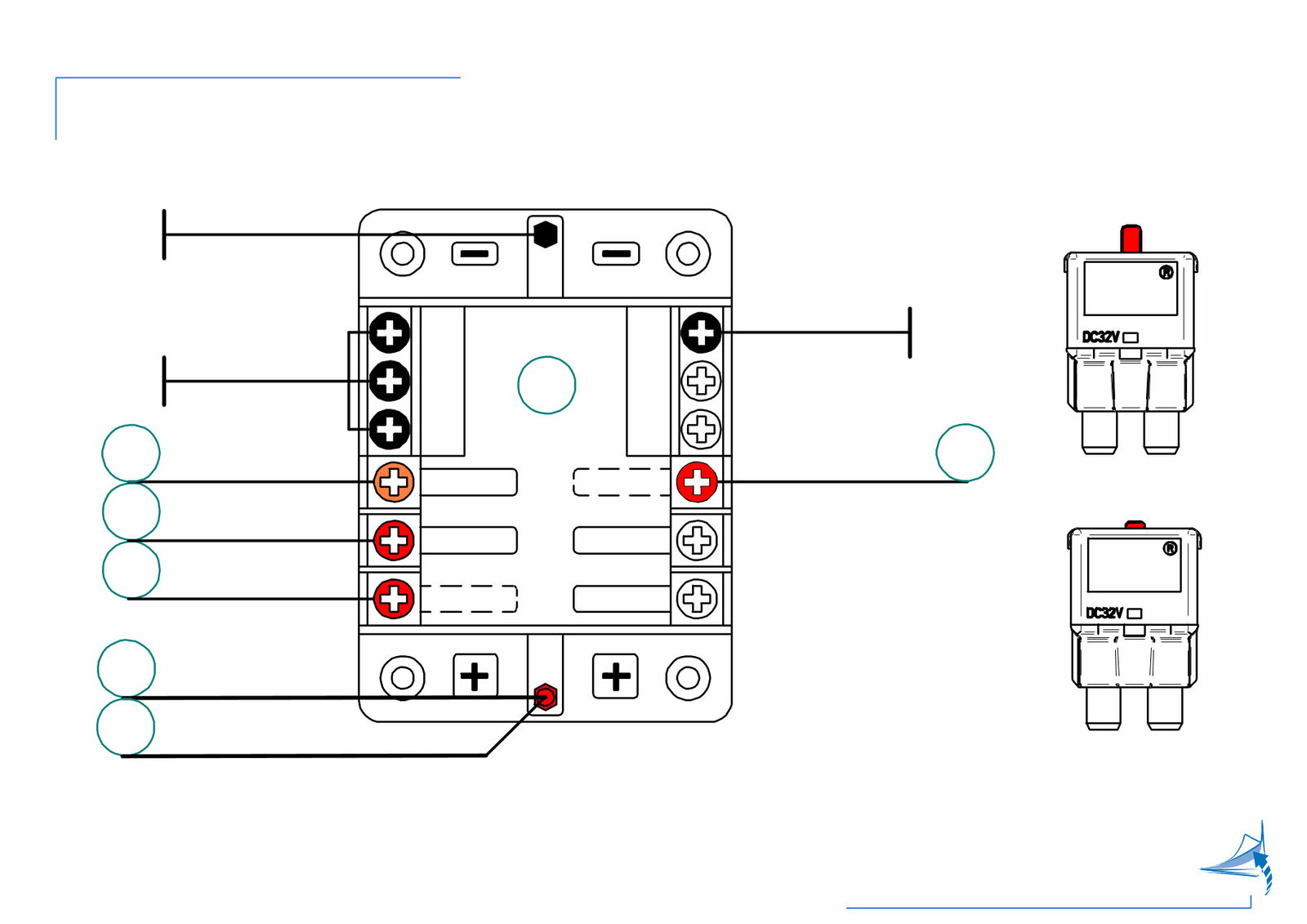

PANEL CIRCUIT-BREAKERS ELECTRIC
Terminal
Ground
Breaker Shower
pump
Breaker Hifi
Negative terminal
10 A
06 A
10 A
1
3
5
2
4
6
Breaker 12v plugs
Positive terminal
Positive terminal
10 A
Breaker Electronics
(optional)
Terminal
Ground
BL/05/15/2008
SO30i-F-06-
Fichier : F06-SO30i_Tableau disjoncteur électriques.dft F06-1/
ELECTRICITY
SUN ODYSSEY 30I ANGLAIS CODE: 085663
PANEL CIRCUIT-BREAKERS ELECTRIC
REFERENCE ON
DIAGRAM
WIRE
REFERENCES
AMPERAGE OR
WATTAGE
FUNCTIONS
28 A2 Power supply - electrical panel
39 1F(1,2,3,4,)A 10A Breaker of 12V DC sockets
40 HF1A 10A Breaker of 12V DC sockets
41 3P1A 10A Breaker for shower pump
44 2E1A 10A Breaker Navigation electronics (optional)
78 100A General house fuse
F06-2/
BL/05/15/2008
SO30i-F-06-
Fichier : F06-SO30i_Tableau disjoncteur électriques.dft
