SCHEMATICS
2/29/2008
INDEX
PAGE
3. DC Panel

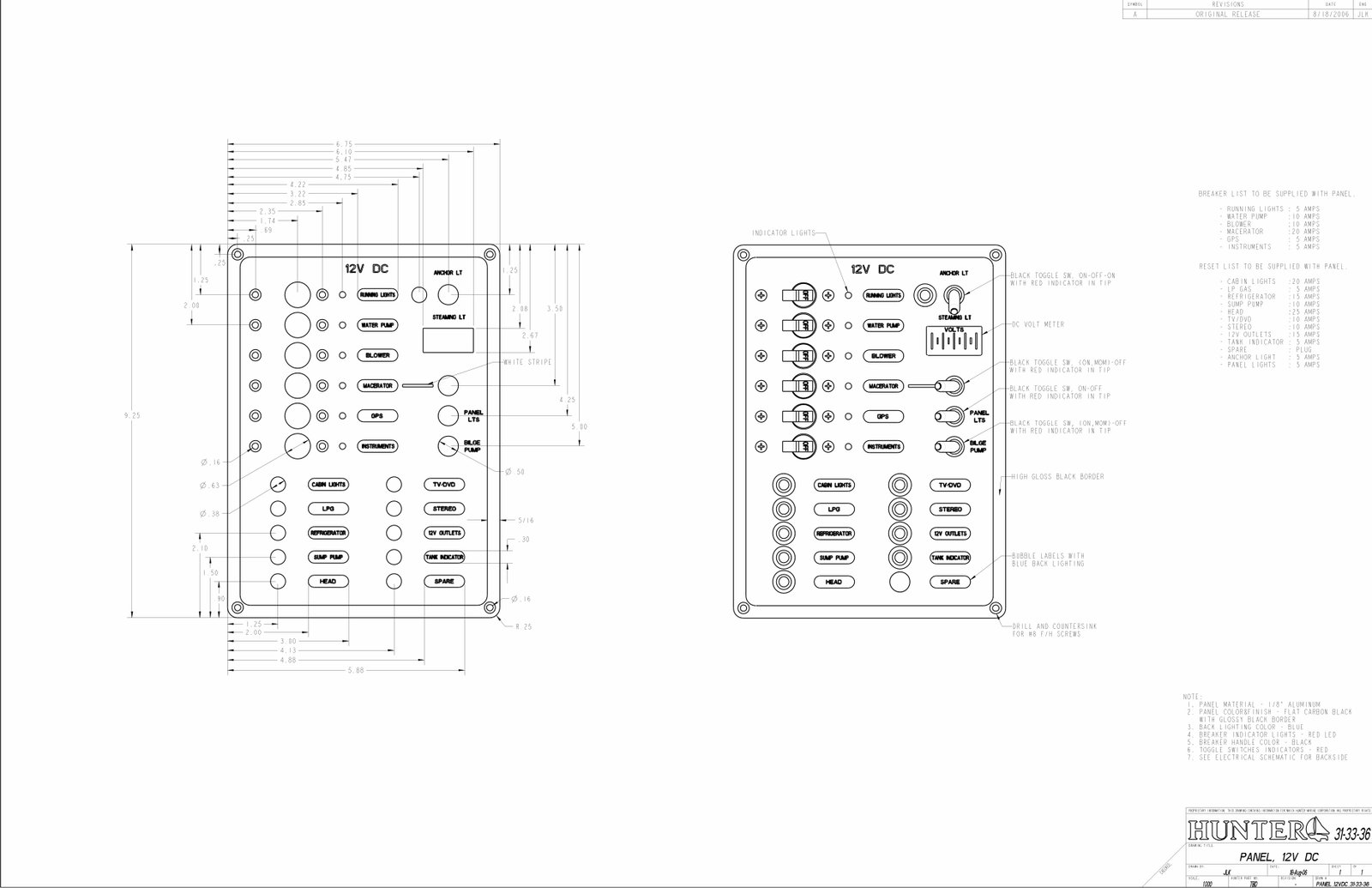

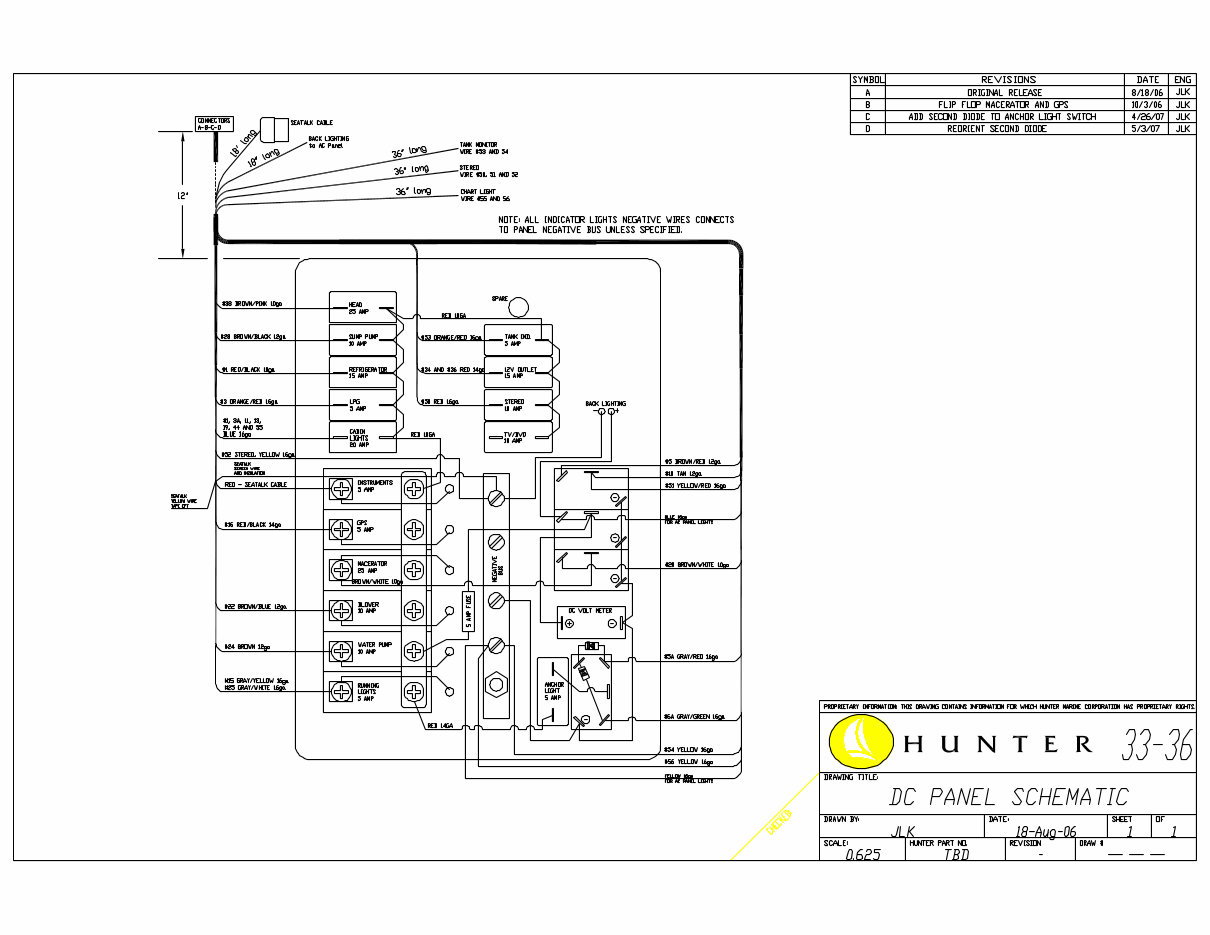

4. DC Panel Schematic
5. DC Panel Connectors

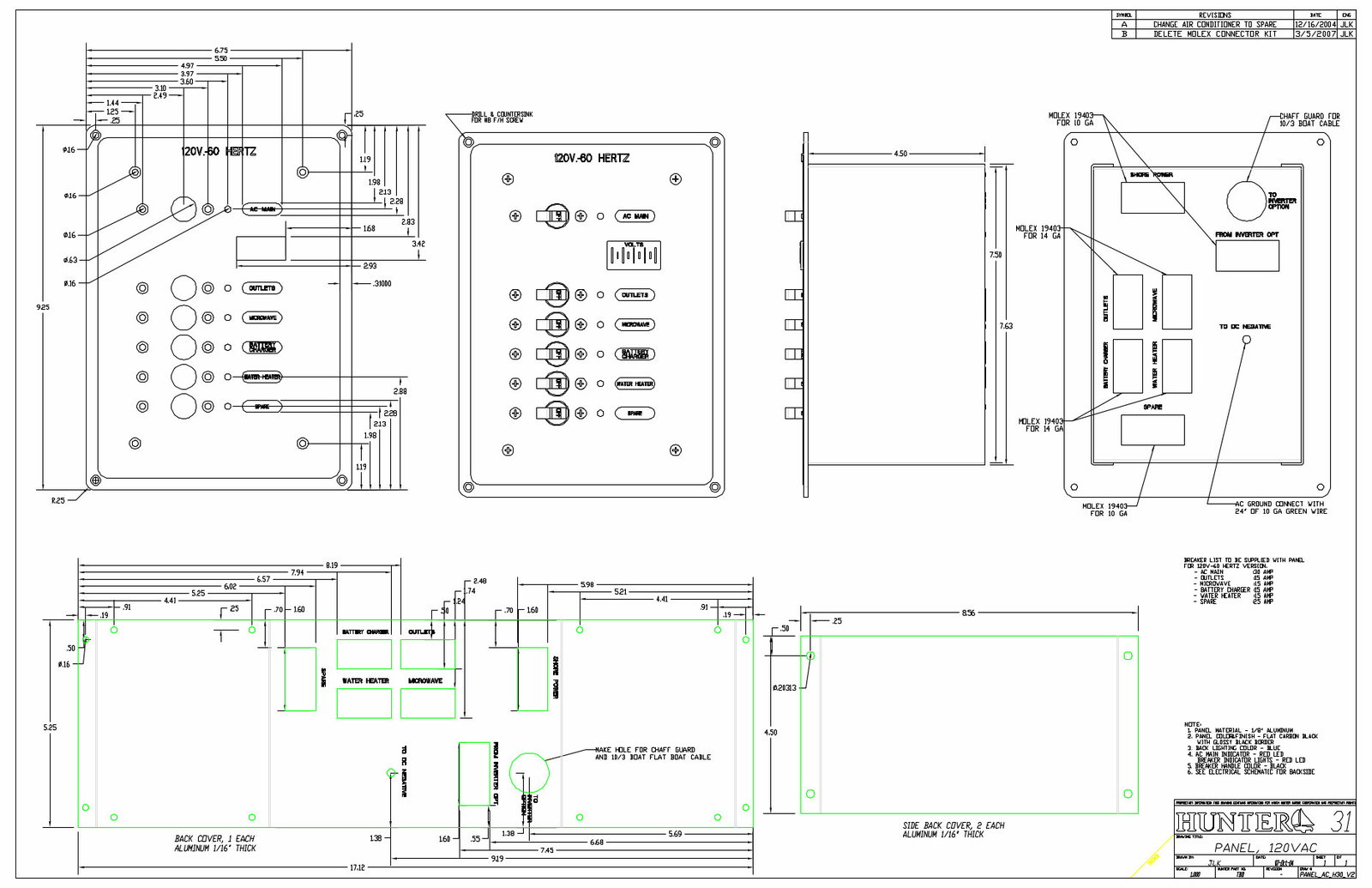

7. AC Panel

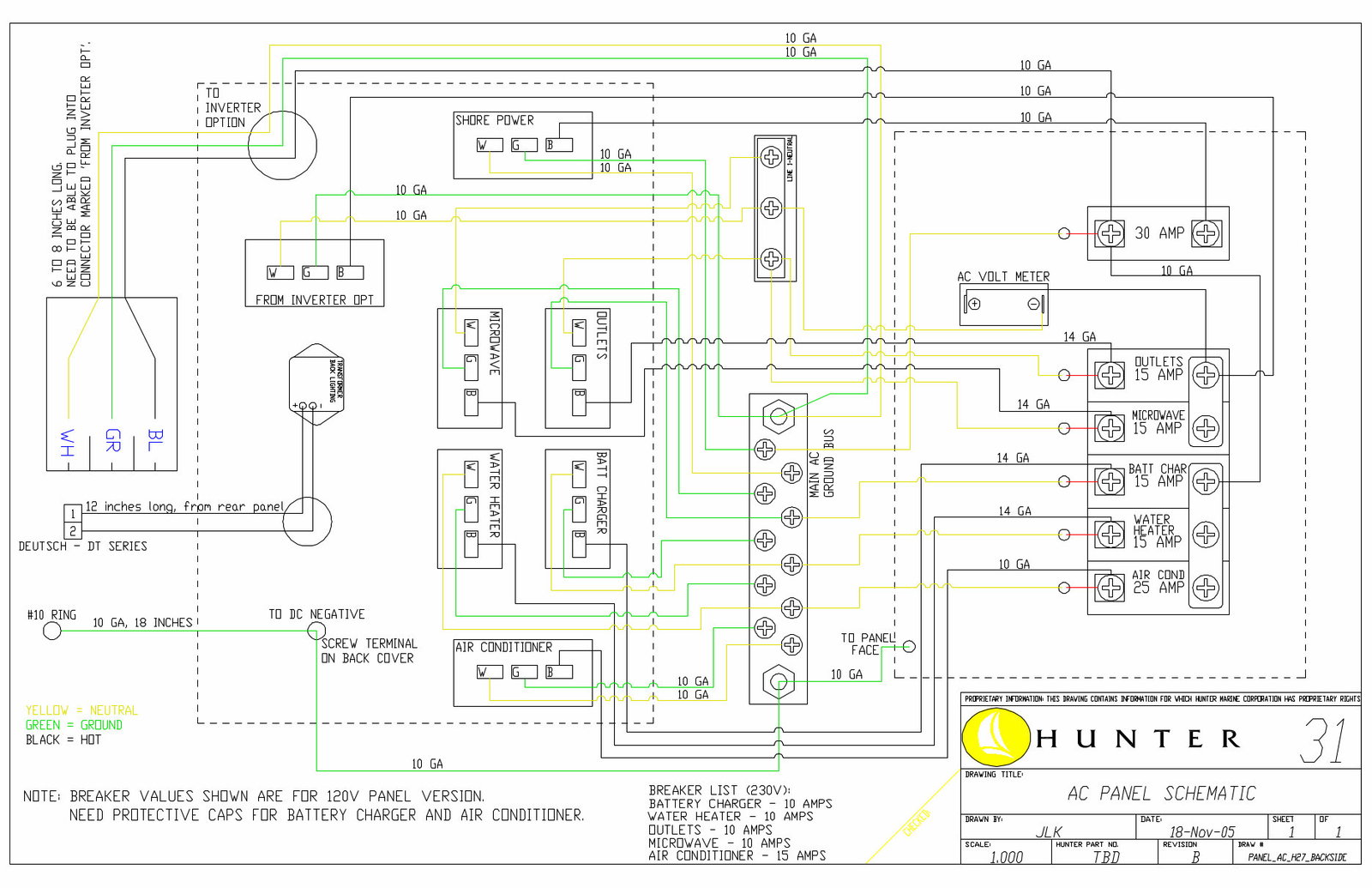

8. AC Panel Schematic

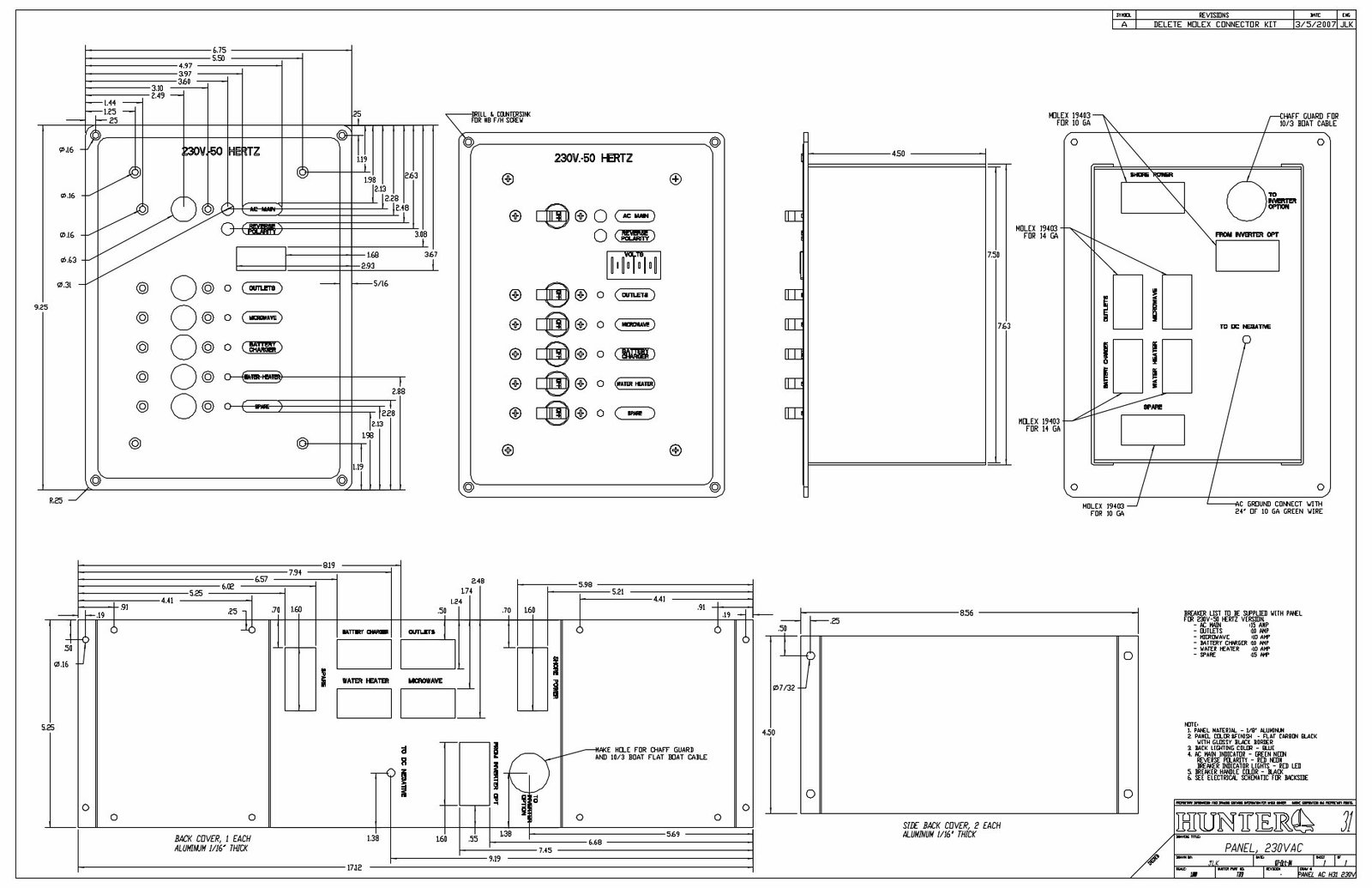

9. AC Panel – 230v

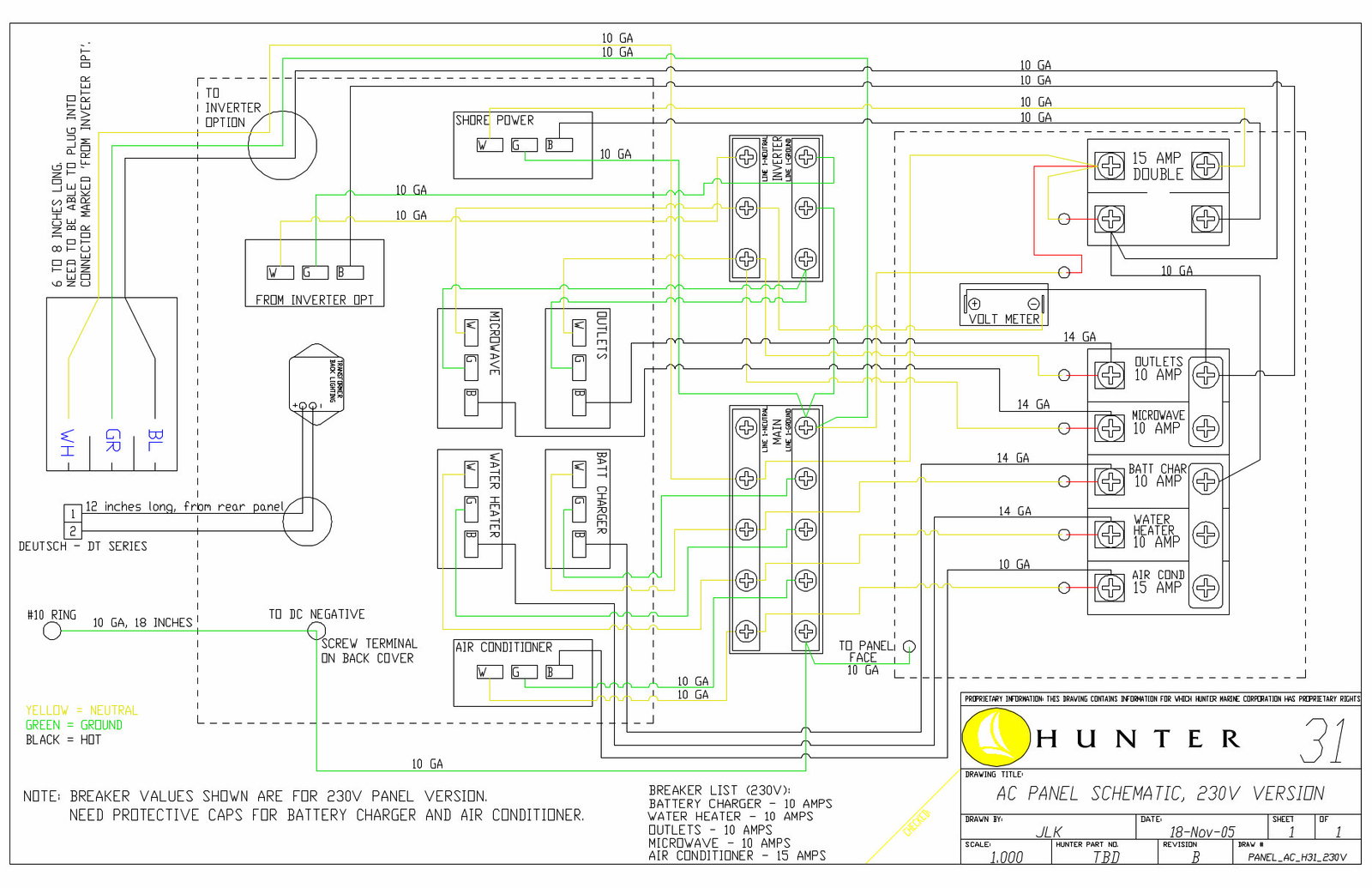

10. AC Panel Schematic – 230V
11. AC Panel W/Air&Gen
12. AC Panel Schematic W/Air&Gen
13. AC Panel W/Air&Gen – 230V
14. AC Panel Schematic W/Air&Gen – 230V
15. Misc. Harness Adapters
16. Hull Harness
17. Hull Harness List
18. Hull Harness Connectors
19. Deck Harness
20. Deck Harness List
21. Deck Harness Connectors
22. Misc. Wire Kits
24. Auto Fire System Schematic
25. High Water Pump System Schematic
DC PANEL CONNECTORS for 31-33-36 All connectors to be female pins with male connectors. REV. A
8/18/2006
CONN. A WIRE# (HULL) WIRED TO ON PANEL CONN. TYPE
1 #1, 10ga Red/Black, REFRIGERATOR REFRIGERATOR RESET Deutsch -
2 #38, 10ga Brown/Pink, HEAD HEAD RESET DTP Series - 4pin
3 #5, 12ga Brown/Red, BILGE MANUAL BILGE TOGGLE SWITCH
4 #10, 12ga Tan, BILGE POWER BILGE TOGGLE SWITCH
CONN. B WIRE# (HULL) WIRED TO ON PANEL CONN. TYPE
1 #46, 14ga Blue, CABIN LIGHTS CABIN LIGHT RESET Deutsch -
2 #3, 16ga Orange/Red, LPG LP GAS RESET DT Series - 4 pin
3 #34, 14ga Red, 12V OUTLET 12VDC OUTLET RESET
4 #36, 14ga Red, 12V OUTLET 12VDC OUTLET RESET
CONN. C WIRE# (HULL) WIRED TO ON PANEL CONN. TYPE
1 #20, 10ga Brown/White, MACERATOR MACERATOR TOGGLE SWITCH Deutsch -
2 #24, 12ga Brown, WATER PUMP WATER PUMP BREAKER DTP Series - 4pin
3 #28, 12ga Brown/Black, SUMP PUMP SUMP PUMP BREAKER
4 #22, 12ga Brown/Blue, BLOWER BLOWER BREAKER
CONN. D WIRE# (DECK) WIRED TO ON PANEL CONN. TYPE
1 #1, 16ga Blue, MAIN LIGHTS CABIN LIGHT RESET Deutsch -
2 #3A, 16ga Blue, FORWARD LIGHTS CABIN LIGHT RESET DT Series - 12 pin
3 #5A, 14ga Gray/Red, ANCHOR LIGHT ANCHOR LIGHT SWITCH
4 #6A, 14ga Gray/Green, STEAMING LIGHT STEAMING LIGHT SWITCH
5 #13, 16ga Blue, PORT AFT LIGHTS CABIN LIGHT RESET
6
7
8 #11, 16ga Blue, STBD LIGHTS CABIN LIGHT RESET
9 #15, 16ga Gray/Yellow, STERN LIGHT RUNNING LIGHTS BREAKER
10 #19, 16ga Blue/White, ARCH LIGHT CABIN LIGHT RESET
11 #25, 16ga Gray/White, BOW LIGHT RUNNING LIGHTS BREAKER
12 #16, 14ga Red/Black, GPS GPS BREAKER
1
WIRE# (PANEL TO PANEL) WIRED TO ON PANEL
16ga Blue, PANEL LIGHTS PANEL LIGHT BREAKER
16ga Yellow, PANEL LIGHTS (-) DC NEGATIVE BUS
WIRE# (TO TANK MONITOR) WIRED TO ON PANEL OR OTHER
#53, 16ga Red/Orange, TANK MONITOR (+) TANK DISPLAY RESET
#54, 16ga Yellow, TANK MONITOR (-) DC NEGATIVE BUS
WIRE# (STEREO PWR) WIRED TO ON PANEL
#50, 16ga Red, STEREO PWR STEREO RESET
#51, 16ga Yellow/Red, STEREO MEMORY center post bilge toggle switch with #5 brown/red wire
#52, 16ga Yellow, STEREO (-) DC NEGATIVE BUS
WIRE# (CHART LIGHT) WIRED TO ON PANEL
#55, 16ga Blue, CHART LIGHT (+) CABIN LIGHT RESET
#56, 16ga Yellow, CHART LIGHT (-) DC NEGATIVE BUS
