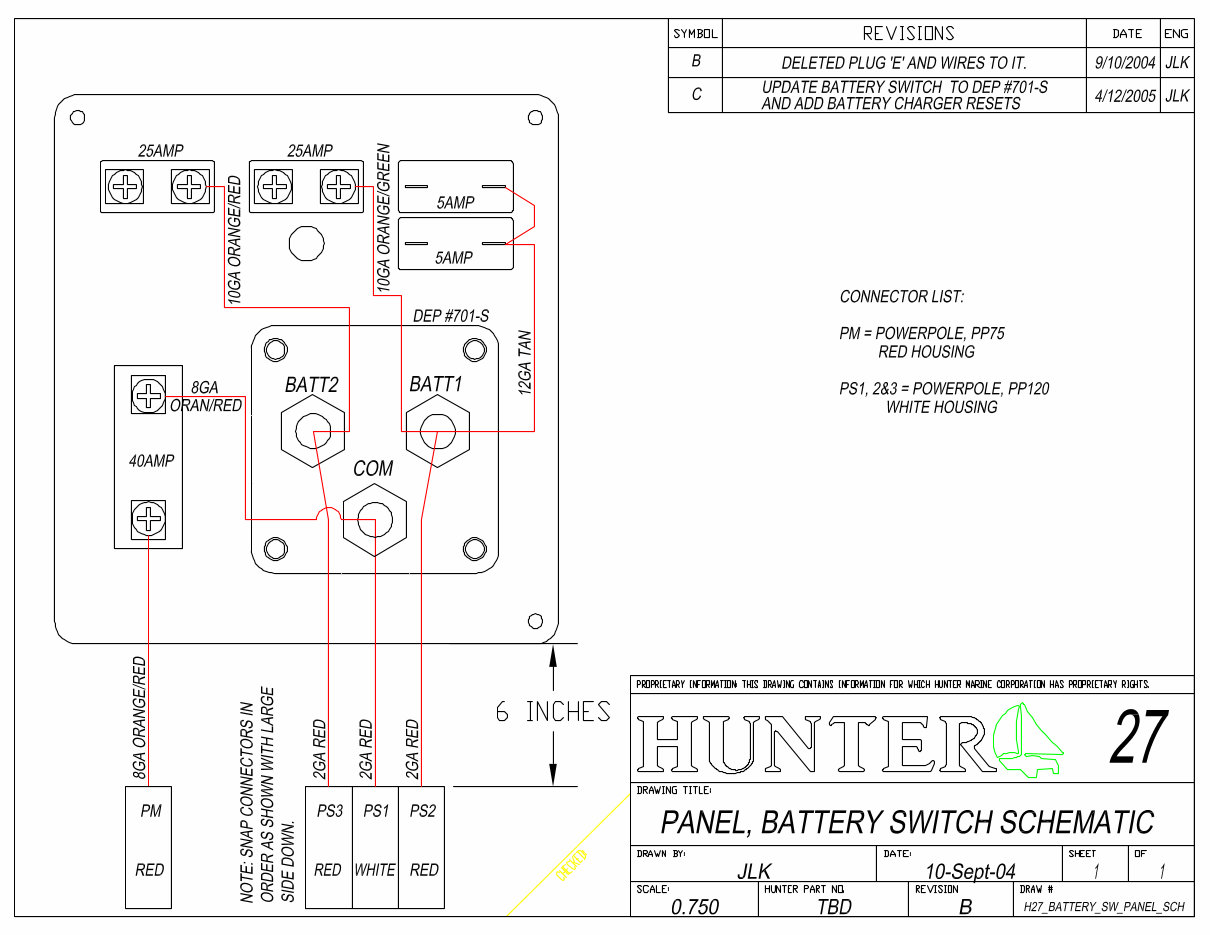

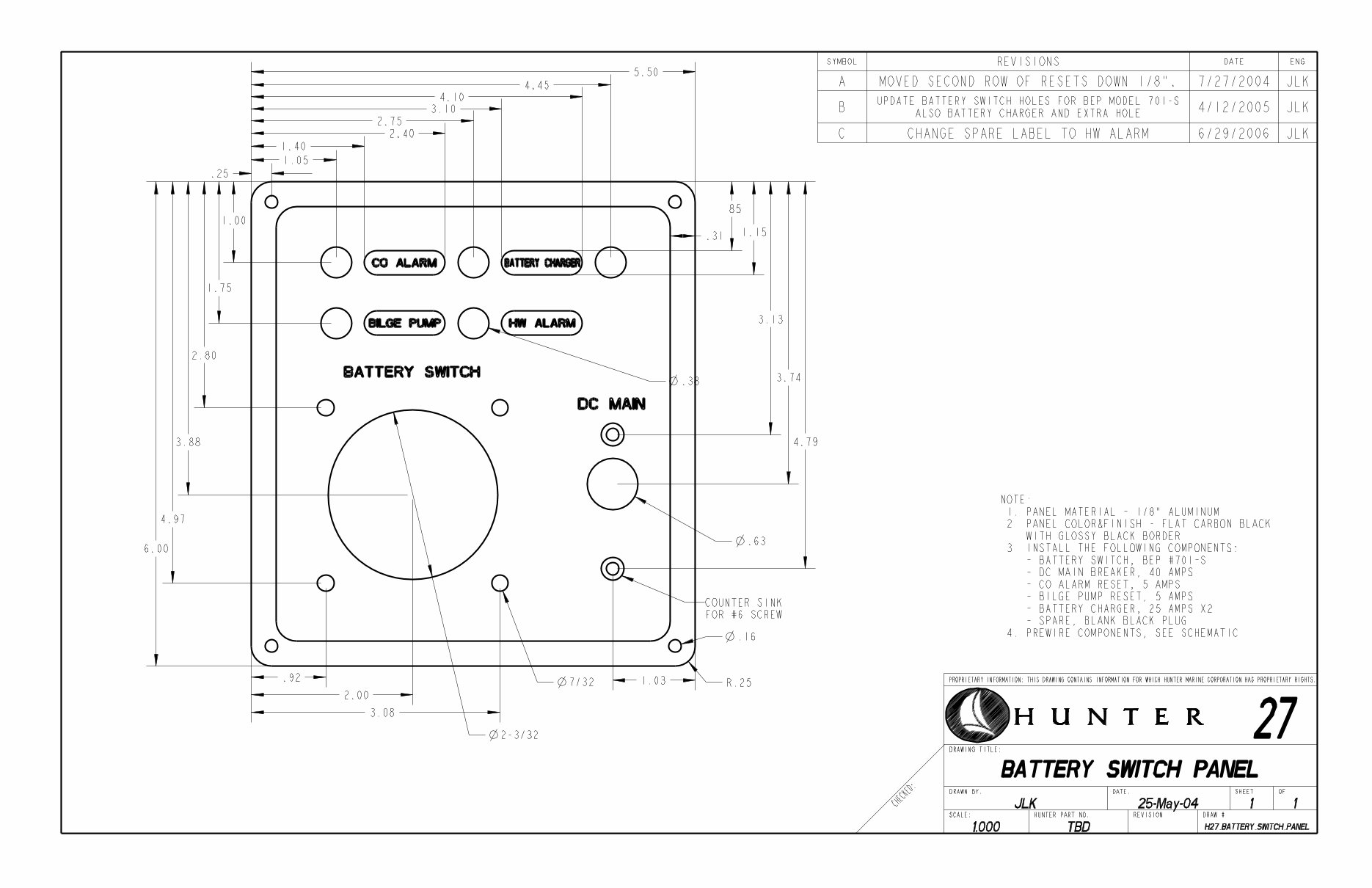

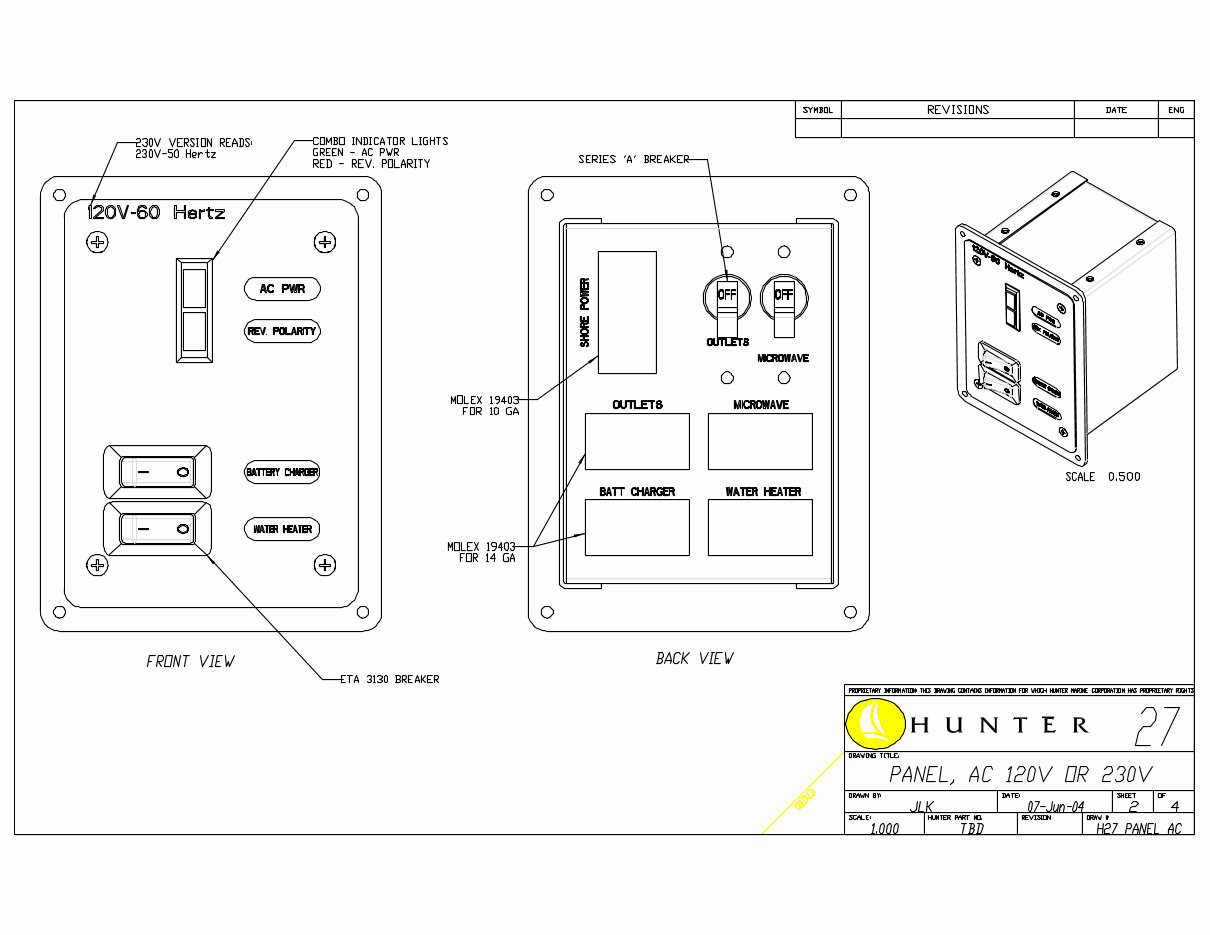

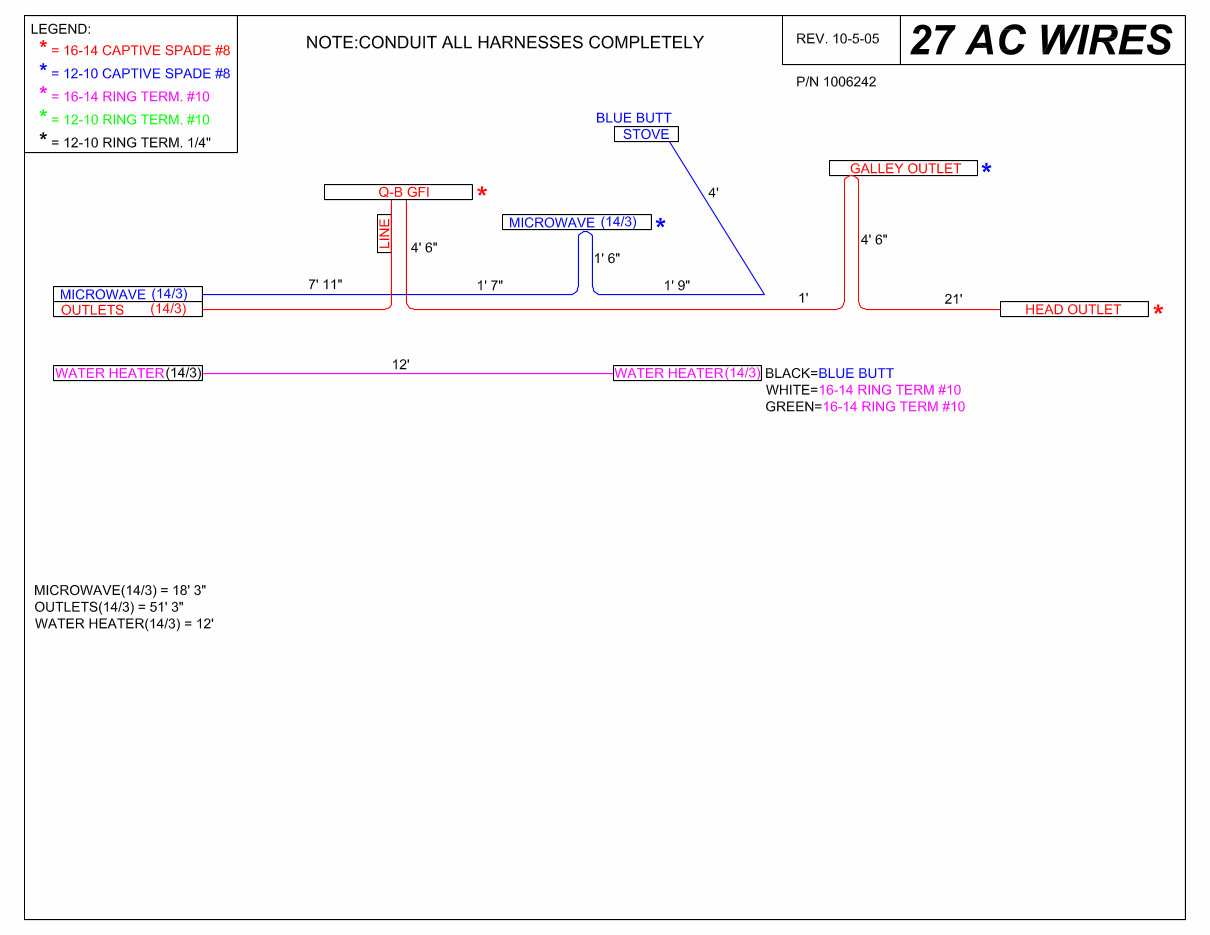

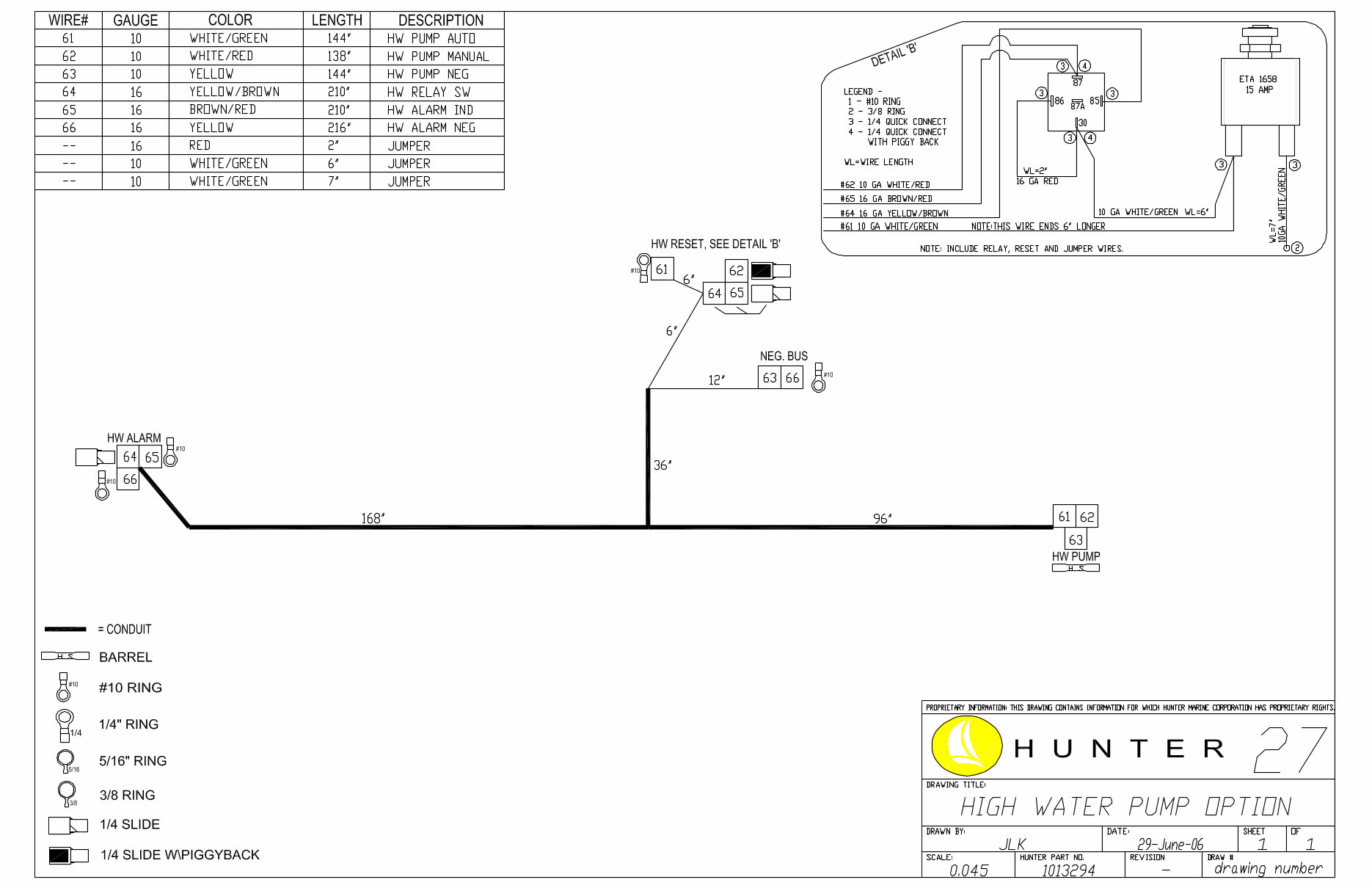

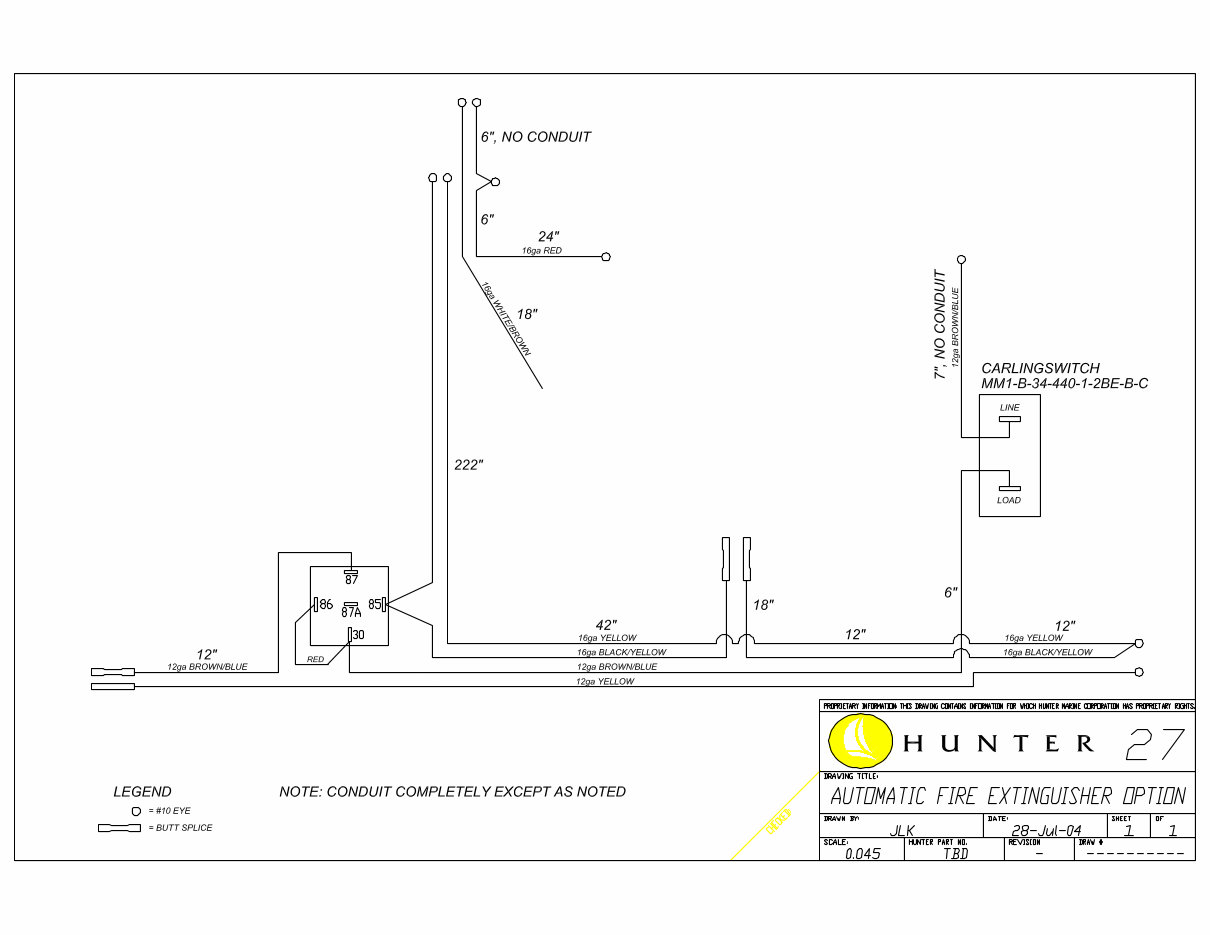

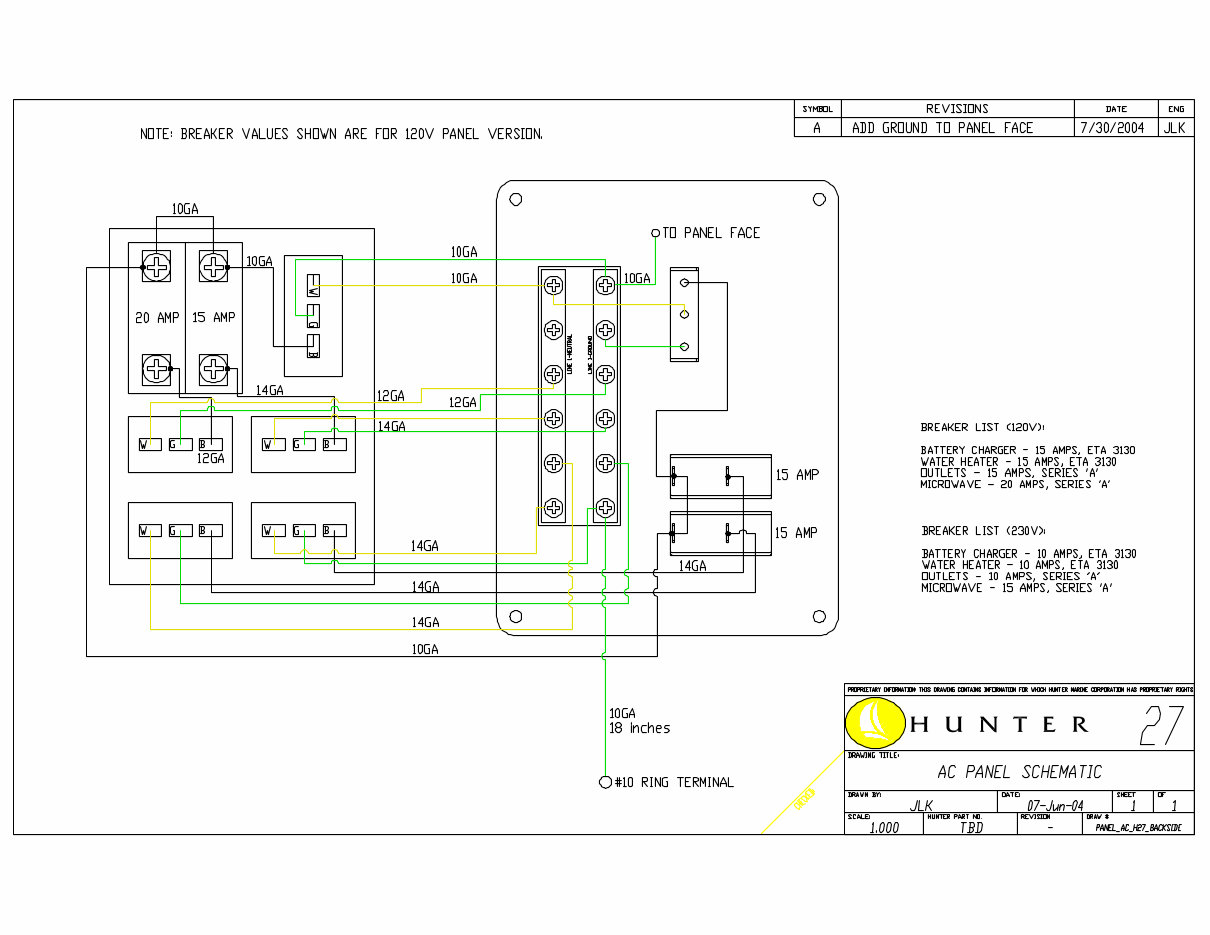

INDEX PAGE 3. AC Panel 4. AC Panel Schematic 5. AC Wire Kit 6. Stage Wire Kits 7. Fire Extinguisher Option Kit 8. High Water Pump Option Kit 9. Battery Switch Panel 10. Battery Switch Panel Schematic 11. Std DC Panel 12. Std DC Panel Schematic 13. Deluxe DC Panel 14. Deluxe DC Panel Schematic 15. DC Panel Connectors 16. Hull Harness 17. Hull Harness Wire List 18. Deck Harness 19. Optional Deluxe Deck Harness 20. Deck Harness Wire List 21. Auto Fire System Schematic 22. High Water Pump System Schematic
Page 1 REVISION DATE: 11/16/05 27 WIRE KITS WIRE SIZE COLOR LENGTH EYE EYE DESCRIPTION GNDS 6 GA GREEN/YELLOW 14' 1/2" 1/4" CHAINPLATE PORT 6 GA GREEN/YELLOW 10' 1/2" 1/4" CHAINPLATE STBD 10 GA GREEN/YELLOW 20' FUEL FILL GRD 4 GA GREEN/YELLOW 1' 8" 1/4" 1/4" MAST POST TO KEEL FUEL GAUGE 16 GA PINK 9' FUEL SENSOR (S) 16 GA YELLOW 9' FUEL SENSOR (-) WIRE SIZE COLOR LENGTH EYE EYE DESCRIPTION VHF RADIO RG-8X COAX 22' M-PL259 F-PL259 VHF ANTENNA WIRE SIZE COLOR LENGTH EYE EYE DESCRIPTION HOUSE BATTERY #1 2 GA RED 8' 3/8" PP120-R BATTERY #1 TO SWITCH 2 GA YELLOW 8' 5/16" 5/16" BATTERY TO NEG YANMAR STARTER 2 GA RED 5' 5/16" PP120-W START TO STUD-YAN 2 GA YELLOW 6' 5/16" 3/8" ENGINE TO GND-YAN FUEL GAUGE 16 GA RED 2' FUEL GAUGE POWER 16 GA YELLOW 2' FUEL GAUGE NEG 16 GA BLUE 2' FUEL GAUGE LIGHT GNDS 6 GA GREEN/YELLOW 25' 1/4" 1/2" PEDESTAL GND WIRE SIZE COLOR LENGTH EYE EYE DESCRIPTION BATTERY CHARGER 14/3 ROMEX 30" #8 C. SP BATTERY CHARGER 10 GA ORANGE/GREEN 24" #8 C. SP #10 BATTERY #1 10 GA ORANGE/RED 24" #8 C. SP #10 BATTERY #2 10 GA YELLOW 24" #8 C. SP 1/4" NEGATIVE WIRE SIZE COLOR LENGTH EYE EYE DESCRIPTION HOUSE BATTERY #2 2 GA RED 10' 3/8" PP120-R BATTERY #2 TO SWITCH P/N 1013293 2 GA YELLOW 2' 6" 5/16" 5/16" BATTERY TO BATTERY STAGE 24A-MODULE P/N 1006239 STAGE 24A-DELUXE KIT P/N 1013292 STAGE 26-OPTIONS STAGE 26-ENGINE STAGE KIT P/N 1013325 STAGE 26-ENGINE DELUXE KIT P/N 1013326
This manual contains comprehensive schematics for the Hunter 27 model, offering detailed insight into its complex machinery. It is a valuable resource for both professional mechanics and DIY enthusiasts, providing user-friendly instructions for optimal maintenance practices.
The manual covers the following models:
Hunter 27 Model A
Hunter 27 Model B
Hunter 27 Model C
Hunter 27 Model D
It presents a step-by-step breakdown of the major components, including repair and maintenance tasks, diagrams, a reference section, and warranty information, ensuring smooth operation of your machine.
By utilizing this comprehensive manual, you can save significantly on repair costs and gain a thorough understanding of your machine's functionality. Upon purchase, the digital file can be instantly downloaded to your device for convenient access.
