ENGLISH 14/05/2014 1/87 DUFOUR 560 Grand Large OWNER'S MANUAL YACHT DESIGN CATEGORY: A IN ACCORDANCE WITH EUROPEAN DIRECTIVE 94/25/CE AS AMENDED BY EUROPEAN DIRECTIVE 2003/44/CE Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 2/87 DUFOUR 560 Grand Large This page intentionally left blank. This page intentionally left blank. This page intentionally left blank. Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 3/87 DUFOUR 560 Grand Large Your agent: Name is DUFOUR YACHTS’ representative and will give you all the help you need to solve any difficulties you might have during launching and masting of your boat, as well as for commissioning and maintenance technical checks. If necessary, he will help you with the administrative process of registering your boat. As soon as you become the owner, familiarize yourself with the manual supplied with your boat, sign and date the receipt acknowledgements below, and give (or send) the last one to your agent. Acknowledgement of receipt of the Owner's Manual. Owner's copy to be kept in your Manual I, the undersigned: Name Address owner of DUFOUR 560 no. confirm that I have received the DUFOUR 560 Owner's Manual and accept its being written in the English language. Dated: Signature: Detach along dotted line ………………………………………………………………………………………………………………… Owner's Manual receipt acknowledgement to be returned to DUFOUR YACHTS 11, Rue Blaise Pascal- 17187 PERIGNY CEDEX- FRANCE I, the undersigned: Name Address owner of DUFOUR 560 no. confirm that I have received the DUFOUR 560 Owner's Manual and accept its being written in the English language. Dated: Signature: Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 4/87 DUFOUR 560 Grand Large This page intentionally left blank. This page intentionally left blank. This page intentionally left blank. Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 5/87 DUFOUR 560 Grand Large CONTENTS INTRODUCTION ............................................................................................................ 7 I. GENERAL INFORMATION .................................................................................... 8 Design category _____________________________________________________ 8 Certification _________________________________________________________ 8 Identification ________________________________________________________ 8 Builder's plate _______________________________________________________ 9 Degrees of danger ___________________________________________________ 9 II. PRINCIPAL SPECIFICATIONS............................................................................ 10 III. ELECTRICAL SYSTEMS ..................................................................................... 12 Safety and operating instructions for the electrical system __________________12 Fitting new equipment ________________________________________________12 Batteries____________________________________________________________13 Electric windlass _____________________________________________________13 220 / 110 volt installation (ISO 13297: 2000) _______________________________14 IV. GAS INSTALLATION ........................................................................................... 15 Operating advice _____________________________________________________15 Checking the system (ISO 10239: 2000) __________________________________16 Changing the gas cylinder _____________________________________________16 V. DRAIN & SANITATION SYSTEM ........................................................................ 17 Drainage system characteristics(ISO 15083: 2003) _________________________17 Pressurized fresh-water pump__________________________________________17 Seacocks ___________________________________________________________18 Operation of the sea toilets ____________________________________________18 Holding tank operation (ISO 8099:2000) __________________________________18 VI. FLOODING ........................................................................................................... 19 VII. FIRE PROTECTION ............................................................................................. 19 Installation __________________________________________________________19 Safety instructions ___________________________________________________20 VIII. ENGINE ................................................................................................................ 21 General precautions __________________________________________________21 Exhaust gas emission ________________________________________________21 Safety 21 Wintering ___________________________________________________________22 IX. FUEL INSTALLATION ......................................................................................... 22 X. HELM SYSTEM .................................................................................................... 22 Helm 22 Emergency tiller _____________________________________________________23 XI. SAILING ............................................................................................................... 23 XII. FALL PREVENTION AND MEANS OF GETTING BACK ABOARD ..................... 24 XIII. LIGHTNING PROTECTION .................................................................................. 24 Maintenance ________________________________________________________24 Protection of people during a thunderstorm ______________________________24 XIV. ENVIRONMENTAL PROTECTION & SAFETY.................................................... 25 XV. SAFETY FACILITIES ........................................................................................... 26 XVI. HANDLING, TRANSPORTING, HAULOUT ......................................................... 26 XVII. MOORING, ANCHORING, AND TOWING .......................................................... 27 Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 6/87 DUFOUR 560 Grand Large Responsibility ______________________________________________________ 27 XVI. GUARANTEE, TRANSFER OF OWNERSHIP ..................................................... 30 1. Presentation plan ................................................................................................ 35 2. Accommodation layout....................................................................................... 36 3. Deck fittings plan ................................................................................................ 38 4. Sail plan ............................................................................................................... 40 5. Halyard and sheet operating diagram ............................................................... 42 6. 220 V distribution panel diagram ....................................................................... 44 7. 220 V circuit diagram .......................................................................................... 46 8. 220 V circuit diagram with options .................................................................... 48 9. 220 V electrical installation diagram ................................................................. 50 10. Fuse location diagram ........................................................................................ 52 11. Charging and power system diagram ............................................................... 54 12. 12 V distribution panel diagram ......................................................................... 57 13. Terminal block diagram ...................................................................................... 59 14. 12 V electrical installation diagram ................................................................... 61 15. Lighting system................................................................................................... 63 16. Steering system diagram.................................................................................... 65 17. Gas system diagram ........................................................................................... 67 18. Abandon ship plan .............................................................................................. 70 19. Fresh-water system diagram.............................................................................. 72 20. Drain system diagram ......................................................................................... 74 21. Skin fitting location diagram .............................................................................. 76 22. Mechanical installation diagram ........................................................................ 78 23. Gas system diagram ........................................................................................... 80 24. Holding tank installation diagram ...................................................................... 83 25. Lifting diagram .................................................................................................... 85 Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 7/87 DUFOUR 560 Grand Large INTRODUCTION DUFOUR YACHTS is pleased to present you with this Manual which will help you get to know your boat better. This Manual has been produced to help you use your boat safely and enjoyably. It contains details of the boat, the equipment supplied or fitted, its systems and information about their use. Read it carefully and familiarize yourself with the boat before using it. This Owner’s Manual is not a course in sailing safety or seamanship. If this is your first boat, or you are changing to a type of boat you are unfamiliar with, for your convenience and safety, make sure you gain experience handling and using it before taking command. Your agent, your national sailing or cruising federation or your yacht club will be happy to give you information about sailing schools or qualified instructors in your area. Ensure that forecast wind and sea conditions correspond to the design category of your boat, and that you and your crew are capable of handling the boat in these conditions. Even when your boat is suitable for them, the sea and wind conditions corresponding to design categories A, B, and C vary from severe storm for category A to severe conditions for the top end of category C, subject to dangers of abnormal gusts or waves; these are dangerous conditions in which only an experienced, trained crew in good condition, sailing a properly-maintained boat, can sail in a satisfactory manner. This Owner's Manual is not a detailed maintenance or repair guide. In the event of problems, consult the boatbuilder or their representative. If a maintenance manual is provided, be sure to use it. Always employ the services of an experienced professional for maintenance, fitting accessories, or modifications. Modifications that could affect the characteristics of the boat must be assessed, performed and documented by qualified personnel. The boatbuilder cannot be held responsible for modifications made without their approval. In certain countries, a skipper's license or some form of authorization is required, or special rules and regulations are applicable. Always maintain your boat correctly and make allowance for deterioration due to age or resulting, where applicable, from heavy or unsuitable use. Any boat, however sturdy it is, can be severely damaged if it is used incorrectly. This is incompatible with safe sailing. Always suit your speed and heading to the prevailing sea conditions. If your boat is equipped with a life-raft, read its instruction manual carefully. The crew must have on board all the safety equipment (life-jackets, harnesses, etc.) corresponding to the type of boat, weather conditions, etc. In some countries, this equipment is mandatory. The crew must be familiarized with the use of all the safety equipment and with emergency safety procedures (man overboard recovery, towing, etc.); training sessions are regularly organized by sailing schools and clubs. It is recommended that all persons wear appropriate buoyancy aids (life-jackets, personal flotation devices) when on deck. It should be noted that in certain countries, it is compulsory to wear a buoyancy aid (complying with national regulations) at all times. KEEP THIS MANUAL IN A SAFE PLACE AND PASS IT ON TO THE NEW OWNER IF YOU SELL THE BOAT. NOTICE: Our boats are regularly improved in the light of our customers’ experiences and researched by the shipyard, and so the specifications given in this Owner’s Manual are not contractually binding and may be changed without notice and without any obligation to update. This manual is intended to cover as much information as possible, so certain equipment or paragraphs might not apply to your boat. In case of doubt, please refer to the inventory which should have been given to you by your agent when you placed your order. Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 8/87 DUFOUR 560 Grand Large I. GENERAL INFORMATION Design category Your DUFOUR 560 comes under the OCEAN-GOING design category A. Under conditions of normal use, your boat is designed to sail in waves with a significant height exceeding 4 m and winds of force 8 or above on the Beaufort scale, and to withstand the severest conditions. This sailing capability is equally dependent on the skills of the crew, their physical capacities, the maintenance of the boat and its equipment. So always take care before putting to sea. DUFOUR YACHTS is not able to guarantee perfect functioning of the boat in exceptional sea conditions (violent storms, hurricanes, cyclones, waterspouts, etc.) SUMMARY OF DESIGN CATEGORIES Check weather information before putting to sea: Take to the sea, don’t take risks! In port: every day, the Harbor Master's Office posts weather bulletins and forecasts over the next few days. Météo France on 0836 68 08 08 Navifax - direct on 0836 70 18 52 VHF: CROSS transmit several bulletins per day, preceded by an announcement on Channel 16. Certification DUFOUR YACHTS has chosen the Institut pour la Certification et la Normalisation dans le Nautisme as the notified body for verifying that your boat complies with European directive CE 94/25, in accordance with module B. Identification The hull identification number is located on starboard side of transom. It contains a series of letters and numbers that begin with FR-DUF... Design category Type of sailing Wind strength (Beaufort) Wind speed Effective height of wave to be taken into account A Ocean-going Superior to 8 Up to 28 m/s Higher than 4 m B Open sea Up to 8 Up to 21 m/s Up to 4 m C Inshore Up to 6 Up to 17 m/s Up to 4 m D Sheltered waters Up to 4 Up to 13 m/s Up to 0.5 m Downloaded from www.Manualslib.com manuals search engine

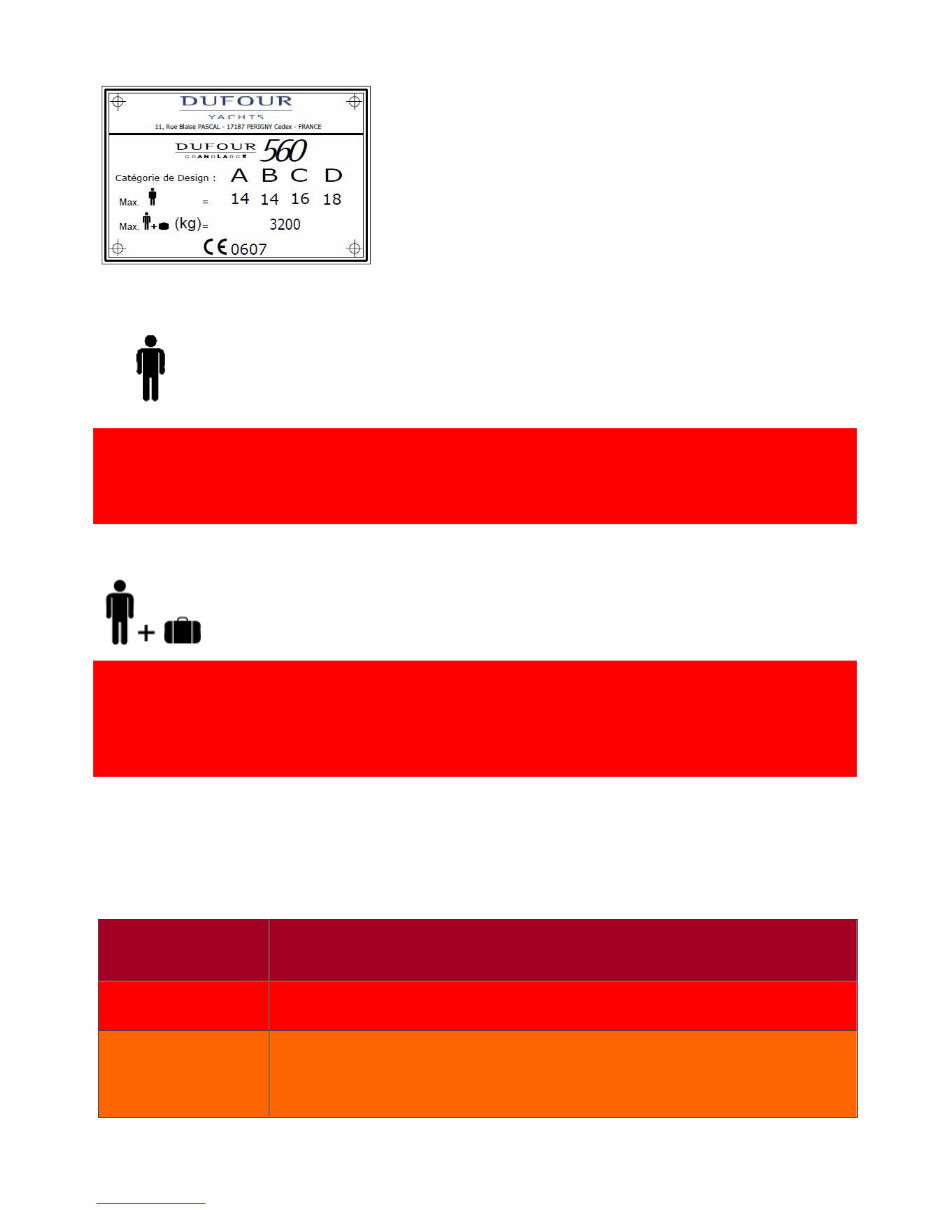

ENGLISH 14/05/2014 9/87 DUFOUR 560 Grand Large Builder's plate Design category = A : Ocean-going (see 1.1) Maximum number of people: Category A = 14 Category B = 14 Category C = 16 Category D = 18 WARNING Do not exceed the maximum recommended number of people. However many people there are aboard, the total weight of the people and equipment must never exceed the maximum recommended loading. Recommended max. load: Category A = 3,200kg Category B = 3,200 kg Category C = 3,200 kg Category D = 3,200 kg WARNING When loading the boat, never exceed the recommended maximum load. Always load the boat carefully and distribute the weight in a suitable manner in order to maintain the theoretical trim (approximately horizontal). Avoid placing heavy loads high up. CE 0607 Degrees of danger DANGER Indicates an extreme intrinsic risk that presents a high probability of death or permanent injury if proper precautions are not taken. WARNING Indicates a risk that presents a high probability of death or permanent injury if proper precautions are not taken. NOTE Indicates a reminder about safety-related practices, or points out dangerous practices that could result in personal injury or damage to the boat or its components, or to the environment. : Recommended by the builder for navigation in sea conditions for category for which it was built. : CE mark indicating that the boat complies with all the requirements of the Directive. The sequence of digits is the code for the Certifying Body. In this case, it is ICNN (Institut pour la Certification de la Normalisation dans le Nautisme), (see also: Safety Compliance Declaration). : recommended by the manufacturer including the weight of all persons aboard, provisions and personal belongings, and all equipment not included in the boat’s light displacement, excluding the contents of the tanks. Part of this information is given on the builder’s plate attached to the boat. A full explanation of this information is given below. Downloaded from www.Manualslib.com manuals search engine

ENGLISH 14/05/2014 10/87 DUFOUR 560 Grand Large II. PRINCIPAL SPECIFICATIONS Model: DUFOUR 560 Grand Large Boatbuilder Dufour Yachts 11, Rue Blaise Pascal 17187 Périgny cedex FRANCE Designer: Umberto Felci Interior design DUFOUR Design Design category A Notified body no. CE/0607 Engine # Primary means of propulsion Sail L max LOA * 17.15 m L H Hull length * 16.30m B max Maximum beam * 5.04 m B H Hull beam * 5.04 m H A Mast height clearance * 23.60 m T max Draft deep keel * 2.50 m Deep keel weight 4,900 kg Standard mainsail area (approximate) 72 m² Genoa area (approximate) 69 m² Maximum permissible on-board engine power 150 HP / 110 kW Water capacity excl. 50L (appx.) water heater 680 L Diesel capacity (approximate) 500 L Holding tank 100 L (+50 L+35 L an optional extra) Engine battery 140 Ah Auxiliary battery (3 standard + 2 optional) 420 Ah + (+280 Ah as an optional extra) M LC Light displacement 17,600 kg M MO Minimum condition displacement 18,000 kg M L Maximum loading 4,300 kg Total weight of liquids (all tanks full) 1,195 kg M LDC Displacement with maximum load 21,900 kg *The above dimensions are in accordance with ISO 8866, specifically: L max : maximum length of the vessel including normally fixed parts such as roller chocks, balconies, etc. L H : maximum length of the vessel including structural elements that are an integral part of the vessel, and excluding removable parts. B max : breadth of the vessel measured between the outermost portions and may include detachable parts such as top rails, railings, etc. B H : vessel width measured between the outermost fixed portions and excluding all removable parts H A: vertical distance between the water plane in the lightship condition and the highest point of the mast structure. (This does not take into account equipment such as lights and antennas that can be attached to the masthead) T max : the maximum draft is measured at the lowest points of ballast on board the vessel Downloaded from www.Manualslib.com manuals search engine
