2009 Bayliner 300 Cruiser Owners Manual

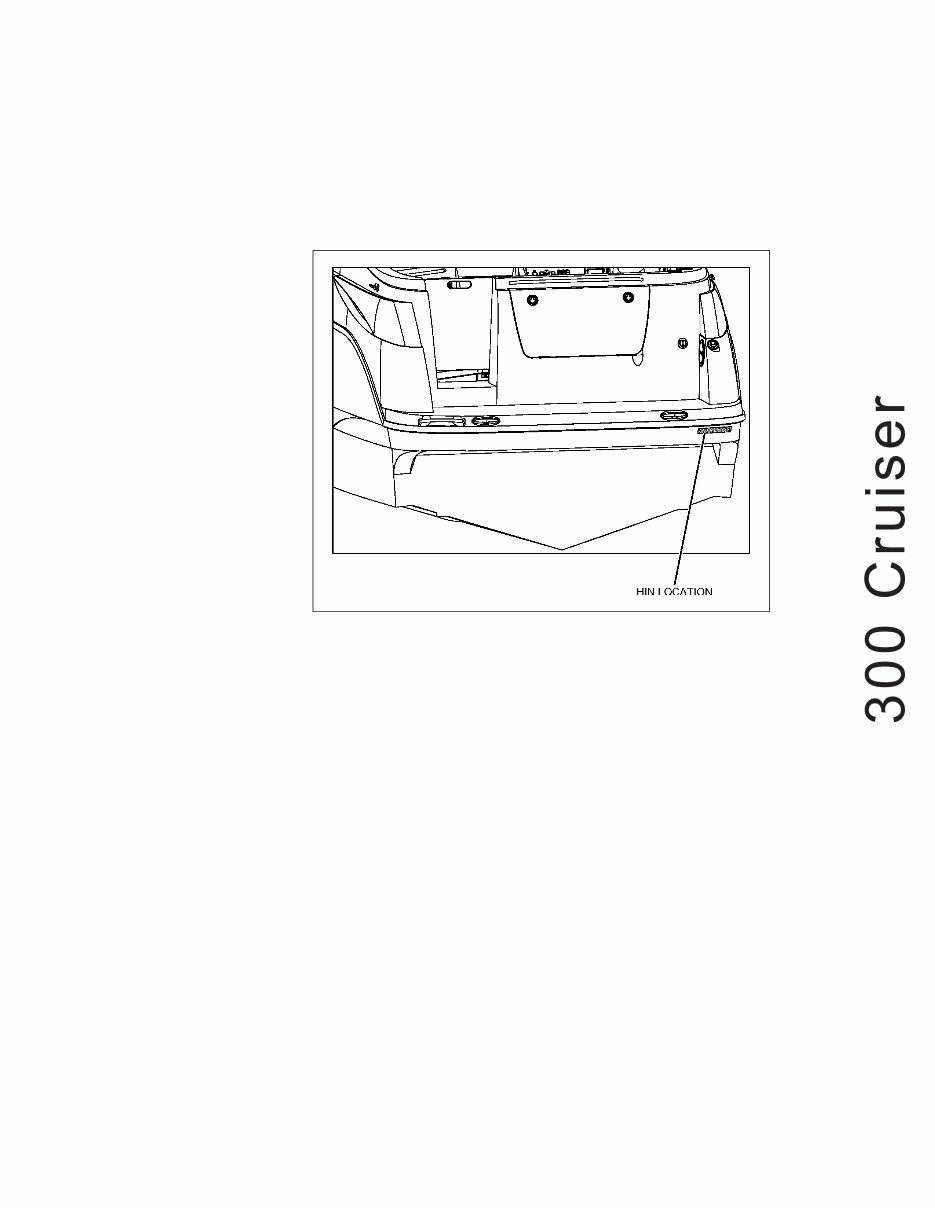

Engine Serial Number: _____________________________________ Hull Identification Number:__________________________________ Hull Identification Number • The Hull Identification Num- ber (HIN) is located on the starboard hullside just for- ward of the transom. • Record the HIN (and the engine serial numbers) in the space provided above. • Include the HIN with any correspondence or orders. © 2007 Bayliner Technical Publications. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying, recording or otherwise, without prior written permission of Bayliner. Printed in the United States of America. General Notes The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein. Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equip- ment at any time without notice or obligation. Illustrations and/or photos may show optional equipment. All Bayliner products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) con- struction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufactur- ing process by destroying ozone in the upper atmosphere. Proprietary Rights This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to be returned upon request to Bayliner. Part Number 1896392

CONTENTS Chapter 1: Welcome Aboard! Dimensions & Tank Capacities 1 Dealer Service 1 Warranty Information 1 Boating Experience 2 Qualified Maintenance 2 Engine & Accessory Guidelines & Literature 3 Propellers 3 Special Care for Moored Boats 4 Sacrificial Anode (Zinc) 4 Boat Lifting 5 Safety Standards 6 Deck Safety 7 Carbon Monoxide (CO) 7 CO Facts 7 Factors that Increase the Effects of CO Poisoning 7 Where & How CO Can Accumulate 8 How to Protect Yourself & Others From CO 8 CO Checklists 9 CO Monitors 9 More Information 10 Warnings & Warning Labels 11 Warning Labels 11 Sliding Entry Door Warning 13 Chapter 2: Locations Exterior Views 14 Hull Views 14 Deck Views 15 Helm 16 Component Locations 17 Chapter 3: Propulsion & Related Systems Engines 34 Engine Cooling Systems (If Equipped) 35 Gas Engine Cooling System 35 Diesel Engine Cooling System 35 Bilge Blower System 36 Fuel System 37 Fuel Fill & Vent 38 Gas Engine Fuel Filters 38 Anti-siphon Valves (Gas Engines Only) 39 Fuel Filter/Water Separators (Diesel Engines Only) 39 Electronic Fuel Shut-off Valves (Diesel Engines Only) 40 Engine Hatch Lift System (If Equipped) 41 Fire Suppression System (If Equipped) 41 Chapter 4: Controls & Gauges Steering 42 Shift/Throttle Controls 42 Power Trim & Tilt 42 Trim Tabs 42 Gauges 43 Cleaning the Gauges 43 Gauge Fogging 43 Radio Transmission Interference 43 Fuel Gauge 43 Twin Engine Readings 43 Chapter 5: Navigation & Communication Equipment Compass 44 Depth Finder (If Equipped) 44 VHF Radio (If Equipped) 45 Global Positioning System (GPS) (If Equipped) 45

Chapter 6: Plumbing Bilge Pumps 46 Bilge Pump Testing 47 Autofloat Switches 48 Seawater Systems 49 Seacocks 49 Seawater Strainers 49 Freshwater System 50 Transom Shower (If Equipped) 51 Freshwater System Winterization 51 Water Heater 52 Winterizing the Water Heater 52 Preparing the Water Heater for Use After Boat Storage 54 Drain Systems 55 Deck Drains 55 Sink Drain 55 Sump Pump System 55 Sump Box Cleaning 55 Sump System Winterization 55 Marine Head & Holding Tank 56 Manual Flush Head (If Equipped) 56 Electric Flush Head (If Equipped) 57 Macerator (If Equipped) 58 Air Conditioner (If Equipped) 59 Chapter 7: Deck Equipment Cleats & Bow/Stern Eyes 60 Windlass (If Equipped) 60 Canvas 61 Canvas & Vinyl Tops & Enclosures 61 Bimini Top (If Equipped) 61 Aft Bimini Top 62 Vinyl Curtains (If Equipped) 62 Canvas Care 63 Clear Vinyl Care 64 Chapter 8: Appliances & Entertainment Systems Refrigerator 65 Audio 65 Alcohol/110-Volt Electric Stove 66 Chapter 9: Convertible Seats, Beds, & Tables Dinette to Sleeping Berth Conversion 67 Cockpit Sunlounge Conversion 69 Helm Seat 71 To Slide Helm Seat: 71 To Swivel Helm Seat (If Equipped): 71 Chapter 10: Lights Care & Maintenance 72 Interior & Exterior Lights 72 Navigation Lights 72 Spotlight (If Equipped) 72 Chapter 11: Electrical System 12-Volt DC System 74 Batteries 74 Battery Switches 74 Fuses & Circuit Breakers 74 12-Volt DC Accessory Outlets 74 Alternators 75 Battery Charger (If Equipped) 75 110-Volt AC System 76 Shore Power 77 Connecting to Shore Power 78 Parallel Switch (Only if Equipped with Dual Shore Power) 78 Generator (If Equipped) 79 Electrical Routings 81 12-Volt DC Hull Harness 81 12-Volt DC Deck Harnesses 82 12-Volt DC Radar Arch Harness 83 Battery Cable Routings 84 110-Volt AC Hull Harnesses 85 Important Records 86 Float Plan 87

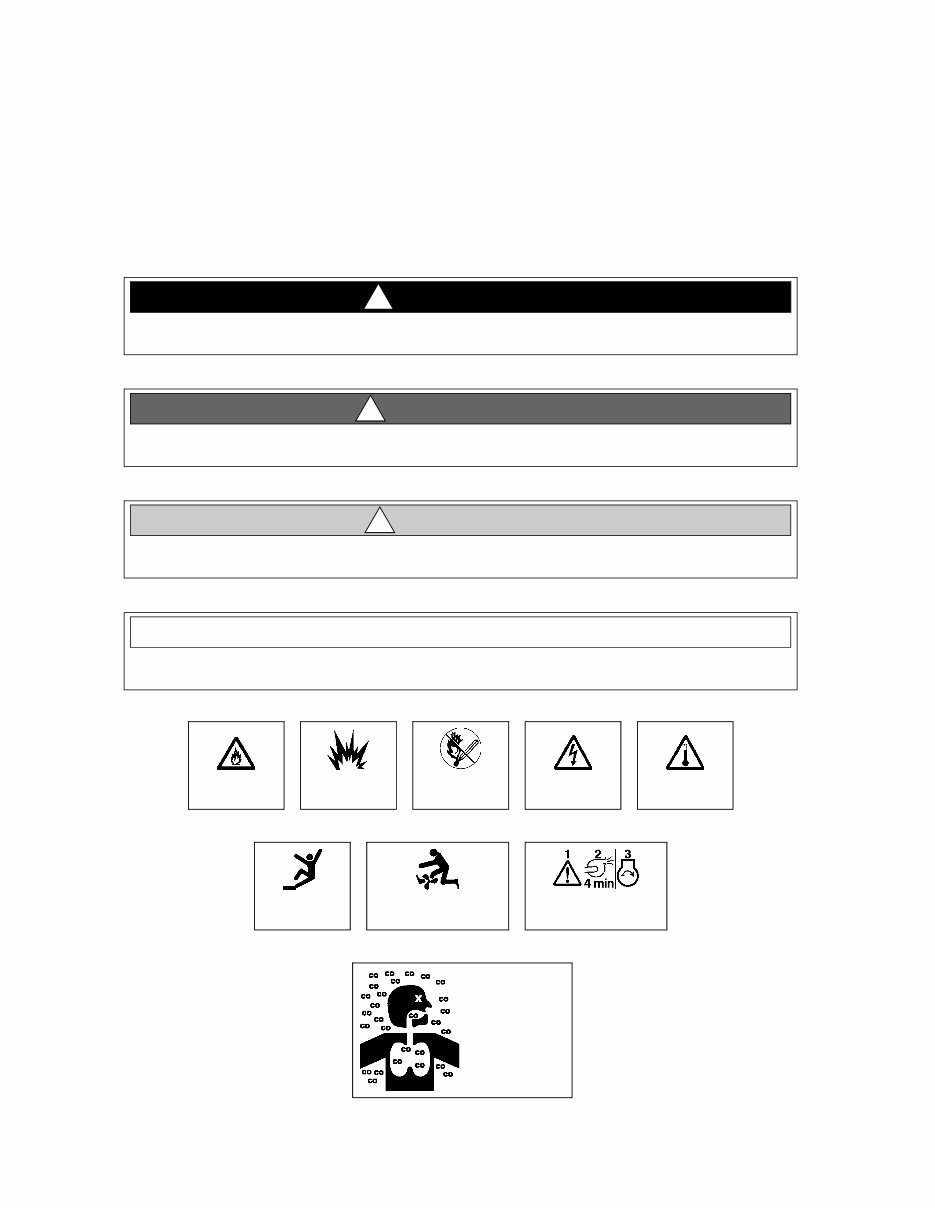

Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan- gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol- low all safety instructions. This box alerts you to immediate hazards which WILL cause severe personal injury or death if the warning is ignored. DANGER! ! This box alerts you to hazards or unsafe practices which COULD result in severe personal injury or death if the warning is ignored. WARNING! ! This box alerts you to hazards or unsafe practices which COULD result in minor personal injury or cause product or property damage if the warning is ignored. CAUTION ! This box calls attention to installation, operation or maintenance information, which is impor- tant to proper operation but is not hazard related. NOTICE CO POISONING HAZARD! EXPLOSION HAZARD! NO OPEN FLAME! HOT HAZARD! ROTATING PROPELLER HAZARD! FALLING HAZARD! ELECTRICAL HAZARD! FIRE HAZARD! RUN BILGE BLOWERS FOR 4 MINUTES!

1 300 Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! • This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Cruiser & Yacht Owner’s Manual. • The Cruiser & Yacht Owner’s Manual contains general information about safe operating practices, general boat- ing regulations, and general maintenance techniques. Information that is more specific to your particular boat is found in this Owner’s Manual Supplement. • Before using your boat, study this Owner’s Manual Supplement, the Cruiser & Yacht Owner’s Manual, and all engine and accessory literature carefully. If similar instructions are found in more than one manual, always refer to the specific manufacturer’s manual (such as the engine manual) for the most complete and accurate information. • Keep this Owner’s Manual Supplement and the Cruiser & Yacht Owner’s Manual on your boat in a secure, yet readily available place. Dimensions & Tank Capacities Dealer Service • Your dealer is your key to service. • Ask your dealer to explain all systems before taking delivery of your boat. • Contact your dealer if you have any problems with your new boat. • If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235. • Buy replacement parts from any authorized Bayliner dealer. • You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on to http://www.baylinerparts.com . Warranty Information • Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. • If you did not get a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for a copy. Overall Length Bridge Clearance Beam Draft (Hull) Draft (Maximum) Fuel Capacity Freshwater Capacity Holding Tank Capacity 30' 6" 9' 6" 10' 0" 2' 1" 3' 5" 120 Gallons 30 Gallons 30 Gallons

Chapter 1: Welcome Aboard! 300 Cruiser • Owner’s Manual Supplement 2 Boating Experience If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and safety, get handling and operating experience before assuming command of your boat. Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For more course information, including dates and locations of upcoming classes, contact the organizations directly: • U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org • In Canada, for the CPS courses call 1-888-CPS-BOAT. • U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org Outside the United States, your selling dealer, national sailing federation, or local boat club can advise you of local sea schools or competent instructors. Qualified Maintenance • Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your jurisdiction and could expose you and other people to the danger of bodily injury or accidental death. • Follow the instructions provided in the Cruiser & Yacht Owner’s Manual, this supplement, the engine owner’s manual, and all accessory literature. CONTROL HAZARD! An experienced operator MUST be in control of your boat at ALL times. Do NOT operate your boat while under the influence of alcohol or drugs. WARNING! ! To maintain the safety of your boat, allow ONLY trained personnel to work on, or change, in any way, the: • Steering system • Propulsion system • Engine control system • Fuel system • Environmental control system • Electrical system • Navigation system WARNING! !

300 Cruiser • Owner’s Manual Supplement Chapter 1: Welcome Aboard! 3 Engine & Accessory Guidelines & Literature • Your boat’s engines and accessories were selected to provide optimum performance and service. • Installing a different engines or adding accessories may affect your boat’s running trim. • If you choose to install a different engines or add accessories that may affect your boat’s running trim, have a trained marine technician perform a safety inspection and handling test before using your boat again. • The engines and accessories on your boat have their own manuals. Read these manuals before using the engines and accessories. Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual Supplement is included in your owner’s packet. While the topics listed below may be included in this Owner’s Manual Supplement and in the Cruiser & Yacht Owner’s Manual, always refer to the engine manual first for specific information on these important subjects: Propellers • Keep the propellers in good repair and at the correct pitch for your particular situation. • A slightly bent or nicked propeller will adversely affect the performance of your boat. BEFORE starting or working on your engine(s), read the engine manual. NOTICE BEFORE using the accessories on your boat, read the accessory manuals. NOTICE BEFORE storing your boat, refer to your engine and accessory manuals for storage/winteriza- tion instructions. NOTICE Certain modifications to your boat WILL result in cancellation of your warranty protection. ALWAYS check with your dealer BEFORE making any modifications to your boat. NOTICE • Engine Break-in Procedure • Engine Starting and Stopping • Gear Shifting • Fuel and Oil Recommendations • Engine Maintenance • Engine Storage/Winterization ENGINE DAMAGE HAZARD! The factory standard propellers may not be the best for your particular boat and load condi- tions. Refer to the engine manual for engine RPM ratings. The engines should reach, but not exceed the full rated RPM when full-throttle is applied. Immediately contact your local Bayliner dealer if: • The engines cannot reach the full rated RPM when full-throttle is applied, or; • The engines exceed the full rated RPM when full-throttle is applied. CAUTION !

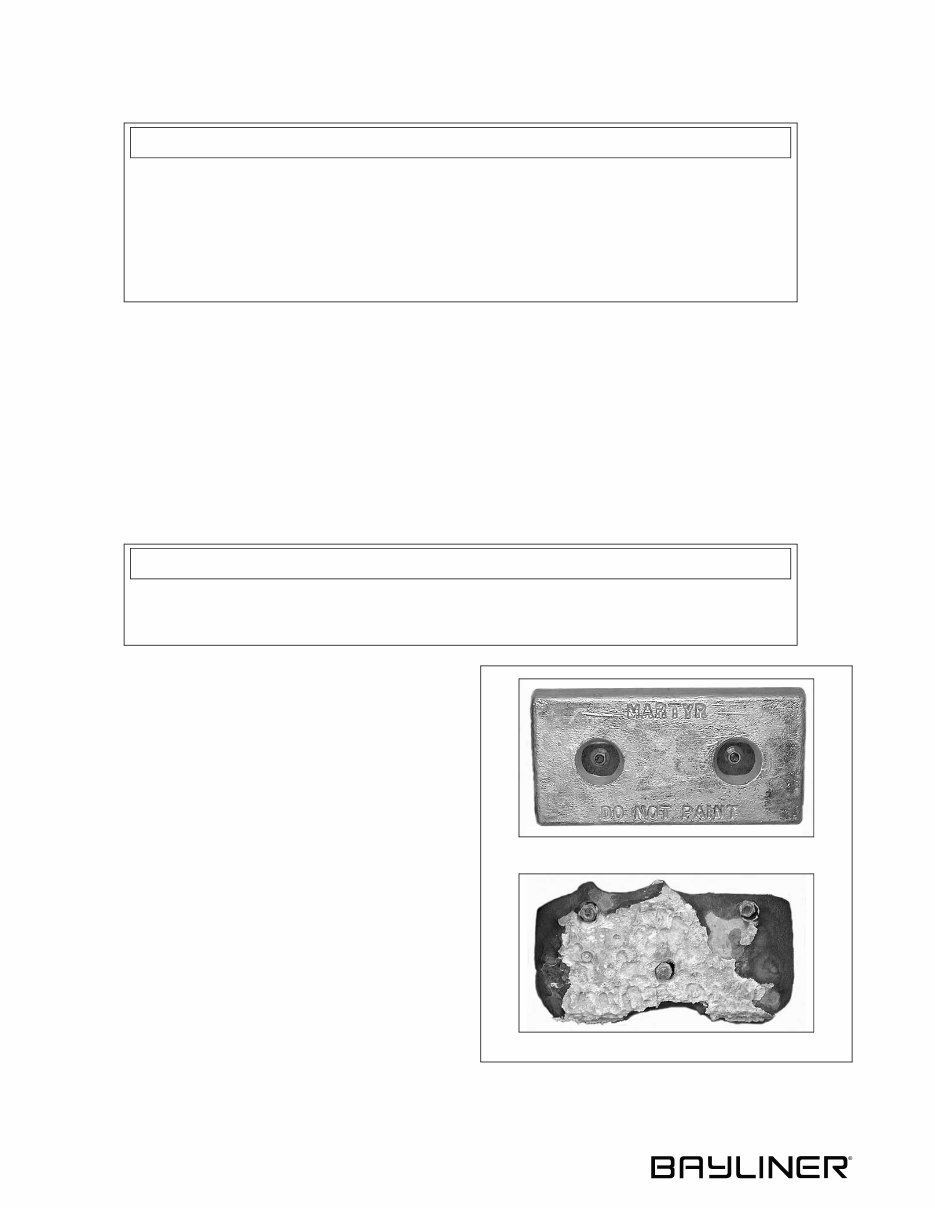

Chapter 1: Welcome Aboard! 300 Cruiser • Owner’s Manual Supplement 4 Special Care for Moored Boats • Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom. • This will detract from your boat’s beauty, greatly affect its performance, and may damage the gel coat. There are two ways to slow marine growth: 1. Periodically haul your boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap and water. 2. Occasionally reapply the anti-fouling paint on your hull bottom. How often your hull needs new anti-fouling paint depends on many factors. Ask your selling dealer or local marina for advice. Sacrificial Anode (Zinc) Your boat is equipped with a sacrificial anode (zinc) to pro- tect underwater metal parts from excessive deterioration. Check the zinc regularly and replace it if it has deteriorated more than 70%. Many factors affect the rate at which the zinc deteriorates, including: • Water temperature • Salinity • Water pollution • Stray electrical current Stray electrical current from your boat, another boat, or the dock may cause complete deterioration of the zinc in just a few weeks. If there is rapid zinc deterioration, measure the electrolytic corrosion around your boat with a corrosion test meter. Boats Without Bottom Paint: • To help seal the hull bottom and reduce the chance of gel coat blistering while your boat is moored, apply an epoxy barrier coating. • The barrier coating should be covered with several coats of anti-fouling paint. • Many states regulate the chemical content of bottom paints in order to meet environmental standards. Check with your local dealer about recommended bottom paints, and about the laws in effect in your area. NOTICE • Do NOT paint between the zinc and the metal surface it contacts and do NOT paint over the zinc. • If the zinc is NOT bonded correctly, it will NOT provide protection. NOTICE NEW SACRIFICIAL ANODE DETERIORATED SACRIFICIAL ANODE
