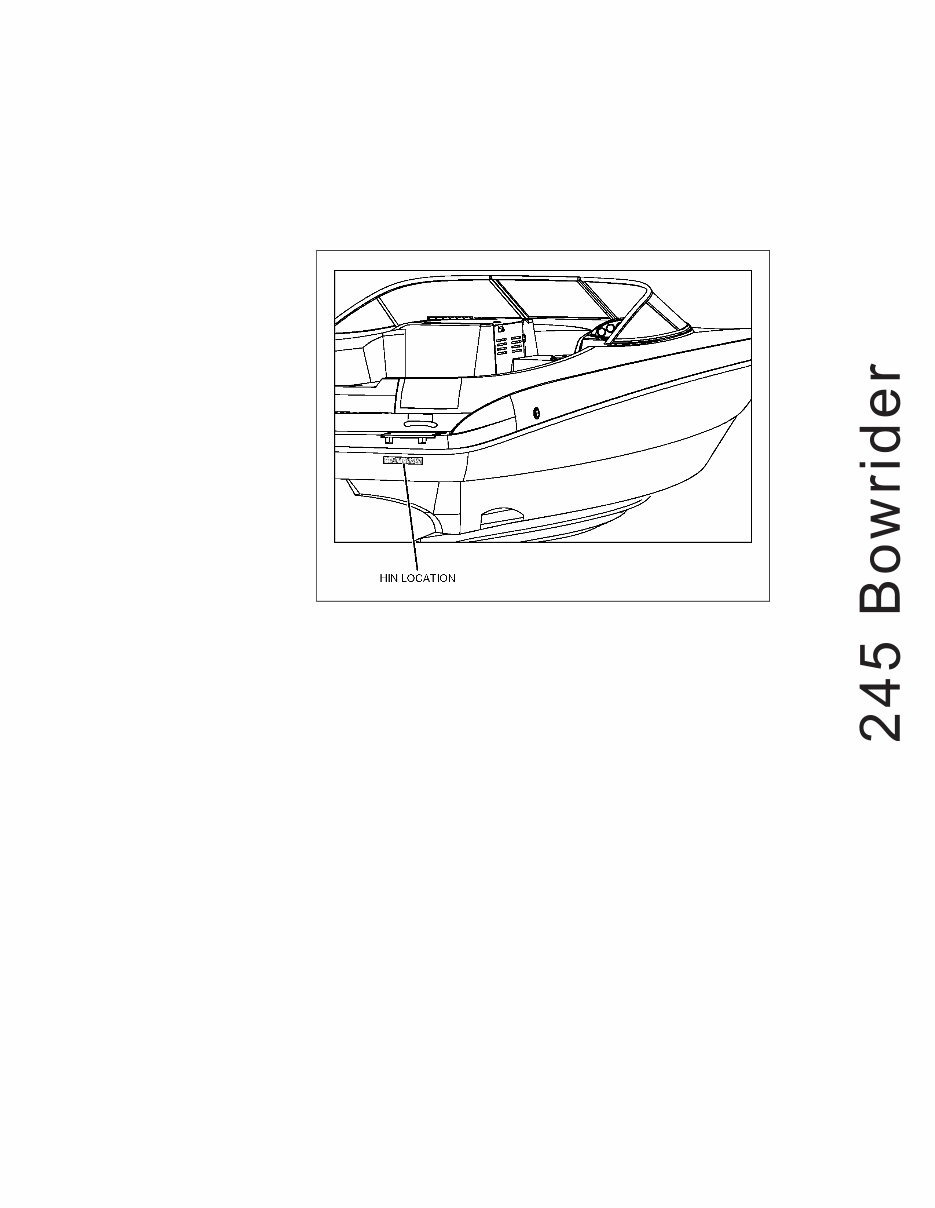

Engine Serial Number: _____________________________________ Hull Identification Number:__________________________________ Hull Identification Number • The Hull Identification Num- ber (HIN) is located on the starboard hullside just for- ward of the transom. • Record the HIN (and the engine serial numbers) in the space provided above. • Include the HIN with any cor- respondence or orders. © 2007 Bayliner Technical Publications. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying, recording or otherwise, without prior written permission of Bayliner. Printed in the United States of America. General Notes The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein. Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time without notice or obligation. Illustrations and/or photos may show optional equipment. All Bayliner products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) con- struction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufactur- ing process by destroying ozone in the upper atmosphere. Proprietary Rights This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to be returned upon request to Bayliner. Part Number 1894298

CONTENTS Chapter 1: Welcome Aboard! Dimensions & Tank Capacities 1 Dealer Service 1 Warranty Information 1 Boating Experience 2 Engine & Accessory Guidelines & Literature 3 Propeller 3 Structural Limitations 4 Qualified Maintenance 4 Special Care For Moored Boats 4 Safety Standards 5 Carbon Monoxide (CO) 6 CO Facts 6 Factors that Increase the Effects of CO Poisoning 6 Where & How CO Can Accumulate 7 How to Protect Yourself & Others From CO 7 CO Checklists 8 More Information 8 Warnings & Warning Labels 9 Chapter 2: Locations Exterior Views 11 Hull Views 11 Deck Views 12 Helm 13 Component Locations 14 Chapter 3: Propulsion & Related Systems Engine 20 Bilge Blower System 21 Fuel System 22 Fuel Fill & Vent 22 Fuel Filters 22 Anti-siphon Valve 23 Quick Oil Drain System 24 Chapter 4: Controls & Gauges Steering 25 Shift/Throttle Controls 25 Power Trim & Tilt 25 Gauges 26 Cleaning the Gauges 26 Gauge Fogging 26 Radio Transmission Interference 26 Fuel Gauge 26 Depth Finder 26 Chapter 5: Plumbing Bilge Pump 27 Bilge Pump Testing 28 Autofloat Switch 29 Freshwater System 30 Transom Shower 30 Freshwater System Winterization 31 Drain Systems 32 Deck Drains 32 Portable Toilet 32

Chapter 6: Deck Equipment Cleats & Bow/Stern Eyes 33 Ski Tow Ring 33 Ski-Tow Tower (If Equipped) 34 Attaching the Ski-Tow Rope 34 Folding Ski-Tow Tower 35 Tower Care 35 Canvas 36 Bimini Top (If Equipped) 36 Ski-Tow Tower Bimini Top (If Equipped) 37 Canvas Care 38 Chapter 7: Entertainment System Audio Equipment 39 Chapter 8: Convertible Seats, Beds, & Tables Sunlounge Conversion 40 Passenger Seat Conversion 41 Chapter 9: Lights Care & Maintenance 42 Interior & Exterior Lights 42 Navigation Lights 42 Docking Lights (If Equipped) 42 Chapter 10: Electrical System Battery 44 Fuses 44 12-Volt DC Accessory Outlet 44 Alternator 44 Electrical Routings 45 Deck Electrical Harness 45 Hull Electrical Harness 46 Battery System 46 Important Records 47 Float Plan 48

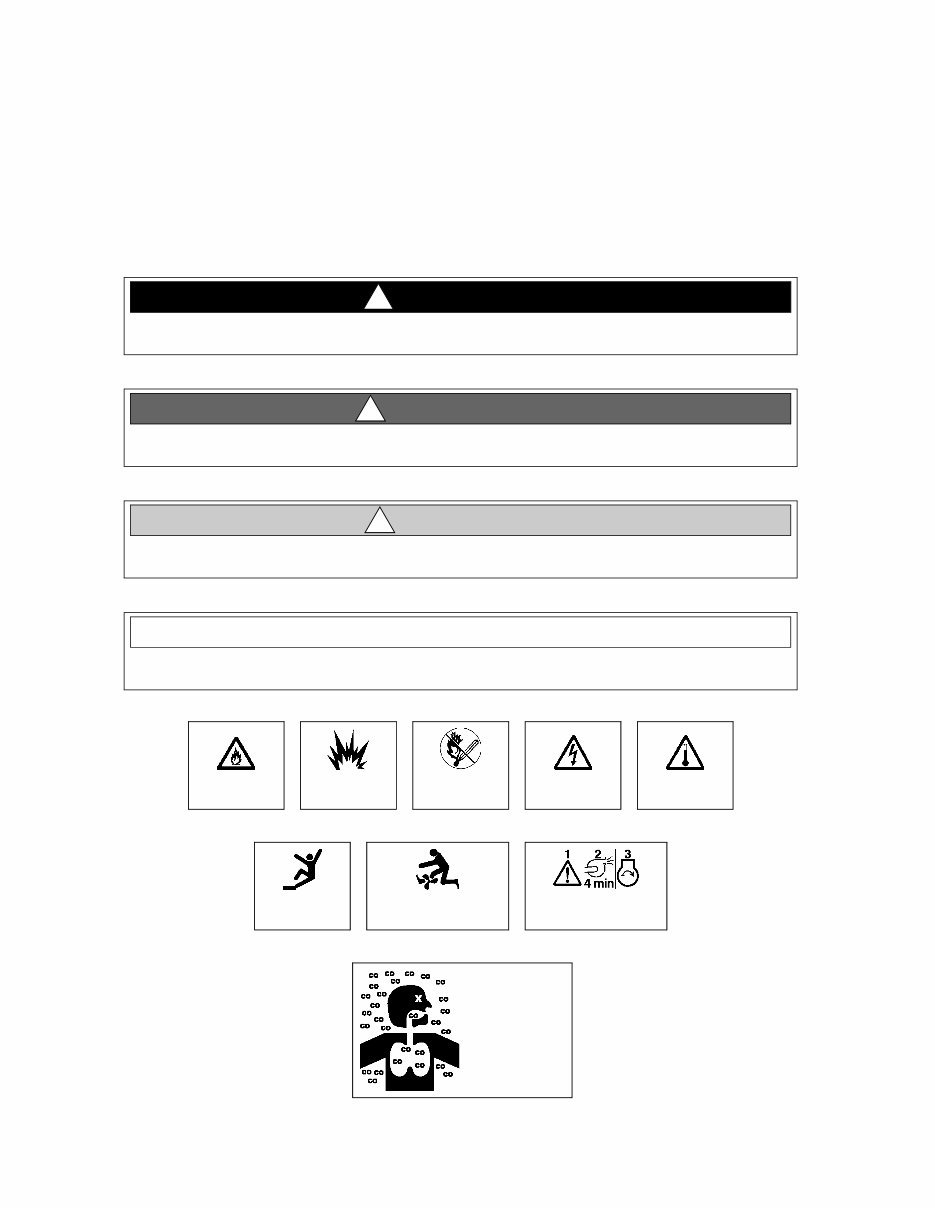

Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan- gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and follow all safety instructions. This box alerts you to immediate hazards which WILL cause severe personal injury or death if the warning is ignored. DANGER! ! This box alerts you to hazards or unsafe practices which COULD result in severe personal injury or death if the warning is ignored. WARNING! ! This box alerts you to hazards or unsafe practices which COULD result in minor personal injury or cause product or property damage if the warning is ignored. CAUTION ! This box calls attention to installation, operation or maintenance information, which is important to proper operation but is not hazard related. NOTICE CO POISONING HAZARD! EXPLOSION HAZARD! NO OPEN FLAME! HOT HAZARD! ROTATING PROPELLER HAZARD! FALLING HAZARD! ELECTRICAL HAZARD! FIRE HAZARD! RUN BILGE BLOWERS FOR 4 MINUTES!

245 Bowrider • Owner’s Manual Supplement 1 Chapter 1: Welcome Aboard! • This Owner’s Manual Supplement provides specific information about your boat that is not covered in the Sport Boat Owner’s Manual. • The Sport Boat Owner’s Manual contains general information about safe operating practices, general boating reg- ulations, and general maintenance techniques. Information that is more specific to your particular boat is found in this Owner’s Manual Supplement. • Before using your boat, study this Owner’s Manual Supplement, the Sport Boat Owner’s Manual, and all engine and accessory literature carefully. If similar instructions are found in more than one manual, always refer to the specific manufacturer’s manual (such as the engine manual) for the most complete and accurate information. • Keep this Owner’s Manual Supplement and the Sport Boat Owner’s Manual on your boat in a secure, yet readily available place. Dimensions & Tank Capacities Dealer Service • Your dealer is your key to service. • Ask your dealer to explain all systems before taking delivery of your boat. • Contact your dealer if you have any problems with your new boat. • If your dealer cannot help, call our customer service hotline: 360-435-8957 or send us a FAX: 360-403-4235. • Buy replacement parts from any authorized Bayliner dealer. • You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on to http://www.baylinerparts.com . Warranty Information • Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. • If you did not receive a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for a copy. Overall Length Bridge Clearance Beam Draft (Drive Up) Draft (Drive Down) Fuel Capacity Freshwater Capacity 24' 4" 7' 7" 8' 6" 1' 7" 3' 0" 78 Gallons 15 Gallons

Chapter 1: Welcome Aboard! 245 Bowrider • Owner’s Manual Supplement 2 Boating Experience If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and safety, get handling and operating experience before assuming command of your boat. Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For more course information, including dates and locations of upcoming classes, contact the organizations directly: • U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org • In Canada, for the CPS courses call 1-888-CPS-BOAT. • U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org Outside the United States, your selling dealer, national sailing federation, or local boat club can advise you of local sea schools or competent instructors. CONTROL HAZARD! A qualified operator MUST be in control of your boat at ALL times. Do NOT operate your boat while under the influence of alcohol or drugs. WARNING! !

245 Bowrider • Owner’s Manual Supplement Chapter 1: Welcome Aboard! 3 Engine & Accessory Guidelines & Literature • Your boat’s engine and accessories were selected to provide optimum performance and service. • Installing a different engine or adding accessories may affect your boat’s running trim. • If you choose to install a different engine or add accessories that may affect your boat’s running trim, have a trained marine technician perform a safety inspection and handling test before using your boat again. • The engine and accessories on your boat have their own manuals. Read these manuals before using the engines and accessories. Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual Supplement is included in your owner’s packet. While the topics listed below may be included in this Owner’s Manual Supplement and in the Sport Boat Owner’s Manual, always refer to the engine manual first for specific information on these important subjects: Propeller • Keep the propeller in good repair and at the correct pitch for your particular situation. • A slightly bent or nicked propeller will adversely affect the performance of your boat. BEFORE starting or working on your engine(s), read the engine manual. NOTICE BEFORE using the accessories on your boat, read the accessory manuals. NOTICE BEFORE storing your boat, refer to your engine and accessory manuals for storage/winterization instructions. NOTICE Certain modifications to your boat WILL result in cancellation of your warranty protection. ALWAYS check with your dealer BEFORE making any modifications to your boat. NOTICE • Engine Break-in Procedure • Engine Starting and Stopping • Gear Shifting • Fuel and Oil Recommendations • Engine Maintenance • Engine Storage/Winterization ENGINE DAMAGE HAZARD! The factory standard propeller may not be the best for your particular boat and load condi- tions. Refer to the engine manual for engine RPM ratings. The engine should reach, but not exceed its full rated RPM when full-throttle is applied. Immediately contact your local Bayliner dealer if: • The engine cannot reach its full rated RPM when full-throttle is applied, or; • The engine exceeds its full rated RPM when full-throttle is applied. CAUTION !

Chapter 1: Welcome Aboard! 245 Bowrider • Owner’s Manual Supplement 4 Structural Limitations The swim platform extension is designed to be lightweight for proper boat balance. The load limit for the swim platform extension is 30 pounds per square foot, evenly distributed. Qualified Maintenance • Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your jurisdiction and could expose you and other people to the danger of bodily injury or accidental death. • Follow the instructions provided in the Sport Boat Owner’s Manual, this supplement, the engine owner’s manual and all accessory literature. Special Care For Moored Boats • Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom. • This will detract from your boat’s beauty, greatly affect its performance, and may damage the gel coat. • Periodically haul your boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap and water. To maintain the integrity and safety of your boat, allow ONLY qualified personnel to perform maintenance on, or change, in any way, the: • Steering system • Propulsion system • Engine control system • Fuel system • Environmental control system • Electrical system • Navigational system WARNING! ! • To help seal the hull bottom and reduce the chance of gel coat blistering while your boat is moored, apply an epoxy barrier coating. • The barrier coating should be covered with several coats of anti-fouling paint. • Many states regulate the chemical content of bottom paints in order to meet environmental standards. Check with your local dealer about recommended bottom paints, and about the laws in effect in your area. NOTICE
