Manual for owners and skippers
Sailing yacht „BAVARIA 40vision“
Bavaria Yachtbau GmbH • Bavariastr. 1 • D – 97232 Giebelstadt
Tel.: +49 (0) 9334 942 – 0; Fax: +49 (0)9334 942 – 116
E-Mail : info@bavaria-yachtbau.com
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
2 of 43
Introduction ................................................................................................................................................................................. 4
Certification................................................................................................................................................................................. 5
Identification ............................................................................................................................................................................... 5
Builder’s plate ............................................................................................................................................................................. 5
Warnings ..................................................................................................................................................................................... 6
Declaration of Conformity .......................................................................................................................................................... 7
1. Description of the yacht ........................................................................................................................................................ 11
1.1 Main particulars............................................................................................................................................................... 11
1.1.1 Principal dimensions ................................................................................................................................................ 11
1.1.2 Displacement and weights ........................................................................................................................................ 11
1.1.3 Motorization ............................................................................................................................................................. 11
1.1.4 Electrical installation ................................................................................................................................................ 11
1.1.5. Tank capacities ........................................................................................................................................................ 11
1.1.6. Fixing points for cranes, resting-points for slipping and transport .......................................................................... 11
1.2 General arrangement ....................................................................................................................................................... 12
1.2.1 Rigging plan ............................................................................................................................................................. 12
1.2.2 Deck arrangement..................................................................................................................................................... 13
1.2.3. Accommodation plan .............................................................................................................................................. 15
1.3 Drive systems .................................................................................................................................................................. 16
1.3.1 Sails .......................................................................................................................................................................... 16
1.3.2 Rigging ..................................................................................................................................................................... 16
1.3.3 Motorising, engine room, gear, and propeller .......................................................................................................... 16
2. Installations and circuits ........................................................................................................................................................ 18
2.1 Tanks and piping - water ................................................................................................................................................. 18
2.1.1 Fresh water, drinking water –cold ............................................................................................................................ 18
2.1.2 Sea-water circulation ................................................................................................................................................ 18
2.1.3 WC –installation: see enclosed directions for use .................................................................................................... 19
2.2 Tanks and piping - fuel .................................................................................................................................................... 20
2.3 Steering gear .................................................................................................................................................................... 20
2.3.1 Description of the system ......................................................................................................................................... 20
2.3.2 Rudder blade and rudder bearings ............................................................................................................................ 20
2.4. Bilge pumps, bilge pipes ................................................................................................................................................ 22
2.4.1 Description of the pumping arrangement ................................................................................................................. 22
2.5 The electric installation ................................................................................................................................................... 23
2.5.1 The AC-installation (230 Volt) ................................................................................................................................ 23
2.5.2 The DC–board net (12 Volt)..................................................................................................................................... 23
2.5.3 Operating the installation and specific features ........................................................................................................ 23
2.5.4 Important warnings on the DC-installation (12 Volt)............................................................................................... 24
2.5.5 Important warnings on the AC-installation (230 Volt/ 115 Volt)............................................................................. 24
2.5.6.1 Distribution of electric devices (3 Cabins) ............................................................................................................ 25
2.5.6.2 Distribution of electric devices (2 Cabins) ............................................................................................................ 27
2.5.7 Wiring plans ............................................................................................................................................................. 29
2.5.8 Distribution plans ..................................................................................................................................................... 29
2.5.9 AC-distribution......................................................................................................................................................... 29
2.6 L.P.G. installation............................................................................................................................................................ 29
2.6.1 The components ....................................................................................................................................................... 29
2.6.2 Operation .................................................................................................................................................................. 30
2.7 Fire protection ................................................................................................................................................................. 30
2.8 Anchor (option) ............................................................................................................................................................... 32
2.9 Engine cooling system..................................................................................................................................................... 32
2.10 Exhaust gas system........................................................................................................................................................ 32
2.11 Ventilation/Airing ......................................................................................................................................................... 33
2.12 Board ducts, sea water valves ........................................................................................................................................ 33
2.13 Generator (Option for 44vision, 50vision, 50 Cruiser) .................................................................................................. 34
3. Environmental protection ........................................................................................................................................... 35
3.1 Fuel and oil ...................................................................................................................................................................... 35
3.2 Waste ............................................................................................................................................................................... 35
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
3 of 43
3.3 Sound............................................................................................................................................................................... 35
3.4 Swell ................................................................................................................................................................................ 35
3.5 Exhaust gas ...................................................................................................................................................................... 35
3.6 Antifouling coatings ........................................................................................................................................................ 35
3.7 Varnish removers ............................................................................................................................................................ 35
4. Maintenance ..................................................................................................................................................................... 36
4.1 Maintenance, cleaning ..................................................................................................................................................... 36
4.2 Wearing- and spare parts ................................................................................................................................................. 37
4.3 Repair work ..................................................................................................................................................................... 37
4.4 Winter storage ................................................................................................................................................................. 37
5. Final remarks and notes .............................................................................................................................................. 39
6. List of manuals supplied ............................................................................................................................................. 40
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
4 of 43
Introduction
This manual will help you to handle your yacht safely and with pleasure. Apart from information about the yacht
itself and installed or additionally supplied fittings the manual also contains information on operation and
maintenance. Please familiarise yourself with everything before you go on your first voyage.
If this is your first yacht or if you are not really familiar with the special characteristics of a motor yacht please
make sure you get proper training before you put it into operation. Do not hesitate to contact the dealer or our
shipyard for information about further training possibilities.
As the scope of supply depends on the order, the equipment of your yacht can deviate with some descriptions and
illustrations. In order to be able to adapt our yachts to the constantly progressing technical standard, we must
reserve ourselves changes in form, equipment and technology. For these reasons no requirements can be derived
from all data, illustrations and descriptions in this manual.
PLEASE KEEP THIS MANUAL IN A SAFE PLACE
AND HAND IT OVER TO THE NEW OWNER IF YOU SELL THE YACHT.
BAVARIA would like to welcome you to the circle of BAVARIA owners and would like to thank you for
placing your confidence in our products by acquiring this yacht.
Your contract partner and the management and staff of Bavaria Yachtbau GmbH hope you will enjoy your new
yacht.
Bon voyage, fair winds and fine weather.
BAVARIA Yachtbau GmbH
Management
K. Hammen
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
5 of 43
Category of design
Following the European Recreational Craft Directive each boat has to be classified according to a category of
design.
All sailing yachts of BAVARIA belong to the category of design A,
Designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave
heights of 4 m and above but excluding abnormal conditions, and vessels largely self-sufficient.

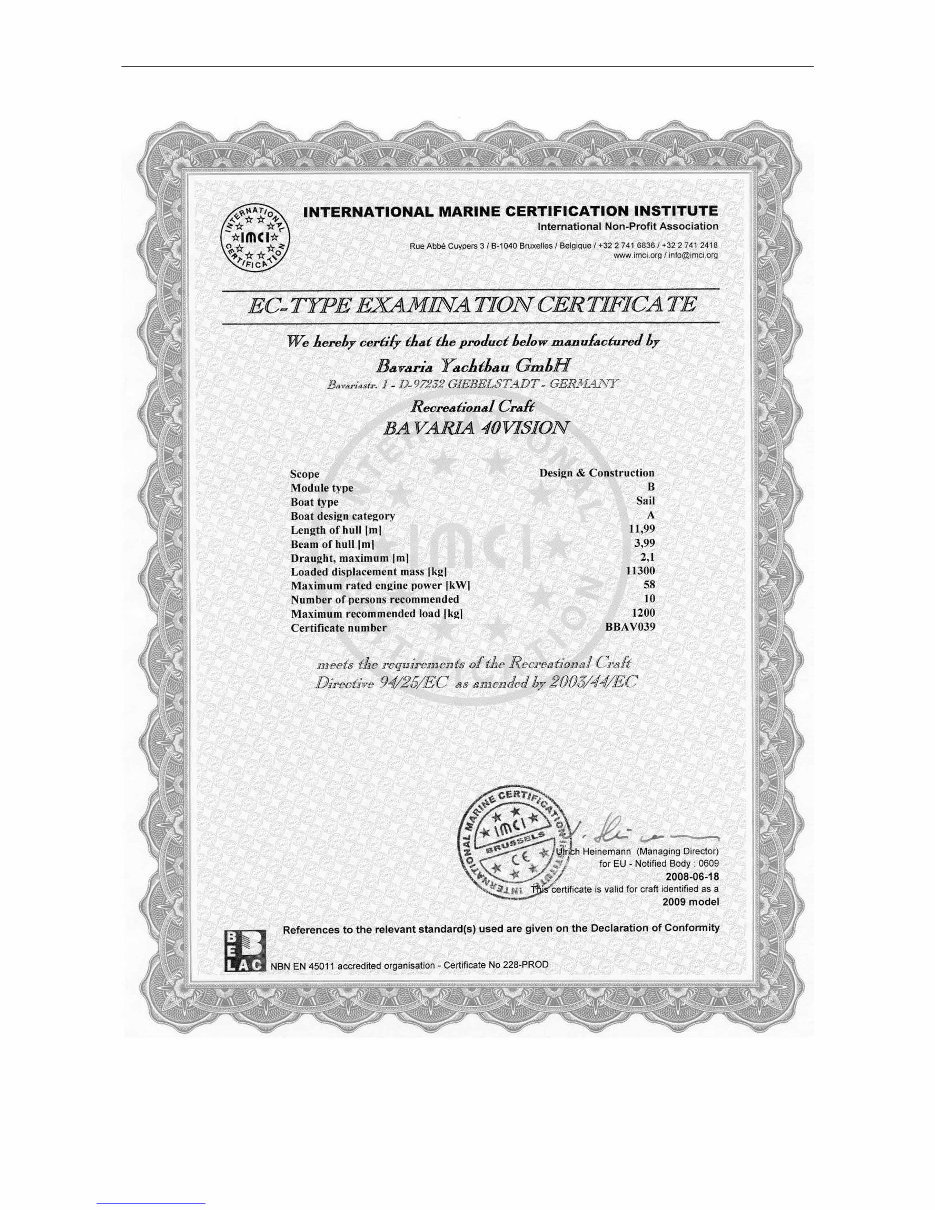

Certification
Actually the EC Directive intends for yachts of this size the certification module B.
IMCI (International Marine Certification Institute) located in Bruxelles was put into charge as a notified
body (see: Declaration of Conformity).
Identification
The hull identification was formed into the transom on starboard side. This is a unique sequence of digits and
letters.

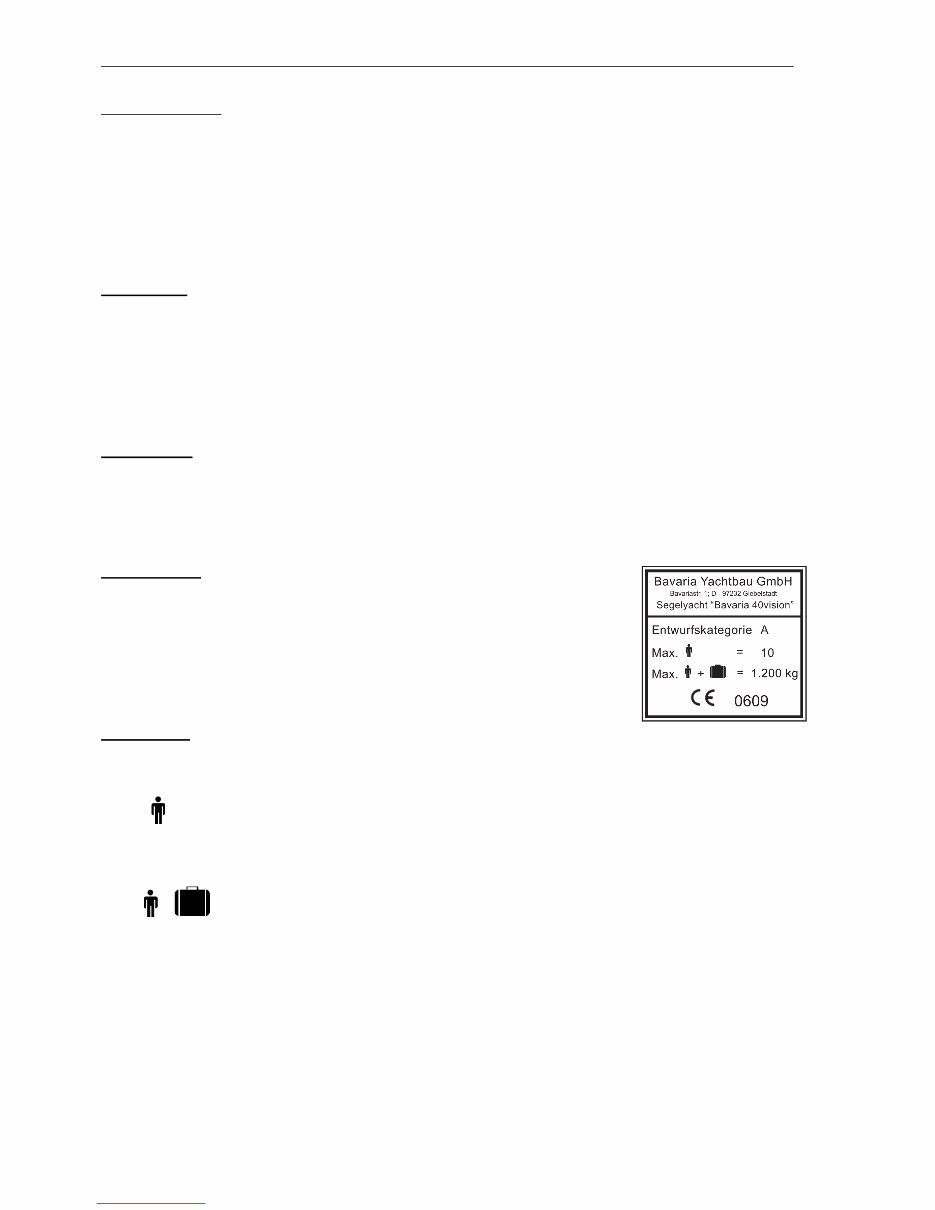

Builder’s plate
The builder’s plate on the front wall of the cockpit is a demand
of the Directive because certain information are required which will
be explained in the following.
Explanations
- Category of design A : Ocean
- Max. =10
: Maximum number of persons recommended by the manufacturer if the yacht
is situated in the sea area corresponding to the category of design. The number
of crew can be increased under consideration of the maximum additional
loading capacity if the yacht is on a voyage in non-ocean areas.
-Max + = 1200 kg
: Maximum additional loading including 10 persons, stores, provisions and
personal equipment (excluding tank capacities).
- CE 0609 : CE marking which indicates the conformity of the yacht with all provisions of
the Directive. The sequence of digits is the code number of the certifying
body, in this case the IMCI (International Marine Certification Institute)
(see: Declaration of Conformity).
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
6 of 43
Warnings
Many chapters of this manual will support a trouble free operation, maintenance or draw your attention to signs of
dangers. To find them more easily they are especially marked (in boxes or in bold). We advise you to study them
carefully although the experienced skipper might be quite familiar with many of them.
The following chapters contain such warnings/notes or other important information for operating the yacht.
Always consider the maritime duty to exercise diligence!
Danger
Means, that an extreme real hazard which will lead to the death or too irreparable injuries
with great probability exists if no adequate precautions are found.
Warning
Means, that a hazard which can lead to injuries or death exists if no adequate precautions
are found.
Caution
Means that a memory of safety measures or the attention judges on handling, which can
be unsure or lead to personal injuries or to harm of the vessel or from components.
Security advice
Attention!
From wind force 6 the hatch in the cab entrance is to be closed.
Attention!
Starting from wind force 6 the cab windows in the cockpit are to be closed.
Attention!
Make yourself and your crew familiar with the bath platform. It makes the re-entrance
possible!
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
9 of 43
Downloaded from www.Manualslib.com manuals search engine

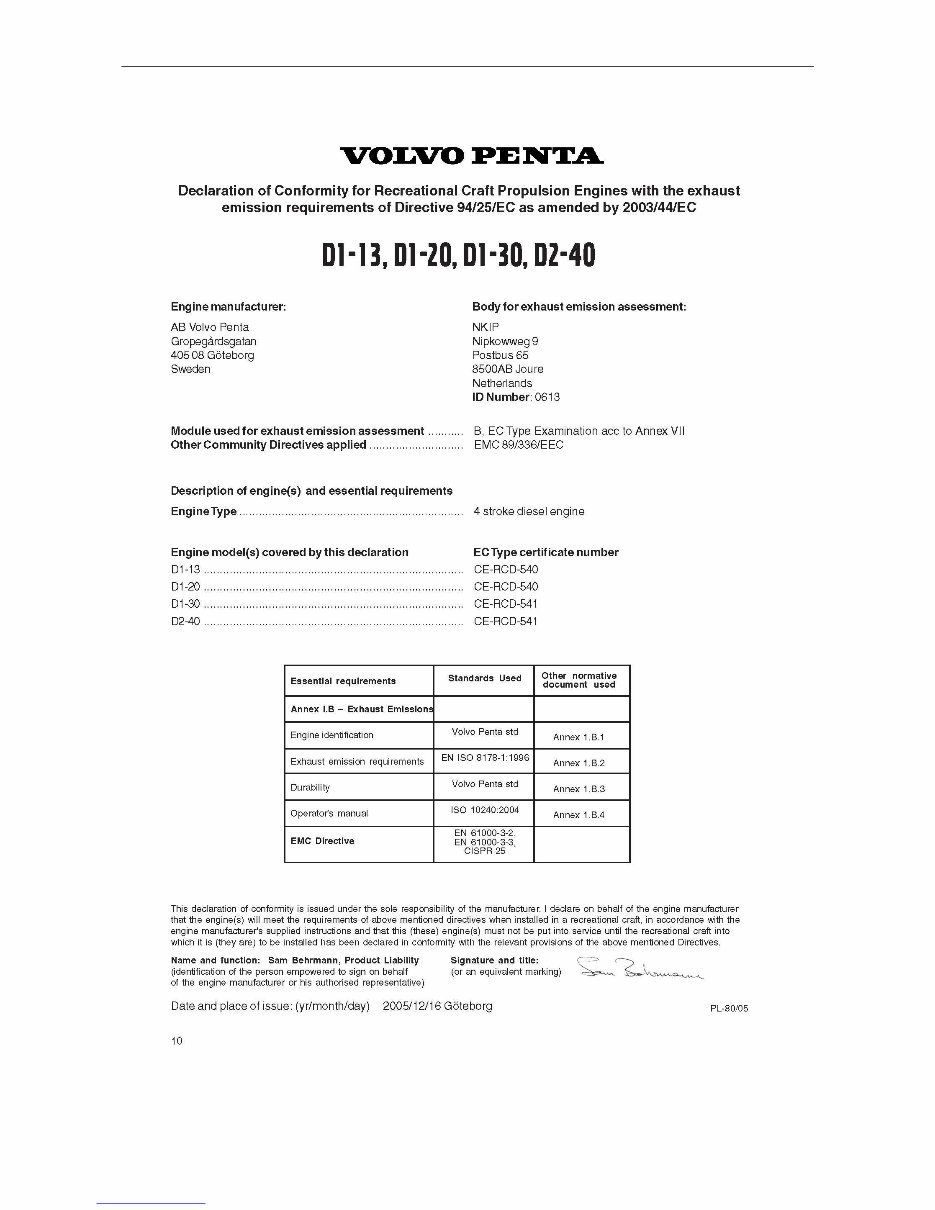

Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
10 of 43
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
11 of 43
1. Description of the yacht
1.1 Main particulars
1.1.1 Principal dimensions
Length overall LOA 12.70 m Length of hull LH 11.99 m
Length on waterline LW 10.60 m Breadth max. B max 3.99 m
Draught - normal keel Dmax abt 1.75 m Draught - leadkeel Dmax abt 2.10 m
Headroom (without antenna and similar things) HD abt 17.05 m
Headroom (for transport) HT abt 3.85 m
1.1.2 Displacement and weights
Weight of the empty yacht -incl. safety equipment 8 200 kg
Weight of the fully equipped yacht- ready for sailing with crew (normal keel) 11.300 kg
Ballast normal keel 3 050 kg
1.1.3 Motorization
Diesel engine:
Manufacturer: Volvo Type: D2-40 Output 29.1 kW or D2-55 Output 41 kW
Cooling indirect (sea-/fresh-water)
Reverse-reduction gear Saildrive 130 S reduction ratio 2.19 : 1
Propeller: 3-bladed fixed propeller, aluminium alloy (option: folded propeller)
1.1.4 Electrical installation
220/110 V (option) AC-installation
Shore connection (option) socket CEE-plug current operated 230 V earthed socket
Battery charger (option) 115 V/ 230 V AC / 12 V DC with 27 A max. current (option)
12 V DC-system
1 x engine battery 12 V 55 Ah 1 x bord battery (option 2 x) 12 V 140 Ah
Motor generator (alternator) battery charger (option)
The distribution occurs about switchboard, electric circuits with electronic protective switches and LED.
1.1.5. Tank capacities
1 fresh water tank abt 210 l on port side below the aftcabin berth.
1 fuel tank abt 210 l on starboard side below the aftcabin berth.
1 fresh water tank abt 210 l into the bow.
1 holding tank II abt 70 l
1 gas cylinder (option) abt 3 kg (Butane) in cockpit

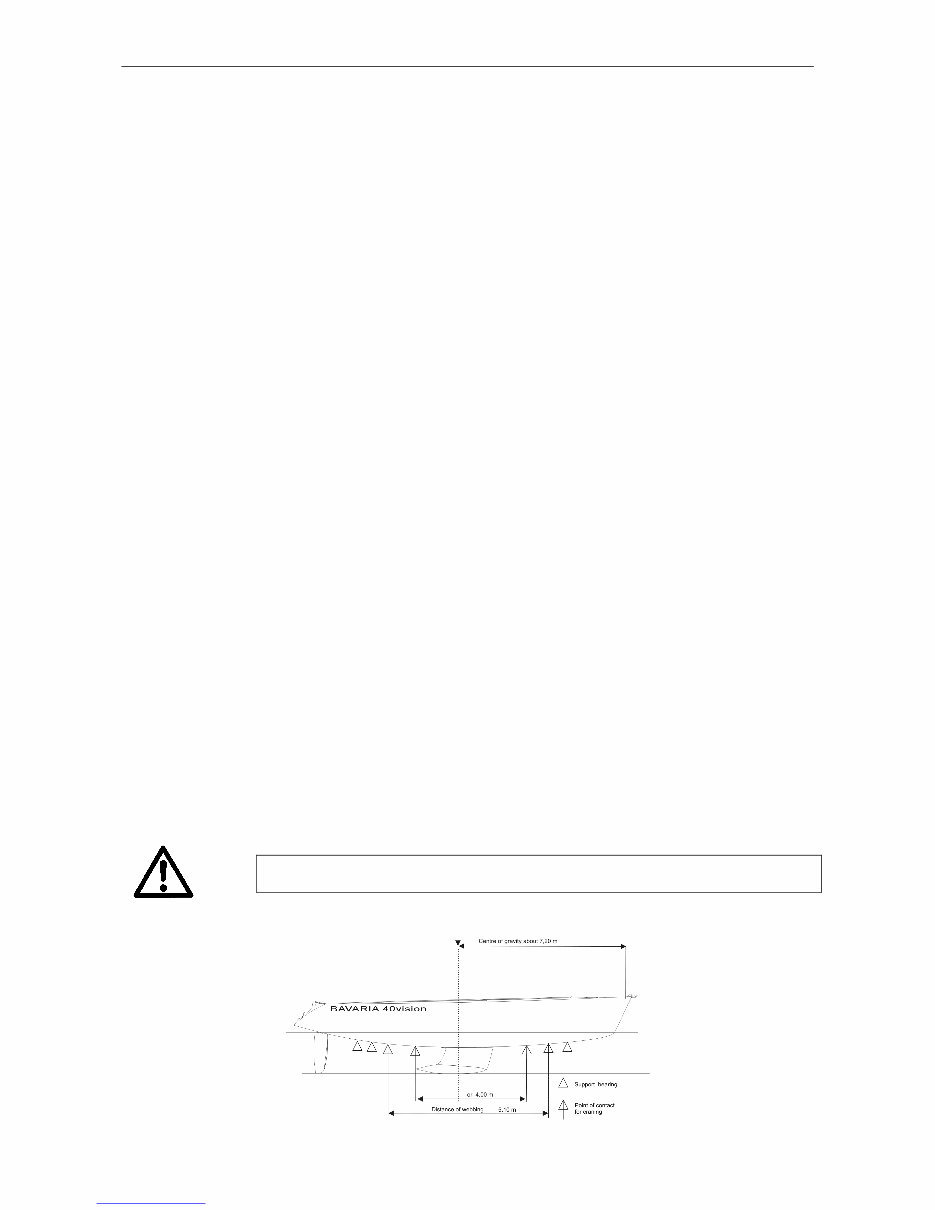

1.1.6. Fixing points for cranes, resting-points for slipping and transport
Attention
The rear webbing will be placed in the area of the sail drive.
Downloaded from www.Manualslib.com manuals search engine
Sailing yacht “Bavaria 40vision” Bavaria Yachtbau GmbH
12 of 43
1.2 General arrangement

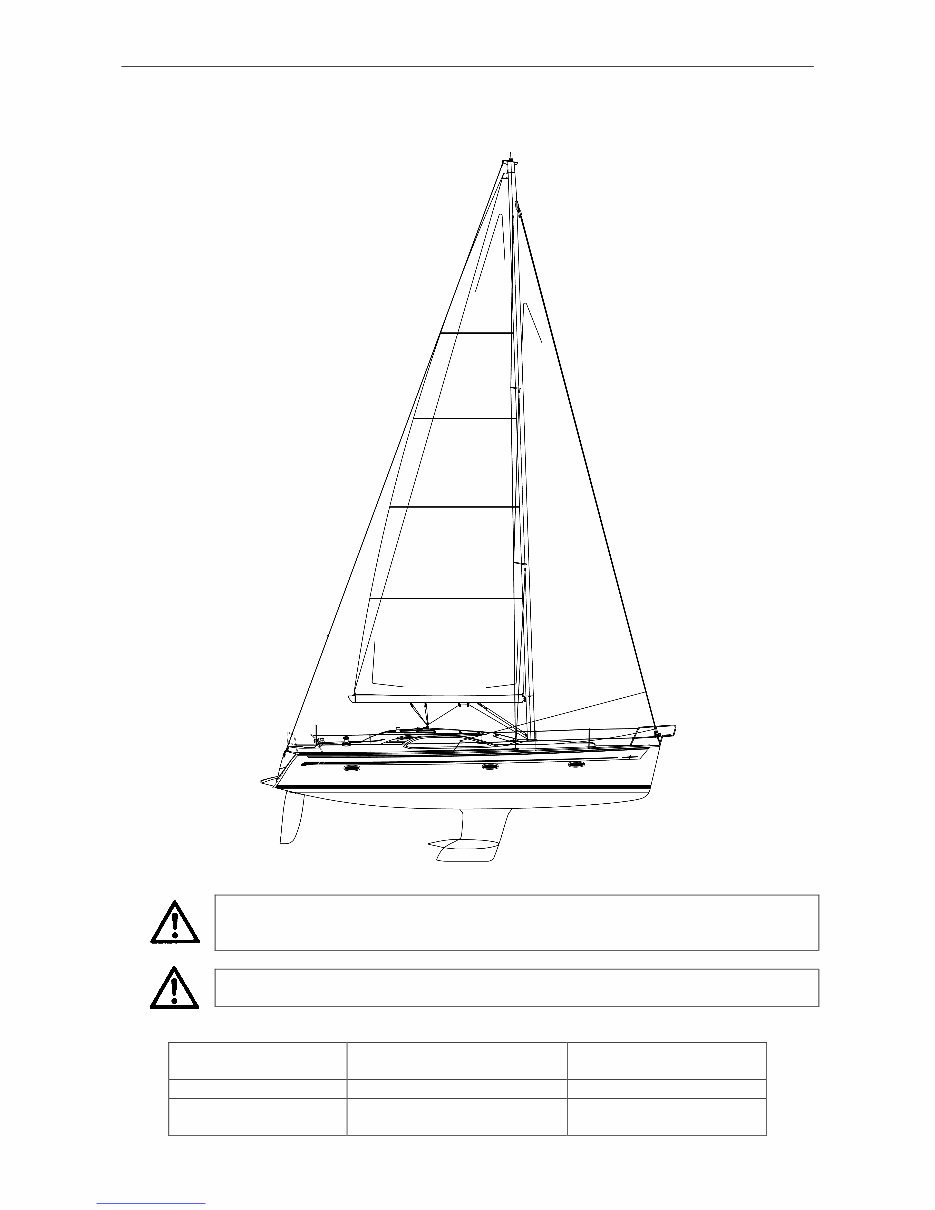

1.2.1 Rigging plan
Reference
The valid measuring of the foresail reefing gear are on the enclosure note at the carton of the
Furlex-foresail reefing gear.
Caution!
Do not enter the front salon windows and the deck hatch. Slip hazard!
Minimum operating condition
(mMOC)
Loaded displacement
condition (mLDM)
STIX 32,8 37,7
Angle of vanishing
(degrees)
125° 125
Downloaded from www.Manualslib.com manuals search engine
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$26.99
$35.99
Bavaria Yachts 40 vision Manual For Owners And Skippers
Viewed 25 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$26.99
$35.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
This Bavaria Yachts 40 Vision Manual is a comprehensive resource designed for both professional mechanics and DIY enthusiasts. It offers detailed guidance on the handling, operations, troubleshooting, repair, and maintenance of the Bavaria 40 Vision yacht and its systems.
Models Covered:
- Bavaria 40 Vision
The manual is available in digital format as a .PDF file, allowing for easy storage and access on various devices. Whether you're a professional or a DIY enthusiast, this manual ensures that all the necessary information is readily available for smooth sailing experiences.
