Manual for owners and skippers N //1 I // I // 1/ I I 1 1~, I i I 1 \ I I 111 . ! . ll I / / !/ I / / iij1 1 .. I I I / / _: /1 / I . 11 I I ' ' I / i : Ill I i i ! / I I / : I I I / l _; Hn I / i 1 1 ,I: I /1 . il'i I / .J/~- ·- -. #.m 1 ·1 1 1 '\I/ 11 " / , / I .,.., I~ ' 'J Sailing yacht ,,BAVARIA 37 - 2 cabins" BAVARlA YACHTS Bavaria Yachtbau GmbH • industriestra13e 11 • D - 97232 Giebelstadt Tel.: +49 (0) 9334 942 - 0; Fax: +49 (0)9334 942 - 116 e-mail: info@bavaria-yachtbau.com

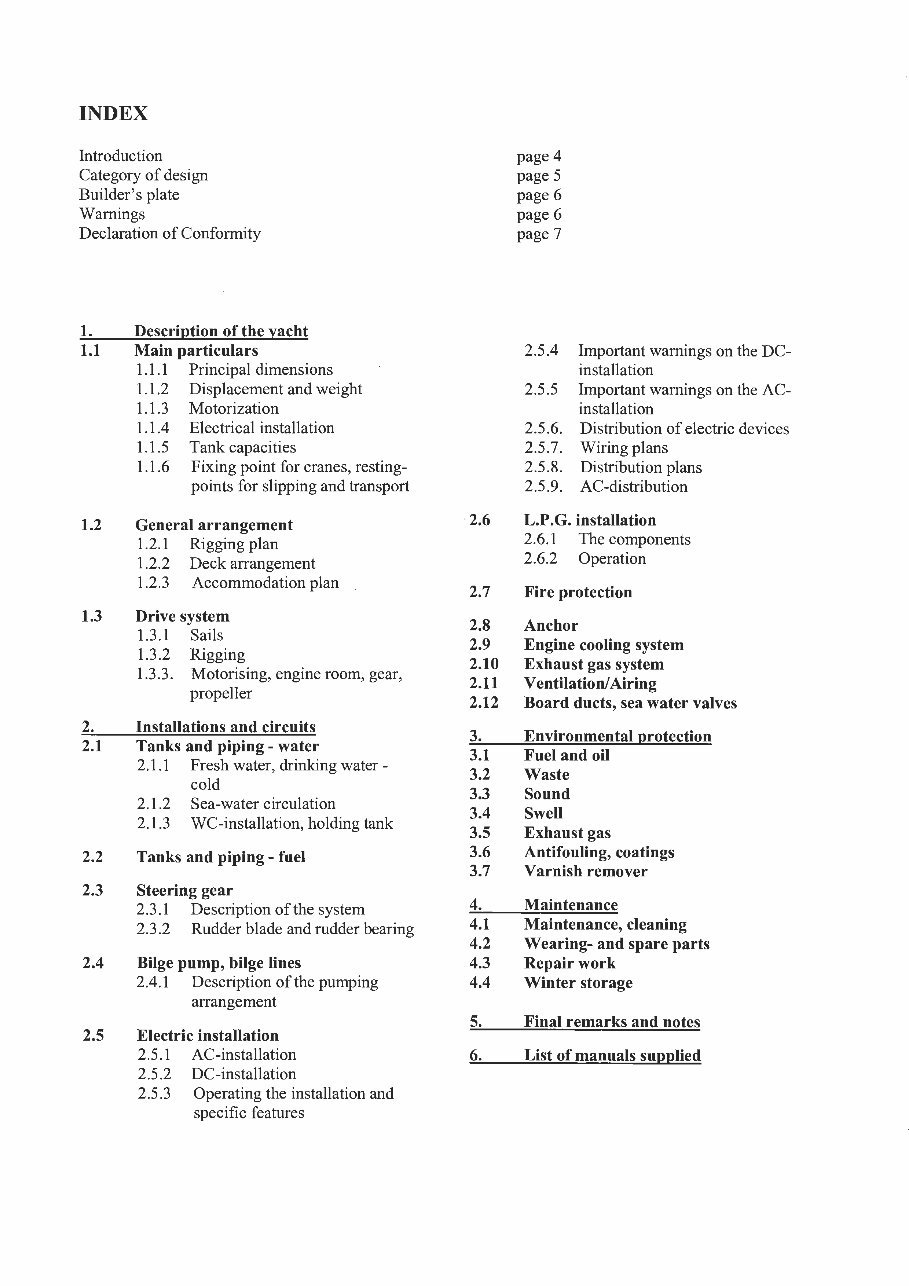

INDEX Introduction Category of design Builder's plate Warnings Declaration of Conformity 1. Descrintion of the yacht 1.1 Main particulars 1.1.1 Principal dimensions 1.1.2 Displacement and weight 1.1.3 Motorization 1.1.4 Electrical installation 1.1.5 Tank capacities 1.1.6 Fixing point for cranes, resting - points for slipping and transport 1.2 General arrangement 1.2.1 Rigging plan 1.2.2 Deck arrangement 1.2.3 Accommodation plan 1.3 Drive system 1.3.1 Sails 1.3.2 Rigging 1.3.3. Motorising, engine room, gear, propeller 2. Installations and circuits 2.1 Tanks and piping - water 2.1.1 Fresh water, drinking water - cold 2.1.2 Sea-water circulation 2.1.3 WC-installation, holding tank 2.2 Tanks and piping - fuel 2.3 Steering gear 2.3.1 Description of the system 2.3.2 Rudder blade and rudder bearing 2.4 Bilge pump, bilge lines 2.4.1 Description of the pumping arrangement 2.5 Electric installation 2.5.1 AC-installation 2.5.2 DC-installation 2.5.3 Operating the installation and specific features 2.6 2.7 2.8 2.9 2.10 2.11 2.12 3. 3.1 3.2 3.3 3.4 3.5 3.6 3.7 4. 4.1 4.2 4.3 4.4 5. 6. page4 page 5 page 6 page 6 page 7 2.5.4 2.5.5 2.5.6. 2.5.7. 2.5.8. 2.5.9. Important warnings on the DC- installation Important warnings on the AC- installation Distribution of electric devices Wiring plans Distribution plans AC-distribution L.P.G. installation 2.6.1 The components 2.6.2 Operation Fire protection Anchor Engine cooling system Exhaust gas system Ventilation/ Airing Board ducts, sea water valves Environmental nrotection Fuel and oil Waste Sound Swell Exhaust gas Antifouling, coatings Varnish remover Maintenance Maintenance, cleaning Wearing- and spare parts Repair work Winter storage Final remarks and notes List of manuals sunnlied

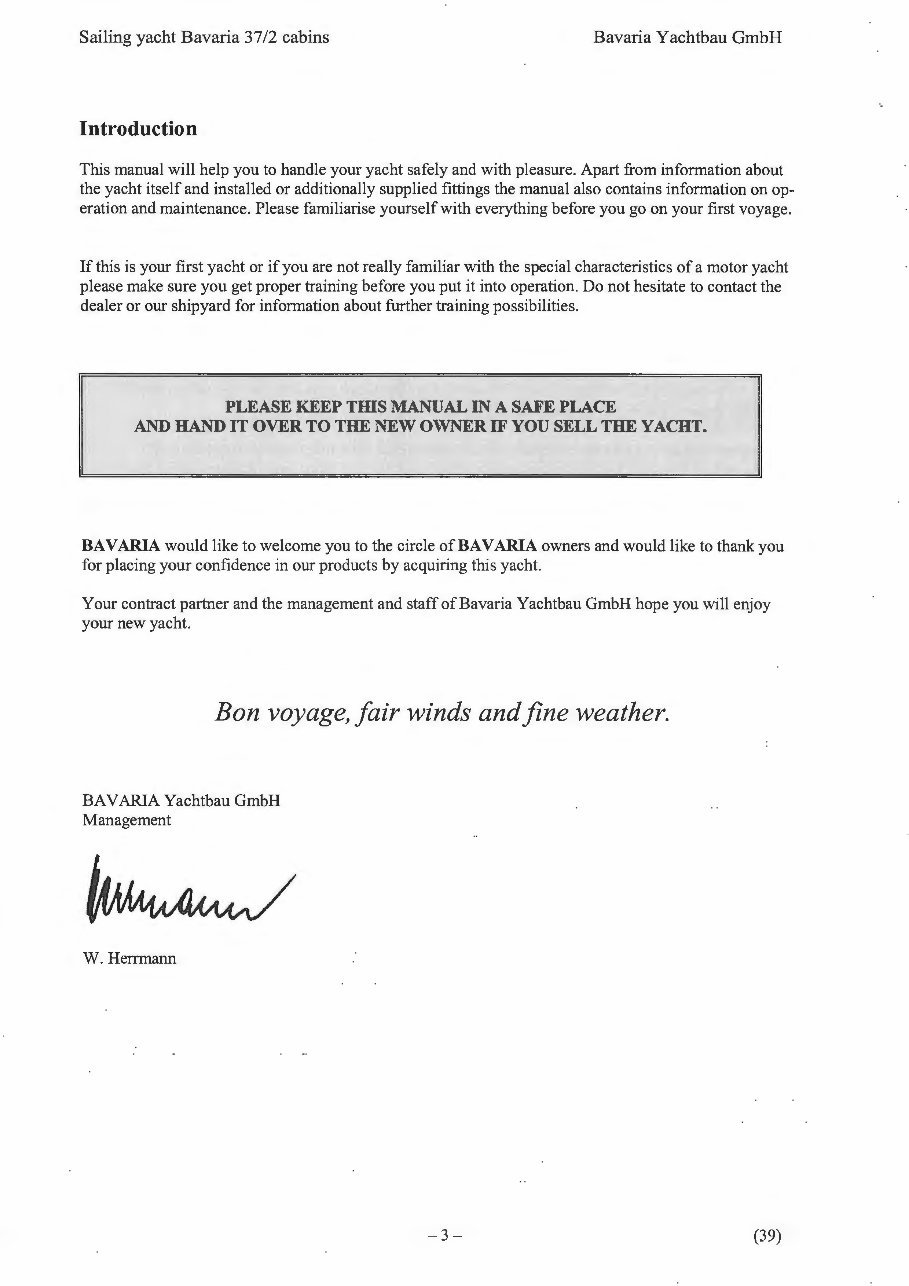

Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH Introduction This manual will help you to handle your yacht safely and with pleasure. Apart from information about the yacht itself and installed or additionally supplied fittings the manual also contains information on operation and maintenance. Please familiarise yourself with everything before you go on your first voyage. If this is your first yacht or if you are not really familiar with the special characteristics of a motor yacht please make sure you get prop er training before you put it into operation. Do not hesitate to contact the dealer or our shipyard for information about further training possibilities. PLEASE KEEP TIDS MANUAL IN A SAFE PLACE AND HAND IT OVER TO THE NEW OWNER IF YOU SELL THE YACHT. BAVARIA would like to welcome you to the circle of BAVARIA owners and would like to thank you for placing your confidence in our products by acquiring this yacht. Your contract partner and the management and staff of Bavaria Yachtbau GmbH hope you will enjoy your new yacht. Bon voyage, fair winds and fine weather. BAVARIA Yachtbau GmbH Management W. Herrmann - 3- (39)

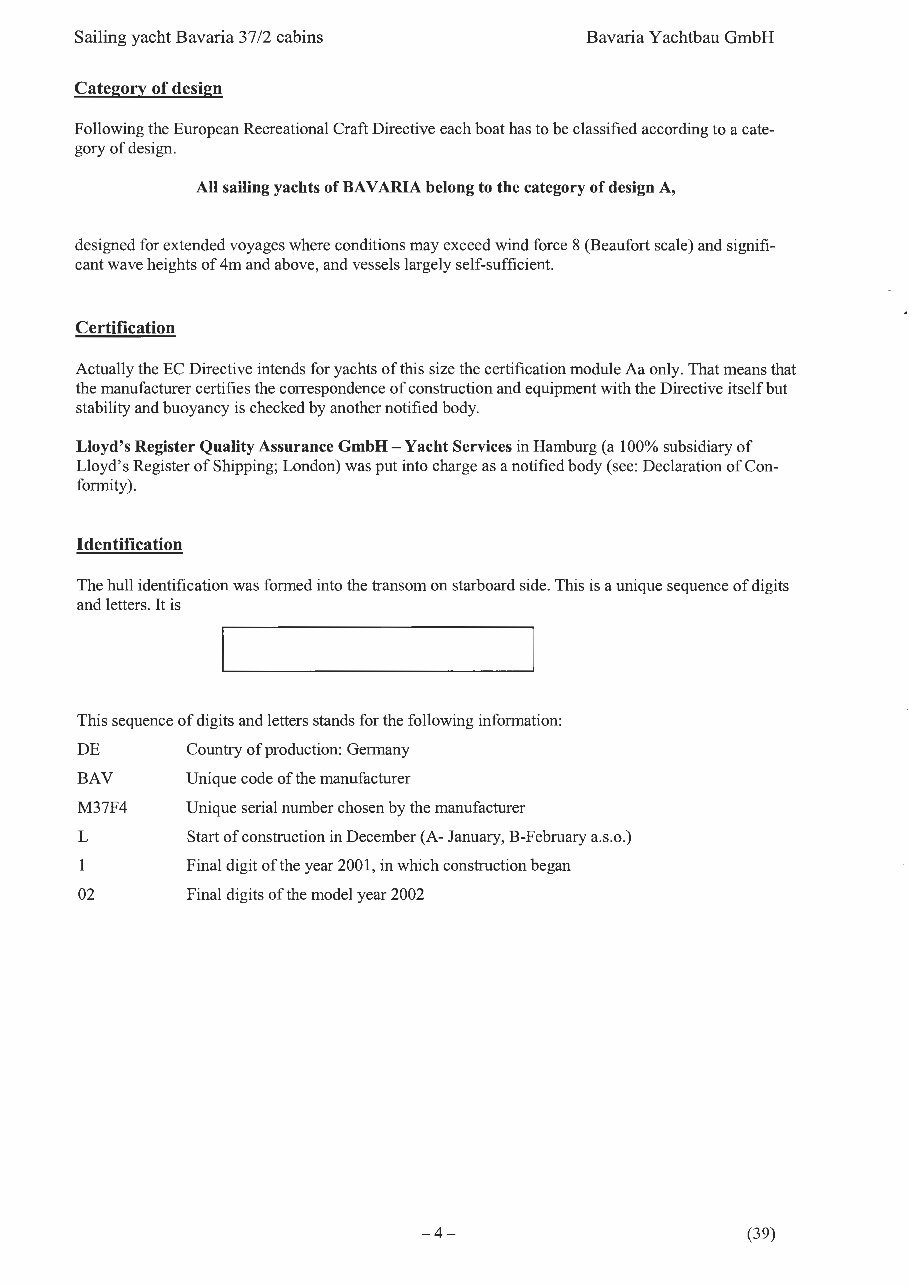

DE-BAVM37 XX XXX Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH Category of design Following the European Recreational Craft Directive each boat has to be classified according to a category of design. All sailing yachts of BAVARIA belong to the category of design A, designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and signifi- cant wave heights of 4m and above, and vessels largely self-sufficient. Certification Actually the EC Directive intends for yachts of this size the certification module Aa only . That means that the manufacturer certifies the correspondence of construction and equipment with the Directive itself but stability and buoyancy is checked by another notified body. Lloyd's Register Quality Assurance GmbH- Yacht Services in Hamburg (a 100% subsidiary of Lloyd's Register of Shipping; London) was put into charge as a notified body (see: Declaration of Con- formity). Identification The hull identification was formed into the transom on starboard side. This is a unique sequence of digits and letters . It is This sequence of digits and letters stands for the following information: DE BAV M37F4 L 1 02 Country of production: Germany Unique code of the manufacturer Unique serial number chosen by the manufacturer Start of construction in December (A- January, B-February a.s.o.) Final digit of the year 2001, in which construction began Final digits of the model year 2002 -4- (39)

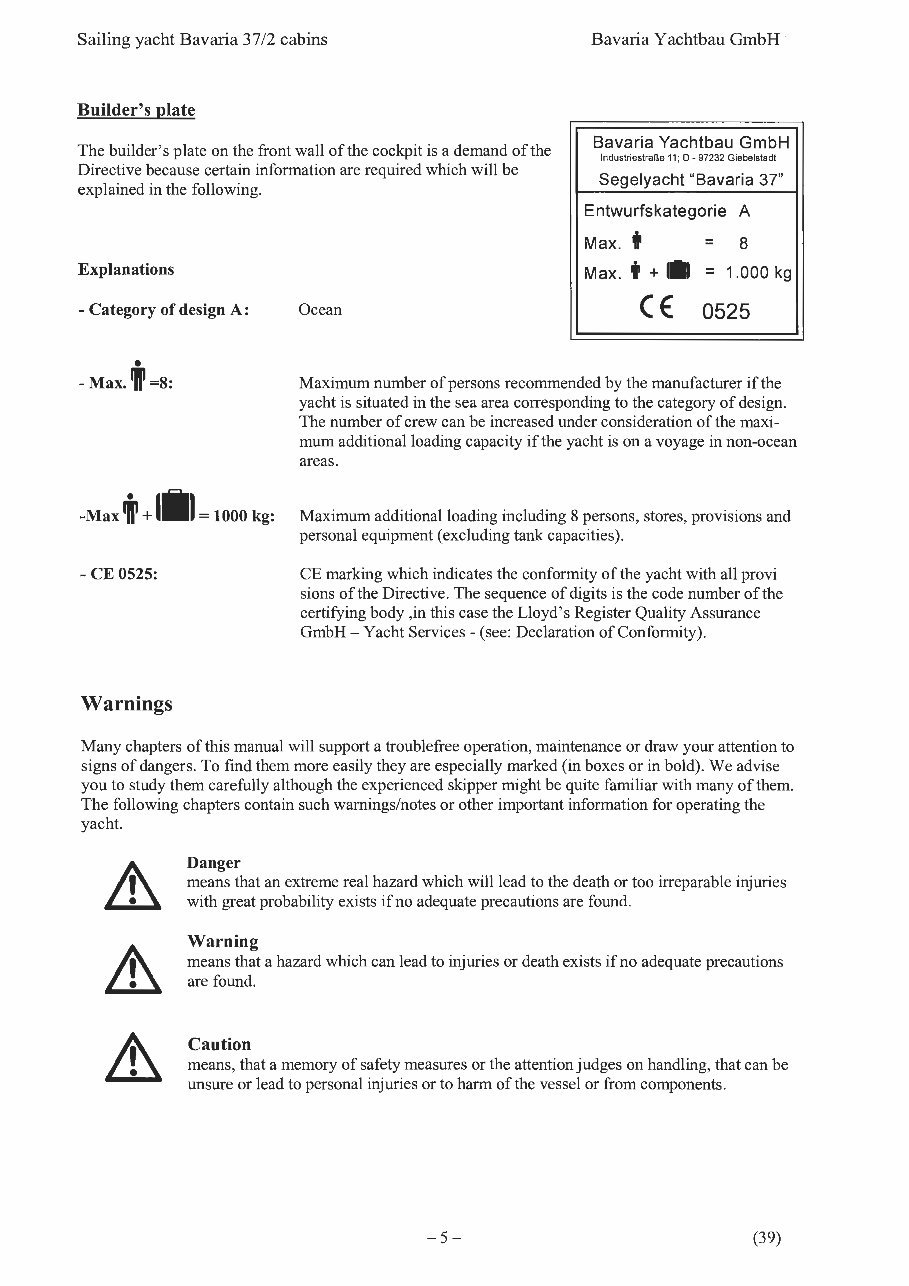

Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH · Builder's plate The builder's plate on the front wall of the cockpit is a demand of the Directive because certain information are required which will be explained in the following . Bavaria Yachtbau GmbH lndustriestrar..e 11; D - 97232 Giebelstadt Segelyacht "Bavaria 37" Explanations Entwurfskategor ie A Max. 'n' = Max. T + 1a = 8 1.000 kg - Category of design A: Ocean CE 0525 • -Max. 'Jll=s: Maximum number of persons recommended by the manufacturer if the yacht is situated in the sea area corresponding to the category of design. The number of crew can be increased under consideration of the maximum additional loading capacity if the yacht is on a voyage in non -ocean areas. -Max 'ft'+,.,= 1000 kg: Maximum additional loading including 8 persons, stores, provisions and personal equipment (excluding tank capacities). - CE 0525 : Warnings CE marking which indicates the conformity of the yacht with all provi sions of the Directive. The sequence of digits is the code number of the certifying body ,in this case the Lloyd's Register Quality Assurance GmbH- Yacht Services - (see: Declaration of Conformity). Many chapters of this manual will support a troublefree operation, maintenance or draw your attention to signs of dangers. To find them more easily they are especially marked (in boxes or in bold) . We advise you to study them carefully although the experienced skipper might be quite familiar with many of them. The following chapters contain such warnings/notes or other important information for operating the yacht. Danger means that an extreme real hazard which will lead to the death or too irreparable injuries with great probability exists if no adequate precautions are found . Warning means that a hazard which can lead to injuries or death exists if no adequate precautions are found. Caution means, that a memory of safety measures or the attention judges on handling , that can be unsure or lead to personal injuries or to harm of the vessel or from components. - 5- (39)

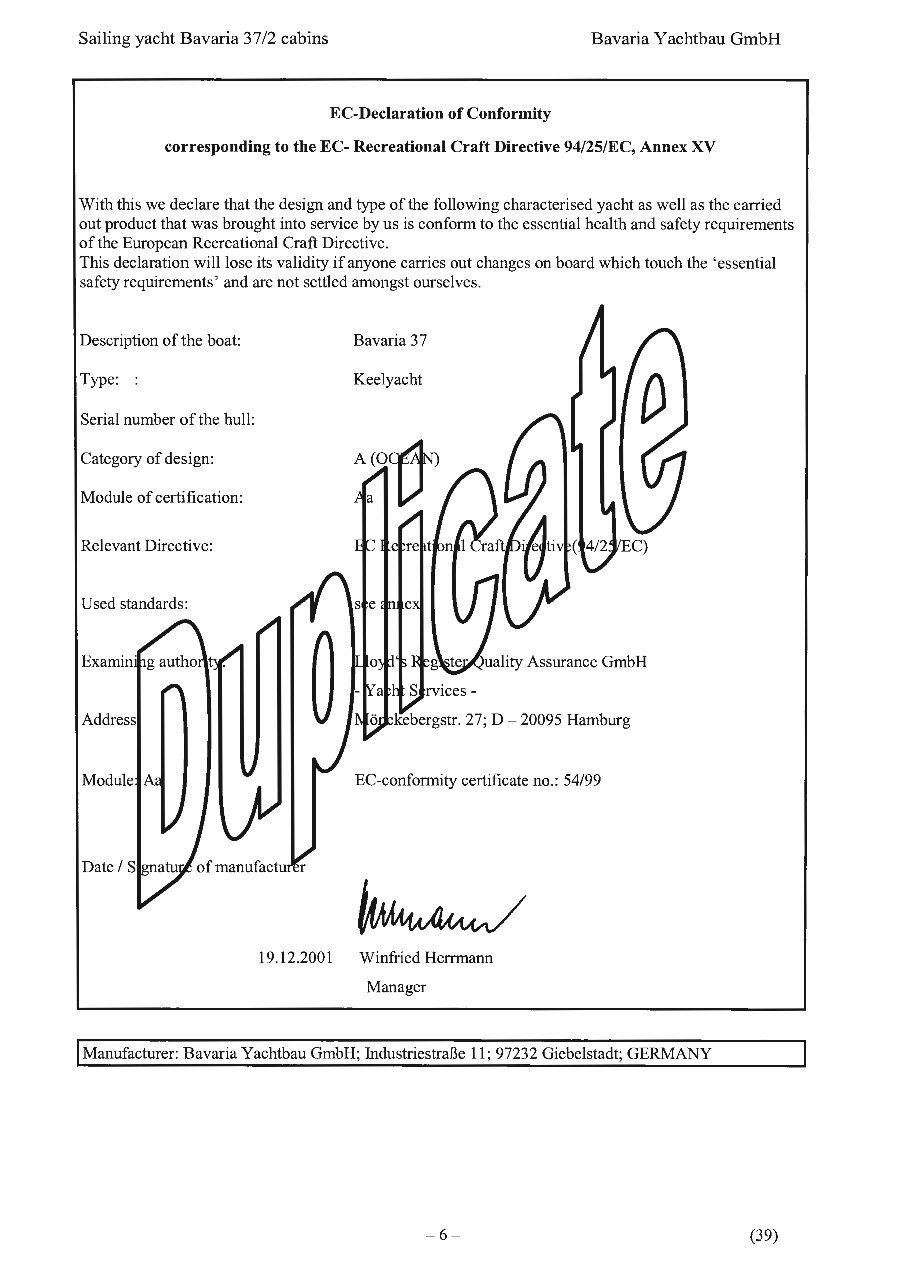

Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH EC-Declaration of Conformity corresponding to the EC- Recreational Craft Directive 94/25/EC, Annex XV With this we declare that the design and type of the following characterised yacht as well as the carried out product that was brought into service by us is conform to the essential health and safety requirements of the European Recreational Craft Directive. This declaration will lose its validity if anyone carries out changes on board which touch the 'essential safety requirements' and are not settled amongst ourselves . Description of the boat: Bavaria 37 Type: : Keelyacht Serial number of the hull: Category of design: Module of certification: Relevant Directive: Used standards: uality Assurance GmbH Address EC-conformity certificate no .: 54/99 19.12.2001 Winfried Herrmann Manager Manufacturer: Bavaria Yachtbau GmbH; Industriestra!3e 11; 97232 Giebelstadt; GERMANY -6 - (39)

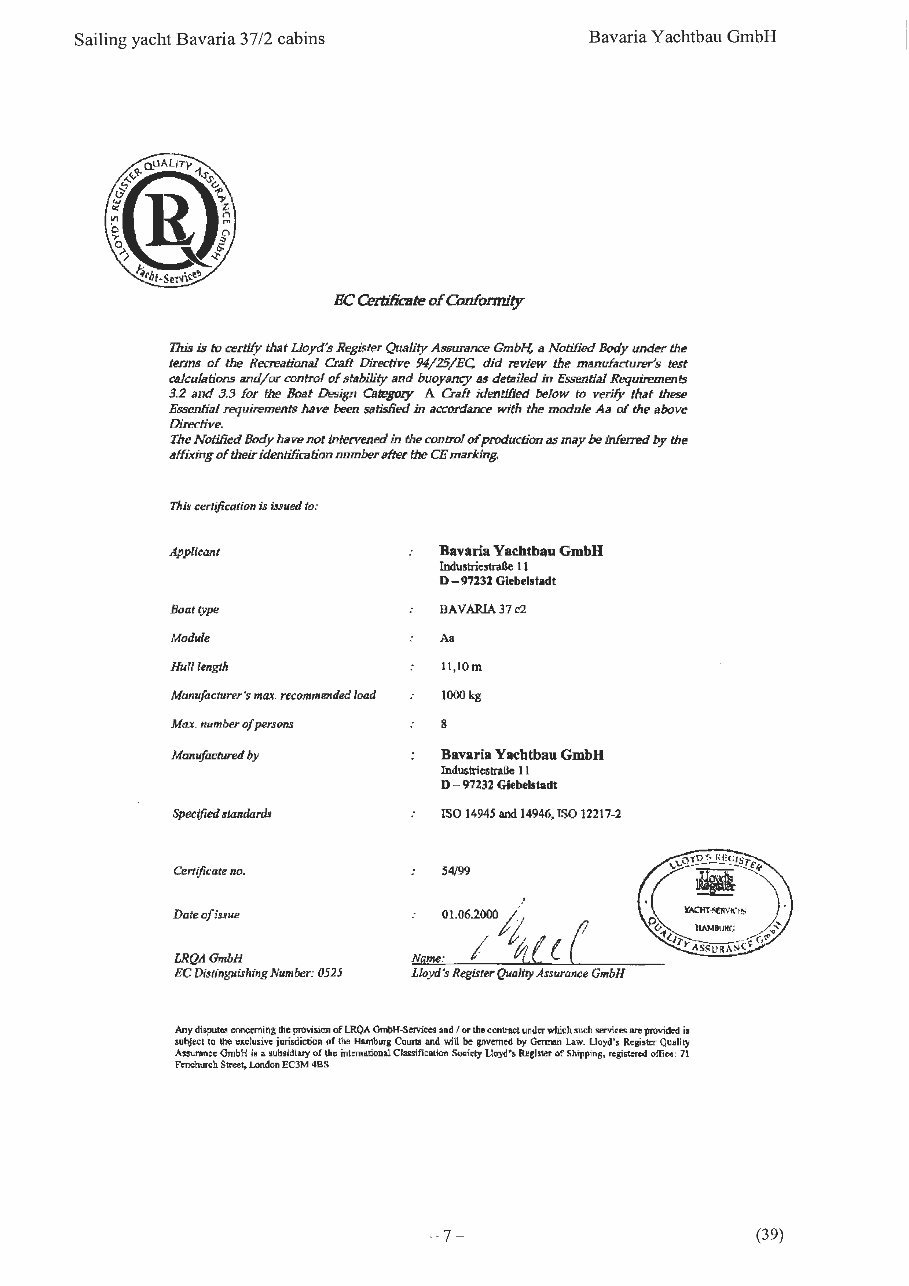

Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH EC Certificate of Conformity This is to certify that LJoyd's Register Quality Assurance GmbH, a Notified Body under the tenns of the Recreational Craft Directive 94/25/EC,. did review the manufacturer's test calcuf.,tions and/or control of stability and buoyancy as det11iledin Essential Requirements 3.2 and 3.3 for the Boat Design Category A Craft ;dentilied below to verify that these E5SeI!lial requiremenm have been satisfied in accordance with the module Aa al the above Direcllvt!!. The Notified Body have not intervened in the conlrol Q/producficm as may be inferred by the affixing of their identificau.annumber ufter the CEmarking. Thi~ certification ill issued to: Applicant Boat type Module Hull length Mmiufacturer':, max. recommended load Max. number of persons Manufactured. by Specified standardJ Certifkate no. Dateofis!llle LRQAGmbH EC Dittinguishing Number: 0525 Bavaria Yachtbau GmbH Industriestra.Be 11 D - 97232 Giebel1t.11dt BAVARIA 37 c2 Aa 11,IOm 1000 kg 8 Bavaria Yacbtbau Gm.bH Industtiestralle 11 D - 97232 Giebelstadt ISO 14945 and 14946, ISO 12217-2 54199 ( Lloyd's Register Qualiry Assurance GmbH Any di•pute.< coocerning the provision of LRQA C',m:1H-ServicC9 and/ or the conltllCt ~mlt:r which such services are-provided is 8Ubj«:l 1o the =lusivc jurisdiction of the Hamb11rg Comll! and wilt be governed by Gcrmon Law. Llo~d's Rel!i•tcr Quality As:su!'lltlce GmbH is • aubsidiary of Ill• international Cla .. ificetion Sucioty LlO)'<l'• llegi,ter of Shippins , registcrc'1 omoo, 71 FrnobUJ<hStreet, Lorulon EC3M 4BS - 7- (39)

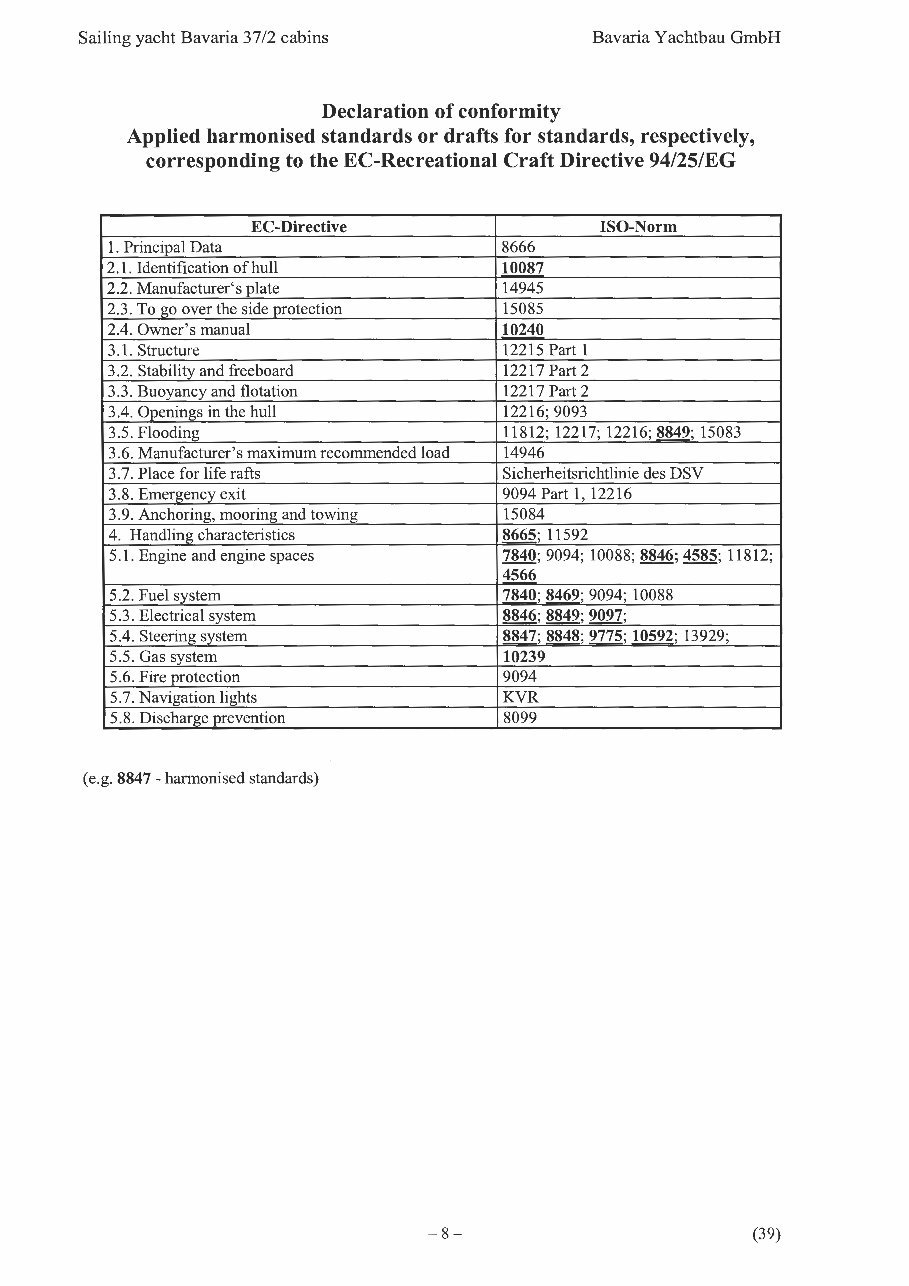

Sailing yacht Bavaria 37/2 cabins Bavaria Y achtbau GmbH Declaration of conformity Applied harmonised standards or drafts for standards, respectively, corresponding to the EC-Recreational Craft Directive 94/25/EG EC-Directive ISO-Norm 1. Principa l Data 8666 2.1. Identification of hull 10087 2.2. Manufacturer 's plate 14945 2.3. To go over the side protection 15085 2.4. Owner 's manual 10240 3 .1. Structure 12215 Part 1 3.2. Stability and freeboard 12217 Part 2 3 .3. Buoyancy and flotation 12217 Part 2 3.4. Openings in the hull 12216;9093 3.5. Flooding 11812; 12217; 12216; 8849; 15083 3.6. Manufacturer's maximum recommended load 14946 3.7. Place for life rafts Sicherheitsrichtlinie des DSV 3.8. Emergency exit 9094 Part 1, 12216 3.9. Anchoring, mooring and towing 15084 4. Handling characteristics 8665; 11592 5 .1. Engine and engine spaces 7840; 9094; 10088;8846;4 585; 11812; 4566 5.2. Fuel system 7840;8469;9094; 10088 5 .3. Electrical system 8846; 8849; 9097; 5 .4. Steering system 8847;8848;9775; 10592; 13929; 5. 5. Gas system 10239 5.6. Fire protection 9094 5.7. Navigation lights KVR 5.8. Discharge prevention 8099 (e.g. 8847 - harmonised standards) - 8- (39)

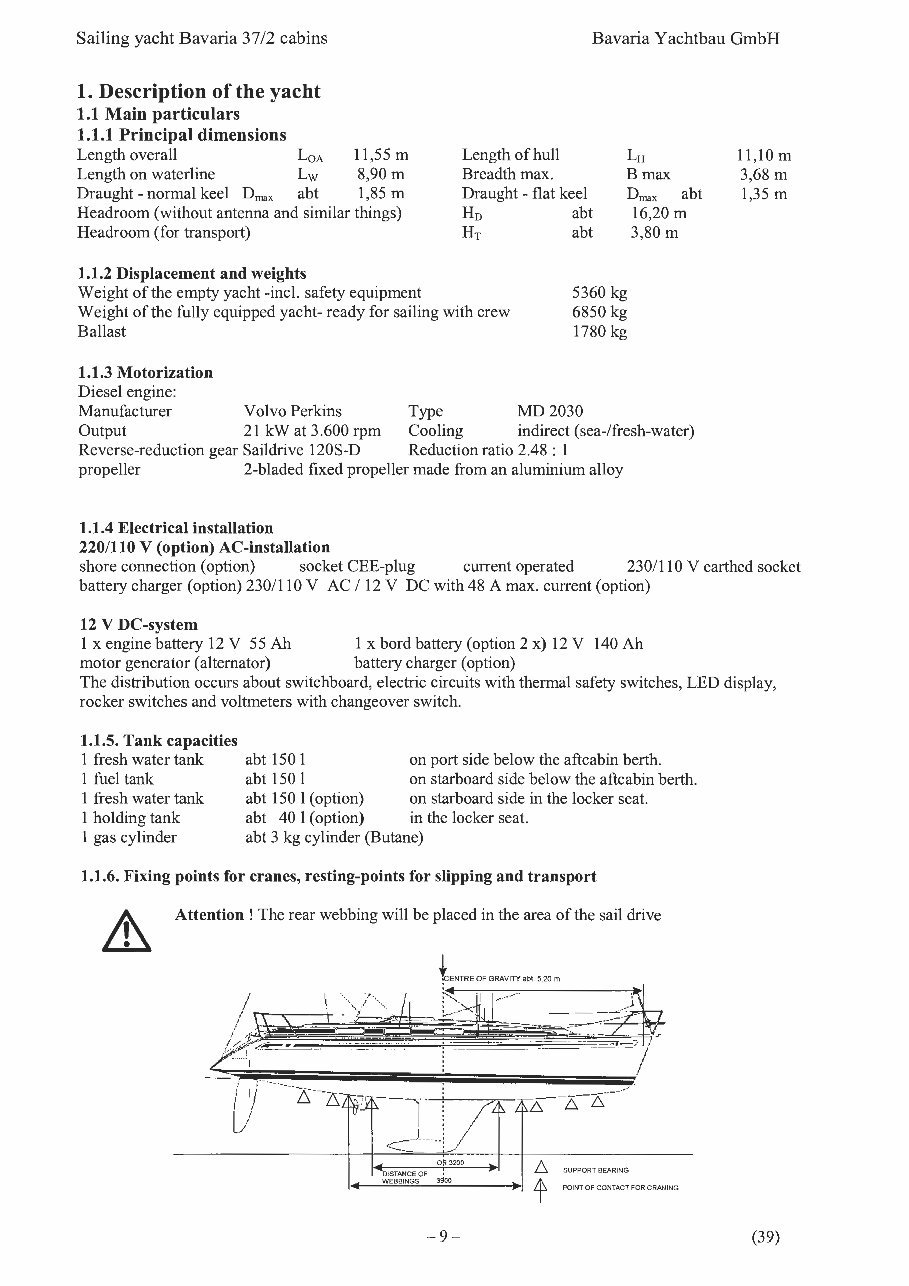

Sailing yacht Bavaria 3 7/2 cabins Bavaria Y achtbau GmbH 1. Description of the yacht 1.1 Main particulars 1.1.1 Principal dimensions Length overall LoA 11,55 m Length on waterline Lw 8,90 m Draught -normal keel Dmax abt 1,85 m Headroom (without antenna and similar things) Headroom (for transport) 1.1.2 Displacement and weights Length of hull Breadth max . Draught - flat keel Ho abt HT abt LH Bmax Dmax abt 16,20 m 3,80m Weight of the empty yacht -incl. safety equipment Weight of the fully equipped yacht- ready for sailing with crew Ballast 5360 kg 6850 kg 1780 kg 1.1.3 Motorization Diesel engine: Manufacturer Volvo Perkins Type MD 2030 Output 21 kW at 3.600 rpm Cooling indirect (sea-/fresh-water) Reverse -reduction gear Saildrive 120S-D Reduction ratio 2.48 : 1 propeller 2-bladed fixed propeller made from an aluminium alloy 1.1.4 Electrical installation 220/ 110 V (option) AC-installation 11,10 m 3,68 m 1,35 m shore connection (option) socket CEE-plug current operated 230/110 V earthed socket battery charger (option) 230/110 V AC/ 12 V DC with 48 A max. current (option) 12 V DC-system 1 x engine battery 12 V 55 Ah 1 x bord battery (option 2 x) 12 V 140 Ah motor generator (alternator) battery charger (option) The distribution occurs about switchboard, electric circuits with thermal safety switches, LED display, rocker switches and voltmeters with changeover switch. 1.1.5. Tank capacities 1 fresh water tank abt 150 1 on port side below the aftcabin berth . 1 fuel tank abt 150 1 on starboard side below the aftcabin berth. 1 fresh water tank abt 150 1( option) on starboard side in the locker seat. 1 holding tank abt 40 1 (option) in the locker seat. 1 gas cylinder abt 3 kg cylinder (Butane) 1.1.6. Fixing points for cranes, resting-points for slipping and transport Attention ! The rear webbing will be placed in the area of the sail drive {ENTRE OF GRAVITY abt. 5,20 m / I/ I I l_/ .. DISTANCE OF or 32 00 )Iii SUPPORT BEARING WEBBINGS 3sl00 t POINT OF CONTACT FOR CRANING - 9- (39)

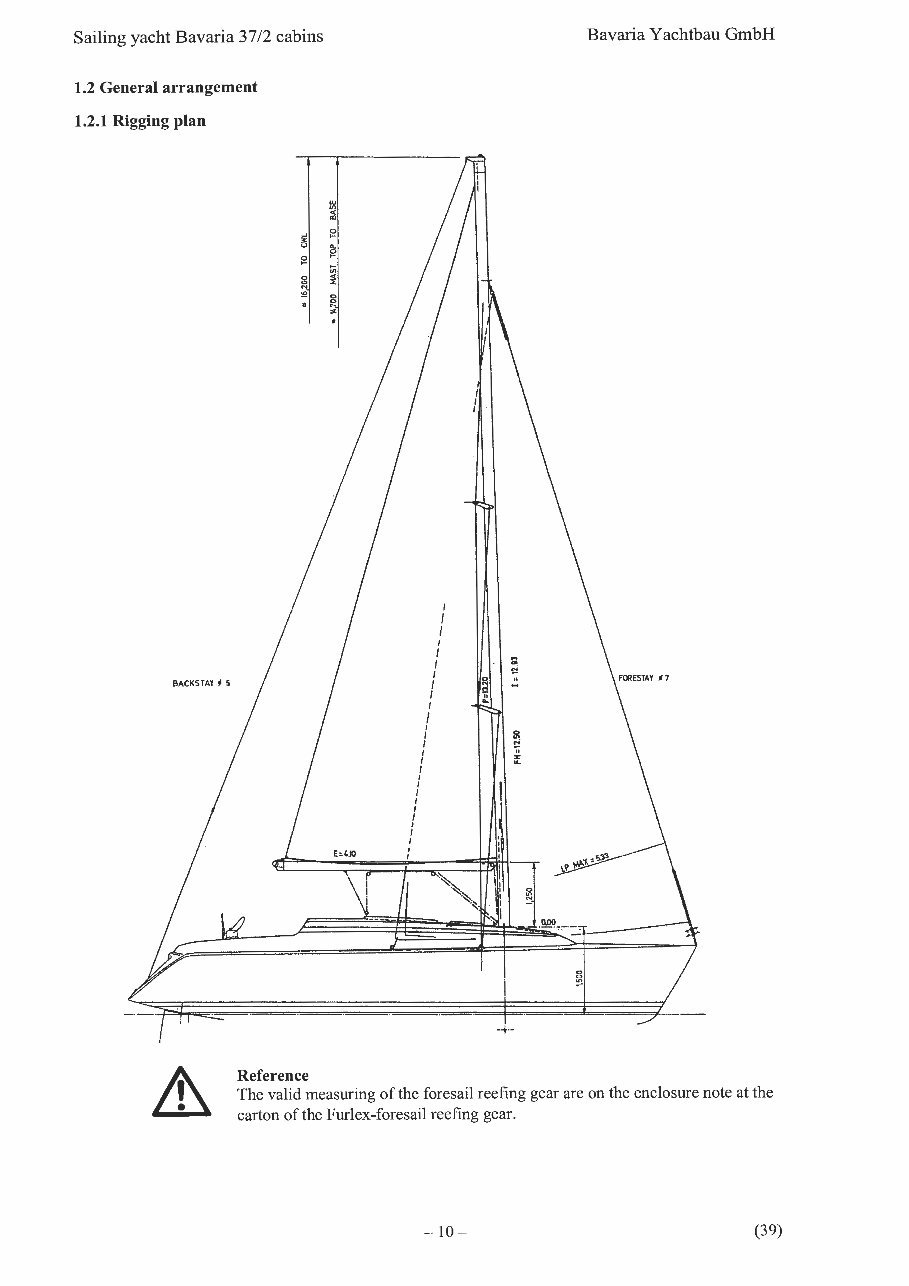

Sailing yacht Bavaria 37/2 cabins 1.2 General arrangement 1.2.1 Rigging plan BACKSTAY ., 5 Reference E:4.10 \ I \ ! I I I I I I I I I I I I I I I I I I I I I J I I Bavaria Y achtbau GmbH -+- The valid measuring of the foresail reefing gear are on the enclosure note at the carton of the Fur lex-foresail reefing gear. - 10- (39)
